Sheet 05.521
Lucky Tone · Other equipment

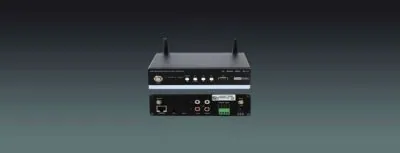

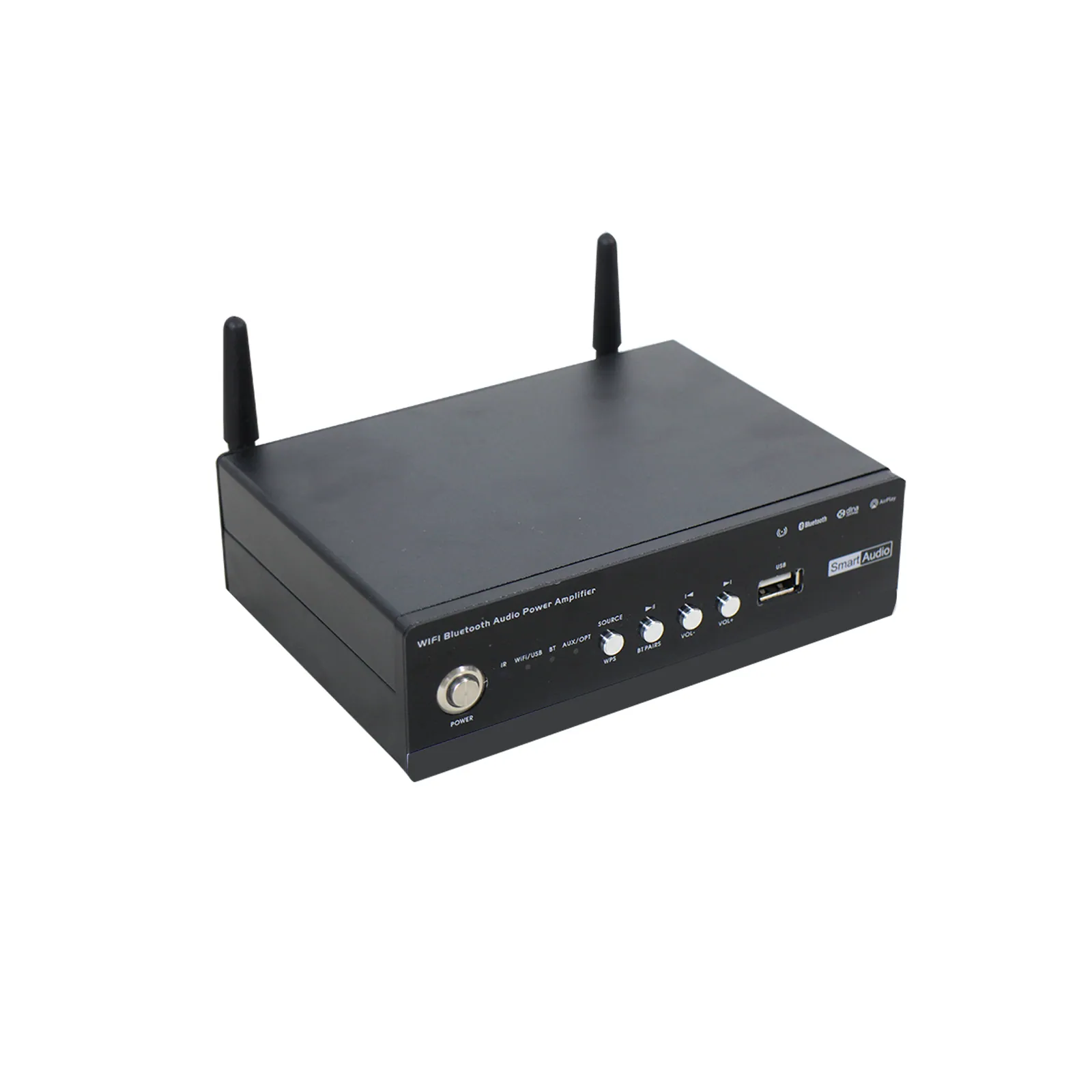

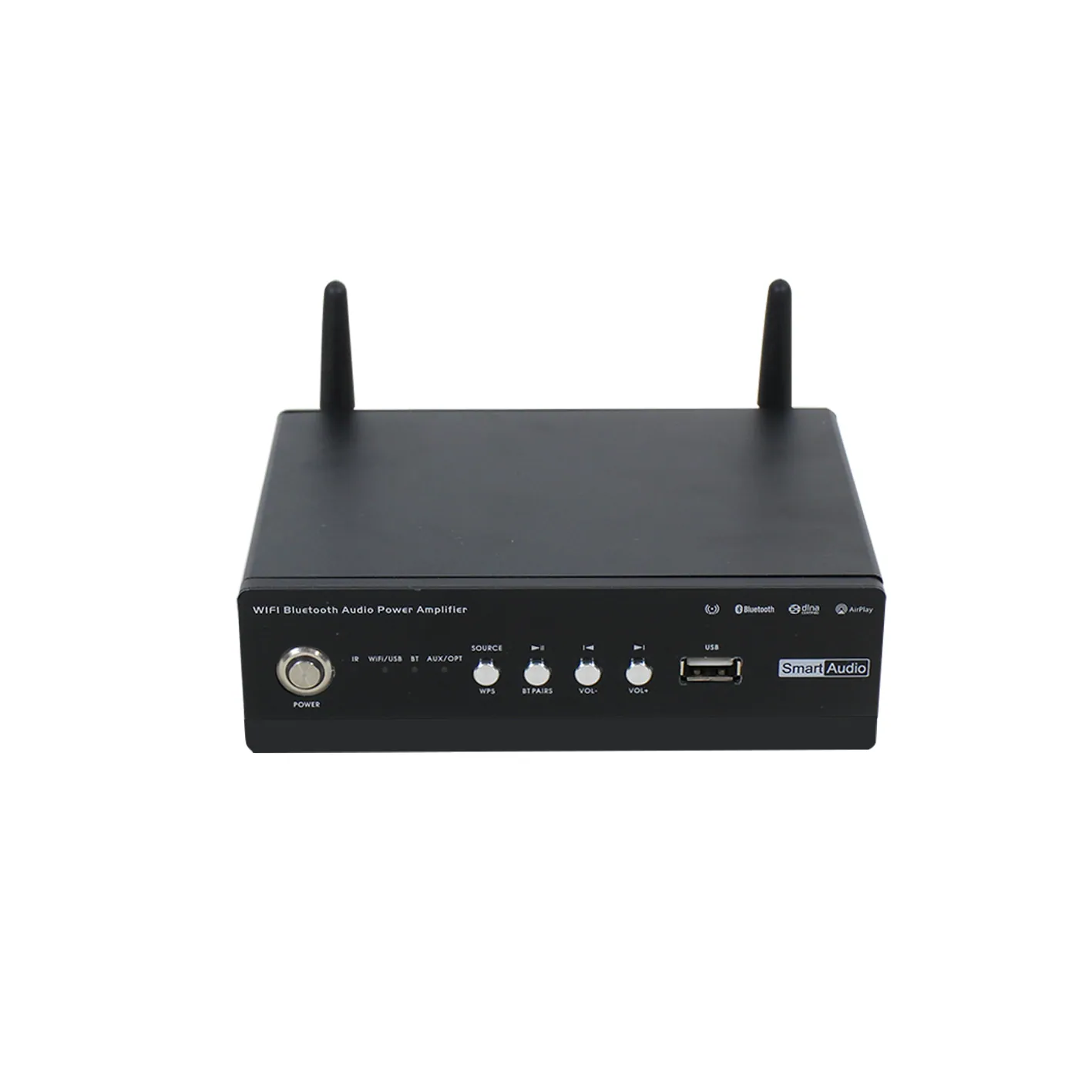

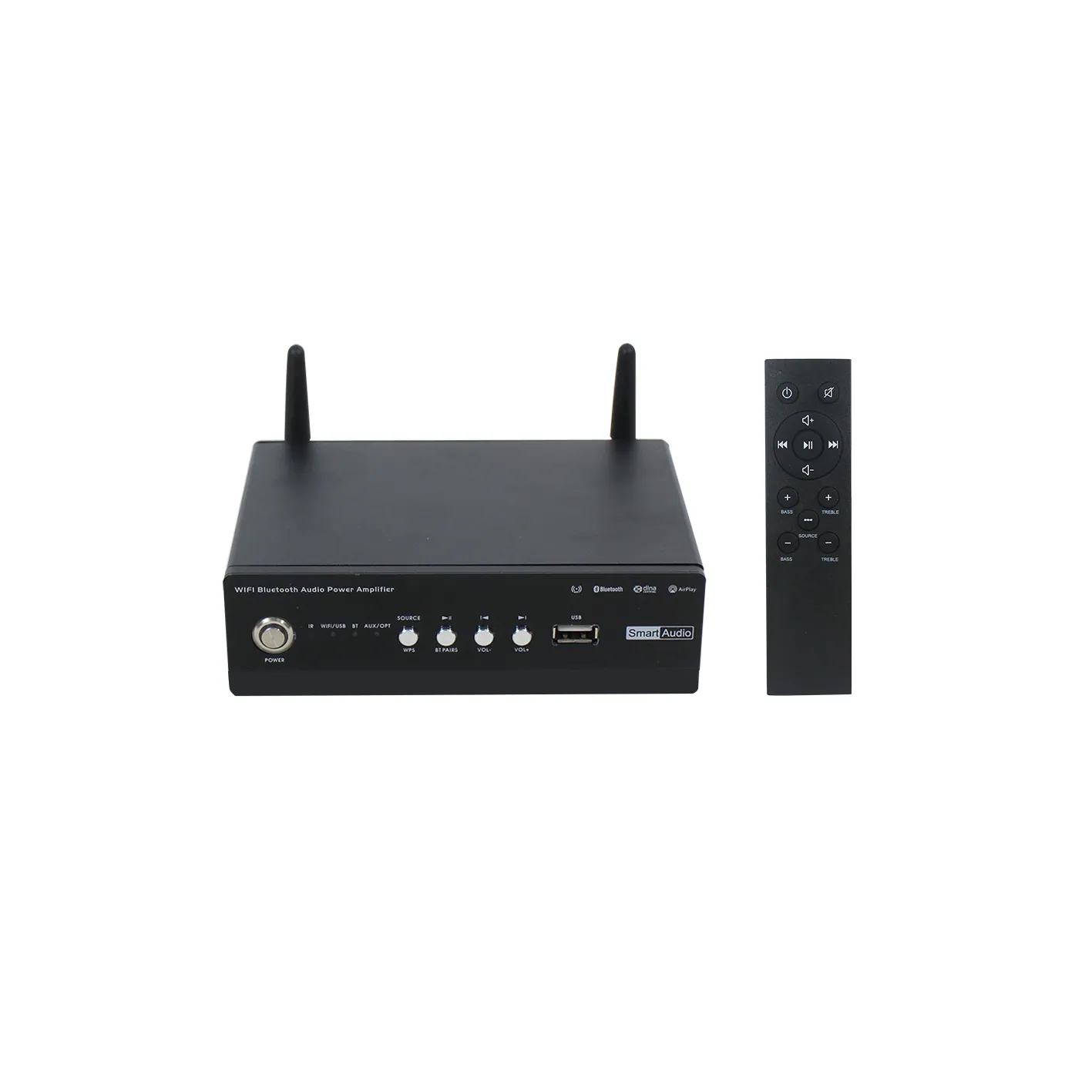

2-CH WiFi & Bluetooth Audio Amplifier
ModelWF-AMP260Plus/WF-200Plus
WF-AMP260Plus Series is a compact 2 x 60W amplififier with WiFi, Bluetooth, USB and AUX inputs. It is designed to turn the traditional passive speakers into multi-functional wireless speakers.
- Output power
- 60W x 2 @4 ohm 30W x 2 @8 ohm/NA
- Frequency response
- 20-20KHz
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
2-CH WiFi & Bluetooth Audio AmplifierPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 12 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications12
- Model
- WF-AMP260Plus/WF-200Plus
- Output Power
- 60W x 2 @4 ohm 30W x 2 @8 ohm/NA
- Input voltage of the power adaptor
- 100-240VAC, 50/60Hz
- Audio inputs

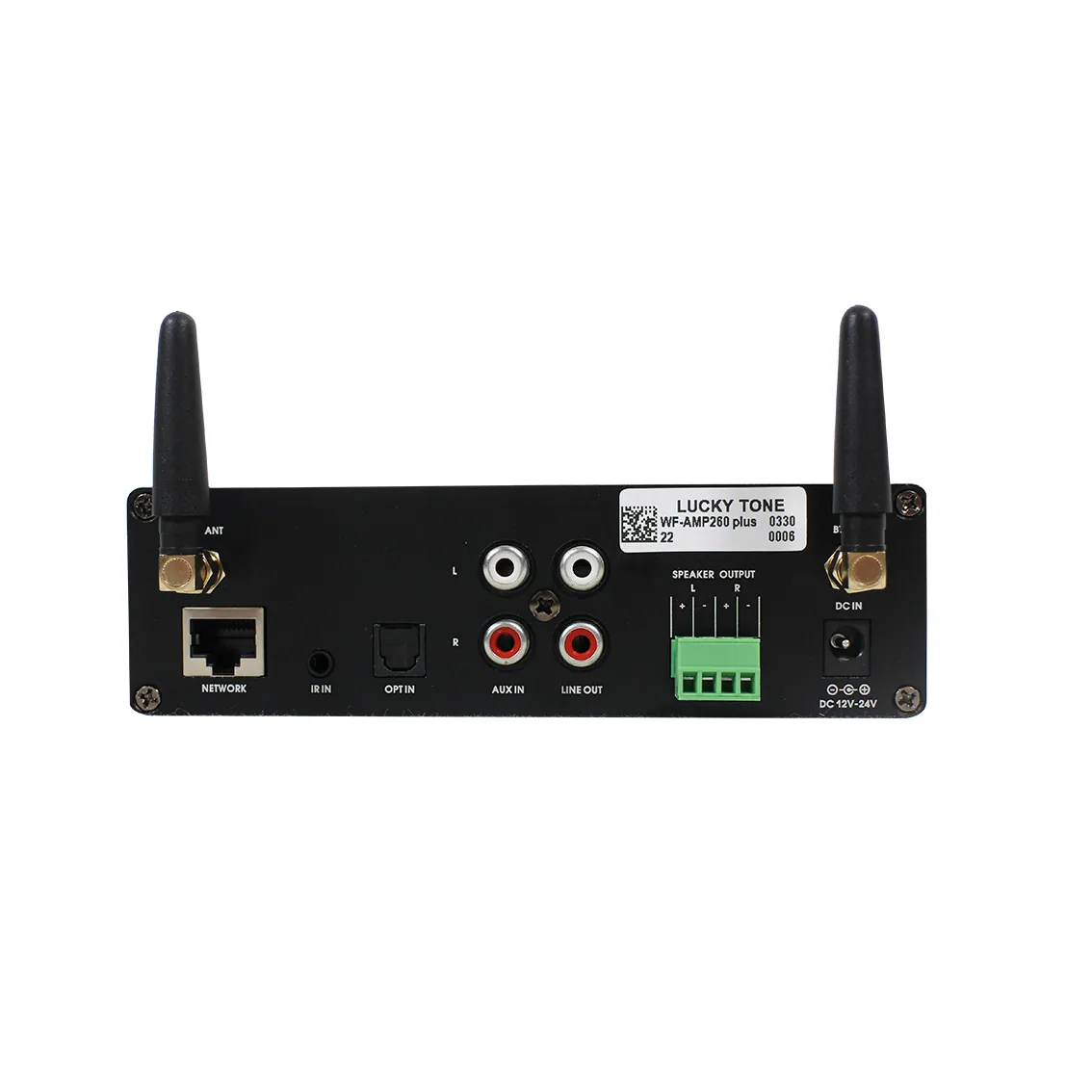

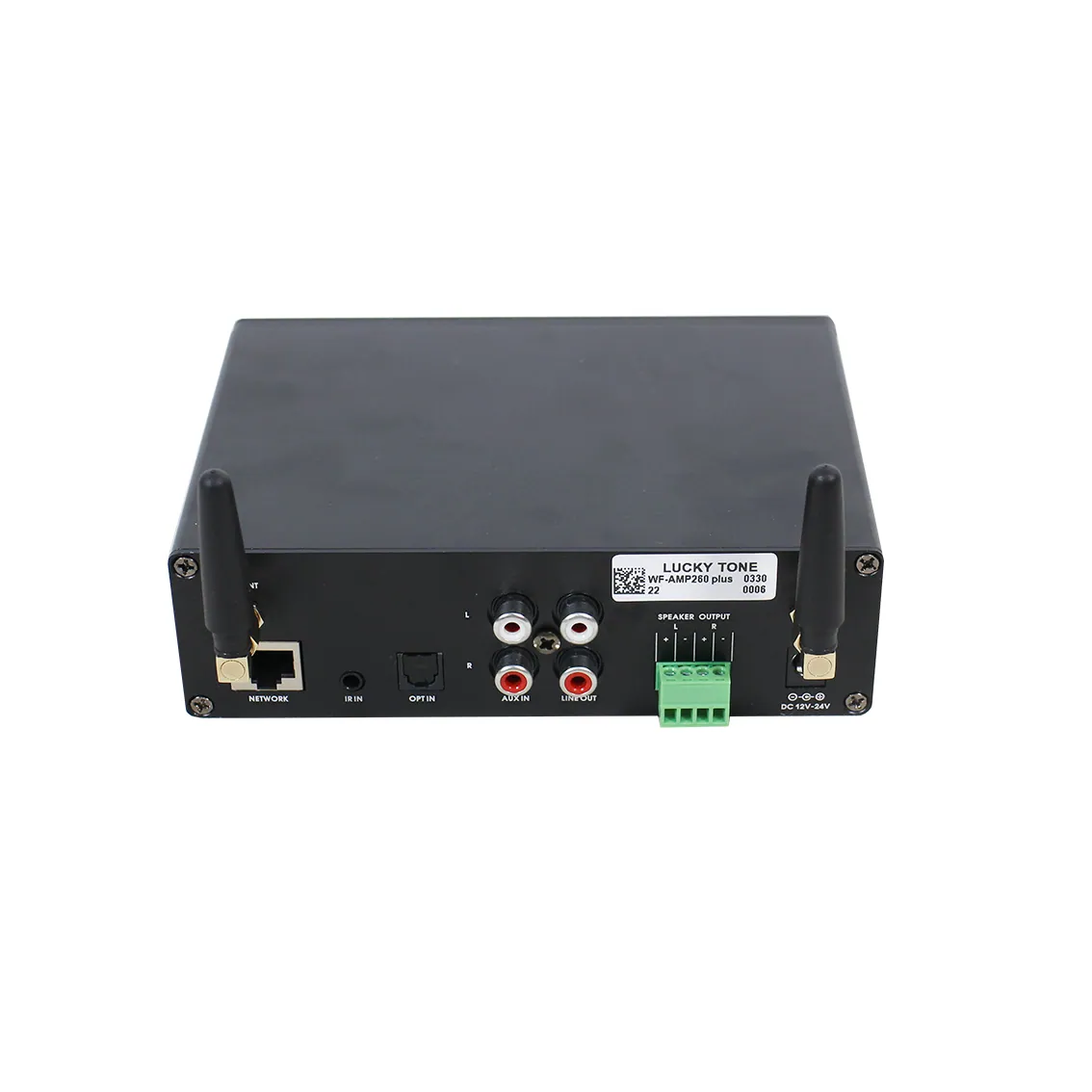

- WiFi, Bluetooth, USB, AUX
- Line input sensitivity
- 500mV
- SNR
- 92dB
- Frequency range
- 20-20KHz
- Impedance
- 4-8 ohm
- Amplifier Class
- Class D/NA
- Materials
- Aluminum alloy
- Color
- Black
- Product dimensions (LxWxH)
- 152 x 100 x 44 mm
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Description
Features
- Allows wireless music streaming via WiFi or Bluetooth
- With 2 x 60W stereo speaker outputs
- With USB reader and AUX input for more audio sources
- Supports online music, Internet radio, Airplay, DLNA
- Convenient music management by WiiM APP
Ordering code
WF-AMP260Plus: 2-CHANNEL WIFI & BLUETOOTH AUDIO AMPLIFIER 2*60W
WF-200Plus: Stereo WIFI Audio Router with BLUETOOTH, Spotify, airplay
03Documents1 file · 730 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
