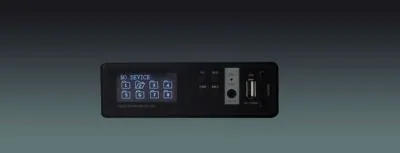

Voice alarm REC & PLAY

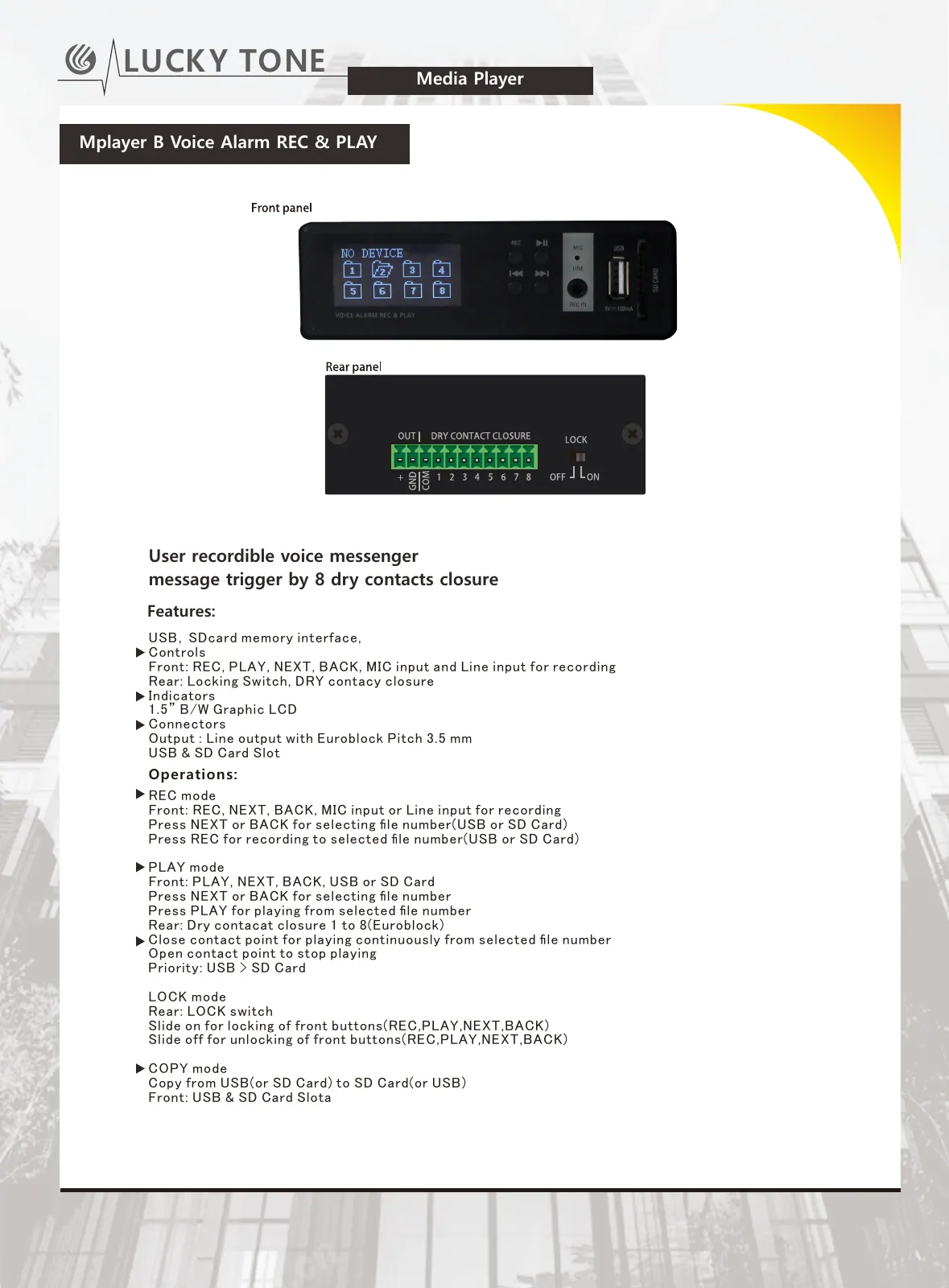

• Mplayer B Voice alarm REC & PLAY
• User recordible voice messenger
• USB,SD card memory interface,

Controls

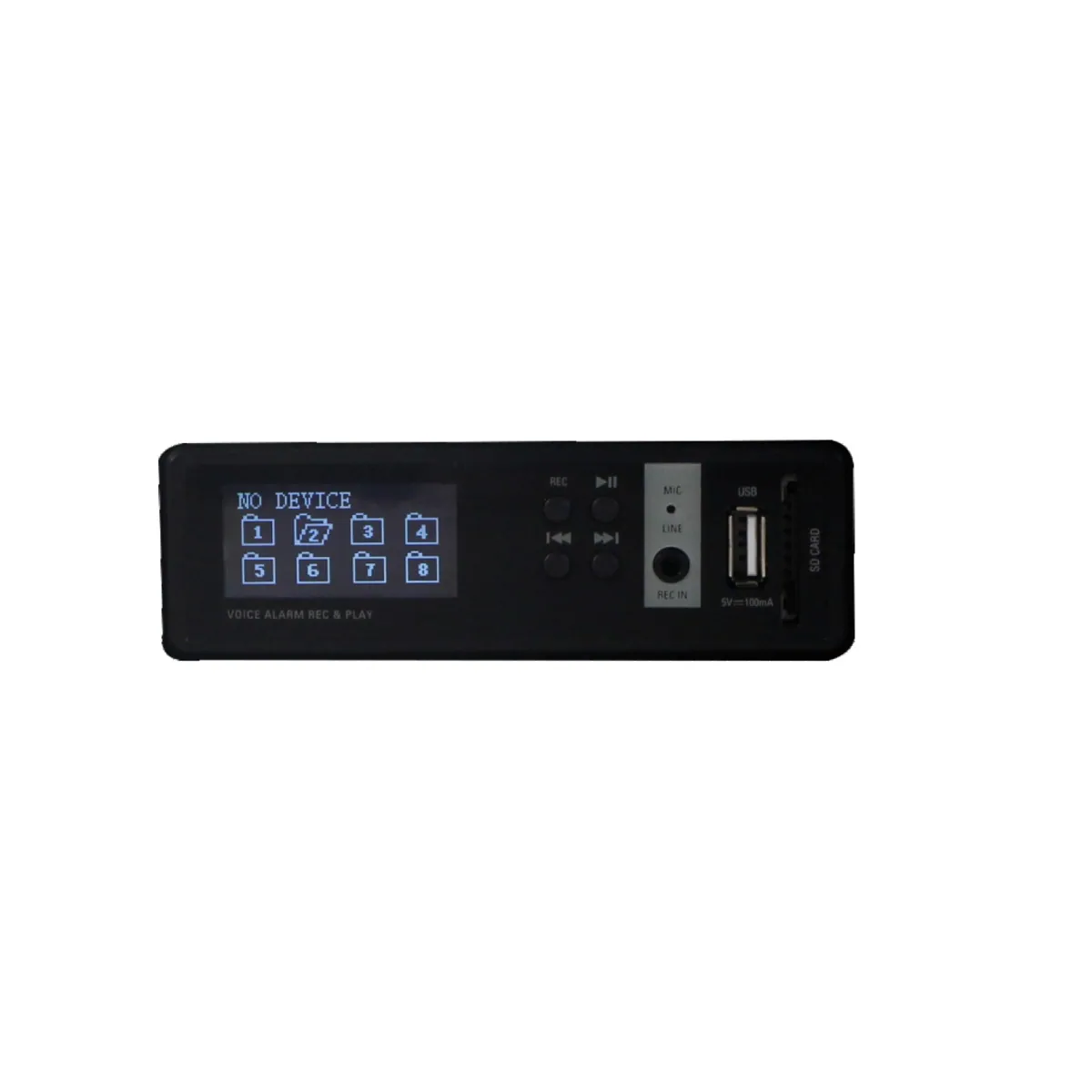

Front: REC, PLAY, NEXT, BACK, MIC input and Line input for recording

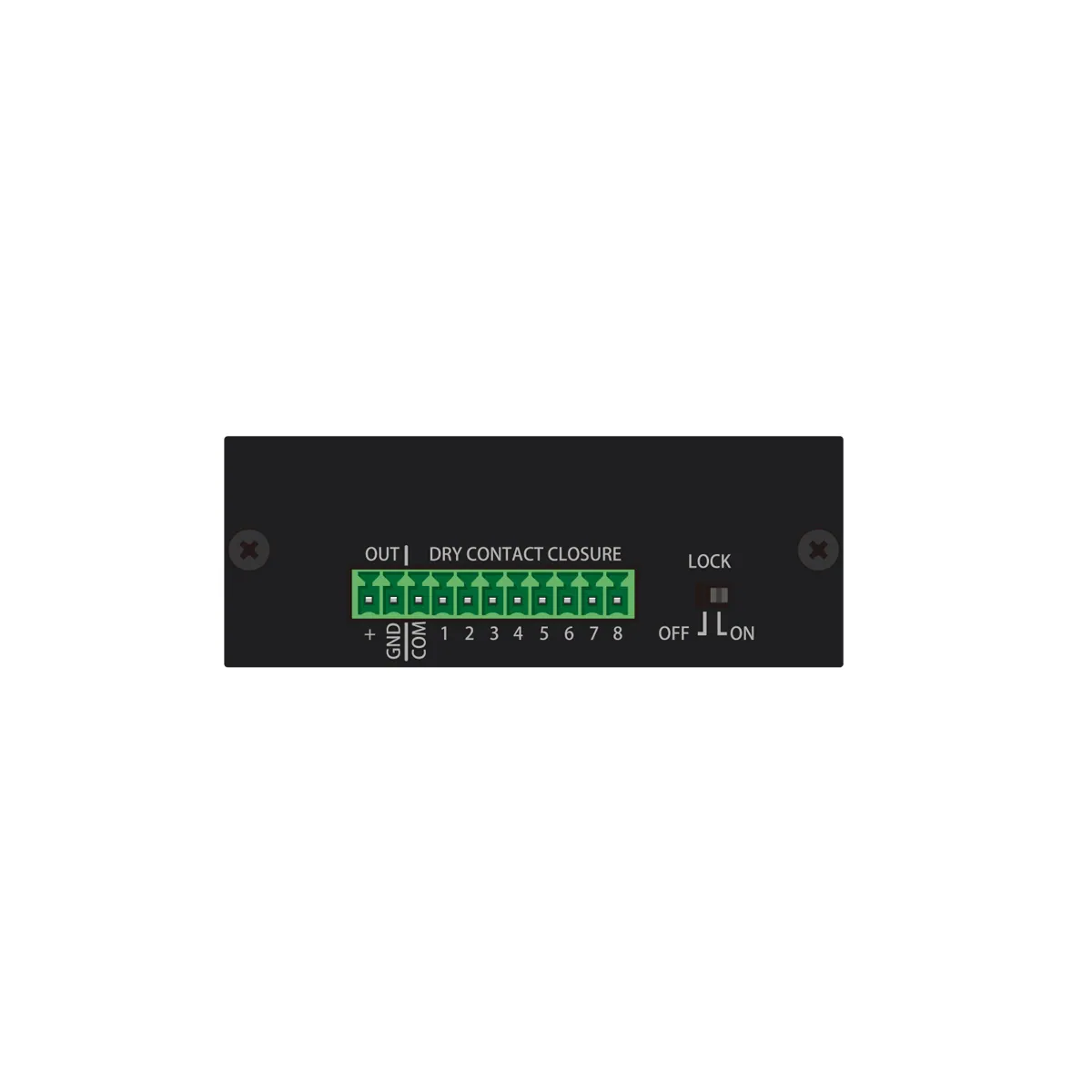

Rear: Locking Switch, DRY contacy closure

Indicators

1.5” B/W Graphic LCD

Connectors

Output : Line output with Euroblock Pitch 3.5 mm

USB & SD Card Slot

Operations

REC mode

• Front: REC, NEXT, BACK, MIC input or Line input for recording
• Press NEXT or BACK for selecting file number(USB or SD Card)
• Press REC for recording to selected file number(USB or SD Card)

PLAY mode

• Front: PLAY, NEXT, BACK, USB or SD Card
• Press NEXT or BACK for selecting file number
• Press PLAY for playing from selected file number
• Rear: Dry contacat closure 1 to 8(Euroblock)
• Close contact point for playing continuously from selected file number
• Open contact point to stop playing
• Priority: USB > SD Card

LOCK mode

Rear: LOCK switch

Slide on for locking of front buttons(REC,PLAY,NEXT,BACK)

Slide off for unlocking of front buttons(REC,PLAY,NEXT,BACK)

COPY mode

Copy from USB(or SD Card) to SD Card(or USB)

Front: USB & SD Card Slota
