Sheet 05.223

Lucky Tone · Loudspeakers

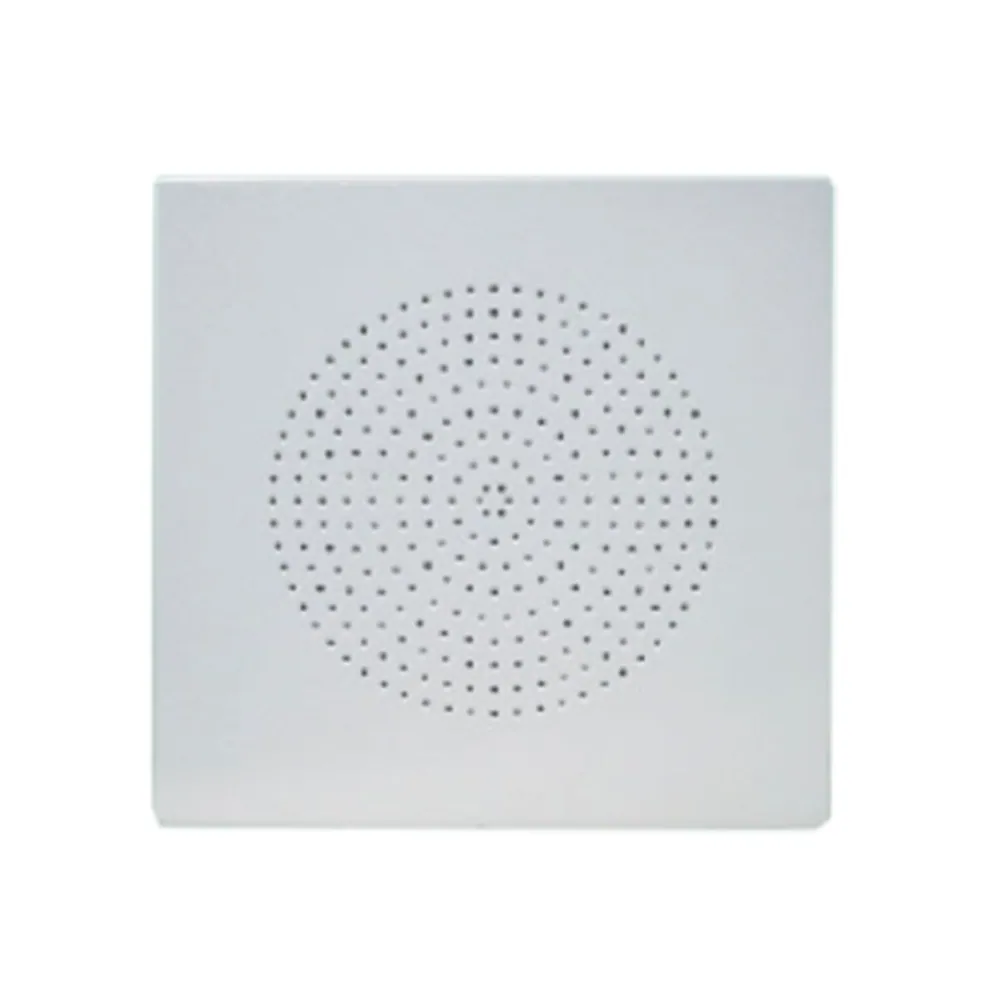

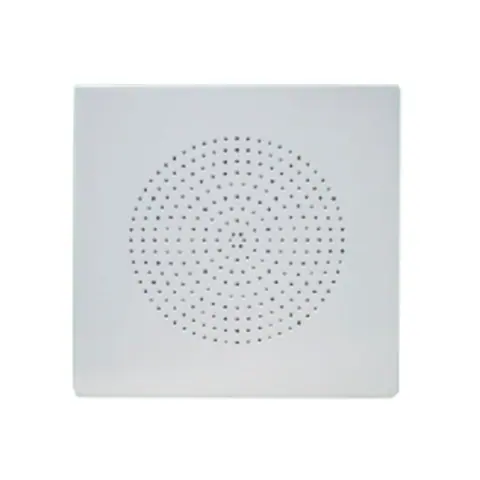

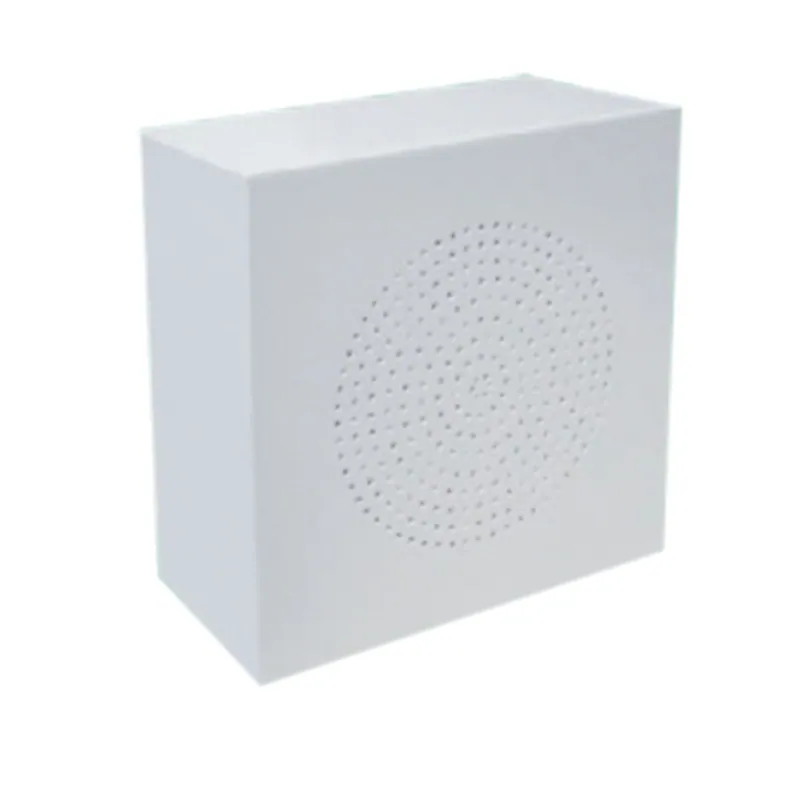

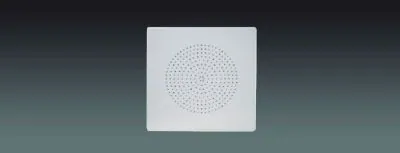

Vandal Proof Wall Mount Speaker

ModelWM-506VP

Conform to Fire protection Norm-BS 5839

Frequency response: 120-10KHz

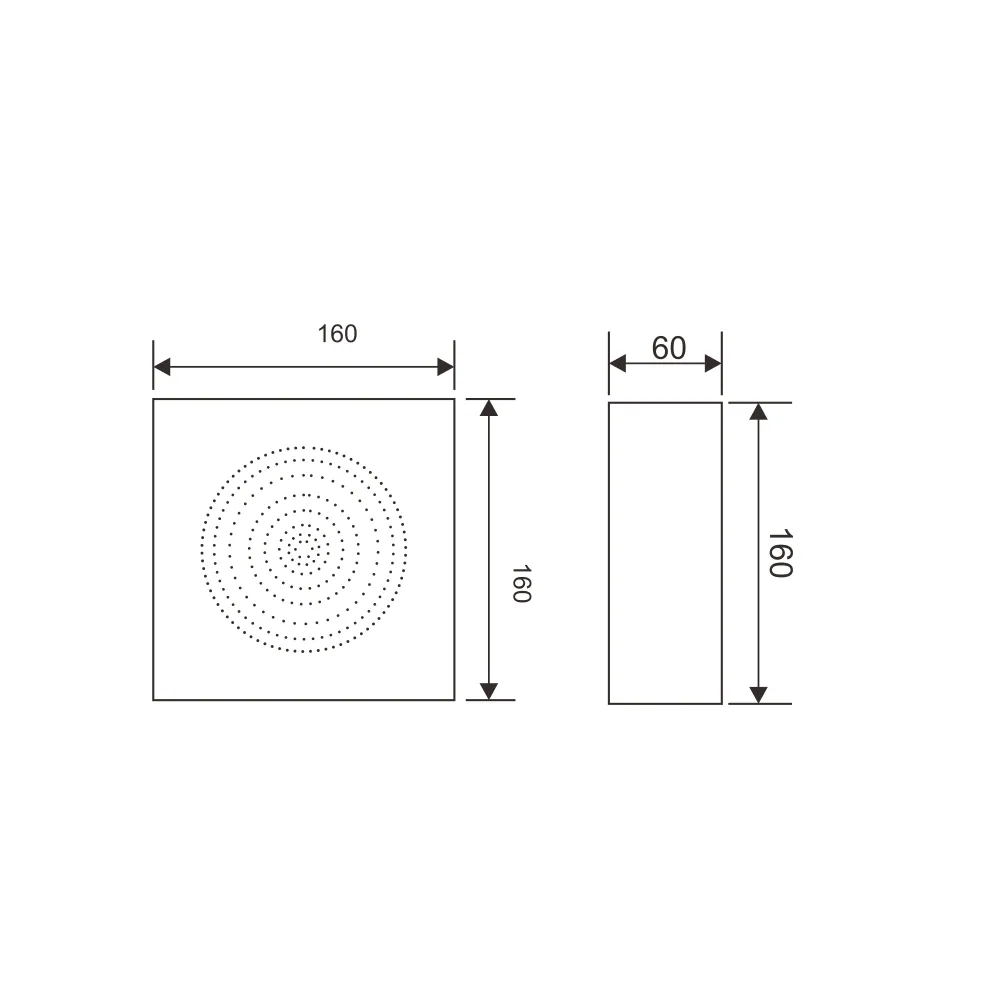

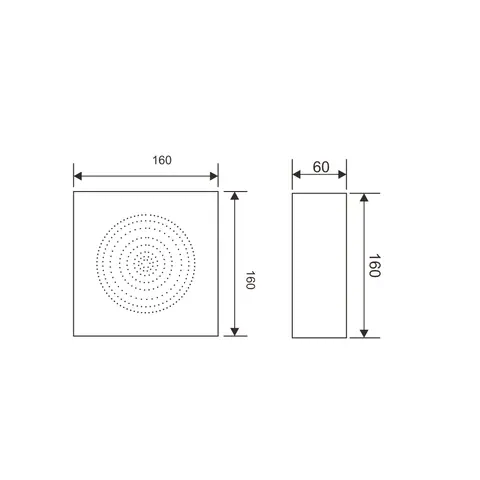

Dimensions: 160*160*60mm
Weight: 220g

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 21 values

What this product is, in numbers.

PDFSpecifications909 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications21

MODEL: WM-506VP
Frequency response: 120-10KHz
Sensitivity(1M/1W): 92dB
Power handling: 6W
Power taps: 0.75W/1.5W/3W/6W
Line Input: 100V
Dimension: 160*160*60mm
Material: Iron
Component: 5″
Finished color: Grey
Character: Non-flammable
Unit weight: 1.4kg
Speaker
Voice coil size: PSV 14.28*0.1*2 player
DC impedance: 7.3Ω
Former: Paper
Magnet: Ferrite(106g) Dia 55*24*10(Y30)
Basket: Iron
Cone material: Paper
Spider: Cloth
Dust cap: Paper
Net weight: 220g

02DescriptionManufacturer's description

What it is.

Corrosion-resistant powder coating

Ceramic clamp + thermofuse

Ball proof

Vandal proof

03Documents1 file · 909 KB

Documents and files.

Main document

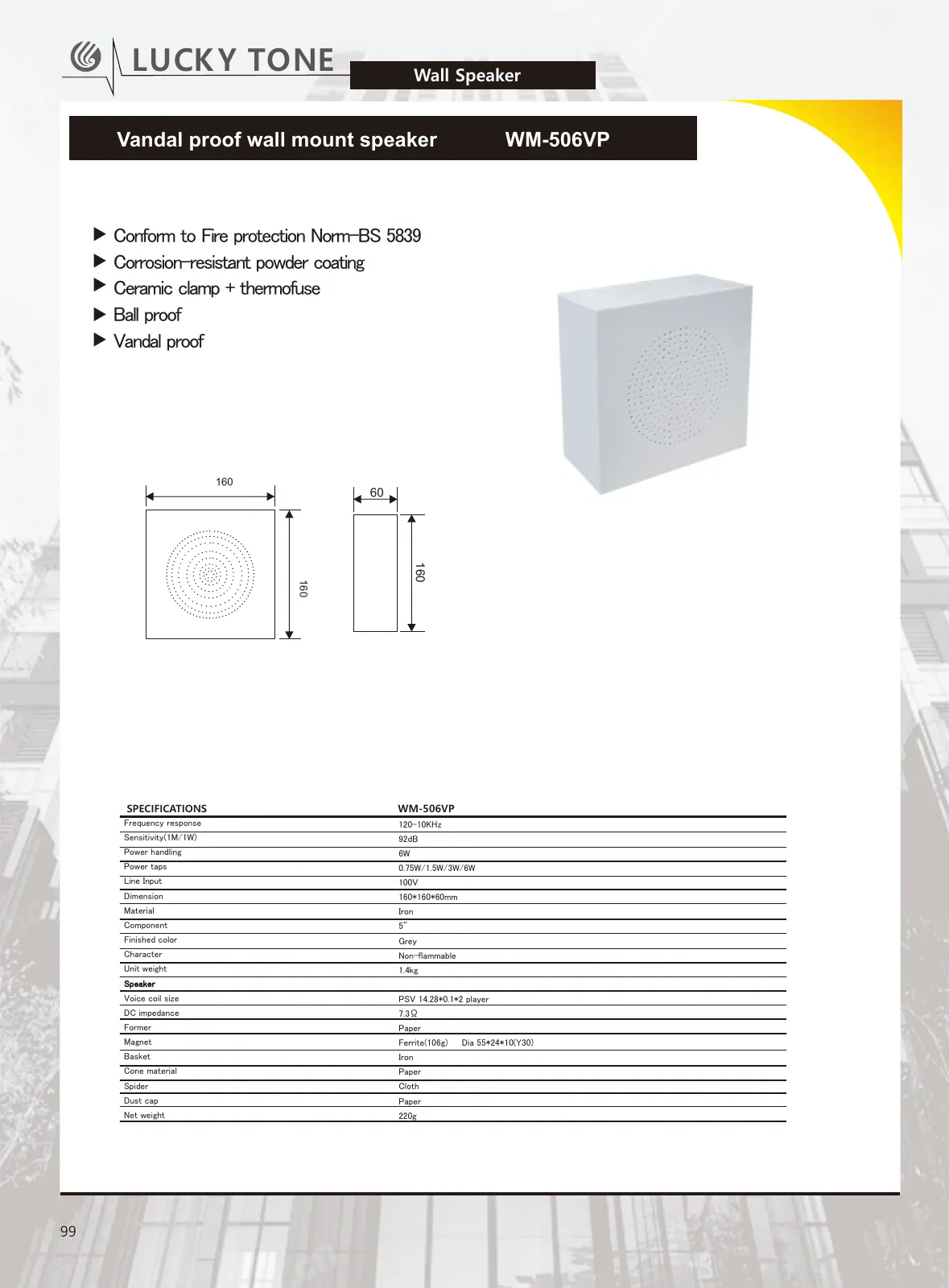

Specifications

PDF · 909 KB

Download specifications
