Sheet 05.221
Lucky Tone · Loudspeakers

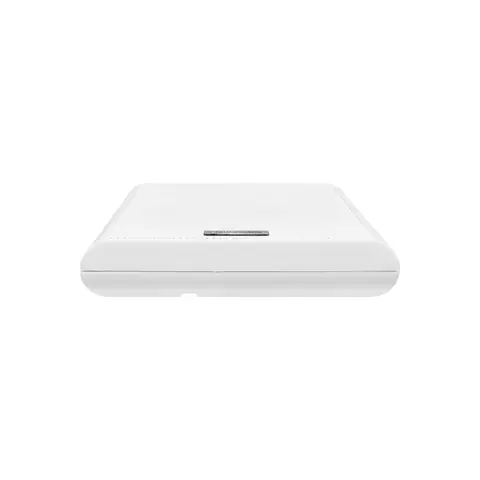

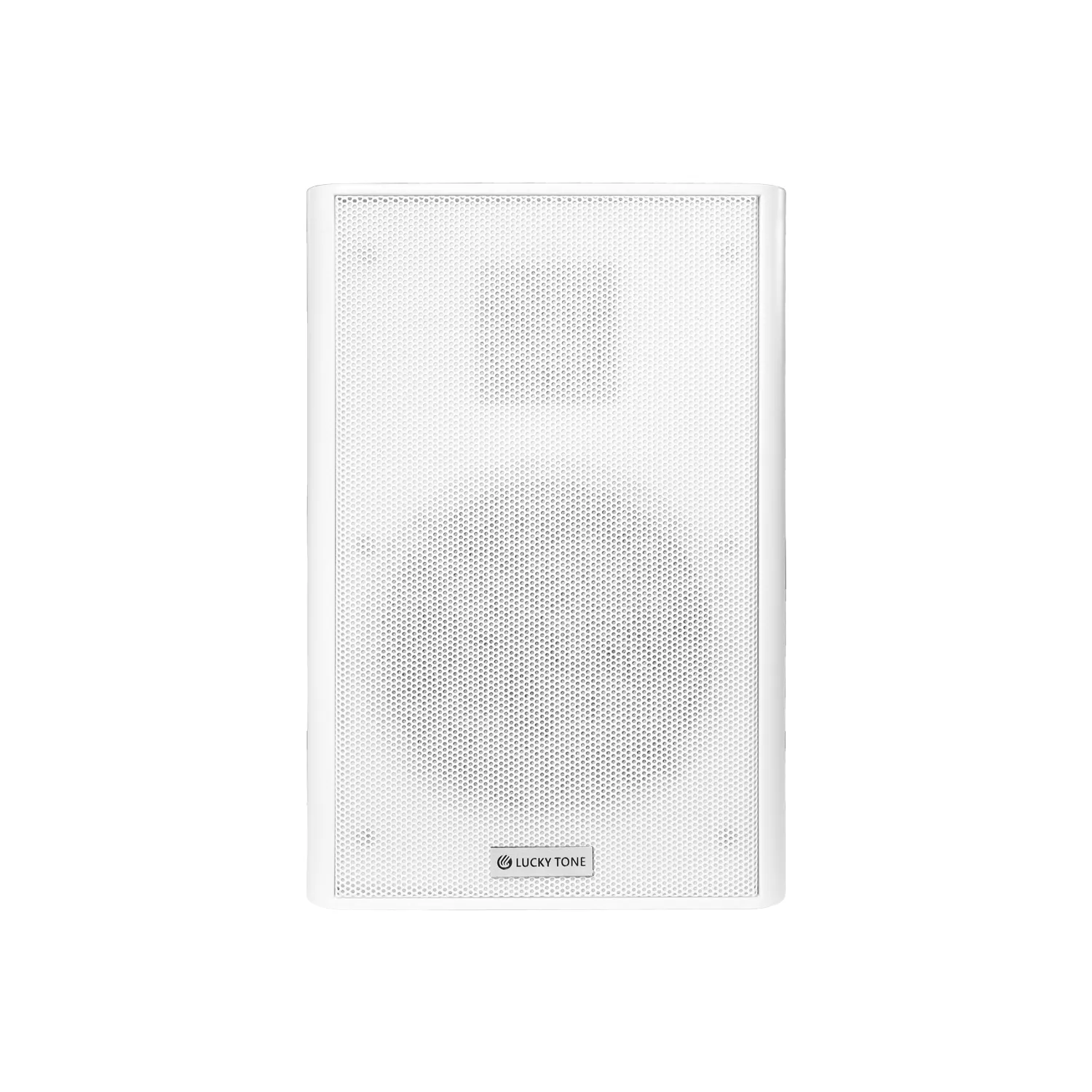

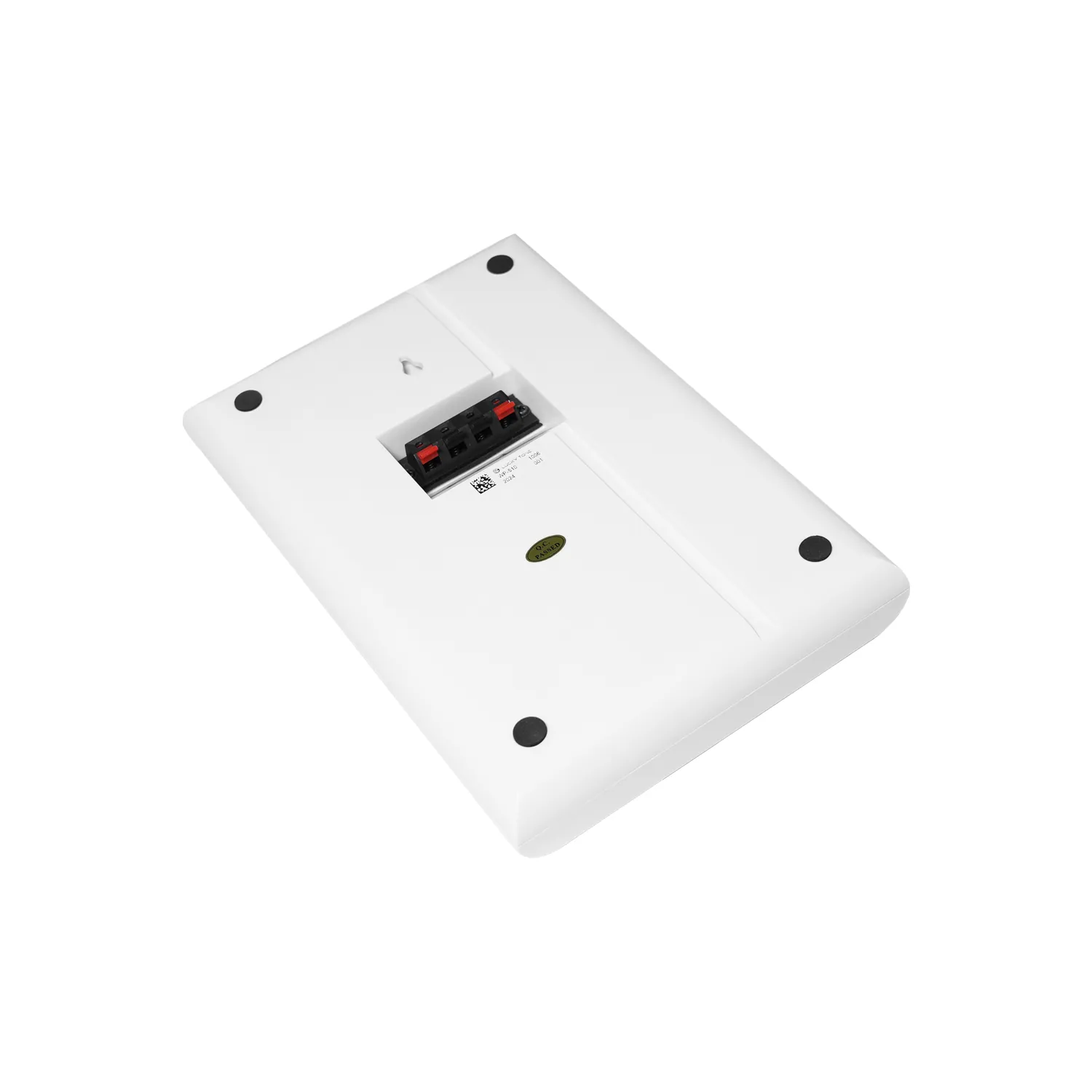

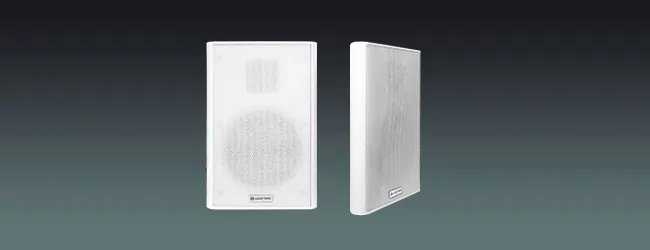

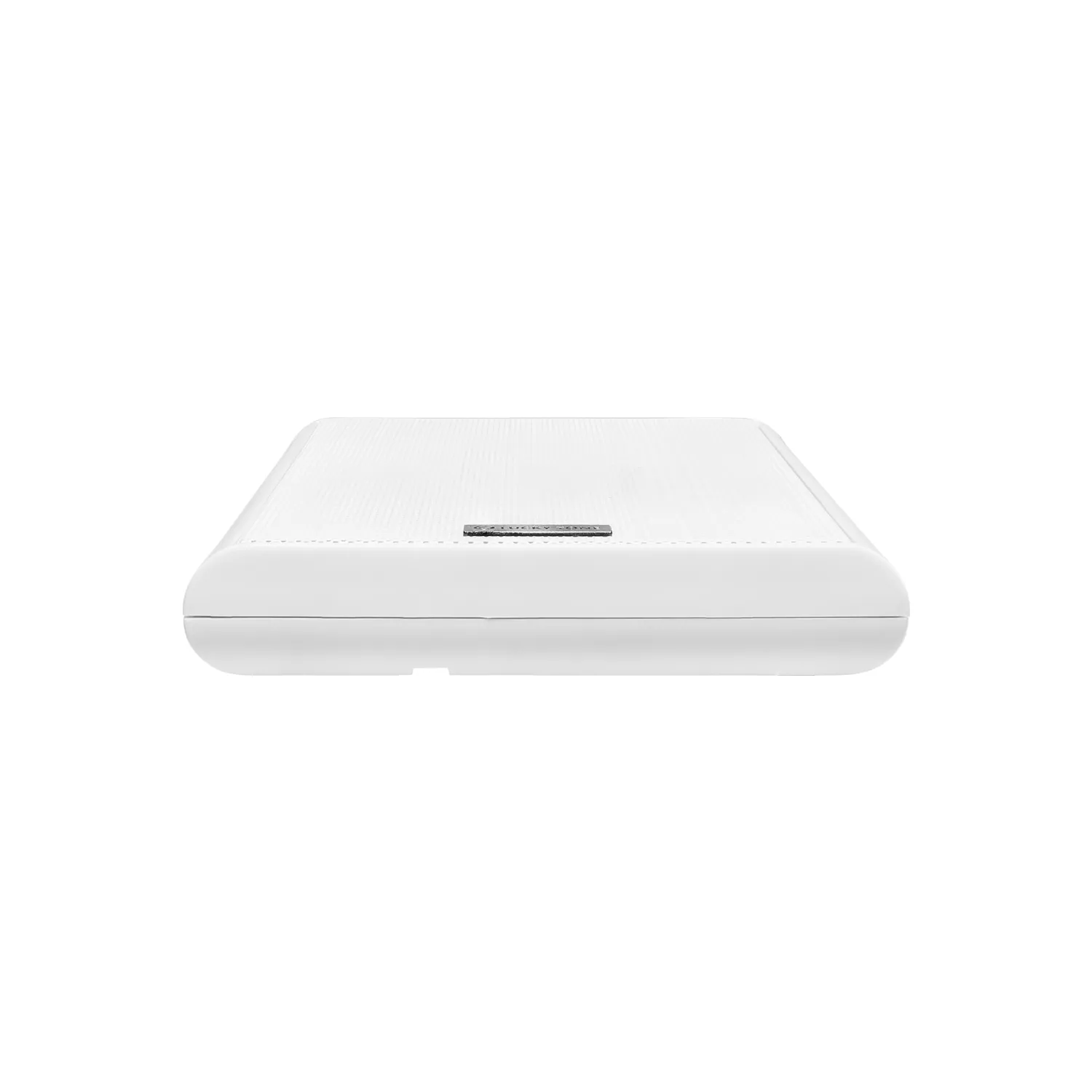

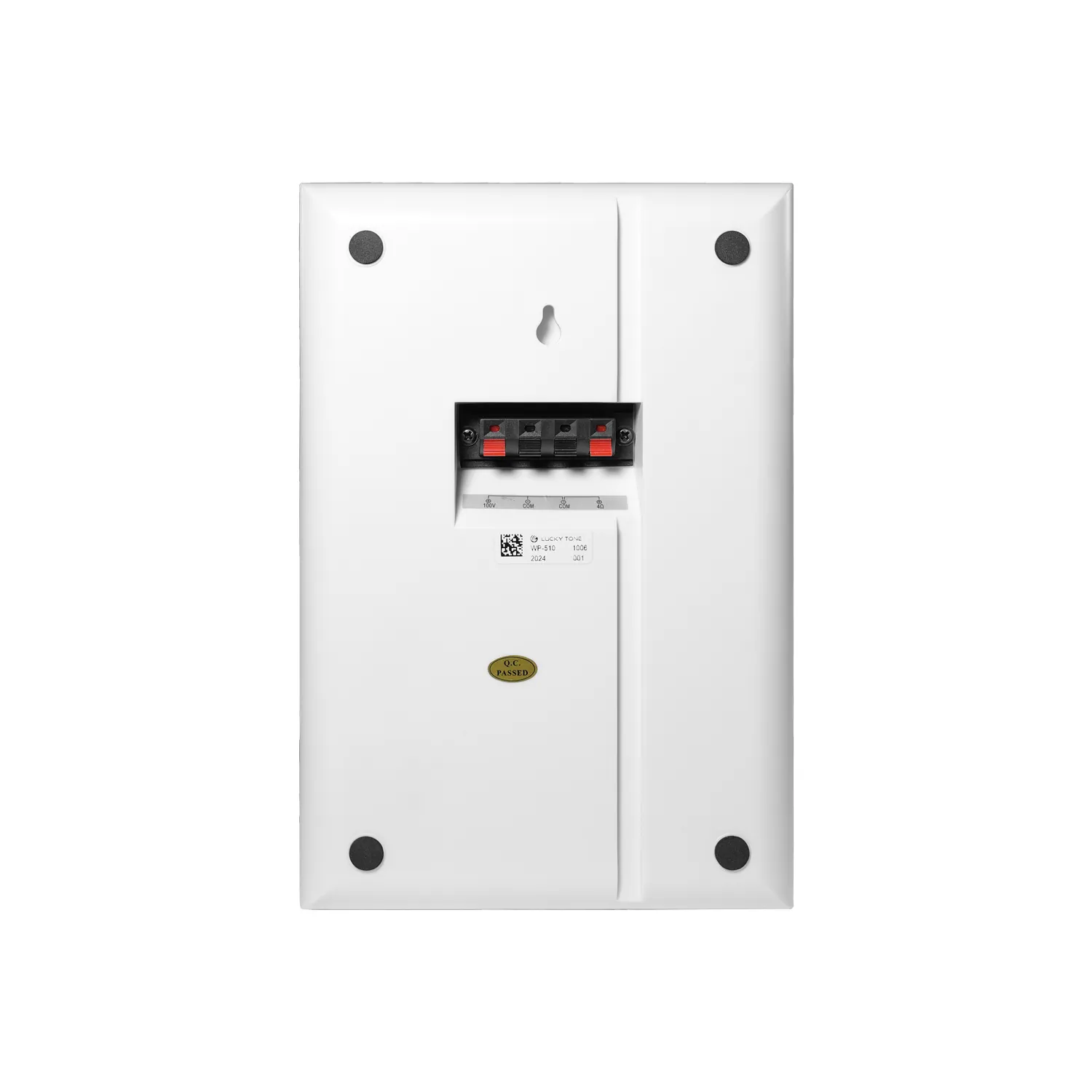

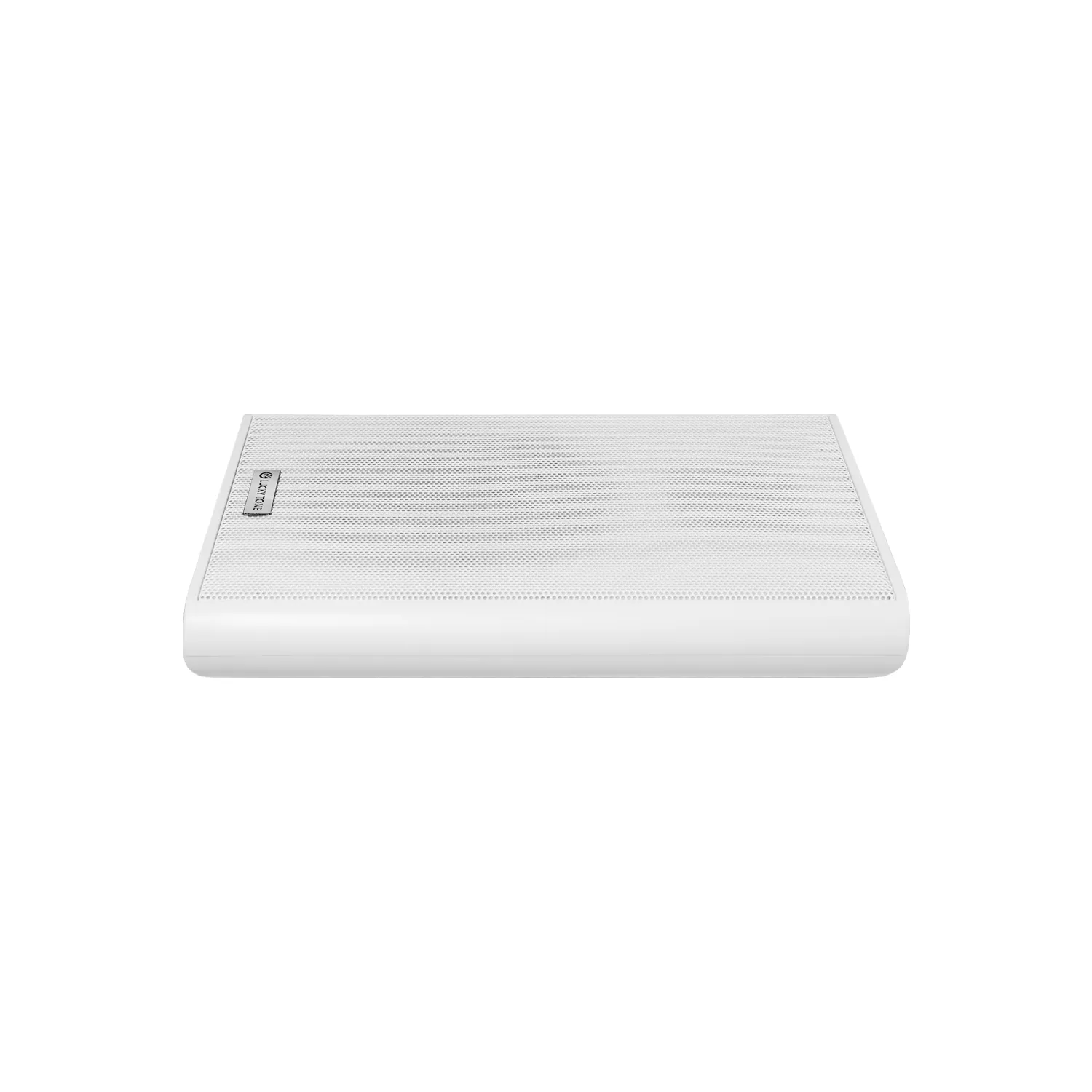

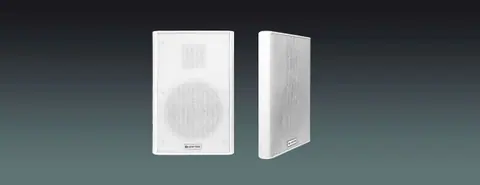

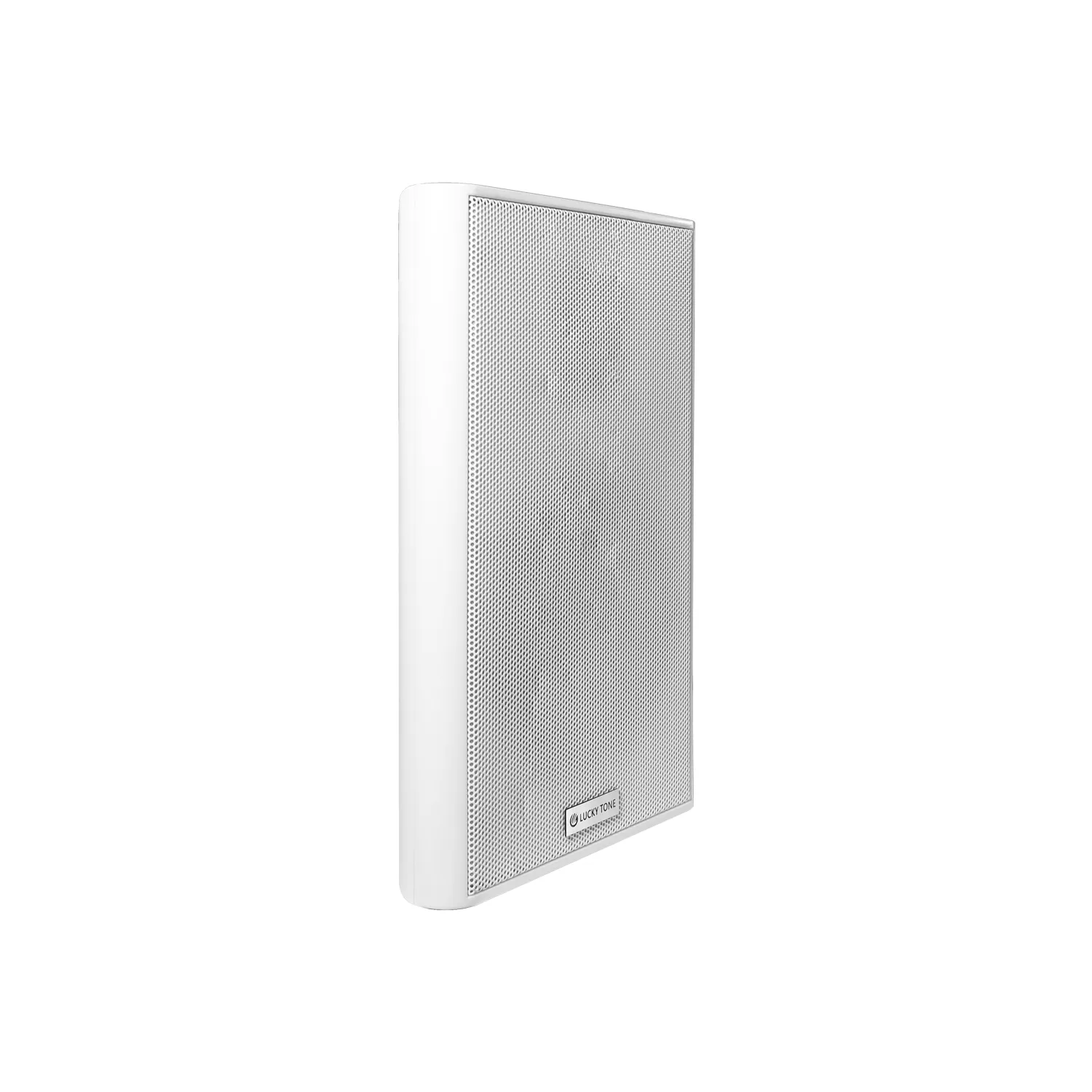

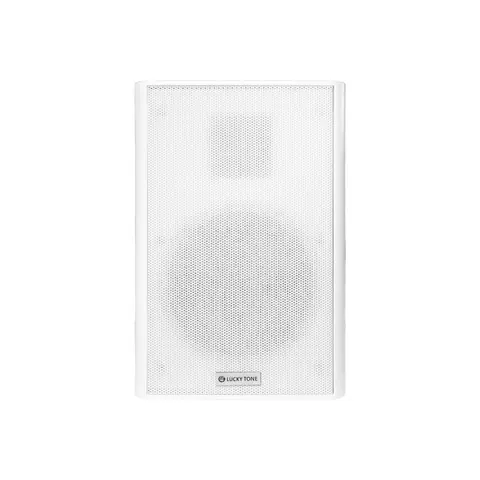

Lucky Tone Ultra-thin Wall Mount Speaker WP-510
ModelWP-510
Ultra-thin design with only 38mm thickness, optimizing space usage.
- Output power
- 10W@100V, 20W@4ohm
- Frequency response
- 120Hz-20KHz
- Weight
- 980g
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
Ultra-thin Wall Mount SpeakerPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 16 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications16
- Model
- WP-510
- Rated Power
- 10W@100V, 20W@4ohm
- Frequency Response
- 120Hz-20KHz
- Sensitivity
- 90dB
- Panel Material
- HIPS
- Speakers Size
- 5″ Woofer + 2″ Tweeter
- Voice Coil
- 0.17*2 Layer
- Impedance
- 3.2Ω
- Voice Coil Bobbin
- Paper
- Magnet
- Φ24*10, N35
- Frame
- Iron
- Cone Material
- ASV
- Spider
- Cloth
- Color
- White
- Product Size
- 270*183*38mm
- Net Weight
- 980g
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
- 100V and 4ohm switchable
- Stylish panel made of high-strength HIPS material, seamlessly fitting into various indoor settings.
- Compliant with CE standards for safety.
- Good for PA and BGM
03Documents1 file · 1.3 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
04Related products
In the same range.

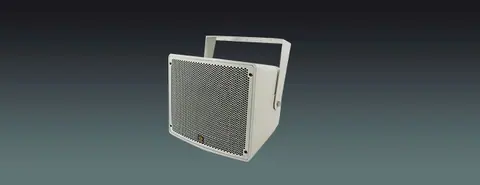

EQ-220Lucky ToneUltra-Compact Coaxial Two-Way All-weather Horn SpeakerRC-150 / RC-150T / RC-200 / RC-200T / RC-300 / RC-300T · LoudspeakersOutput powerRC-150: 150W@8ohm; RC-150T: 18.5W/37.5W/75W/150W@100V 9.5W/18.5W/37.5W/75W@70V 150W @8ohm; RC-200: 200W@8ohm; RC-200T: 25W/50W/100W/200W@100V 200W@8ohm; RC-300: 300W@8ohm; RC-300T: 37.5W/75W/150W/300W@100V 300W@8 ohmFrequency responseRC-150: 80Hz-18KHz; RC-150T: 80Hz-18KHz; RC-200: 70Hz-18KHz; RC-200T: 70Hz-18KHz; RC-300: 70Hz-18KHz; RC-300T: 70Hz-18KHzWeightRC-150: 10.5KG; RC-150T: 11KG; RC-200: 13.5KG; RC-200T: 15KG; RC-300: 18.5KG; RC-300T: 20KG

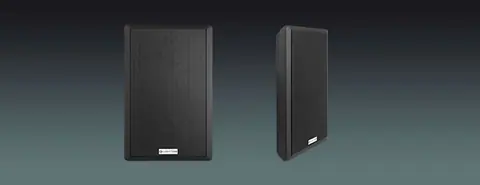

EQ-222Lucky ToneUltra-thin Wall Mount SpeakerWSP-512B/W / WSP-512TB/W · LoudspeakersOutput powerWSP-512B/W: 12W@8Ω; WSP-512TB/W: 6W/12W@100VFrequency response120Hz-20kHzWeight1.03kg

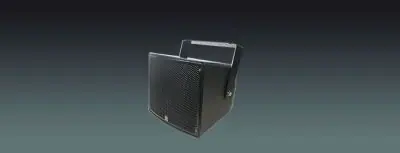

EQ-219Lucky ToneUltra-Compact Coaxial Two-Way All-weather Horn SpeakerRC-150 / RC-150T · LoudspeakersOutput powerRC-150: 150W@8ohm; RC-150T: 18.5W/37.5W/75W/150W@100V 9.5W/18.5W/37.5W/75W@70V 150W @8ohmFrequency response80Hz-18KHzWeightRC-150: 10.5KG; RC-150T: 11KG
