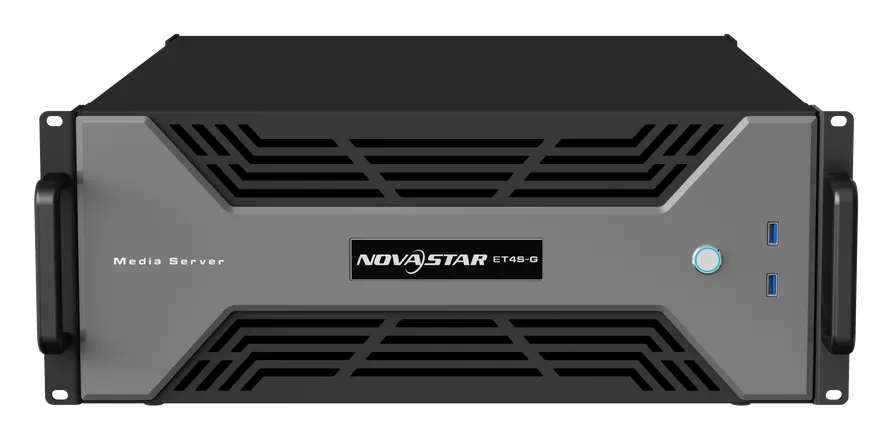

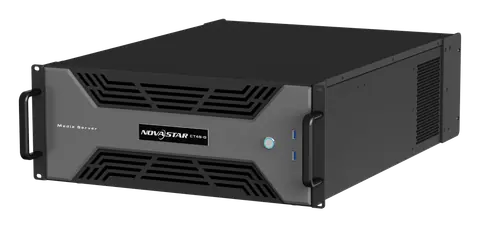

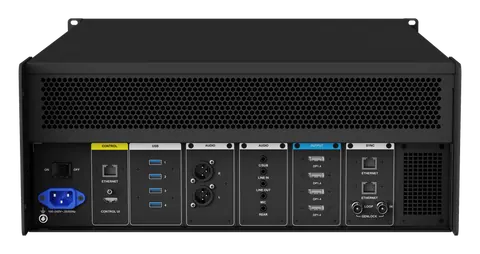

ET4S-G(A4)

Media Server.

Chassis: 4U
RAM: 32G (DDR5)
CPU: 12th Gen Intel Core Processor (i7-12700)
Storage: 250GB M.2 high-speed SSD (system disk) / 1TB M.2 high-speed SSD (storage disk)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 16 values

What this product is, in numbers.

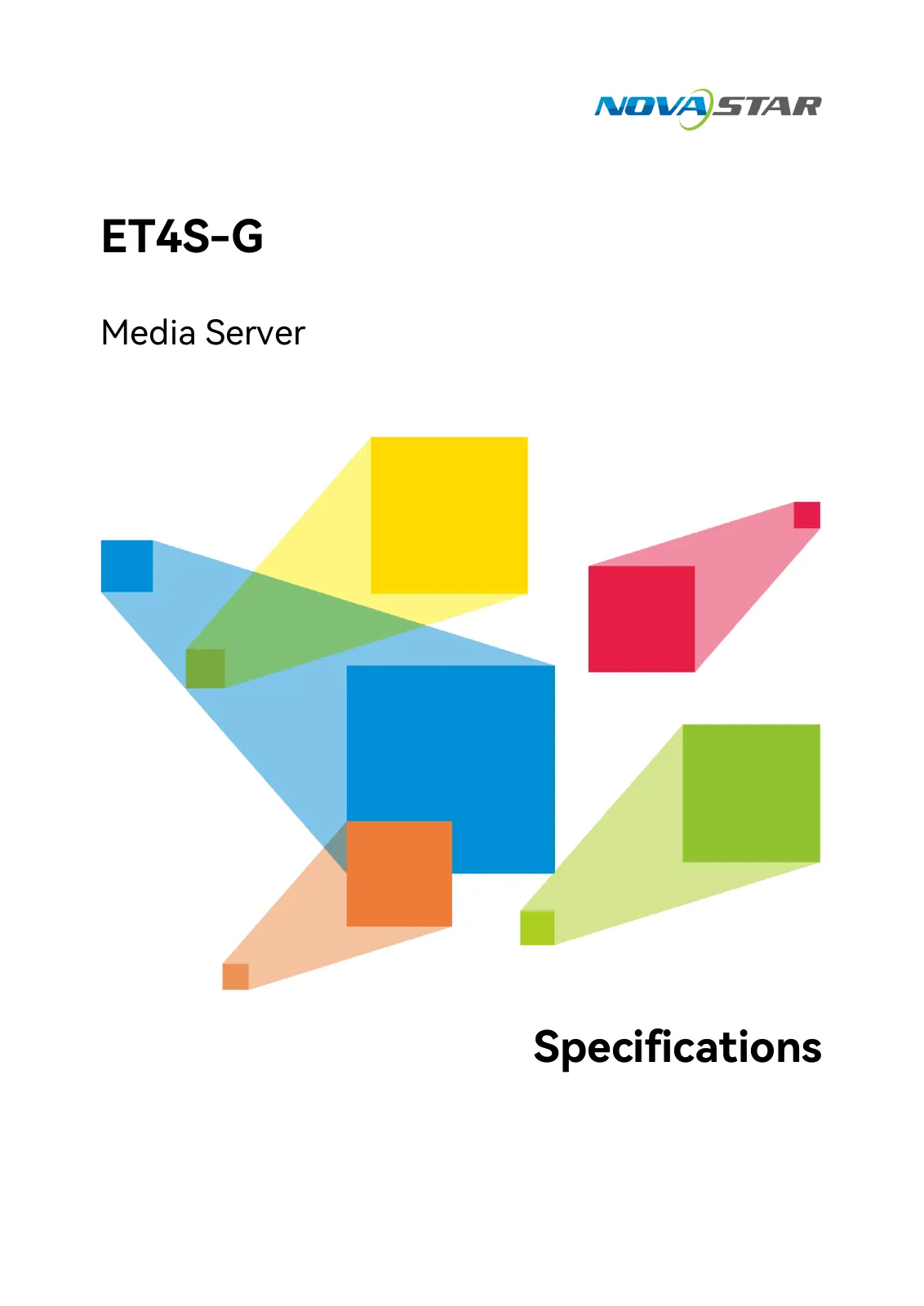

PDFSpecificationsEN · 14 pages · 1.2 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications16

Chassis: 4U
RAM: 32G (DDR5)
CPU: 12th Gen Intel Core Processor (i7-12700)
Storage: 250GB M.2 high-speed SSD (system disk) / 1TB M.2 high-speed SSD (storage disk)
Graphics Card: HPG4000/HPGA4000
Loading Capacity: 4x 5120*2880@60Hz
Decoding Capability: 1x 8K4K@60fps or 4x 4K2K@60fps
Programs: Unlimited
Layers: 12 mixing layers, 1 audio layer, expandable, limit: 60
EDID Lock: √
Device Link: √
Frame Sync Mosaic: √ (with sync card)
Device Backup: √ (with sync card)
IPAD Control: √
Protocol Control: √
OS: Windows 10 Enterprise LTSC
