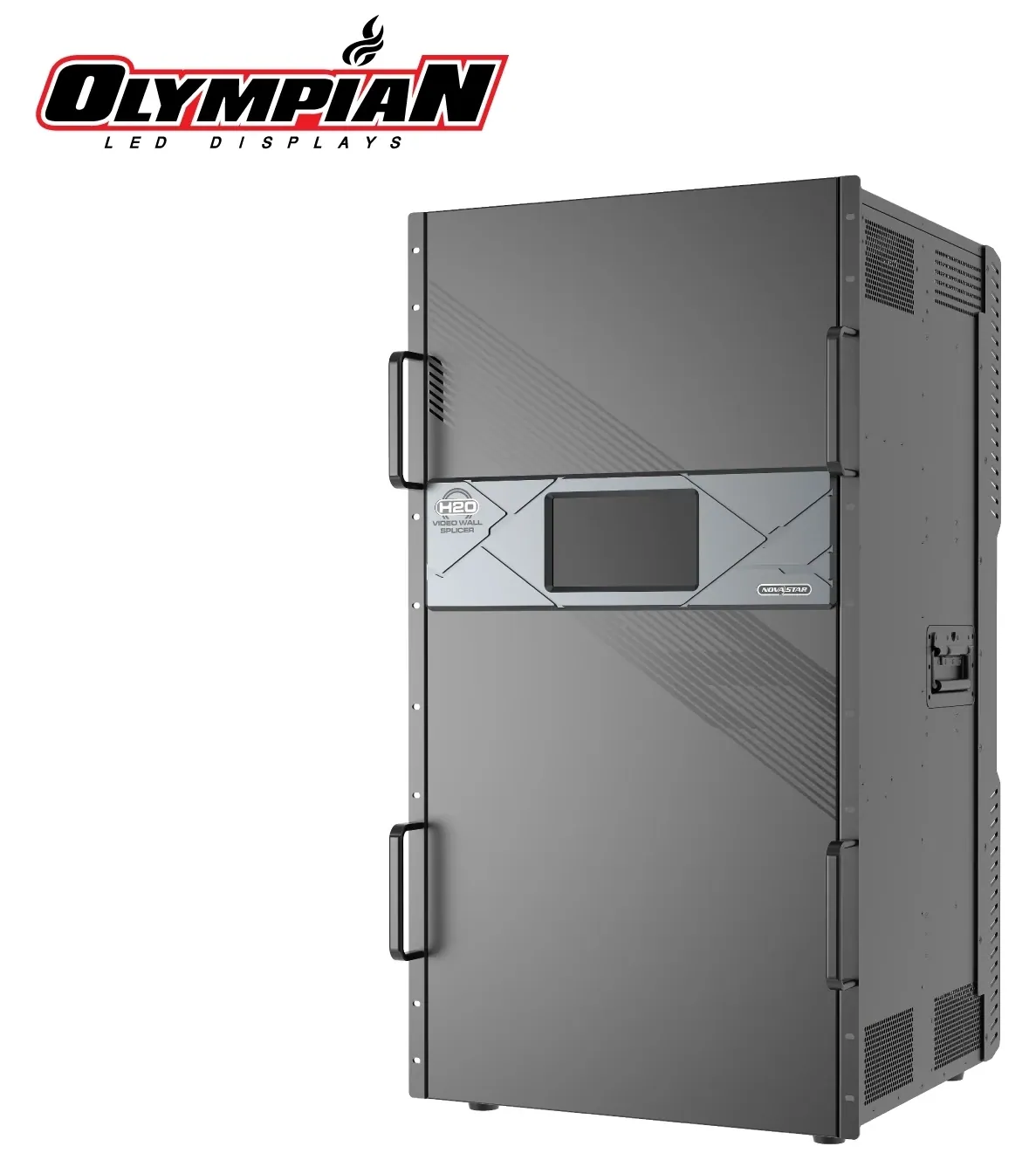

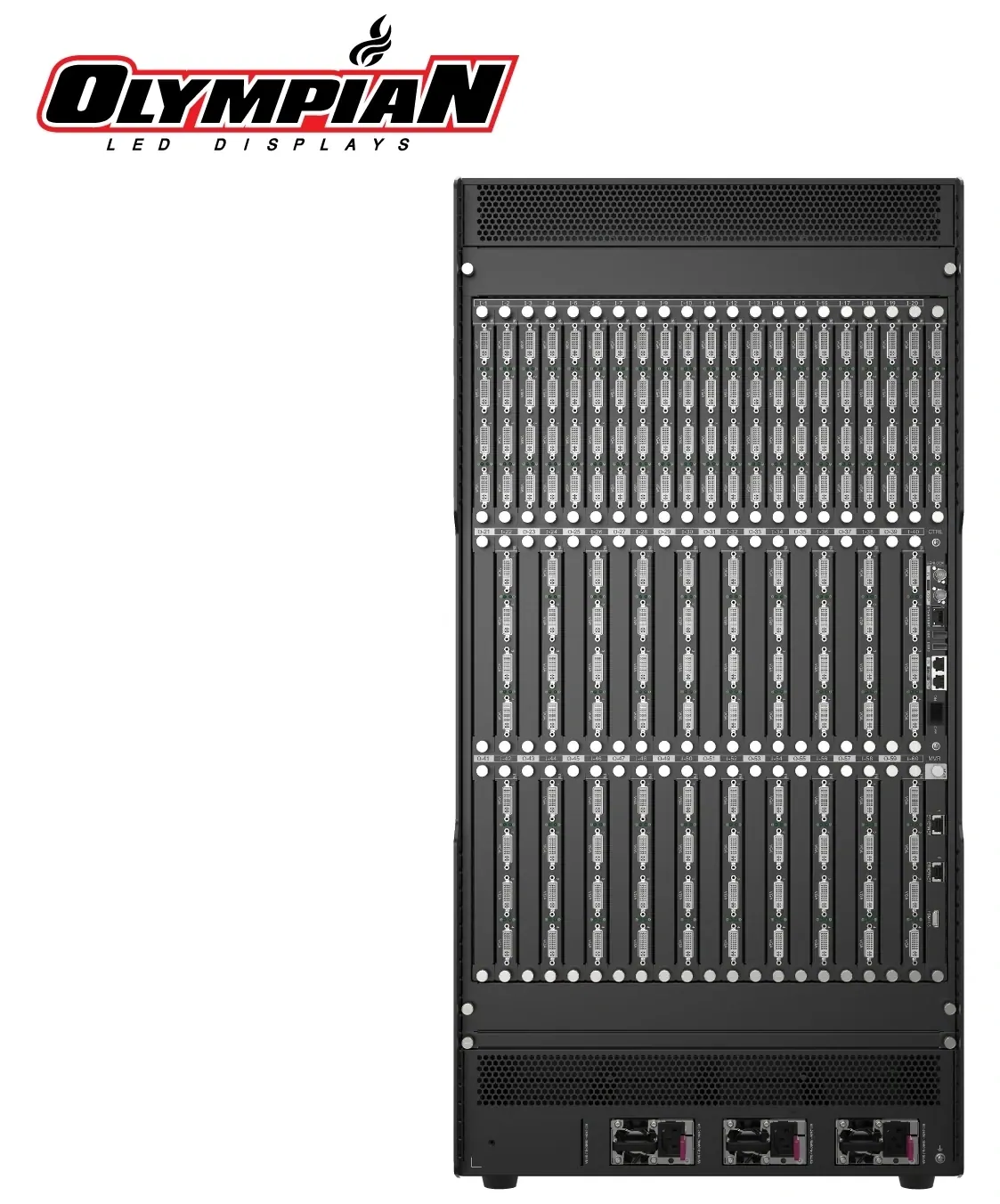

H20

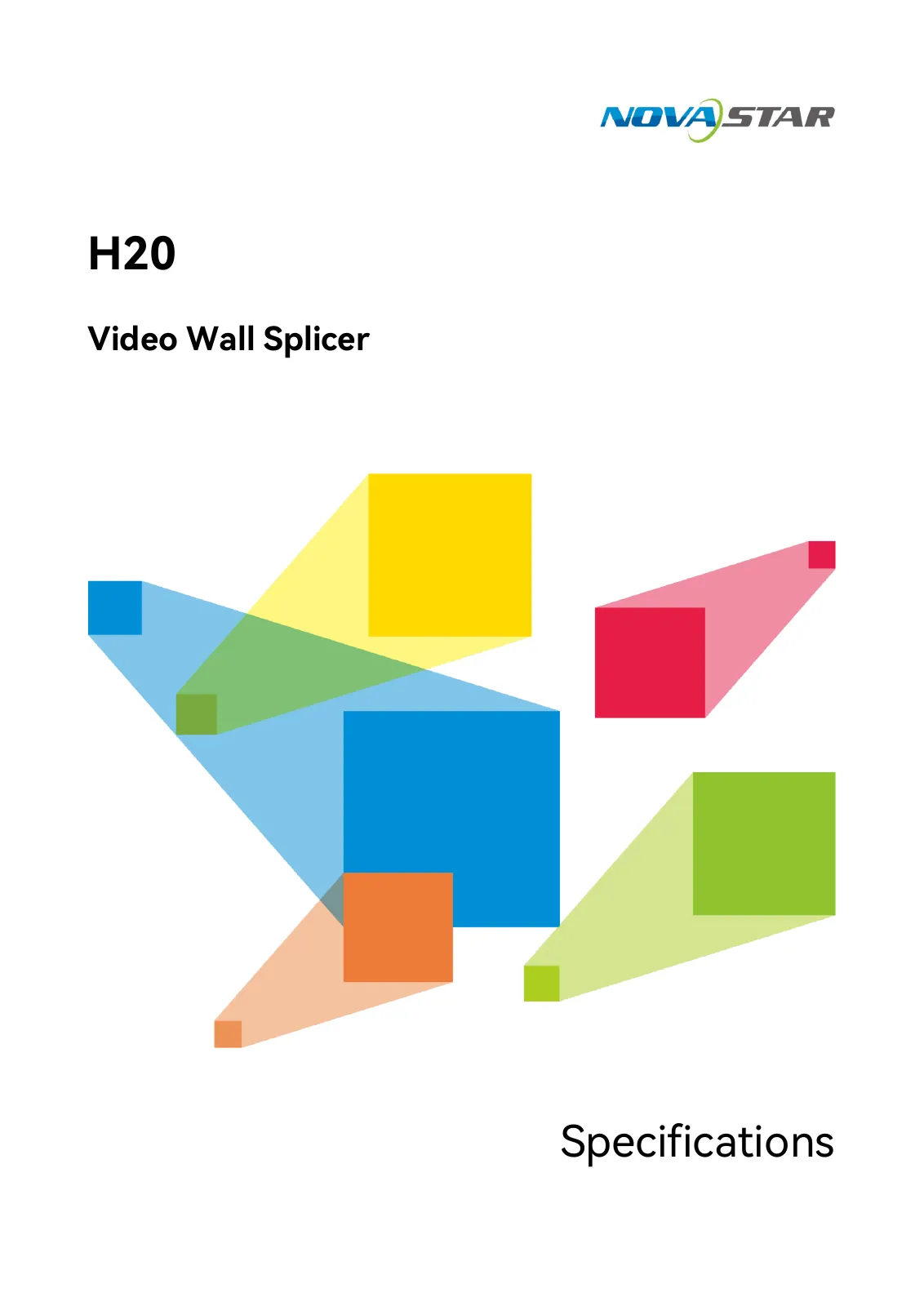

Video Splicing Processor.
- Rack Unit
- 20U
- Max. Loading Capacity / (H_20xRJ45 sending card)
- 260 million pixels
- Max. Loading Capacity / (H_4 OPT Output Card Enhanced)
- 520 million pixels
- Max.Output
- Max. width: 2560 pixels, Max. Height: 2560 pixels (Single video connector) / Max. width: 10752 pixels, Max. Height: 10752 pixels (Single Ethernet port) / Max. width: 16384 pixels, Max. Height: 16384 pixels (Single OPT port)
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
H20Price on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 17 values
What this product is, in numbers.
PDFSpecificationsEN · 48 pages · 2.4 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications17
- Rack Unit
- 20U
- Max. Loading Capacity / (H_20xRJ45 sending card)
- 260 million pixels
- Max. Loading Capacity / (H_4 OPT Output Card Enhanced)
- 520 million pixels
- Max.Output
- Max. width: 2560 pixels, Max. Height: 2560 pixels (Single video connector) / Max. width: 10752 pixels, Max. Height: 10752 pixels (Single Ethernet port) / Max. width: 16384 pixels, Max. Height: 16384 pixels (Single OPT port)
- Max. Input Cards
- 40
- Max. Output Cards
- 20
- Irregular Mosaic
- √
- Max. Layers
- 320 Layers
- Max. Presets
- 2000 (Preset playlist playback supported)
- Permission Management
- √
- 10bit and HDR
- √
- Input and Output Monitoring / (H_2xRJ45+1xHDMI1.3 / preview card required)
- √
- Optional Power Supply
- √
- Central Control
- TCP/IP and RS232
- OSD
- √
- BKG
- √
- Touch Panel Control
- √
Show the full specificationHide the rest of the specification0 more groups · 0 values
