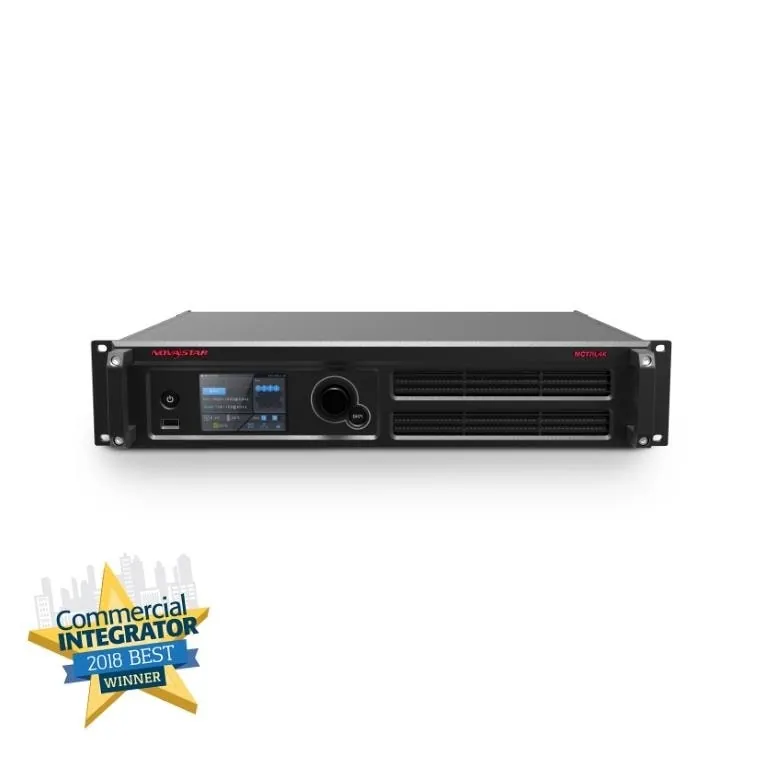

MCTRL 4K

4K×2K ResolutionDP / DVI / Dual DVIHDR10-Optima / HLG

Input — DP 1.2: ● DP 1.2 input, with a maximum resolution of 4096×2160@60Hz and minimum resolution of 640×480@24Hz / ● Pixel capacity: 8,800,000 pixels / ● Custom resolutions supported: / &ensp;Resolution limit with maximum width: 7680×1080@60Hz / &ensp;Resolution limit with maximum height: 1080×7680@60Hz / ● Supports HDCP 1.3. / ● Supported standard resolutions: / &ensp;1280×1024@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1366×768@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1440×900@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1600×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1920×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1920×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1920×2160@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;2560×1600@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;3840×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;3840×2160@(24/25/30/48/50/60)Hz
Input — HDMI 2.0: ● HDMI 2.0 input, with a maximum resolution of 4096×2160@60Hz and minimum resolution of 800×600@30Hz / ● Pixel capacity: 8,800,000 pixels / ● Custom resolutions supported: / &ensp;Resolution limit with maximum width: 7680×1080@60Hz / &ensp;Resolution limit with maximum height: 1080×7680@60Hz / ● Supports HDCP 1.4 and HDCP 2.2. / ● Supported standard resolutions: / ● 1280×1024@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1440×900@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1600×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1920×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1920×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1920×2160@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;2048×1536@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;2560×1600@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;3840×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;3840×2160@(24/25/30/48/50/60)Hz
Input — DUAL DVI-D1 / DUAL DVI-D2: ● 2 × DVI inputs, each with a maximum resolution of 3840×1080@60Hz and minimum resolution of 800×600@30Hz / ● Pixel capacity: 8,300,000 pixels / ● Custom resolutions supported: / &ensp;Resolution limit with maximum width: 3840×2160@60Hz Resolution limit with maximum height: 2160×3840@60Hz / ● Supported standard resolutions: 1280×1024@(24/25/30/48/50/60/72/75/85/100/120)Hz 1366×768@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1440×900@(24/25/30/48/50/60/72/75/85/100/120)Hz 1600×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1920×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920×1200@(24/25/30/48/50/60/72/75/85/100)Hz 1920×2160@(24/25/30/48/50/60)Hz / &ensp;2560×1600@(24/25/30/48/50/60)Hz 3840×1080@(24/25/30/48/50/60)Hz 3840×2160@(24/25/30)Hz
Output — 1–16: ● 16 Neutrik (NE8FBH) Gigabit Ethernet ports / ● Maximum loading capacity of a single Ethernet port: / ○ For 8-bit input sources: 650,000 pixels / ○ For 10-bit/12-bit input sources: 320,000 pixels / ● Do not support audio output. / ● Support redundancy between Ethernet ports.

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 1 group · 11 values

What this product is, in numbers.

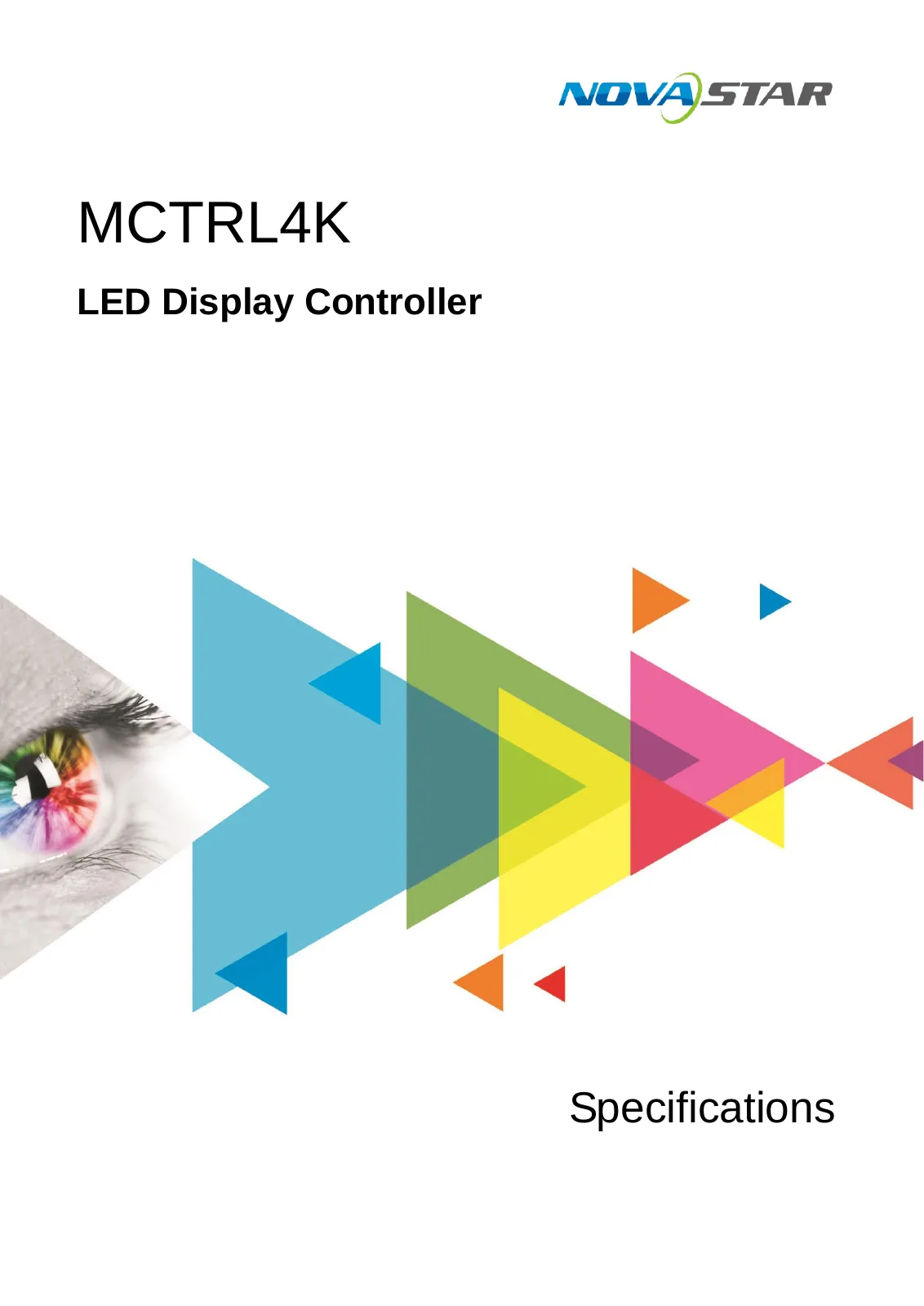

PDFSpecificationsEN · 9 pages · 736 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Specifications11

Input — DP 1.2: ● DP 1.2 input, with a maximum resolution of 4096×2160@60Hz and minimum resolution of 640×480@24Hz / ● Pixel capacity: 8,800,000 pixels / ● Custom resolutions supported: / &ensp;Resolution limit with maximum width: 7680×1080@60Hz / &ensp;Resolution limit with maximum height: 1080×7680@60Hz / ● Supports HDCP 1.3. / ● Supported standard resolutions: / &ensp;1280×1024@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1366×768@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1440×900@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1600×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1920×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1920×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1920×2160@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;2560×1600@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;3840×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;3840×2160@(24/25/30/48/50/60)Hz
Input — HDMI 2.0: ● HDMI 2.0 input, with a maximum resolution of 4096×2160@60Hz and minimum resolution of 800×600@30Hz / ● Pixel capacity: 8,800,000 pixels / ● Custom resolutions supported: / &ensp;Resolution limit with maximum width: 7680×1080@60Hz / &ensp;Resolution limit with maximum height: 1080×7680@60Hz / ● Supports HDCP 1.4 and HDCP 2.2. / ● Supported standard resolutions: / ● 1280×1024@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1440×900@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1600×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1920×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1920×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1920×2160@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;2048×1536@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;2560×1600@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;3840×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;3840×2160@(24/25/30/48/50/60)Hz
Input — DUAL DVI-D1 / DUAL DVI-D2: ● 2 × DVI inputs, each with a maximum resolution of 3840×1080@60Hz and minimum resolution of 800×600@30Hz / ● Pixel capacity: 8,300,000 pixels / ● Custom resolutions supported: / &ensp;Resolution limit with maximum width: 3840×2160@60Hz Resolution limit with maximum height: 2160×3840@60Hz / ● Supported standard resolutions: 1280×1024@(24/25/30/48/50/60/72/75/85/100/120)Hz 1366×768@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1440×900@(24/25/30/48/50/60/72/75/85/100/120)Hz 1600×1200@(24/25/30/48/50/60/72/75/85/100/120)Hz / &ensp;1920×1080@(24/25/30/48/50/60/72/75/85/100/120)Hz 1920×1200@(24/25/30/48/50/60/72/75/85/100)Hz 1920×2160@(24/25/30/48/50/60)Hz / &ensp;2560×1600@(24/25/30/48/50/60)Hz 3840×1080@(24/25/30/48/50/60)Hz 3840×2160@(24/25/30)Hz
Output — 1–16: ● 16 Neutrik (NE8FBH) Gigabit Ethernet ports / ● Maximum loading capacity of a single Ethernet port: / ○ For 8-bit input sources: 650,000 pixels / ○ For 10-bit/12-bit input sources: 320,000 pixels / ● Do not support audio output. / ● Support redundancy between Ethernet ports.
Output — OPT1–OPT4: ● 10G optical ports / ○ Single-mode twin-core fiber: Support LC optical connectors; wavelength: 1310 nm; transmission distance: 10 km; OS1/OS2 recommended. / ○ Dual-mode twin-core fiber: Support LC optical connectors; wavelength: 850 nm; transmission distance: 300 m; OM3/OM4 recommended. / ● The maximum loading capacity of a single optical port equals to that of all the 8 Ethernet ports. / ● 4 OPT inputs/outputs / ○ OPT1 and OPT2 are main input/output ports. OPT1 corresponds to Ethernet ports 1–8 and OPT2 corresponds to Ethernet ports 9– 16. / ○ OPT3 and OPT4 are backup input/output ports. OPT3 is a duplicate channel of OPT1, and OPT4 is a duplicate channel of OPT2.
Control — Ethernet: For PC connection
Control — Usb In: Input port for cascading devices, or connecting to PC
Control — Usb Out: Output port for cascading devices
Genlock — In: Genlock input connector / ● Genlock type: Blackburst / ● Input Genlock sync signal to ensure synchronization and same refresh rate between the output signals of cascaded MCTRL4K units and the external Genlock signal.
Genlock — Loop: Genlock loop output connector / Up to 10 MCTRL4K units can be cascaded.
Power — AC 100 V–240 V, 50/60Hz: AC power input
