Sheet 05.1159
NovaStar · Controllers and accessories

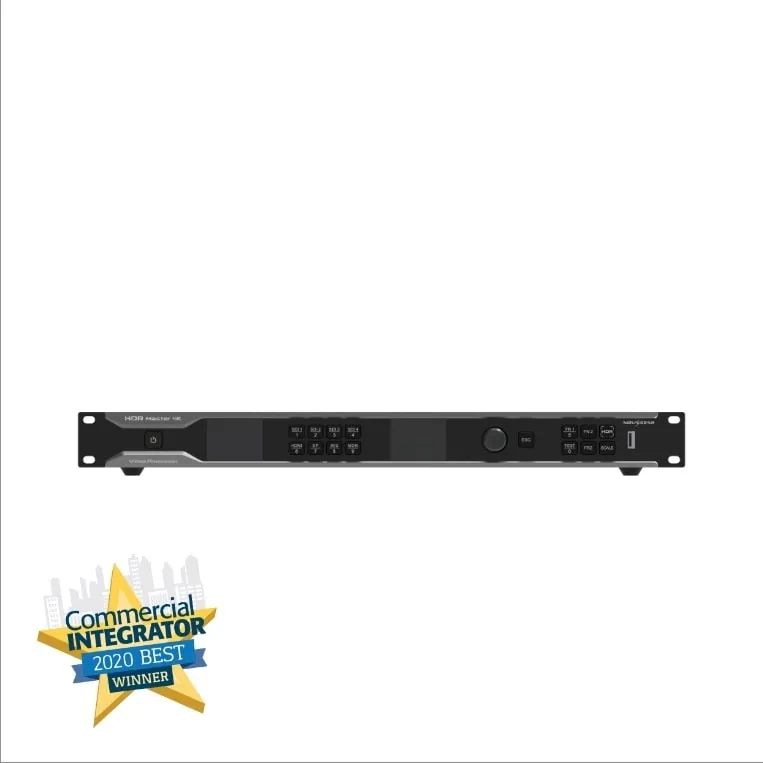

HDR Master 4K
The HDR Master 4K is a video processor converting SDR content into an HDR format.
- Input Card — Connector
- Qty
- Input Card — HDMI 2.0
- 1
- Input Card — DP 1.2
- 1
- Input Card — 12G-SDI
- 4
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
HDR Master 4KPrice on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 14 values
What this product is, in numbers.

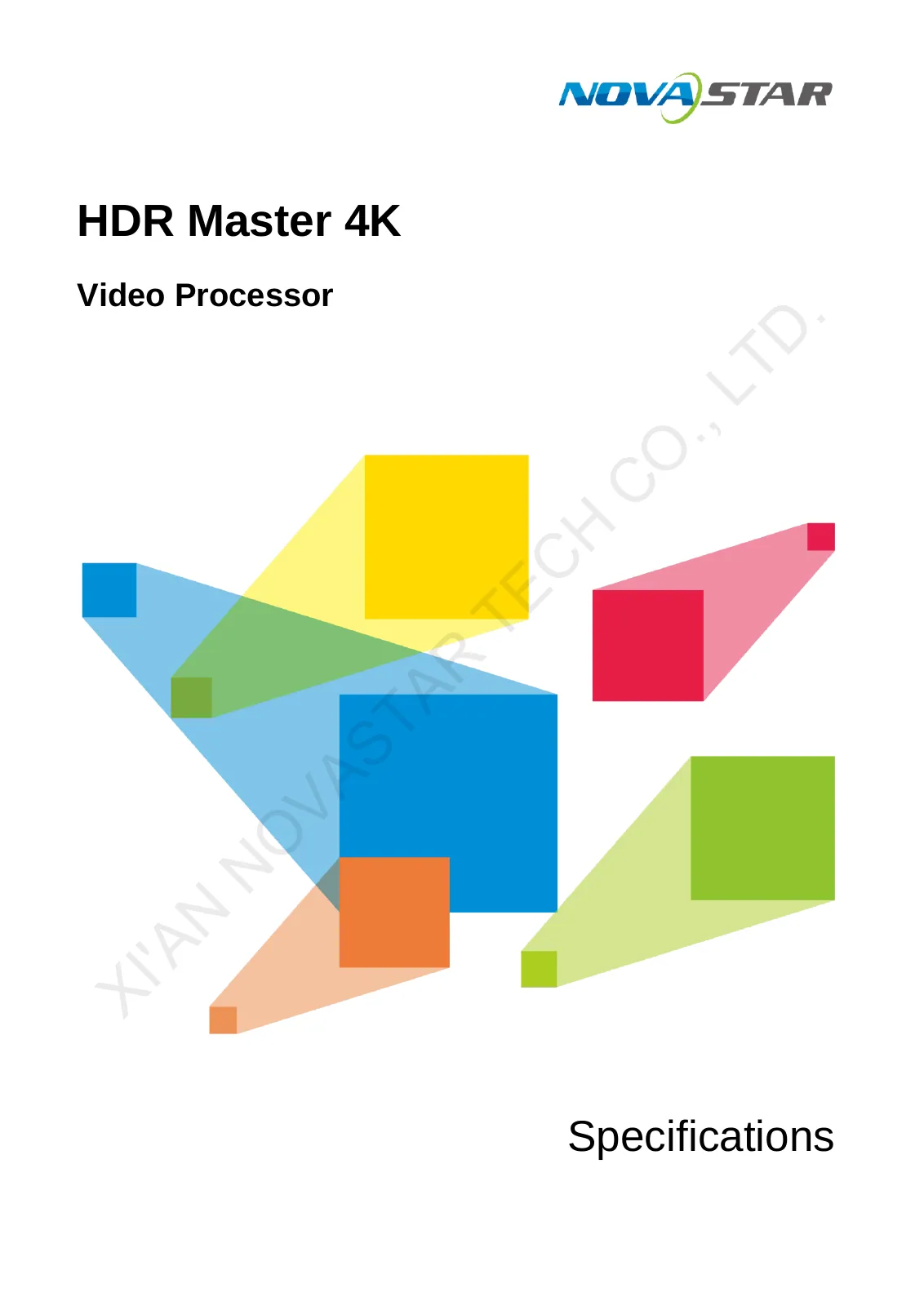

PDFSpecificationsEN · 11 pages · 1.6 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications14
- Input Card — Connector
- Qty
- Input Card — HDMI 2.0
- 1
- Input Card — DP 1.2
- 1
- Input Card — 12G-SDI
- 4
- 1×HDMI2.0+4×Fiber Output Card — Connector
- Qty
- 1×HDMI2.0+4×Fiber Output Card — HDMI 2.0
- 1
- 1×HDMI2.0+4×Fiber Output Card — 10G optical fiber port
- 4
- 4×12G SDI+1×HDMI2.0 Process Card — Connector
- Qty
- 4×12G SDI+1×HDMI2.0 Process Card — HDMI 2.0
- 1
- 4×12G SDI+1×HDMI2.0 Process Card — 12G-SDI
- 4
- Control Card — ETHERNET
- Gigabit Ethernet port Connect to the control PC.
- Control Card — USB
- 2 × USB 2.0 (Type-A) / ● Insert a USB drive to update the device. / ● Insert a USB drive to import the BKG or LOGO files
- Control Card — CONTROL UI
- Reserved
- Control Card — GENLOCK
- Connect to a sync source. / ● IN: Accept the sync source. / ● LOOP: Loop the sync source.
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
Video Processor.
The HDR Master 4K is a video processor converting SDR content into an HDR format. By analyzing the SDR content and then intelligently filling in the missing information, the HDR Master 4K raises the dynamic range of brightness, color gamut and color depth to HDR standard. With this all-round upgrade, the SDR video source is converted into an HDR10 format which has a wider dynamic range of brightness, more colors and richer bright and dark details. The HDR Master 4K provides full 4K×2K@60Hz input and output connectors. Based on a pure hardware system architecture, the HDR Master 4K allows for stable and highly-efficient processing capabilities, output connector converting, SDI mosaic as well as long-distance optical fiber transmission. Thanks to the powerful capabilities of receiving a variety of video signals, ultra HD image processing and HDR10 image output, the HDR Master 4K can be widely used in applications such as high-end rental, stage control, fine- pitch LED screens and video source conversion.
03Documents2 files · 5.8 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
