Sheet 05.1165
NovaStar · Controllers and accessories

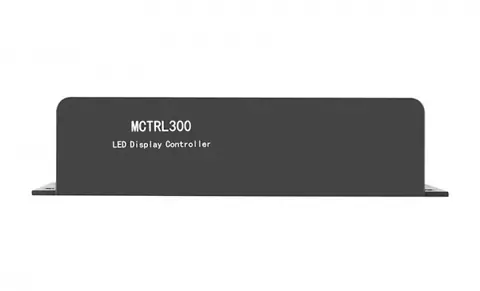

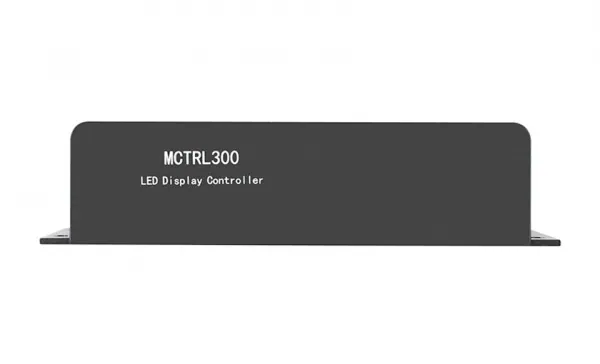

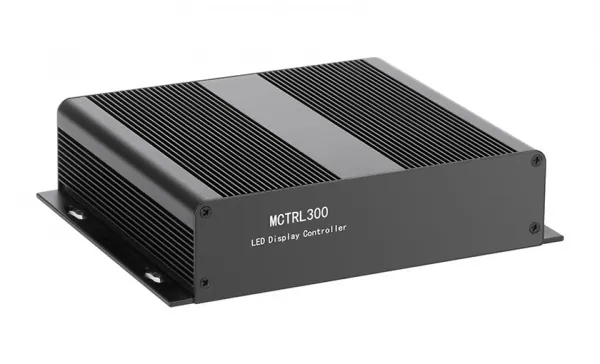

MCTRL300
Controller.
- Connector
- Connector Name
- Input
- DVI IN
- Input
- AUDIO
- Output
- RJ45 × 2
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
MCTRL300Price on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 10 values
What this product is, in numbers.

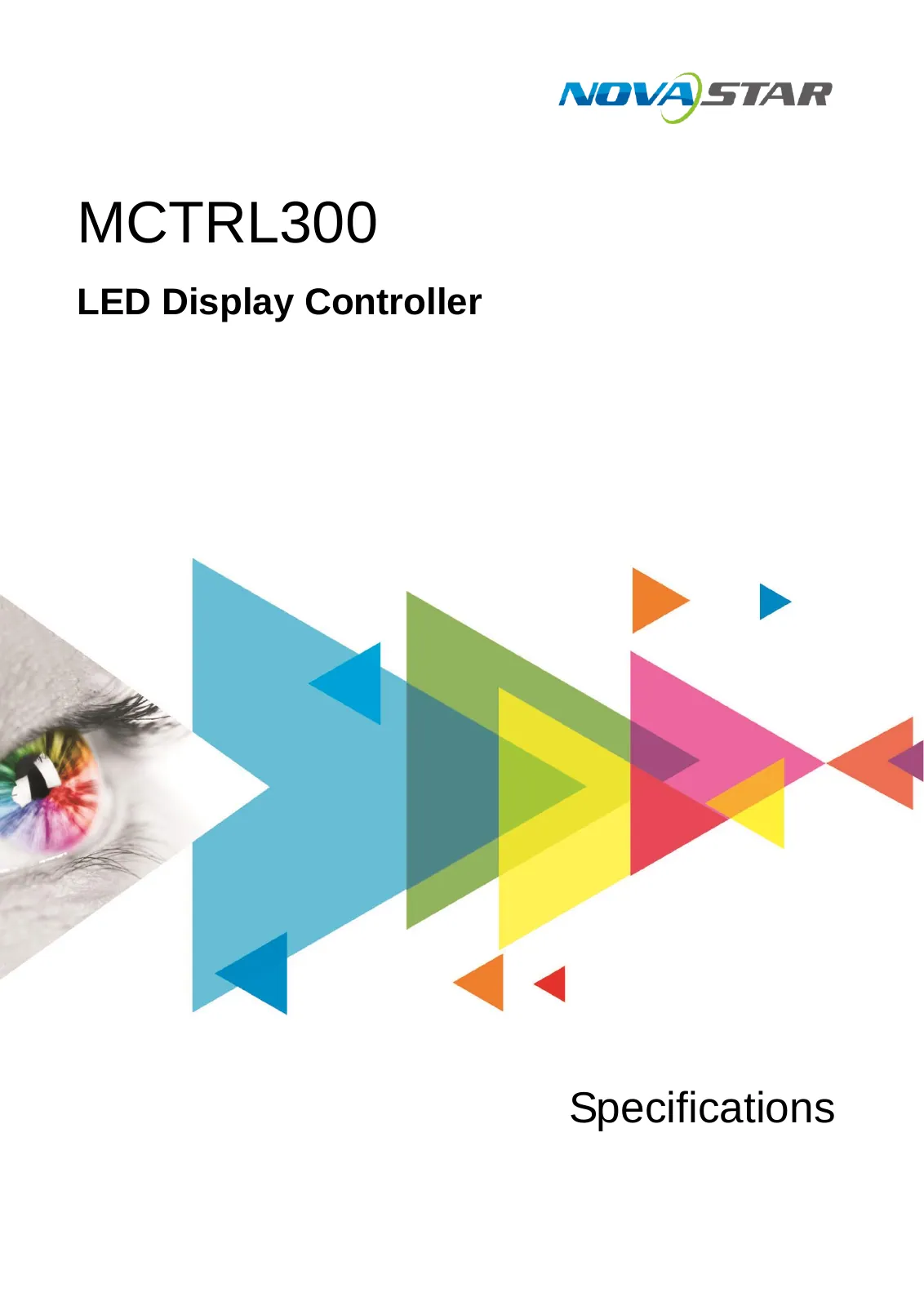

PDFSpecificationsEN · 7 pages · 682 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications10
- Connector
- Connector Name
- Input
- DVI IN
- Input
- AUDIO
- Output
- RJ45 × 2
- Function
- LIGHT SENSOR
- Control
- UART IN/OUT
- Control
- USB
- Power
- AC 100V-240V~50/60Hz
- Indicators — RUN
- Device operating indicator. Working status: / ● Flashing slowly: Video input unavailable / ● Flashing normally: Video input available / ● Flashing rapidly: The screen is displaying startup image. / ● Breathing: Ethernet port redundancy has taken effect.
- Indicators — STATUS
- Device power indicator. Working status: / ● On: The power supply is normal. / ● Off: The power is not supplied, or the power supply is abnormal.
Show the full specificationHide the rest of the specification0 more groups · 0 values
02Documents1 file · 682 KB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
