Sheet 05.1163
NovaStar · Controllers and accessories
MCTRL R5
Controller.
- Input — SDI
- 6G-SDI connector
- Input — HDMI
- HDMI1.4 connector
- Input — DVI
- DVI connector
- Output — 1–8
- 8 × Neutrik (NE8FBH) Gigabit Ethernet outputs
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
MCTRL R5Price on requestRequest a quotation
01SpecificationManufacturer's data · 1 group · 11 values
What this product is, in numbers.

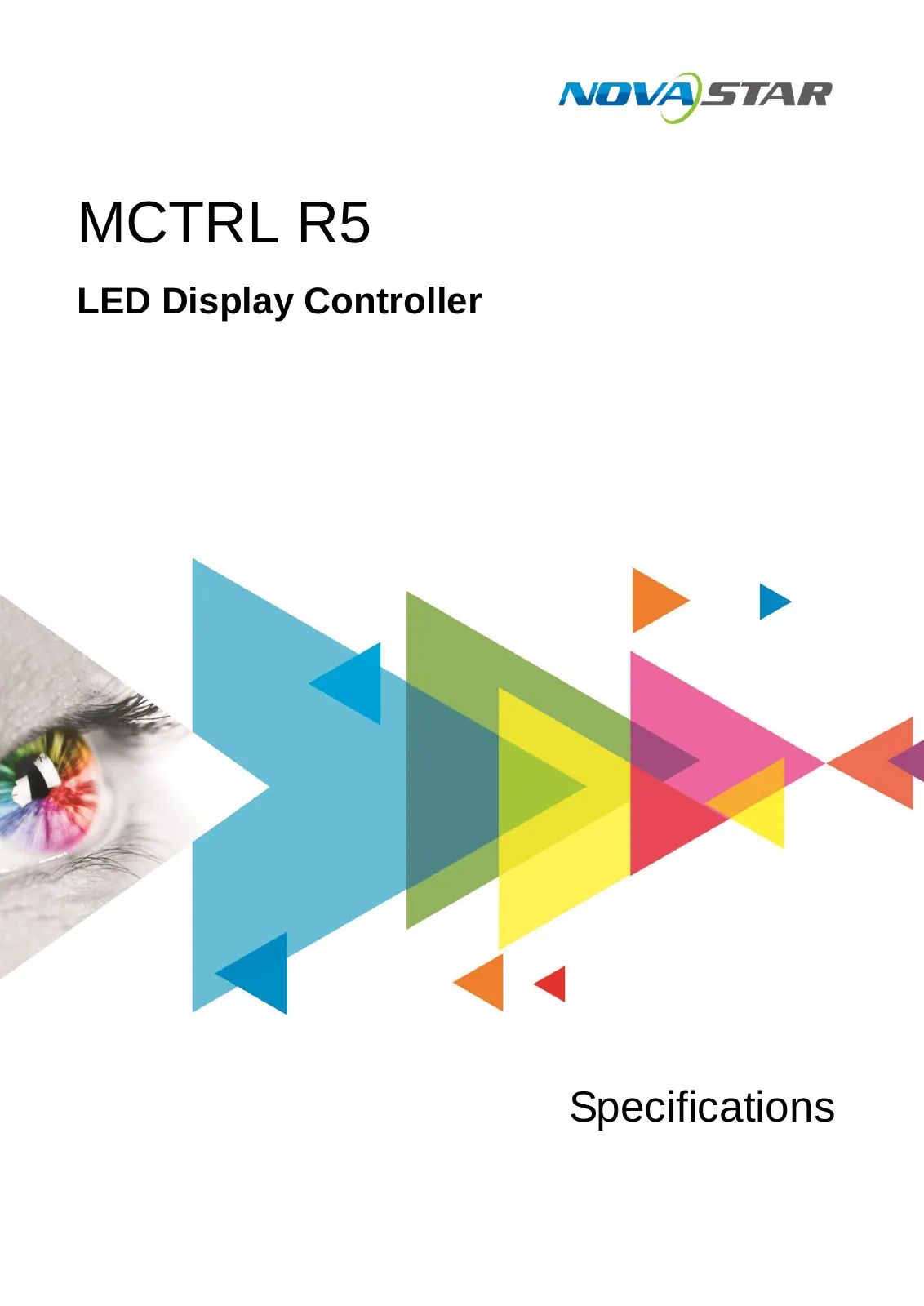

PDFSpecificationsEN · 8 pages · 619 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Specifications11
- Input — SDI
- 6G-SDI connector
- Input — HDMI
- HDMI1.4 connector
- Input — DVI
- DVI connector
- Output — 1–8
- 8 × Neutrik (NE8FBH) Gigabit Ethernet outputs
- Output — OPT1–2
- 2 × Fiber optical outputs / OPT1 corresponds to Ethernet ports 1–8. OPT2 serves as the backup for OPT1.
- Control — Ethernet
- For PC connection
- Control — Usb In
- Input port for cascading devices, or for PC connection
- Control — Usb Out
- Output port for cascading devices
- Genlock — In
- GENLOCK type: Blackburst. / It is the GENLOCK synchronization signal which is used to ensure synchronization between the LED screen display and external GENLOCK source.
- Genlock — Loop
- GENLOCK loop output
- Power Connector — AC 100-240 V–50/60 Hz
- AC power input
Show the full specificationHide the rest of the specification0 more groups · 0 values
