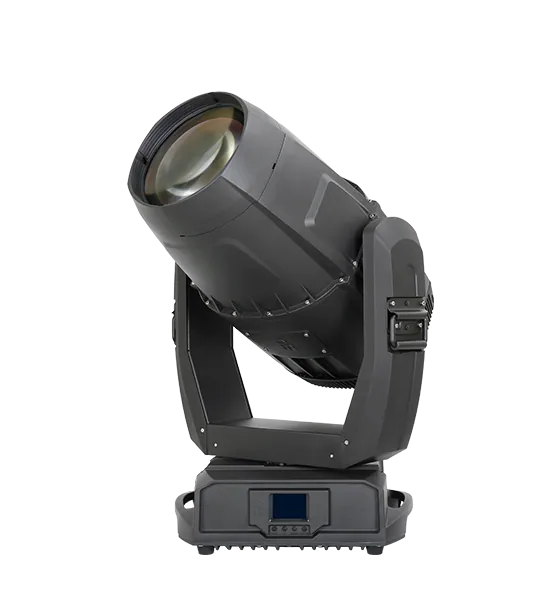

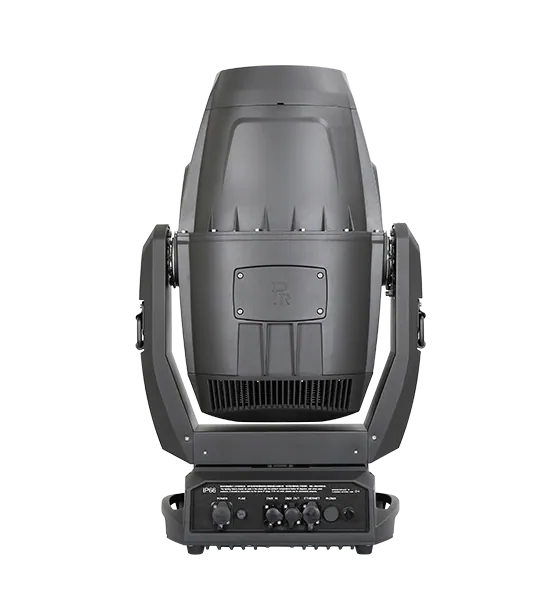

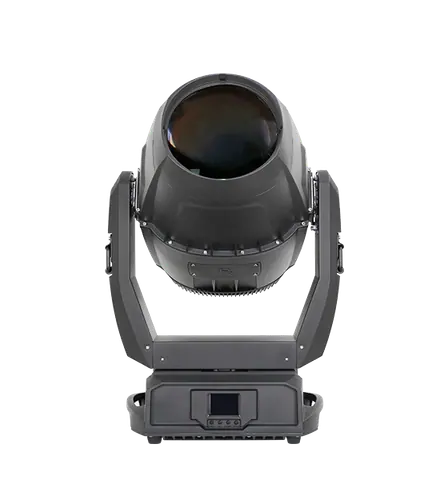

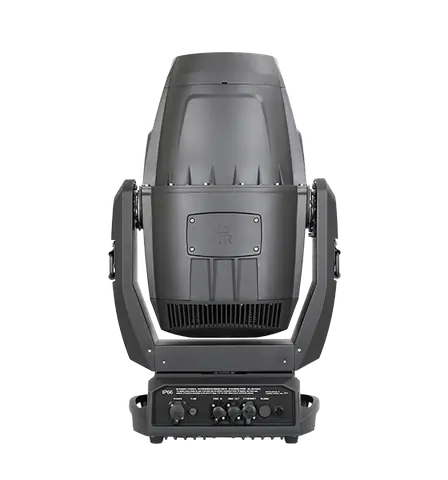

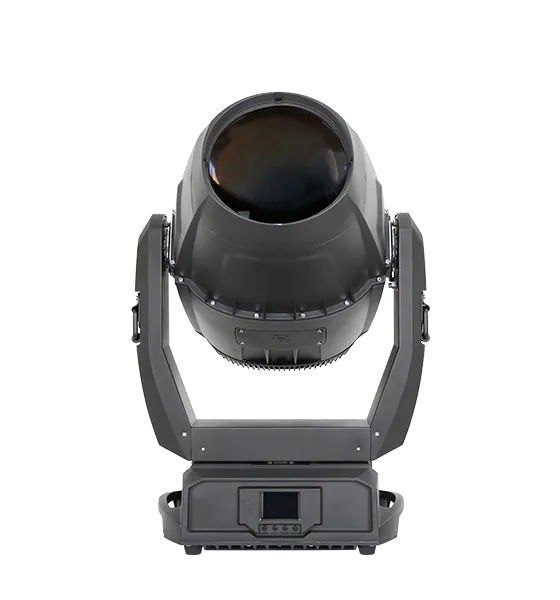

PR Lighting AQUA 580 Beam PR-2569S

ModelPR-2569S

Light source: PHILIPS MSD Platinum 500L Flex(550W)
Colour temperature: 7800K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 13 groups · 30 values

What this product is, in numbers.

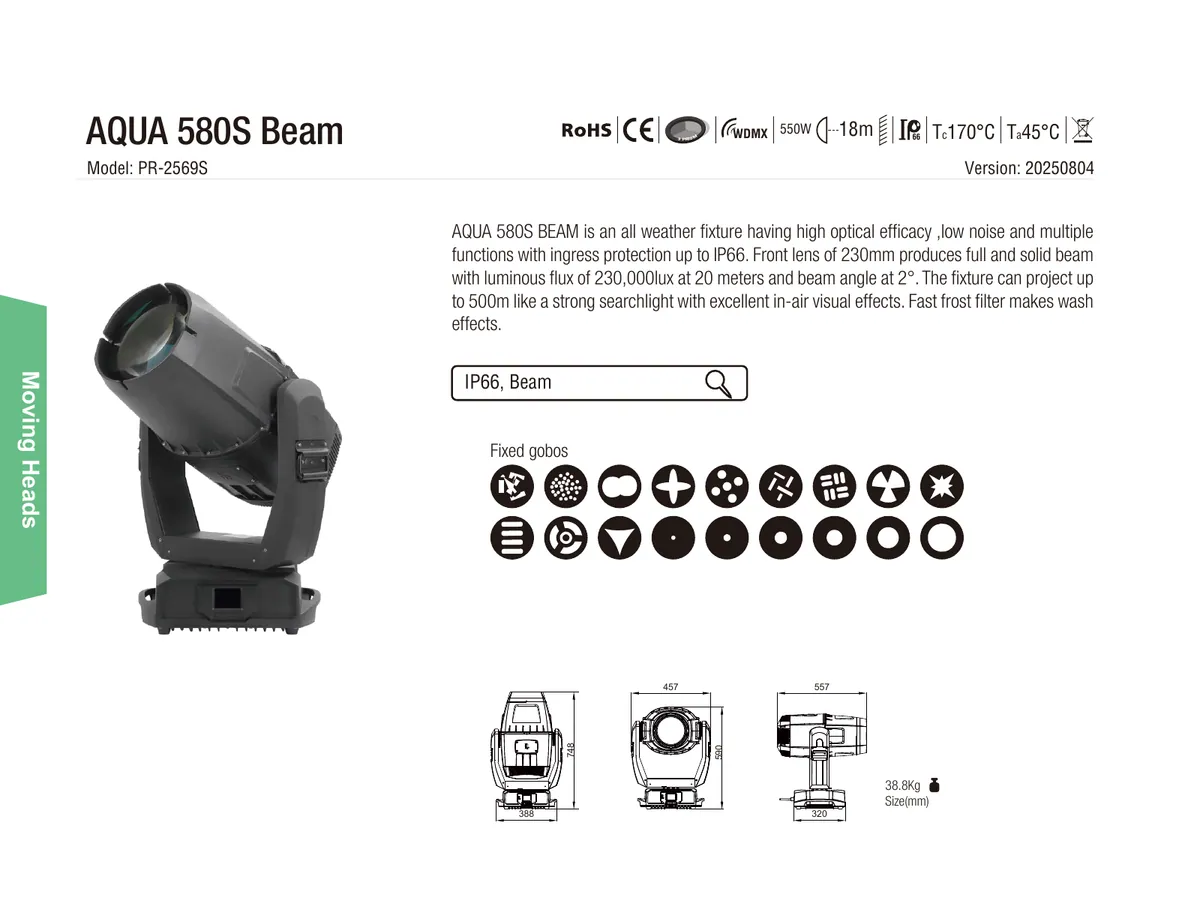

PDFDatasheetEN · 2 pages · 693 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01ELECTRIC PARAMETERS3

Input voltages 100V~240V AC,50/60Hz; Input Power 800W @ 220V
Power factor: PF〉0.9

02LAMP SPECIFICATIONS3

Lamp: PHILIPS MSD Platinum 500L Flex(550W)
Color Temperature: 7800K
Manufacturers Rated Lamp Life: 1500hours

03PRISM/FROST1

3 pcs of prisms which can be overlapped (8 facet circular prism+ 4facet linear prism) (16 facet circular prism+ frsot) And other optional prisms

04FOCUS1

DMX linear Focus

05DIMMER/STROBE1

0-100% Linearly adjustable/ Double shutter blades, 0.3~25 F.P.S

06HEAD MOVEMENT1

Pan 540º, Tilt 270º with auto position correction

07BEAM ANGLE1

Beam angle 2°

08CONTROL3

DMX512, 5-pin interfaces(Optional 3-pin)

15channels in short mode, 18channels in standard mode , 20channels in extended mode

Self-test mode

09OTHER FUNCTIONS6

Adjustable Pan & Tilt speeds

Lamp’s and fixture’s hours displayed

Modular Structure for easy maintenance

DMX512 wireless receiever

Optional DMX512 Wireless Transmitter

Optional ArtNet function

10HOUSING1

Cast Aluminum and high temperature and UV resistant ABS, IP66

11NET WEIGHT1

38.8 Kg

12WORK TEMPERATURE3

Maximum ambient temperature: 45°C
For a waterproof fixture: if the ambient temperature is minus 20 Celsius, strike the lamp to pre-heat for 10minutes and reset it again.
【Version: 20250804】

13General5

1 Color wheel: 12colors+ Open,; rainbow effect with bi-directional and variable speeds,; Stepping/linear color changing
1 Fixed gobo wheel: 18 gobos +Open; Bi-directionally rotatable, and shakable at variable speeds

02DescriptionManufacturer's description

What it is.

AQUA 580S BEAM is an all weather fixture having high optical efficacy ,low noise and multiple functions with ingress protection up to IP66. Front lens of 230mm produces full and solid beam with luminous flux of 230,000lux at 20 meters and beam angle at 2°. The fixture can project up to 500m like a strong searchlight with excellent in-air visual effects. Fast frost filter makes wash effects; 3 prisms make more fantastic and plenty in-air dynamic effects; a rotating gobo wheel(7 gobos+ open), a static gobo wheel(18gobos+ open) , linear CTO, a color wheel(12 colors+ open), the combination of which can make infinite colors and hues and continually and fast rotating color wheel can produce rainbow effect. It is for dusty, rainy, sunny and other harsh places.

03Documents2 files · 6.0 MB
