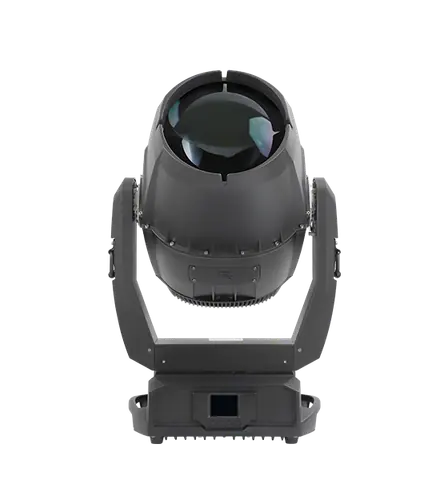

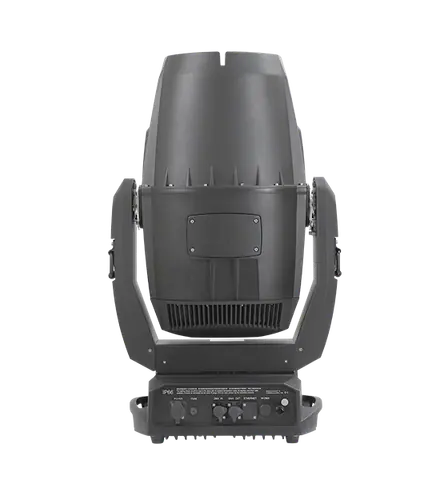

PR Lighting AQUA Laser 500 Beam PR-8359

ModelPR-8359

Light source: 500W laser module
Power consumption: 650W @ 220V
Power supply: 100V~240V AC,50/60Hz
Beam angle / zoom: 0.8°
Colour temperature: 9500K
Net weight: 39.2 Kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:04

PR Lighting AQUA Laser 500 Beam2:04

02SpecificationManufacturer's data · 12 groups · 31 values

What this product is, in numbers.

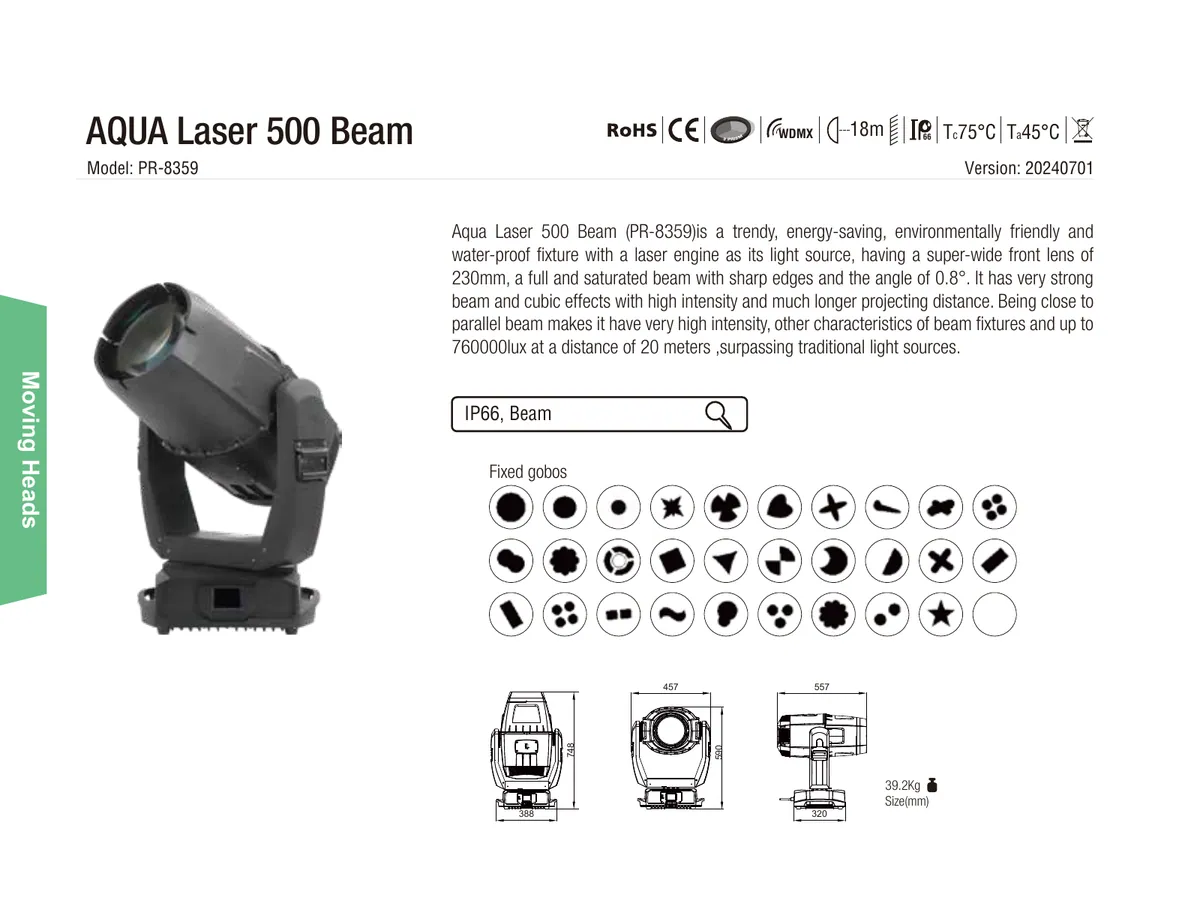

PDFDatasheetEN · 2 pages · 1.5 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Electric parameters4

Input voltage: 100V~240V AC,50/60Hz
Power consumption: 650W @ 220V
Rated current: 3.0A @ 220V
Power factor: PF>0.9

02Light sources5

Light sources: 500W laser module
Color temperature: 9500K
Rated life: 12000hrs
Prism/frost
3 prism wheels: (an 8-facet circular prism+ a 4-facet linear prism )+ (a 16-facet circular prism + a frost filter), prisms overlapped.; Other prism options available

03Focus1

DMX linear focus

04Strobe/dimmer1

Double flag strobe,0.3-25 F.P.S. / linear dimmer

05Movements1

Pan (0°-540°),Tilt( 0°-270°) with auto positioning correction function

06Beam angle1

Beam angle: 0.8°

07Control3

International standard DMX 512 signal,5-pin XLR connectors

Short Mode15 channels,standard Mode 17channels,extended mode 18channels

Self test mode

08Other functions6

Pan and Tilt speeds adjustable

Lamp hours and fixture hours displayed

Modular construction easy for maintenance

Wireless receiver

Wireless transmitter ( Optional)

ArtNet and sACN ( Optional)

09Housing and ingress protection1

Cast aluminum and high temperature and UV resistant ABS with IP66

10Weight1

Net weight: 39.2 Kg

11Ambient temperature3

-20 °C ~ 45 °C
Note: If a fixture runs with the ambient temperature below 0 Celsius, it should be heated for some time(less than 20 minutes based on actual conditions) before turning on the laser module
【Version: 20240701】

12General4

1 color wheel: 19 colors + open; Macros and bi-directional rainbow effects with variable speeds
1 fixed gobo wheel: 30 gobos; Shakable at variable speeds and bi-directional rotation at variable speeds

03DescriptionManufacturer's description

What it is.

Aqua Laser 500 Beam (PR-8359)is a trendy, energy-saving, environmentally friendly and water-proof fixture with a laser engine as its light source, having a super-wide front lens of 230mm, a full and saturated beam with sharp edges and the angle of 0.8°. It has very strong beam and cubic effects with high intensity and much longer projecting distance. Being close to parallel beam makes it have very high intensity, other characteristics of beam fixtures and up to 760000lux at a distance of 20 meters ,surpassing traditional light sources. Its light source has long life-span, low intensity aging, low emitting heat, low power consumption, high luminous efficacy , instantaneous striking without cooling and other advantages. As for dimmer, strobe and other effects, it has some advantages which can’t be exceeded by HID light sources. The fixture is an all-weather product with ingress protection of IP66. It’s a waterproof fixture with high power laser as its light source for landscaping, architectural and cultural projects, big concerts, stadiums and entertainment markets。
