Sheet 05.825

LIGHT SKY · Effects and lasers

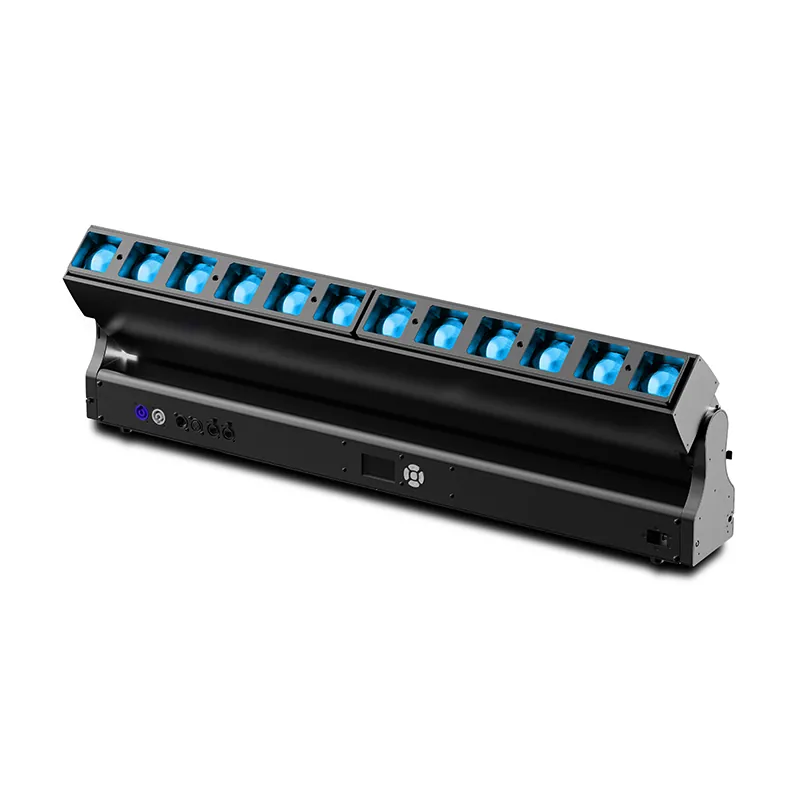

MAMBA

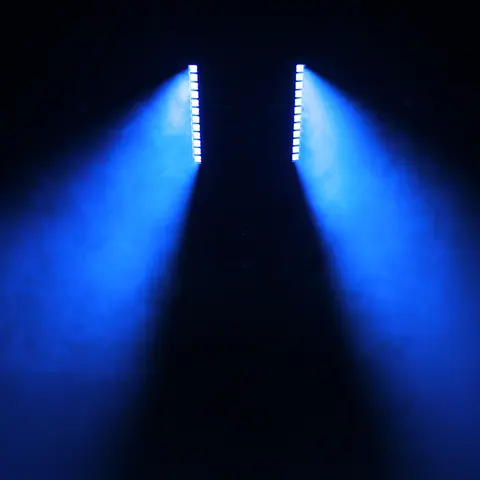

Elevate your productions with the MAMBA stage LED light bar, a high-performance LED bar RGBW featuring a 3.6°–53° zoom range for dynamic beam control.

Light source: 12*40W LED chip RGBW 4 in 1
Power supply: AC 100-240V 50/60Hz
Beam angle / zoom: 3.6°-38°
Protocols: DMX512, RDM, ART-NET
Net weight: 20.7 kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01Video5 manufacturer's videos · 13:02

LIGHT SKY MAMBAVideo 1 of 5 · 1:59

02SpecificationManufacturer's data · 8 groups · 32 values

What this product is, in numbers.

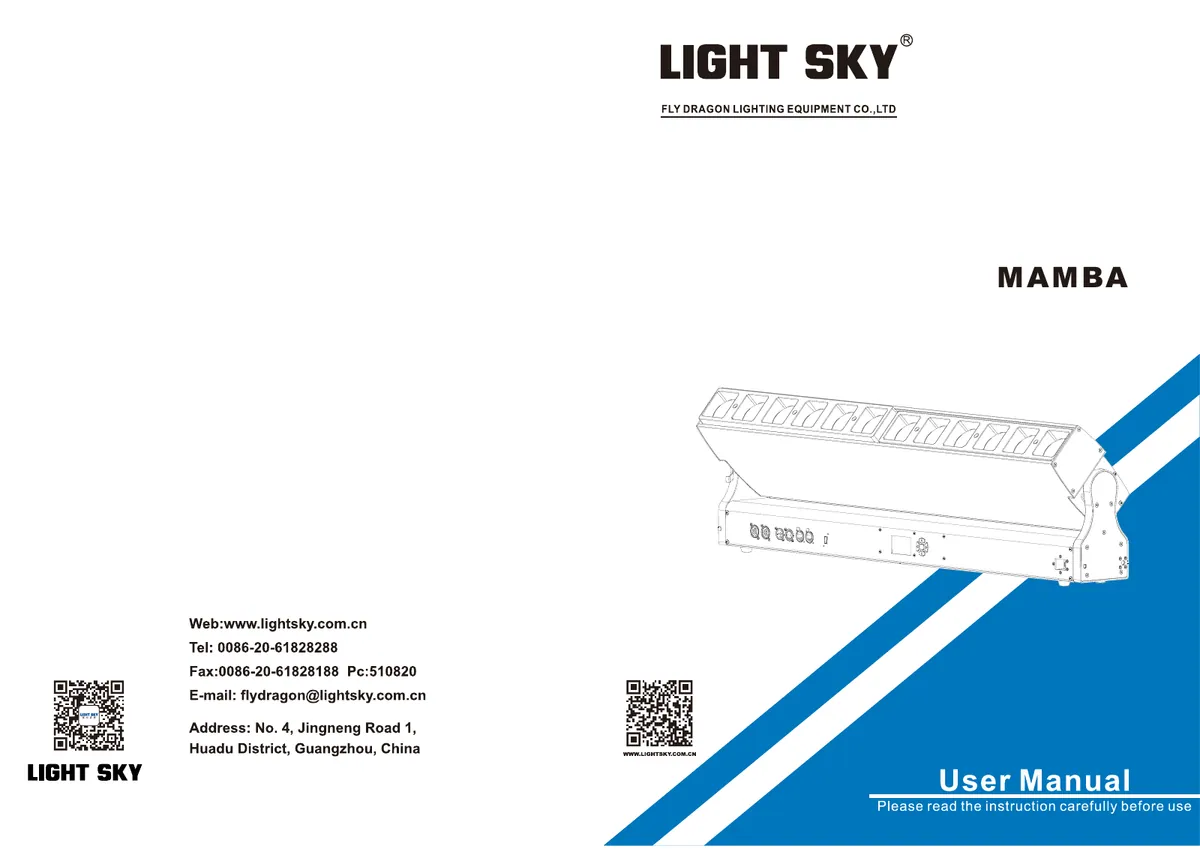

PDFUser manualEN · 29 pages · 1.8 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICAL6

Light source: 12*40W LED chip RGBW 4 in 1

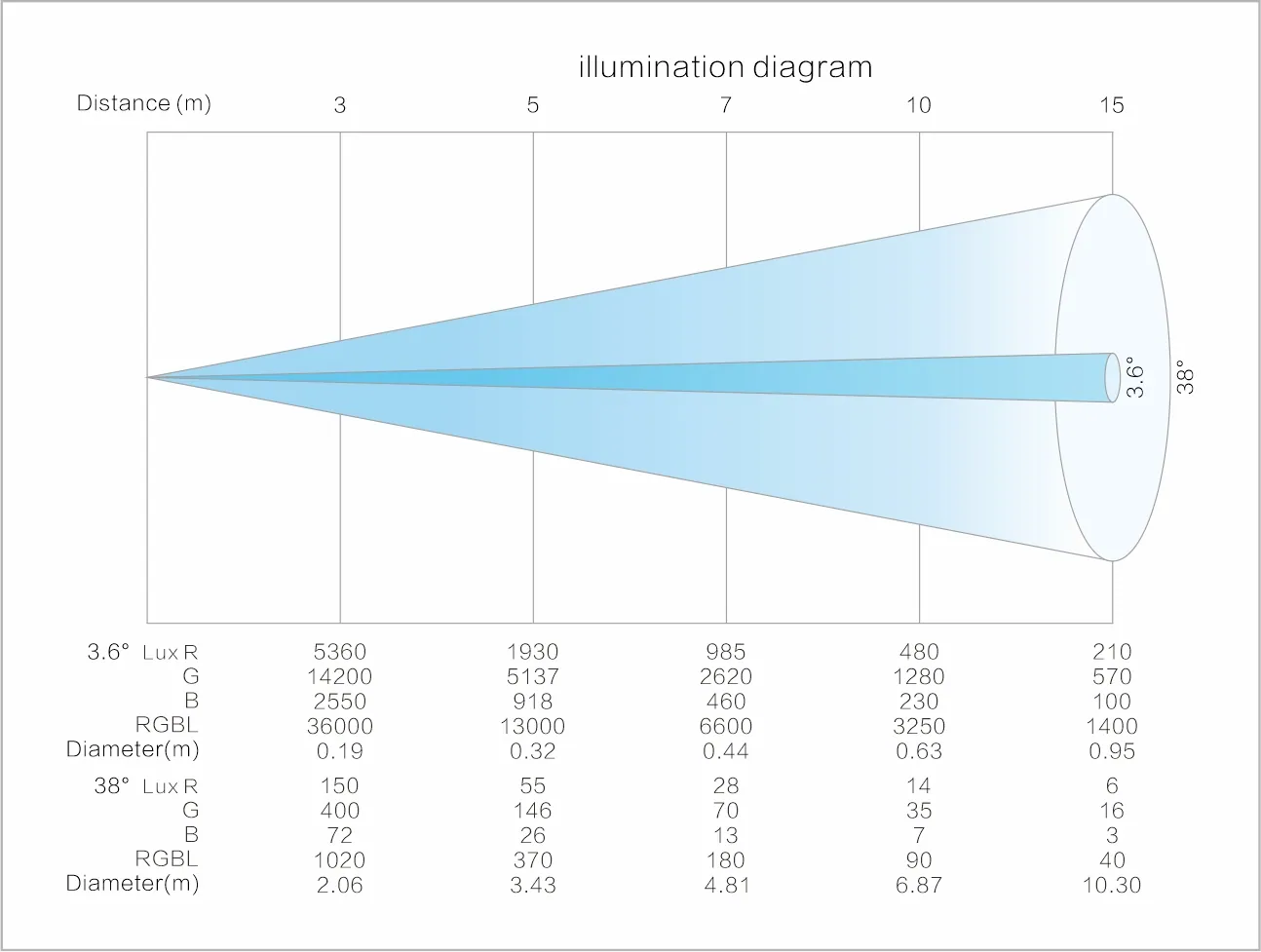

Beam angle: 3.6°-38°
Spot angle: 4.2°-53°
Output color temperature: 2200K-8000K
Illuminance: 18460lux@5M
Light Source Average Life Span: 30,000 hours

02EFFECTS6

Color Mixing System: uniform RGBW color mixing and rainbow effect
Zoom system: Linear electronic zoom
Individual Controlled: support individual control, varied in color and effect
Effect macro: static and dynamic
Dimmer: Linear electronic dimmer, provides four dimming options
Strobe: 1-30Hz electronic strobe and random strobe

03CONTROL4

Channel mode: 19CH(Standard),64CH(Extended),see channel table for details
Control protocol: DMX512, RDM, ART-NET
DMX and RDM connectors: RJ45 input and output, 3-pin and 5-pin input and output
Display: LCD Lattice screen

04SOFTWARE2

Software upgrade: Upgrade software through the DMX signal interface and the USB interface
Temperature control: Intelligent temperature control to ensure the long lifespan of the LED

05PAN/TILT MOVEMENT1

Tilt movement: 185° 16-bit precision

06POWER2

Voltage: AC 100-240V 50/60Hz
Power: 425W PF :>0.98

07SIZE & WEIGHT6

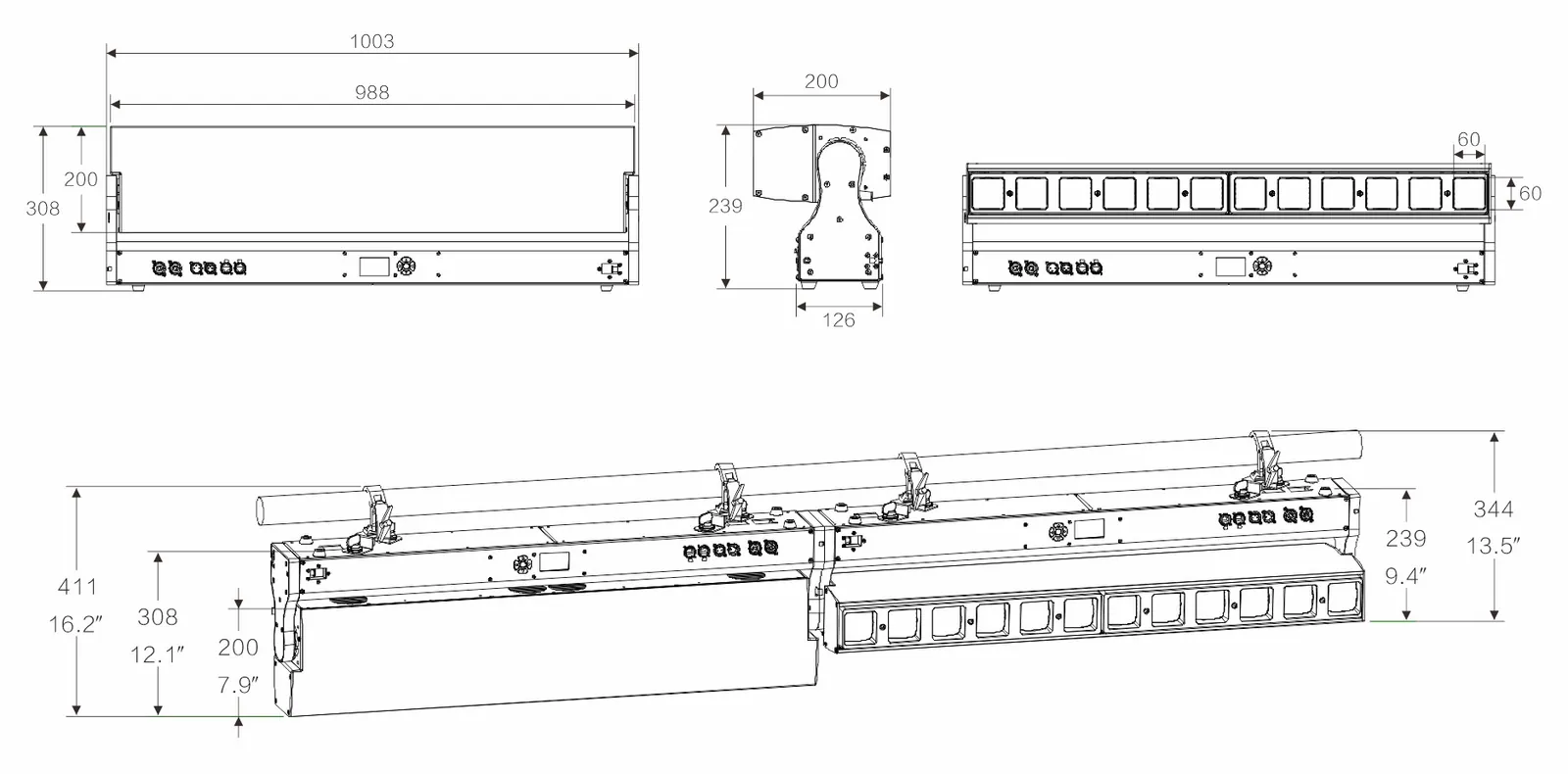

Light Dimension: 1003×126×308(mm)
N.W: 20.7 kg
Carton dimension: 1110×410×220(mm)
G.W with Carton: 24.4 kg

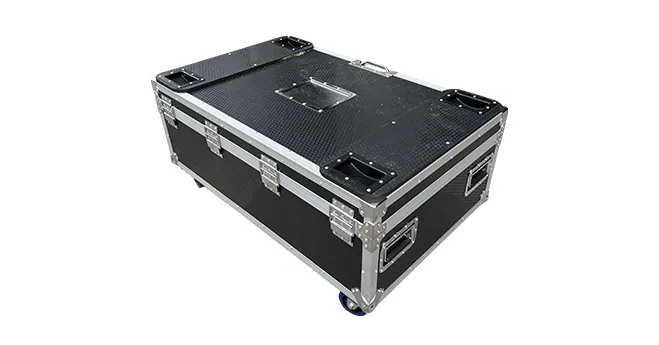

Flycase dimension: 1075×680×495(mm)
G.W with fly case: 101.6 Kg(3 in 1)

08OTHERS5

IP rate: IP20
Working environment: -10°C ~ 45°C
Maximum temperature of fixture body surface: 80°C
Maximum current: 1.9A/220V; 4.3A/110V

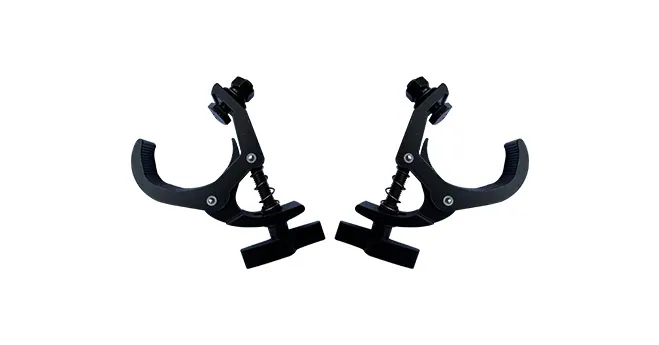

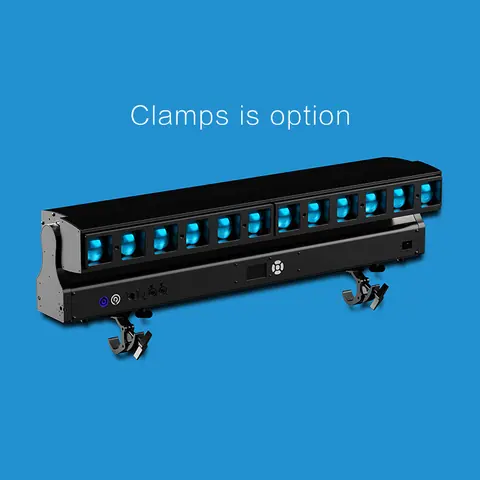

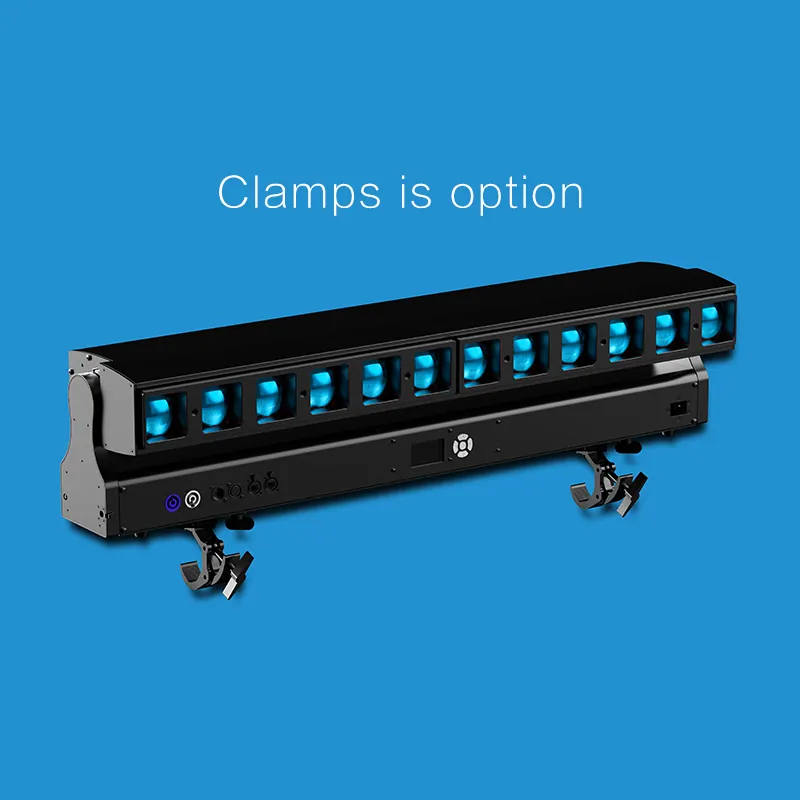

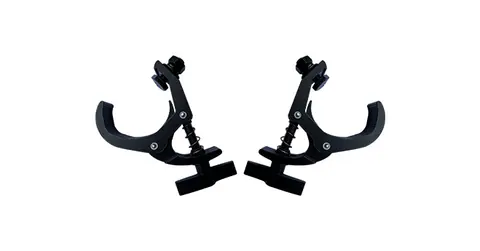

Optional material: light hook

03DescriptionManufacturer's description

What it is.

Elevate your productions with the MAMBA stage LED light bar, a high-performance LED bar RGBW featuring a 3.6°–53° zoom range for dynamic beam control. This multi-function par light combines vibrant RGBW color mixing with a rugged aluminum alloy shell, suitable as both an indoor LED light bar and LED par light for versatile staging.

FEATURES

Powerful LED Chip: The LiGHT SKY MAMBA RGBW bar light features 12×40W RGBW 4-in-1 LEDs, delivering intense, vibrant output for dynamic stage lighting.

Wide Zoom Optics: The Mamba indoor LED light bar provides a zoom range of 3.6°to 53°.
Full-Color Flexibility: The LED bar RGBW provides color temperature that ranges from 2200K ~ 8000K.
Dynamic Lighting: The mamba LED light is capable of achieving a luminance of 18460 lux@ 5 m (RGBW)

Rainbow Lighting: LiGHT SKY multi-function bar light offers uniform RGBW color mixing and rainbow lighting effects.

Advanced Control: Individual pixel control allows independent color and effect programming across the entire LED light bar fixture.
