GALAXY

ModelPR-8129

Light source: OSRAMS: 60W RGBW LED, Four in One
Colour temperature: Linear change from 2700K to 10000K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:51

PR Lighting GALAXY1:51

02SpecificationManufacturer's data · 9 groups · 30 values

What this product is, in numbers.

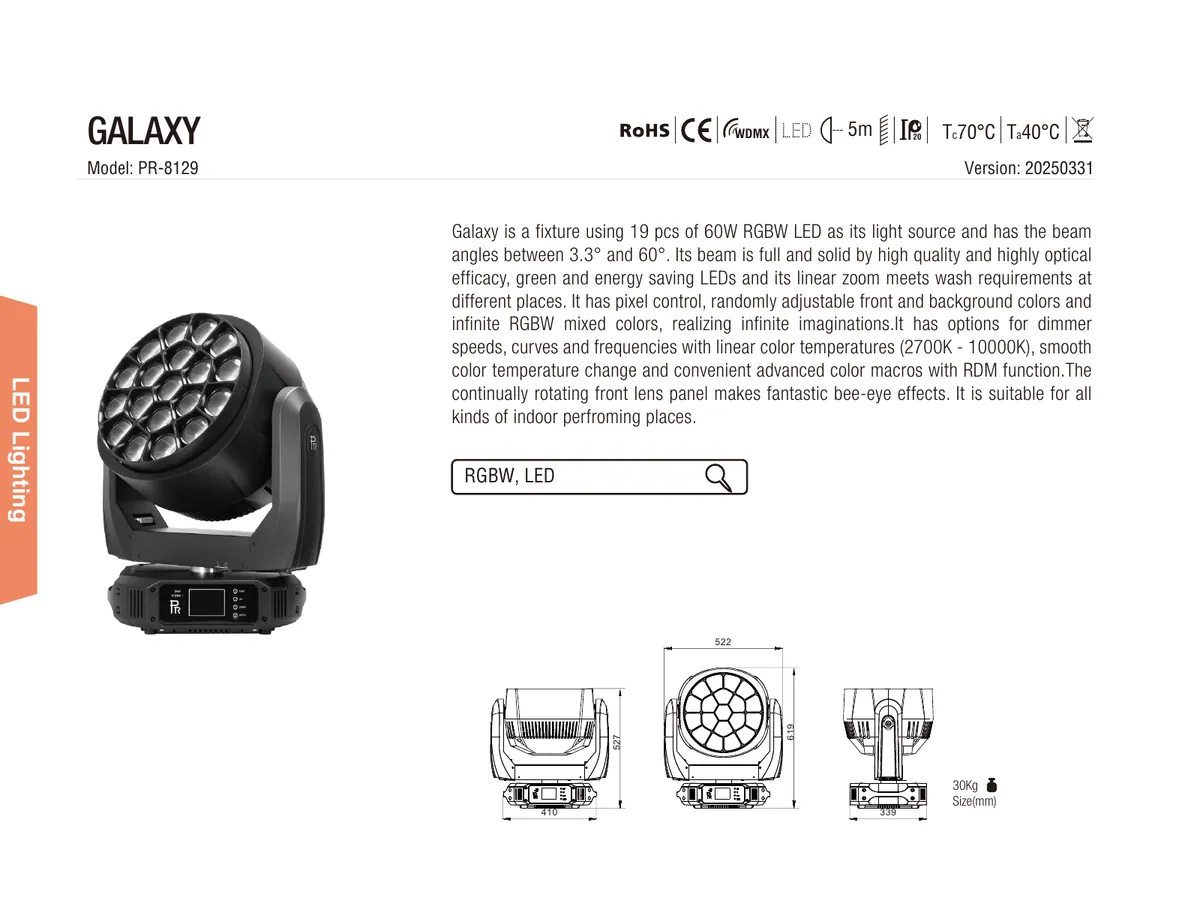

PDFDatasheetEN · 2 pages · 478 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01ELECTRIC PARAMETERS3

Input voltage 100V~240V AC,50/60Hz

Input power 1400W@230V

Power factor PF>0.9

02LIGHT SOURCE4

LED: OSRAMS: 60W RGBW LED, Four in One
Power: 60W,19pcs
Color temperature: Linear change from 2700K to 10000K
Rated life: 50000hrs

03DIMMER1

0-100% linearly adjustable

04LED R3

EFRESH RATE: 1200/2400/4800/10000/12000/15000/20000/25000Hz
STROBE
Electronic strobe: 0-25 F.P.S.( Pulse Strobe Macro)
OTHER EFFECTS: Rainbow, Wash, Beam, Profile, Effect Modes(Kaleidoscope, Swirl), multiple macros

05ROTATION1

Pan 0-540 degrees, Tilt 0-180 degrees with auto-positioning , Bi-directional and continual rotation for the front lens panel

06BEAM ANGLE1

Beam angle(1/2 peak) θ1/2: Linear Zoom 3.3°~ 60°

Show the full specificationHide the rest of the specification3 more groups · 17 values

07General14

CONTROL: International Standard DMX512 signal, 5 pin DMX512 interfaces; 26channels in short mode, 30channels in standard mode, and 102 channels in extended mode; Master/slave mode; Stand-alone mode, Preset mode, Self test mode, static Scene mode
OTHER FUNCTIONS: Pixel Control; Bi-directional and continual rotation of the front lens panel; Color touch screen and its brightness adjustable; Wireless Control(Optional); Pan and Tilt Speed adjustable and Pan and Tilt can be inverted; Firmware upgraded via DMX interface and XLR cable,; Over temperature protection; Total hours, DMX channel number, software versions are displayed and display inversion
HOUSING: High temperature engineering-plastic, IP20
WEIGHT: 30Kg

08AMBIENT TEMPERATURE2

Maximum ambient temperature: 40 °C
【Version: 20250331】

09Color System1

Linear RGBW ,color mixing with unlimited colors, macros

03DescriptionManufacturer's description

What it is.

GALAXY is an extremely bright LED color wash moving head luminaire featuring 19 pcs 60W OSRAM (4 in 1 RGBW) LEDs. As a washlight, the 3.3°~60° zoom, even beam and fantastic color range create a true workhorse fixture. For the next level, features include variable color temperature (2700K~10000K), pixel and ring control, advanced color macro.

04Documents3 files · 3.4 MB
