Sheet 05.986
PR Lighting · Other fixturesOn request

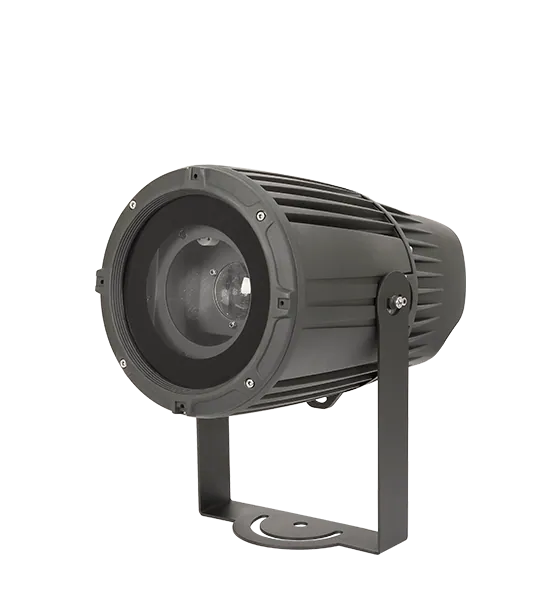

LS 150/90 Tree
ModelPR-6821
LS 150 Tree is a high temperature resistant and high-brightness luminaire, equipped with a 150W LED lamp. It features one color wheel and one individual rotating tree effect wheel, combined with 55 ° light angle, super-fast strobe, rating IP65, etc.
- Light source
- 150W LED white(7,500k), 50,000 hrs
- Beam angle / zoom
- 55°(optional: 30°)
- Net weight
- 7.5kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
LS 150/90 TreePrice on requestRequest a quotation
01VideoManufacturer's video · 0:52
PR Lighting LS 150/90 Tree: the manufacturer's video
02SpecificationManufacturer's data · 15 groups · 29 values
What this product is, in numbers.

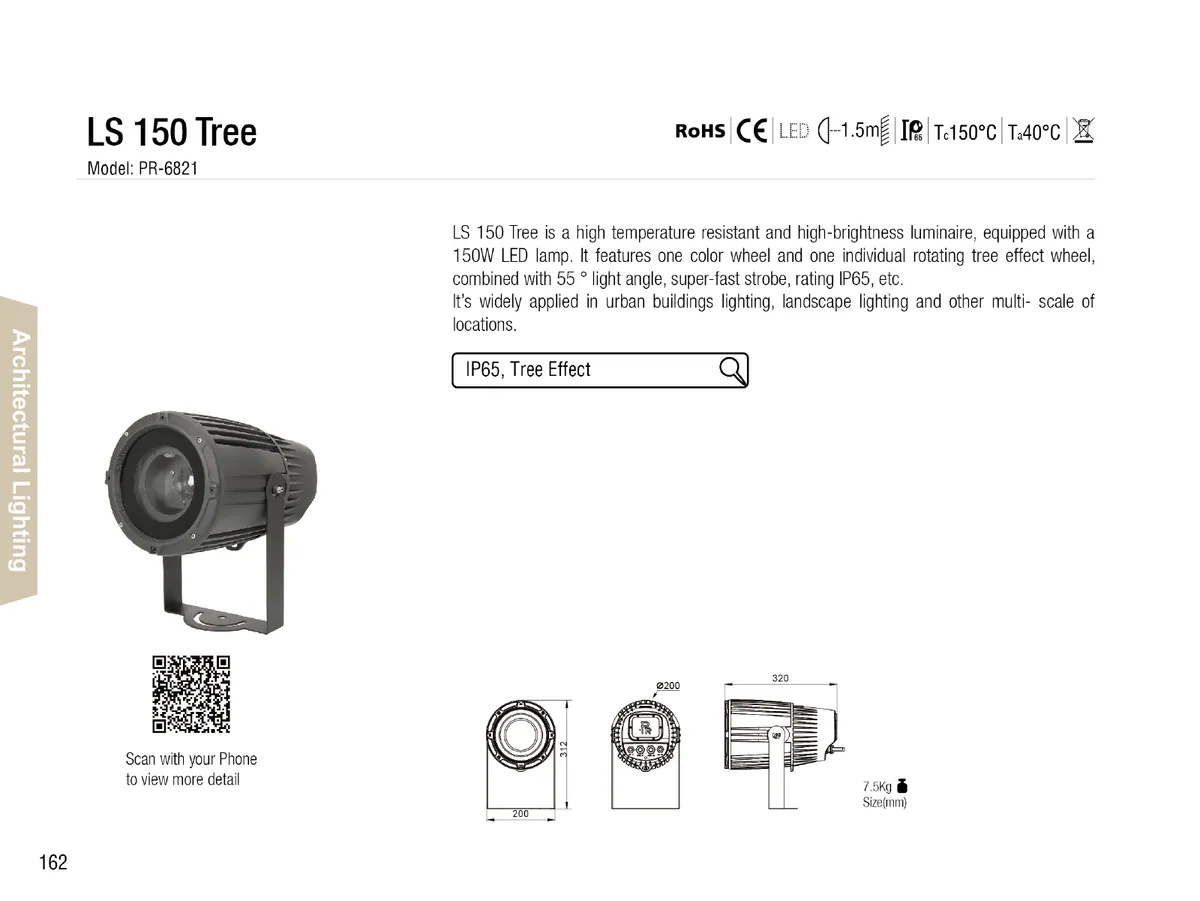

PDFDatasheetEN · 2 pages · 1.8 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Input Voltages1
- 100V~240V AC,50/60Hz
02Power Consumption1
- 160W@230V
03Light Source1
- 150W LED white(7,500k), 50,000 hrs
04Strobe1
- Electronic strobe, 0-25 F.P.S(preset pulse strobe effect)
05Dimmer1
- 0-100% linear adjustment
06Effect1
- 1 Metal effect wheel, independently and bi-directionally continually rotating
07Light Angle1
- Beam angle
- 55°(optional: 30°)
08Control4
- International DMX512, 3 pins(optional 5 pins) interface
- Master-slave synchronized mode, stand-alone mode, preset mode, test mode,
- and single scene mode
- DMX mode, preset memories and user memory mode
09Other Functions5
- LCD panel
- Over temperature protection
- Fast and convenient software upgrade via DMX512 interface
- Built in NTC temperature detecting function, If LED lamp is over heat
- its power will be decreased intelligently
10Physical2
- Housing
- high-intensity die-casting aluminum, IP65
- Ambient working temperature
- -20°C~40°C
11Weight1
- Net weight
- 7.5kg
12Packaging2
- Standard
- carton 700x690x480(mm), 4 in 1
- Optional
- flight case
13Accessories5
- C clamp, 1 pc
- Signal adapter cord, 2 pcs
- Power cord, 1 pc
- Safety cord, 1 pc
- Optional
- transparent cover+ seal+ screws x6, 1set
14Color Wheel2
- 1 Color wheel
- 5 dichroic color filters plus open
- Continual rotation, magnet sensor positioning
15Gobo1
- 1 Glass gobo
Show the full specificationHide the rest of the specification0 more groups · 0 values
03DescriptionManufacturer's description
What it is.
LS 150 Tree is a high temperature resistant and high-brightness luminaire, equipped with a 150W LED lamp. It features one color wheel and one individual rotating tree effect wheel, combined with 55 ° light angle, super-fast strobe, rating IP65, etc. It’s widely applied in urban buildings lighting, landscape lighting and other multi- scale of locations.
04Documents2 files · 3.5 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
