Sheet 05.983
PR Lighting · Other fixturesOn request

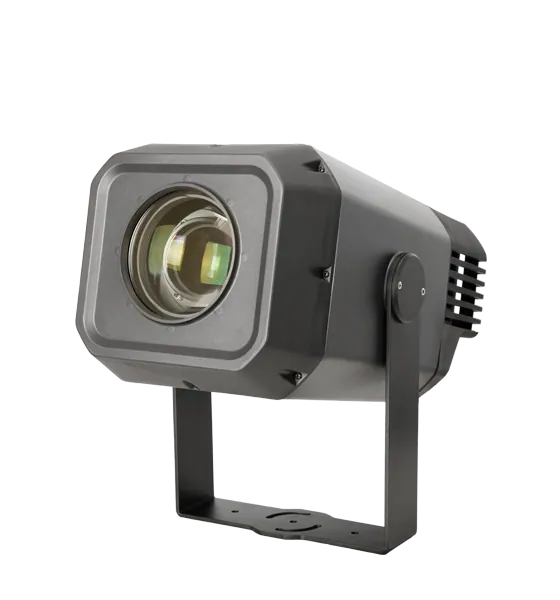

CUBIX 500
ModelPR-6600
This is high temperature resistant and high-brightness luminaire equipped with a 250W LED lamp. It features color wheel, gobo wheel, animation flame effect wheel, two prisms, 8°~40° zoom, rating IP65, etc. It's widely applied in multi-scale of locations.
- Light source
- 250W white LED(6,500k), 50,000 hrs
- Net weight
- 18.5kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
CUBIX 500Price on requestRequest a quotation
01VideoManufacturer's video · 1:01
PR Lighting CUBIX 500: the manufacturer's video
02SpecificationManufacturer's data · 18 groups · 29 values
What this product is, in numbers.

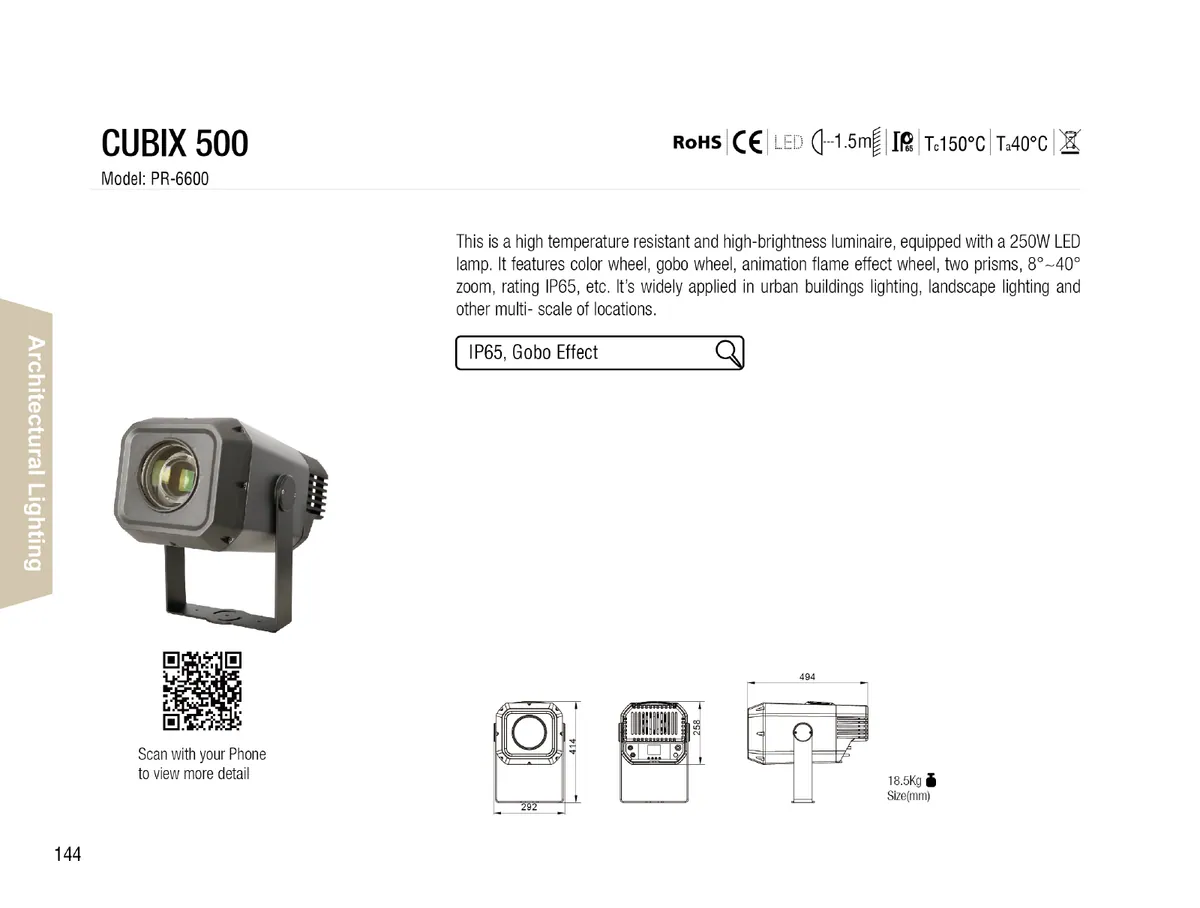

PDFDatasheetEN · 2 pages · 1.9 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Input Voltages1
- 100V~240V AC,50/60Hz
02Power Consumption1
- 350W@220V
03Light Source1
- 250W white LED(6,500k), 50,000 hrs
04Strobe1
- Electronic strobe, 0-25 F.P.S(preset pulse strobe effect)
05Dimmer1
- 0-100% linear adjustment
06Prism1
- Two prisms(3-facet prism and 4-facet prism), bi-drectionally rotating
07Effect1
- 1 Flame effect wheel, with bi-directional rotation, animation wheel is replaceable
08Light Angle1
- Beam angle(1/2 peak)θ1/2
- 8°~40°
09Focus1
- DMX linear focus
10Zoom1
- DMX linear zoom
11Control4
- International DMX512, 3 pins(optional 5 pins) interface
- Short mode 14 channels, standard mode 17 channels, and extended mode 19 channels
- Master-slave mode
- Preset memories and user memory mode
12Other Functions3
- LCD panel
- Over temperature protection
- Fast and convenient software upgrade via DMX512 interface
13Physical2
- Housing
- high-intensity die-casting aluminum, IP65
- Ambient working temperature
- -20°C~40°C
14Weight1
- Net weight
- 18.5kg
15Packaging2
- Standard
- carton 600x375x345(mm)
- Optional
- flight case 830x555x440(mm), 2 in 1
16Accessories4
- C clamp, 1 pc
- Signal adapter cord, 2 pcs
- Power cord, 1 pc
- Safety cord, 1 pc
17Color Wheel1
- 1 Color Wheel
- 6 color filters and 1 CTO plus open
18Rotating Gobo2
- 1 Rotating Gobo Wheel
- 7 replaceable gobos plus open
- Bi-drectionally rotating, index, shaking at variable speed and bi-directional scrolling effect
Show the full specificationHide the rest of the specification0 more groups · 0 values
03Documents2 files · 3.7 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
