Sheet 05.988
PR Lighting · Other fixtures
PLANET
ModelPR-8128
PLANET is the answer for with tight 3.3° beams and a wide far-reaching quality wash in compact housing. It fixtures 7 pcs 60W RGBW LEDs with PR patented optics especially developed for a high output in any stage and the spectacular zoom range of 3.3° to 60°.
- Light source
- 60W RGBW LED(SMT), Four in One
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
PLANETPrice on requestRequest a quotation
01VideoManufacturer's video · 1:29
PR Lighting PLANET: the manufacturer's video
02SpecificationManufacturer's data · 15 groups · 31 values
What this product is, in numbers.

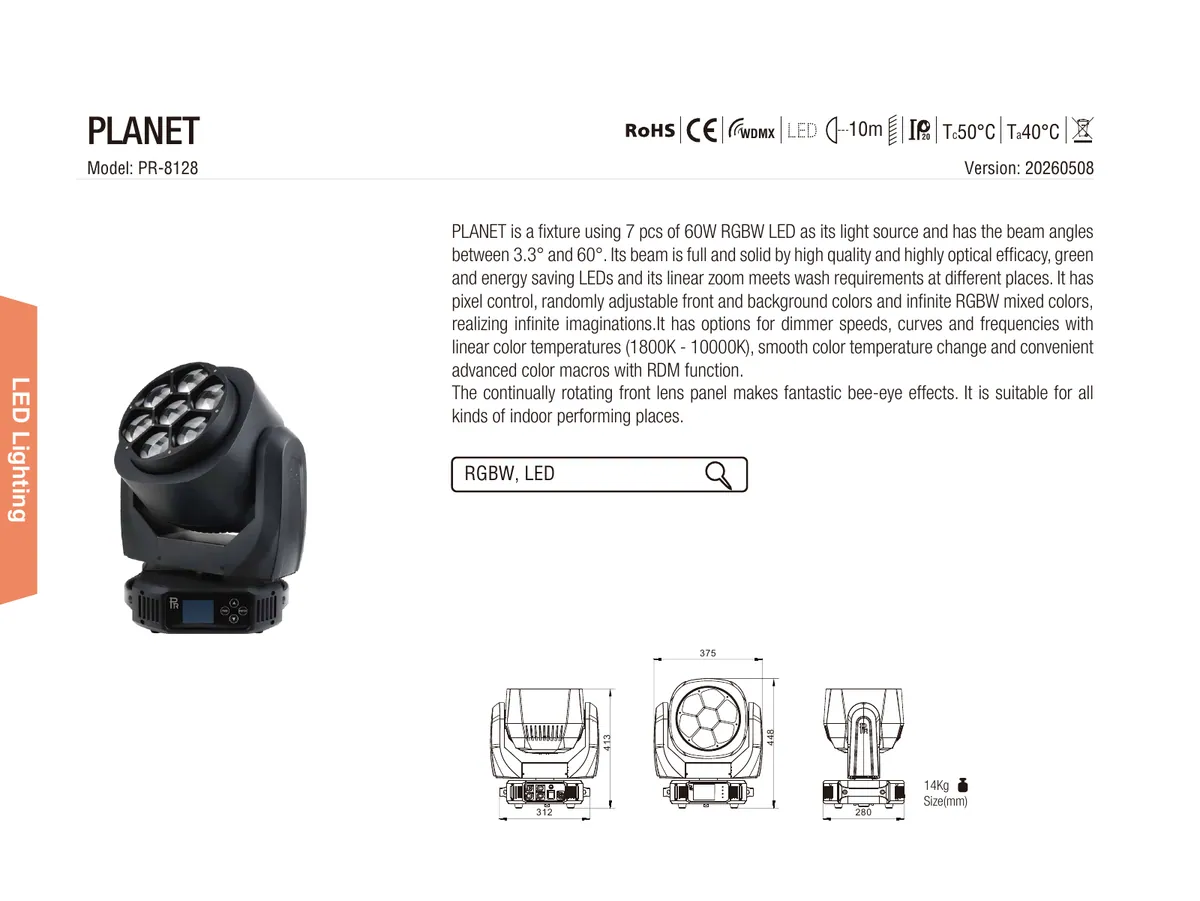

PDFDatasheetEN · 2 pages · 375 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Light Source2
- 60W RGBW LED(SMT), Four in One
- 50000hrs, 60W,7pcs
02Input Voltages1
- 100V~240V AC, 50/60Hz
03Power Consumption1
- 500W@220V
04Strobe1
- Electronic strobe
- 0-25 Hz (Built-in Pulse Strobe)
05Dimmer3
- 0-100% linearly adjustable
- 3 dimmer speeds
- 5 dimmer gamma curves
06OTHER EFFECTS2
- Rainbow, Wash, Beam, Profile, Effect Modes
- (Kaleidoscope, Swirl), multiple macros
07BEAM ANGLE1
- (1/2 peak)θ1/2, linear zoom
- 3.3°~ 60°
08ROTATION2
- Pan 0-540 degrees, Tilt 0-210 degrees with auto-positioning,
- Bi-directional and continual rotation for the front lens panel
09Control4
- International Standard DMX512 signal, 5 pin DMX512 interfaces
- 26channels in short mode, 30channels in standard mode, and 54 channels in extended mode
- Master/slave mode
- Stand-alone mode, Preset mode, Self test mode, Single Scene mode
10General2
- Pixel Control, each color of RGBW of a LED controllable
- Bi-directional and continual rotation of the front lens panel
11Other Functions7
- Color touch screen and its brightness adjustable
- Wireless Control
- Pan and Tilt Speed adjustable and Pan and Tilt can be inverted
- Convenient and quick firmware upgraded via DMX512 interface and XLR cable
- Over temperature protection
- Total hours, DMX512 channel number, software versions are displayed and display inversion
- High temperature engineering-plastic, IP20
12WEIGHT1
- 14Kg
13AMBIENT TEMPERATURE1
- Maximum ambient temperature
- 45 °C
14Color2
- Linear RGBW
- color mixing with infinite colors and macros
15COLOR TEMPERATUR1
- Linear change from 1800K to 10000K
Show the full specificationHide the rest of the specification0 more groups · 0 values
03DescriptionManufacturer's description
What it is.
PLANET is the answer for with tight 3.3° beams and a wide far-reaching quality wash in compact housing. It fixtures 7 pcs 60W RGBW LEDs with PR patented optics especially developed for a high output in any stage and the spectacular zoom range of 3.3° to 60°. For the next level, individual control of each LED pixel and attractive colorful chases provide "Kaleidoscope" effects both to look at and in the air.
04Documents4 files · 5.4 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
Software and data files01
Certificates01
