Sheet 05.579

PR Lighting · Spot and profileOn request

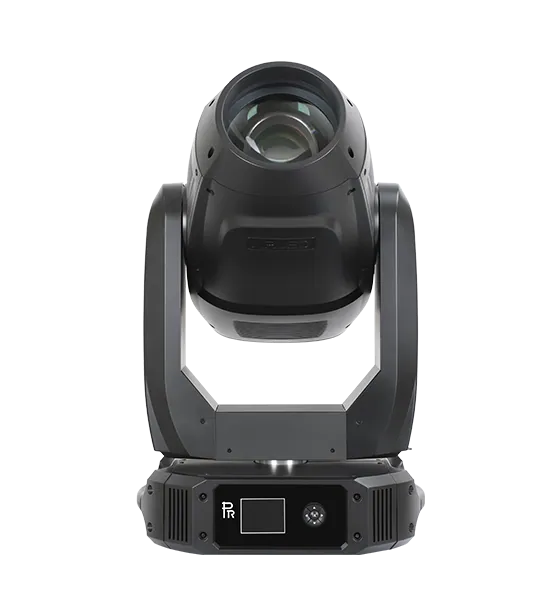

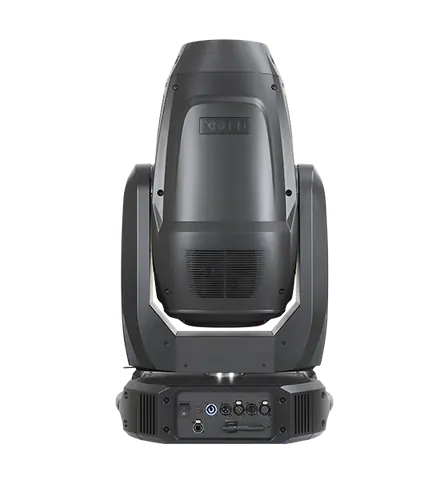

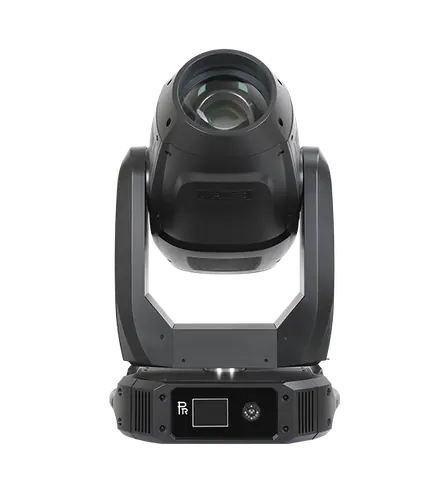

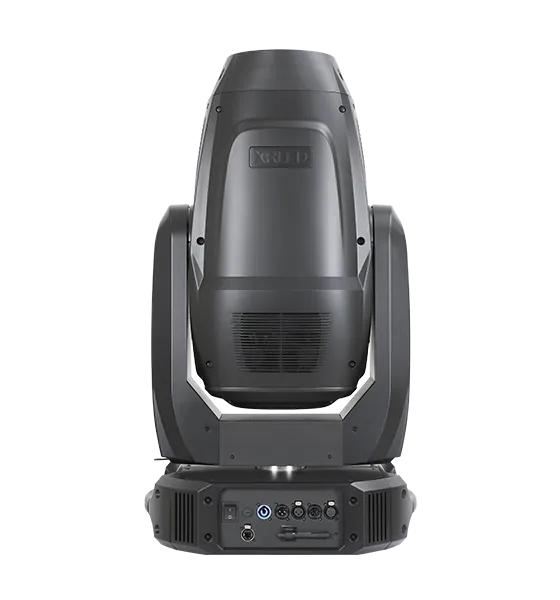

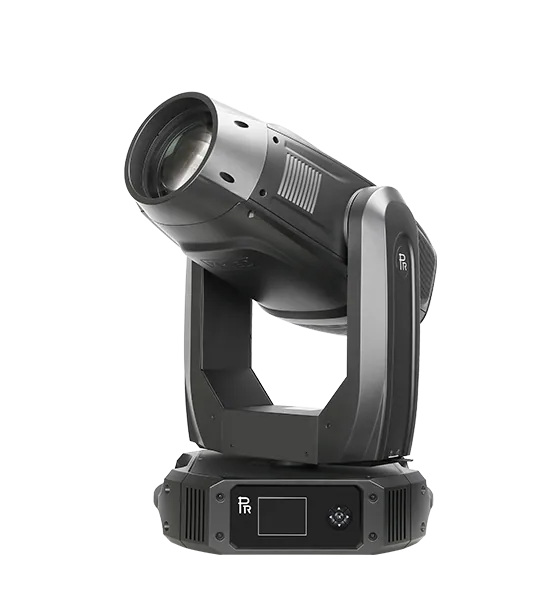

XRLED 1500-W Framing

ModelPR-8177A

The XRLED 1500-W Framing(PR-8177A) is the most advanced 600W professional LED moving head. In addition to its complete range of spotlight effects, it has an exclusive endless framing system, designed and patented by PR.

Light source: 600W white LED(8,000K), 20,000 hrs
Net weight: 45kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 24 groups · 50 values

What this product is, in numbers.

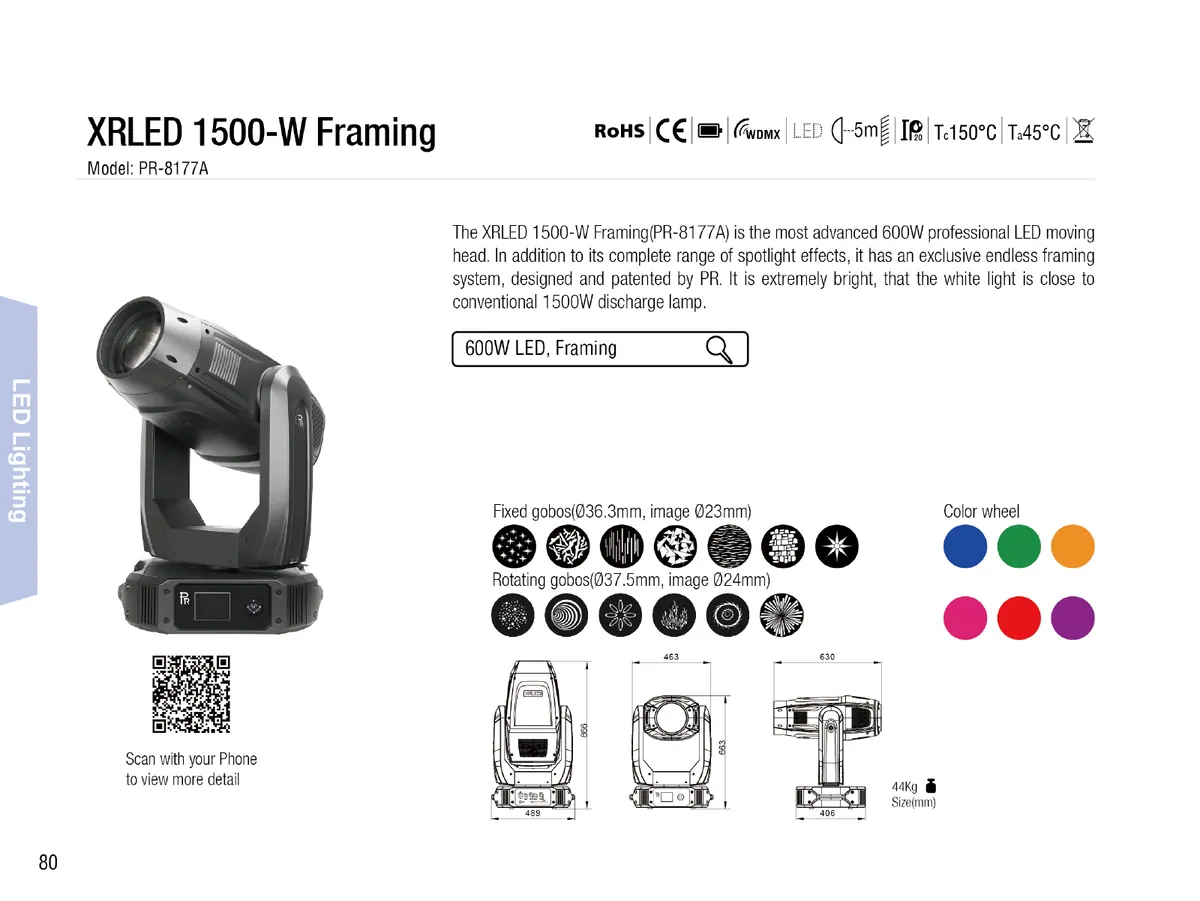

PDFDatasheetEN · 2 pages · 2.1 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input Voltages1

100-240V AC, 50/60Hz

02Power Consumption1

880W@220V, 930W@100V

03Light Source2

600W white LED(8,000K), 20,000 hrs

Ra≥70, R9≥90, Ra≥95 Lamp(optional)

04Strobe1

Electronic strobe, 0.3-25 F.P.S

05Dimmer1

0-100% linear adjustment

06CTO1

0-100% linear CTO system

Show the full specificationHide the rest of the specification18 more groups · 43 values

07Prism1

One 4-facet prism, bi-directionally rotatable at variable speed, indexable

08Frost1

One linear frost filter

09Effect1

1 Replaceable animation wheel, bi-directionally rotatable atvariable speed

10Iris1

5-100% linear adjustment with macro

11Focus1

Motorized linear focus

12Head Movement2

Pan 540º, tilt 270º with auto position correction

Swap and invert functions of pan and tilt

13Light Angle1

6°~56°

14Control4

International DMX512, 5 pins interface

Short mode 35 channels, standard mode 38 channels and extended mode 54 channels

Art Net protocol

Master-slave mode, stand-alone mode, self-test mode

15Other Functions10

Adjustable pan & tilt speed

Color touch panel display in English, and its brightness and contrast adjustable

Fixture and lamp usage time display

Built-in analyzer for easy fault finding, error messages

Setup options by chargeable battery inside without power connection

Software version display

Modular structure easy for maintenance

Network interface

DMX512 wireless receiver

DMX512 wireless transmitter(optional)

16Weight1

Net weight: 45kg

17Packaging2

Standard: carton 845x645x790(mm)
Optional: flight case 710x550x860(mm)

18Physical2

Housing: composite plastic, IP20
Ambient working temperature: maximum 45°C

19Accessories5

G clamp, 2 pcs; 5 pins XLR connector, 1 set; Safety cord, 2 pcs; Power cord, 1 pc
Optional: Ω clamp, 2 pcs

20CMY1

CMY linear color mixing with macros

21Color Wheel4

1 Color wheel: 6 dichroic colors filters plus open; Half color effect, variable speed rainbow effect; Stepping/linear color changing is optional; Linear color temperature adjustment

22Fixed Gobo1

1 Fixed gobo wheel: 7 replaceable gobos plus open

23Rotating Gobo3

1 Rotating gobo wheel: 6 replaceable gobos plus open, glass or metal gobos can be fixed; Bi-directionally rotatable and wheel scrolling at variable speed, indexable; Shakable at variable speeds

24Framing2

4 Sets of framing blades

Endless rotation, graphics at different sizes and shapes, full curtain effect
