Sheet 05.580
PR Lighting · Spot and profileOn request
XRLED 1500-W Spot
ModelPR-8170A
XRLED 1500-W Spot is a new launched LED spot moving head, equipped with 600W LED module.
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
XRLED 1500-W SpotPrice on requestRequest a quotation
01SpecificationManufacturer's data · 19 groups · 24 values
What this product is, in numbers.

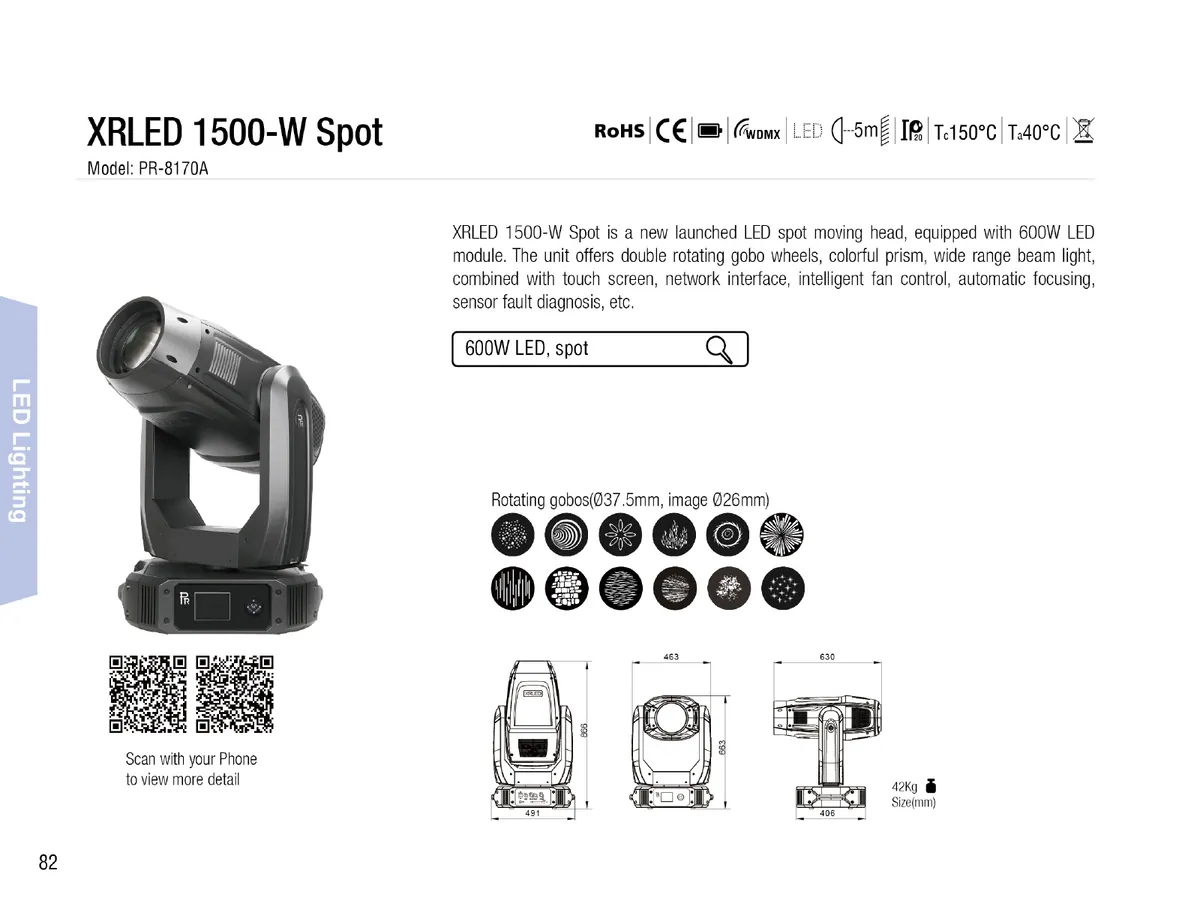

PDFDatasheetEN · 2 pages · 2.1 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Light Source1
- 600W (8,000K), 20000 hrs, Optional
- Ra≥95 , R9≥90
02Input Voltages1
- 100V~240V AC, 50/60Hz
03Power Consumption1
- 880W@220V, 930W@100V
04Strobe1
- Double shutter blades, 0.3-25 F.P.S
05Dimmer1
- 0-100% linearly adjustable
06CTO1
- 0-100% linear CTO system
07Prism1
- 4-facet prisms, bi-directionally rotatable at variable speed, (optional
- color 4-facet prism)
08Effect1
- 1 Interchangeable graphic effect wheel, bi-directional rotation with variable speeds
09Frost1
- 1 Frost filter, linear frost effect
10General4
- 5 - 100% linearly adjustable with macros
- DMX512 wireless receiver, (optional
- DMX512 wireless transmitter)
- High-temperature-resistant engineering plastic
- IP20
11Focus1
- Motorized linear focus
12Light Angle1
- 6°~56°
13Head Movement1
- Pan 540º and tilt 270º with auto position correction and adjustable speed
14Control1
- DMX512, 5 pins(optional 3 pins) intereface
15Channels1
- Short mode 27 channels, standard mode 31 channels and extended mode 38 channels
16Housing1
- 42kg
17CMY1
- CMY linear mixing system with macros
18Color Wheel2
- 1 Color Wheel
- 6 colors+ open
- Half color effect, rainbow effect with bi-directional and variable speeds
19Rotating Gobo2
- 2 Rotating Gobo Wheels
- each with 6 replaceable gobos plus open, glass and metal gobos can be fixed
- Bi-drectionally rotating, index, shaking at variable speed and bi-directional scrolling effect
Show the full specificationHide the rest of the specification0 more groups · 0 values
02DescriptionManufacturer's description
What it is.
XRLED 1500-W Spot is a new launched LED spot moving head, equipped with 600W LED module. The unit offers double rotating gobo wheels, colorful prism, wide range beam light, combined with touch screen, network interface, intelligent fan control, automatic focusing, sensor fault diagnosis, etc.
03Documents4 files · 14 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals01
Software and data files01
Drawings01
