Sheet 05.577

PR Lighting · Spot and profileOn request

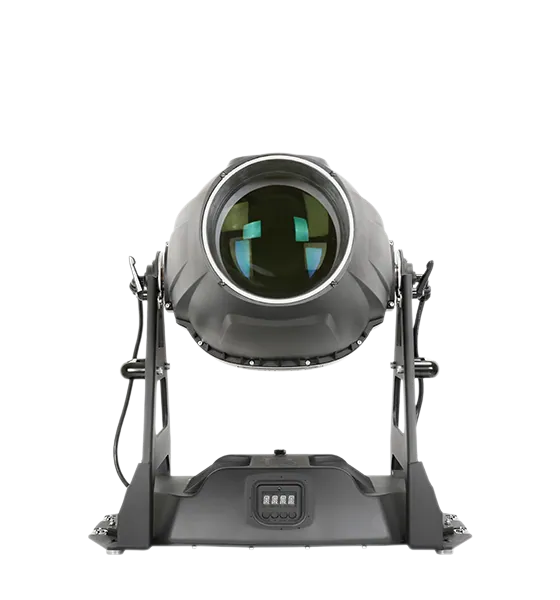

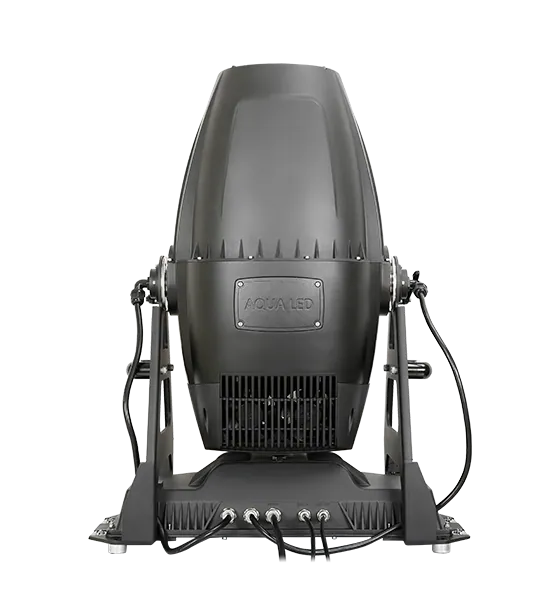

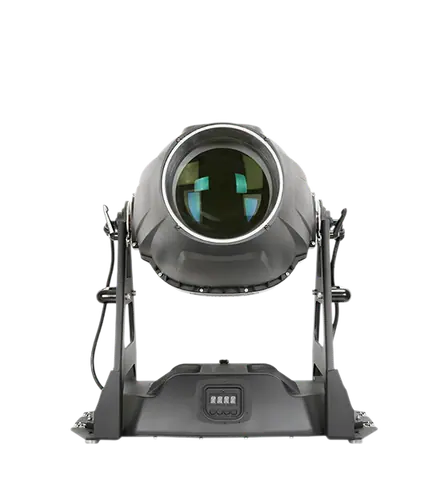

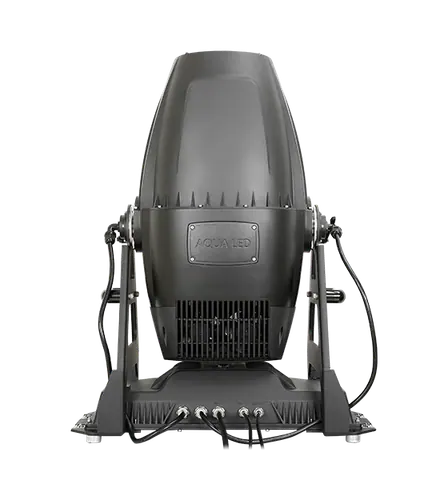

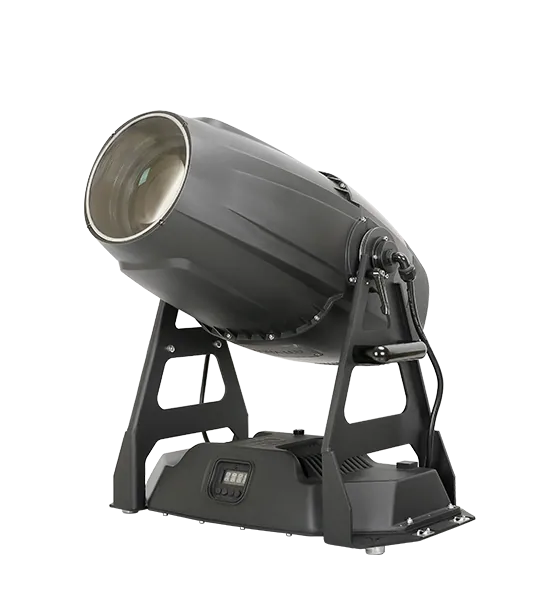

TANGO 1800 Framing

ModelPR-6617

PR announced TANGO 1800 Framing, the latest model in its family of high powerful outdoor profile fixture, equipped with 800W bright white LED source.

Light source: 800W LED white(7,000K), 20,000 hrs
Net weight: 42kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 21 groups · 36 values

What this product is, in numbers.

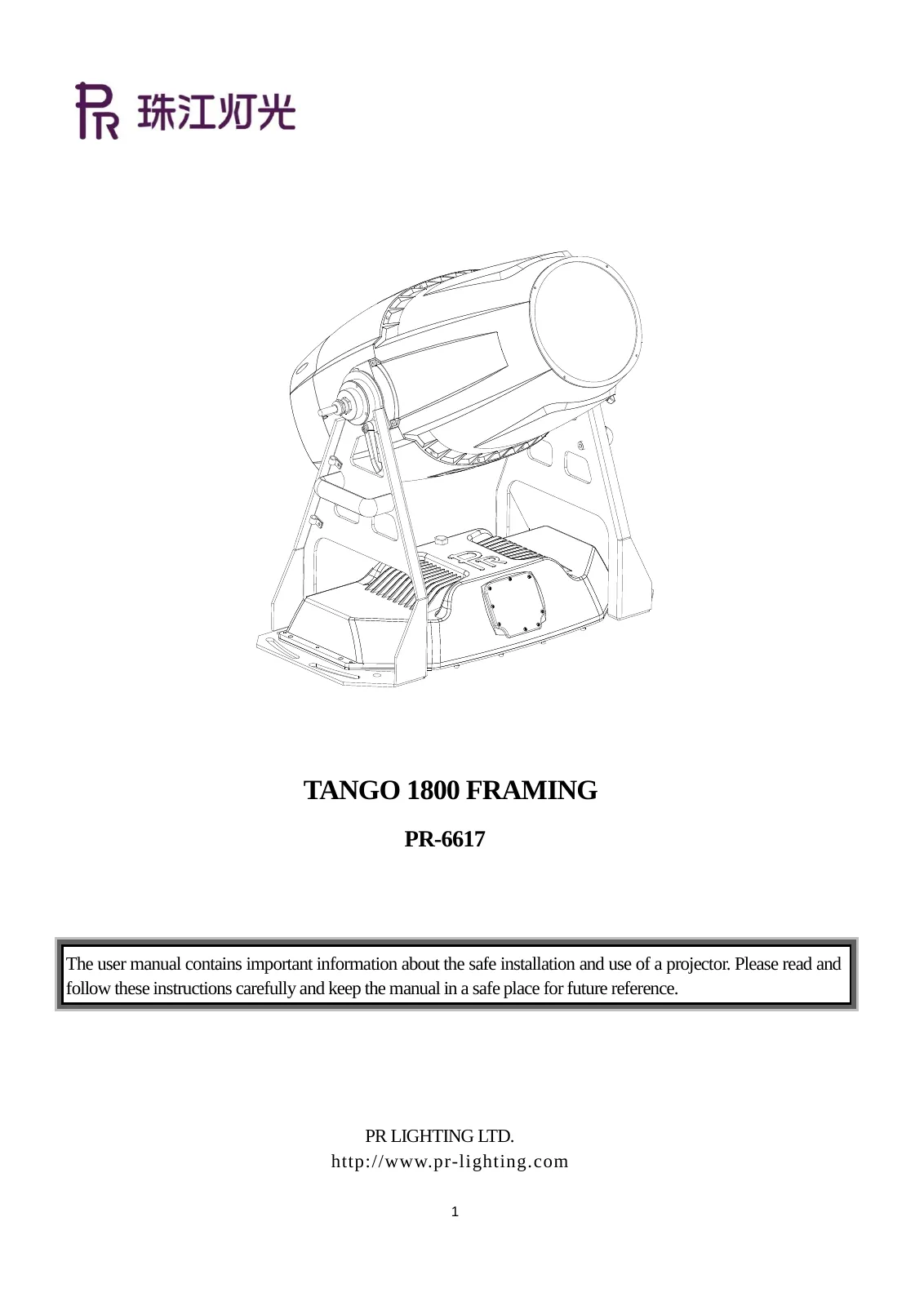

PDFUser manualEN · 32 pages · 2.3 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input Voltages1

100-240V AC, 50/60Hz

02Power Consumption1

1100W@220V, 1140W@100V

03Light Source1

800W LED white(7,000K), 20,000 hrs

04Strobe1

Electronic strobe, 0.3-25 F.P.S

05Dimmer1

0-100% linear adjustment

06CTO1

0-100% linear CTO system

07Prism1

One 4-facet prism, bi-directionalat variable speeds, index function

08Effect2

Dual effect wheel, independent bi-directional rotation at variable speeds

Shaking effect at variable speeds

09Frost1

One linear frost filter

10Focus1

DMX linear focus

11Light Angle1

6°~56°

12Control4

International DMX512, 5 pins interface

RDM control protocol

Short mode 26 channels, standard mode 31 channels, extended mode 46 channels

Master-slave mode, stand-alone mode, test mode

13Other Functions7

Lamp and total hours displayed

Over temperature protection

Fast and convenient software upgrade via DMX512 interface

Input signal isolation

Modular structure for easy maintenance

DMX512 wireless receiver

DMX512 wireless transmitter(optional)

14Physical2

Housing: high-intensity die-casting aluminum, IP66
Ambient working temperature: 45°C

15Weight1

Net weight: 42kg

16Packaging1

Standard: carton , Optional: flight case

17Accessories1

Safety cord, 1 pcs

18Color Wheel3

1 Color wheel: 6 dichroic color filters plus open; Half color effect, rainbow effect with bi-directional and variable speeds; Stepping/linear color changing

19Fixed Gobo2

1 Fixed gobo wheel: 7 replaceable gobos plus open, glass and metal gobos can be fixed; Bi-drectionally rotating, index, shaking at variable speed

20Rotating Gobo2

1 Rotating gobo wheel: 6 replaceable gobos plus open, glass and metal gobos can be fixed; Bi-drectionally rotating, index, shaking at variable speed

21Framing1

4 Framing blades, rotates between 0° and 90° and produces graphics of different shapes and sizes, curtain effect

02DescriptionManufacturer's description

What it is.

PR announced TANGO 1800 Framing, the latest model in its family of high powerful outdoor profile fixture, equipped with 800W bright white LED source. With IP66-Rated, 6°~56° wide zoom and multi dynamic effects, it’s ideal for urban buildings lighting, landscape lighting and other multi-scale of locations.

03Documents2 files · 5.9 MB
