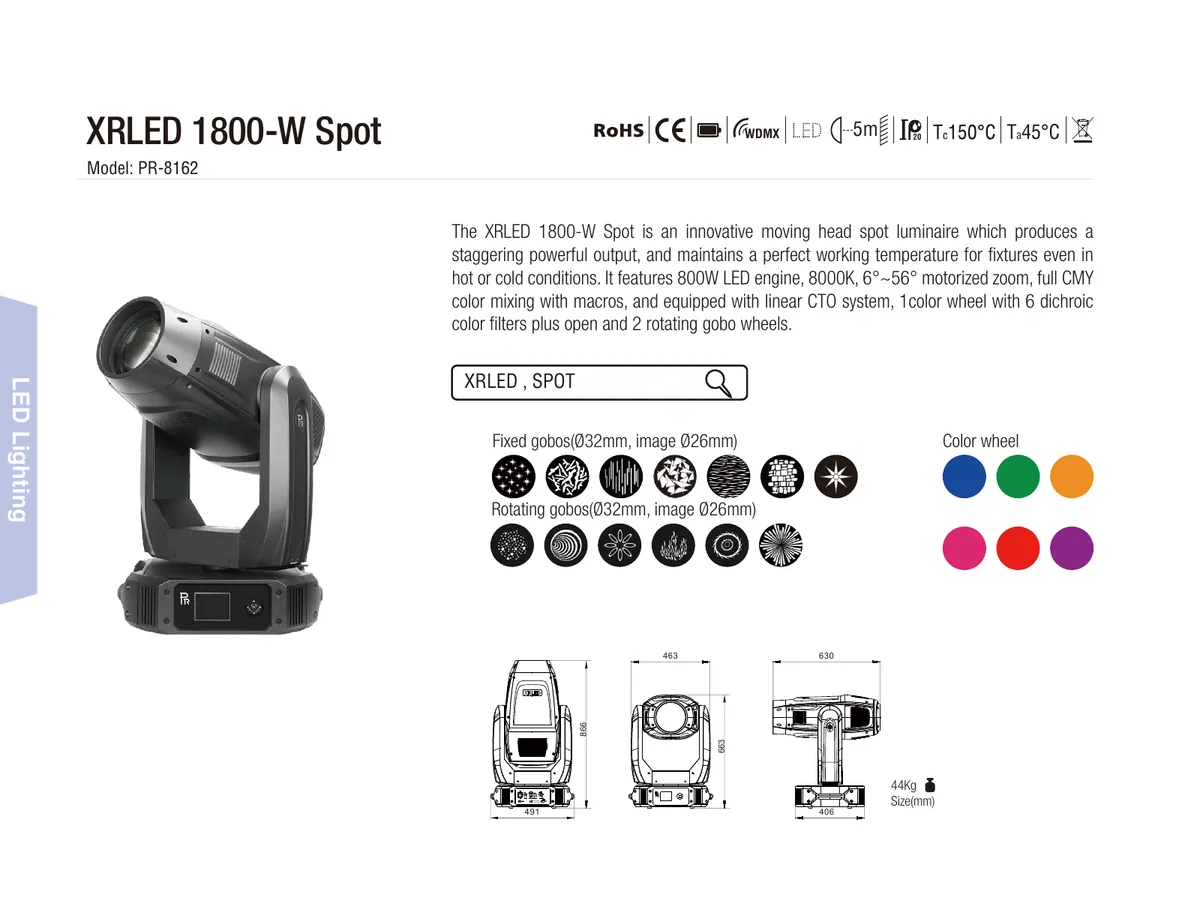

XRLED 1800-W Spot

ModelPR-8162

The XRLED 1800-W Spot is an innovative moving head spot luminaire which produces a staggering powerful output, and maintains a perfect working temperature for fixtures even in hot or cold conditions.

Light source: LED 800W (8000K, 20000hrs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 21 groups · 56 values

What this product is, in numbers.

PDFDatasheetEN · 2 pages · 717 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Input Voltage1

100V-240V AC,50/60Hz

02Input Power2

1050W@220V AC

1100W@100V AC

03Light Source3

LED 800W (8000K, 20000hrs)

Ra≥70

Ra≥95,R9≥90 LED(Optional)

04Colors5

CMY linear coloring mixing system with macros

1 Color Wheel

6 colors+ white

Bi-directional rainbow effect with variable speeds and half color effect

Linear /stepping color changing

05CTO1

Linear CTO system(0-100%)

06Gobos3

2 rotating gobo wheels: 6 exchangeable+ white, glass or metal gobos; Bi-directional rotation, indexing, shake with varied speeds, bi-directional; scrolling with varied speeds

Show the full specificationHide the rest of the specification15 more groups · 41 values

07Prism2

1pc 4 facet prism

bi-directional rotation with varied speeds and indexing function

08Frost1

Linear frost (0-100%)

09Effect Wheel1

1 graphic effect wheel, bi-directional rotation with varied speeds

10Focus1

0-100% linearly adjustable by DMX

11Dimmer4

Linear dimmer 0-100%

3 dimmer speeds

4 dimmer gamma curves

Dimmer frequency(1.2K~2.5K) good for high speed 4K video camera

12Iris1

Linear iris 5-100% with macros

13Strobe1

Double shutter blades, 0.3~25 F.P.S

14Head Movement1

Pan 540º, Tilt 270º with auto position correction

15Beam Angle1

Linear zoom 6°~ 56°with 16 bit precision

16Control8

International standard DMX512 signal , 5 pin interface(Optional 3pin interface)

RDM control protocol

ArtNet protocol

27channels in short mode,

31channels in standard mode,38channel in extended mode

Master and slave synchronized control mode

Stand-alone mode

Master mode

17Other Functions12

Adjustable Pan & Tilt speeds

Pan and Tilt swappable and invertible

Fixture and lamp hours’ display

Color screen, Chinese-English menus, brightness and contrast adjustable

Diagnostic system with sensors

Built-in rechargeable battery for settings via control panel without mains power

Software version display

Protection and insulation of input signals

Modular construction for easy maintenance

ArtNet interface

DMX512 wireless receiver

DMX512 wireless transmitter(Optional)

18Housing1

High temperature resistant, IP20

19Net Weight1

42.5Kg

20Ambient Temperature1

-20°C~45°C

21Accessories5

G clamp 2 Pcs

XLR connector 1 Set Male and female

Safety cord 2 Pc

User manual 1 Pc

Ω clamp 2 Pcs Optional

02DescriptionManufacturer's description

What it is.

The XRLED 1800-W Spot is an innovative moving head spot luminaire which produces a staggering powerful output, and maintains a perfect working temperature for fixtures even in hot or cold conditions. It features 800W LED engine, 8000K, 6°~56° motorized zoom, full CMY color mixing with macros, and equipped with linear CTO system, 1color wheel with 6 dichroic color filters plus open and 2 rotating gobo wheels.
