One hall. A clear plan for every event.

Move between presentations, recorded events and hybrid conferences with signal routes and controls designed for each format. Screens, sound, cameras and stage lighting follow an agreed operating plan.

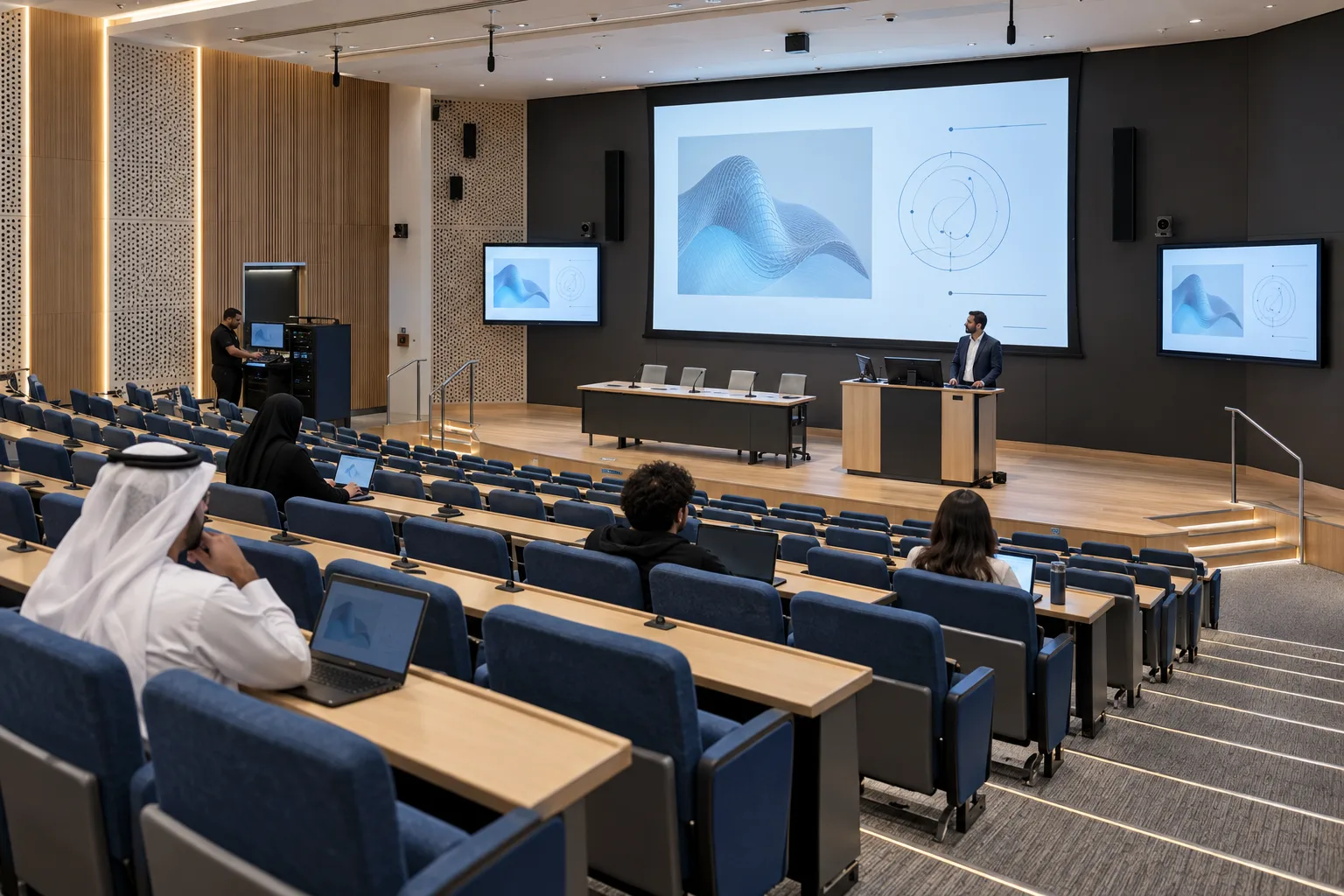

Concept visualisation of a multi-purpose hall with a stage and presentation screen
Fig. 02.0 — Multi-purpose halls
01Overview

Design around the event and the changeover.

A presentation, a streamed panel discussion and a stage programme use the hall differently. We establish who operates each event, which sources the audience sees, what is recorded and how remote speakers join. The design then gives each destination its own agreed picture and sound.

The room sound mix supports the audience. The recording mix captures the event for replay. A hybrid conference adds a separate outgoing mix and an echo reference so remote participants can speak without hearing their own sound returned. Mode controls recall the approved routes and expose device status to the operator.

Reference designs · project selection and testing required. These examples describe intended functions and initial quantities. They are not fixed packages or evidence of completed installations. Seat counts are planning assumptions, not equipment capacity ratings.

For daily teaching and lesson workflows, explore learning and presentation spaces. A touring concert or a large production requires its own rider, power, rigging and production design; it is outside these baseline hall examples.

02Where it is used06 environments

Real environments, real priorities.

Who works in each kind of space, what they work with and what matters most to them.

Application register
No.EnvironmentWho uses itWork and contentWhat matters mostTypical systems
A01Company event hallPresenter and seated audienceBriefings, announcements and slidesReadable content and consistent speech levelsMH-01: presentation and room sound
A02Community hallHost, speakers and audienceTalks, ceremonies and questionsSimple source selection and microphone handoverMH-01, or MH-02 for recording
A03Recorded panel eventModerator, panel and online viewersSwitch camera views and publish an eventA complete programme and an independent recording mixMH-02: two cameras and recorder
A04Public lecture eventVisiting speaker, operator and audienceShow material and stream a scheduled eventReliable preparation, monitoring and end-of-event file checksMH-02
A05Hybrid conferenceLocal panel and remote speakersTwo-way discussion with presentation contentEcho control and distinct local, outgoing and recorded viewsMH-03
A06Hall with a stage programmePerformers and technical operatorChange from a conference to a rehearsed performanceStage inputs, monitor mixes, lighting cues and checked changeoversMH-03, adapted to the rider
03Typical configurations

Three starting points, compared.

Choose the workflow closest to your brief. Compare its scope, interfaces and operating limits before selecting equipment.

Compare all 3 configurations
Configuration

Presentation hall

MH-01

Show presentation material and reinforce speech in the hall. Reference design; room tests required.

Explore MH-01

Recorded and streamed events

MH-02

Switch camera views and capture the event with a separate recording mix. Reference design; recording and stream tests required.

Explore MH-02

Conference and stage modes

MH-03

Coordinate two-way conferences and stage programmes through agreed modes. Reference design; platform, routing and mode tests required.

Explore MH-03
Primary task

Present to the audience in the hall

Produce a recorded or streamed event

Change between presentations, hybrid conferences and stage programmes

Planning assumption

One hall, up to 80 seats

One hall, up to 150 seats

One hall, up to 250 seats

Microphone and stage inputs

2 wireless channels + 1 lectern microphone

4 wireless channels + 2 wired microphone/DI channels

6 wireless speech channels + 8 wired microphone/DI channels

Presentation and cameras

One presentation source; no cameras

One presentation source and 2 PTZ cameras

One presentation source, 3 PTZ cameras and a separate call return

Displays

One main display

One main display and one operator multiview monitor

Main display, presenter confidence display and operator multiview monitor

Audio destinations

Room sound

Room sound, 2 stage monitor mixes and stereo recording mix

Room sound, 4 stage monitor mixes, recording mix and separate call send

Recording

Not included

One selected programme with event sound

Local programme plus an agreed remote-participant layout and event sound

Remote participation

Not included

One-way streaming; no return call

Two-way speech and video on the selected platform

Lighting

Existing room lighting; stage lighting optional

Existing room lighting; stage lighting optional

One designed stage-lighting package; fixture schedule by project

Operation

Presenter controls; trained person sets sound levels

Event operator selects views and monitors recording

Technical operator supervises mode changes, conferencing and stage cues

Delivery status

Reference design; room tests required

Reference design; recording and stream tests required

Reference design; platform, routing and mode tests required

Presentation hall

MH-01

Show presentation material and reinforce speech in the hall. Reference design; room tests required.

Explore MH-01
Primary task
Present to the audience in the hall
Planning assumption
One hall, up to 80 seats
Microphone and stage inputs
2 wireless channels + 1 lectern microphone
Presentation and cameras
One presentation source; no cameras
Displays
One main display
Audio destinations
Room sound
Recording
Not included
Remote participation
Not included
Lighting
Existing room lighting; stage lighting optional
Operation
Presenter controls; trained person sets sound levels
Delivery status
Reference design; room tests required

Recorded and streamed events

MH-02

Switch camera views and capture the event with a separate recording mix. Reference design; recording and stream tests required.

Explore MH-02
Primary task
Produce a recorded or streamed event
Planning assumption
One hall, up to 150 seats
Microphone and stage inputs
4 wireless channels + 2 wired microphone/DI channels
Presentation and cameras
One presentation source and 2 PTZ cameras
Displays
One main display and one operator multiview monitor
Audio destinations
Room sound, 2 stage monitor mixes and stereo recording mix
Recording
One selected programme with event sound
Remote participation
One-way streaming; no return call
Lighting
Existing room lighting; stage lighting optional
Operation
Event operator selects views and monitors recording
Delivery status
Reference design; recording and stream tests required

Conference and stage modes

MH-03

Coordinate two-way conferences and stage programmes through agreed modes. Reference design; platform, routing and mode tests required.

Explore MH-03
Primary task
Change between presentations, hybrid conferences and stage programmes
Planning assumption
One hall, up to 250 seats
Microphone and stage inputs
6 wireless speech channels + 8 wired microphone/DI channels
Presentation and cameras
One presentation source, 3 PTZ cameras and a separate call return
Displays
Main display, presenter confidence display and operator multiview monitor
Audio destinations
Room sound, 4 stage monitor mixes, recording mix and separate call send
Recording
Local programme plus an agreed remote-participant layout and event sound
Remote participation
Two-way speech and video on the selected platform
Lighting
One designed stage-lighting package; fixture schedule by project
Operation
Technical operator supervises mode changes, conferencing and stage cues
Delivery status
Reference design; platform, routing and mode tests required

Reference configurations. Example quantities require project selection, compatibility checks and system acceptance tests.

Follow the signal path for your configuration.

MH-01

Presentation hall

Reference design; room tests required

A presenter connects a laptop, uses a lectern or wireless microphone and shows material on the main display.

MH-01 · Presentation hall

Functional reference design: HDMI presentation to one main display, three microphone channels to room sound, and separate room controls.

Signal flow

Signal flow. Devices, connections and conditions follow the drawing.Open SVG ↗
MH-01 · Signal flowReference design with one presentation source, three microphones, one display and local room sound. Dashed links are commands or status. 1 cable set + 1 rack/power set 1 programming work package site quantities required Reference design; no recording or call. Solid = media; dashed = control/status. Local power supplies; no PoE assumed. Repeated device identifiers refer to the same equipment across views. Equipment illustrations are schematic; labels define quantities.{"sourceHash":"784bd461530f5f9c26aa18e22a05a242c3713555b70d1f431e42858fc56387c7","view":"signal","nodes":["LAP","EX","MAIN","RF","MIX","WIRED","PA","SP"],"edges":["L01","L02","L03","L04","L05","L06","L07"]}PIXEL COMMAND SOLUTIONS / MH-01 / SIGNAL FLOWSignal flowREFERENCE DESIGN · PROJECT VALIDATION REQUIREDLAP → EX: HDMIHDMIEX → MAIN: HDMIHDMIRF → MIX: 2 balanced analogue2 balanced analogueWIRED → MIX: 1 balanced analogue1 balanced analogueMIX → PA: ST L/R analogueST L/R analoguePA → SP: 2 line outputs2 line outputsEX → MIX: stereo line: 2 channelsstereo line: 2 channels1 customer laptopLAP1 customer laptop1 HDMI interface stereo extractionEX1 HDMI interface1 main display systemMAIN1 main display system2 wireless channelsRF2 wireless channels1 digital mixer 5 input channels usedMIX1 digital mixer1 lectern microphoneWIRED1 lectern microphone1 room DSP 2 inputs / 2 outputs usedPA1 room DSP2 powered mains amplification includedSP2 powered mainsVideo / LED dataAudio
Devices, connections & design conditions 7 connections
  • Functional reference design: HDMI presentation to one main display, three microphone channels to room sound, and separate room controls.
LAP
1 customer laptop
EX
1 HDMI interface stereo extraction
MAIN
1 main display system
RF
2 wireless channels
MIX
1 digital mixer 5 input channels used
WIRED
1 lectern microphone
PA
1 room DSP 2 inputs / 2 outputs used
SP
2 powered mains amplification included
  1. LAP → EXHDMI
  2. EX → MAINHDMI
  3. RF → MIX2 balanced analogue
  4. WIRED → MIX1 balanced analogue
  5. MIX → PAST L/R analogue
  6. PA → SP2 line outputs
  7. EX → MIXstereo line: 2 channels

1 cable set + 1 rack/power set 1 programming work package site quantities required

Reference design; no recording or call. Solid = media; dashed = control/status. Local power supplies; no PoE assumed.

Control & status

Signal flow. Devices, connections and conditions follow the drawing.Open SVG ↗
MH-01 · Control & statusReference design with one presentation source, three microphones, one display and local room sound. Dashed links are commands or status. 1 cable set + 1 rack/power set 1 programming work package site quantities required Reference design; no recording or call. Solid = media; dashed = control/status. Local power supplies; no PoE assumed. Repeated device identifiers refer to the same equipment across views. Equipment illustrations are schematic; labels define quantities.{"sourceHash":"784bd461530f5f9c26aa18e22a05a242c3713555b70d1f431e42858fc56387c7","view":"control","nodes":["MAIN","PA","CTRL","NET"],"edges":["L08","L09","L10"]}PIXEL COMMAND SOLUTIONS / MH-01 / CONTROL & STATUSControl & statusREFERENCE DESIGN · PROJECT VALIDATION REQUIREDCTRL ↔ NET: commands / status via LANcommands / status viaLANNET ↔ PA: IP commands / statusIP commands / statusNET ↔ MAIN: IP commands / statusIP commands / status1 main display systemMAIN1 main display system1 room DSP 2 inputs / 2 outputs usedPA1 room DSP1 integrated panel/controllerCTRL1 integratedpanel/controller1 managed switch 4 ports plannedNET1 managed switchControl / status
Devices, connections & design conditions 3 connections
  • Functional reference design: HDMI presentation to one main display, three microphone channels to room sound, and separate room controls.
MAIN
1 main display system
PA
1 room DSP 2 inputs / 2 outputs used
CTRL
1 integrated panel/controller
NET
1 managed switch 4 ports planned
  1. CTRL ↔ NETcommands / status via LAN
  2. NET ↔ PAIP commands / status
  3. NET ↔ MAINIP commands / status

1 cable set + 1 rack/power set 1 programming work package site quantities required

Reference design; no recording or call. Solid = media; dashed = control/status. Local power supplies; no PoE assumed.

Typical architecture · not a project drawing

Workflow, boundaries and intended result

Composition

One customer presentation device, one HDMI interface with stereo audio extraction, one main display system, two wireless microphone channels, one lectern microphone, one digital mixer and one room audio processor. Two powered main loudspeakers form the initial coverage layout. One integrated control panel/controller and the hall infrastructure complete the example.

Boundaries

Cameras, recording, streaming, two-way conferencing and stage monitor mixes are outside this baseline. The presentation device must provide the agreed HDMI format and unprotected content. Speaker quantity, image size, cable transport and any hearing-assistance system are confirmed against the room.

Intended result

Staff can connect the agreed source and show slides. The room panel controls the display and overall sound level; microphone channel mutes remain on the mixer. A repeatable startup and shutdown procedure covers both controls.

Example equipment for MH-01

Example quantities for the selected configuration; final selection follows the approved design. A catalogue listing does not confirm stock, delivery time or complete-system compatibility.

Main / confidence / multiview displays
1 / 0 / 0

LED options; other display types by specification

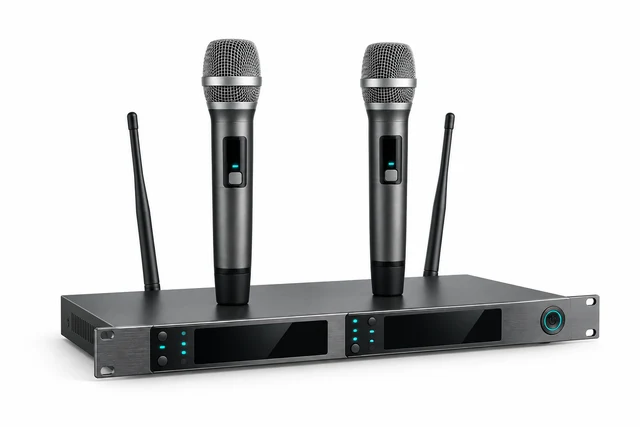

Wireless channels / wired microphone or DI channels
2 / 1

Microphones and wireless microphone systems

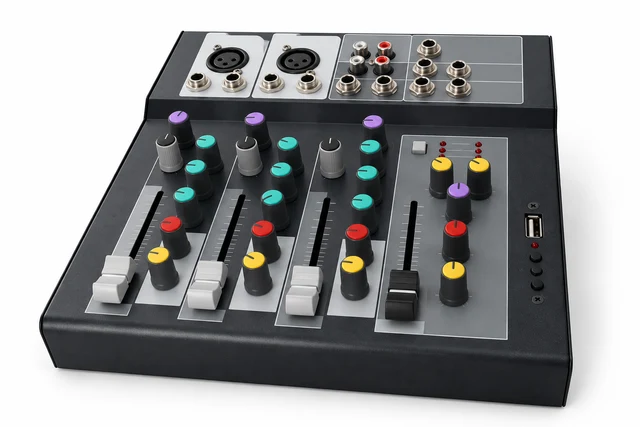

Digital console / stage I/O unit
1 / 0

Audio processing

Room audio processor / conferencing audio processor
1 / 0

Audio processing

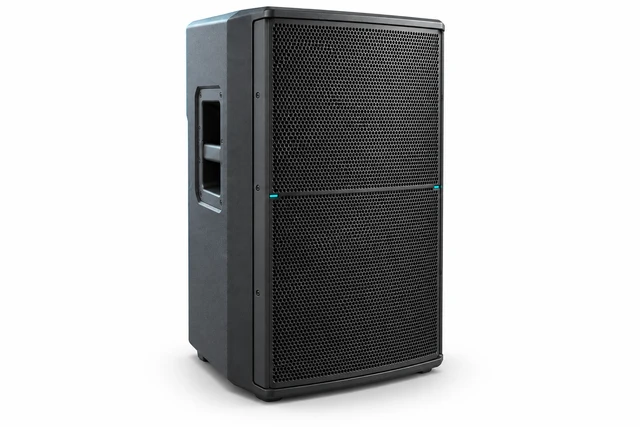

Powered main positions or groups / fills / monitors
2 / 0 / 0

Loudspeakers

HDMI interfaces with extraction / additional HDMI splitters
1 / 0

Interfaces selected to the signal schedule

Integrated room panel/controller / stage-lighting package
1 / optional

Lighting control · Stage lighting

MH-02

Recorded and streamed events

Reference design; recording and stream tests required

An event operator switches between two camera views and presentation material, while the room audience watches the selected source and online viewers receive the programme.

MH-02 · Recorded and streamed events

Functional reference design: two SDI cameras and presentation to production switching, room display and recording; separate room, stage monitor and record mixes.

Video & data

Signal flow. Devices, connections and conditions follow the drawing.Open SVG ↗
MH-02 · Video & dataTwo cameras and presentation feed production switching, the room display and recording. Room sound, two stage monitors and the recorder have separate mixes. Control routes use a shared switch. Reference design: one-way streaming, no call return. 2 SDI-to-HDMI converters in total; OUT 4 unused. Room and recorder embedded audio muted. Shared cabling, rack/power and programming counted once. Repeated device identifiers refer to the same equipment across views. Equipment illustrations are schematic; labels define quantities.{"sourceHash":"21dddbba9c43ea7cbfcc8d38f4dbaa3389321aa891865156f3d13c84f94151a1","view":"signal","nodes":["CAM","SW","LAP","EX","H2S","REC","S2H1","MAIN","S2H2","MV","DEST"],"edges":["L01","L02","L03","L04","L05","L06","L07","L08","L09","L10"]}PIXEL COMMAND SOLUTIONS / MH-02 / VIDEO & DATAVideo & dataREFERENCE DESIGN · PROJECT VALIDATION REQUIREDCAM → SW: 2 x 3G-SDI2 × 3G-SDILAP → EX: HDMIHDMIEX → H2S: HDMIHDMIH2S → SW: SDI input 3SDI · input 3SW → REC: OUT 1: programme SDIOUT 1 ·programmeSW → S2H1: OUT 2: AUX selected input or programmeOUT 2 · AUX selectionS2H1 → MAIN: HDMIHDMISW → S2H2: OUT 3: multiview SDIOUT 3 · multiviewS2H2 → MV: HDMIHDMIREC → DEST: encoded IP via AV switch / WANEncoded IPvia WAN2 PTZ cameras local DC powerCAM2 PTZ cameras1 production switcher 3 of 8 inputs usedSW1 production switcher1 customer laptopLAP1 customer laptop1 HDMI interface stereo extractionEX1 HDMI interface1 HDMI-to-SDI converterH2S1 HDMI-to-SDIconverter1 recorder/encoder 1 recording mediumREC1 recorder/encoderSDI-to-HDMI 1 of 2S2H1SDI-to-HDMI 1 of 21 main display systemMAIN1 main display systemSDI-to-HDMI 2 of 2S2H2SDI-to-HDMI 2 of 21 operator multiview monitorMV1 operator multiviewmonitorCustomer streaming destination and archive workflowDESTCustomer streamingdestinationVideo / LED dataNetwork / data
Devices, connections & design conditions 10 connections
  • Functional reference design: two SDI cameras and presentation to production switching, room display and recording; separate room, stage monitor and record mixes.
CAM
2 PTZ cameras local DC power
SW
1 production switcher 3 of 8 inputs used
LAP
1 customer laptop
EX
1 HDMI interface stereo extraction
H2S
1 HDMI-to-SDI converter
REC
1 recorder/encoder 1 recording medium
S2H1
SDI-to-HDMI 1 of 2
MAIN
1 main display system
S2H2
SDI-to-HDMI 2 of 2
MV
1 operator multiview monitor
DEST
Customer streaming destination and archive workflow
  1. CAM → SW2 x 3G-SDI
  2. LAP → EXHDMI
  3. EX → H2SHDMI
  4. H2S → SWSDI input 3
  5. SW → RECOUT 1: programme SDI
  6. SW → S2H1OUT 2: AUX selected input or programme
  7. S2H1 → MAINHDMI
  8. SW → S2H2OUT 3: multiview SDI
  9. S2H2 → MVHDMI
  10. REC → DESTencoded IP via AV switch / WAN

Reference design: one-way streaming, no call return. 2 SDI-to-HDMI converters in total; OUT 4 unused. Room and recorder embedded audio muted. Shared cabling, rack/power and programming counted once.

Audio & return paths

Signal flow. Devices, connections and conditions follow the drawing.Open SVG ↗
MH-02 · Audio & return pathsTwo cameras and presentation feed production switching, the room display and recording. Room sound, two stage monitors and the recorder have separate mixes. Control routes use a shared switch. Reference design: one-way streaming, no call return. 2 SDI-to-HDMI converters in total; OUT 4 unused. Room and recorder embedded audio muted. Shared cabling, rack/power and programming counted once. Repeated device identifiers refer to the same equipment across views. Equipment illustrations are schematic; labels define quantities.{"sourceHash":"21dddbba9c43ea7cbfcc8d38f4dbaa3389321aa891865156f3d13c84f94151a1","view":"audio","nodes":["EX","REC","RF","SB","WIRED","MIX","PA","SP","FILL","MON"],"edges":["L11","L12","L13","L14","L15","L16","L17","L18","L19"]}PIXEL COMMAND SOLUTIONS / MH-02 / AUDIO & RETURN PATHSAudio & return pathsREFERENCE DESIGN · PROJECT VALIDATION REQUIREDRF → SB: 4 analogue4 analogueWIRED → SB: 2 analogue2 analogueSB → MIX: 8 Dante channels via AV switch8 Dante channels via AVswitchMIX → PA: ST L/R: 2 analogueST L/R: 2 analoguePA → SP: line 1-2line 1-2PA → FILL: line 3-4line 3-4MIX → MON: AUX 1-2: 2 mono lineAUX 1-2: 2 mono lineMIX → REC: AUX 3-4: stereo lineAUX 3-4: stereo lineEX → SB: stereo line: 2 analoguestereo line: 2 analogue1 HDMI interface stereo extractionEX1 HDMI interface1 recorder/encoder 1 recording mediumREC1 recorder/encoder4 wireless channelsRF4 wireless channels1 stagebox 8 of 16 inputs usedSB1 stagebox2 wired microphone / DI channelsWIRED2 wired microphone /DI channels1 digital mixer 8 of 16 inputs usedMIX1 digital mixer1 room DSP 2 in / 4 out usedPA1 room DSP2 powered mainsSP2 powered mains2 powered front fillsFILL2 powered front fills2 powered monitorsMON2 powered monitorsAudio
Devices, connections & design conditions 9 connections
  • Functional reference design: two SDI cameras and presentation to production switching, room display and recording; separate room, stage monitor and record mixes.
EX
1 HDMI interface stereo extraction
REC
1 recorder/encoder 1 recording medium
RF
4 wireless channels
SB
1 stagebox 8 of 16 inputs used
WIRED
2 wired microphone / DI channels
MIX
1 digital mixer 8 of 16 inputs used
PA
1 room DSP 2 in / 4 out used
SP
2 powered mains
FILL
2 powered front fills
MON
2 powered monitors
  1. RF → SB4 analogue
  2. WIRED → SB2 analogue
  3. SB → MIX8 Dante channels via AV switch
  4. MIX → PAST L/R: 2 analogue
  5. PA → SPline 1-2
  6. PA → FILLline 3-4
  7. MIX → MONAUX 1-2: 2 mono line
  8. MIX → RECAUX 3-4: stereo line
  9. EX → SBstereo line: 2 analogue

Reference design: one-way streaming, no call return. 2 SDI-to-HDMI converters in total; OUT 4 unused. Room and recorder embedded audio muted. Shared cabling, rack/power and programming counted once.

Control & status

Signal flow. Devices, connections and conditions follow the drawing.Open SVG ↗
MH-02 · Control & statusTwo cameras and presentation feed production switching, the room display and recording. Room sound, two stage monitors and the recorder have separate mixes. Control routes use a shared switch. Reference design: one-way streaming, no call return. 2 SDI-to-HDMI converters in total; OUT 4 unused. Room and recorder embedded audio muted. Shared cabling, rack/power and programming counted once. Repeated device identifiers refer to the same equipment across views. Equipment illustrations are schematic; labels define quantities.{"sourceHash":"21dddbba9c43ea7cbfcc8d38f4dbaa3389321aa891865156f3d13c84f94151a1","view":"control","nodes":["CAM","SW","REC","MAIN","PA","CTRL","NET","OPS"],"edges":["L20","L21","L22","L23","L24","L25","L26"]}PIXEL COMMAND SOLUTIONS / MH-02 / CONTROL & STATUSControl & statusREFERENCE DESIGN · PROJECT VALIDATION REQUIREDCTRL ↔ NET: IPIPOPS ↔ NET: IP control and monitoringIP control andmonitoringNET ↔ CAM: IP presets / feedbackIP presets / feedbackNET ↔ SW: IP routes / statusIP routes / statusNET ↔ REC: IP record / stateIP record / stateNET ↔ PA: IP room level / statusIP room level / statusNET ↔ MAIN: IP power / input / statusIP power / input /status2 PTZ cameras local DC powerCAM2 PTZ cameras1 production switcher 3 of 8 inputs usedSW1 production switcher1 recorder/encoder 1 recording mediumREC1 recorder/encoder1 main display systemMAIN1 main display system1 room DSP 2 in / 4 out usedPA1 room DSP1 integrated panel/controllerCTRL1 integratedpanel/controller1 managed AV switch 13 ports planned Dante / control / streamNET1 managed AV switch1 operator workstation UI monitor and headphonesOPS1 operator workstationControl / status
Devices, connections & design conditions 7 connections
  • Functional reference design: two SDI cameras and presentation to production switching, room display and recording; separate room, stage monitor and record mixes.
CAM
2 PTZ cameras local DC power
SW
1 production switcher 3 of 8 inputs used
REC
1 recorder/encoder 1 recording medium
MAIN
1 main display system
PA
1 room DSP 2 in / 4 out used
CTRL
1 integrated panel/controller
NET
1 managed AV switch 13 ports planned Dante / control / stream
OPS
1 operator workstation UI monitor and headphones
  1. CTRL ↔ NETIP
  2. OPS ↔ NETIP control and monitoring
  3. NET ↔ CAMIP presets / feedback
  4. NET ↔ SWIP routes / status
  5. NET ↔ RECIP record / state
  6. NET ↔ PAIP room level / status
  7. NET ↔ MAINIP power / input / status

Reference design: one-way streaming, no call return. 2 SDI-to-HDMI converters in total; OUT 4 unused. Room and recorder embedded audio muted. Shared cabling, rack/power and programming counted once.

Typical architecture · not a project drawing

Workflow, boundaries and intended result

Composition

Four wireless and two wired microphone/DI channels, a stereo presentation feed, one digital mixer, one stage I/O unit and one room audio processor. The initial sound layout has two powered mains, two powered front fills and two powered stage monitors. Two PTZ cameras feed one HD SDI production switcher. One HDMI-to-SDI converter brings in the presentation; two SDI-to-HDMI converters serve the main display and operator multiview. A recorder/encoder with recording media receives the selected programme and a dedicated stereo audio mix. A control panel/controller, operator workstation and shared hall infrastructure support operation.

Boundaries

Streaming is one-way. A live remote speaker requires the MH-03 conferencing paths. The room display can follow programme or a selected source; it is not a second independently composed production. The base recording keeps the selected programme, not separate camera files. The destination platform and internet service are supplied or agreed with the customer. Cameras use operator presets; automatic tracking is not included.

Intended result

The operator can check the live picture and recording status, capture questions through the assigned microphones and deliver a playable programme file with the correct sound.

Example equipment for MH-02

Example quantities for the selected configuration; final selection follows the approved design. A catalogue listing does not confirm stock, delivery time or complete-system compatibility.

Main / confidence / multiview displays
1 / 0 / 1

LED options; other display types by specification

Wireless channels / wired microphone or DI channels
4 / 2

Microphones and wireless microphone systems

Digital console / stage I/O unit
1 / 1

Audio processing

Room audio processor / conferencing audio processor
1 / 0

Audio processing

Powered main positions or groups / fills / monitors
2 / 2 / 2

Loudspeakers

PTZ cameras / USB video capture
2 / 0

Conference equipment; capture by specification

Production switcher / display matrix
1 / 0

Switchers · Matrices

HDMI interfaces with extraction / additional HDMI splitters
1 / 0

Interfaces selected to the signal schedule

HDMI-to-SDI / SDI-to-HDMI converters
1 / 2

Interfaces selected to the signal schedule

Recorder / recording medium
1 / 1

Selected to format, duration and publication workflow

Conferencing PC / operator workstation
0 / 1

Selected with IT; operator workstation includes its own UI monitor

Integrated room panel/controller / stage-lighting package
1 / optional

Lighting control · Stage lighting

MH-03

Conference and stage modes

Reference design; platform, routing and mode tests required

The technical operator prepares a presentation, a hybrid panel discussion or a rehearsed stage programme, then changes routes and controls using an approved mode table.

MH-03 · Reference drawing

MH-03 · Conference and stage modes

Functional reference design: six individual conference microphone feeds, echo reference, separate USB call send and return, room sound, four monitor mixes and recording.

Reference design; platform, routing and mode tests required

Audio & return paths

Signal flow. Devices, connections and conditions follow the drawing.Open SVG ↗
MH-03-audio · Audio & return pathsSix independent speech AEC channels receive an external reference. Remote return enters room and recording mixes, never the call send. Eight stage inputs and four monitors belong to the separate stage mode. Reference design; 48 kHz audio. Stage mode disconnects call; conference mutes stage inputs. AEC-clean returns never feed PA or AEC microphone inputs. Raw speech never joins clean speech in conference recording. Six microphone inputs use individual pre-processing direct outs. Repeated device identifiers refer to the same equipment across views. Equipment illustrations are schematic; labels define quantities.{"sourceHash":"1aa3f3caaf87e3d22e99510f44ef044e54dc10bff8a7a86e4a6887ad8a68f077","view":"audio","nodes":["RF","SB","WIRED","EX","MIX","AEC","UC","PA","SP","FILL","MON","REC"],"edges":["L01","L02","L03","L04","L05","L06","L07","L08","L09","L10","L11","L12","L13","L14","L15","L16"]}PIXEL COMMAND SOLUTIONS / MH-03-audio / AUDIO & RETURN PATHSAudio & return pathsREFERENCE DESIGN · PROJECT VALIDATION REQUIREDRF → SB: 6 analogue6 speech channelsWIRED → SB: 8 analogue8 stagechannelsEX → SB: stereo line: 2 analogueStereo contentSB → MIX: 16 Dante via AV switch16 DantechannelsMIX → AEC: Dante 1-6: individual raw speech1–6 · raw speechMIX → AEC: Dante 7-8: direct content L/R7–8 · content L/RMIX → AEC: Dante 9-10: reference AUX7-8 post-fader remote + content only same dual-mono PA content9–10 · AEC referenceAEC → UC: USB send: AEC speech + content remote excludedUSB send · noremoteUC → AEC: USB receive: remote L/RUSB receive · remoteAEC → MIX: Dante TX1-2: remote L/RTX1–2 · remote L/RAEC → MIX: Dante TX3-8: AEC-clean speech6 record-only returnsTX3–8 · clean speechMIX → PA: ST L/R: 2 line outputsST L/R · room mixPA → SP: line 1-2Line 1–2PA → FILL: line 3-4Line 3–4MIX → MON: AUX1-4: 4 mono line outputsAUX1–4 · stage onlyMIX → REC: AUX5-6: stereo line conference: clean speech + content + remote stage: raw sources + contentAUX5–6 · recording6 wireless speech channelsRF6 wireless speechchannels1 stagebox 16 analogue inputs usedSB1 stagebox8 wired microphone / DI channels stage mode onlyWIRED8 wired microphone /DI channels1 HDMI interface same device as video drawingEX1 HDMI interface1 console: at least 32 inputs 24 processing channels used ST stereo + 8 mono-equivalent AUXMIX1 console: at least 32inputs1 AEC DSP: 6 speech AEC Dante licence at least 16x16 RX 10 / TX 8 used reference L/R summed to monoAEC1 AEC DSP: 6 speechAEC1 conference PC same device as video drawingUC1 conference PC1 room DSP 2 in / 4 out usedPA1 room DSP2 powered main groups cabinet count by coverage designSP2 powered main groups2 powered front fillsFILL2 powered front fills4 powered monitors muted in conference baselineMON4 powered monitors1 recorder/encoder same device as video drawingREC1 recorder/encoderAudioUSB / KVM
Devices, connections & design conditions 16 connections
  • Functional reference design: six individual conference microphone feeds, echo reference, separate USB call send and return, room sound, four monitor mixes and recording.
RF
6 wireless speech channels
SB
1 stagebox 16 analogue inputs used
WIRED
8 wired microphone / DI channels stage mode only
EX
1 HDMI interface same device as video drawing
MIX
1 console: at least 32 inputs 24 processing channels used ST stereo + 8 mono-equivalent AUX
AEC
1 AEC DSP: 6 speech AEC Dante licence at least 16x16 RX 10 / TX 8 used reference L/R summed to mono
UC
1 conference PC same device as video drawing
PA
1 room DSP 2 in / 4 out used
SP
2 powered main groups cabinet count by coverage design
FILL
2 powered front fills
MON
4 powered monitors muted in conference baseline
REC
1 recorder/encoder same device as video drawing
  1. RF → SB6 analogue
  2. WIRED → SB8 analogue
  3. EX → SBstereo line: 2 analogue
  4. SB → MIX16 Dante via AV switch
  5. MIX → AECDante 1-6: individual raw speech
  6. MIX → AECDante 7-8: direct content L/R
  7. MIX → AECDante 9-10: reference AUX7-8 post-fader remote + content only same dual-mono PA content
  8. AEC → UCUSB send: AEC speech + content remote excluded
  9. UC → AECUSB receive: remote L/R
  10. AEC → MIXDante TX1-2: remote L/R
  11. AEC → MIXDante TX3-8: AEC-clean speech6 record-only returns
  12. MIX → PAST L/R: 2 line outputs
  13. PA → SPline 1-2
  14. PA → FILLline 3-4
  15. MIX → MONAUX1-4: 4 mono line outputs
  16. MIX → RECAUX5-6: stereo line conference: clean speech + content + remote stage: raw sources + content

Reference design; 48 kHz audio. Stage mode disconnects call; conference mutes stage inputs. AEC-clean returns never feed PA or AEC microphone inputs. Raw speech never joins clean speech in conference recording. Six microphone inputs use individual pre-processing direct outs.

Control & status

Signal flow. Devices, connections and conditions follow the drawing.Open SVG ↗
MH-03-audio · Control & statusSix independent speech AEC channels receive an external reference. Remote return enters room and recording mixes, never the call send. Eight stage inputs and four monitors belong to the separate stage mode. Reference design; 48 kHz audio. Stage mode disconnects call; conference mutes stage inputs. AEC-clean returns never feed PA or AEC microphone inputs. Raw speech never joins clean speech in conference recording. Six microphone inputs use individual pre-processing direct outs. Repeated device identifiers refer to the same equipment across views. Equipment illustrations are schematic; labels define quantities.{"sourceHash":"1aa3f3caaf87e3d22e99510f44ef044e54dc10bff8a7a86e4a6887ad8a68f077","view":"control","nodes":["MIX","AEC","PA","CTRL","NET"],"edges":["L17","L18","L19","L20"]}PIXEL COMMAND SOLUTIONS / MH-03-audio / CONTROL & STATUSControl & statusREFERENCE DESIGN · PROJECT VALIDATION REQUIREDCTRL ↔ NET: IP commands / stateIP commands / stateNET ↔ AEC: IP preset / statusIP preset / statusNET ↔ MIX: IP mode / statusIP mode / statusNET ↔ PA: IP calibration / statusIP calibration / status1 console: at least 32 inputs 24 processing channels used ST stereo + 8 mono-equivalent AUXMIX1 console: at least 32inputs1 AEC DSP: 6 speech AEC Dante licence at least 16x16 RX 10 / TX 8 used reference L/R summed to monoAEC1 AEC DSP: 6 speechAEC1 room DSP 2 in / 4 out usedPA1 room DSP1 integrated panel/controller same device as video drawingCTRL1 integratedpanel/controller1 managed AV switch same device as video drawing Dante / control / WANNET1 managed AV switchControl / status
Devices, connections & design conditions 4 connections
  • Functional reference design: six individual conference microphone feeds, echo reference, separate USB call send and return, room sound, four monitor mixes and recording.
MIX
1 console: at least 32 inputs 24 processing channels used ST stereo + 8 mono-equivalent AUX
AEC
1 AEC DSP: 6 speech AEC Dante licence at least 16x16 RX 10 / TX 8 used reference L/R summed to mono
PA
1 room DSP 2 in / 4 out used
CTRL
1 integrated panel/controller same device as video drawing
NET
1 managed AV switch same device as video drawing Dante / control / WAN
  1. CTRL ↔ NETIP commands / state
  2. NET ↔ AECIP preset / status
  3. NET ↔ MIXIP mode / status
  4. NET ↔ PAIP calibration / status

Reference design; 48 kHz audio. Stage mode disconnects call; conference mutes stage inputs. AEC-clean returns never feed PA or AEC microphone inputs. Raw speech never joins clean speech in conference recording. Six microphone inputs use individual pre-processing direct outs.

Typical architecture · not a project drawing

MH-03 · Reference drawing

MH-03 · Conference and stage modes

Functional reference design: local programme feeds the call; remote video goes separately to displays and the recorder, avoiding a video return loop.

Reference design; platform, routing and mode tests required

Signal flow

Signal flow. Devices, connections and conditions follow the drawing.Open SVG ↗
MH-03-video · Signal flowThree cameras and presentation create the local programme sent to the call. Remote video travels separately to the display matrix and recorder. The audio companion drawing contains the same recorder, PC and controller. Reference design; HD media paths. Remote video has no path into the production switcher. See audio drawing for USB sound, record mix and content audio. Duplicated device labels refer to the same equipment. Repeated device identifiers refer to the same equipment across views. Equipment illustrations are schematic; labels define quantities.{"sourceHash":"e0cc33f0a793a865c594d92a5a31e7498c10dadce4ba1bfa7c1b31307323b0df","view":"signal","nodes":["CAM","SW","LAP","EX","H2S","CAP","UC","REC","S2H1","MATRIX","SPLIT","MAIN","CONF","S2H2","MV","DEST","REMOTE"],"edges":["L01","L02","L03","L04","L05","L06","L07","L08","L09","L10","L11","L12","L13","L14","L15","L16","L17","L18","L19"]}PIXEL COMMAND SOLUTIONS / MH-03-video / SIGNAL FLOWSignal flowREFERENCE DESIGN · PROJECT VALIDATION REQUIREDCAM → SW: 3 x SDI inputs 1-3SDI ·inputs1–3LAP → EX: HDMIHDMIEX → H2S: HDMI AHDMI AH2S → SW: SDI input 4SDI · input 4SW → CAP: OUT 2: local programme SDIOUT 2 ·programmeCAP → UC: USB 3 videoUSB 3 videoSW → REC: OUT 1: local programme SDIOUT 1 · programmeSW → S2H1: OUT 3: local programme SDIOUT 3 · programmeS2H1 → MATRIX: HDMI input 2HDMI · input 2EX → MATRIX: HDMI B: slides input 1HDMI B · slidesUC → SPLIT: HDMI: remote view onlyHDMI · remote viewSPLIT → MATRIX: HDMI input 3HDMI · input 3SPLIT → REC: HDMI remote galleryRemote galleryMATRIX → MAIN: HDMI out 1HDMI · out 1MATRIX → CONF: HDMI out 2HDMI · out 2SW → S2H2: OUT 4: multiview SDIOUT 4 · multiviewS2H2 → MV: HDMIHDMIREC → DEST: encoded IP via switch / WANEncoded IPvia WANUC ↔ REMOTE: platform via switch / WANCall via WAN3 PTZ cameras local DC powerCAM3 PTZ cameras1 production switcher 4 of 8 inputs usedSW1 production switcher1 customer laptopLAP1 customer laptop1 HDMI interface 2 mirrored outs + stereo extractionEX1 HDMI interface1 HDMI-to-SDI converterH2S1 HDMI-to-SDIconverter1 SDI-to-USB capture video only in callCAP1 SDI-to-USB capture1 conference PC own UI monitor + HDMI remote outUC1 conference PC1 recorder/encoder 1 recording medium local + remote layoutREC1 recorder/encoderSDI-to-HDMI 1 of 2S2H1SDI-to-HDMI 1 of 21 HDMI matrix at least 3 in / 2 independent outMATRIX1 HDMI matrix1 HDMI 1x2 splitterSPLIT1 HDMI 1x2 splitter1 main display systemMAIN1 main display system1 confidence displayCONF1 confidence displaySDI-to-HDMI 2 of 2S2H2SDI-to-HDMI 2 of 21 operator multiview monitorMV1 operator multiviewmonitorCustomer stream / archiveDESTCustomer stream /archiveRemote participantsREMOTERemote participantsVideo / LED dataUSB / KVMNetwork / data
Devices, connections & design conditions 19 connections
  • Functional reference design: local programme feeds the call; remote video goes separately to displays and the recorder, avoiding a video return loop.
CAM
3 PTZ cameras local DC power
SW
1 production switcher 4 of 8 inputs used
LAP
1 customer laptop
EX
1 HDMI interface 2 mirrored outs + stereo extraction
H2S
1 HDMI-to-SDI converter
CAP
1 SDI-to-USB capture video only in call
UC
1 conference PC own UI monitor + HDMI remote out
REC
1 recorder/encoder 1 recording medium local + remote layout
S2H1
SDI-to-HDMI 1 of 2
MATRIX
1 HDMI matrix at least 3 in / 2 independent out
SPLIT
1 HDMI 1x2 splitter
MAIN
1 main display system
CONF
1 confidence display
S2H2
SDI-to-HDMI 2 of 2
MV
1 operator multiview monitor
DEST
Customer stream / archive
REMOTE
Remote participants
  1. CAM → SW3 x SDI inputs 1-3
  2. LAP → EXHDMI
  3. EX → H2SHDMI A
  4. H2S → SWSDI input 4
  5. SW → CAPOUT 2: local programme SDI
  6. CAP → UCUSB 3 video
  7. SW → RECOUT 1: local programme SDI
  8. SW → S2H1OUT 3: local programme SDI
  9. S2H1 → MATRIXHDMI input 2
  10. EX → MATRIXHDMI B: slides input 1
  11. UC → SPLITHDMI: remote view only
  12. SPLIT → MATRIXHDMI input 3
  13. SPLIT → RECHDMI remote gallery
  14. MATRIX → MAINHDMI out 1
  15. MATRIX → CONFHDMI out 2
  16. SW → S2H2OUT 4: multiview SDI
  17. S2H2 → MVHDMI
  18. REC → DESTencoded IP via switch / WAN
  19. UC ↔ REMOTEplatform via switch / WAN

Reference design; HD media paths. Remote video has no path into the production switcher. See audio drawing for USB sound, record mix and content audio. Duplicated device labels refer to the same equipment.

Control & status

Signal flow. Devices, connections and conditions follow the drawing.Open SVG ↗
MH-03-video · Control & statusThree cameras and presentation create the local programme sent to the call. Remote video travels separately to the display matrix and recorder. The audio companion drawing contains the same recorder, PC and controller. Reference design; HD media paths. Remote video has no path into the production switcher. See audio drawing for USB sound, record mix and content audio. Duplicated device labels refer to the same equipment. Repeated device identifiers refer to the same equipment across views. Equipment illustrations are schematic; labels define quantities.{"sourceHash":"e0cc33f0a793a865c594d92a5a31e7498c10dadce4ba1bfa7c1b31307323b0df","view":"control","nodes":["CAM","SW","REC","MATRIX","MAIN","CTRL","NET","OPS","LIGHT"],"edges":["L20","L21","L22","L23","L24","L25","L26","L27"]}PIXEL COMMAND SOLUTIONS / MH-03-video / CONTROL & STATUSControl & statusREFERENCE DESIGN · PROJECT VALIDATION REQUIREDCTRL ↔ NET: IPIPOPS ↔ NET: IP operation / monitoringIP operation /monitoringNET ↔ CAM: IP presets / feedbackIP presets / feedbackNET ↔ SW: IP routing / statusIP routing / statusNET ↔ MATRIX: IP routes / statusIP routes / statusNET ↔ REC: IP recording / actual stateIP recording /actual stateNET ↔ MAIN: IP commands / statusIP commands / statusNET ↔ LIGHT: IP cue request / statusIP cue request / status3 PTZ cameras local DC powerCAM3 PTZ cameras1 production switcher 4 of 8 inputs usedSW1 production switcher1 recorder/encoder 1 recording medium local + remote layoutREC1 recorder/encoder1 HDMI matrix at least 3 in / 2 independent outMATRIX1 HDMI matrix1 main display systemMAIN1 main display system1 integrated panel/controllerCTRL1 integratedpanel/controller1 managed AV switch 18 ports plannedNET1 managed AV switch1 operator workstation UI monitor + headphonesOPS1 operator workstation1 stage-lighting package console to DMX distribution and fixtures fixture count and power by designLIGHT1 stage-lightingpackageControl / status
Devices, connections & design conditions 8 connections
  • Functional reference design: local programme feeds the call; remote video goes separately to displays and the recorder, avoiding a video return loop.
CAM
3 PTZ cameras local DC power
SW
1 production switcher 4 of 8 inputs used
REC
1 recorder/encoder 1 recording medium local + remote layout
MATRIX
1 HDMI matrix at least 3 in / 2 independent out
MAIN
1 main display system
CTRL
1 integrated panel/controller
NET
1 managed AV switch 18 ports planned
OPS
1 operator workstation UI monitor + headphones
LIGHT
1 stage-lighting package console to DMX distribution and fixtures fixture count and power by design
  1. CTRL ↔ NETIP
  2. OPS ↔ NETIP operation / monitoring
  3. NET ↔ CAMIP presets / feedback
  4. NET ↔ SWIP routing / status
  5. NET ↔ MATRIXIP routes / status
  6. NET ↔ RECIP recording / actual state
  7. NET ↔ MAINIP commands / status
  8. NET ↔ LIGHTIP cue request / status

Reference design; HD media paths. Remote video has no path into the production switcher. See audio drawing for USB sound, record mix and content audio. Duplicated device labels refer to the same equipment.

Typical architecture · not a project drawing

Workflow, boundaries and intended result

Composition

Six wireless speech channels and eight wired microphone/DI channels, one stage I/O unit and a digital console with at least 32 processing inputs. An echo-cancelling processor handles six separate conference microphone feeds, USB call audio and the recording speech returns. Room sound processing feeds two powered main groups and two powered front fills as an initial layout; four powered monitors have individual mixes. Three PTZ cameras and the presentation feed a production switcher. A separate display matrix serves the main and confidence displays. One conferencing PC, one SDI-to-USB capture device, one recorder with media, two HDMI distribution interfaces, one HDMI-to-SDI converter and two SDI-to-HDMI converters complete the media paths. Controls, an operator workstation and a designed stage-lighting package support the modes.

Boundaries

The baseline conference uses the six speech microphones. The eight stage microphone/DI channels serve the stage mode and are muted during the conference. Adding them to a call requires more echo-processing capacity and a revised mix. Stage mode disconnects the call; live remote musical collaboration is outside this design. Main loudspeaker groups, front fills, subs if needed and lighting fixtures are finalised from acoustics, sightlines and the rider. This is not a preset concert PA rating.

Intended result

Local and remote participants can hear the intended speakers; the call never receives its own return picture or direct return audio. The operator can change to stage mode, use the stage inputs and monitor mixes, then restore the approved conference configuration after a sound check.

Operating modes
ModeMain / confidence displaysRoom and recording soundCall and lighting
PresentationSlides / slidesPresenter and programme; recording only when authorisedCall disconnected; presentation lighting
Hybrid conferenceSelected local view or remote participants / slidesSix speech microphones, content and remote return; separate record mixSix echo-processed microphones and content sent; remote return excluded; conference lighting
Stage programmeSelected local programme / agreed sourceStage microphones/DI, programme and four monitor mixes; separate record mixCall disconnected; operator-controlled stage cues
Example equipment for MH-03

Example quantities for the selected configuration; final selection follows the approved design. A catalogue listing does not confirm stock, delivery time or complete-system compatibility.

Main / confidence / multiview displays
1 / 1 / 1

LED options; other display types by specification

Wireless channels / wired microphone or DI channels
6 / 8

Microphones and wireless microphone systems

Digital console / stage I/O unit
1 / 1

Audio processing

Room audio processor / conferencing audio processor
1 / 1

Audio processing

Powered main positions or groups / fills / monitors
2 groups / 2 / 4

Loudspeakers

PTZ cameras / USB video capture
3 / 1

Conference equipment; capture by specification

Production switcher / display matrix
1 / 1

Switchers · Matrices

HDMI interfaces with extraction / additional HDMI splitters
1 / 1

Interfaces selected to the signal schedule

HDMI-to-SDI / SDI-to-HDMI converters
1 / 2

Interfaces selected to the signal schedule

Recorder / recording medium
1 / 1

Selected to format, duration and publication workflow

Conferencing PC / operator workstation
1 / 1

Selected with IT; operator workstation includes its own UI monitor

Integrated room panel/controller / stage-lighting package
1 / 1

Lighting control · Stage lighting

05Reference architectureInteractive

How a typical system fits together.

Four layers, from the sources to the people operating the system. Select a layer to see its components and the interfaces between them.

Typical architecture · Multi-purpose halls

L2 · Selected layerProcessing & transport

How signals are routed and processed in a typical system of this kind.

Components and interfaces
  • HDMI distribution and conversionHDMI / SDI / AudioHD media paths; longer cable runs and network settings selected by project
  • SDI production switchingHDMI / SDI / AudioHD media paths; longer cable runs and network settings selected by project
  • Analogue or Dante audioHDMI / SDI / AudioHD media paths; longer cable runs and network settings selected by project
  • Separate recording, room and call mixesHDMI / SDI / AudioHD media paths; longer cable runs and network settings selected by project
Documented scope · Multi-purpose halls
  • Presentation connections, main display and sightline checks.
  • Speech microphones, sound processing, room coverage and stage monitoring.
  • Cameras, event recording and streaming in MH-02 and MH-03.
  • Two-way conferencing and separate return paths in MH-03.
  • Stage lighting and operated mode changes in MH-03.
  • Control integration, network interfaces, commissioning and operator training.
Prepare for the first conversation
  1. 01Hall plan and section, seating layouts, sightlines and room finishes.
  2. 02Stage dimensions, presenter positions, access and operator location.
  3. 03Event list, changeovers, staffing and any performance rider.
  4. 04Microphone, instrument, laptop and playback source list.
  5. 05Recording layouts, stream destination, retention and publication rules.
  6. 06Conferencing platform, remote-participant workflow and customer IT contacts.
  7. 07Existing equipment, cable routes, network, power, cooling and mounting constraints.
  8. 08Accessibility needs, radio operation, building interfaces and acceptance priorities.
Share your hall brief
06Design parametersTypical guidance · confirmed per project

What the design has to get right.

The engineering checks behind every drawing. Rules of thumb are starting points; the project values are confirmed with the people named.

Design parameters
No.ParameterGuidanceRule of thumbConfirmed with
D01Event formatsList presentations, panels, performances and changeoversDefine a mode and operator for each eventVenue team
D02Seating and sightlinesReview the smallest content and blocked viewsSize and position displays for the actual audienceArchitect and AV designer
D03Room acousticsCheck background noise, finishes and reverberationModel coverage before choosing cabinets and amplificationAcoustic designer
D04Stage inputsCollect the full microphone, instrument and playback listCount processing inputs, physical sockets and output buses separatelyTechnical operator
D05Hybrid participationIdentify active speech microphones and remote contributorsAllocate individual AEC paths, reference and mix-minusAV engineer and IT
D06RecordingChoose programme layout, audio and retentionKeep capture, publication and access responsibilities explicitEvent owner
D07Video destinationsDefine hall, confidence, multiview, recording and call viewsMirrored outputs do not create independent compositionsVideo operator
D08Lighting and powerCheck stage tasks, positions and available circuitsProduce a fixture, load and cue scheduleLighting and electrical designers
D09Accessibility and RFEstablish hearing assistance and permitted radio operationConfirm applicable project requirements before procurementVenue and relevant specialists
D10Operation and recoveryAgree manual fallback and loss-of-network behaviourTest each mode and its changeoverVenue operator and IT
Common mistakes

And how the design process prevents them.

  1. M01

    Mistake: The recording loses speech when room volume changes.

    Prevention: Give recording its own mix and check it in headphones.

  2. M02

    Mistake: Remote speakers hear their own voices returned.

    Prevention: Verify both the outgoing mix and the acoustic echo-reference path.

  3. M03

    Mistake: The call shows itself inside itself.

    Prevention: Keep remote video physically outside the local production feed sent to the call.

  4. M04

    Mistake: The confidence display can only mirror the hall.

    Prevention: Specify independent routing and count its output before ordering.

  5. M05

    Mistake: There are enough input sockets but too few mixes.

    Prevention: Reserve monitor, record and reference buses as well as main left/right.

  6. M06

    Mistake: A mode button reports success after a device fails.

    Prevention: Use actual device feedback and a documented manual recovery procedure.

07Design referencesEditions checked per project

The references we design to.

Equipment documentation, industry guides and project requirements inform the design. Confirm applicable editions and acceptance criteria for the site.

Equipment documentation and industry guides04

  • ANSI/AVIXA V202.01Display Image Size for 2D ContentDisplay sizing and viewing positionsCheck current edition
  • AVIXA V201.01Image System Contrast RatioImage contrast under event lightingCheck current edition
  • ANSI/AVIXA A102.01Audio Coverage UniformitySound coverage across agreed listening areasCheck current edition
  • ANSI/AVIXA D402.02AV Systems Performance VerificationProject checks and recorded resultsCheck current edition

Local and project requirements01

  • Applicable venue and local requirementsProject design referenceRadio operation, accessibility, electrical works, rigging and building interfacesCheck current edition
08Integrations08 interfaces

Connected to the building and its IT.

The systems this solution usually exchanges signals or data with, and why. Each interface is agreed with the system owner.

  • I01

    Guest presentation device

    HDMI video and extracted stereo audio

    Test accepted formats, adapters and unprotected content

  • I02

    Streaming destination

    Encoder output over the agreed IP protocol

    Customer provides destination, credentials and usable uplink; MH-02/03

  • I03

    Conferencing service

    USB video capture, separate USB audio and HDMI return

    Validate the actual PC, application and account; MH-03

  • I04

    Venue IT

    Managed Ethernet, addressing, VLANs and time services

    Agree media/control access and remote support boundaries

  • I05

    Lighting controls

    Agreed IP/serial cue interface and DMX distribution

    Hall modes request cues; lighting operator retains control; MH-03

  • I06

    Recording repository

    Approved file transfer and access workflow

    Confirm storage, retention, publication and deletion responsibility

  • I07

    Hearing assistance

    Dedicated agreed audio feed and selected distribution system

    Add the required system and receivers to the site design

  • I08

    Building systems

    Approved control or status interface

    Coordinate blinds, room lights and fire-alarm response with responsible contractors; AV does not replace life-safety systems

10Delivery

From the brief to an accepted system.

The six stages follow the selected configuration. Platform development or unconfirmed software functions require their own agreed scope and validation milestones.

Our services
  1. Stage 01

    Scope and architecture

    Event and mode list; operator responsibilities; included subsystems and external services

    • Event and mode list
    • Operator responsibilities
    • System and service boundaries
  2. Stage 02

    Design and approval

    Display and sound layouts; audio/video routing and mode tables; stage connections, network and power schedules

    • Display and sound layouts
    • Signal and mode tables
    • Stage, network and power schedules
  3. Stage 03

    Selection and supply

    Agreed equipment schedule; checked converters, capture and audio interfaces; software, licences and recording media

    • Agreed equipment set
    • Checked media interfaces
    • Software and licence schedule
  4. Stage 04

    Installation and programming

    Installed and labelled system; configured mixes, camera presets and room modes; device status and recovery controls

    • Installed and labelled system
    • Configured sound and camera routes
    • Room presets and status controls
  5. Stage 05

    Commissioning and tests

    Each agreed event mode tested; changeovers and failure recovery checked; recording, stream or call reports where included

    • Event-mode rehearsals
    • Recording or call checks
    • Changeover and recovery results
  6. Stage 06

    Handover

    Operator rehearsal and training; as-built schematics and saved configurations; startup, recording and fault-recovery guides

    • Operator training
    • As-built diagrams and settings
    • Event and recovery guides
Documented outcomes
01

Show presentation material and reinforce speech in the hall.

02

Switch camera views and capture the event with a separate recording mix.

03

Coordinate two-way conferences and stage programmes through agreed modes.

11Acceptance

Verify the complete workflow.

Agree the demonstration and the records before accepting the selected configuration.

MH-01

Reference design; room tests required

For every hall, review real presentation material from the agreed seats, check speech coverage and microphone handover, and test startup, mute and shutdown. Record the agreed criteria and measured results. MH-02 adds a full-duration event rehearsal, each camera and presentation input, the separate room and recording mixes, lip sync, a playable exported file and destination stream checks. Loss of internet must be tested alongside local recording behaviour. MH-03 adds two-way speech with all six conference microphones, simultaneous local and remote speech, remote video excluded from the outgoing feed, and independent main/confidence views. Rehearse presentation → conference → stage → conference, including microphone state, four monitor mixes, lighting cues, recording continuity and recovery after a controlled restart. These are checks to perform on the selected system. No reference configuration in this package has passed physical acceptance testing.

Record supplied: Agreed criteria, equipment and version schedule, measured test results and recovery procedure.

These are planned project checks. The reference configuration has not passed physical system acceptance.

MH-02

Reference design; recording and stream tests required

For every hall, review real presentation material from the agreed seats, check speech coverage and microphone handover, and test startup, mute and shutdown. Record the agreed criteria and measured results. MH-02 adds a full-duration event rehearsal, each camera and presentation input, the separate room and recording mixes, lip sync, a playable exported file and destination stream checks. Loss of internet must be tested alongside local recording behaviour. MH-03 adds two-way speech with all six conference microphones, simultaneous local and remote speech, remote video excluded from the outgoing feed, and independent main/confidence views. Rehearse presentation → conference → stage → conference, including microphone state, four monitor mixes, lighting cues, recording continuity and recovery after a controlled restart. These are checks to perform on the selected system. No reference configuration in this package has passed physical acceptance testing.

Record supplied: Agreed criteria, equipment and version schedule, measured test results and recovery procedure.

These are planned project checks. The reference configuration has not passed physical system acceptance.

MH-03

Reference design; platform, routing and mode tests required

For every hall, review real presentation material from the agreed seats, check speech coverage and microphone handover, and test startup, mute and shutdown. Record the agreed criteria and measured results. MH-02 adds a full-duration event rehearsal, each camera and presentation input, the separate room and recording mixes, lip sync, a playable exported file and destination stream checks. Loss of internet must be tested alongside local recording behaviour. MH-03 adds two-way speech with all six conference microphones, simultaneous local and remote speech, remote video excluded from the outgoing feed, and independent main/confidence views. Rehearse presentation → conference → stage → conference, including microphone state, four monitor mixes, lighting cues, recording continuity and recovery after a controlled restart. These are checks to perform on the selected system. No reference configuration in this package has passed physical acceptance testing.

Record supplied: Agreed criteria, equipment and version schedule, measured test results and recovery procedure.

These are planned project checks. The reference configuration has not passed physical system acceptance.

12Inputs and FAQ

Before we begin.

What to send us, and practical answers before the project starts.

Can one hall support presentations, conferences and performances?

Yes, when the design includes the sources, destinations, sound coverage and controls needed for those formats. MH-03 is the starting point for coordinated conference and stage modes; the final rider sets the stage-system scope.

Does every configuration include recording or remote speakers?

MH-01 covers presentation and room sound. MH-02 adds recording and one-way streaming. MH-03 adds two-way conferencing, separate return paths and stage modes.

Are the seat counts guaranteed capacities?

No. They describe the example briefs. Room shape, acoustics, content, sightlines and the event programme determine the design.

Can the hall display differ from the recording or call view?

Yes, within the specified routes. MH-02 can route programme or a selected source to the hall. MH-03 adds independent main and confidence display routing and a separate remote-video path to the recorder. Extra independently composed programmes require additional production capacity.

Can we record every camera separately or work in 4K?

The baseline captures an HD programme. Separate source recording needs additional media capacity and testing. End-to-end 4K requires a review of cameras, converters, switching, capture and recording; a 4K display alone does not provide it.

Can we reuse our equipment and conferencing platform?

We can assess them against the port schedule, formats and operating workflow. Compatibility is established using the actual models, software versions and a representative event test.

Does a mode button replace the technical operator?

It recalls approved routes and settings. An operator still checks microphone levels, recording status, camera framing and stage cues. MH-02 and MH-03 assume an event operator.

What do you hand over?

The agreed system, operator training, as-built diagrams, port and cable schedules, saved configurations, test reports and event-specific operating guides. Support scope is agreed separately.

13From our team’s projectsRC-08 · working drawing, anonymised

The working drawing,
as we issue it.

The 1,008-seat hall of RC‑08: flown arrays and subwoofers through stage junction boxes, floor pockets, radio microphones and their antennas, infrared interpretation radiators, the Dante network and the amplifier racks. Every device has its tag and every cable its number from the cable schedule.

All 9 sheets of RC-08, PDF (303 KB)

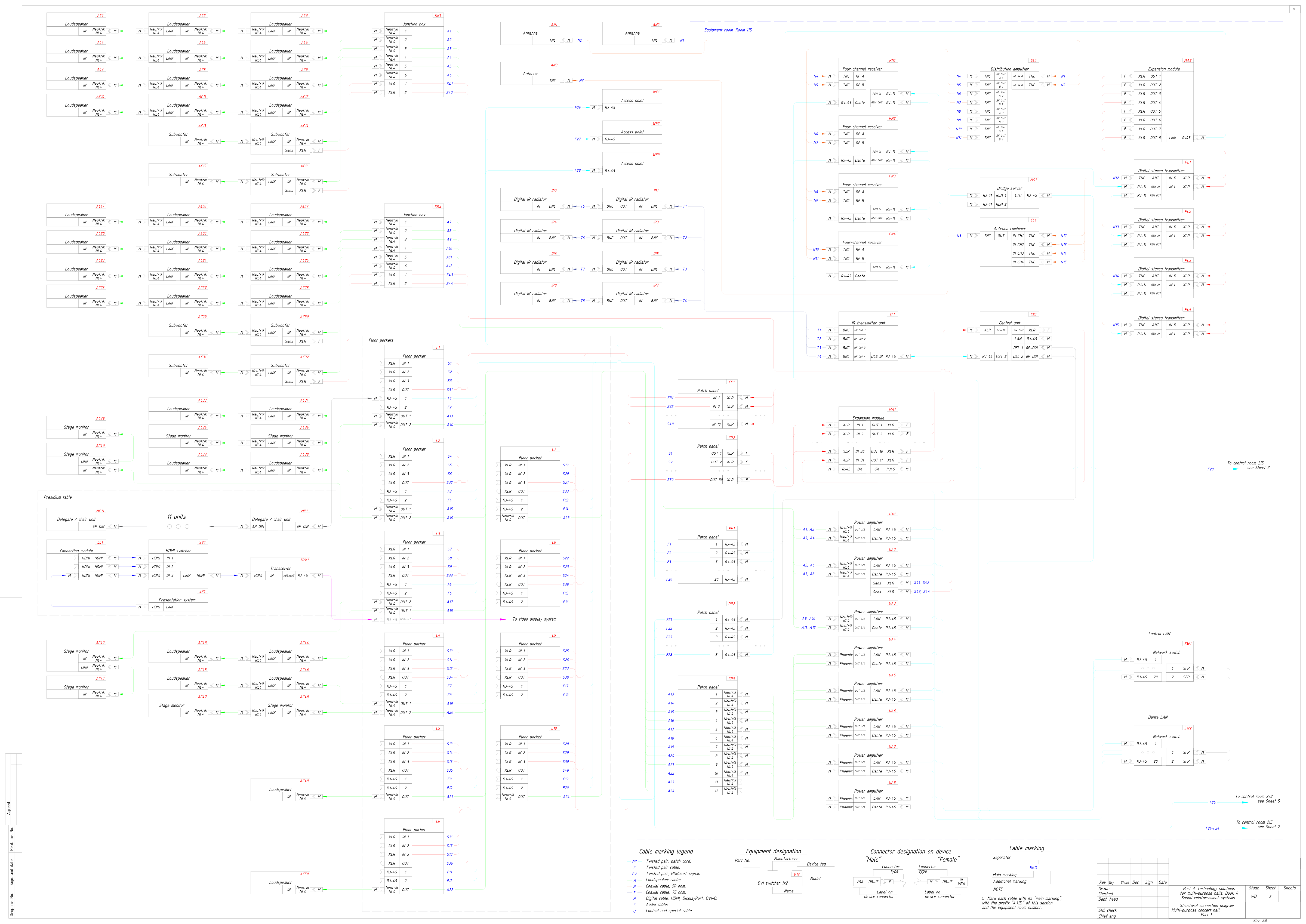

Structural connection diagram, multi-purpose concert hall: stage, hall and equipment room: a working drawing of project RC-08 with device tags, connectors and numbered cables
Sheet 2 — Multi-purpose concert hall: stage, hall and equipment roomRC-08 · A0 · anonymised
14Reference complexes

Related complexes.

Documented project experience, separate from the reference designs above. Each project sheet records its own scope and outcome.

All complexes
15Talk to us

Share your hall brief.

Send the hall plan, seating, stage arrangement and event list.
