Sheet 05.547
ACME · Spot and profile
AECO 15

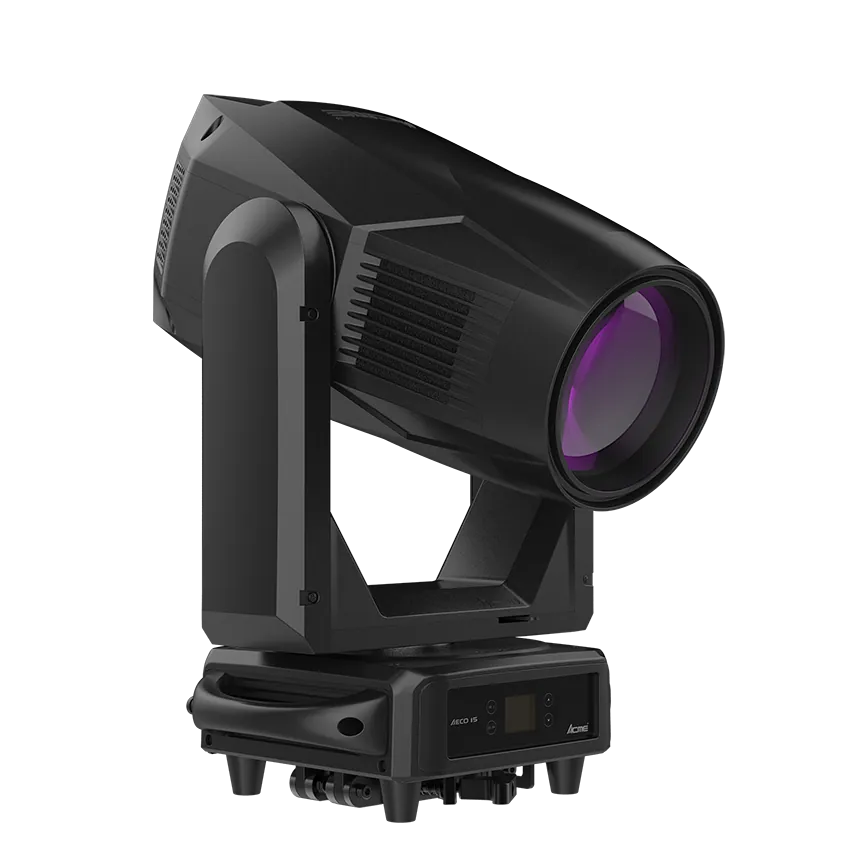

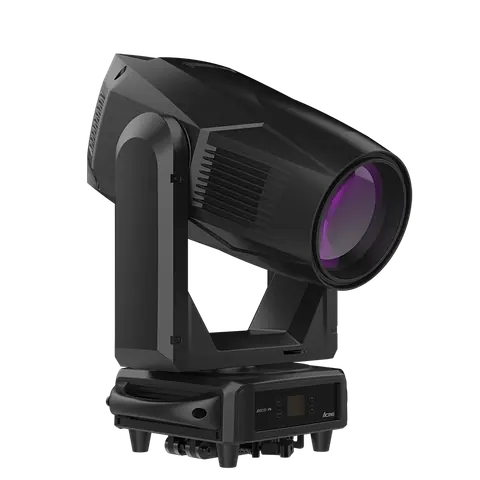

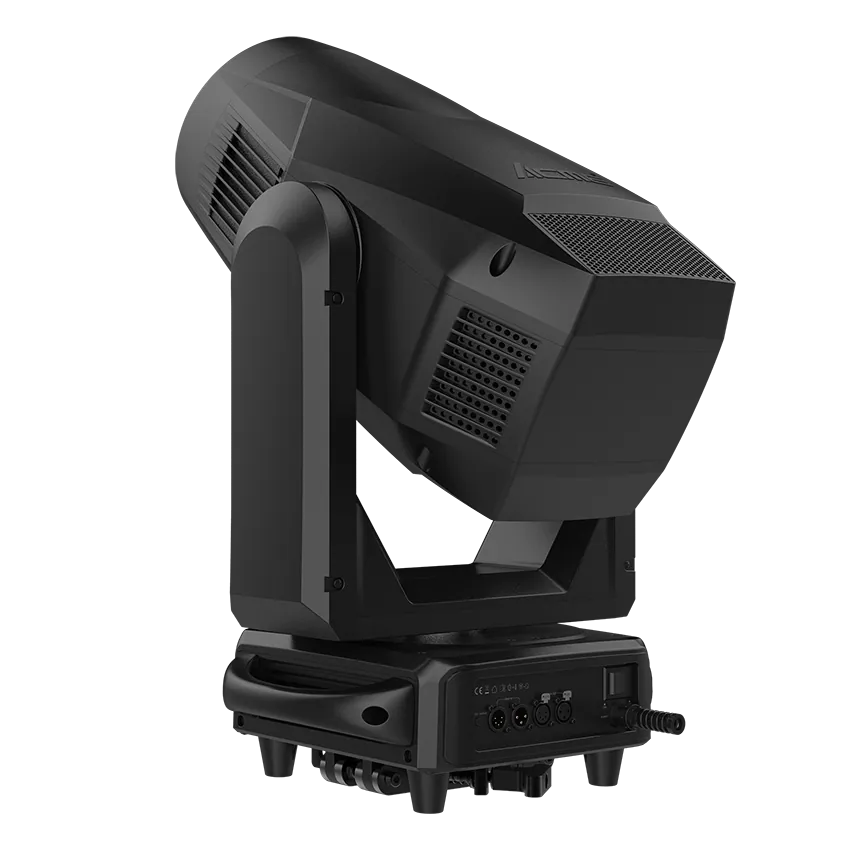

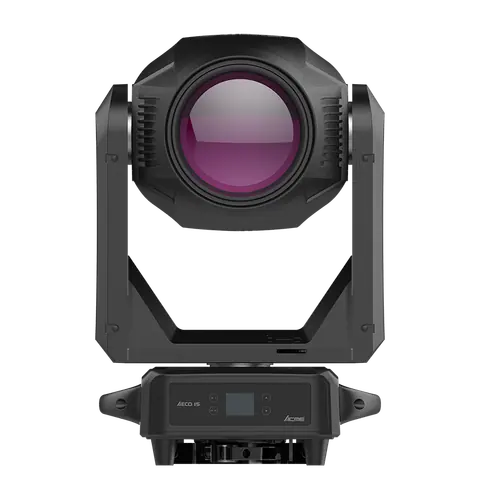

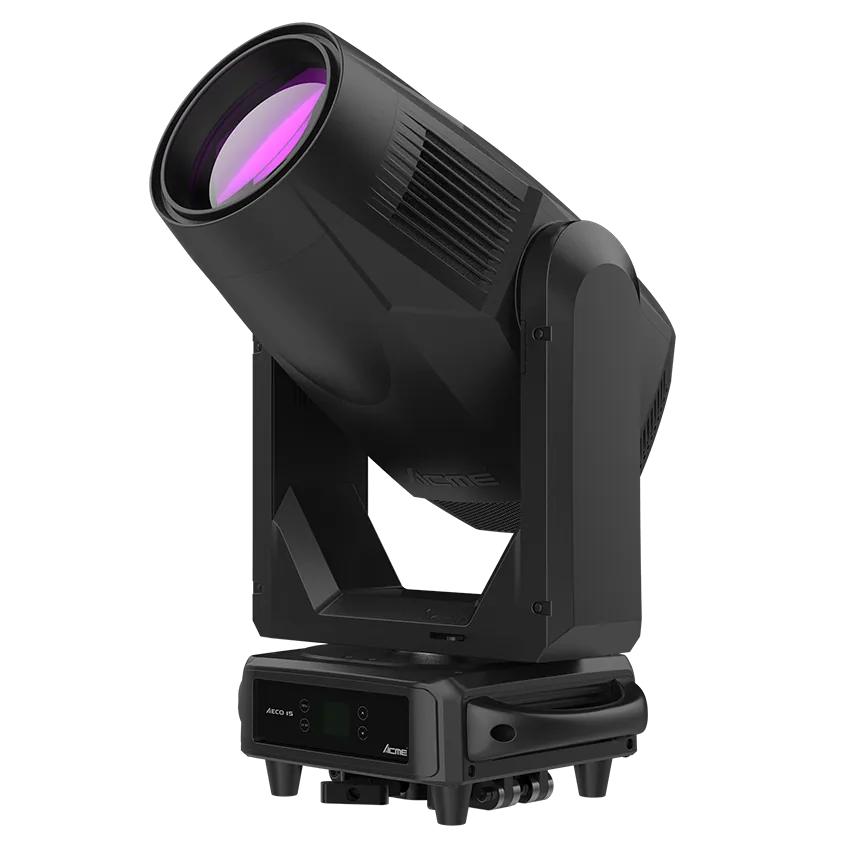

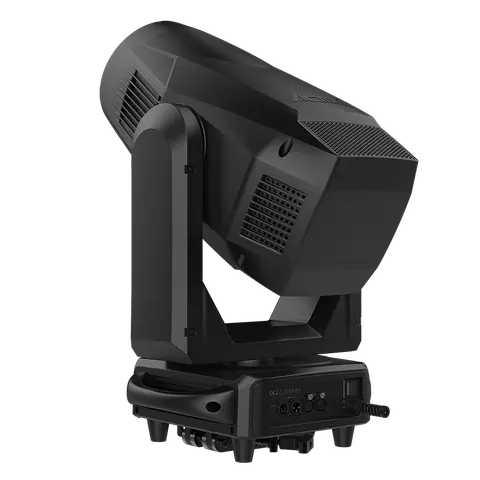

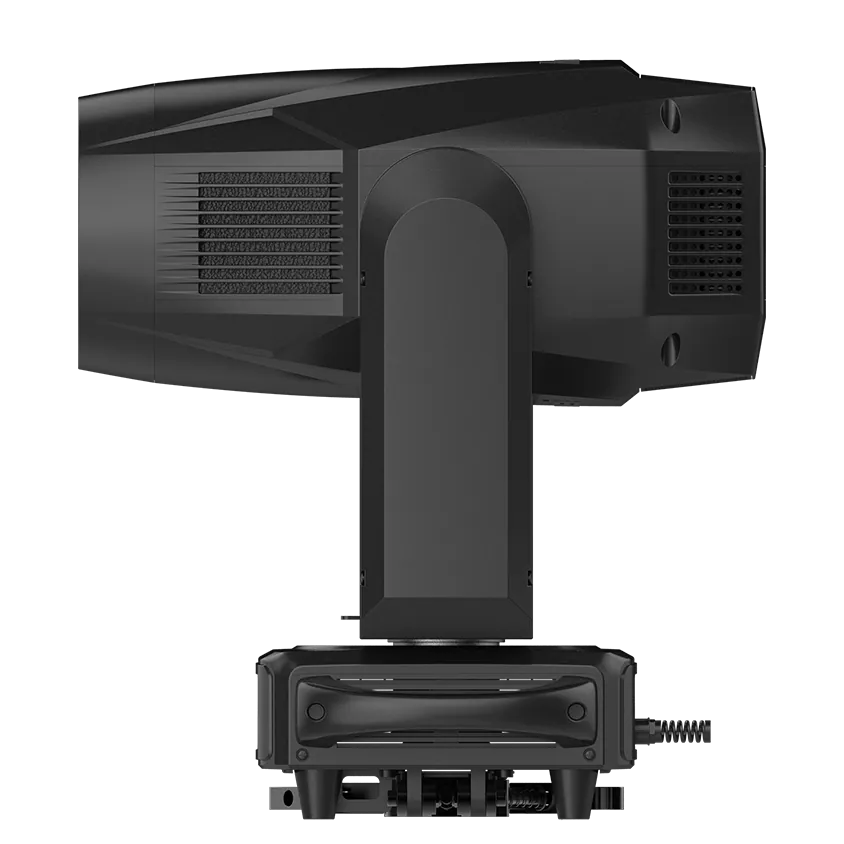

AECO 15, a high CRI LED hybrid light, combines the power of Beam, Spot, and Wash in one unique fixture.
- Light source
- 1,500W LED engine
- Power consumption
- 1,555W
- Power supply
- 100-240Vac; 50/60Hz
- Ingress protection
- IP20
- Beam angle / zoom
- 5°-52°
- DMX channels
- 22/29/31/38
- Protocols
- DMX512,RDM
- Colour temperature
- 6,200K
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
AECO 15Price on requestRequest a quotation
01SpecificationManufacturer's data · 21 groups · 66 values
What this product is, in numbers.

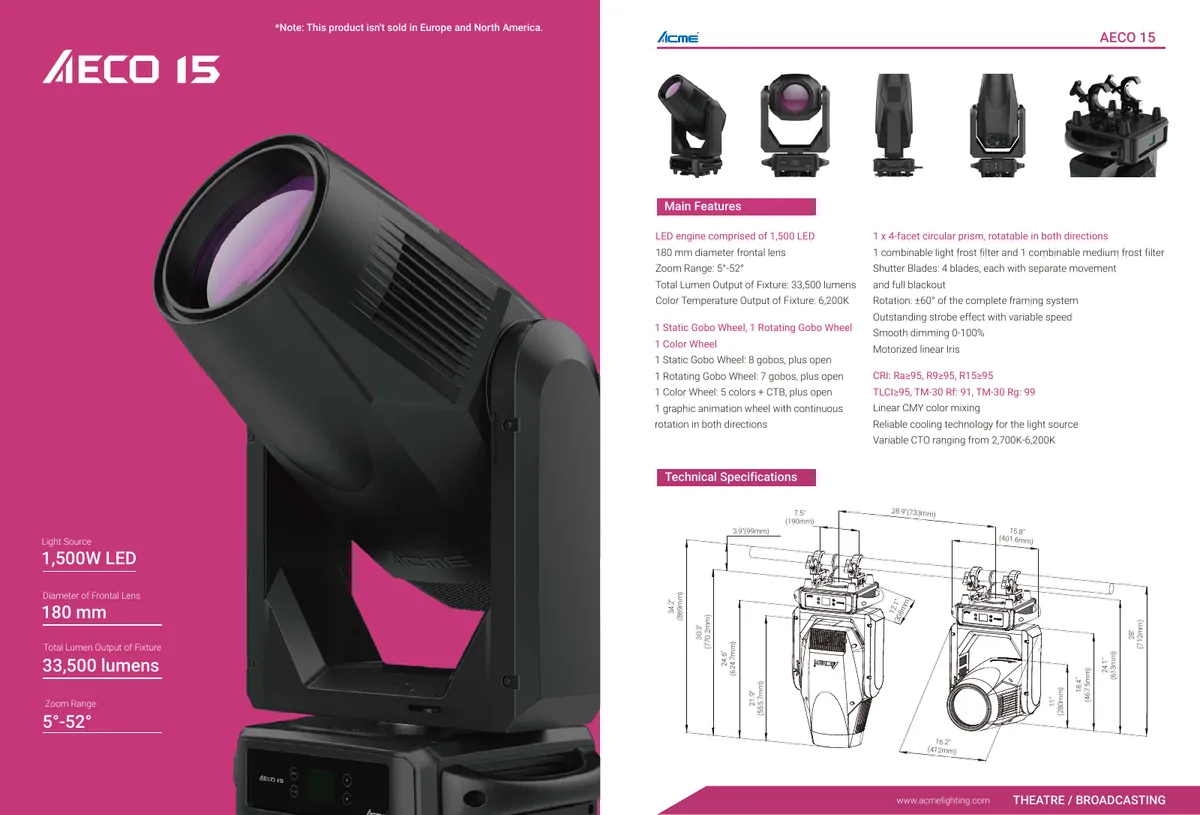

PDFDatasheetEN · 2 pages · 787 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Model1
- Model Name
- AECO 15
02Light Source4
- Light Source
- 1,500W LED engine
- Color Temperature Output of Fixture
- 6,200K
- Light Source Rated Life
- 20,000 hours*
- *Source manufacturer specification
03Photometric Data2
- Total Lumen Output of Fixture
- 33,500 lumens
- Color Rendering
- Ra≥95, R9≥95, R15≥95; TLCI≥95; TM-30 Rf: 91; TM-30 Rg: 99
04Optical System2

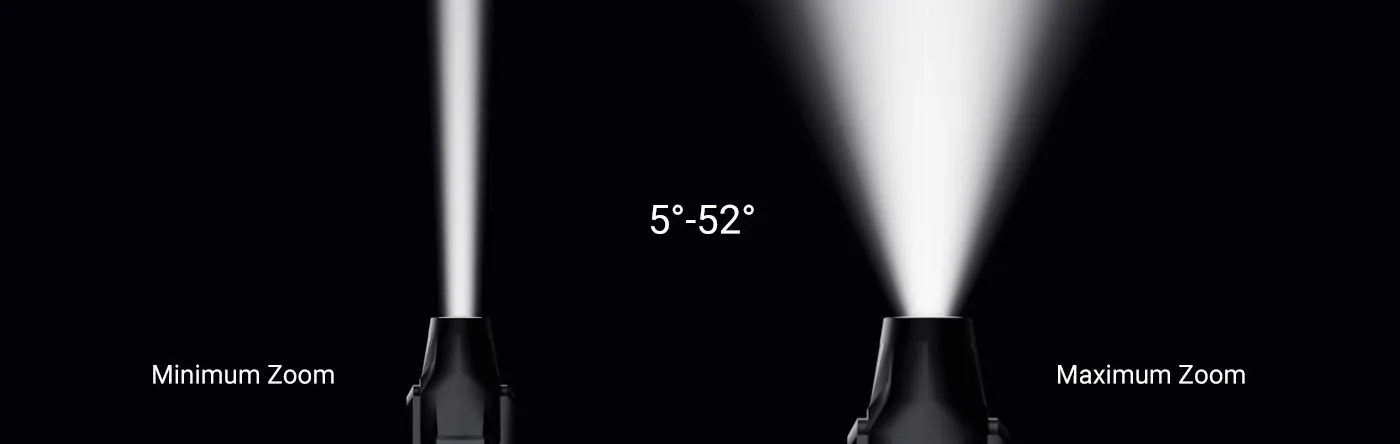

- Zoom Range
- 5°-52°

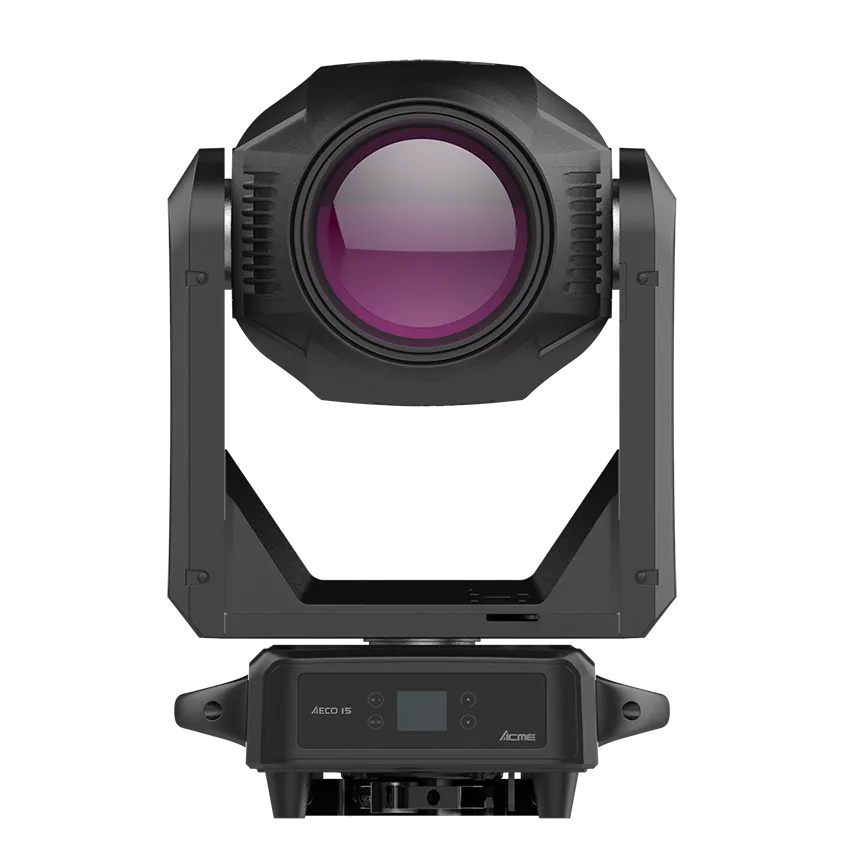

- Diameter of Frontal Lens
- 180 mm
05Control6
- 4 touch button control panel
- Display
- LCD display
- Protocols
- DMX512,RDM
- DMX Protocol Modes
- 4
- Control Channels
- 22/29/31/38
- Firmware Upgrade
- Upgrade via DMX link
06Pan & Tilt5
- Pan Movement
- 540°
- Tilt Movement
- 270°
- Automatic Pan/Tilt position correction
- Resolution
- 16 bit
- Pan/Tilt lock
Show the full specificationHide the rest of the specification15 more groups · 46 values
07Colors3
- Linear CMY color mixing
- Linear CTO Color Correction
- 2,700K-6,200K
- 1 Color Wheel
- 6 colors, plus open
08Static Gobos2
- 1 Static Gobo Wheel
- 8 gobos, plus open
- Gobo
- Ø29.8 mm, lmage: Ø22 mm
09Rotating Gobos2
- 1 Rotating Gobo Wheel
- 7 gobos, plus open
- Gobo
- Ø29.8 mm, lmage: Ø22 mm
10Animation Wheel1

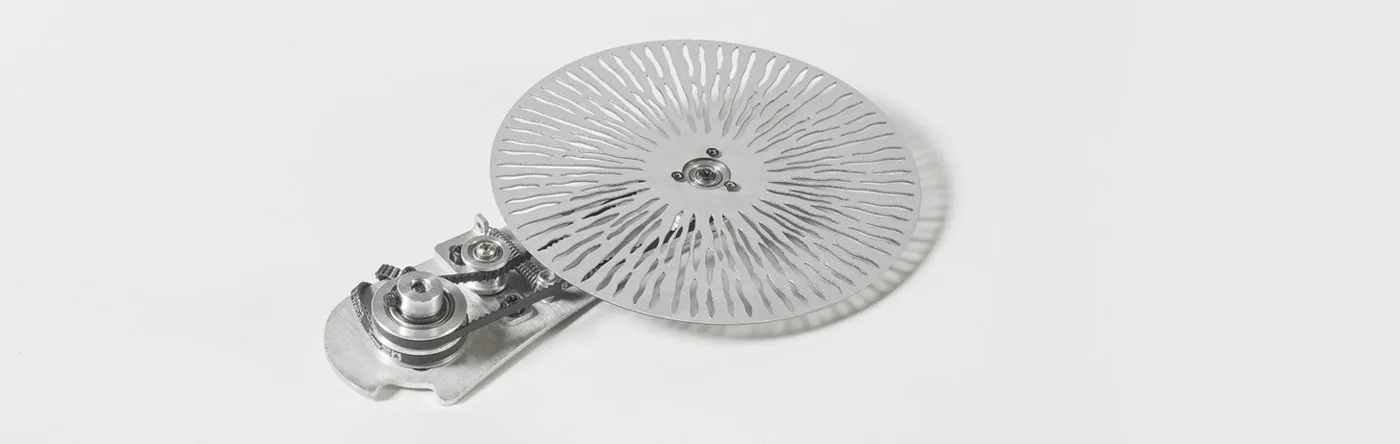

- A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave & flame effect, and can be changed into other wheels
11Prism1
- 1 Rotating and Indexable Prism
- 1 x 4-facet circular prism, rotatable in both directions
12Frost Filter1
- 1 combinable light frost filter and 1 combinable medium frost filter
13Framing System2
- Shutter Blades
- 4 blades, each with separate movement and full blackout
- Rotation
- ±60° of the complete framing system
14Other Effects4
- Outstanding strobe effect with variable speed
- Smooth dimming 0-100% (4 user selectable dimming curves)
- Motorized linear iris
- Motorized zoom and focus
15Electrical and Connectors4
- Input Voltage Range
- 100-240Vac; 50/60Hz
- Power Consumption
- 1,555W
- Power In/Out
- Power Cord in
- Data In/Out
- 3-pin or 5-pin XLR
16Physical Information4
- Fixture Dimensions
- Width
- 412 mm (16.3")
- Depth
- 308 mm (12.1")
- Height
- 770 mm (30.3")
- Weight
- 43 kg (94.8 lbs)
17Packing Information8
- Flight Case Dimensions
- Width
- 715 mm (28.1")
- Depth
- 595 mm (23.4")
- Height
- 905 mm (35.6")
- Weight
- Standard
- G.W.: 91 kg (200.6 lbs) (one-pack loader case)
- Carton Dimensions
- Width
- 670 mm (26.4")
- Depth
- 520 mm (20.5")
- Height
- 750 mm (29.5")
- Weight
- G.W.
- 45 kg (99.2 lbs) (one-pack loader carton)
18Work Environment4
- Maximum Ambient Temperature
- 40°C
- Minimum Operating Temperature
- 0°C
- Maximum Surface Temperature
- 65°C
- Protection Rating
- IP20
19Installation4
- Horizontal or vertical mounting
- Universal working position

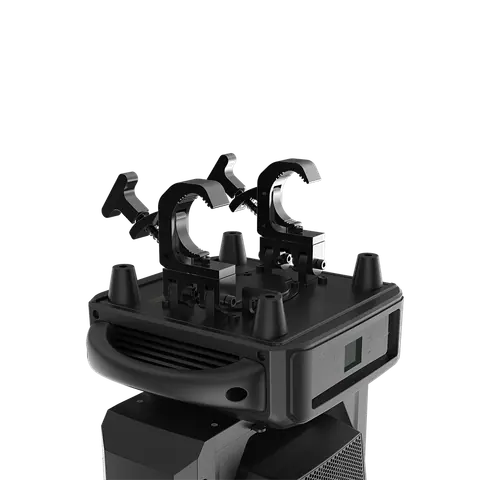

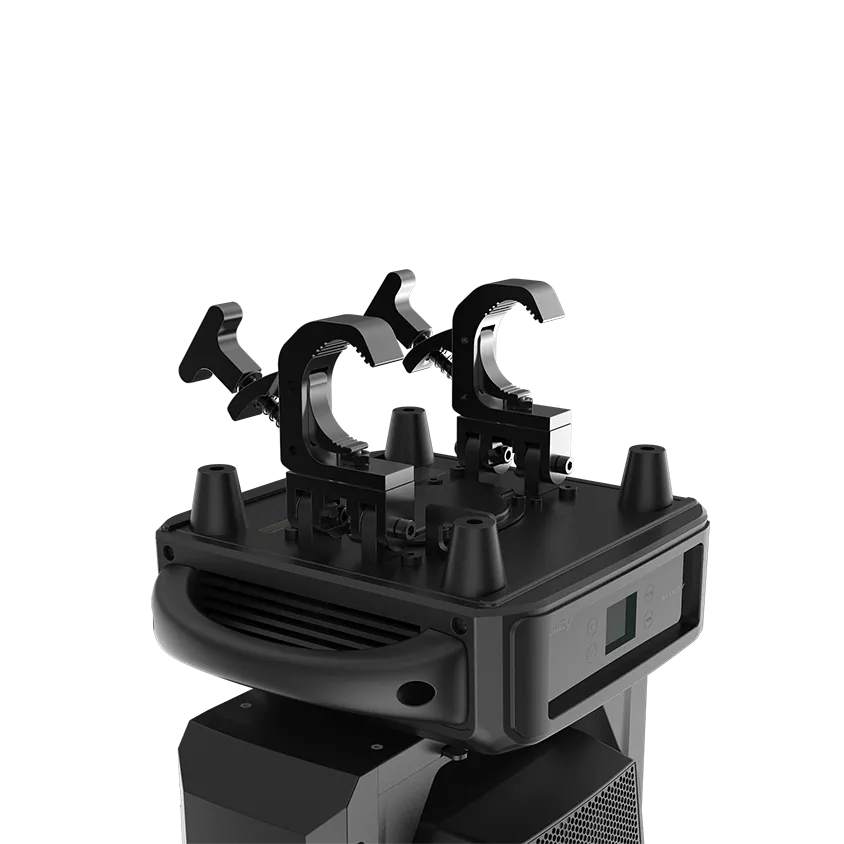

- 2 fixed foldable clamps for 50 mm truss
- Safety cable attachment point
20Included Items3
- Digital user manual
- Power cable
- 2 fixed foldable clamps for 50 mm truss
21Optional Accessories (With Order Code)3
- Flight Case
- Standard
- One-pack loader case (63583603)
- Safety Cable
- SW-05 (2060001603-E)
- Signal Cable
- 3-pin or 5-pin signal cable
02DescriptionManufacturer's description
What it is.
AECO 15, a high CRI LED hybrid light, combines the power of Beam, Spot, and Wash in one unique fixture. Fitted with a 1,500-Watt, 6,200K LED engine, the fixture delivers an impressive 33,500 lumens through a 180 mm frontal lens, offering unparalleled brightness and precision.
Experience seamless transitions from warm 2,700K to cool 6,200K with its variable CTO, ensuring vivid color rendition and seamless color mixing. Additional benefits include a zoom range of 5° to 52°, CMY, a static gobo wheel, a rotating gobo wheel, and a color wheel for endless lighting design possibilities. The effect section is fitted with a graphic animation wheel, two frost filters, and a 4-facet circular prism
Perfect for performances, ballrooms, theaters, and more, the AECO 15 redefines versatility and reliability in lighting design. Elevate your lighting experience with AECO 15 - a masterpiece that truly captivates audiences!
