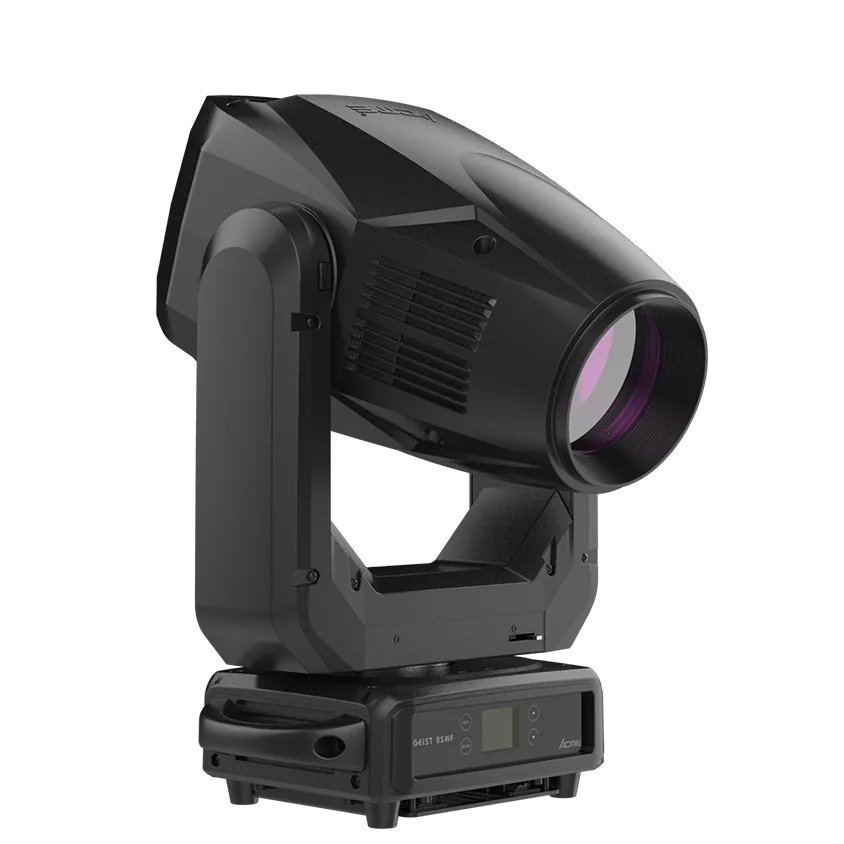

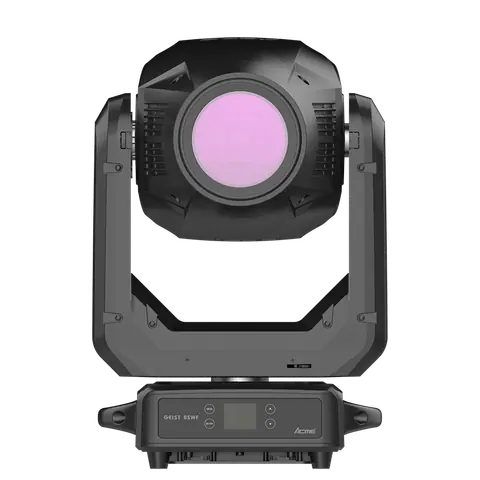

GEIST BSWF

ModelXA-500 BSWF

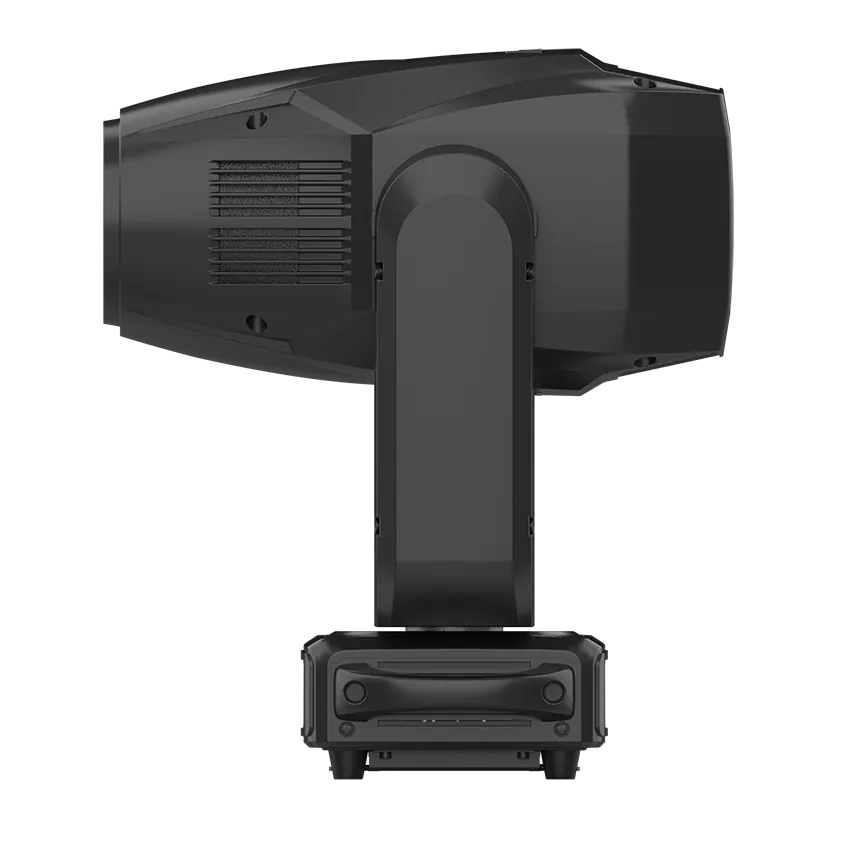

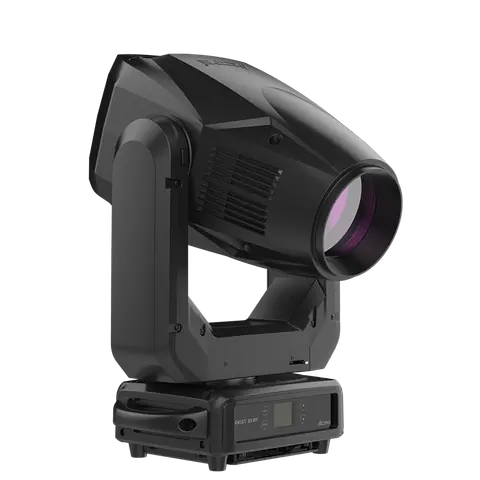

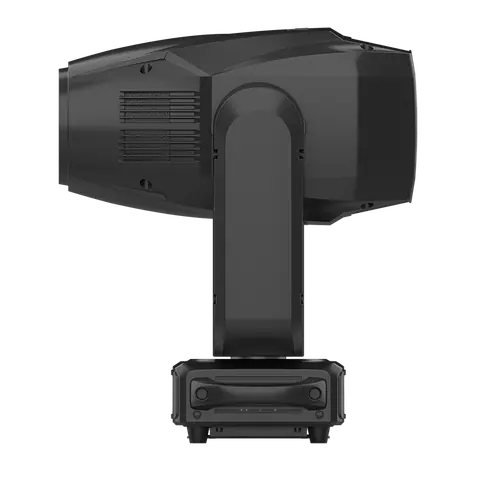

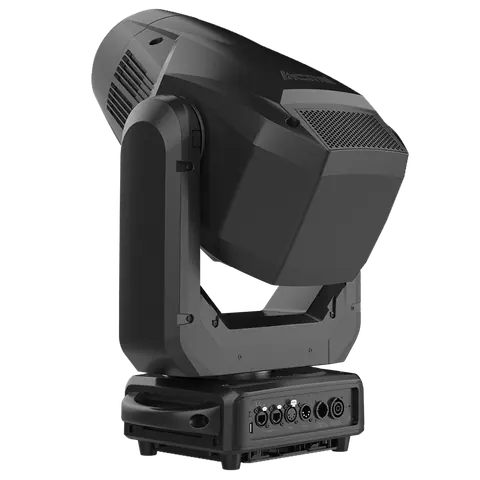

The ACME Lighting GEIST BSWF is a multi-functional LED fixture powered by a 450-Watt white LED engine.

Light source: 450W white LED engine
Power consumption: 670W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP20
Beam angle / zoom: 6.5°-54°
DMX channels: 25/29/34
Protocols: DMX512,RDM,Art-Net,sACN
Colour temperature: 7,000K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 3:05

ACME GEIST BSWF3:05

02SpecificationManufacturer's data · 21 groups · 75 values

What this product is, in numbers.

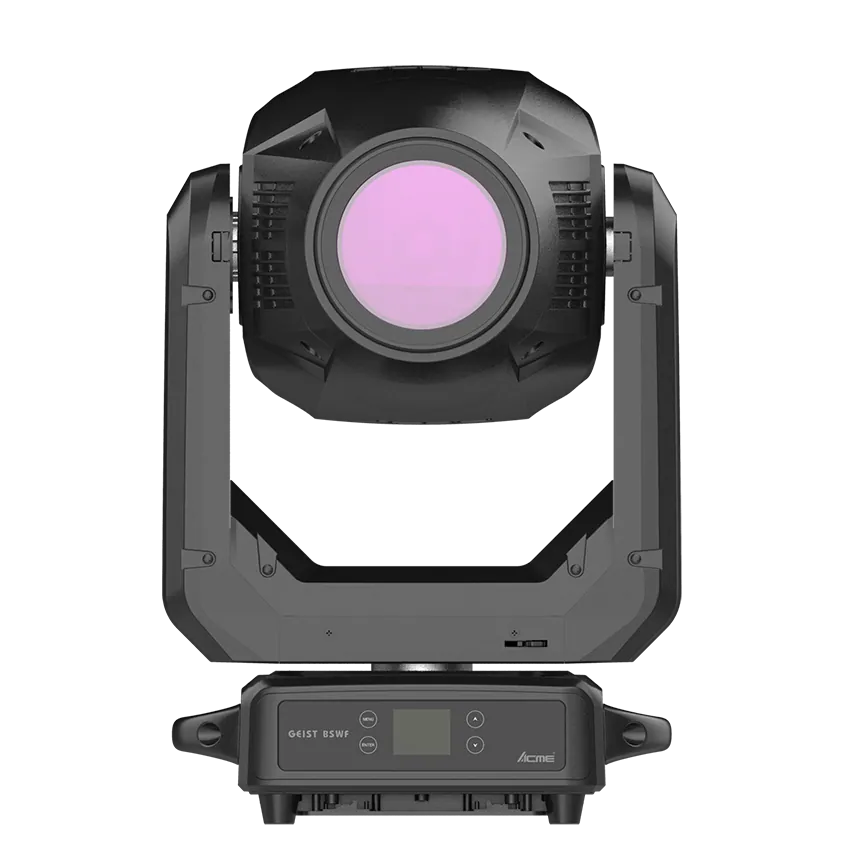

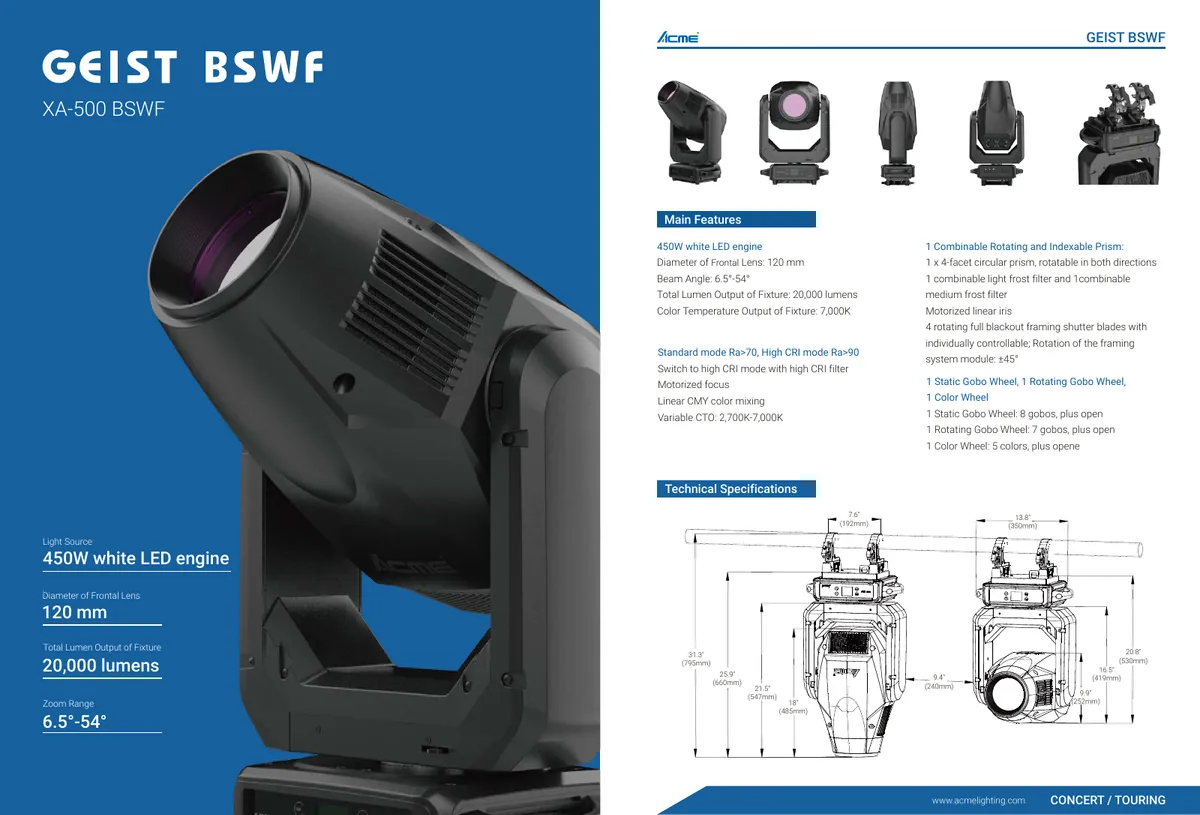

PDFDatasheetEN · 2 pages · 874 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: GEIST BSWF
Model Code: XA-500 BSWF

02Light Source4

Light Source: 450W white LED engine
Color Temperature Output of Fixture: 7,000K
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data3

Total Lumen Output of Fixture: 20,000 lumens
Standard Mode: Ra>70
HCRI Mode: Ra>90

04Optical System2

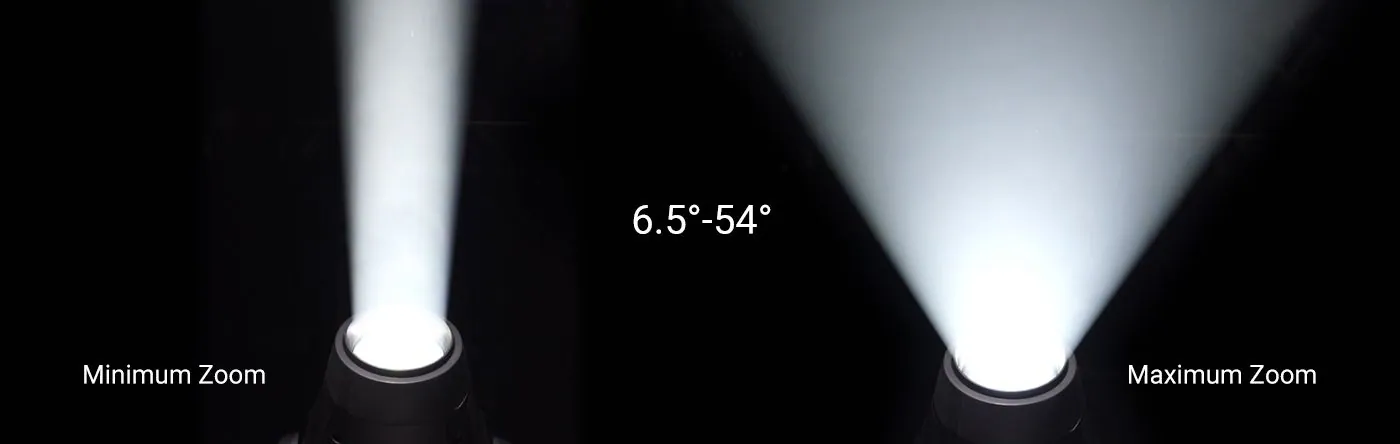

Zoom Range: 6.5°-54°
Diameter of Frontal Lens: 120 mm

05Control6

4 touch button control panel
Display: Color display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 3
Control Channels: 25/29/34
Firmware Upgrade: Upgrade via DMX link or USB stick

06Pan & Tilt5

Pan Movement: 540°
Tilt Movement: 260°; Automatic Pan/Tilt position correction
Resolution: 16 bit; Pan/Tilt lock

Show the full specificationHide the rest of the specification15 more groups · 53 values

07Colors3

Linear CMY color mixing
Linear CTO Color Correction: 2,700K-7,000K
1 Color Wheel: 5 colors + CRI, plus open

08Static Gobos2

1 Static Gobo Wheel: 8 gobos, plus open
Gobo: Ø130 mm

09Rotating Gobos3

1 Rotating Gobo Wheel: 7 gobos, plus open
Gobo Slot 1-6: Ø22.5 mm, lmage: Ø17.5 mm
Gobo Slot 7: Ø22.5 mm

10Prism1

1 Rotating and Indexable Prism: 1 x 4-facet circular prism, rotatable in both directions

11Frost Filter1

1 combinable light frost filter and 1 combinable medium frost filter

12Framing System2

Shutter Blades: 4 blades, each with separate movement and full blackout
Rotation: ±45° of the complete framing system

13Other Effects3

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Motorized zoom and focus

14Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 670W
Power In/Out: Power connector in/out

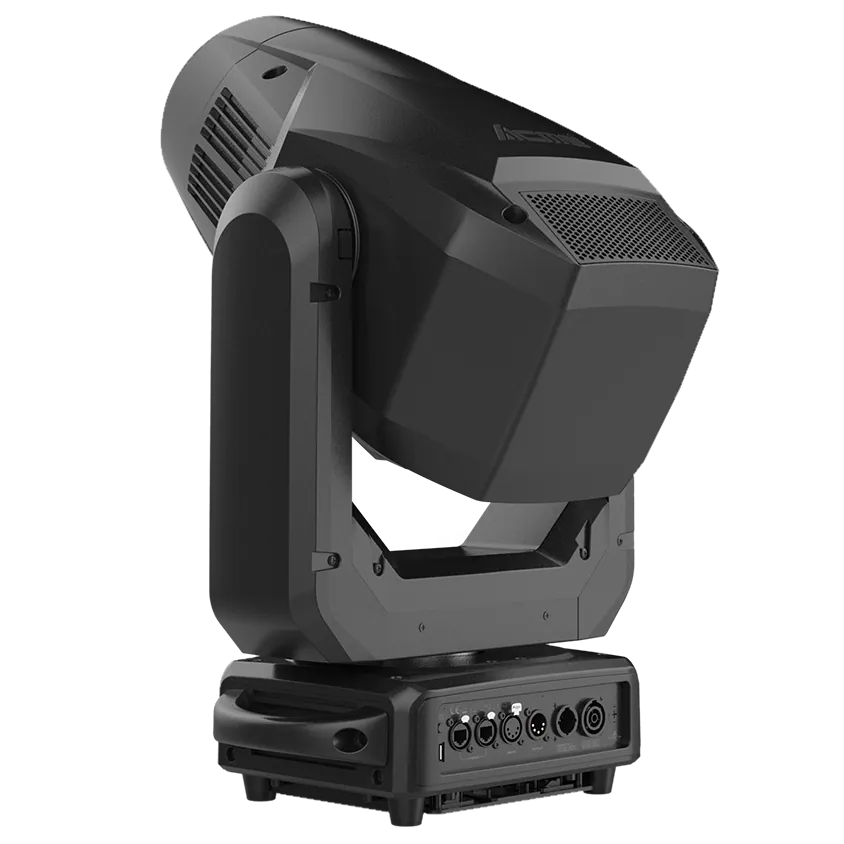

Data In/Out: 3-pin or 5-pin XLR,RJ45 connector

15Physical Information4

Fixture Dimensions
Width: 364 mm (14.3")
Depth: 250 mm (9.9")
Height: 658 mm (25.9")
Weight: 24.5 kg (54.0 lbs)

16Packing Information12

Flight Case Dimensions 1
Width: 890 mm (35.0")
Depth: 780 mm (30.7")
Height: 575 mm (22.6")
Weight
Standard: G.W.: 96 kg (211.6 lbs) (two-pack loader case)
Flight Case Dimensions 2
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 905 mm (35.6")
Weight
North American Standard: G.W.: 135 kg (297.6 lbs) (two-pack loader case)
Carton Dimensions
Width: 550 mm (21.7")
Depth: 480 mm (18.9")
Height: 655 mm (25.8")
Weight
G.W.: 30 kg (66.1 lbs) (one-pack loader carton)

17Work Environment4

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 65°C
Protection Rating: IP20

18Approvals2

CE compliant

cETLus compliant

19Installation3

Horizontal or vertical mounting

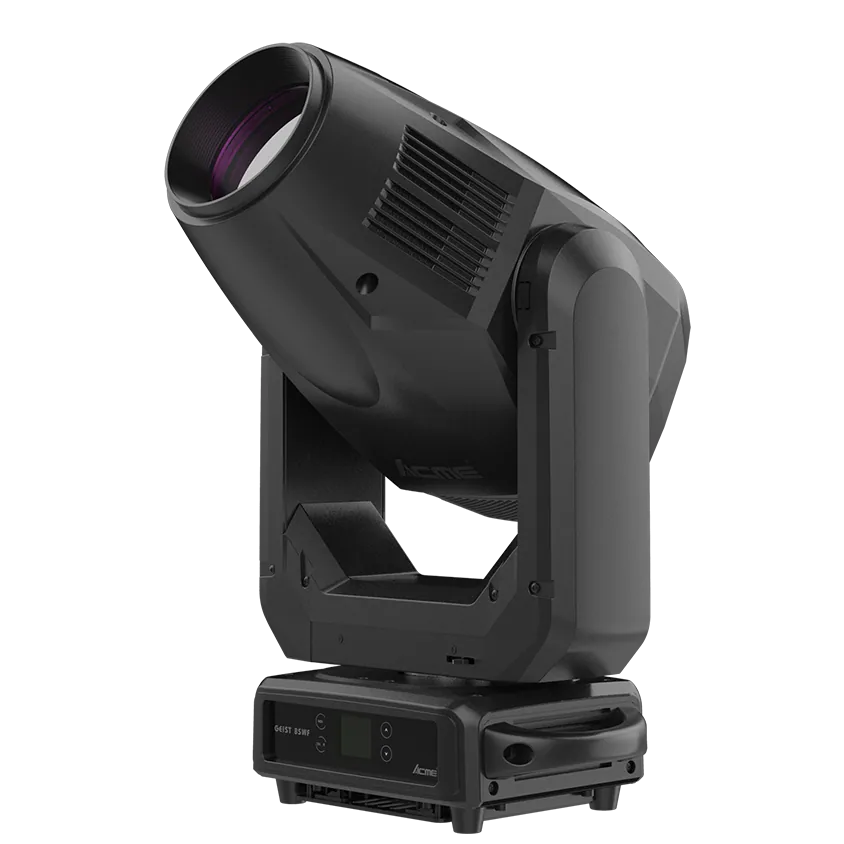

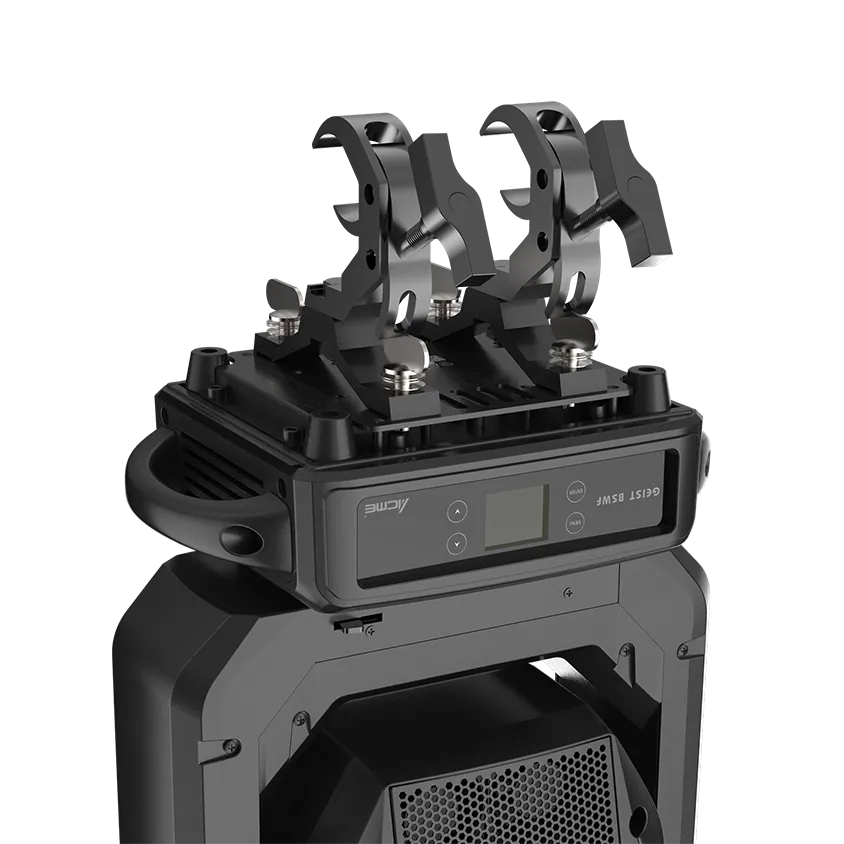

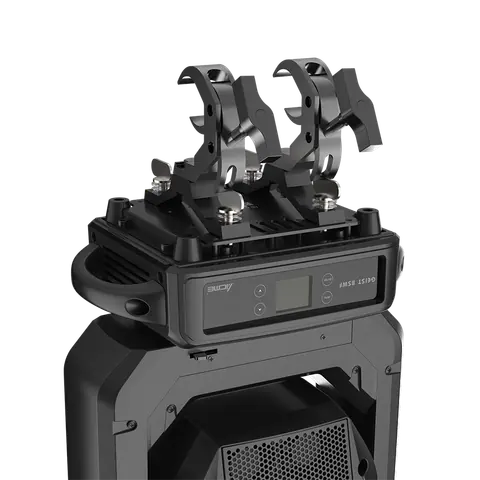

2 omega brackets

Safety cable attachment point

20Included Items3

Digital user manual

Power cable

2 omega brackets (3002000288-B)

21Optional Accessories (With Order Code)6

Flight Case 1
Standard: Two-pack loader case (63583081)
Flight Case 2
North American Standard: Two-pack loader case (63583195)
Clamp: C-150B (2060001625-C)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin or 5-pin signal cable
Raincover: 3033001749

03DescriptionManufacturer's description

What it is.

The ACME Lighting GEIST BSWF is a multi-functional LED fixture powered by a 450-Watt white LED engine. This fixture can be a beam, spot, or wash, delivers over 20,000 lumens, and weighs only 24.5 kilograms (or 54.0 pounds) making it one of the smallest but brightest fixtures in its class.

Although small, the GEIST BSWF is packed with the features you would expect from a fixture in this class. It has CMY color mixing, variable CTO from 2,700K to 7,000K, a color wheel with five colors and a high CRI filter, a rotating gobo wheel with seven rotating gobos, a static gobo wheel with eight gobos including two beam reducers, a four-blade framing system that can rotate in 45° in either direction and do full blackouts, two frost filters, and a four-facet prism. The fixture's High-efficiency optics and 120 mm frontal lens produce sharp images and rich colors.

The GEIST BSWF is designed to be what you need it to be when you need it for a wide variety of productions.
