Sheet 05.548

ACME · Spot and profile

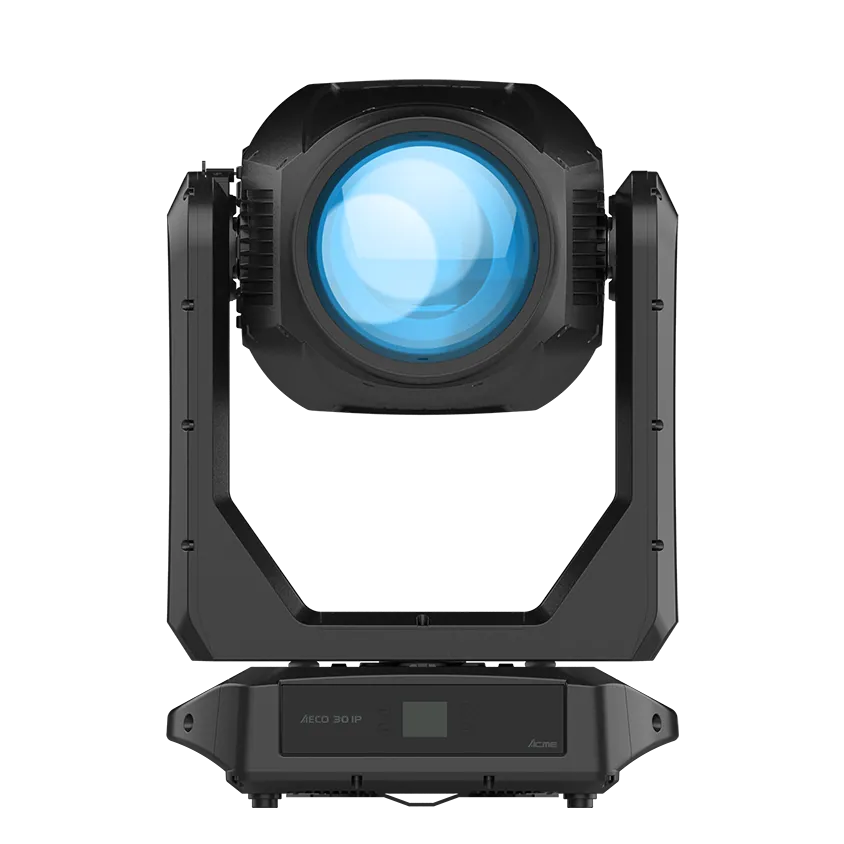

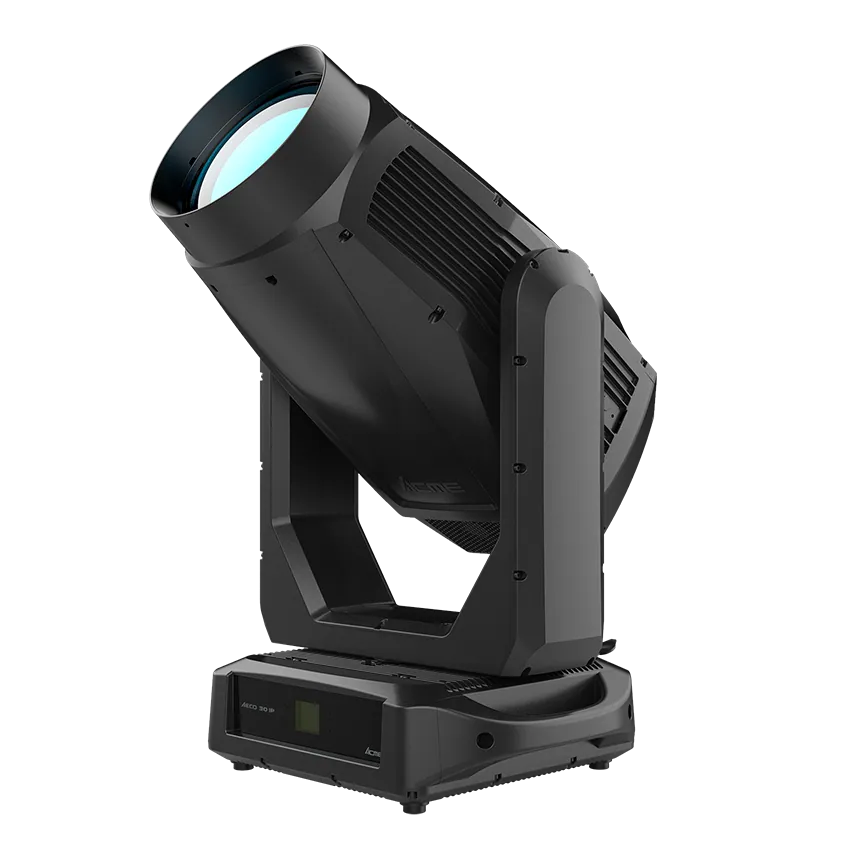

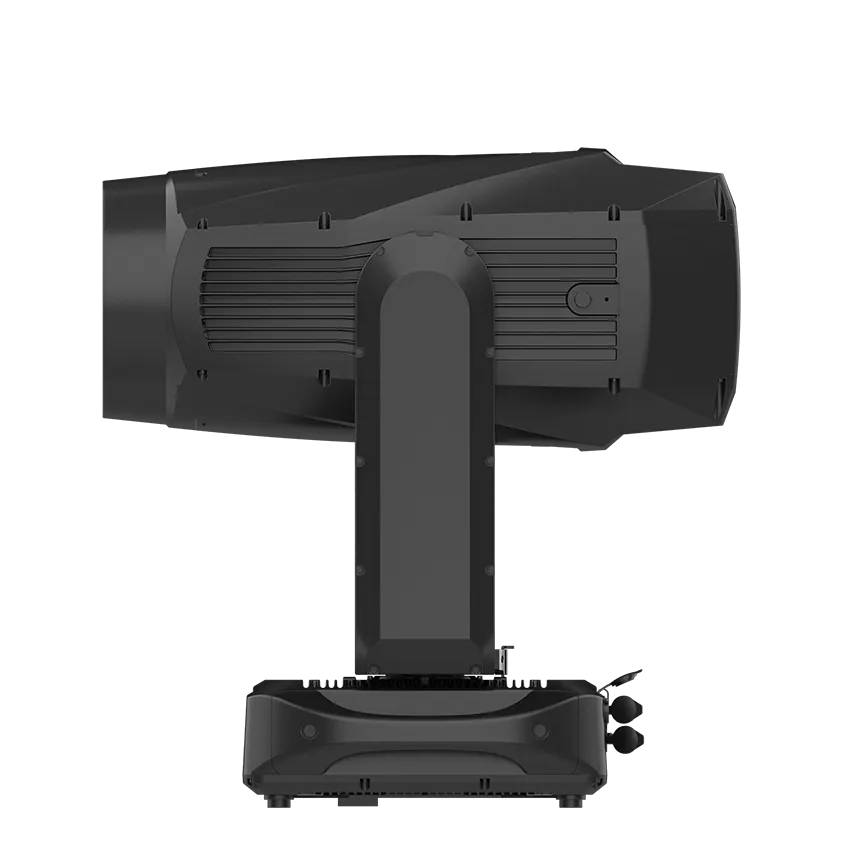

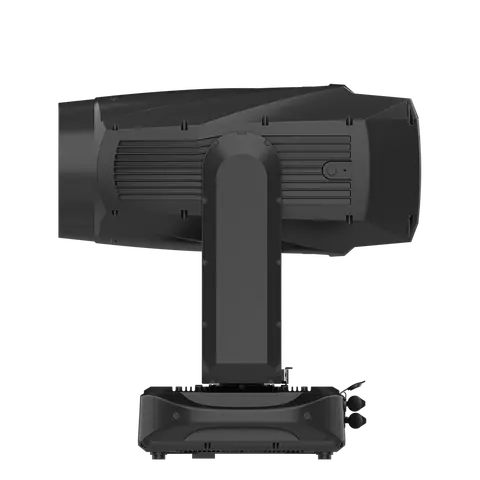

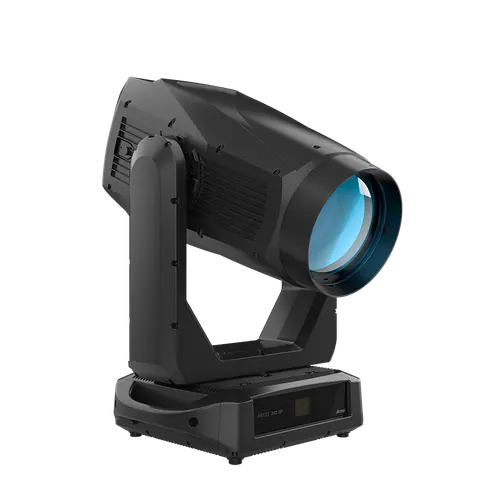

AECO 30 IP

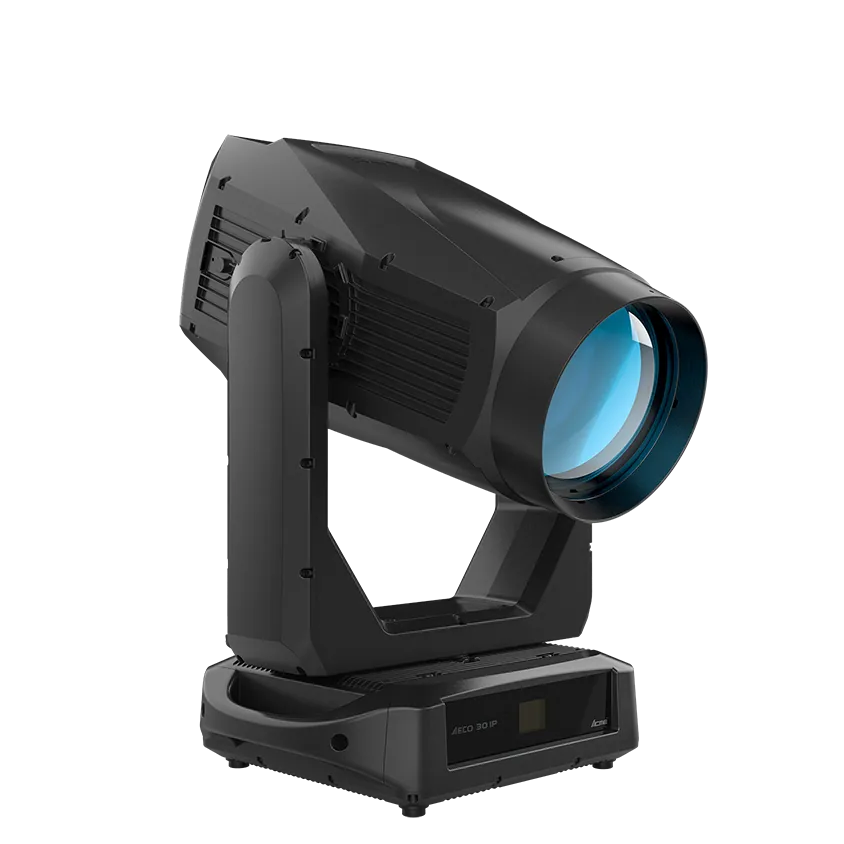

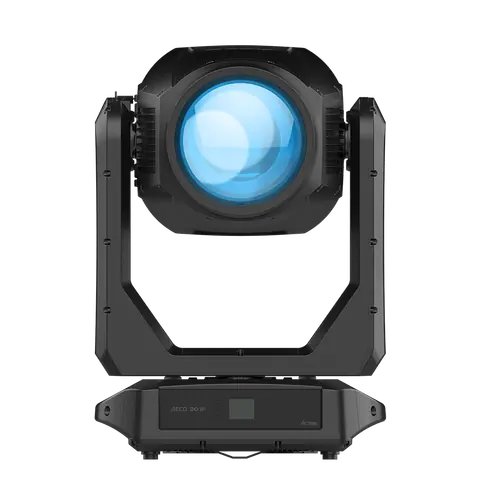

Introducing the ACME AECO 30 IP, where brilliance meets excellence.

Light source: 1,800W LED engine
Power consumption: 2,265W
Power supply: 180-240Vac; 50/60Hz
Ingress protection: IP66
Beam angle / zoom: 4°-48°
DMX channels: 23/32/34/43
Protocols: DMX512,RDM,Art-Net,sACN
Colour temperature: 6,200K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:27

ACME AECO 30 IP2:27

02SpecificationManufacturer's data · 21 groups · 72 values

What this product is, in numbers.

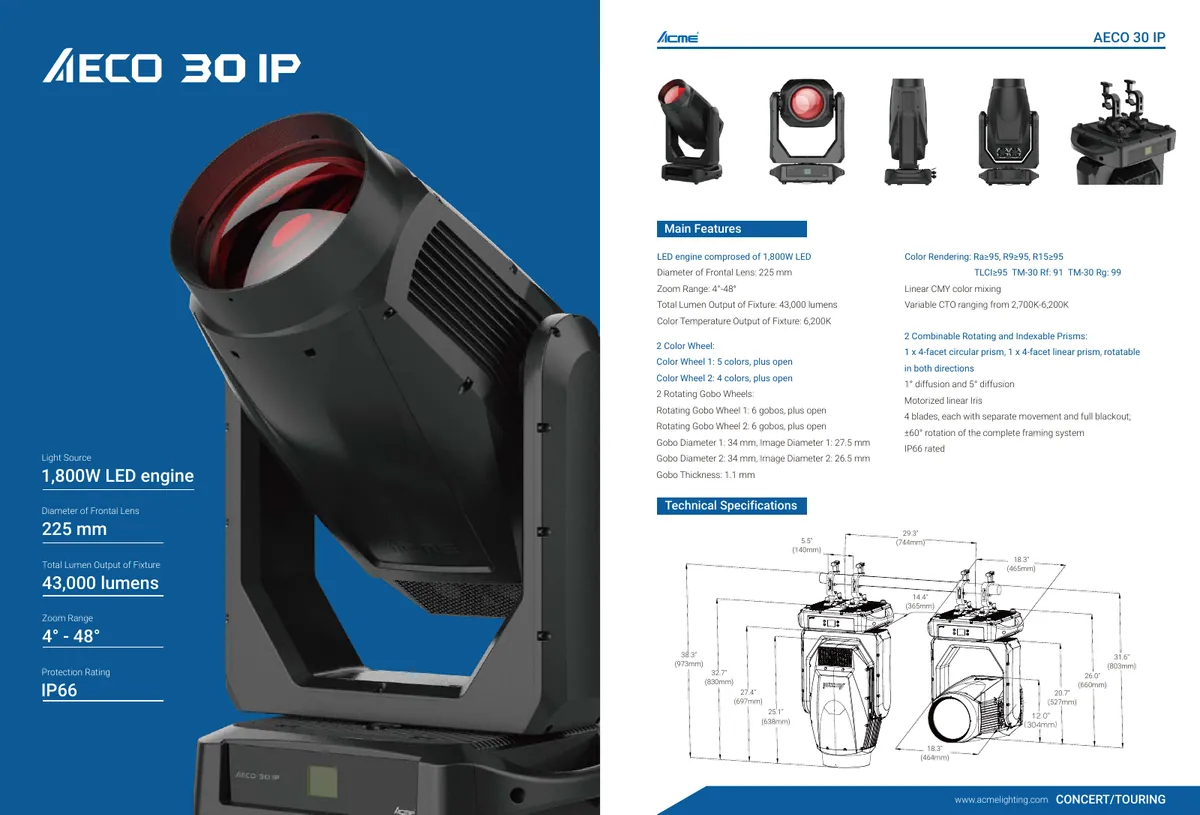

PDFDatasheetEN · 2 pages · 1.1 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model1

Model Name: AECO 30 IP

02Light Source4

Light Source: 1,800W LED engine
Color Temperature Output of Fixture: 6,200K
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data2

Total Lumen Output of Fixture: 43,000 lumens
Color Rendering: Ra≥95, R9≥95, R15≥95;TLCI≥95;TM-30 Rf: 91;TM-30 Rg: 99

04Optical System2

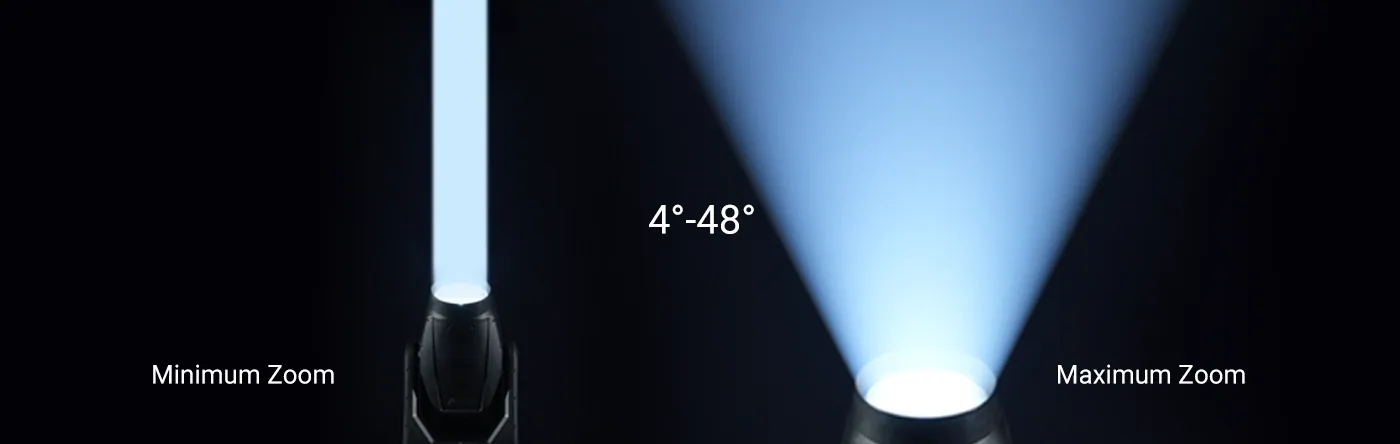

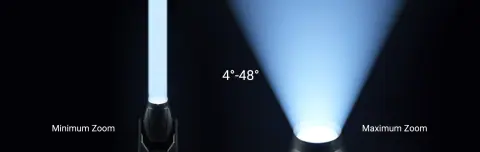

Zoom Range: 4°-48°
Diameter of Frontal Lens: 225 mm

05Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 4
Control Channels: 23/32/34/43
Firmware Upgrade: Upgrade via DMX link or USB stick

06Pan & Tilt5

Pan Movement: 540°
Tilt Movement: 270°; Automatic Pan/Tilt position correction
Resolution: 16 bit; Pan/Tilt lock

Show the full specificationHide the rest of the specification15 more groups · 52 values

07Colors4

Linear CMY color mixing
Linear CTO Color Correction: 2,700K-6,200K
2 Color Wheels
Color Wheel 1: 5 colors, plus open
Color Wheel 2: 4 colors, plus open

08Rotating Gobos5

2 Rotating Gobo Wheel
Rotating Gobo Wheel 1: 6 gobos, plus open
Gobo: Ø34 mm, lmage: Ø27.5 mm
Rotating Gobo Wheel 2: 6 gobos, plus open
Gobo Slot 1-5: Ø34 mm, lmage: Ø26.5 mm
Gobo Slot 6: Ø31 mm

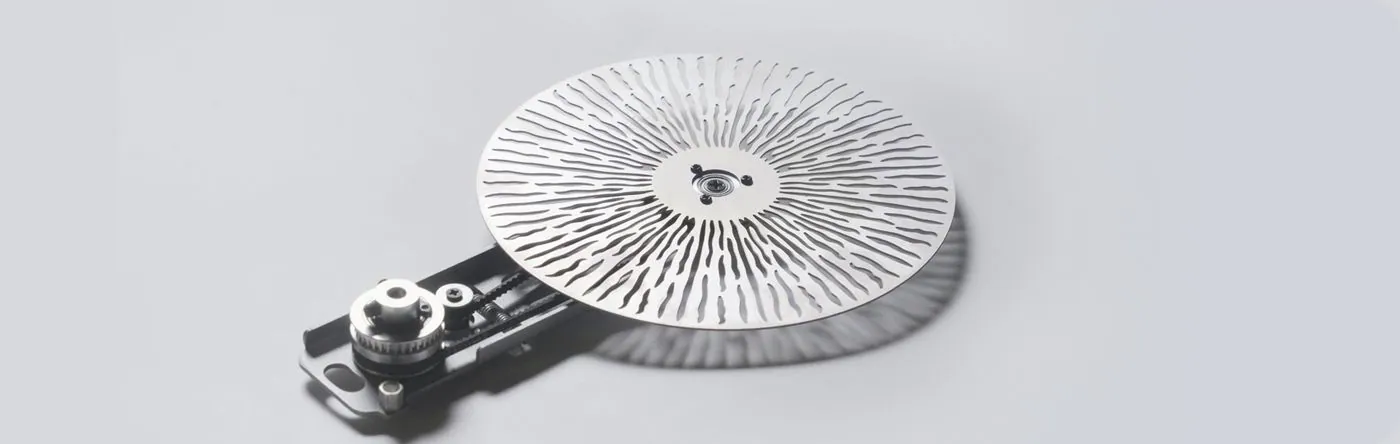

09Animation Wheel1

A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave effect, and can be changed into other wheels

10Prism1

2 Combinable Rotating and Indexable Prisms: 1 x 4-facet circular prism, 1 x 4-facet linear prism, rotatable in both directions

11Frost Filter1

1° diffusion and 5° diffusion

12Framing System2

Shutter Blades: 4 blades, each with separate movement and full blackout
Rotation: ±60° of the complete framing system

13Other Effects3

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Motorized linear iris

14Electrical and Connectors4

Input Voltage Range: 180-240Vac; 50/60Hz
Power Consumption: 2,265W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

15Physical Information4

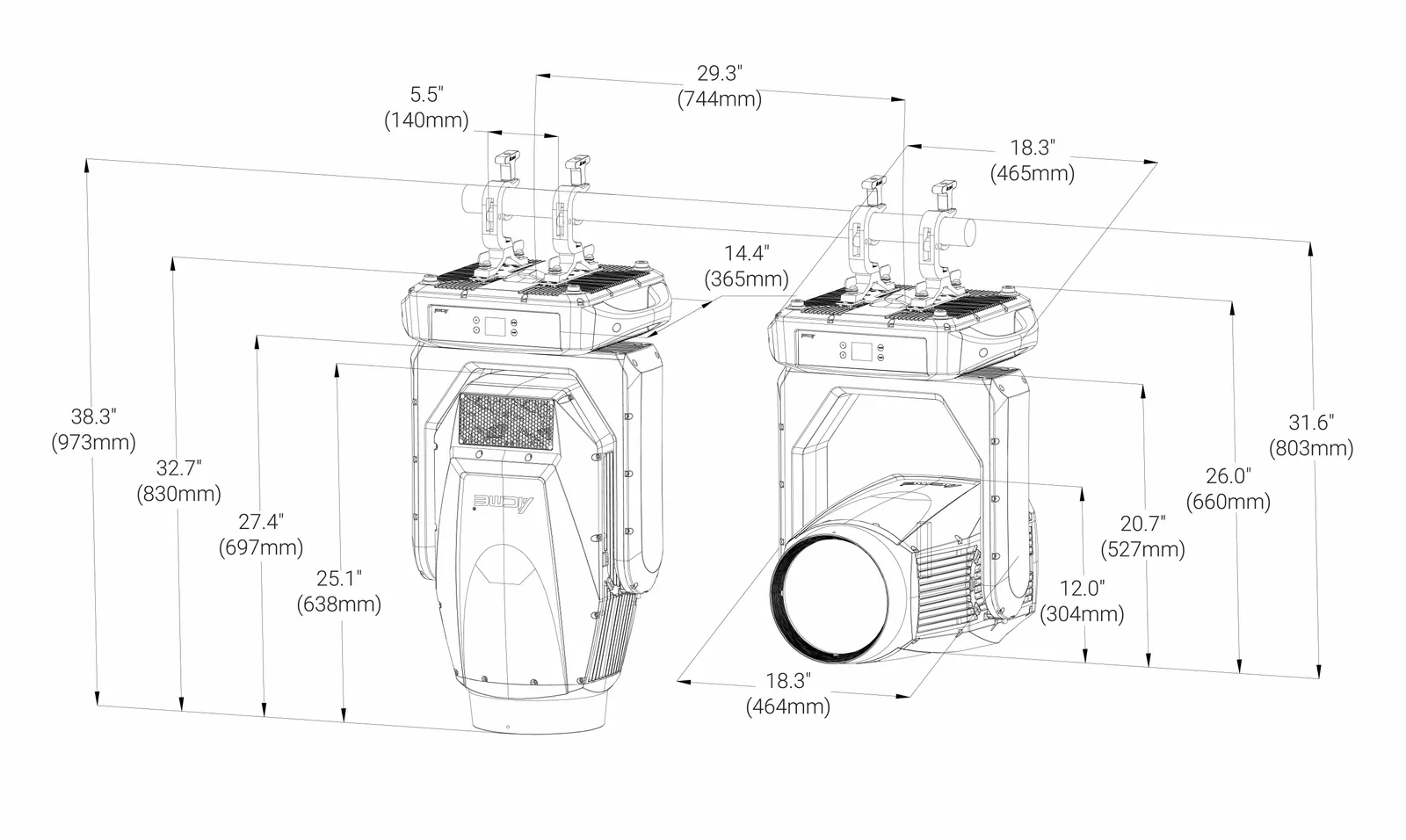

Fixture Dimensions
Width: 465 mm (18.3")
Depth: 365 mm (14.4")
Height: 830 mm (32.7")
Weight: 52.5 kg (115.7 lbs)

16Packing Information8

Flight Case Dimensions
Width: 812 mm (32.0")
Depth: 610 mm (24.0")
Height: 910 mm (35.8")
Weight
North American Standard: G.W.: 113.3 kg (249.8 lbs) (one-pack loader case)
Carton Dimensions
Width: 780 mm (30.7")
Depth: 575 mm (22.6")
Height: 805 mm (31.7")
Weight
G.W.: 65.0 kg (143.3 lbs) (one-pack loader carton)

17Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 70°C
Protection Rating: IP66

18Approvals3

CE compliant

UKCA compliant

cETLus compliant

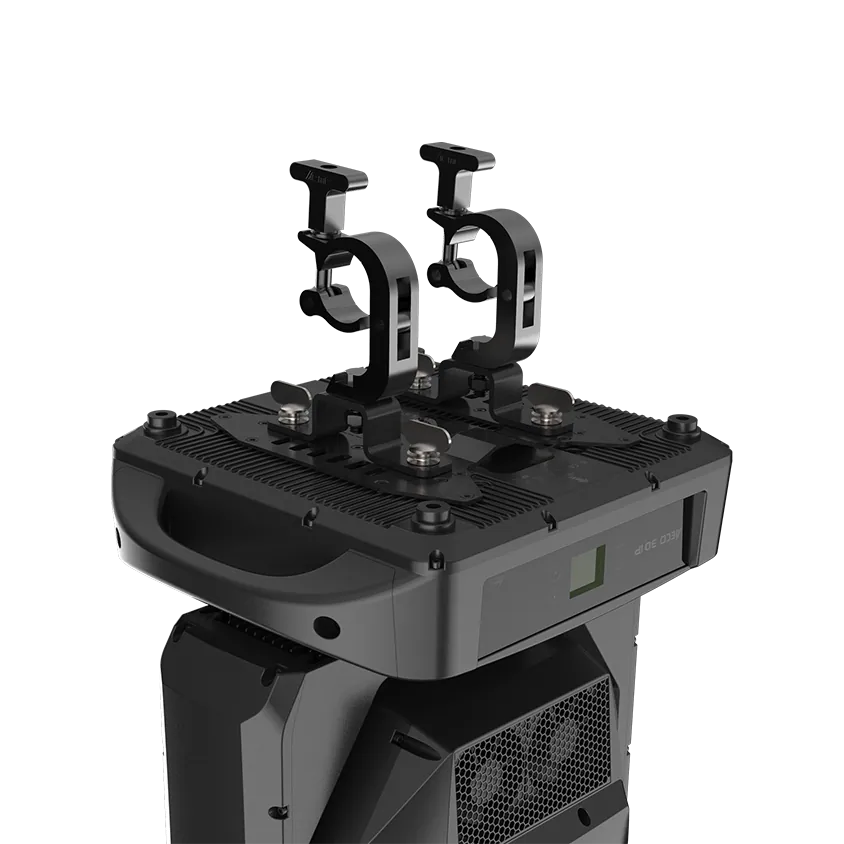

19Installation4

Horizontal or vertical mounting

Universal working position

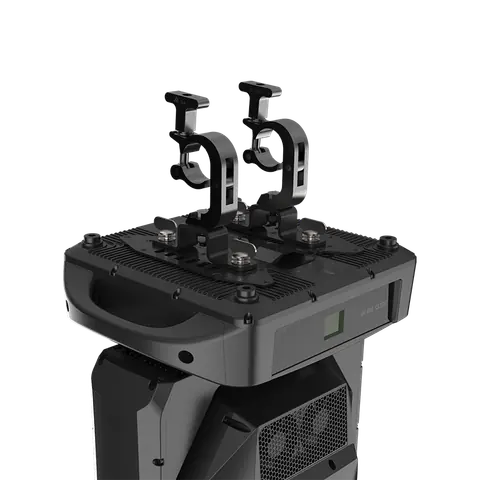

2 omega brackets

Safety cable attachment point

20Included Items3

Digital user manual

Power cable

2 omega brackets (3002003003)

21Optional Accessories (With Order Code)5

Flight Case
Standard: One-pack loader case (63583572)
North American Standard: One-pack loader case (63583566)
Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)

03DescriptionManufacturer's description

What it is.

Introducing the ACME AECO 30 IP, where brilliance meets excellence. Powered by a 1,800-Watt LED, boasting a total lumen output of 43,000 lumens, a 225 mm frontal lens and a HCRI of Ra≥95, this luminaire produces vivid colors and brilliant lighting effects in every moment..

Immerse yorself in dynamic lighting with a versatile zoom range from 4° to 48°, accompanied by adjustable CTO from 2,700K to 6,200K. Featuring a linear CMY color mixing, dual color wheels, dual rotating gobo wheels, a graphic animation wheel, one 4-facet prism, and two frost filters, the AECO 30 IP presents limitless creative possibilities.

Its IP66 rating ensures extremely versatility for both indoors and outdoors applications. Elevate professional stages, theaters, and outdoor events with captivating lighting effects, delivering unforgettable audio-visual experiences!
