Sheet 05.546
ACME · Spot and profile

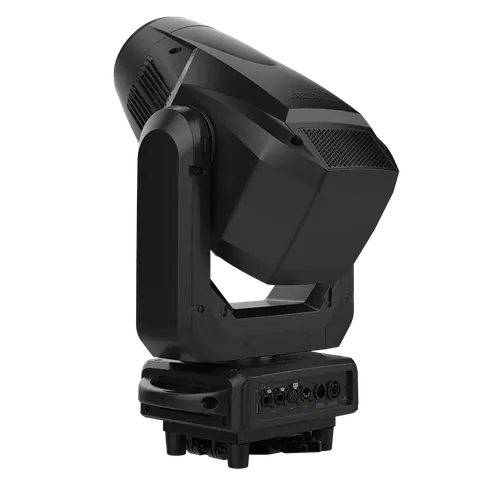

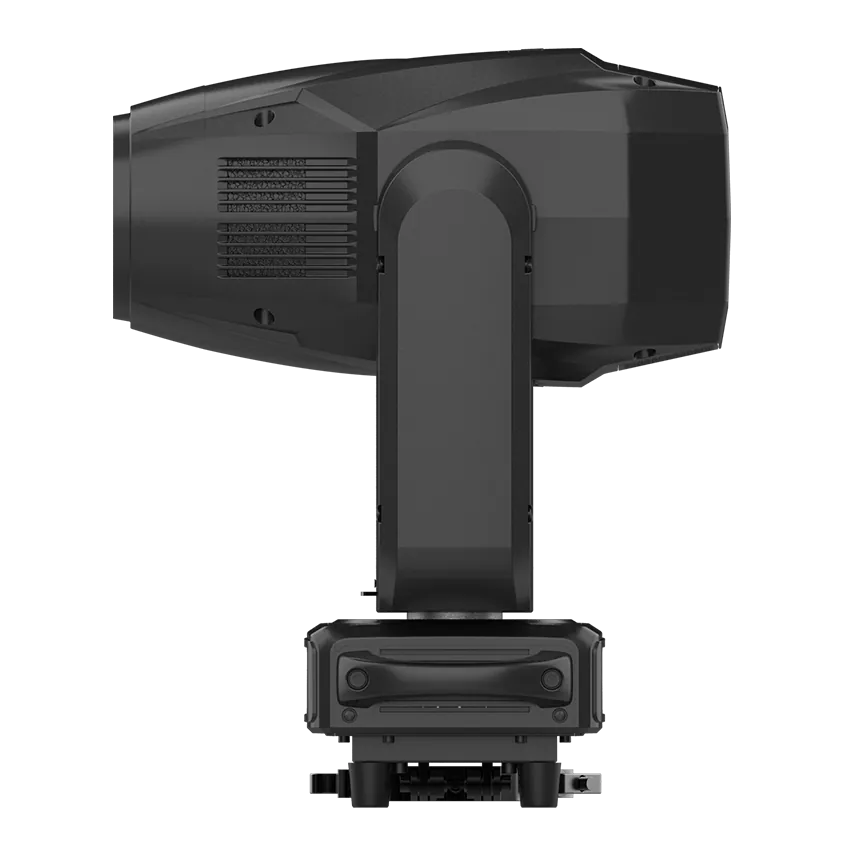

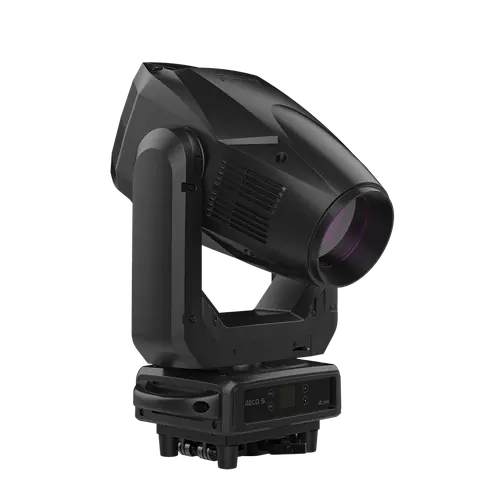

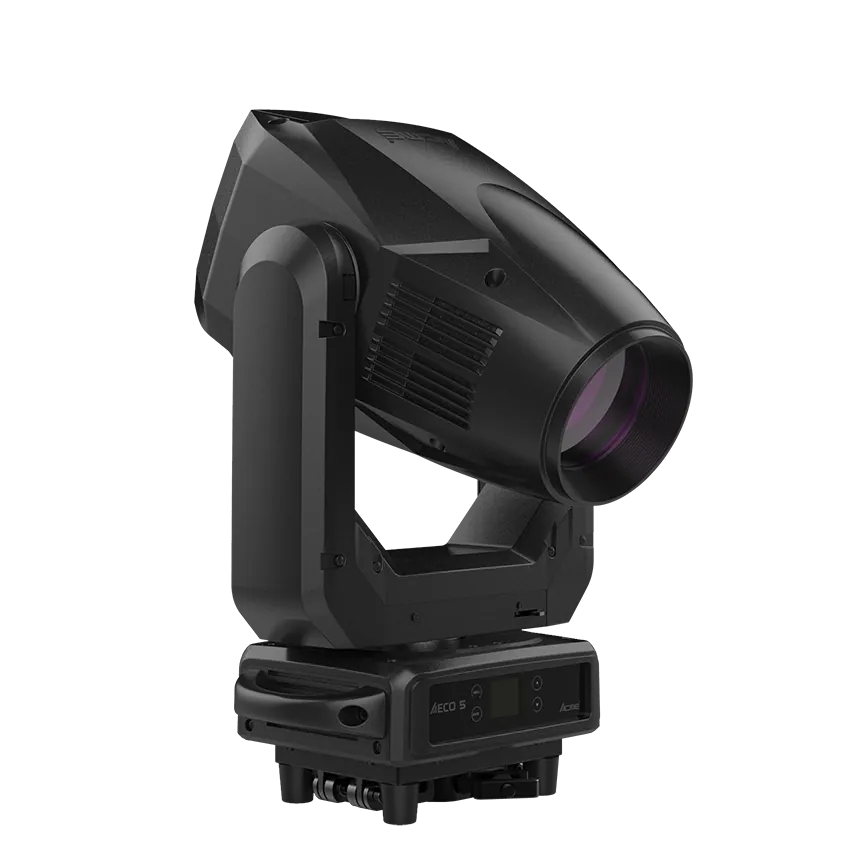

AECO 5
Based on the perfect combination of its light source and advanced optical technology, the ACME AECO 5 is a 4 in 1 hybrid fixture that features an innovative 450-Watt High CRI light engine, born to illuminate any production with an incredible CRI of RA≥95 and R9≥90.
- Light source
- 450W LED engine
- Power consumption
- 670W
- Power supply
- 100-240Vac; 50/60Hz
- Ingress protection
- IP20
- Beam angle / zoom
- 6.5°-54°
- DMX channels
- 33/24/28
- Protocols
- DMX512,RDM,Art-Net,sACN
- Colour temperature
- 6,000K
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
AECO 5Price on requestRequest a quotation
01VideoManufacturer's video · 2:00
ACME AECO 5: the manufacturer's video
02SpecificationManufacturer's data · 21 groups · 68 values
What this product is, in numbers.

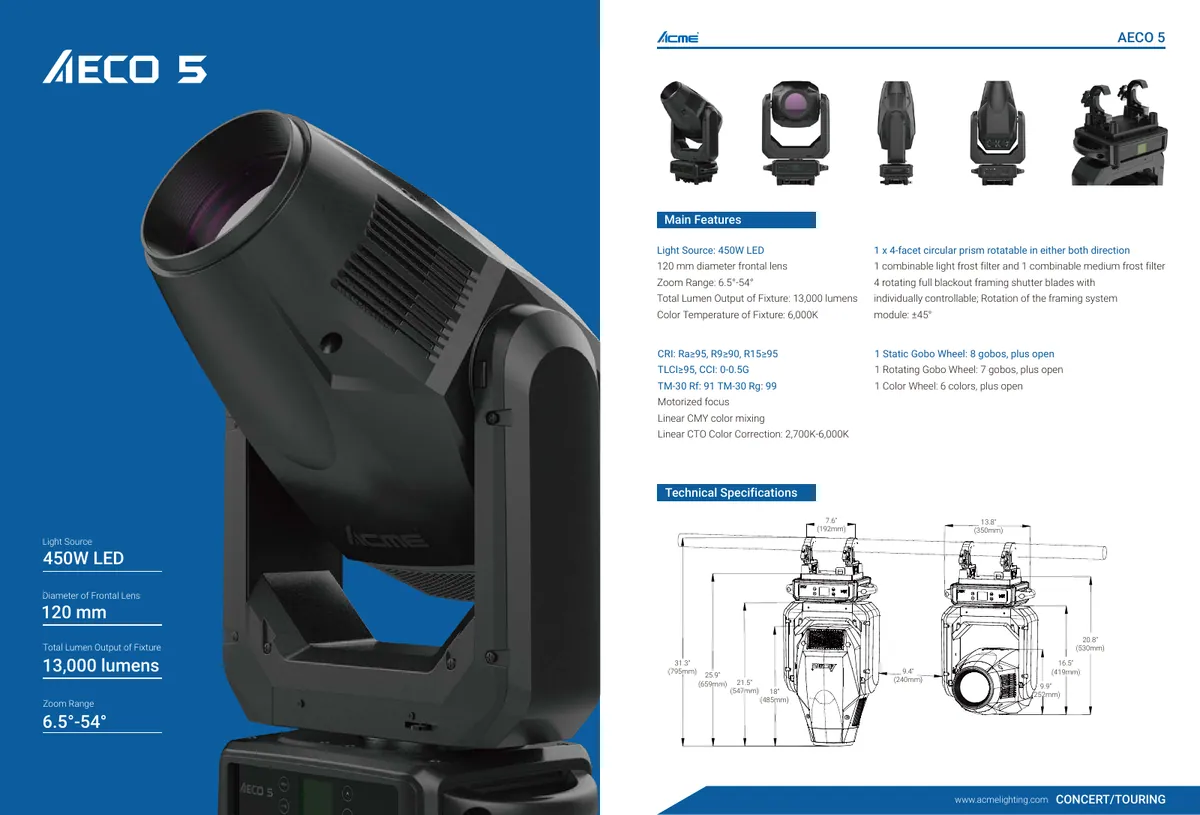

PDFDatasheetEN · 2 pages · 756 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Model1
- Model Name
- AECO 5
02Light Source4
- Light Source
- 450W LED engine
- Color Temperature Output of Fixture
- 6,000K
- Light Source Rated Life
- 20,000 hours*
- *Source manufacturer specification
03Photometric Data2
- Total Lumen Output of Fixture
- 13,000 lumens
- Color Rendering
- Ra≥95,R9≥90,R15≥95 TLCI≥95,CCI:0-0.5G TM-30RF: 91 TM-30Rg: 99
04Optical System2
- Zoom Range
- 6.5°-54°
- Diameter of Frontal Lens
- 120 mm
05Control6
- 4 touch button control panel
- Display
- LCD display
- Protocols
- DMX512,RDM,Art-Net,sACN
- DMX Protocol Modes
- 3
- Control Channels
- 33/24/28
- Firmware Upgrade
- Upgrade via DMX link or USB stick
06Pan & Tilt4
- Pan Movement
- 540°
- Tilt Movement
- 270°
- Automatic Pan/Tilt position correction
- Resolution
- 16 bit
Show the full specificationHide the rest of the specification15 more groups · 49 values
07Colors2
- Linear CMY color mixing
- Linear CTO Color Correction
- 2,700K-6,000K
08Static Gobos1
- 1 Static Gobo Wheel
- 8 gobos, plus open
09Rotating Gobos3
- 1 Rotating Gobo Wheel
- 7 gobos, plus open
- Gobo Slot 1-6
- Ø22.5 mm, lmage: Ø17 mm
- Gobo Slot 7
- Ø22.5 mm
10Prism1
- 1 Rotating and Indexable Prism
- 1 x 4-facet circular prism, rotatable in both directions
11Frost Filter1
- 1 combinable light frost filter and 1 combinable medium frost filter
12Framing System2
- Shutter Blades
- 4 blades, each with separate movement and full blackout
- Rotation
- ±45° of the complete framing system
13Other Effects5
- Outstanding strobe effect with variable speed
- Smooth dimming 0-100% (4 user selectable dimming curves)
- Motorized focus system
- Motorized linear Iris
- Flicker free operation

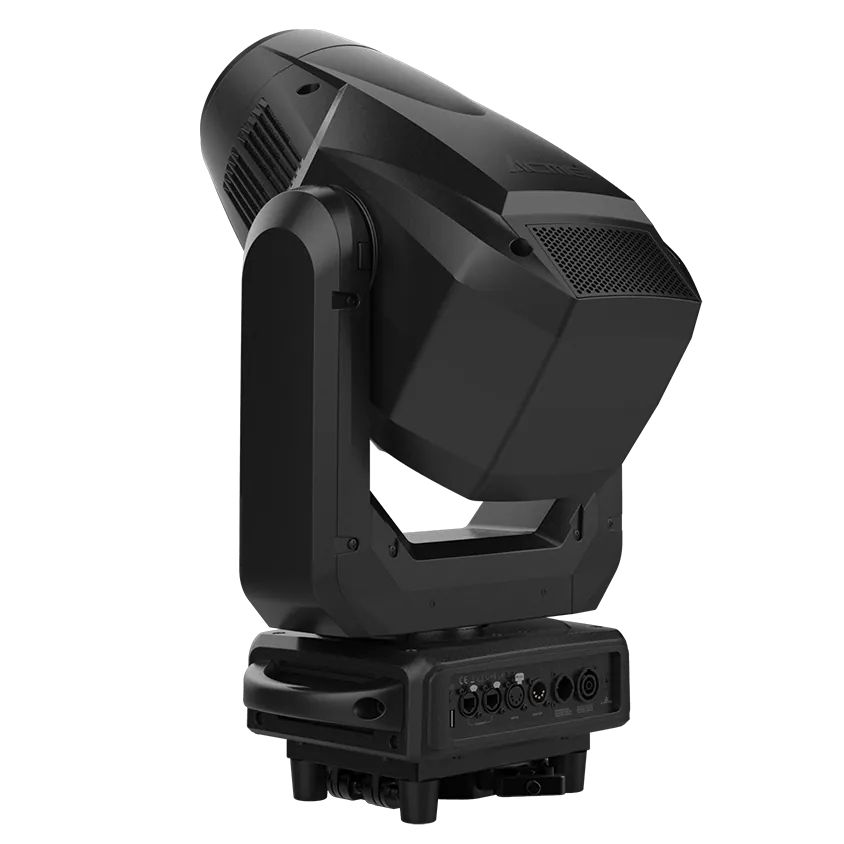

14Electrical and Connectors4
- Input Voltage Range
- 100-240Vac; 50/60Hz
- Power Consumption
- 670W
- Power In/Out
- Power connector in/out
- Data In/Out
- 3-pin or 5-pin waterproof XLR,RJ45 connector

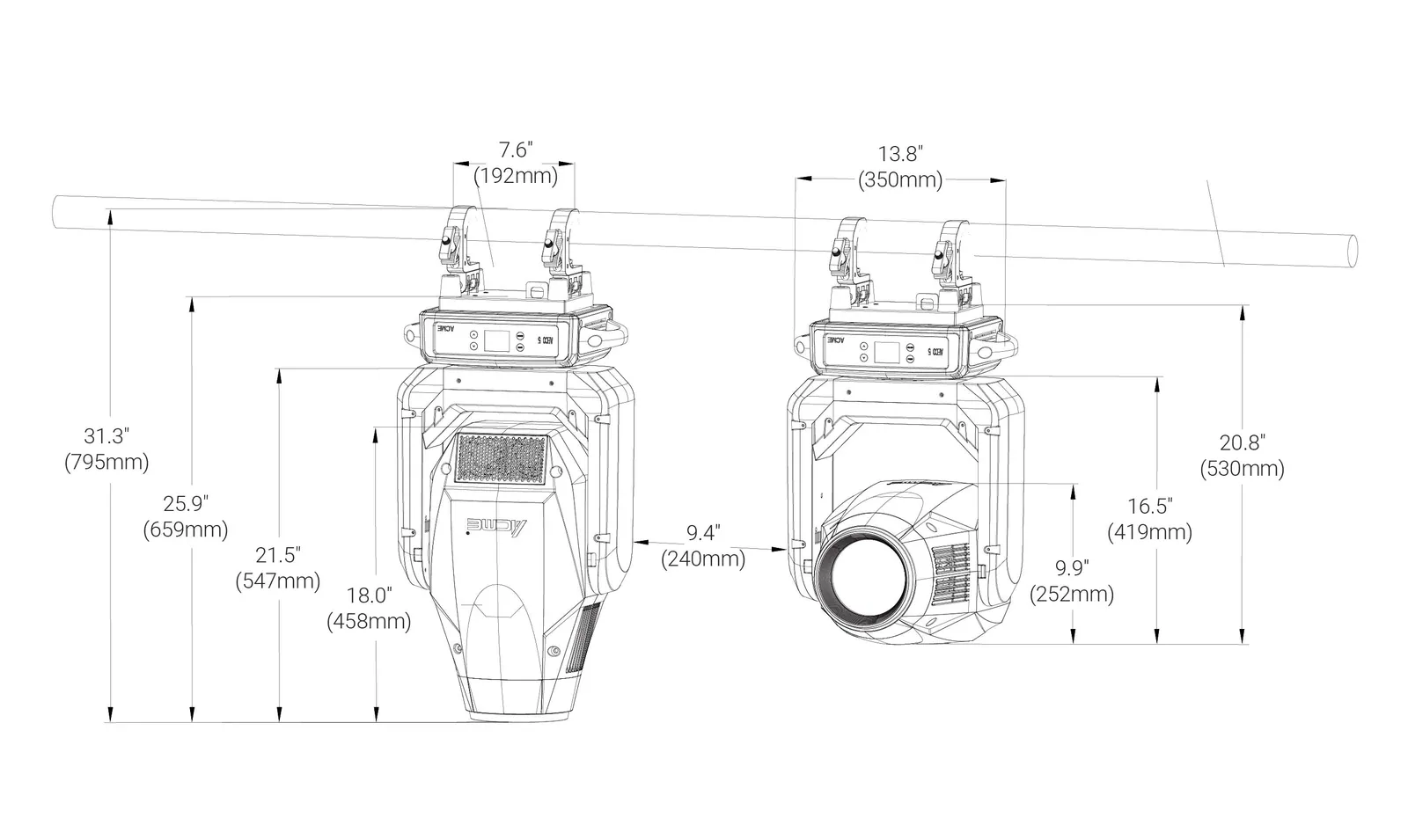

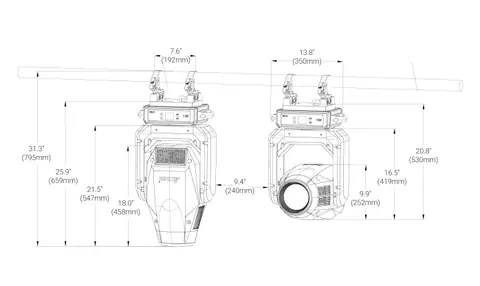

15Physical Information4
- Fixture Dimensions
- Width
- 350 mm (13.8")
- Depth
- 252 mm (9.9")
- Height
- 692 mm (27.2")
- Weight
- 26.5 kg (58.5 lbs)
16Packing Information8
- Flight Case Dimensions
- Width
- 890 mm (35.0")
- Depth
- 780 mm (30.7")
- Height
- 575 mm (22.6")
- Weight
- Standard
- G.W.: 96 kg (211.6 lbs) (Two-pack loader case)
- Flight Case Dimensions 2
- Width
- 1,220 mm (48.0")
- Depth
- 610 mm (24.0")
- Height
- 915 mm (36.0")
- Weight
- North American Standard
- G.W.: 135 kg (297.6 lbs) (Two-pack loader case)
17Work Environment4
- Maximum Ambient Temperature
- 40°C
- Minimum Operating Temperature
- 0°C
- Maximum Surface Temperature
- 65°C
- Protection Rating
- IP20
18Approvals2
- UKCA compliant
- cETLus compliant

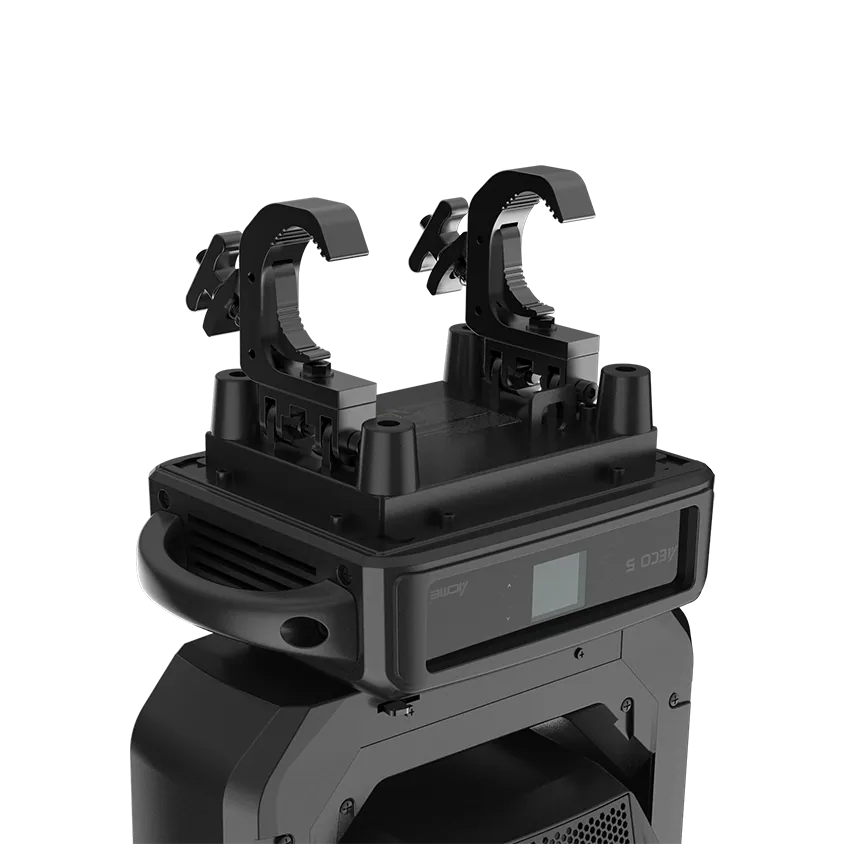

19Installation4
- Horizontal or vertical mounting
- Universal working position

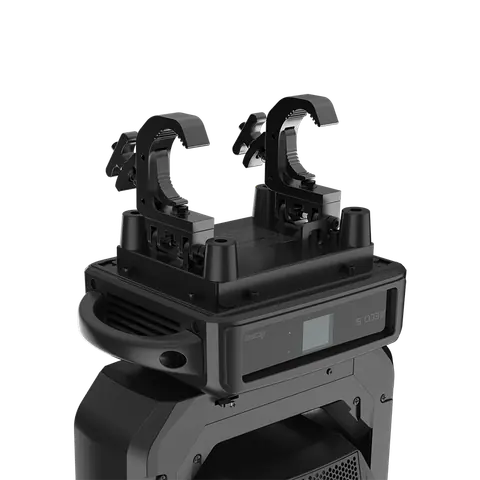

- 2 fixed foldable clamps for 50 mm truss
- Safety cable attachment point
20Included Items3
- Digital user manual
- Power cable
- 2 fixed foldable clamps for 50 mm truss
21Optional Accessories (With Order Code)5
- Flight Case
- Standard
- Two-pack loader case (63582258)
- North American Standard
- Two-pack loader case (63583194)
- Safety Cable
- SW-05 (2060001603-E)
- Signal Cable
- 3-pin or 5-pin signal cable
- Raincover
- 3033001750
03DescriptionManufacturer's description
What it is.

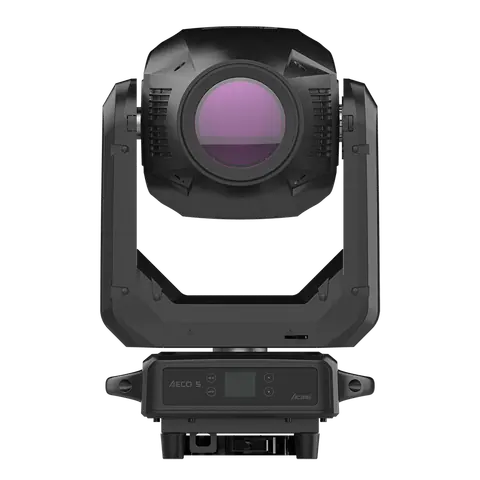

Behind the 120 mm frontal lens, the AECO has precision optical system and has a zoom range of 6.5 to 54 degrees with smooth and consistent imaging throughout the entire range. For effects and colors, this compact fixture features eight fixed gobos, seven rotating gobos, one color wheel with six colors, prism, frost, framing shutter system, linear CMY system with CTO - all layered to create complex effects while maintaining a high output and clear images.
The AECO 5 delivers a uniform beam with a total output of 13,000 lumens and is ideal for stage, theatre, filumens, broadcast, display, and many other applications.
04Documents11 files · 28 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals02
