LYRA

ModelXA 1000 BSWF IP

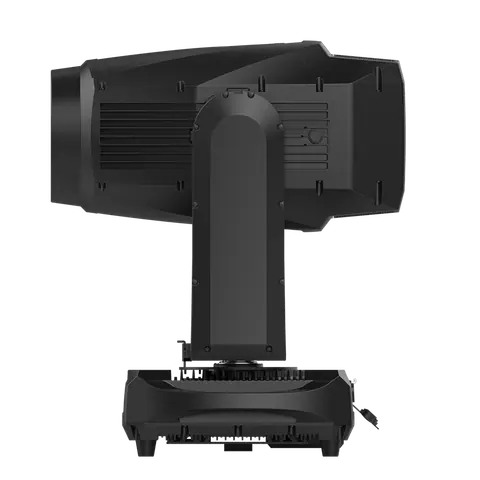

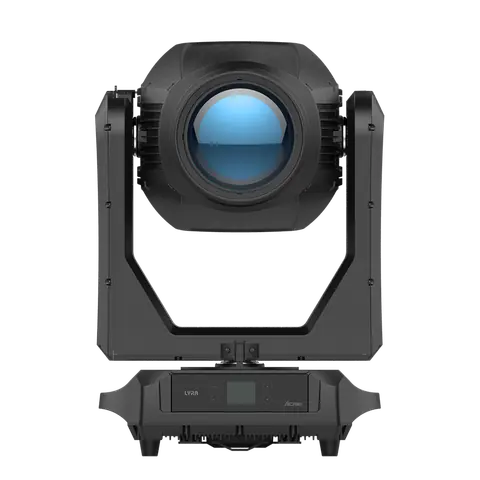

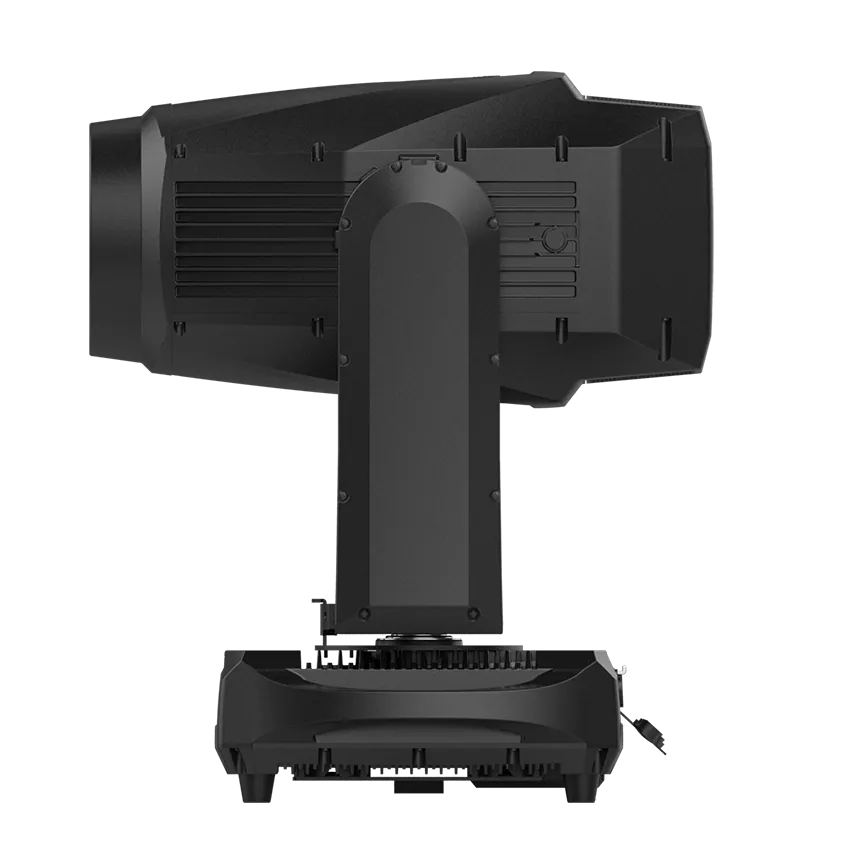

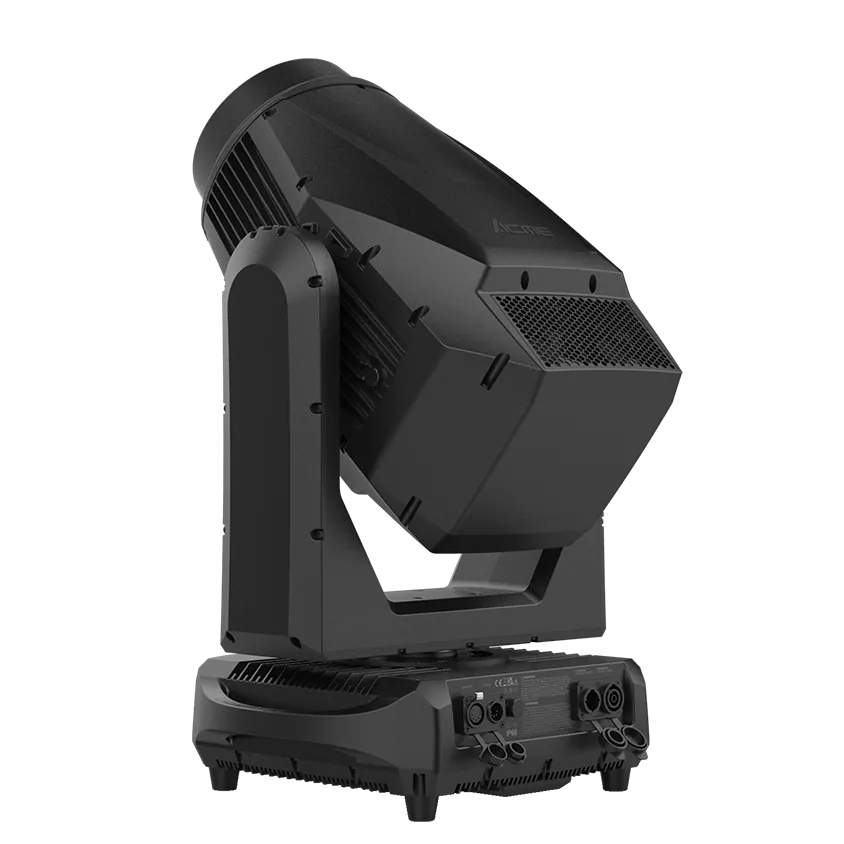

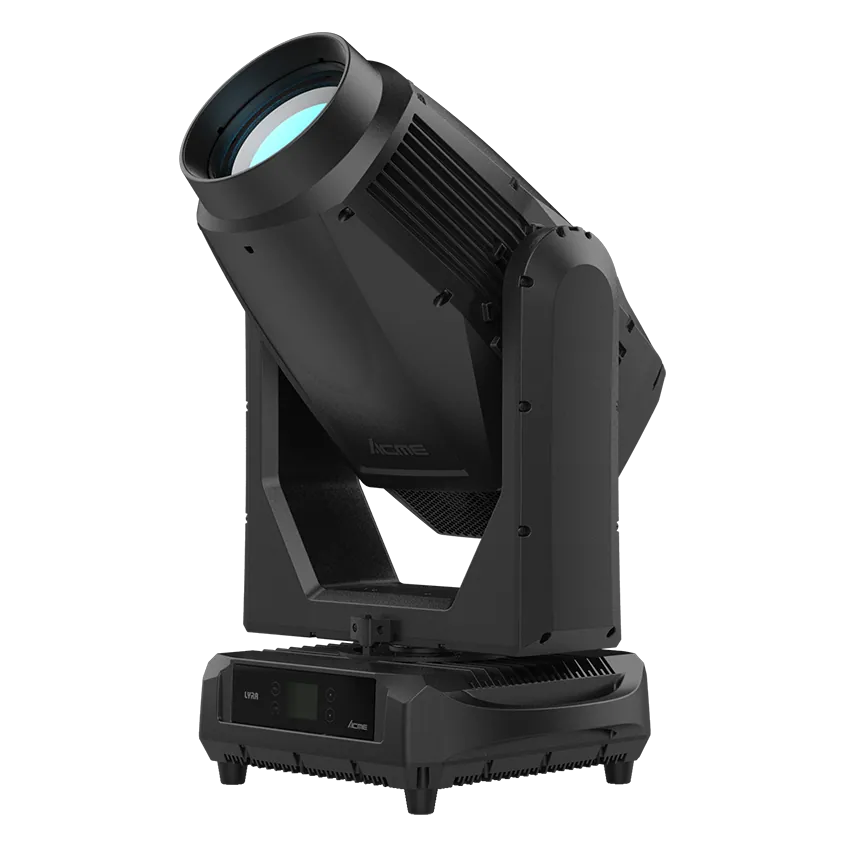

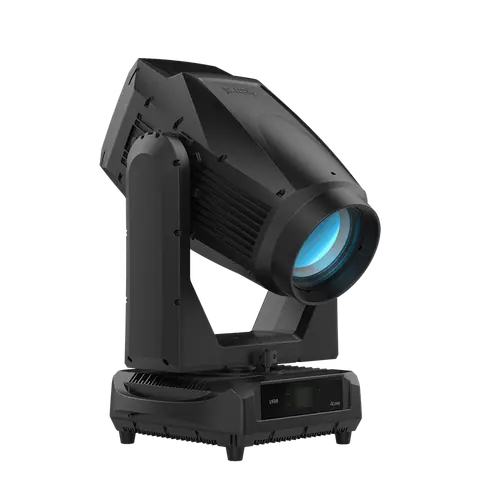

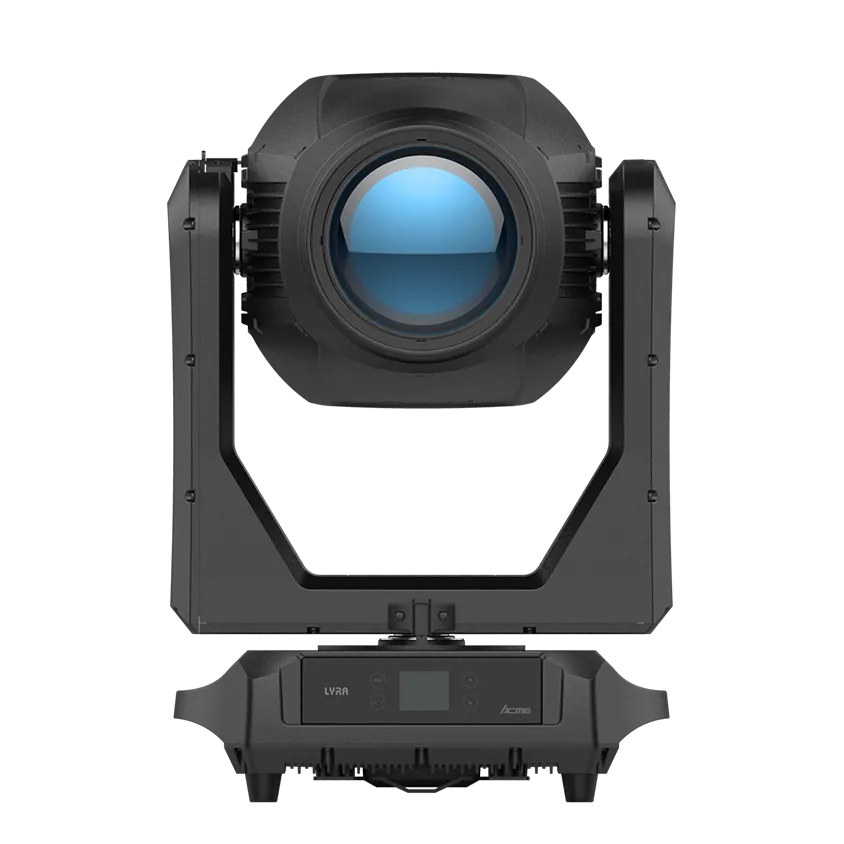

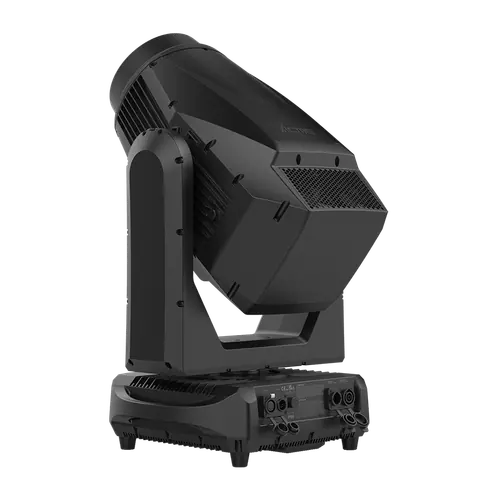

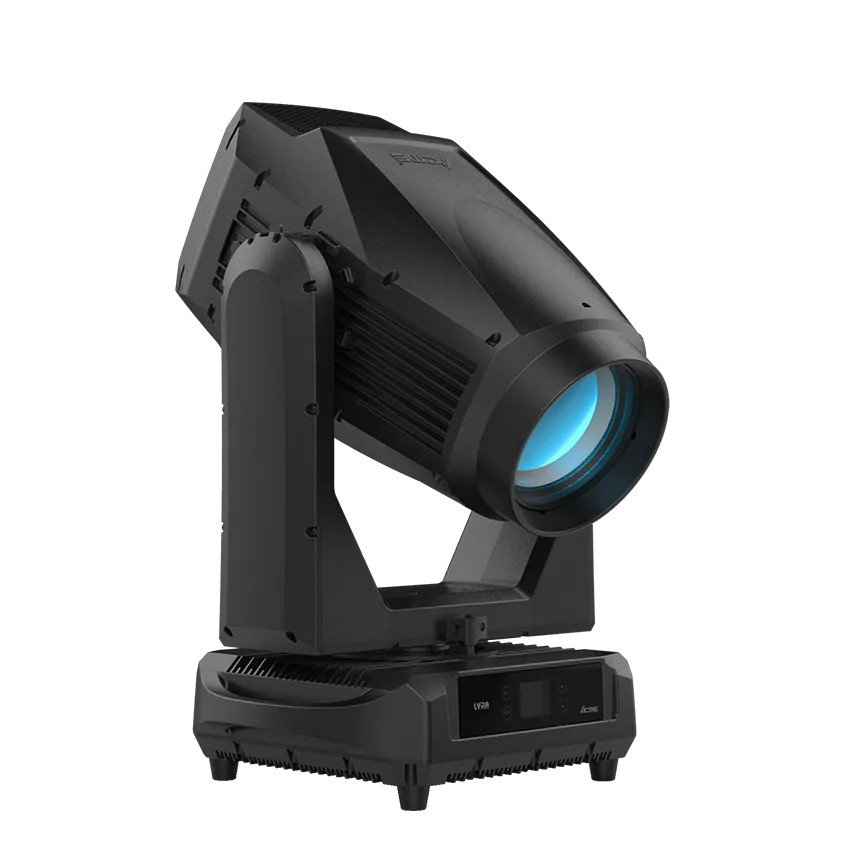

The LYRA is a multifaceted, LED spot fixture that ACME designed and manufactured to deliver the performance you need and take on the outdoors in all weather conditions.

Light source: 1,000W 8,000K White LED Engine
Power consumption: 1,190W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
Beam angle / zoom: 6°-50°
DMX channels: 22/30/31/39/40
Protocols: DMX512,RDM
Colour temperature: 6,500K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 22 groups · 84 values

What this product is, in numbers.

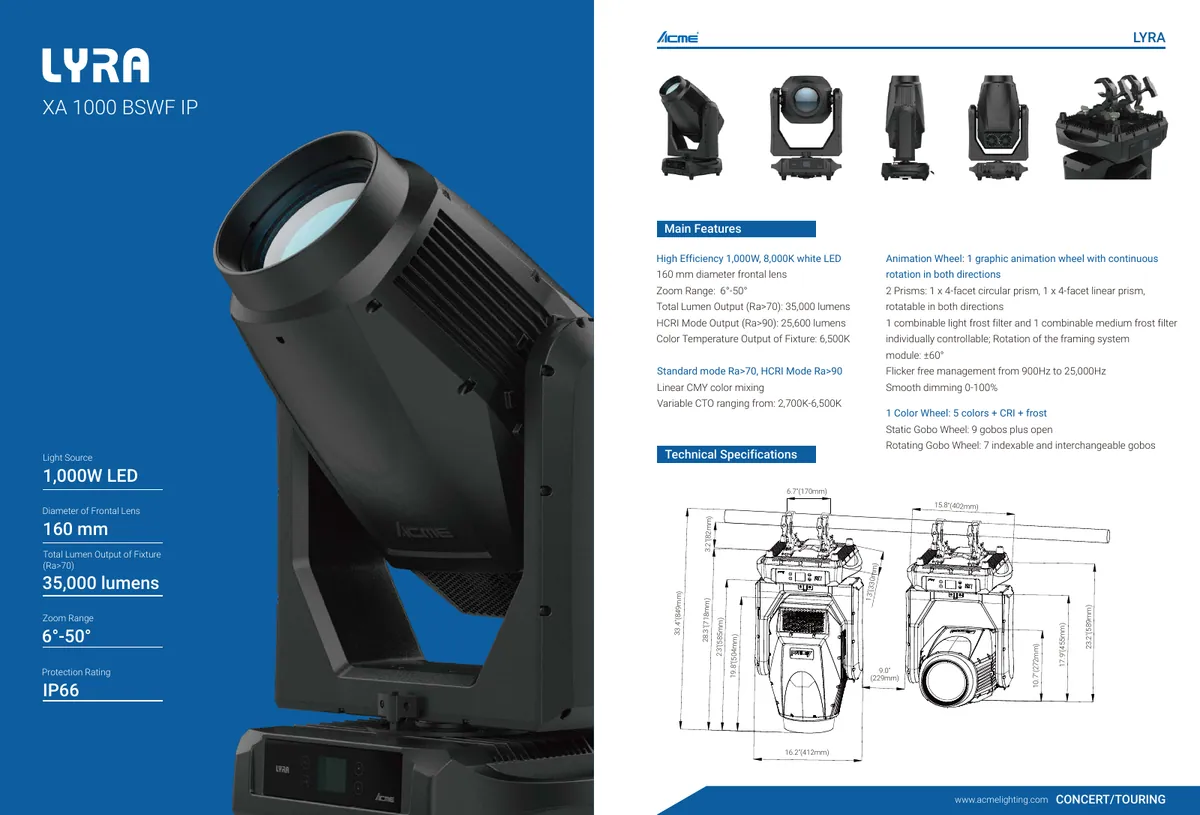

PDFDatasheetEN · 2 pages · 936 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: LYRA
Model Code: XA 1000 BSWF IP

02Light Source4

Light Source: 1,000W 8,000K White LED Engine
Color Temperature Output of Fixture: 6,500K
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data4

Total Lumen Output of Fixture
Ra>70: 35,000 lumens
Ra>90: 25,600 lumens
Standard Mode: Ra>70
HCRI Mode: Ra>90

04Optical System2

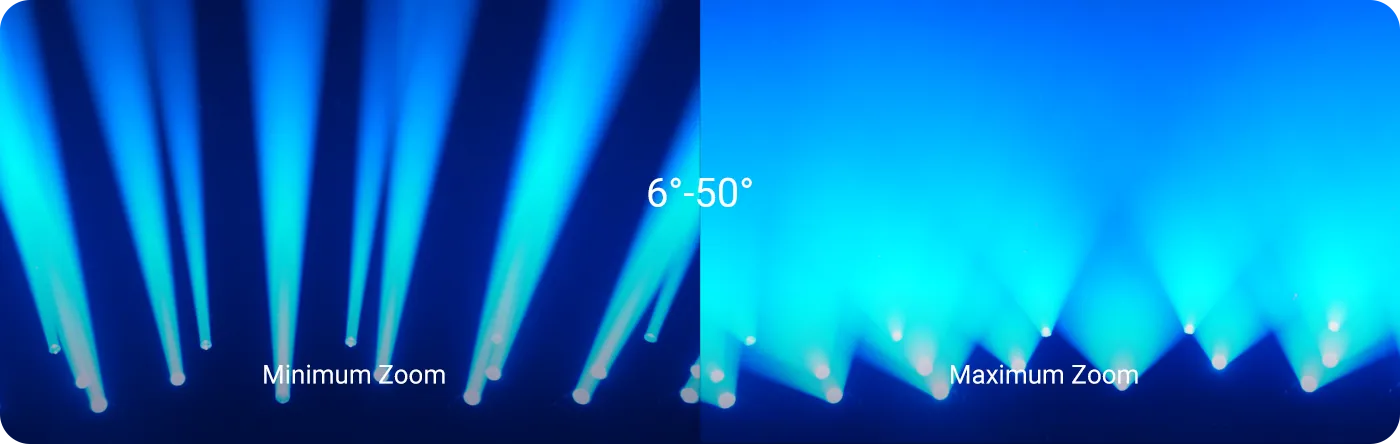

Zoom Range: 6°-50°
Diameter of Frontal Lens: 160 mm

05Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM
DMX Protocol Modes: 5
Control Channels: 22/30/31/39/40
Firmware Upgrade: Upgrade via DMX link

06Pan & Tilt5

Pan Movement: 540°
Tilt Movement: 260°; Automatic Pan/Tilt position correction
Resolution: 8 or 16 bit; Pan/Tilt lock

Show the full specificationHide the rest of the specification16 more groups · 61 values

07Colors3

Linear CMY color mixing
Linear CTO Color Correction: 2,700K-6,500K
1 Color Wheel: 5 colors + CRI + frost, plus open

08Static Gobos2

1 Static Gobo Wheel: 9 gobos, plus open
Gobo: Ø22.5 mm, lmage: Ø17 mm

09Rotating Gobos3

1 Rotating Gobo Wheel: 7 gobos, plus open
Gobo Slot 1-6: Ø22.5 mm, lmage: Ø17 mm
Gobo Slot 7: Ø22.5 mm

10Animation Wheel1

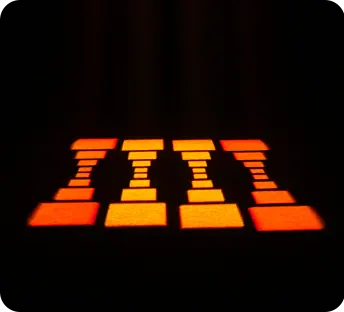

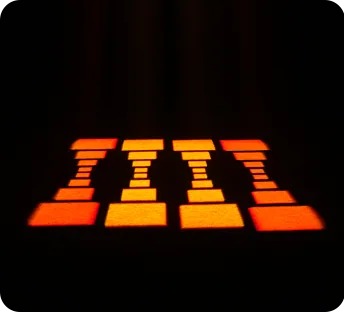

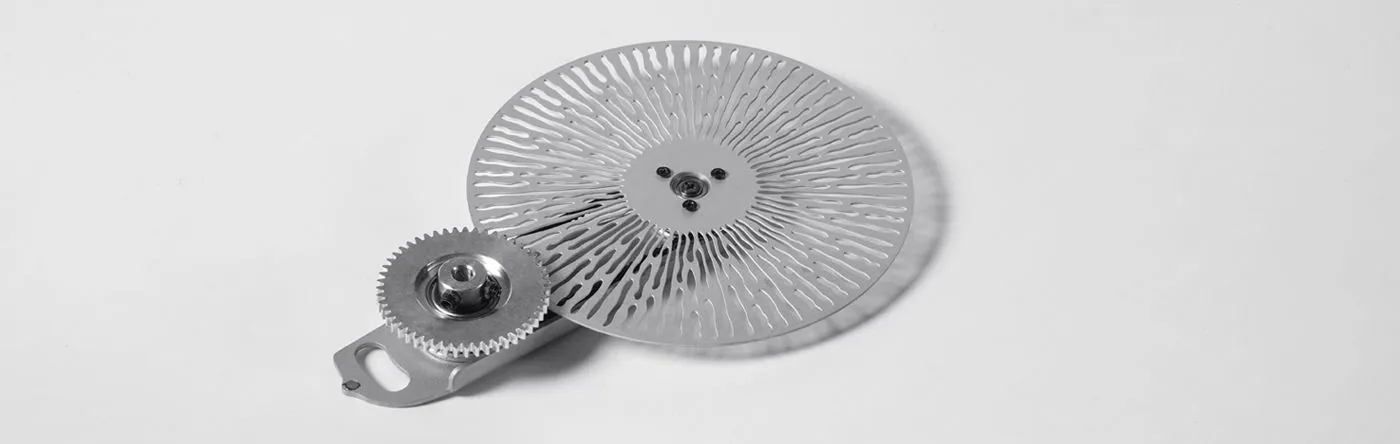

A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave & flame effect, and can be changed into other wheels

11Prism1

2 Combinable Rotating and Indexable Prisms: 1 x 4-facet circular prism, 1 x 4-facet linear prism, rotatable and overlayable in both directions

12Frost Filter1

1 combinable light frost filter and 1 combinable medium frost filter

13Framing System2

Shutter Blades: 4 blades, each with separate movement and full blackout
Rotation: ±60° of the complete framing system

14Other Effects4

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Motorized linear iris

Motorized zoom and focus

15Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 1,190W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR

16Physical Information4

Fixture Dimensions
Width: 412 mm (16.2")
Depth: 330 mm (13.0")
Height: 719 mm (28.3")
Weight: 42 kg (92.6 lbs)

17Packing Information16

Flight Case Dimensions 1
Width: 620 mm (24.4")
Depth: 590 mm (23.2")
Height: 850 mm (33.5")
Weight
Standard: G.W.: 86.5 kg (190.7 lbs) (one-pack loader case)
Flight Case Dimensions 2
Width: 1,140 mm (44.9")
Depth: 760 mm (29.9")
Height: 840 mm (33.1")
Weight
Standard: G.W.: 166 kg (366.0 lbs) (two-pack loader case)
Flight Case Dimensions 3
Width: 1,143 mm (45.0")
Depth: 812 mm (32.0")
Height: 840 mm (33.1")
Weight
North American Standard: G.W.: 170 kg (374.8 lbs) (two-pack loader case)
Carton Dimensions
Width: 620 mm (24.4")
Depth: 520 mm (20.5")
Height: 715 mm (28.2")
Weight
G.W.: 50 kg (110.2 lbs) (one-pack loader carton)

18Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 75°C
Protection Rating: IP66

19Approvals3

CE compliant

UKCA compliant

cETLus compliant

20Installation4

Horizontal or vertical mounting

Universal working position

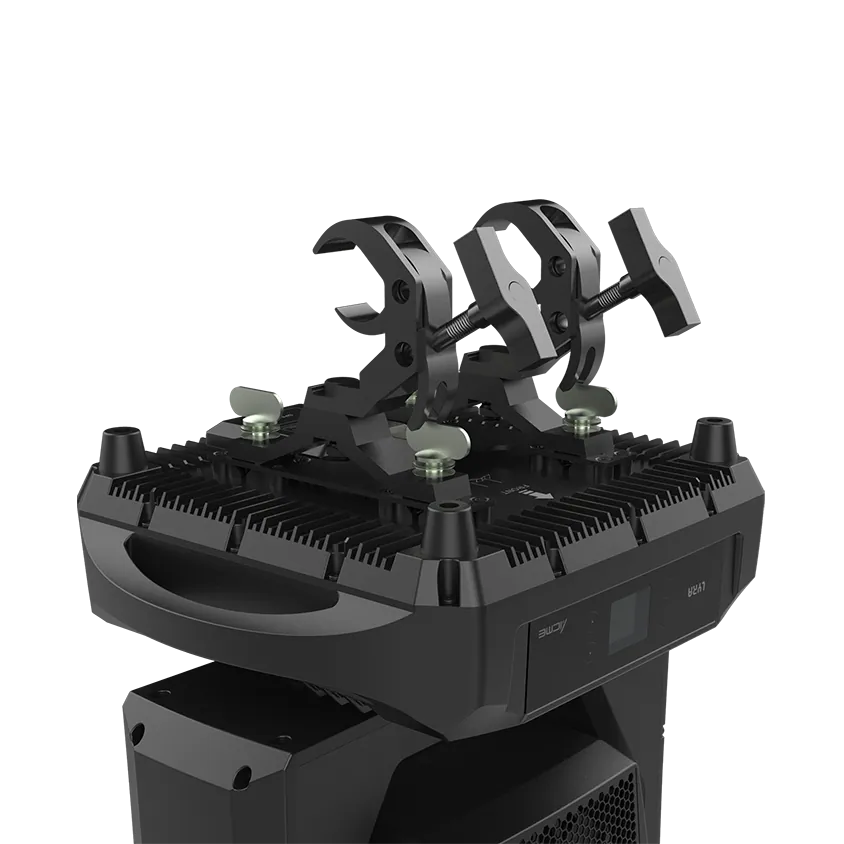

2 omega brackets

Safety cable attachment point

21Included Items3

Digital user manual

Power cable

2 omega brackets (3002003003)

22Optional Accessories (With Order Code)6

Flight Case 1
Standard: One-pack loader case (63582712)
Flight Case 2
Standard: Two-pack loader case (63582990)
Flight Case 3
North American Standard: Two-pack loader case (63582995)

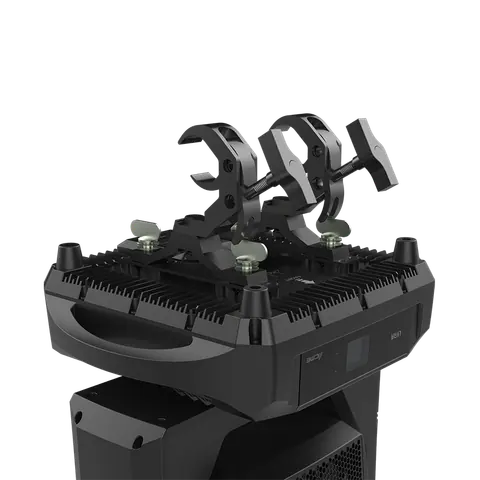

Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)

02DescriptionManufacturer's description

What it is.

The LYRA is a multifaceted, LED spot fixture that ACME designed and manufactured to deliver the performance you need and take on the outdoors in all weather conditions. Rated IP66, the LYRA fixture's powerful 1000-Watt white LED engine delivers 35,000 lumens at a native 8000K color temperature.

The unit has a CMY color mixing system, fixed color wheel with five colors plus one high CRI filter and offers a linear CTO color correction from 2700K to 6700K. For effects, the LYRA has one rotating gobo wheel with seven, high-precision rotating gobos , a static gobo wheel with nine gobos, a bidirectional animation wheel with numerous effects, two combinable prisms (4-facet prism and 4-facet linear prism), iris, and 4-blade shutter system that provides full blackout and rotates in both directions , and light and medium frost filters. The fixture features a 160 mm frontal lens and has a zoom range of 6 o to 50 o and produces sharp, crisp images throughout its range.

Whether your needs are outdoor concerts, indoor theatre, festivals, themed events, or whatever your production is, the LYRA is one of the most versatile fixtures on the market.
