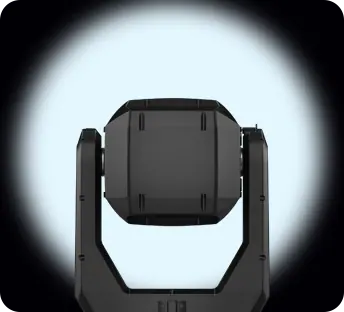

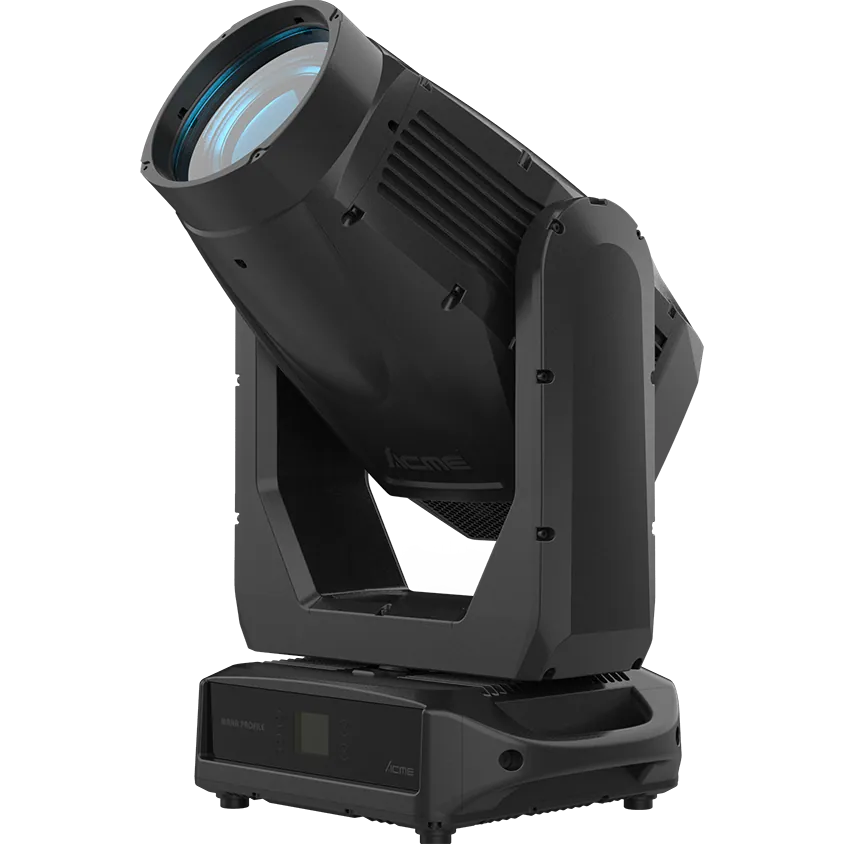

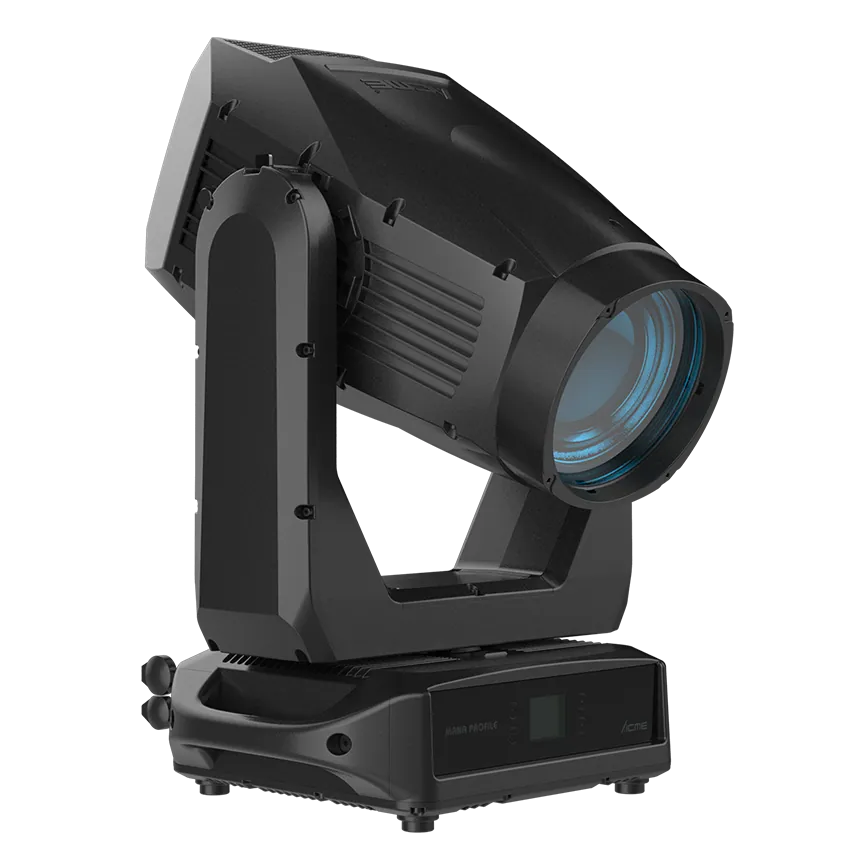

Fig. 01 / 13 · manufacturer’s images

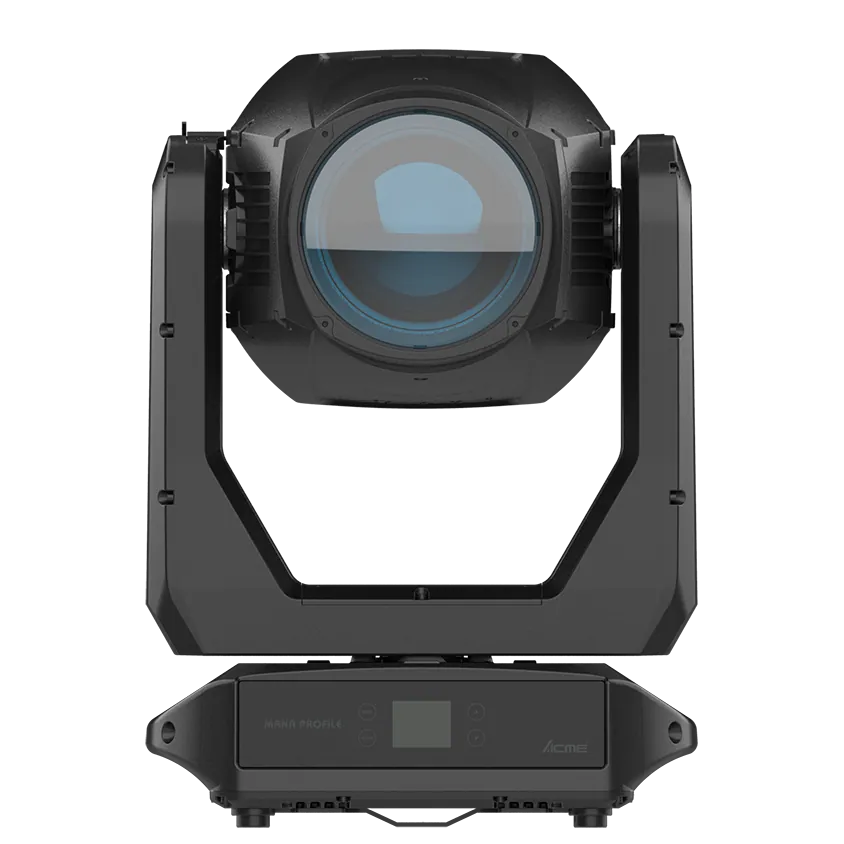

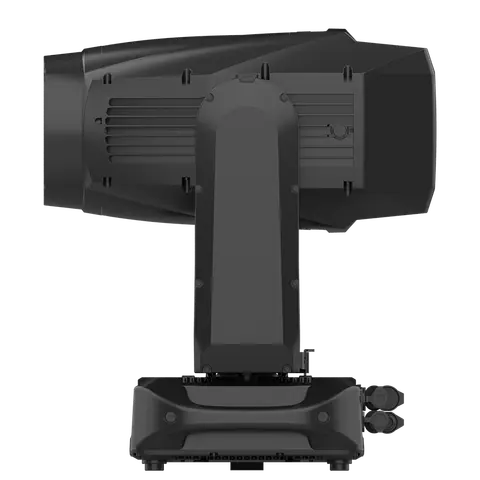

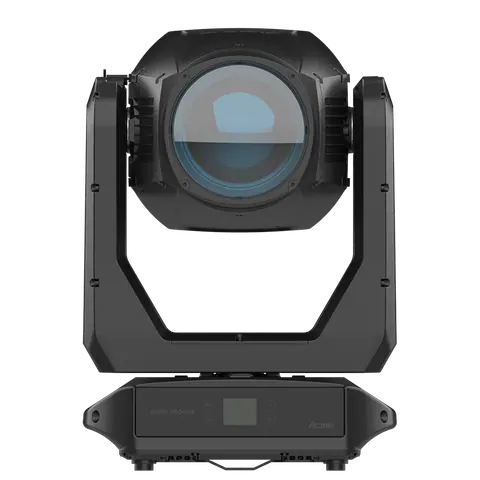

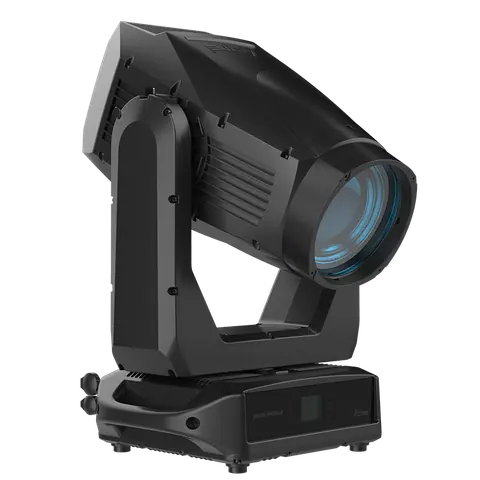

ACME · Spot and profile

MANA PROFILE

ModelXA 600 BSWF IP

Light source: 600W LED engine
Power consumption: 910W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
Beam angle / zoom: 3.5°-45°
DMX channels: 22/30/31/31/40
Protocols: DMX512,RDM,Art-Net,sACN
Colour temperature: 7,000K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:31

ACME MANA PROFILE2:31

02SpecificationManufacturer's data · 22 groups · 74 values

What this product is, in numbers.

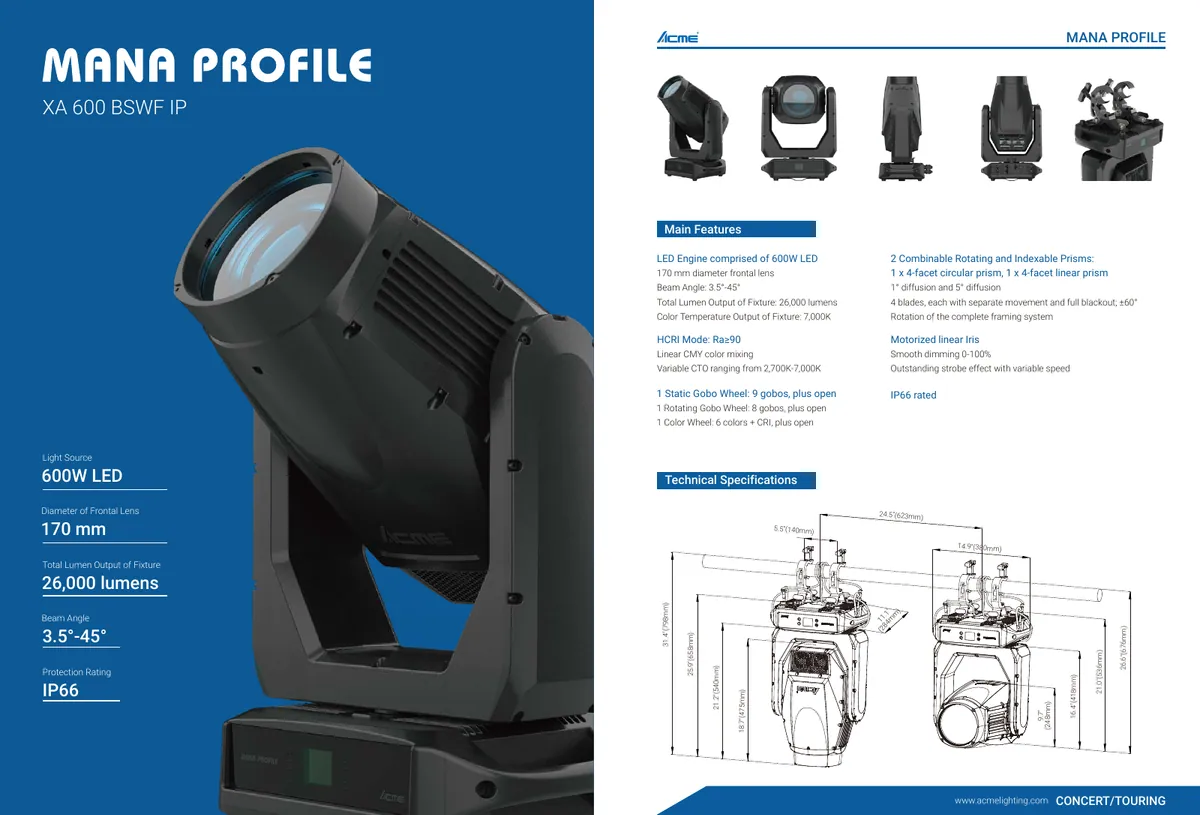

PDFDatasheetEN · 2 pages · 1.4 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: MANA PROFILE
Model Code: XA 600 BSWF IP

02Light Source4

Light Source: 600W LED engine
Color Temperature Output of Fixture: 7,000K
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data3

Total Lumen Output of Fixture: 26,000 lumens
Standard Mode: Ra>70
HCRI Mode: Ra≥90

04Optical System2

Zoom Range: 3.5°-45°
Diameter of Frontal Lens: 170 mm

05Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM,Art-Net,sACN
DMX Protocol Modes: 5
Control Channels: 22/30/31/31/40
Firmware Upgrade: Upgrade via DMX link or USB stick

06Pan & Tilt5

Pan Movement: 540°
Tilt Movement: 260°; Automatic Pan/Tilt position correction
Resolution: 16 bit; Pan/Tilt lock

Show the full specificationHide the rest of the specification16 more groups · 52 values

07Colors3

Linear CMY color mixing
Linear CTO Color Correction: 2,700K-7,000K
1 Color Wheel: 6 colors + CRI, plus open

08Static Gobos2

1 Static Gobo Wheel: 9 gobos, plus open
Gobo: Ø24 mm, lmage: Ø18 mm

09Rotating Gobos3

1 Rotating Gobo Wheel: 8 gobos, plus open
Gobo Slot 1-7: Ø20 mm, lmage: Ø17 mm
Gobo Slot 8: Ø20 mm

10Animation Wheel1

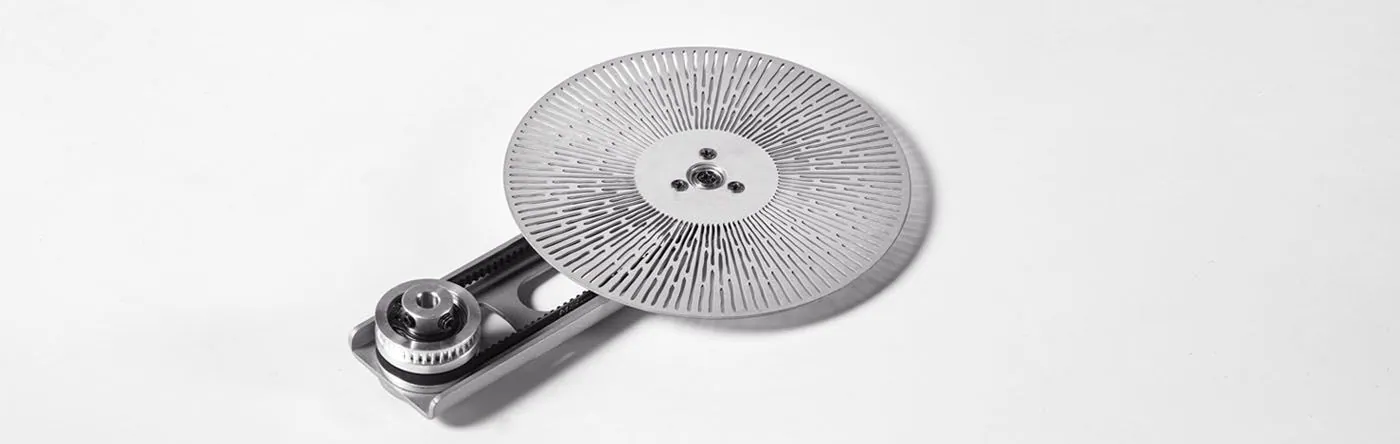

A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave & flame effect, and can be changed into other wheels

11Prism1

2 Combinable Rotating and Indexable Prisms: 1 x 4-facet circular prism, 1 x 4-facet linear prism, rotatable in both directions

12Frost Filter1

1° diffusion and 5° diffusion

13Framing System2

Shutter Blades: 4 blades, each with separate movement and full blackout
Rotation: ±60° of the complete framing system

14Other Effects3

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Motorized linear iris

15Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 910W

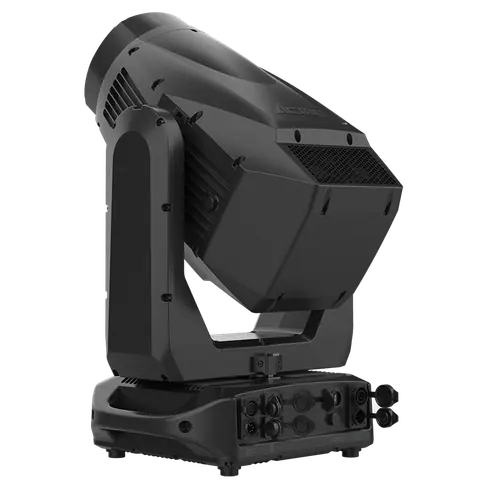

Power In/Out: Waterproof power connector in/out

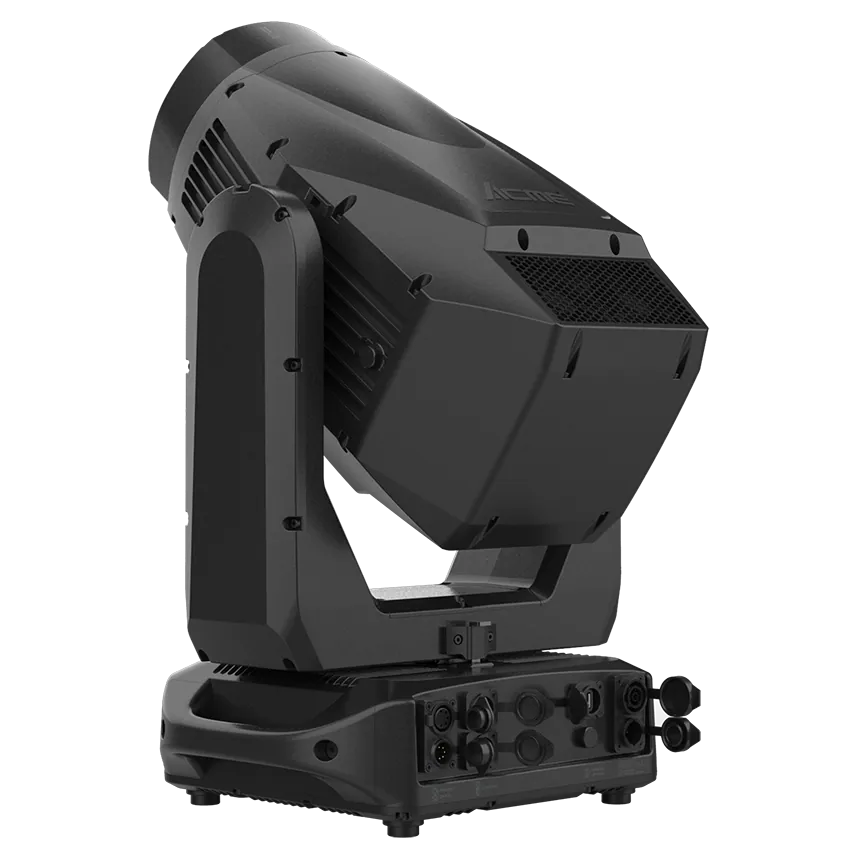

Data In/Out: 3-pin or 5-pin waterproof XLR,RJ45 connector

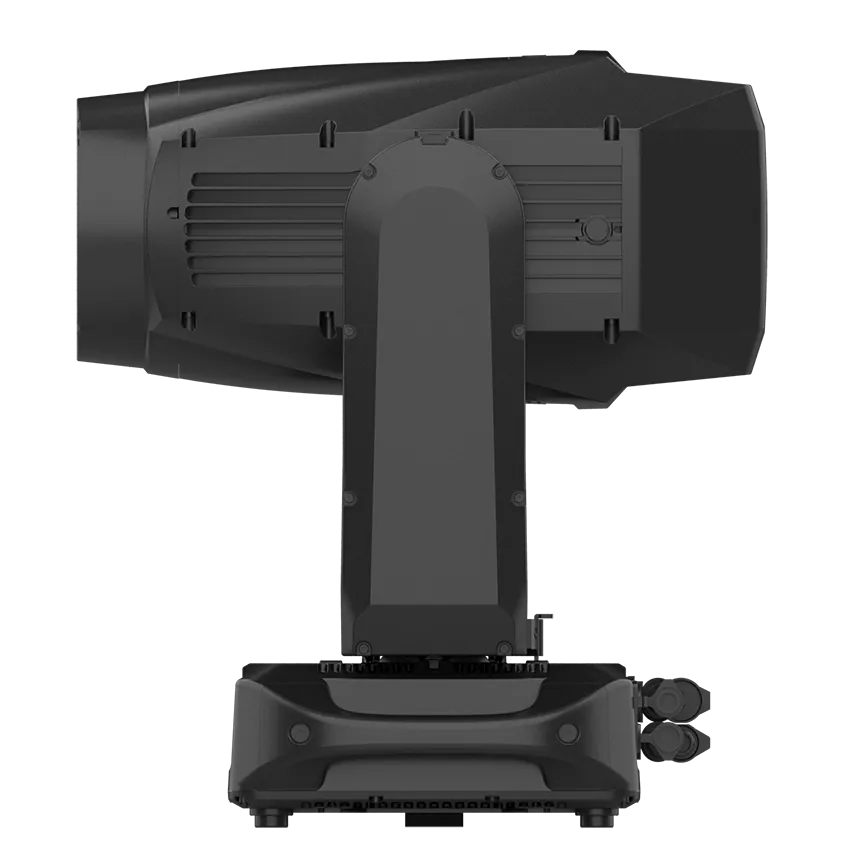

16Physical Information4

Fixture Dimensions
Width: 380 mm (15.0")
Depth: 284 mm (11.2")
Height: 658 mm (25.9")
Weight: 32.5 kg (71.7 lbs)

17Packing Information9

Flight Case Dimensions
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 805 mm (31.7")
Weight
Standard: G.W.: 132 kg (291.0 lbs) (Two-pack loader case)
North American Standard: G.W.: 139 kg (306.4 lbs) (Two-pack loader case)
Carton Dimensions
Width: 610 mm (24.0")
Depth: 490 mm (19.3")
Height: 675 mm (26.6")
Weight
G.W.: 40.5 kg (89.3 lbs) (One-pack loader carton)

18Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 75°C
Protection Rating: IP66

19Approvals3

CE compliant

UKCA compliant

cETLus compliant

20Installation4

Horizontal or vertical mounting

Universal working position

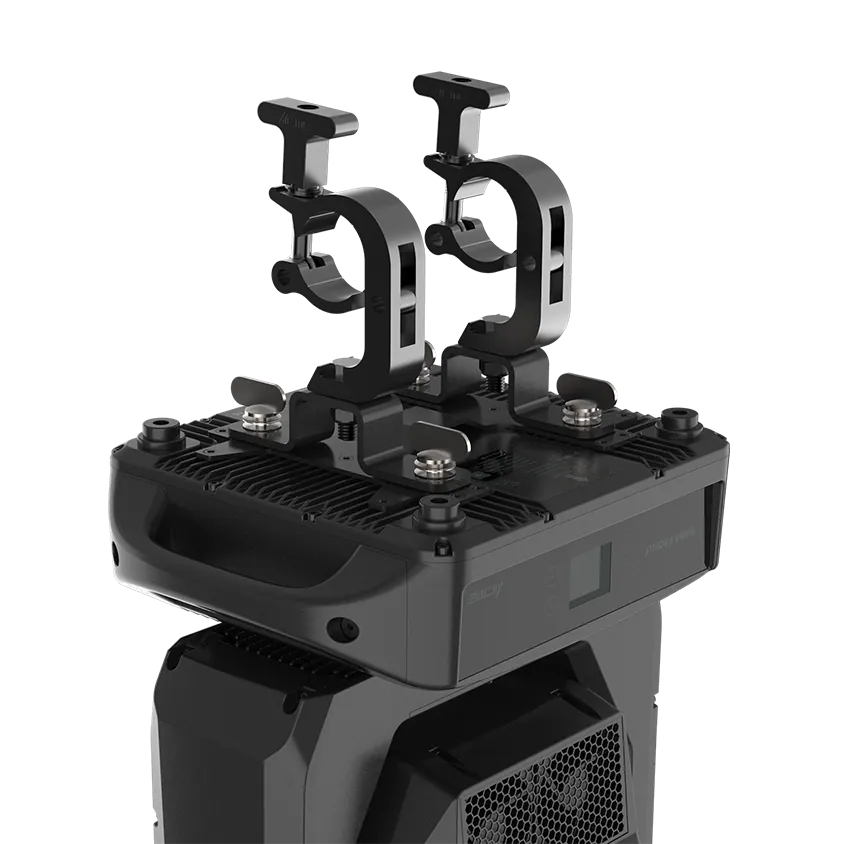

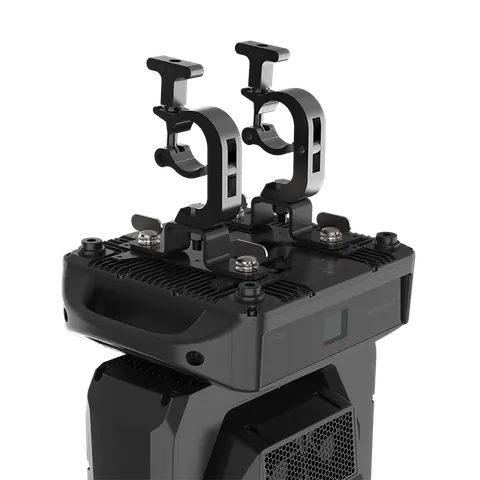

2 omega brackets

Safety cable attachment point

21Included Items3

Digital user manual

Power cable

2 omega brackets (3002003003)

22Optional Accessories (With Order Code)5

Flight Case
Standard: Two -pack loader case (63583467)
North American Standard: Two-pack loader case (63583212)
Clamp: C-250B (2060001632-B),C-150B (2060001625-C)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)

03DescriptionManufacturer's description

What it is.

The ACME MANA PROFILE, a powerful innovation with features designed to redefine your lighting experience. Featuring a 600W LED engine and a 170mm lens, the fixture creates brilliant and vibrant light. With a versatile zoom range of 3.5° -45° and a total lumen output of 26,000 lumens, the fixture provides unparalleled flexibility for your lighting designs. The fixture's precise color temperature of 7,000K, with an HCRI Mode Ra≥90, ensures vivid stage illumination.

Equipped with a linear CMY color mixing system and variable CTO ranging from 2,700K to 7,000K, the MANA PROFILE offers unlimited color possibilities. Featuring multiple gobos, including 9 static gobo wheels and 8 rotating gobos, as well as abundant colors provided by 6 colors, the fixture stimulates creativity. With a graphic animation wheel and two combinable frost filters, the fixture creates captivating lighting effects.

The fixture has an IP66 protection rating, making it reliable for outdoor use all year round. The MANA PROFILE boasts outstanding strobe effects with variable speed, ensuring an unforgettable visual experience.
