Sheet 05.553

Fig. 01 / 14 · manufacturer’s images

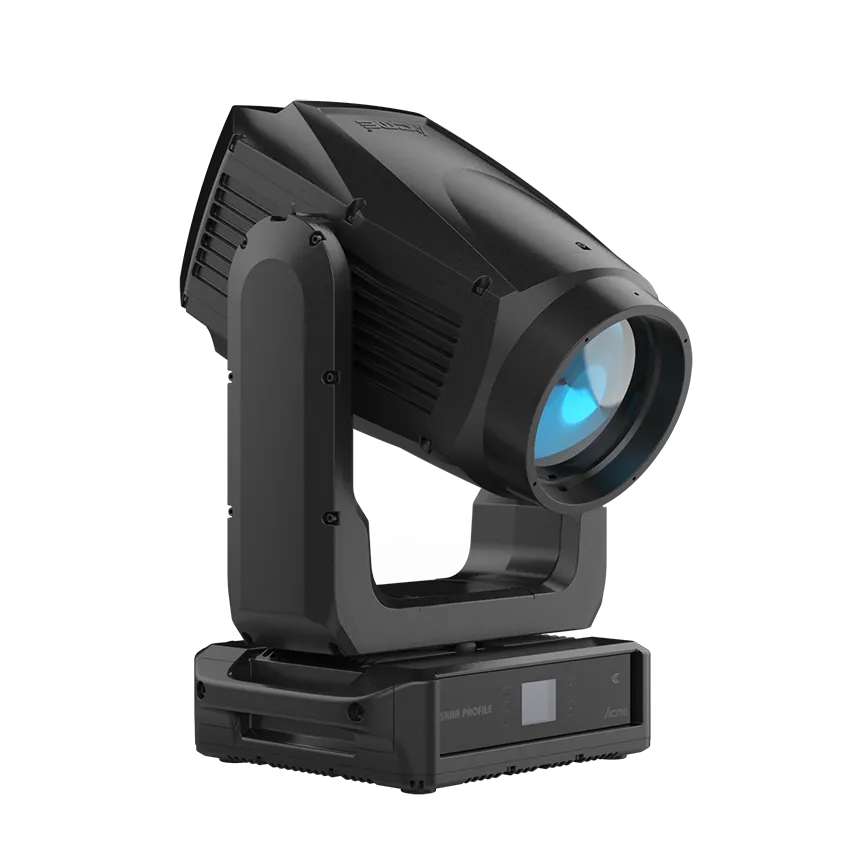

ACME · Spot and profile

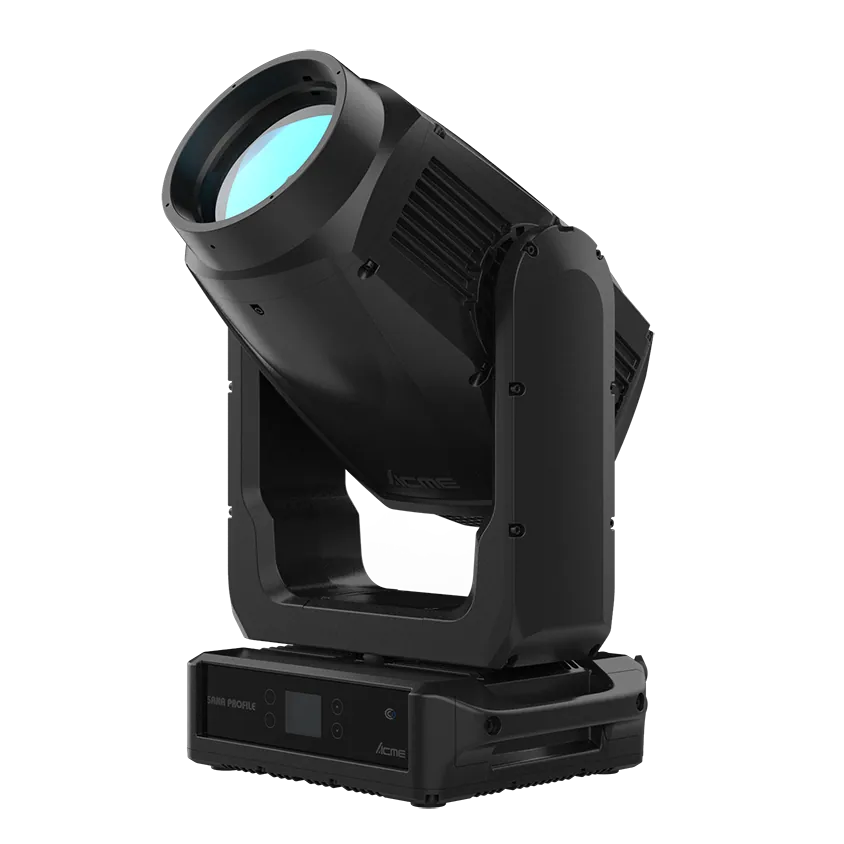

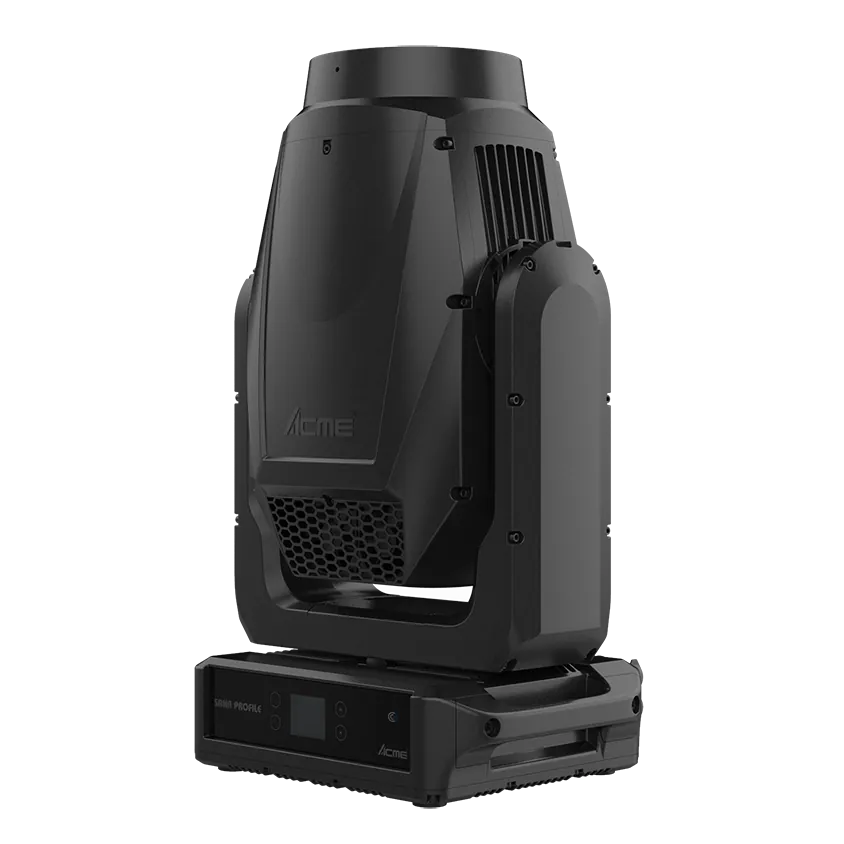

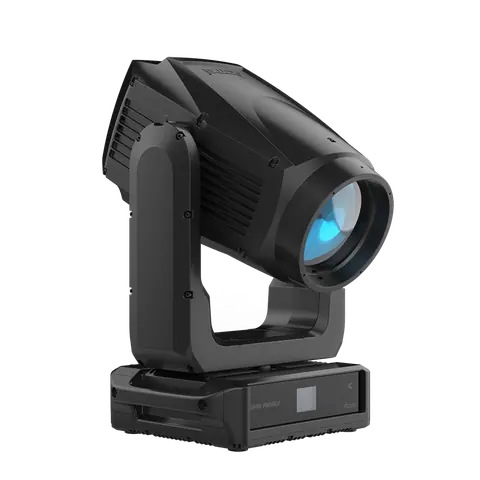

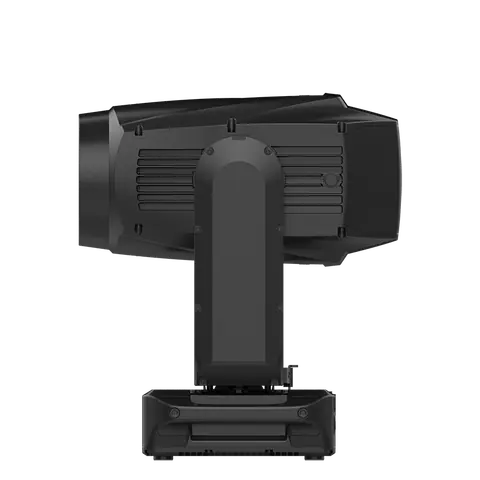

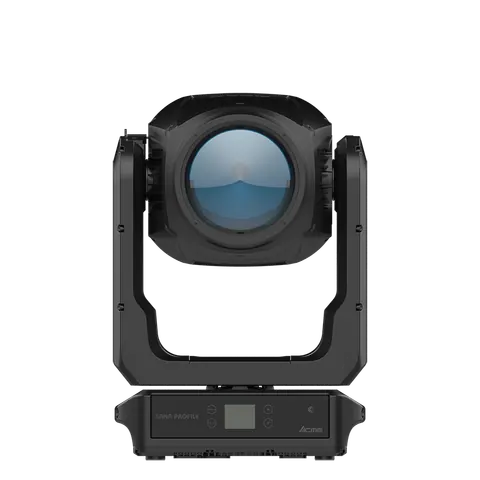

SANA PROFILE

ModelXA 300 BSWF IP

The ACME SANA PROFILE is the newest addition to the SANA series, combining the key features of the MANA series and LYRA into a compact moving profile.

Light source: 330W LED engine
Power consumption: 570W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
Beam angle / zoom: 3.9°-50°
DMX channels: 27/36/36/45
Protocols: DMX512,RDM,Art-Net,NFC
Net weight: 26 kg (57.3 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:36

ACME SANA PROFILE2:36

02SpecificationManufacturer's data · 23 groups · 85 values

What this product is, in numbers.

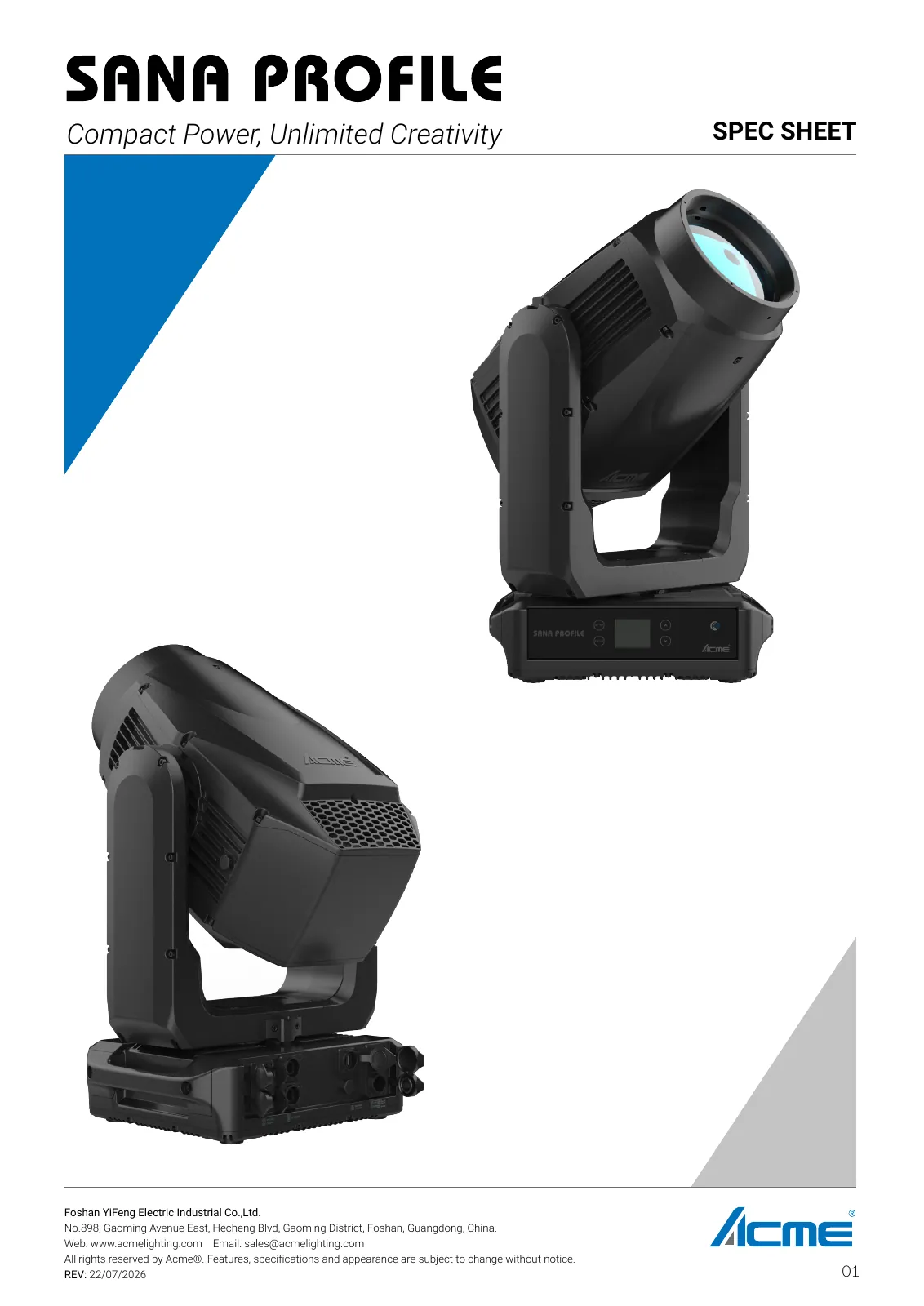

PDFDatasheetEN · 14 pages · 5.0 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: SANA PROFILE
Model Code: XA 300 BSWF IP

02Light Source3

Light Source: 330W LED engine
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data10

Total Lumen Output of Fixture
Auto Mode: 15,000 lumens
Quiet Mode: 11,000 lumens
Super Quiet Mode: 7,800 lumens
CCT: 7,000K (+/- 200K)
Standard Mode: Ra≥70
HCRI Mode: Ra≥90
TM-30 Rf (IES TM-30-15 Fidelity Index): 73
TM-30 Rg (IES TM-30-15 Fidelity Index): 93
TLCI: 48
Peak Luminous Intensity: 2,898,000 cd

04Optical System2

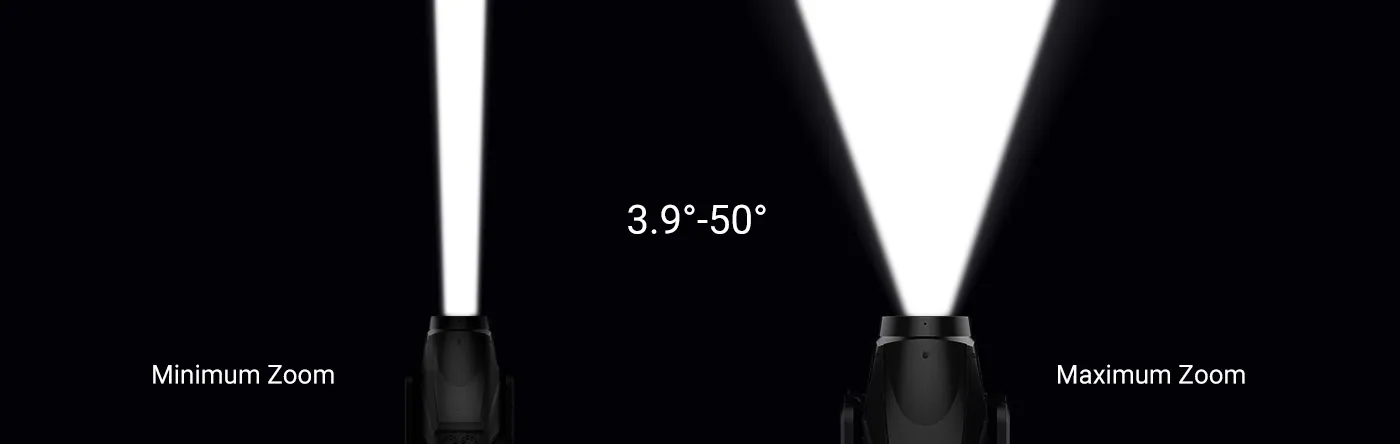

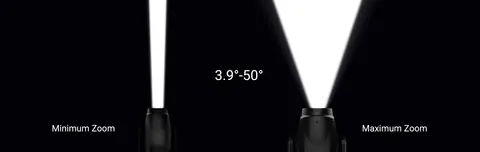

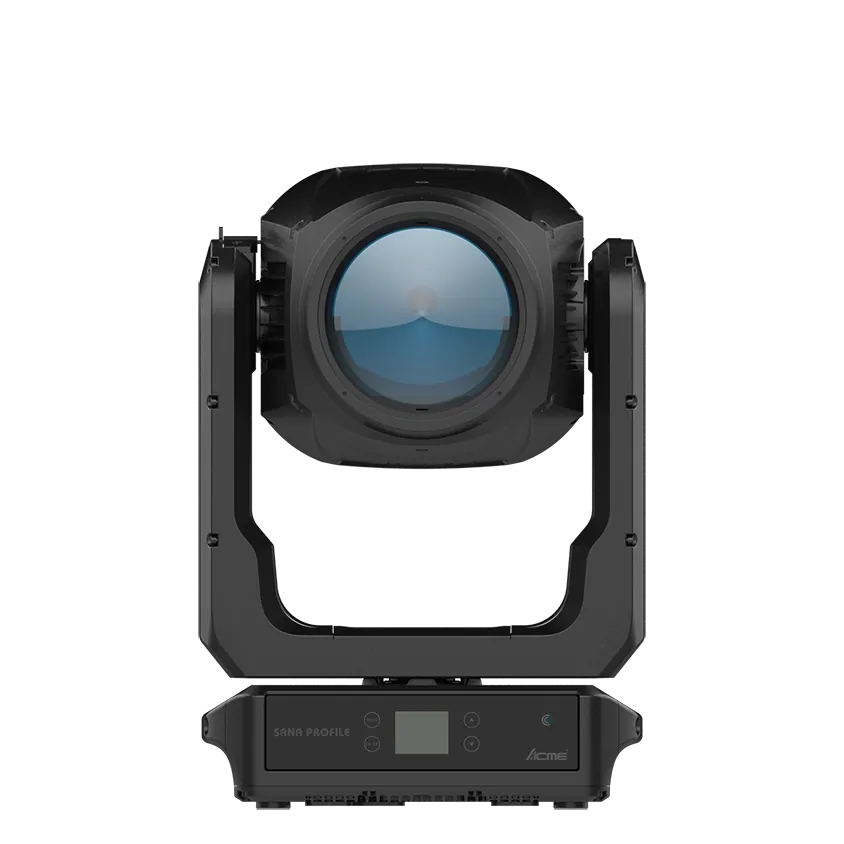

Zoom Range: 3.9°-50°
Diameter of Frontal Lens: 150 mm

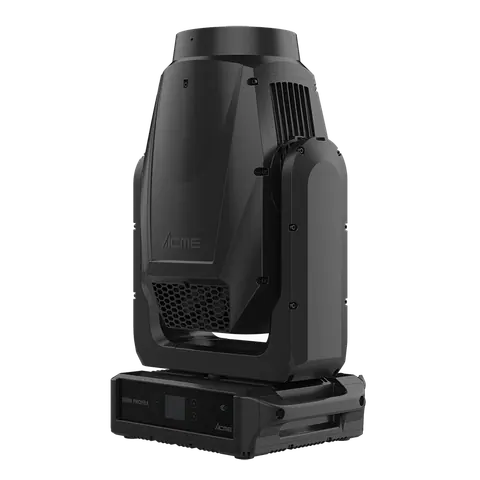

05Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM,Art-Net,NFC
DMX Protocol Modes: 4
Control Channels: 27/36/36/45
Firmware Upgrade: Upgrade via DMX link or USB stick

06Pan & Tilt5

Pan Movement: Infinity
Tilt Movement: Infinity; Automatic Pan/Tilt position correction
Resolution: 16 bit; Pan/Tilt lock

Show the full specificationHide the rest of the specification17 more groups · 57 values

07Colors3

Linear CMY color mixing
Linear CTO Color Correction: 2,700K-7,000K
1 Color Wheel: 6 colors + CRI, plus open

08Static Gobos2

1 Static Gobo Wheel: 9 gobos, plus open
Gobo: Ø20 mm, lmage: Ø10.5 mm

09Rotating Gobos2

1 Rotating Gobo Wheel: 7 gobos, plus open
Gobo: Ø20 mm, lmage: Ø12 mm

10Animation Wheel1

A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create water and flame effects

11Prism1

2 Combinable Rotating and Indexable Prisms: 1 x 4-facet circular prism, 1 x 4-facet linear prism, rotatable and overlayable in both directions

12Frost Filter1

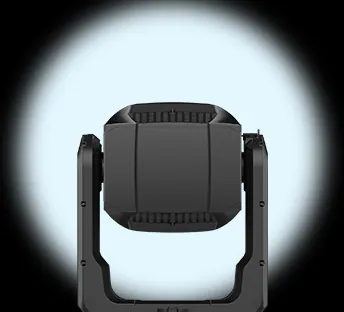

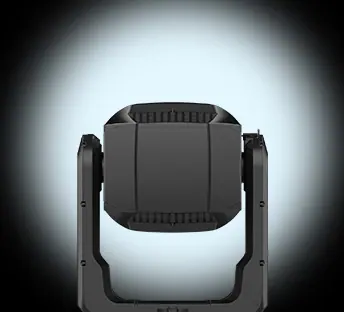

1° diffusion and 5° diffusion

13Framing System2

Shutter Blades: 4 blades, each with separate movement and full blackout
Rotation: ±90° of the complete framing system

14Other Effects4

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Motorized linear iris

Motorized focus system

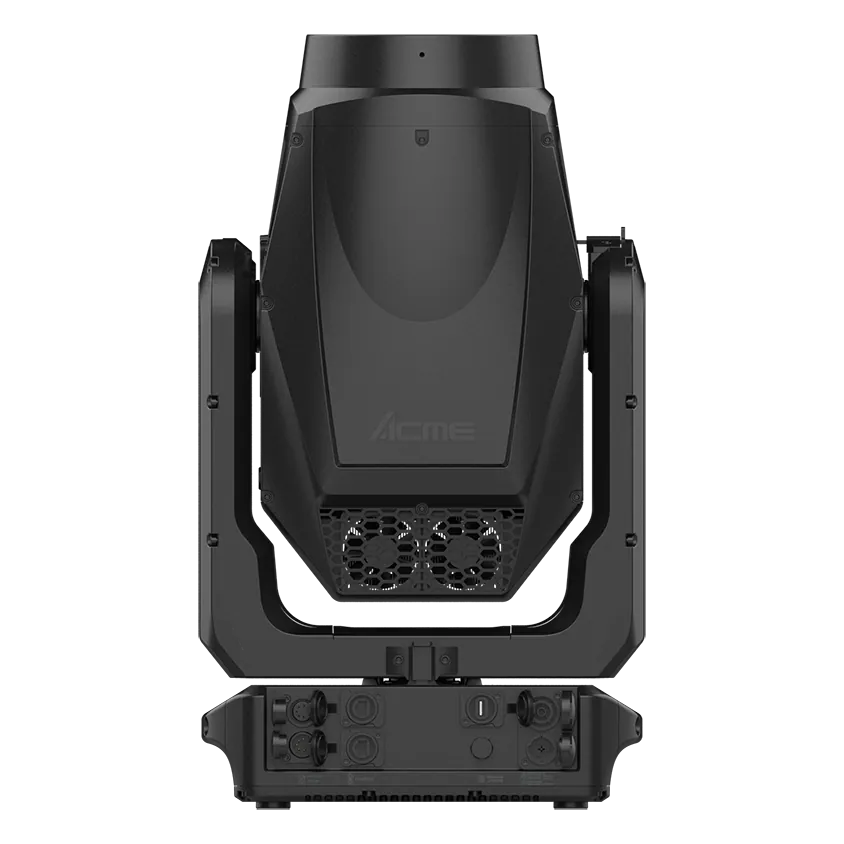

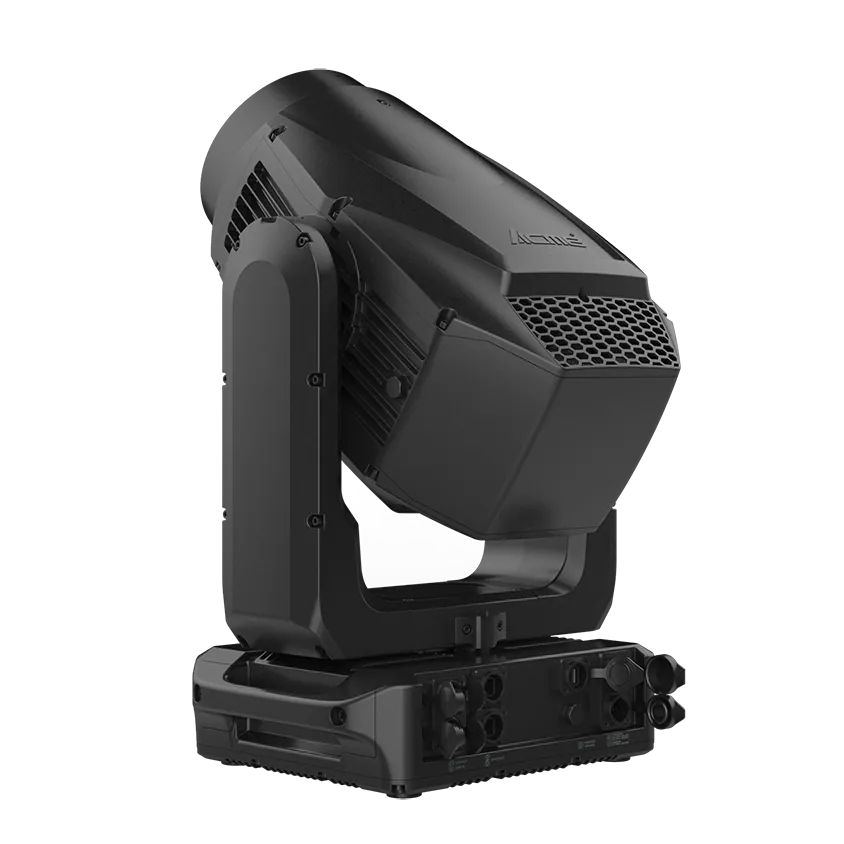

15Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 570W

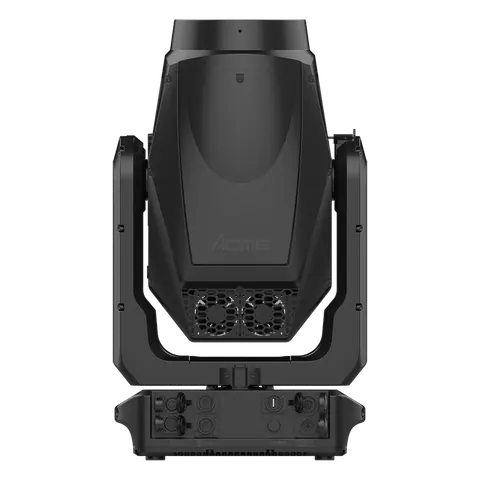

Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

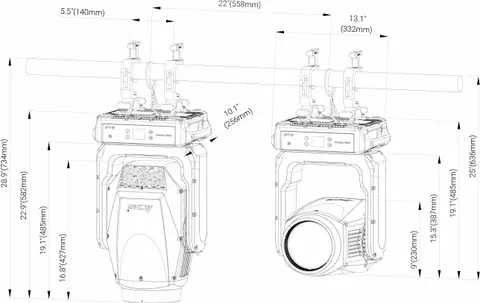

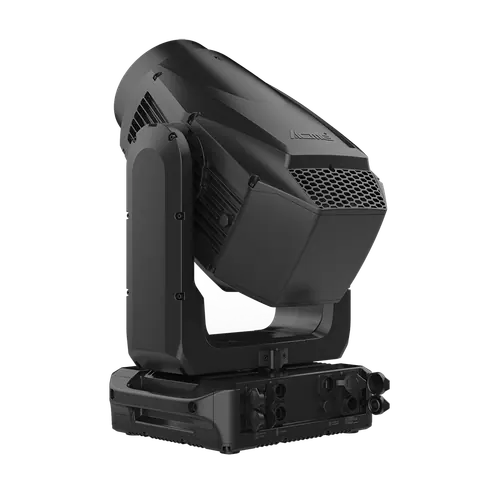

16Physical Information4

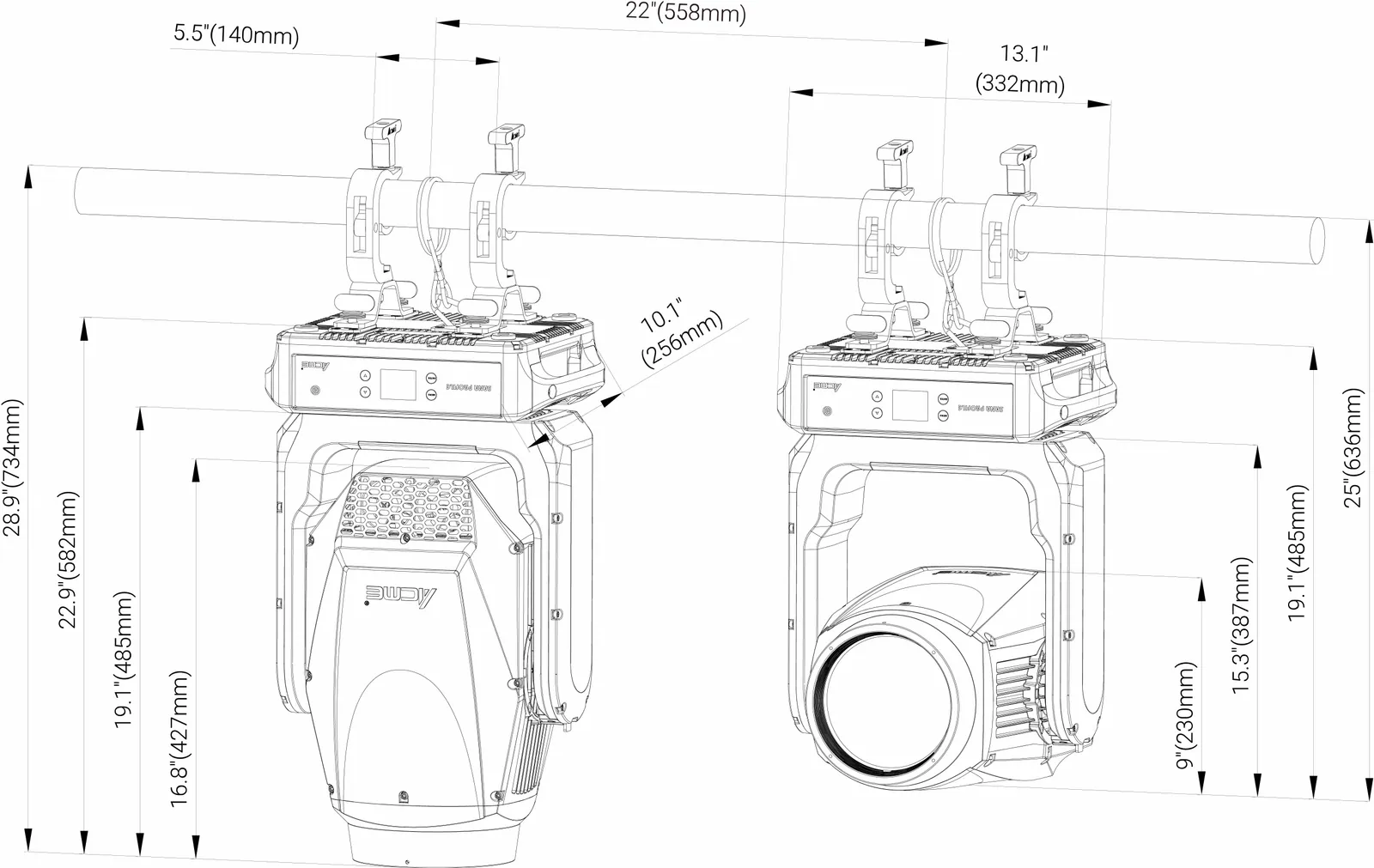

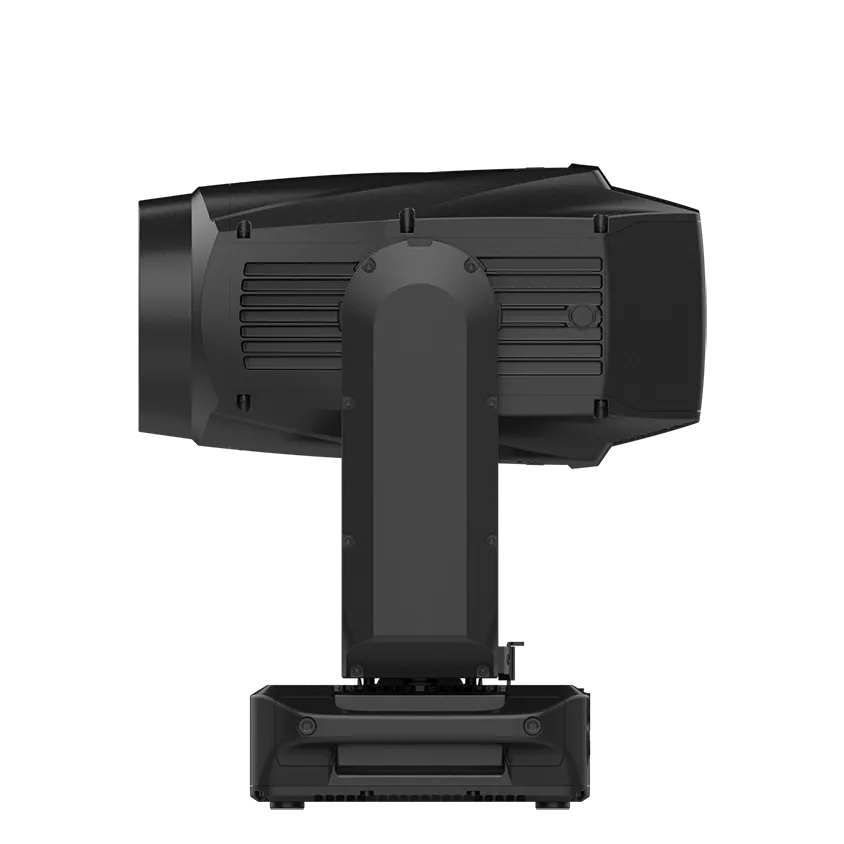

Fixture Dimensions
Width: 336 mm (13.2")
Depth: 256 mm (10.1")
Height: 582 mm (22.9")
Weight: 26 kg (57.3 lbs)

17Packing Information12

Flight Case Dimensions 1
Width: 820 mm (32.3")
Depth: 580 mm (22.8")
Height: 880 mm (34.7")
Weight
Standard: G.W.: 102 kg (224.9 lbs) (two-pack loader case)
Flight Case Dimensions 2
Width: 1,220 mm (48")
Depth: 610 mm (24")
Height: 840 mm (33.1")
Weight
North American Standard: G.W.: 160.9 kg (354.7 lbs) (three-pack loader case)
Carton Dimensions
Width: 550 mm (21.7")
Depth: 455 mm (17.9")
Height: 665 mm (26.2")
Weight
G.W.: 32 kg (70.6 lbs) (one-pack loader carton)

18Work Environment4

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -20°C
Maximum Surface Temperature: 75°C
Protection Rating: IP66

19Approvals3

CE compliant

UKCA compliant

cETLus compliant

20Acoustic Data3

Noise Level
Auto Mode: 39 dB(A) @ 1 m
Quiet Mode: 35 dB(A) @ 1 m
Super Quiet Mode: 34 dB(A) @ 1 m

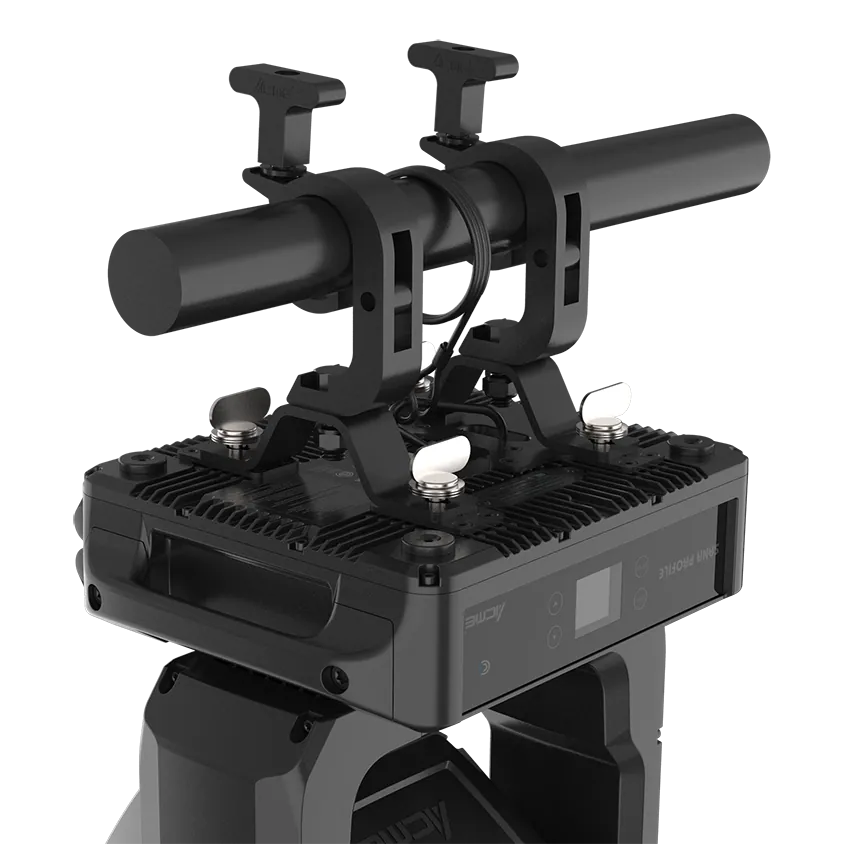

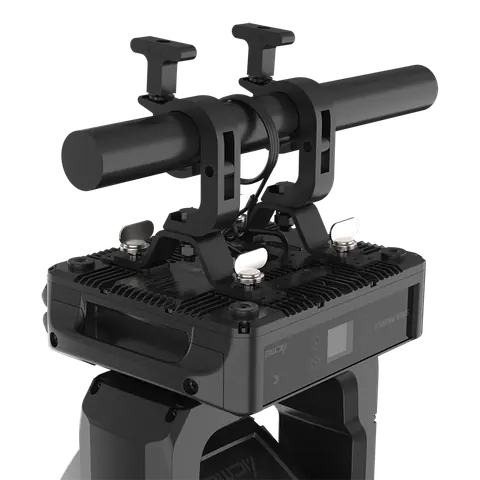

21Installation3

Horizontal or vertical mounting

2 omega brackets

Safety cable attachment point

22Included Items3

QR code on fixture to receive digital user manual

Power cable

2 omega brackets (3002003003)

23Optional Accessories (With Order Code)5

Flight Case 1
Standard: Two-pack loader case (63584353)
Flight Case 2
North American Standard: Three-pack loader case (63584381)
Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)

03DescriptionManufacturer's description

What it is.

The ACME SANA PROFILE is the newest addition to the SANA series, combining the key features of the MANA series and LYRA into a compact moving profile. Designed for infinite motion and ultimate versatility, the fixture empowers designers to explore limitless creative possibilities.

Equipped with a 330W LED engine, the SANA PROFILE delivers up to 15,000 lumens at a crisp 7,000K color temperature. Its 150 mm frontal lens produces stunningly clear beams. With a remarkable 14:1 zoom ratio and a wider zoom range from 3.9° to 50°, the fixture offers precise control and greater flexibility than LYRA, adapting effortlessly to diverse applications.

To enhance creative possibilities, the SANA PROFILE features a CMY color mixing system for smooth color transitions, a variable CTO from 2,700K to 7,000K, and a six-color wheel for saturated colors. The effect section includes 9 static gobos, 7 rotating gobos, a graphic animation wheel, and two combinable prisms for layered aerial effects. Dual frost filters enable seamless transitions from sharp beams to soft, even washes. The framing system features 4 individually controllable shutter blades with ±90° rotation, allowing precise beam shaping and instant full blackout.

Compact yet uncompromising, the IP66-rated SANA PROFILE delivers power, versatility, and visual impact in a smaller footprint. It is the ultimate solution for designers seeking complete creative freedom.
