Sheet 05.554
ACME · Spot and profile
SUPERNOVA
ModelXA 2000 BSWF IP

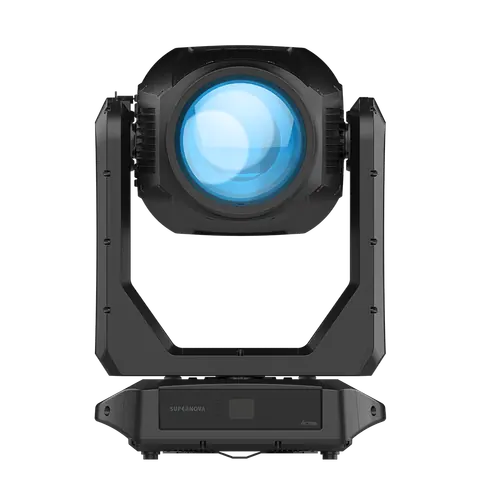

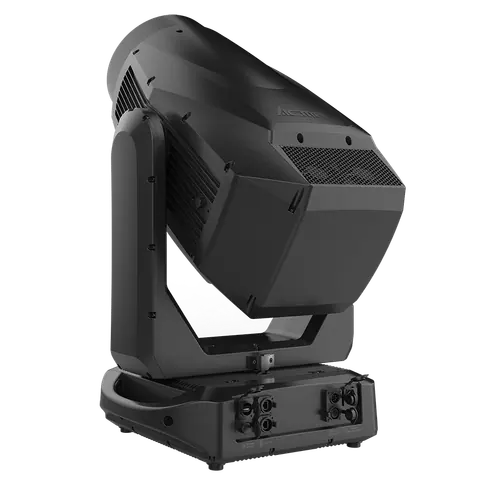

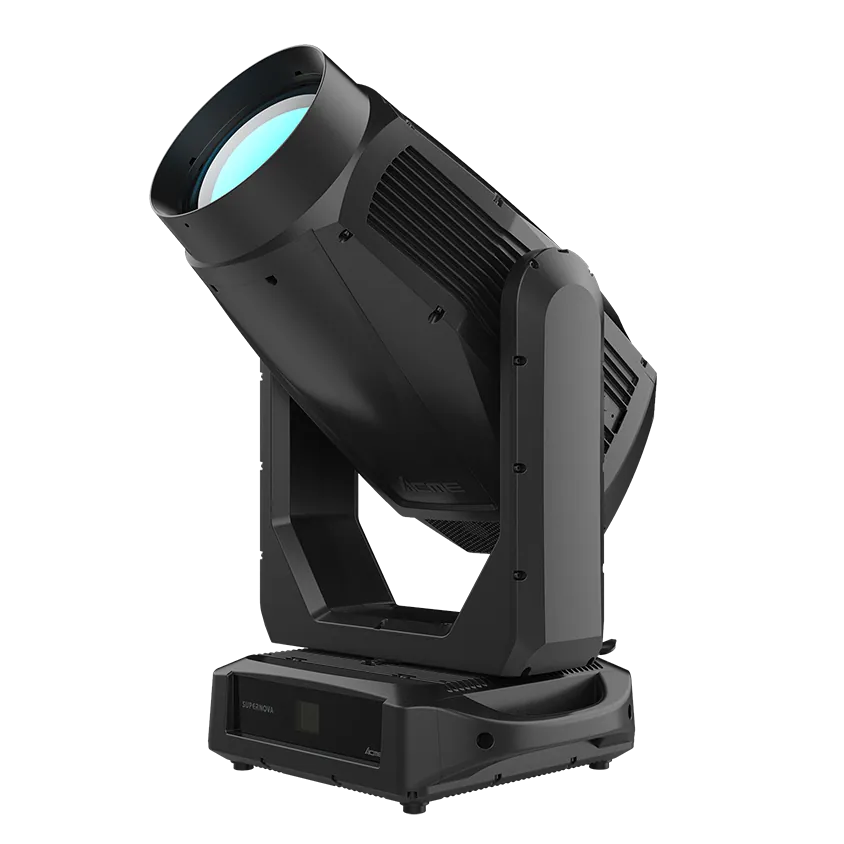

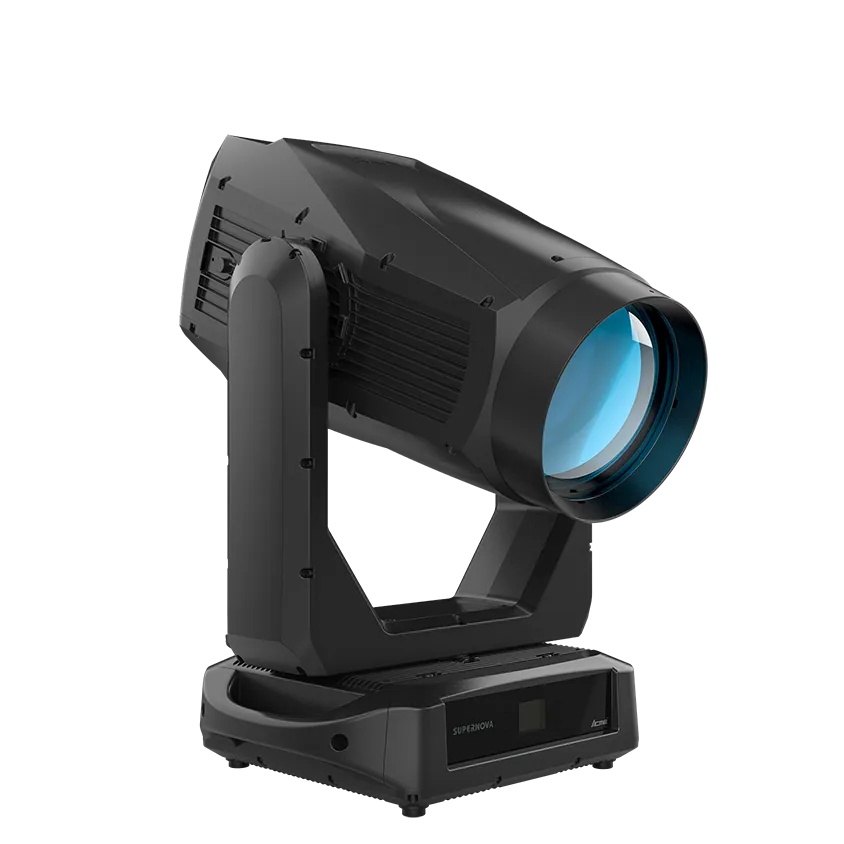

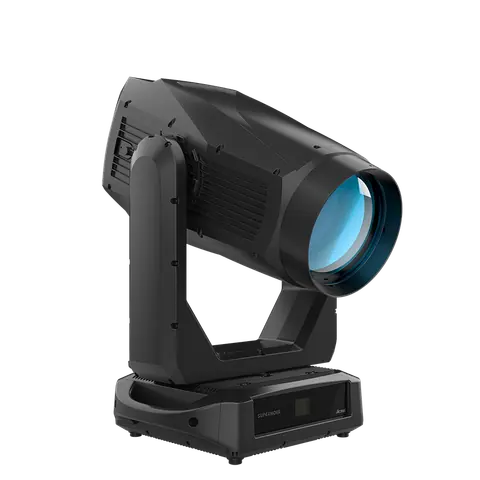

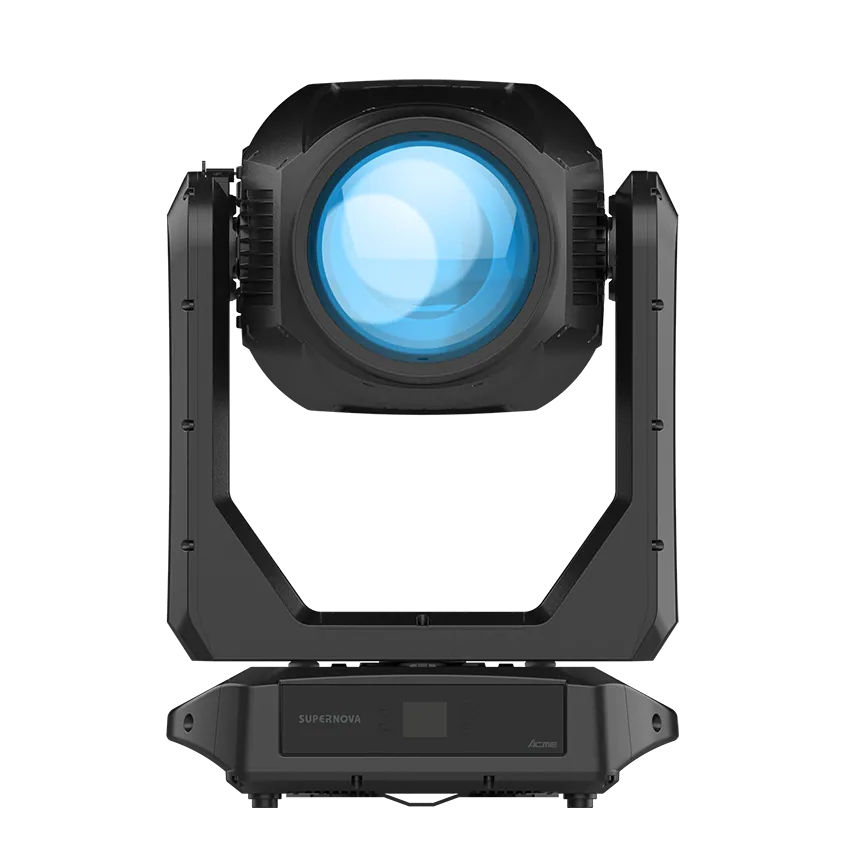

The ACME SUPERNOVA is a powerful, full-featured moving head fixture. It features an 1800-Watt LED engine that produces bright light and vibrant colors with an output of 65,000 lumens.
- Light source
- 1,800W LED engine
- Power consumption
- 2,265W
- Power supply
- 180-240Vac; 50/60Hz
- Ingress protection
- IP66
- Beam angle / zoom
- 4°-48°
- DMX channels
- 23/32/34/43
- Protocols
- DMX512,RDM,Art-Net,sACN
- Colour temperature
- 6,700K
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
SUPERNOVAPrice on requestRequest a quotation
01VideoManufacturer's video · 2:44
ACME SUPERNOVA: the manufacturer's video
02SpecificationManufacturer's data · 21 groups · 75 values
What this product is, in numbers.

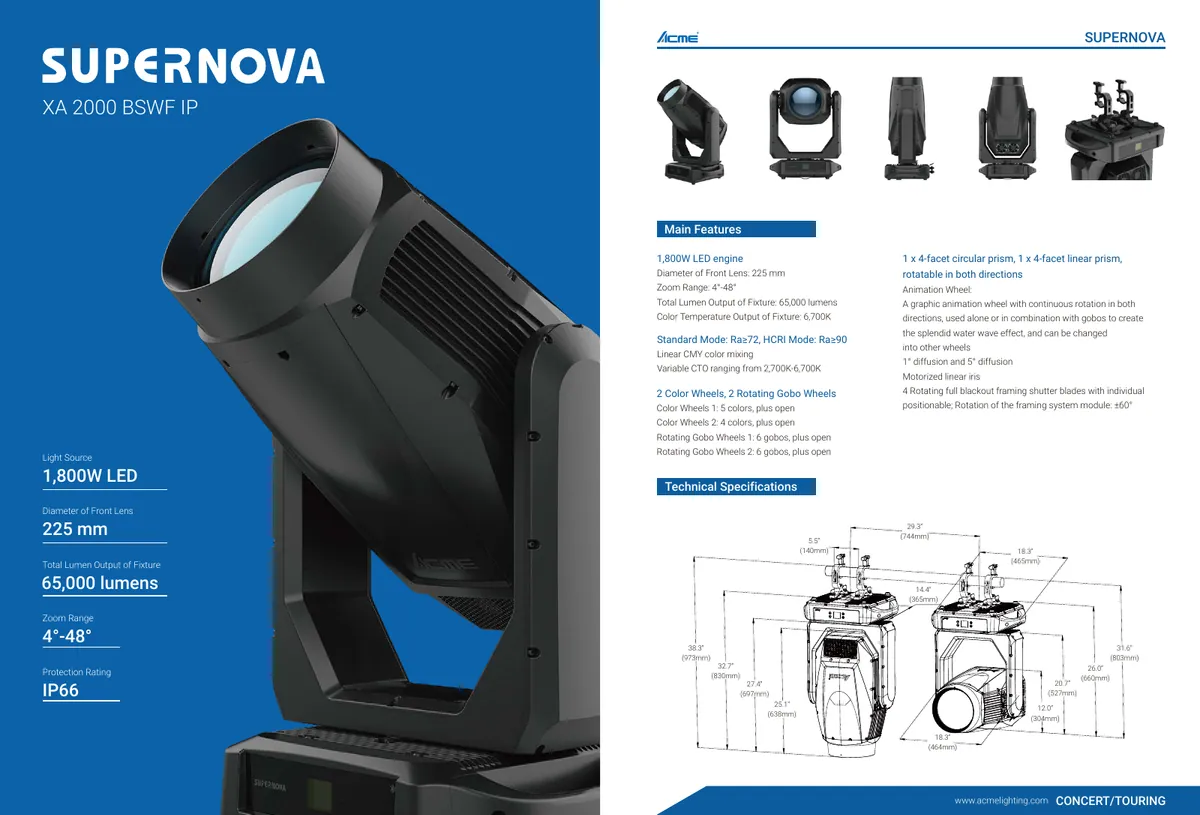

PDFDatasheetEN · 2 pages · 1.1 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Model2
- Model Name
- SUPERNOVA
- Model Code
- XA 2000 BSWF IP
02Light Source4
- Light Source
- 1,800W LED engine
- Color Temperature Output of Fixture
- 6,700K
- Light Source Rated Life
- 20,000 hours*
- *Source manufacturer specification
03Photometric Data3
- Total Lumen Output of Fixture
- 65,000 lumens
- Standard Mode
- Ra≥72
- HCRI Mode
- Ra≥90
04Optical System2
- Zoom Range
- 4°-48°
- Diameter of Frontal Lens
- 225 mm
05Control6
- 4 touch button control panel
- Display
- LCD display
- Protocols
- DMX512,RDM,Art-Net,sACN
- DMX Protocol Modes
- 4
- Control Channels
- 23/32/34/43
- Firmware Upgrade
- Upgrade via DMX link or USB stick
06Pan & Tilt5
- Pan Movement
- 540°
- Tilt Movement
- 270°
- Automatic Pan/Tilt position correction
- Resolution
- 16 bit
- Pan/Tilt locks
Show the full specificationHide the rest of the specification15 more groups · 53 values
07Colors4
- Linear CMY color mixing
- Linear CTO Color Correction
- 2,700K-6,700K
- 2 Color Wheels
- Color Wheel 1
- 5 colors, plus open
- Color Wheel 2
- 3 colors + CRI, plus open
08Rotating Gobos5
- 2 Rotating Gobo Wheel
- Rotating Gobo Wheel 1
- 6 gobos, plus open
- Gobo
- Ø34 mm, lmage: Ø27.5 mm
- Rotating Gobo Wheel 2
- 6 gobos, plus open
- Gobo Slot 1-5
- Ø34 mm, lmage: Ø26.5 mm
- Gobo Slot 6
- Ø31 mm
09Animation Wheel1

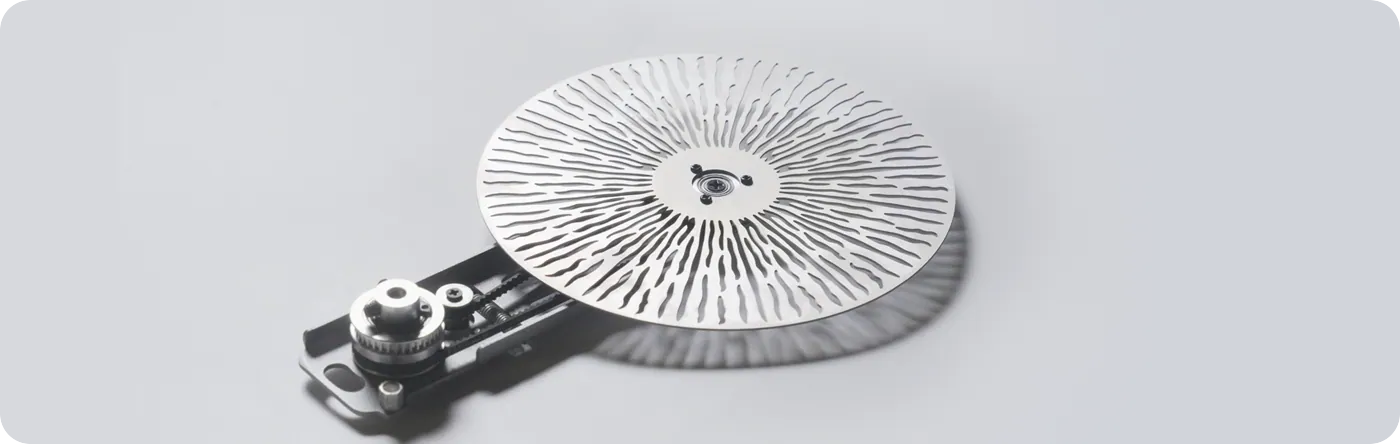

- A graphic animation wheel with continuous rotation in both directions, used alone or in combination with gobos to create the splendid water wave & flame effect, and can be changed into other wheels
10Prism1
- 2 Combinable Rotating and Indexable Prisms
- 1 x 4-facet circular prism, 1 x 4-facet linear prism, rotatable in both directions
11Frost Filter1
- 1° diffusion and 5° diffusion
12Framing System2
- Shutter Blades
- 4 blades, each with separate movement and full blackout
- Rotation
- ±60° of the complete framing system
13Other Effects3
- Outstanding strobe effect with variable speed
- Smooth dimming 0-100% (4 user selectable dimming curves)
- Motorized linear iris
14Electrical and Connectors4
- Input Voltage Range
- 180-240Vac; 50/60Hz
- Power Consumption
- 2,265W

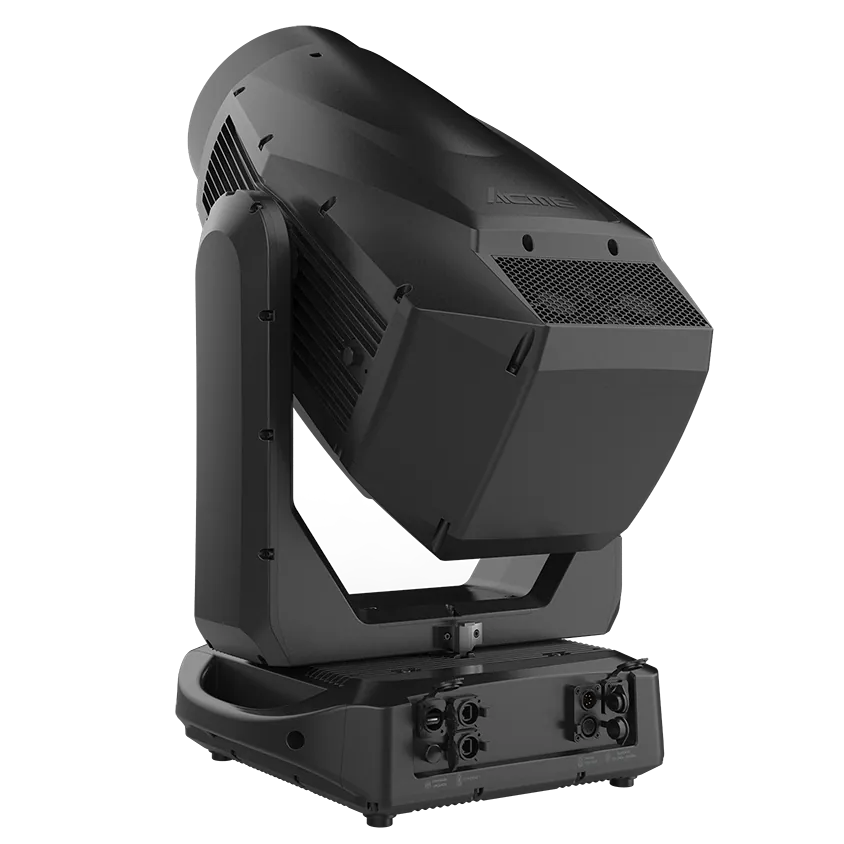

- Power In/Out
- Waterproof power connector in/out
- Data In/Out
- 3-pin or 5-pin waterproof XLR,RJ45 connector
15Physical Information4
- Fixture Dimensions
- Width
- 465 mm (18.3")
- Depth
- 365 mm (14.3")
- Height
- 830 mm (32.7")
- Weight
- 52.5 kg (115.7 lbs)
16Packing Information9
- Flight Case Dimensions
- Width
- 812 mm (32.0")
- Depth
- 610 mm (21.0")
- Height
- 910 mm (35.8")
- Weight
- Standard
- G.W.: 107.0 kg (235.9 lbs) (one-pack loader case)
- North American Standard
- G.W.: 113.3 kg (249.8 lbs) (one-pack loader case)
- Carton Dimensions
- Width
- 780 mm (30.7")
- Depth
- 575 mm (22.6")
- Height
- 805 mm (31.7")
- Weight
- G.W.
- 65 kg (143.3 lbs) (one-pack loader carton)
17Work Environment4
- Maximum Ambient Temperature
- 40°C
- Minimum Operating Temperature
- -10°C
- Maximum Surface Temperature
- 70°C
- Protection Rating
- IP66
18Approvals3
- CE compliant
- UKCA compliant
- cETLus compliant
19Installation4
- Horizontal or vertical mounting
- Universal working position

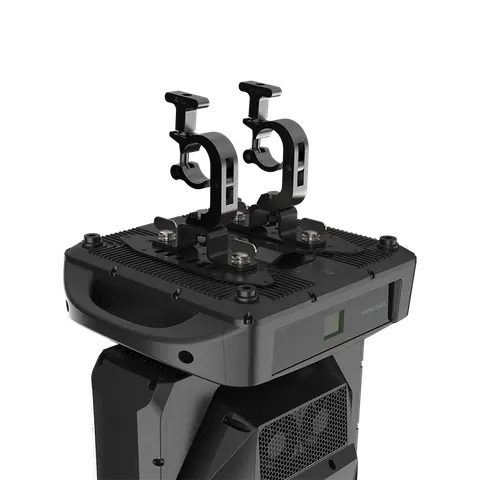

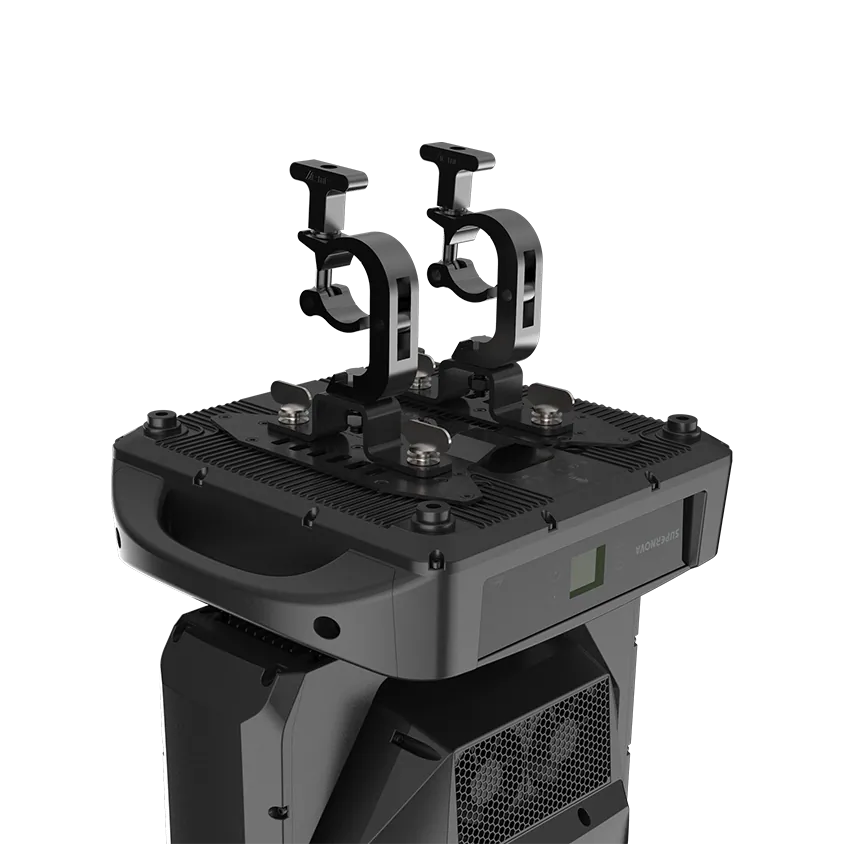

- 2 omega brackets
- Safety cable attachment point
20Included Items3
- Digital user manual
- Power cable
- 2 omega brackets (3002003003)
21Optional Accessories (With Order Code)5
- Flight Case
- Standard
- One-pack loader case (63583571)
- North American Standard
- One-pack loader case (63583457)
- Clamp
- C-250B (2060001632-B)
- Safety Cable
- SW-05 (2060001603-E)
- Signal Cable
- 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
03DescriptionManufacturer's description
What it is.
The SUPERNOVA has a zoom range of 4° to 48°, a linear CMY mixing system, a linear CTO color temperature system, dual color wheels and a high CRI filter to produce a CRI of at least 90. For effects, the SUPERNOVA has two rotating gobo wheels, an animation wheel, four-shutter framing module, linear iris, a four-facet prism, a four-facet linear prism, and two independent frost filters to soften the beam.
The SUPERNOVA is rated at IP66, making it suitable for outdoor use. Whether on stage or for outdoor events, the powerful fixture produces colorful and dazzling lighting effects, delivering the performance you expect from a fixture of this caliber.
04Documents13 files · 29 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals02
05Related products
In the same range.
EQ-553ACMESANA PROFILEXA 300 BSWF IP · Spot and profileLight source330W LED engineBeam angle / zoom3.9°-50°Power consumption570W
EQ-555ACMESUPERNOVA LTXA 2000 BSWF IP LT · Spot and profileLight source1,800W LED enginePower consumption2,200WIngress protectionIP66
EQ-552ACMEMANA PROFILEXA 600 BSWF IP · Spot and profileLight source600W LED engineBeam angle / zoom3.5°-45°Power consumption910W
EQ-556ACMETHEATRE SPOT 300 WWTS-300 WW · Spot and profileLight source1 x 300W WW LEDBeam angle / zoom15°-53°Power consumption400W06Talk to us
