Sheet 05.768

ACME · Effects and lasers

PULSAR PLUS S2

ModelCM S2 IP

The ACME PULSAR PLUS S2 is the upgraded evolution of the highly acclaimed PULSAR S2, delivering greater brightness, IP66-rated durability, and even more creative possibilities.

Light source: 4 x 150W RGBL LEDs
Power consumption: 1,200W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
DMX channels: 43/153/163/195/27+168
Protocols: DMX512,RDM,Art-Net,sACN,NFC
Colour temperature: 8,000K
Net weight: 20.5 kg (45.2 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:45

ACME PULSAR PLUS S22:45

02SpecificationManufacturer's data · 17 groups · 94 values

What this product is, in numbers.

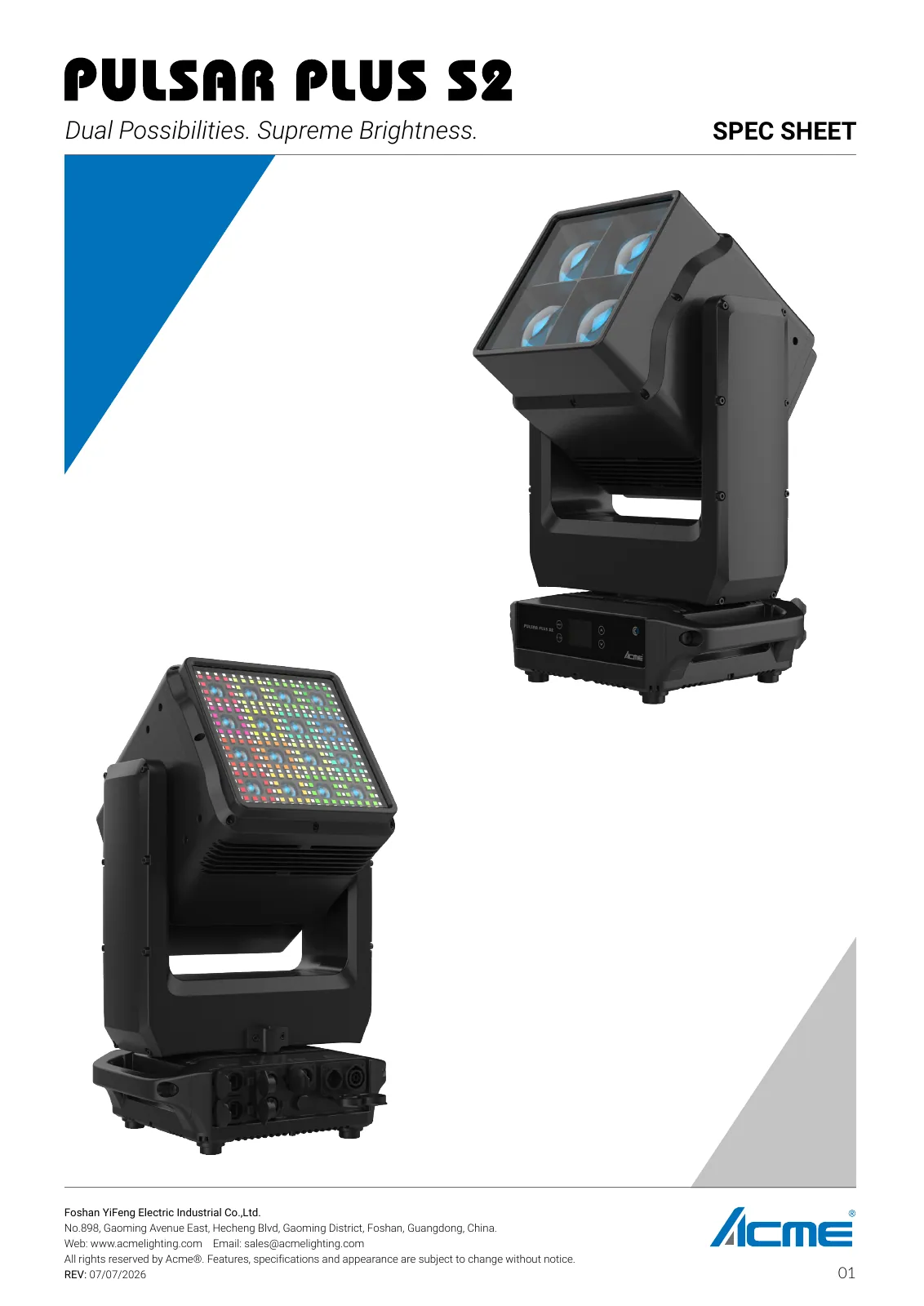

PDFDatasheetEN · 17 pages · 3.9 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: PULSAR PLUS S2
Model Code: CM S2 IP

02Light Source7

Light Source
Beam/Wash: 4 x 150W RGBL LEDs
10W Beam: 16 x 10W CW LEDs
Strobe: 160 x 3W CW LEDs
Pixel: 192 x 0.5W RGB LEDs
Color Temperature Output of Fixture: 8,000K
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data16

Total Lumen Output of Fixture
Auto Mode
Beam/Wash: 10,500 lumens
10W Beam: 2,700 lumens
Strobe: 28,500 lumens
Pixel: 3,800 lumens
Quiet Mode
Beam/Wash: 5,400 lumens
10W Beam: 1,200 lumens
Strobe: 18,000 lumens
Pixel: 2,600 lumens
Super Quiet Mode
Beam/Wash: 3,900 lumens
10W Beam: 400 lumens
Strobe: 3,500 lumens
Pixel: 900 lumens
Color Rendering: 83
TM-30 Rf (IES TM-30-15 Fidelity Index): 87
TM-30 Rg (IES TM-30-15 Fidelity Index): 105
TLCI: 85

04Optical System11

Beam Angle
Beam/Wash: 3.5°-24°
10W Beam: 3.5°
Strobe: 108°
Pixel: 115°
Field Angle

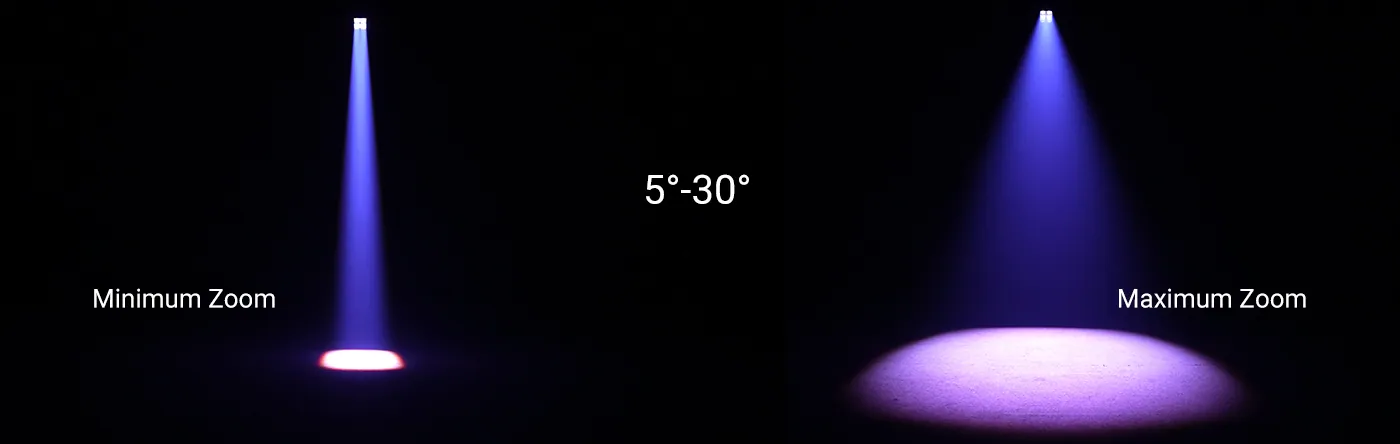

Beam/Wash: 5°-30°
Kaleidoscope Effect: 14°, 24°
Diameter of Frontal Lens: 90 x 90 mm
DMX Controllable Smart Glass technology
Patent No.: CN216010577U; US11698183B1; DE202023101966U1; FR3134870B3

Show the full specificationHide the rest of the specification13 more groups · 58 values

05Control6

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM,Art-Net,sACN,NFC
DMX Protocol Modes: 5
Control Channels: 43/153/163/195/27+168
Firmware Upgrade: Upgrade via DMX link or USB stick

06Pan & Tilt5

Pan Movement: Infinity
Tilt Movement: Infinity; Automatic Pan/Tilt position correction
Resolution: 16 bit; Pan/Tilt lock

07Colors1

Linear CTO Color Correction: 2,500K-8,000K

08Other Effects5

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Motorized linear zoom system

Individual pixel control

Built-in color macro effects

09Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 1,200W
Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

10Physical Information4

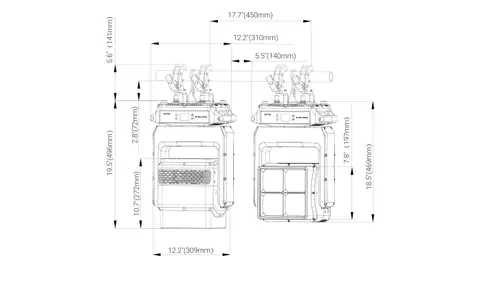

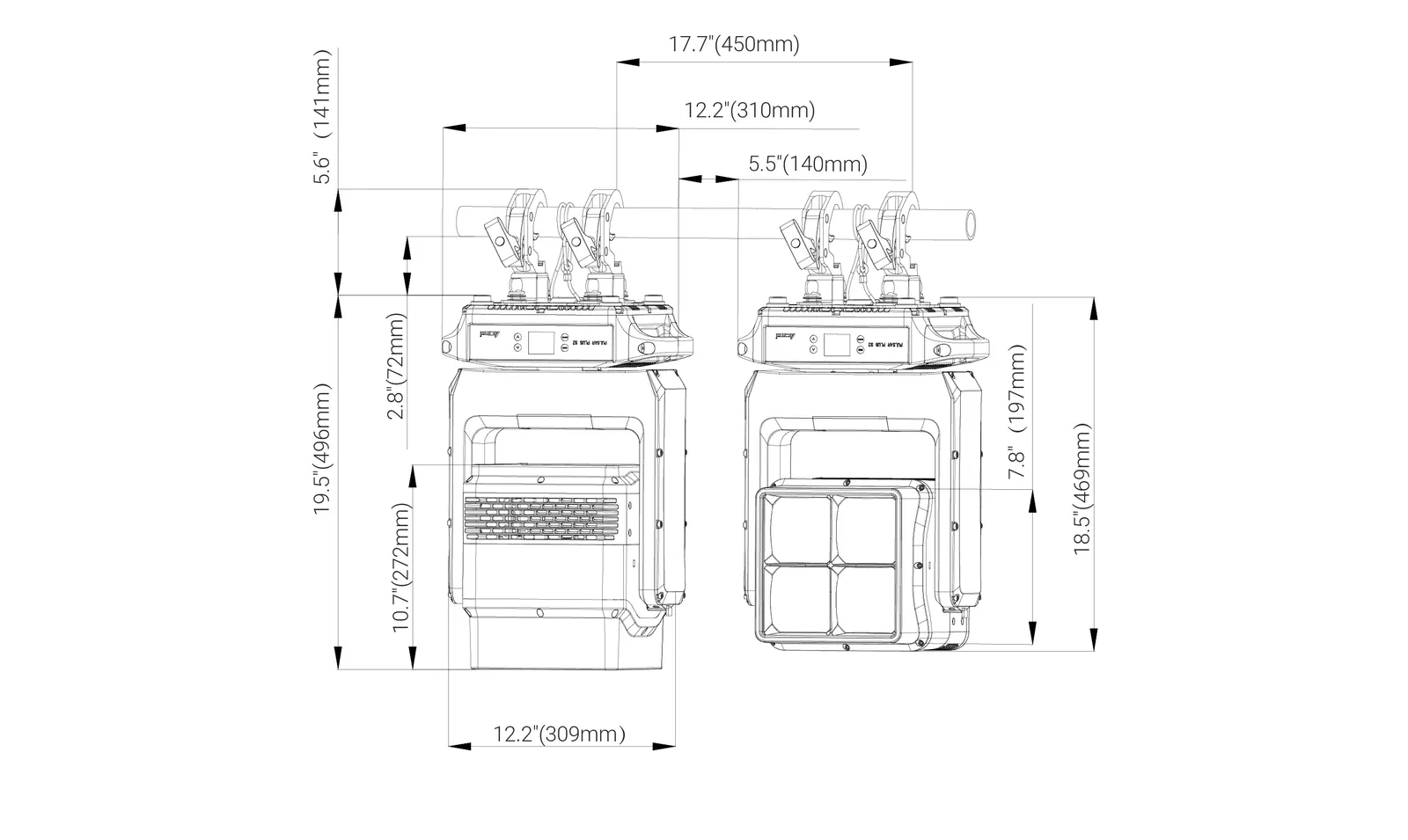

Fixture Dimensions
Width: 310 mm (12.2")
Depth: 228 mm (9")
Height: 496 mm (19.5")
Weight: 20.5 kg (45.2 lbs)

11Packing Information12

Flight Case Dimensions 1
Width: 1,000 mm (39.4")
Depth: 610 mm (24")
Height: 785 mm (30.9")
Weight
Standard: G.W.: 149 kg (328.5 lbs) (four-pack loader case)
Flight Case Dimensions 2
Width: 1,220 mm (48")
Depth: 610 mm (24")
Height: 750 mm (29.5")
Weight
North American Standard: G.W.: 156.9 kg (345.9 lbs) (four-pack loader case)
Carton Dimensions
Width: 405 mm (15.9")
Depth: 385 mm (15.2")
Height: 660 mm (26")
Weight
G.W.: 24.5 kg (54 lbs) (one-pack loader carton)

12Work Environment4

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -20°C
Maximum Surface Temperature: 70°C
Protection Rating: IP66

13Approvals3

CE compliant

UKCA compliant

cETLus compliant

14Acoustic Data3

Noise Level
Auto Mode: 49 dB(A) @ 1 m
Quiet Mode: 38 dB(A) @ 1 m
Super Quiet Mode: 35 dB(A) @ 1 m

15Installation3

Universal working position

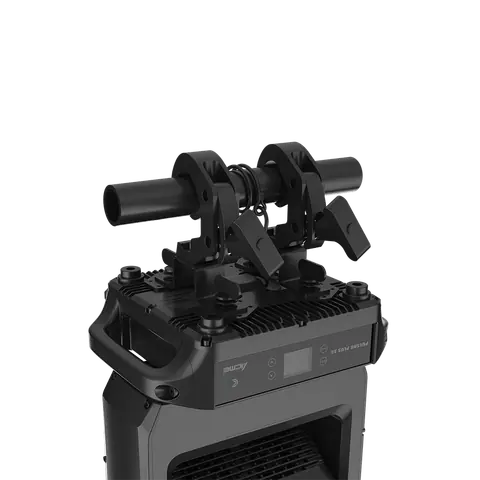

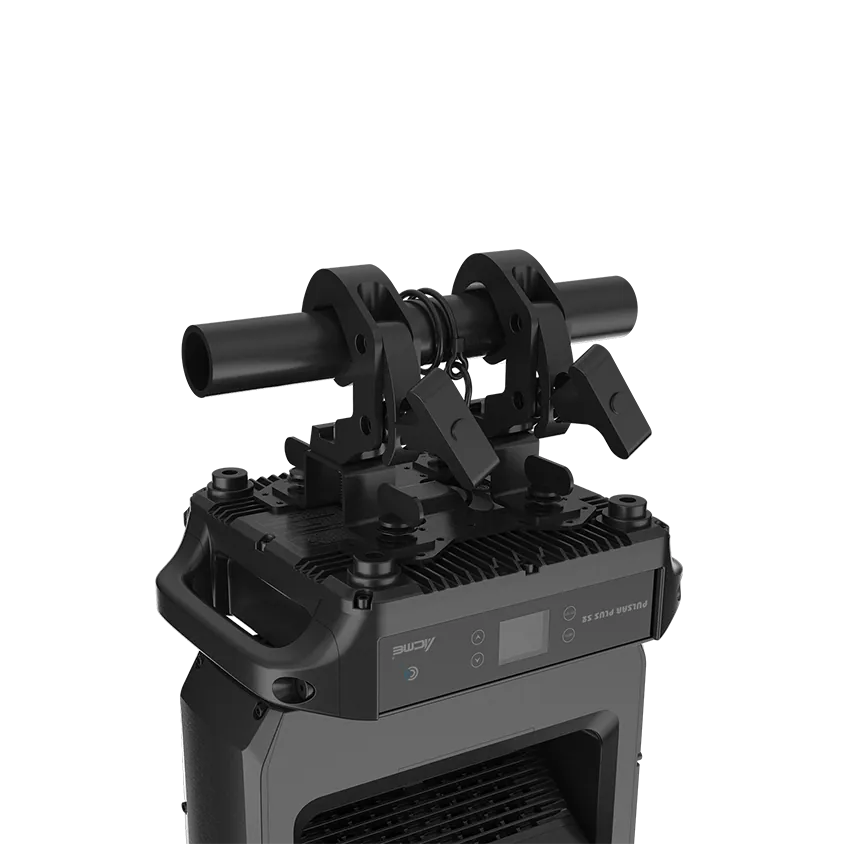

2 omega brackets

Safety cable attachment point

16Included Items3

QR code on fixture to receive digital user manual

Power cable

2 omega brackets (3002003002)

17Optional Accessories (With Order Code)5

Flight Case 1
Standard: Four-pack loader case (63584350)
Flight Case 2
North American Standard: Four-pack loader case (63584378)
Clamp: C-250B (2060001632-B)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)

03DescriptionManufacturer's description

What it is.

The ACME PULSAR PLUS S2 is the upgraded evolution of the highly acclaimed PULSAR S2, delivering greater brightness, IP66-rated durability, and even more creative possibilities. Its dual-face head design combines beam, strobe, pixel, and wash effects, while infinite pan/tilt movement unlocks maximum creative flexibility.

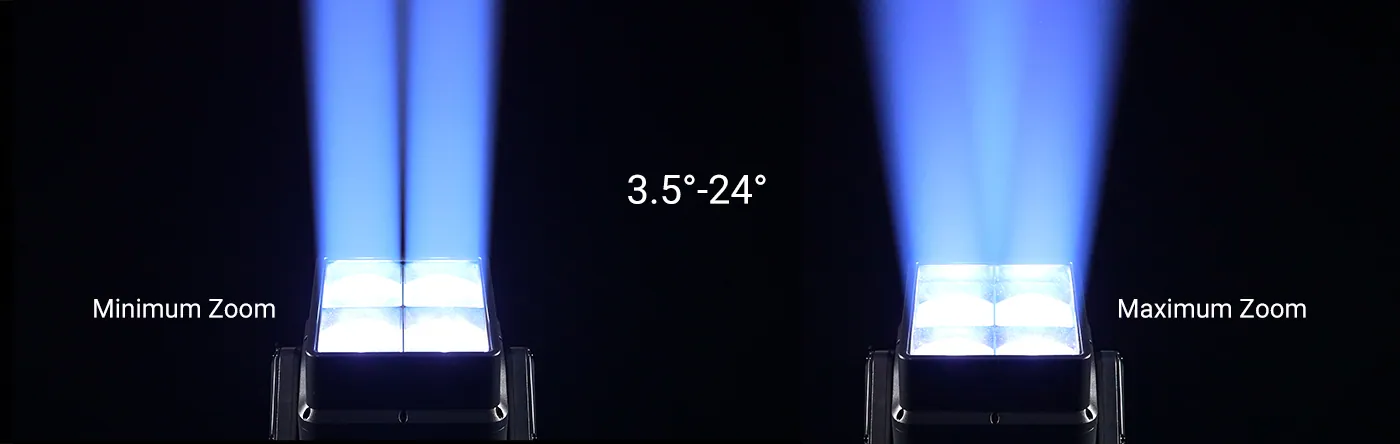

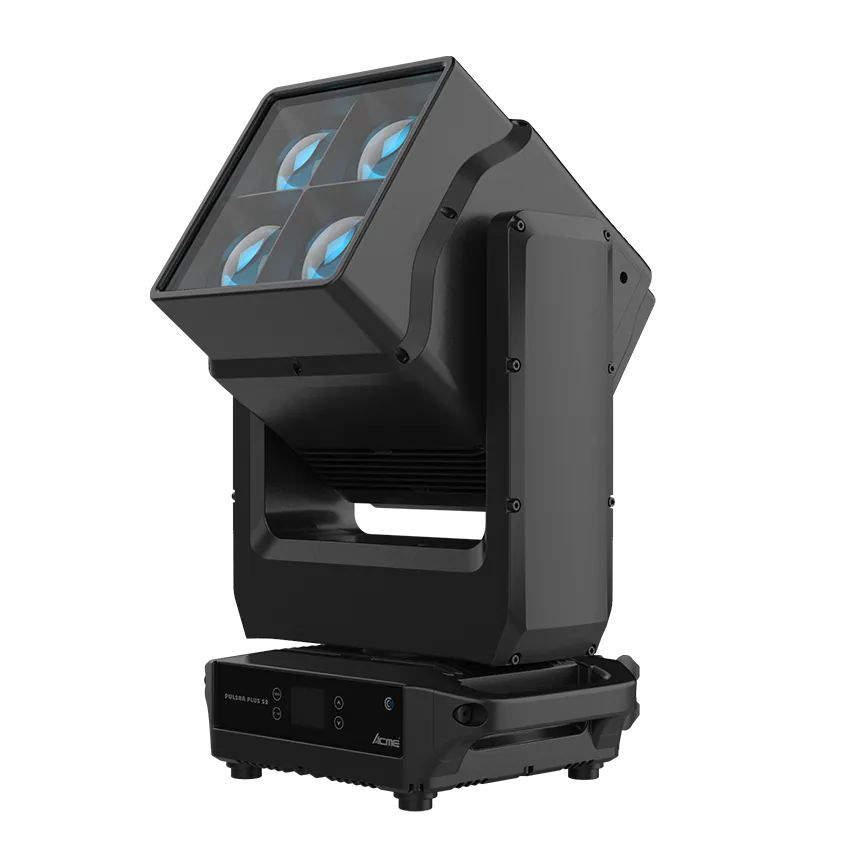

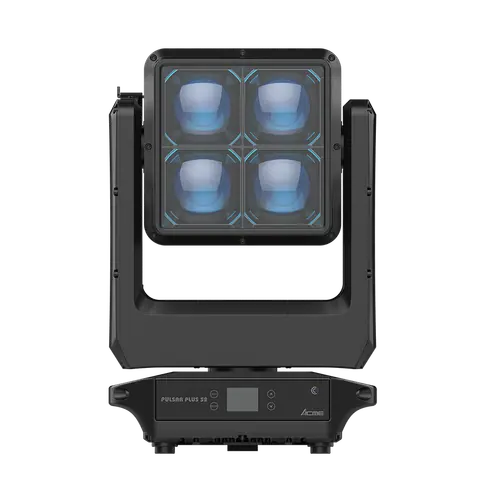

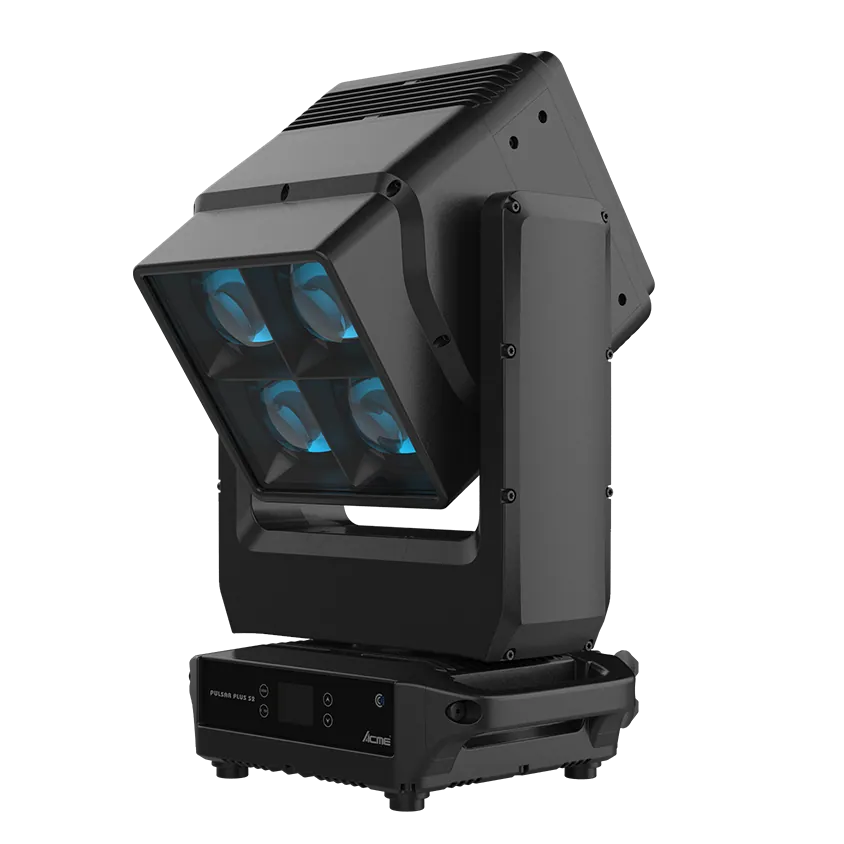

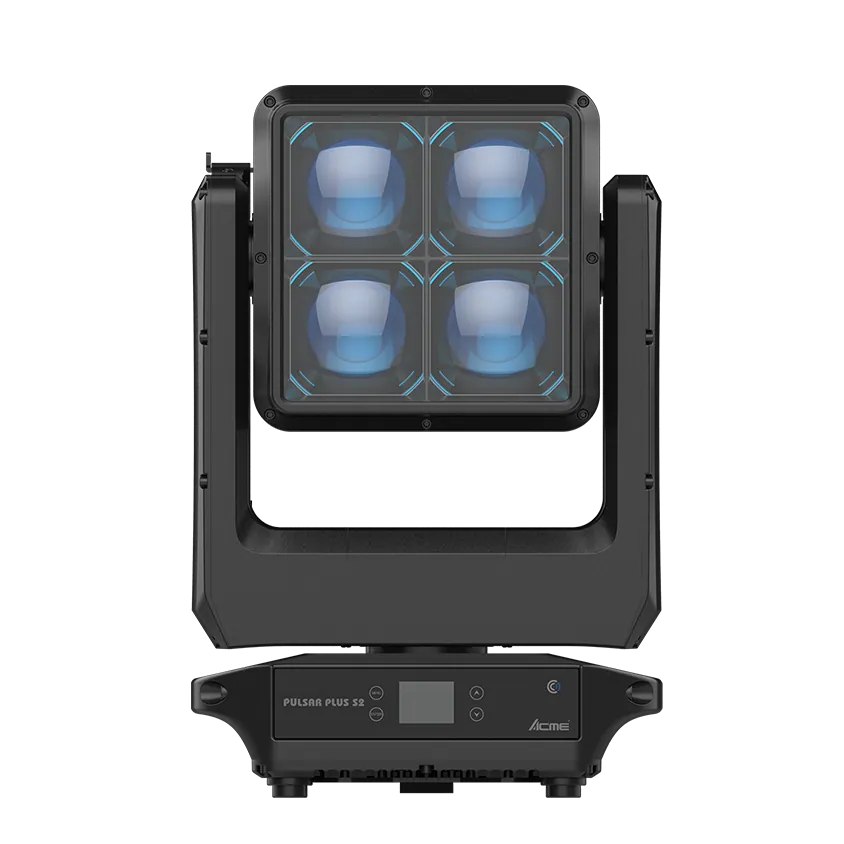

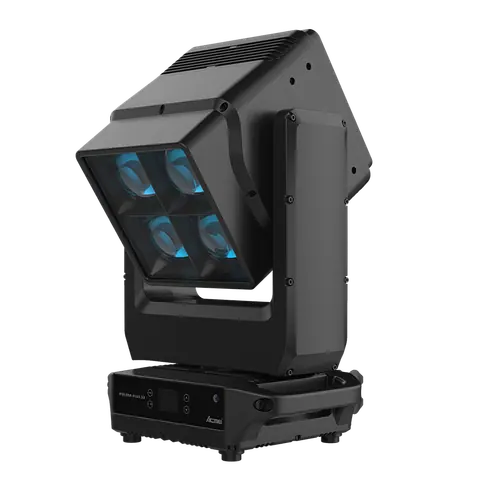

The front of the head boasts four 150W RGBL LEDs, delivering powerful beams and uniform washes through a motorized zoom from 3.5° to 24°. This section produces a remarkable 10,500 lumens of output, offering higher brightness than the PULSAR S2. These LEDs are covered by a large outer lens, ensuring stunning optical performance as well as easy cleaning and maintenance. A standout feature is the kaleidoscope effect, powered by 150W RGBL LEDs, producing vivid, multi color textures that enhance stage visuals.

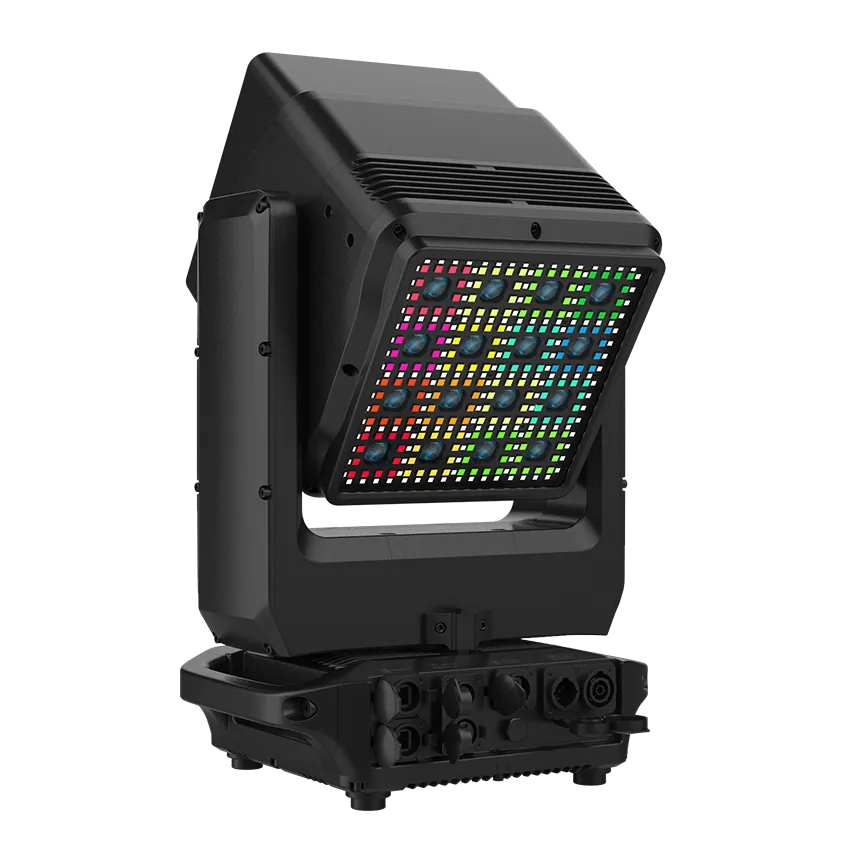

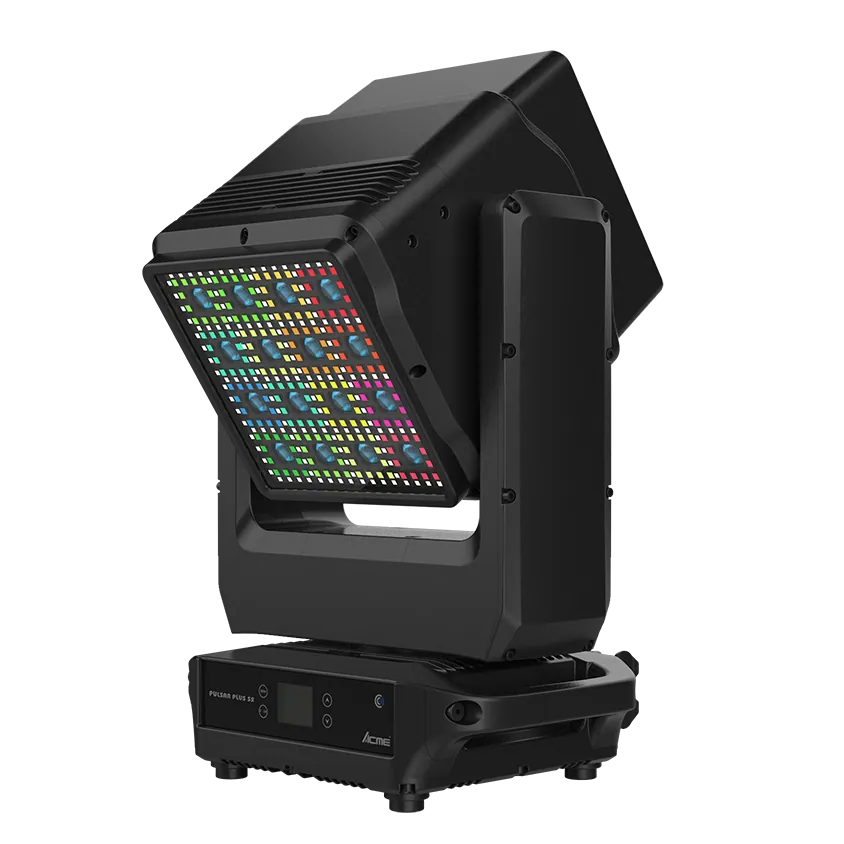

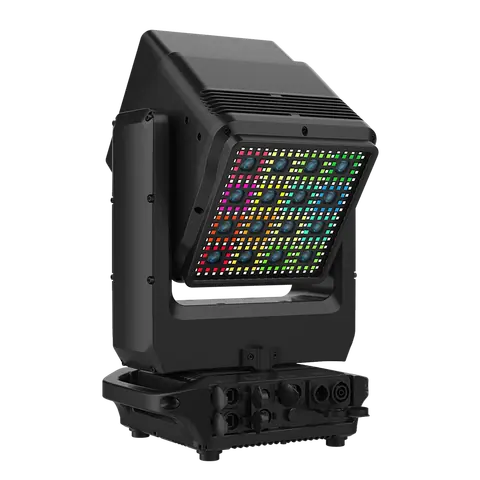

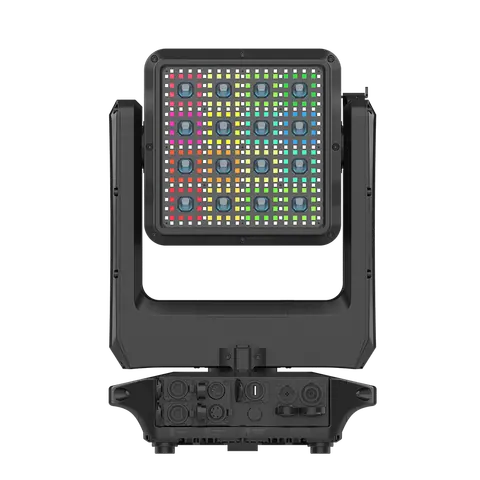

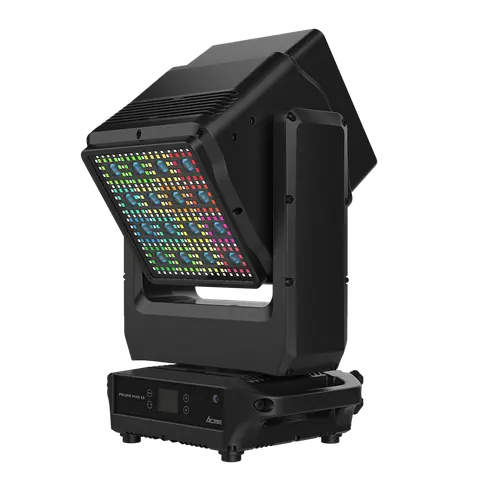

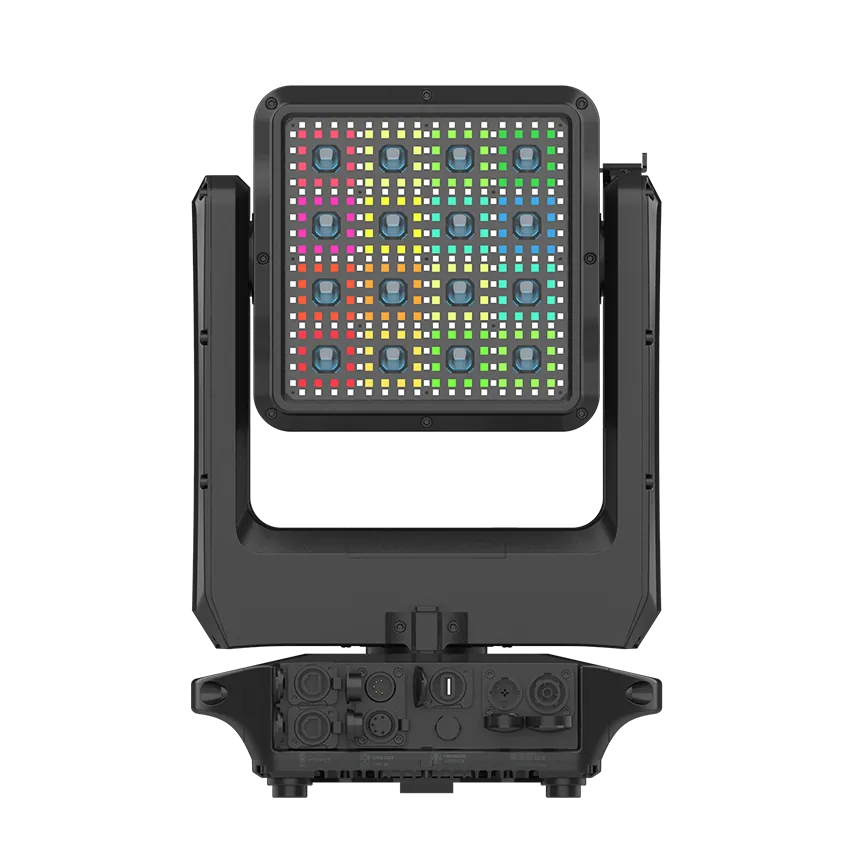

The rear of the head features a pixel/strobe section with 160 x 3W CW LEDs and 192 x 0.5W RGB LEDs, along with a beam section with 16 x 10W CW LEDs. For added creativity, the PULSAR PLUS S2 is equipped with ACME’s patented electronic frost system, applied to both the pixel and 10W beam sections. This enables seamless transitions from sharp beams to soft looks.

With expanded creative potential and a rugged IP66 housing, the PULSAR PLUS S2 pushes the boundaries of the original design, making it the perfect choice for large-scale outdoor productions.
