Sheet 05.669

ACME · Wash

SANDANE FROST

ModelPAR 54 IP EF

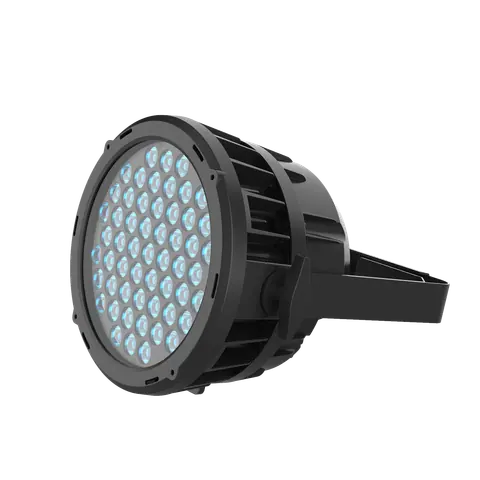

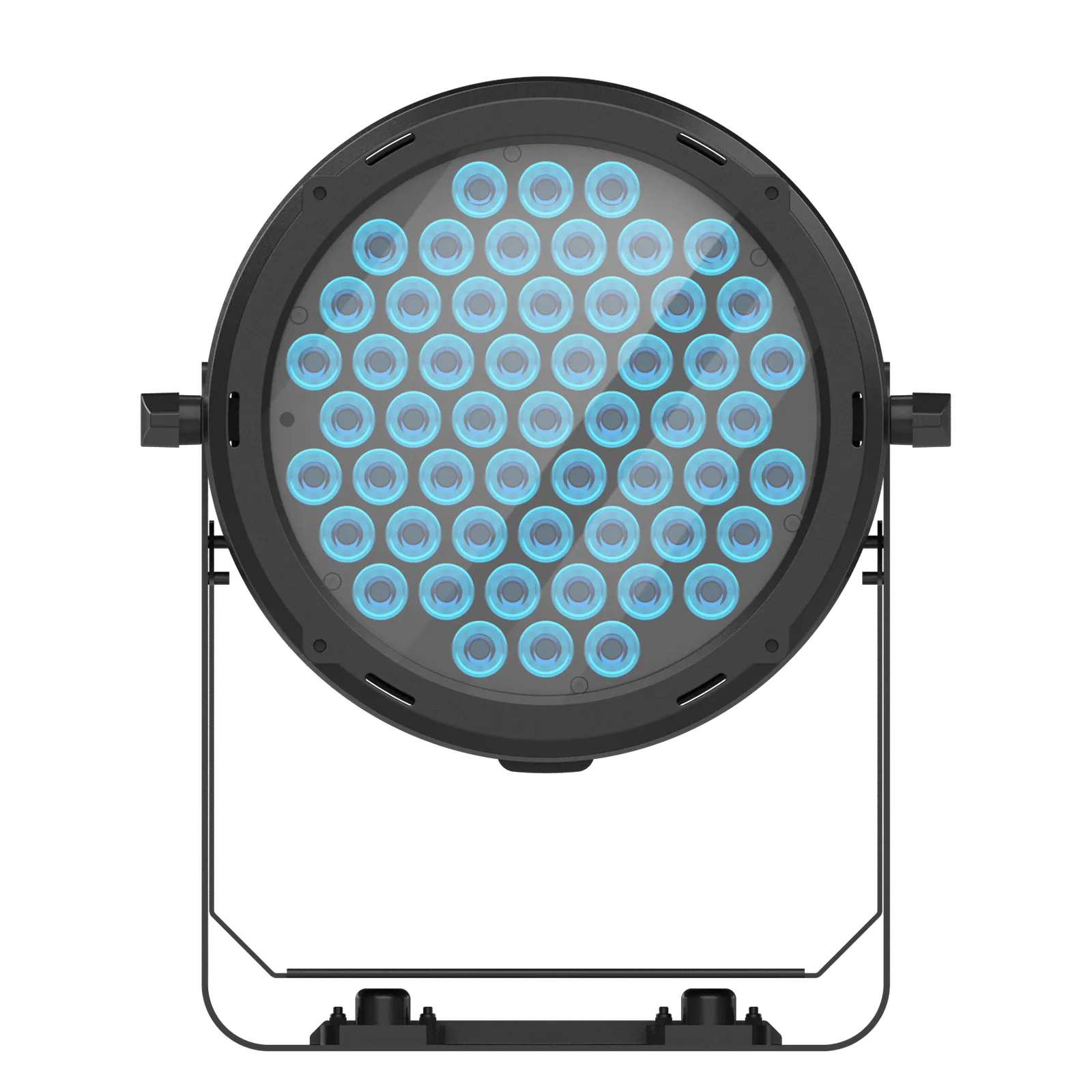

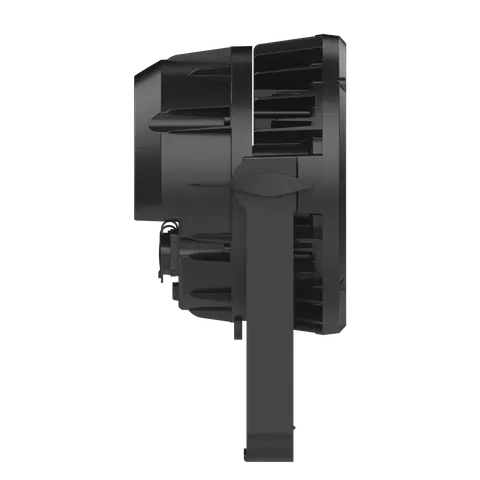

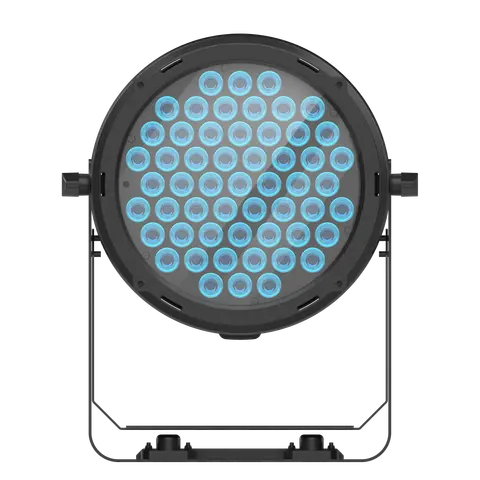

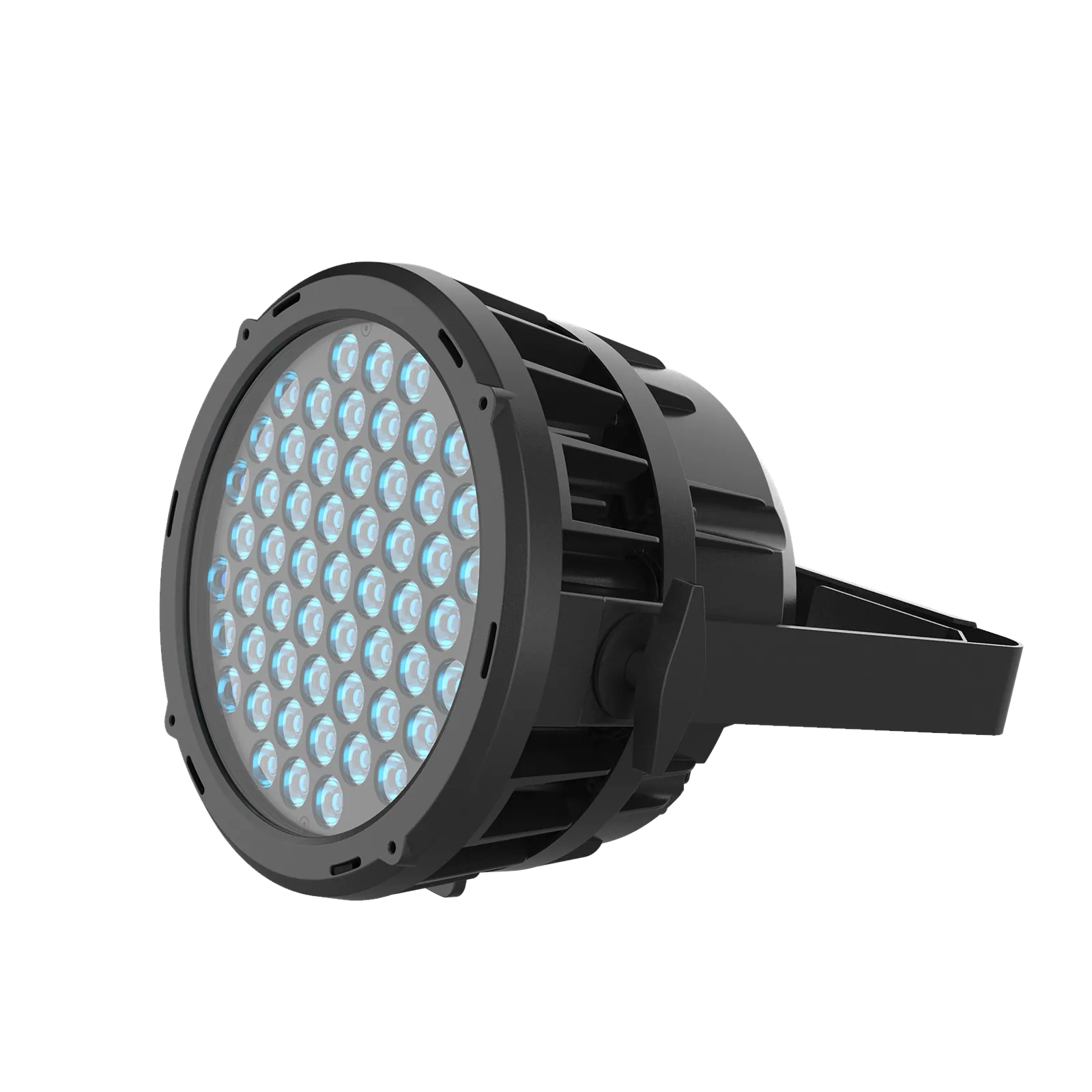

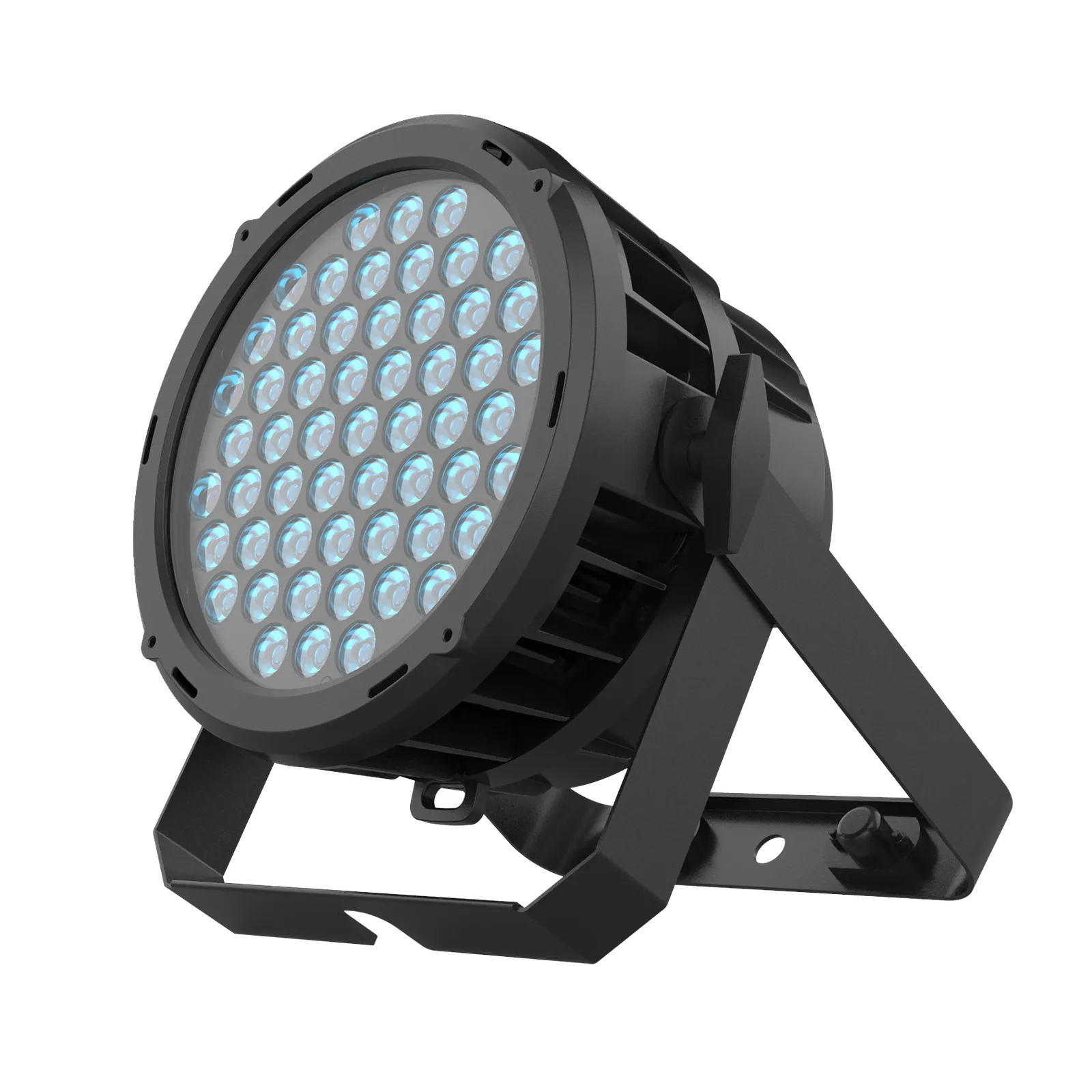

ACME SANDANE FROST is compact, lightweight, energy-efficient, and offers high light output. It features a dual mounting bracket design, providing various installation options.

Light source: 55 x 6W RGBL LED
Power consumption: 215W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66
Beam angle / zoom: 18°, 36°, 53°
DMX channels: 11/9/8/7/6
Protocols: DMX512,RDM
Colour temperature: 2,500K-8,000K

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:46

ACME SANDANE FROST1:46

02SpecificationManufacturer's data · 14 groups · 72 values

What this product is, in numbers.

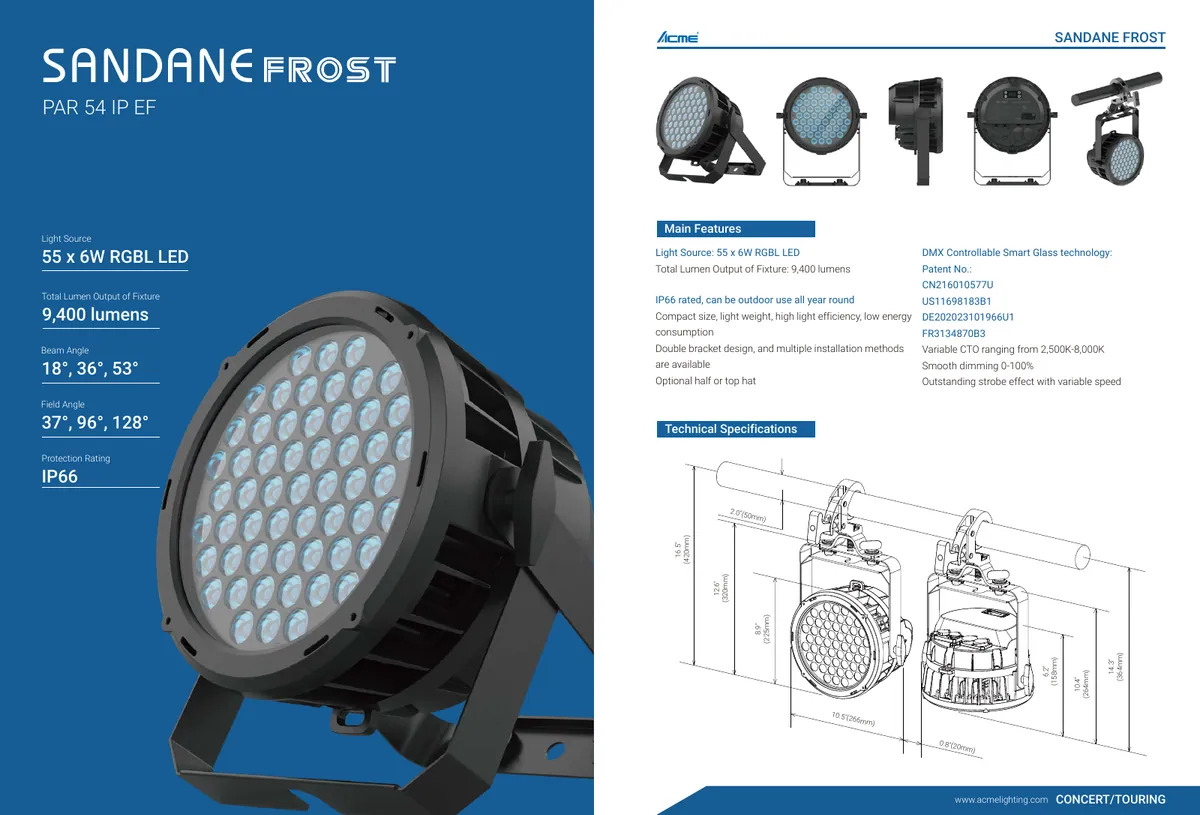

PDFDatasheetEN · 2 pages · 549 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: SANDANE FROST
Model Code: PAR 54 IP EF

02Light Source4

Light Source: 55 x 6W RGBL LED
Color Temperature Output of Fixture: 2,500K-8,000K
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data1

Total Lumen Output of Fixture: 9,400 lumens

04Optical System6

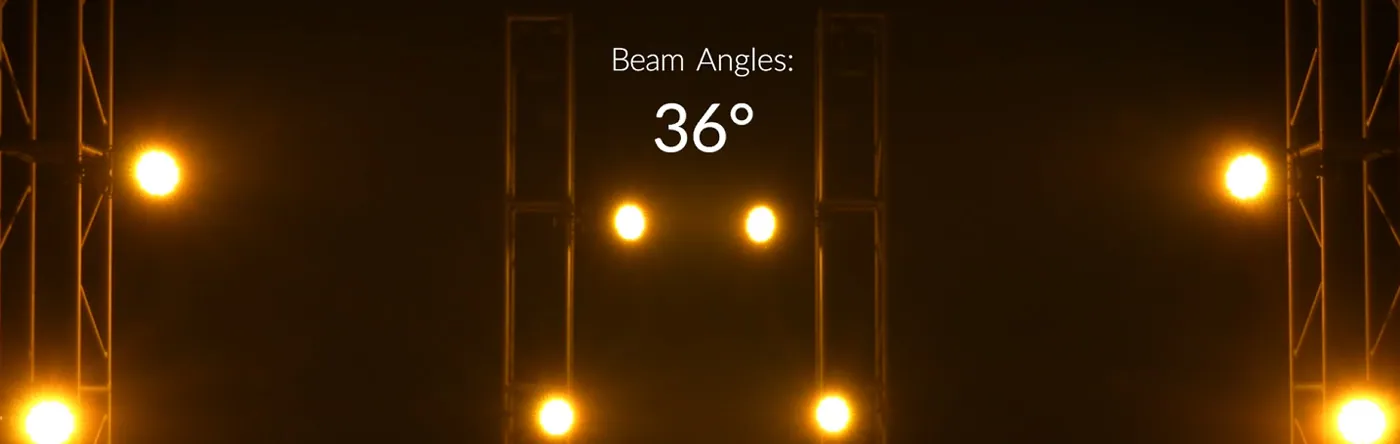

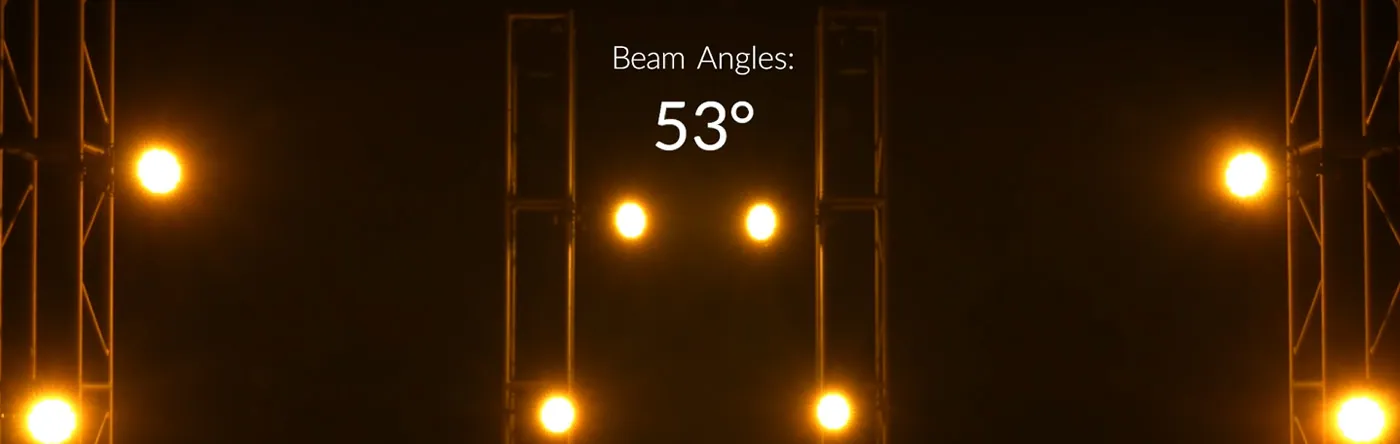

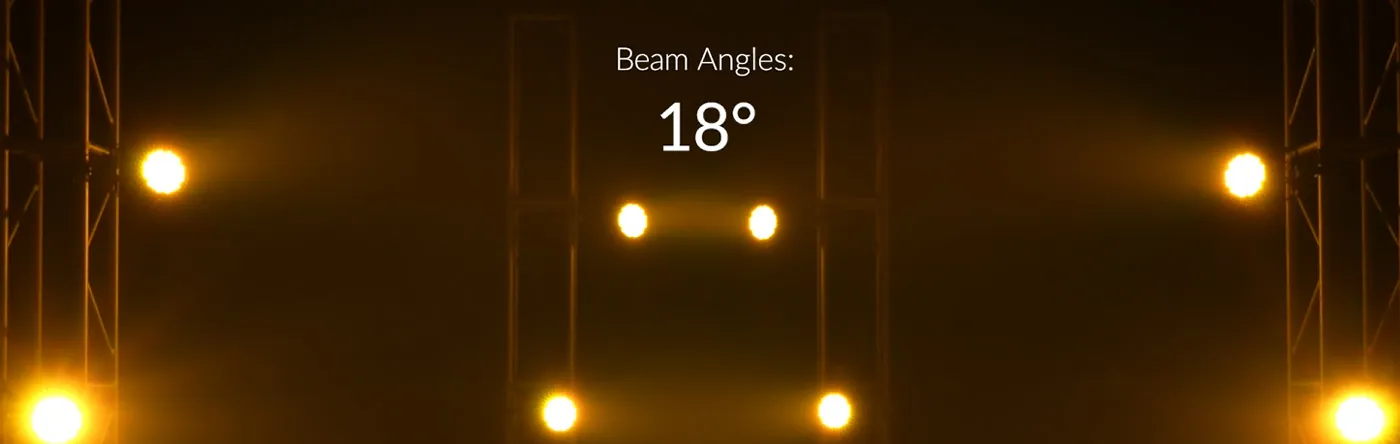

Beam Angle: 18°, 36°, 53°

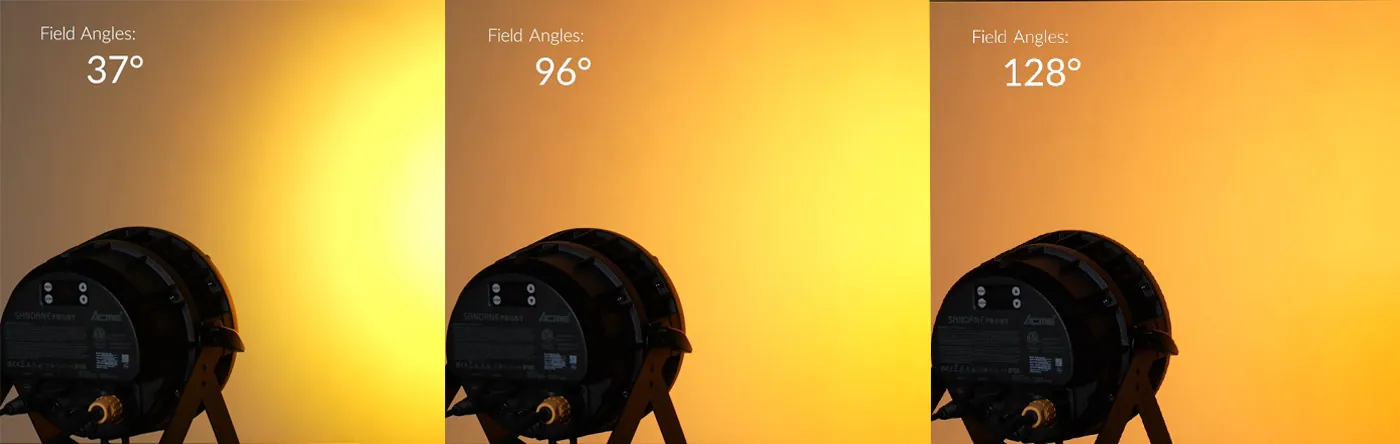

Field Angle: 37°, 96°, 128°
DMX Controllable Smart Glass technology
Patent No.: CN216010577U; US11698183B1; DE202023101966U1; FR3134870B3

05Control7

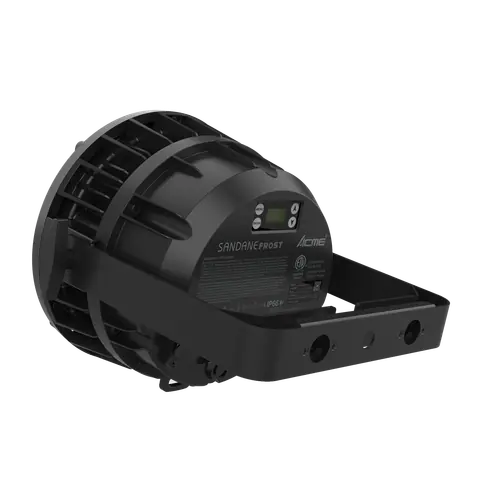

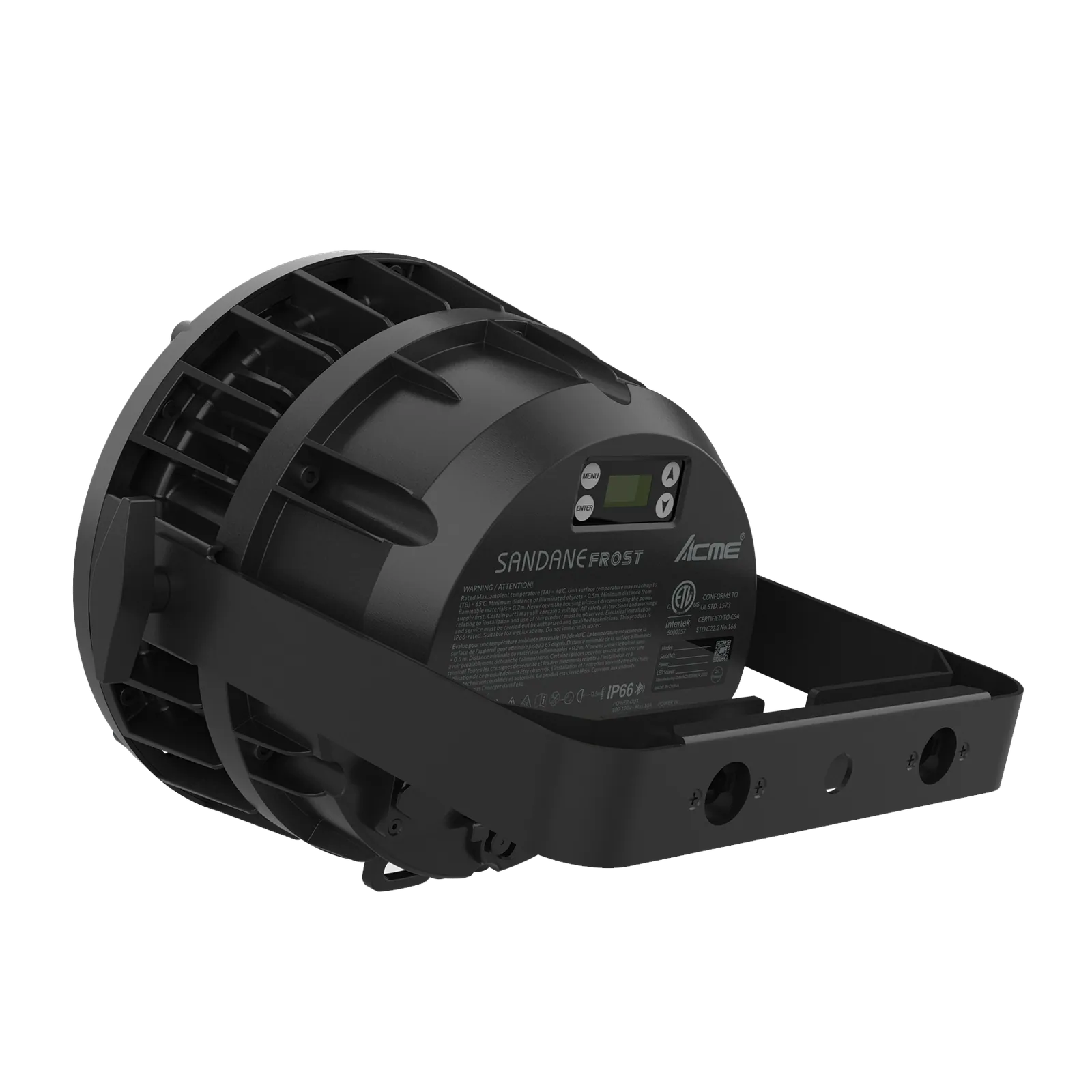

4 touch button control panel
Display: OLED display
Operational Modes: DMX Control,Show Mode
Protocols: DMX512,RDM
DMX Protocol Modes: 5
Control Channels: 11/9/8/7/6
Firmware Upgrade: Upgrade via DMX link

06Other Effects6

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Compact size,light weight,high light efficiency,low energy consumption

Optional half or full size anti-glare shield

Double bracket design, and multiple installation methods are available

Choice of four dimming curves

Show the full specificationHide the rest of the specification8 more groups · 46 values

07Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 215W

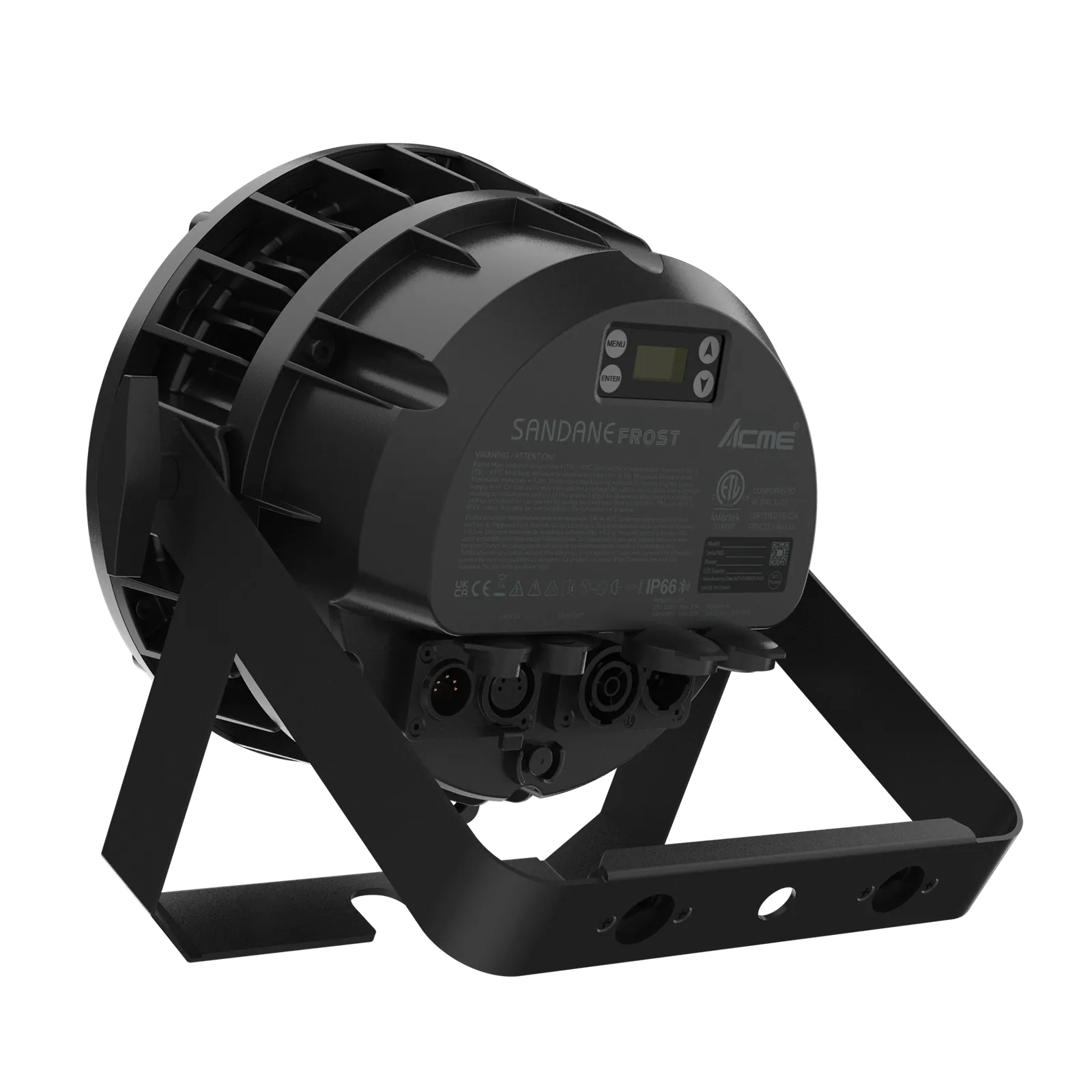

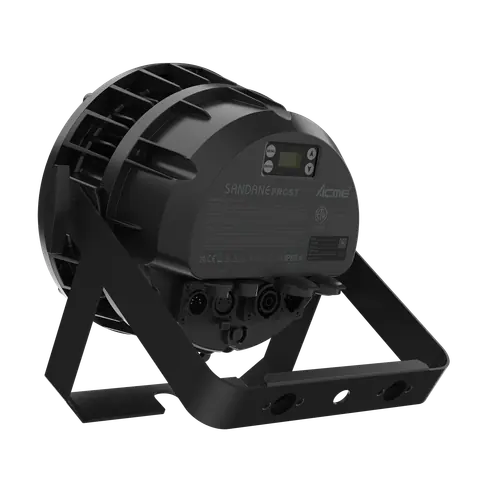

Power In/Out: Waterproof power connector in/out
Data In/Out: 3-pin or 5-pin waterproof XLR

08Physical Information8

Fixture Dimension
Omega Bracket Mounting Version
Width: 266 mm (10.5")
Depth: 158 mm (6.2")
Height: 320 mm (12.6")
Weight: 5.0 kg (11.0 lbs)

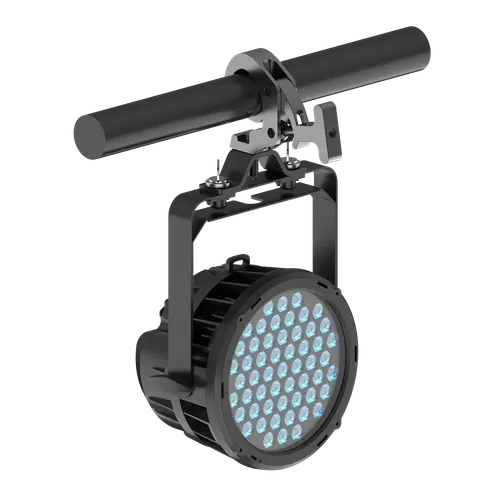

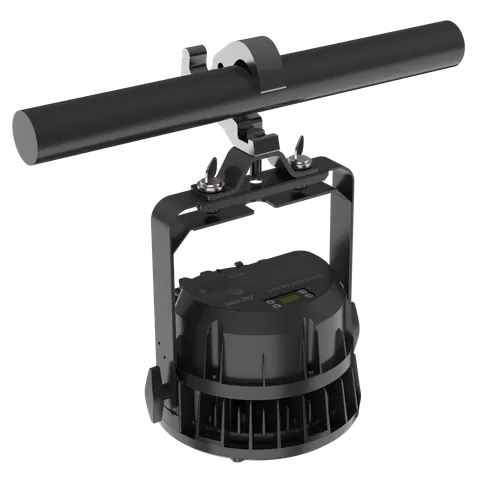

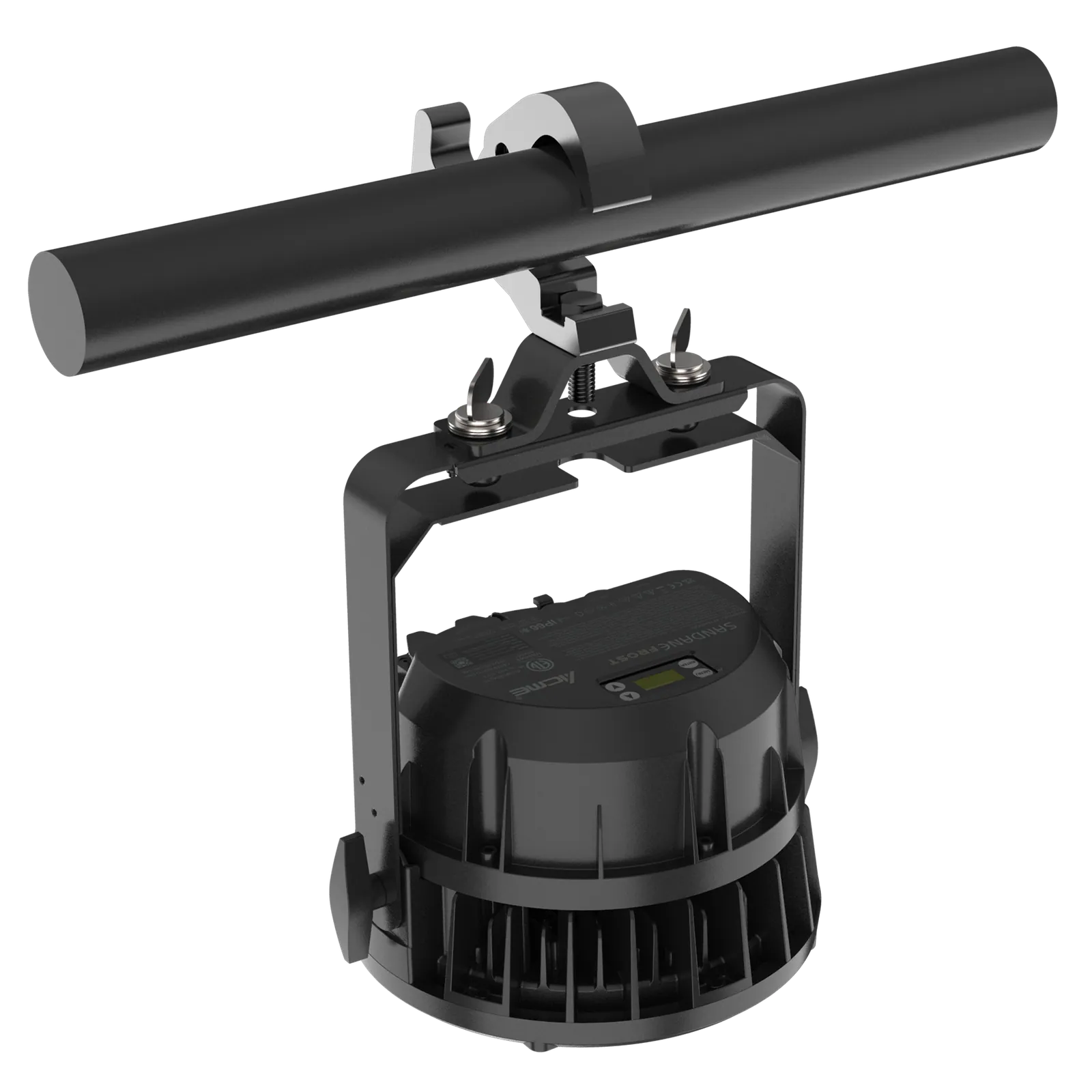

Sliding Adjustable Clamp Version
Width: 266 mm (10.5")
Depth: 170 mm (6.7")
Height: 350 mm (13.8")
Weight: 5.3 kg (11.7 lbs)

09Packing Information12

Flight Case Dimensions 1
Width: 1,220 mm (48")
Depth: 610 mm (24.0")
Height: 630 mm (24.8")
Weight
Standard: G.W.: 95.0 kg (209.4 lbs) (Eight-pack loader case)
Flight Case Dimensions 2
Width: 1,220 mm (48.0")
Depth: 610 mm (24.0")
Height: 630 mm (24.8")
Weight
North American Standard: G.W.: 104.2 kg (229.7 lbs) (Eight-pack loader case)
Carton Dimensions
Width: 405 mm (15.9")
Depth: 355 mm (14.0")
Height: 270 mm (10.6")
Weight
G.W.: 6.5 kg (14.3 lbs) (One-pack loader carton)

10Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: -10°C
Maximum Surface Temperature: 65°C
Protection Rating: IP66

11Approvals3

CE compliant

UKCA compliant

cETLus compliant

12Installation4

Horizontal or vertical mounting

Universal working position

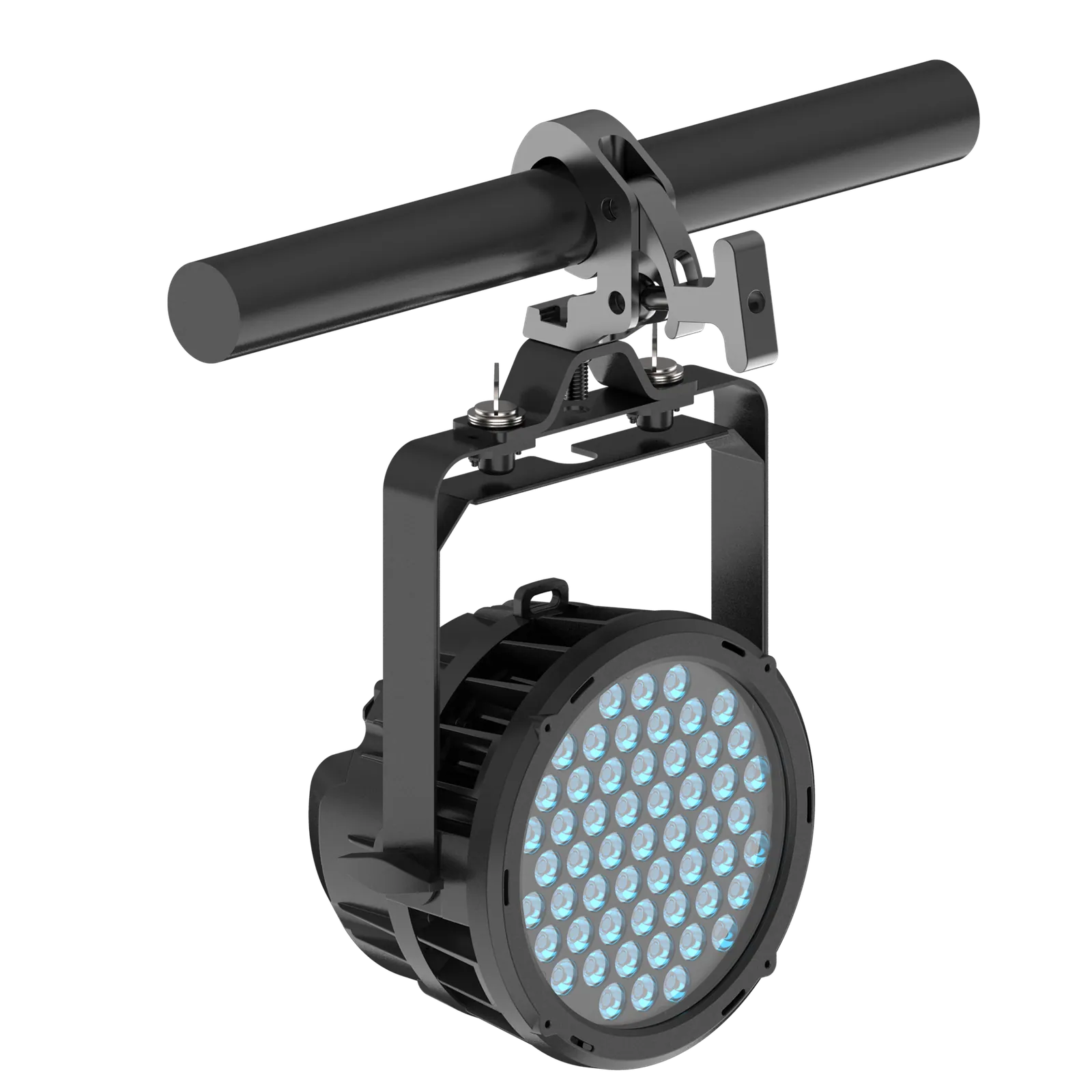

Dual mounting bracket (with omega bracket and clamp)

Safety cable attachment point

13Included Items3

Digital user manual

Power cable

Omega bracket (3002003002)

14Optional Accessories (With Order Code)8

Flight Case 1
Standard: Eight-pack loader case (63583570)
Flight Case 2
North American Standard: Eight-pack loader case (63583210)
Clamp: C-150B (2060001625-C)
Safety Cable: SW-02 (2060000200-B)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
Half Hat: 63582245 (black)
Top Hat: 63582244 (black)
Outdoors Barndoor: 63582720 (black)

03DescriptionManufacturer's description

What it is.

ACME SANDANE FROST is compact, lightweight, energy-efficient, and offers high light output. It features a dual mounting bracket design, providing various installation options. Equipped with 55 pcs 6W RGBL LED chips, it achieves exceptional color mixing effects. Additionally, it includes Electronic Frost function that can switch between different angles for hazy lighting effects. With IP66 protection rated, it is suitable for year-round outdoor use, making it ideal for outdoor open-air events.
