TORNADO
ModelTB 5 IP

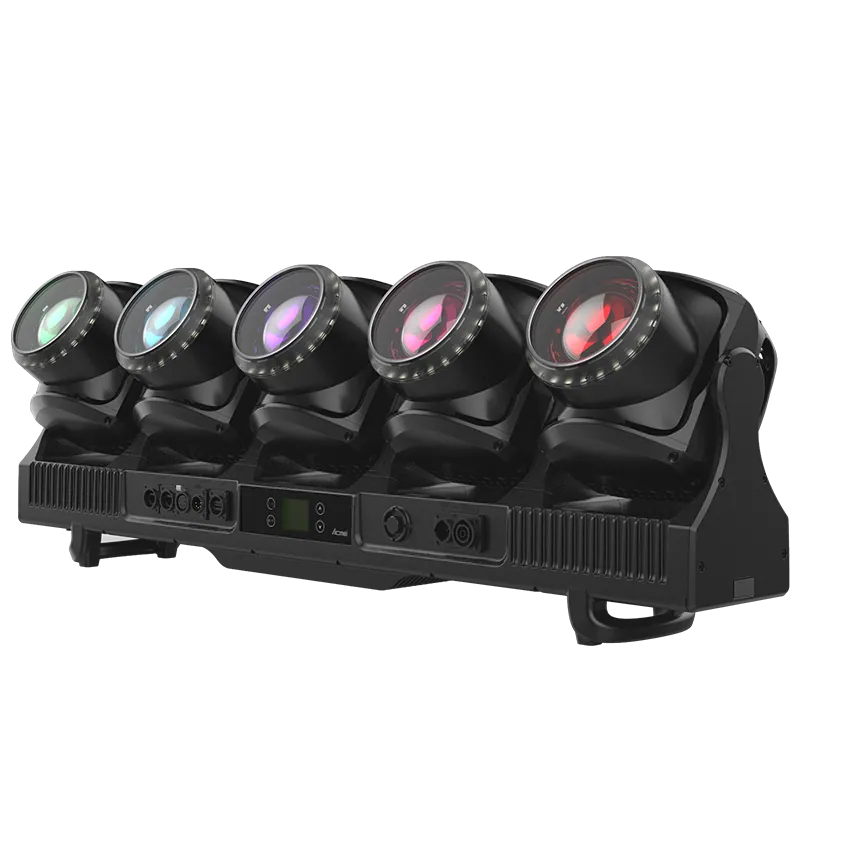

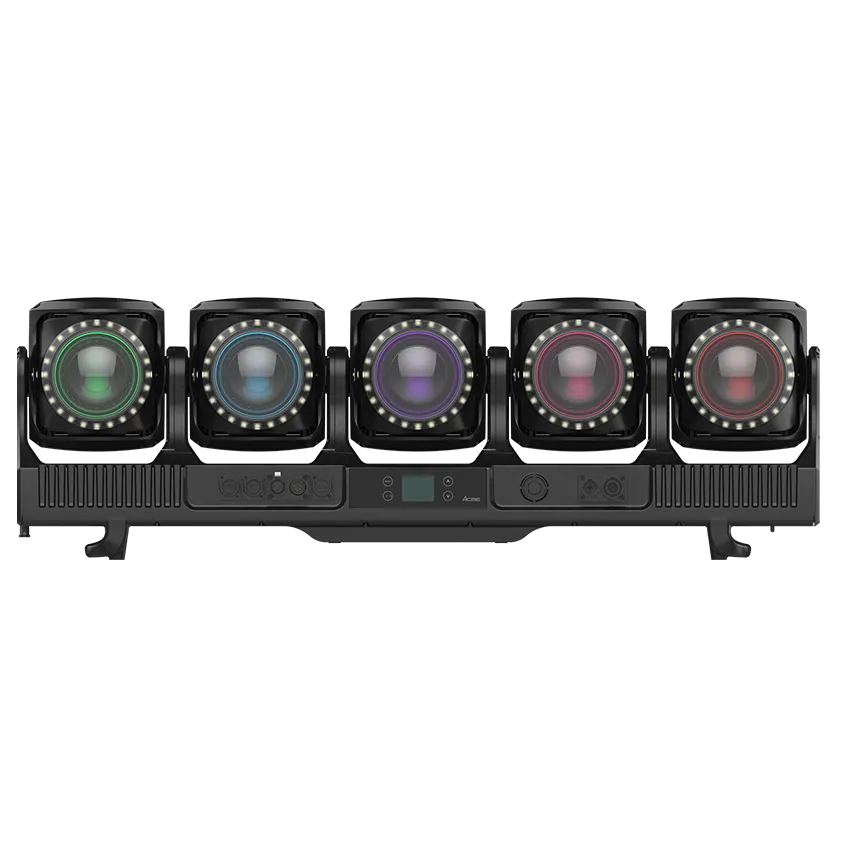

The ACME TORNADO with an innovative design and appearance designed to elevate your visual experiences to new heights.
- Light source
- 5 x 120W RGBL LEDs
- Power consumption
- 935W
- Power supply
- 100-240Vac; 50/60Hz
- Ingress protection
- IP66
- Beam angle / zoom
- 3°-30°
- DMX channels
- 41/71/75/85/170
- Protocols
- DMX512,RDM,Art-Net,sACN
- Net weight
- 30 kg (66.2 lbs)
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
TORNADOPrice on requestRequest a quotation
01VideoManufacturer's video · 1:54
ACME TORNADO: the manufacturer's video
02SpecificationManufacturer's data · 16 groups · 64 values
What this product is, in numbers.

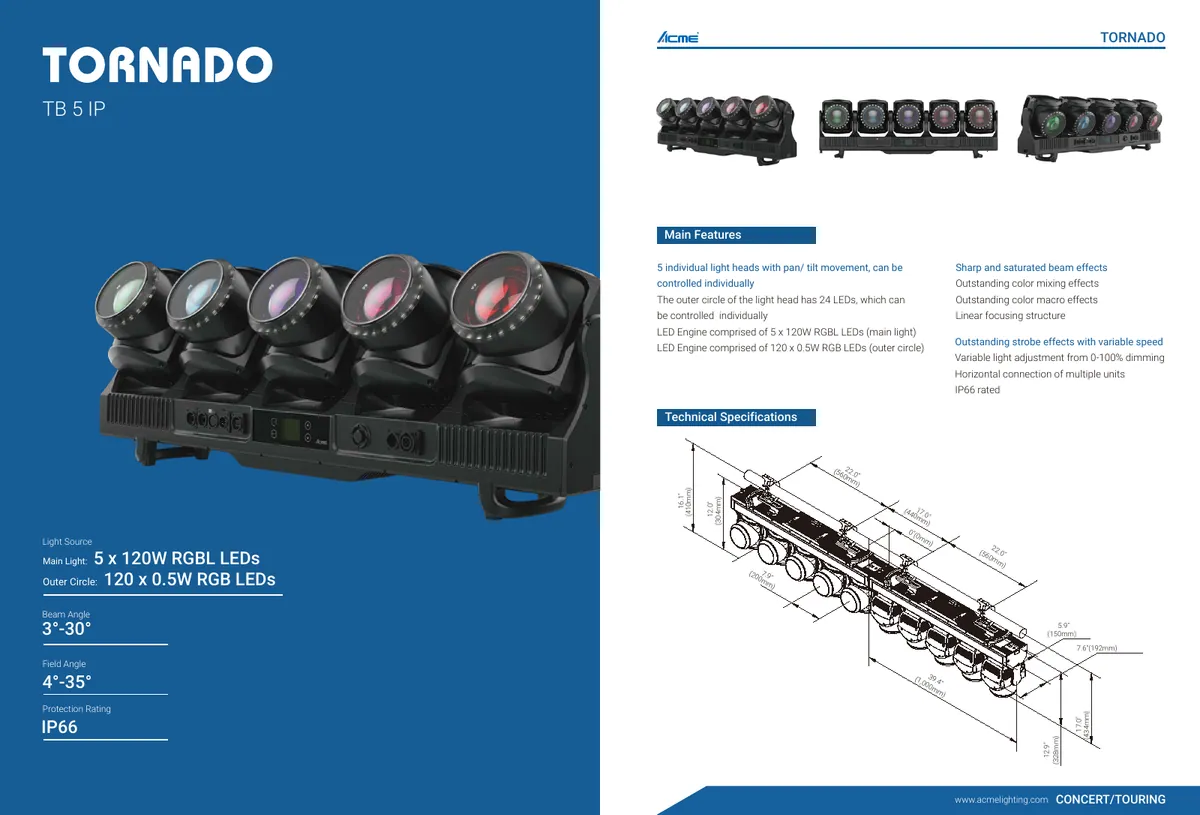

PDFDatasheetEN · 2 pages · 1.2 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Model2
- Model Name
- TORNADO
- Model Code
- TB 5 IP
02Light Source4
- Light Source
- Main Light
- 5 x 120W RGBL LEDs
- Outer Circle
- 120 x 0.5W RGB LEDs
- Light Source Rated Life
- 20,000 hours*
- *Source manufacturer specification
03Photometric Data1
- Total Lumen Output of Fixture
- 13,000 lumens
04Optical System2
- Beam Angle
- 3°-30°
- Field Angle
- 4°-35°
05Control6
- 4 touch button control panel
- Display
- LCD display
- Protocols
- DMX512,RDM,Art-Net,sACN
- DMX Protocol Modes
- 5
- Control Channels
- 41/71/75/85/170
- Firmware Upgrade
- Upgrade via DMX link or USB stick
06Pan & Tilt4
- Pan Movement
- 59°
- Tilt Movement
- 221°
- Automatic Pan/Tilt position correction
- Resolution
- 16 bit
Show the full specificationHide the rest of the specification10 more groups · 45 values
07Colors1
- Linear CTO Color Correction
- 2,500K-8,000K
08Other Effects8
- Outstanding strobe effect with variable speed
- Smooth dimming 0-100% (4 user selectable dimming curves)
- Outstanding color macro effects
- Outstanding color mixing
- 5 individual light heads with pan/ tilt movement, can be controlled individually
- The outer circle of the light head has 24 LEDs, which can be controlled individually
- Sharp and saturated beam effects
- Linear focusing structure
09Electrical and Connectors4
- Input Voltage Range
- 100-240Vac; 50/60Hz
- Power Consumption
- 935W
- Power In/Out
- Waterproof power connector in/out
- Data In/Out
- 3-pin or 5-pin waterproof XLR,RJ45 connector
10Physical Information4

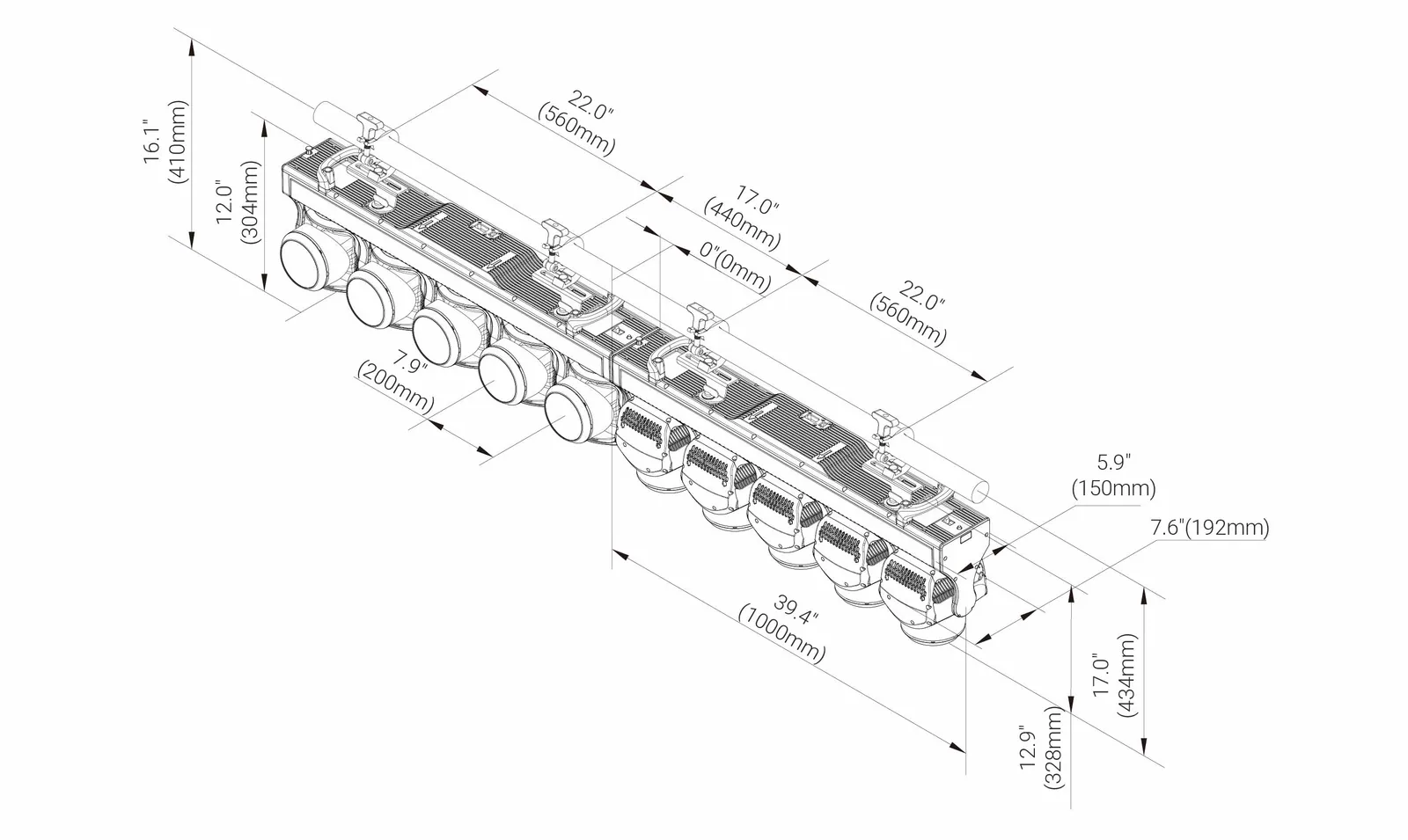

- Fixture Dimensions
- Width
- 1,000 mm (39.4")
- Depth
- 192 mm (7.5")
- Height
- 350 mm (13.7")
- Weight
- 30 kg (66.2 lbs)
11Packing Information9
- Flight Case Dimensions
- Width
- 1,220 mm (48.0")
- Depth
- 610 mm (24.0")
- Height
- 615 mm (24.2")
- Weight
- Standard
- G.W.: 115 kg (253.5 lbs) (two-pack loader case)
- North American Standard
- G.W.: 125.1 kg (275.8 lbs) (two-pack loader case)
- Carton Dimensions
- Width
- 1,120 mm (44.0")
- Depth
- 460 mm (17.7")
- Height
- 310 mm (12.2")
- Weight
- G.W.
- 35.5 kg (78.3 lbs) (one-pack loader carton)
12Work Environment4
- Maximum Ambient Temperature
- 40°C
- Minimum Operating Temperature
- -10°C
- Maximum Surface Temperature
- 75°C
- Protection Rating
- IP66
13Approvals3
- CE compliant
- UKCA compliant
- cETLus compliant

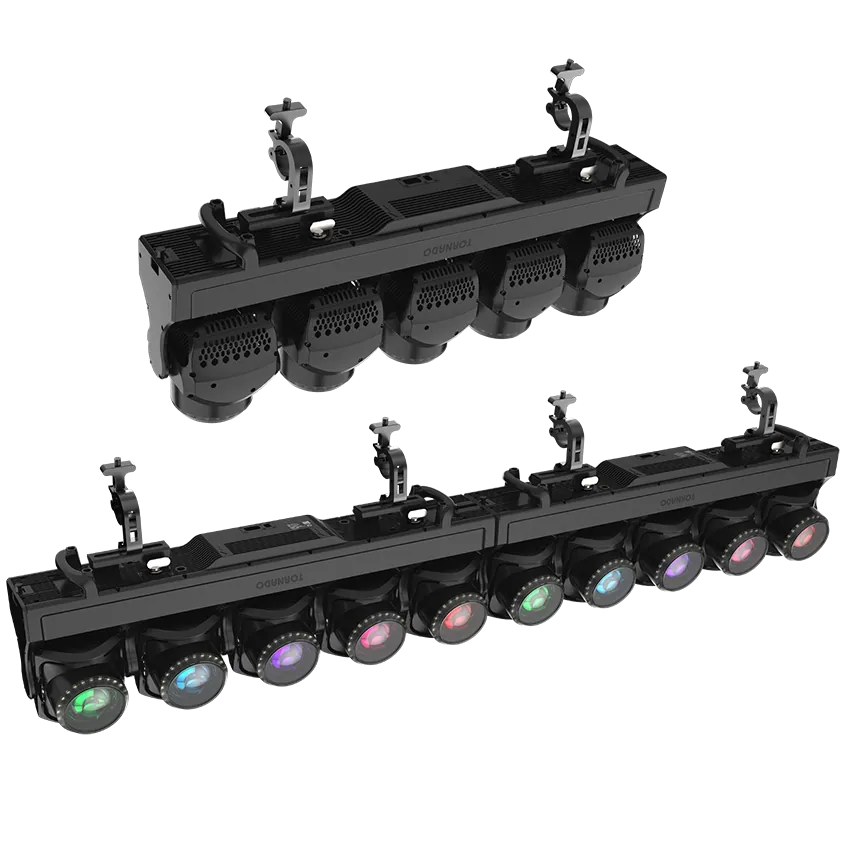

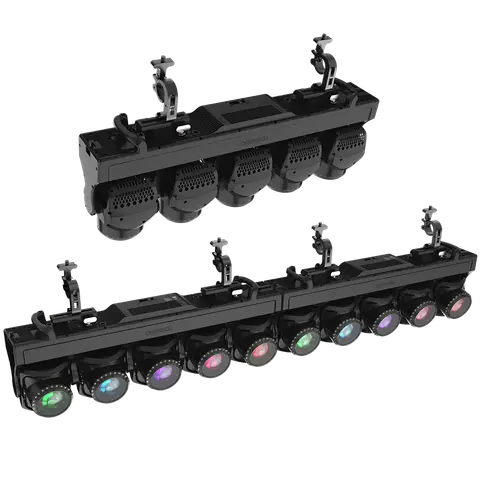

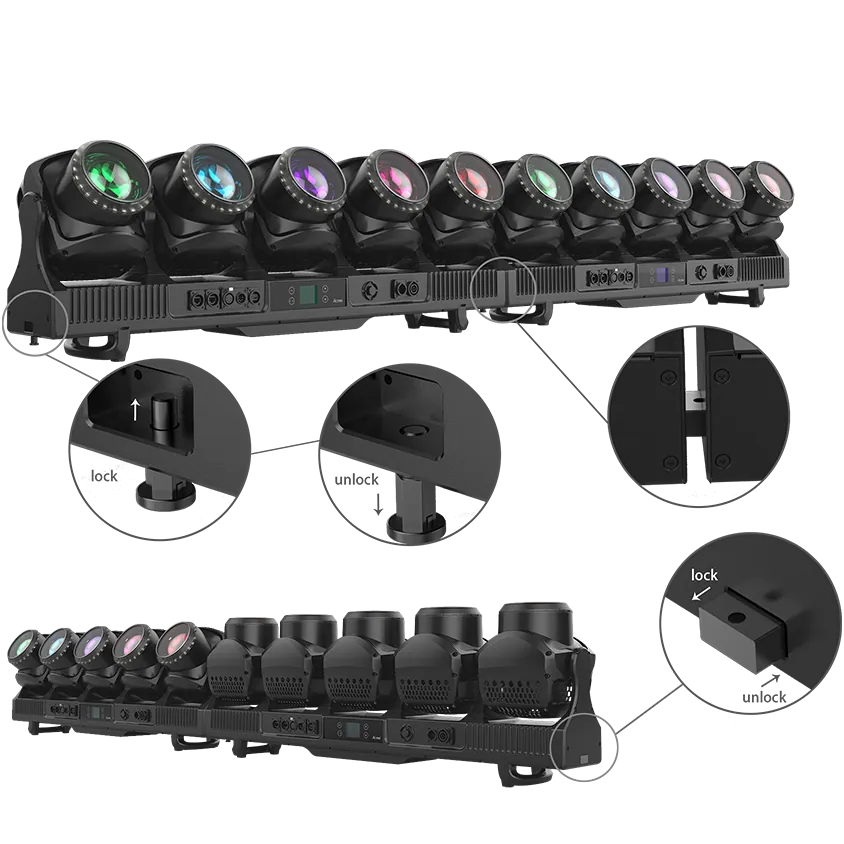

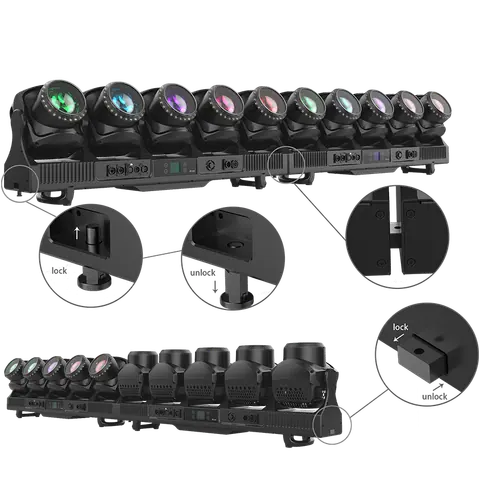

14Installation4
- Horizontal or vertical mounting
- Universal working position
- 2 omega brackets
- Safety cable attachment point
15Included Items3
- Digital user manual
- Power cable
- 2 omega brackets (63584127)
16Optional Accessories (With Order Code)5
- Flight Case
- Standard
- Two-pack loader case (63583548)
- North American Standard
- Two-pack loader case (63583455)
- Clamp
- C-250B (2060001632-B)
- Safety Cable
- SW-05 (2060001603-E)
- Signal Cable
- 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473),RJ45
03DescriptionManufacturer's description
What it is.

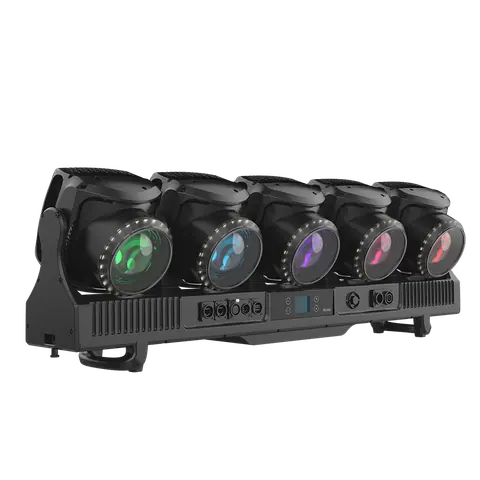

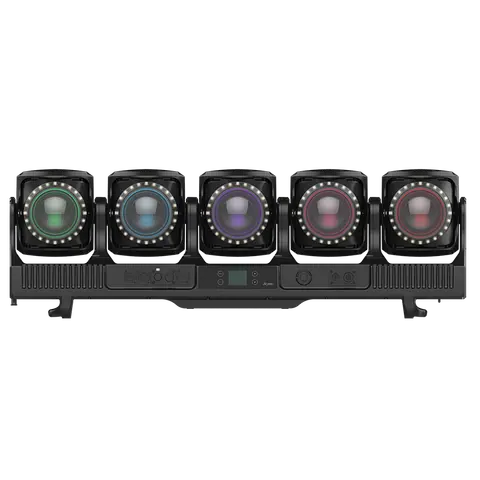

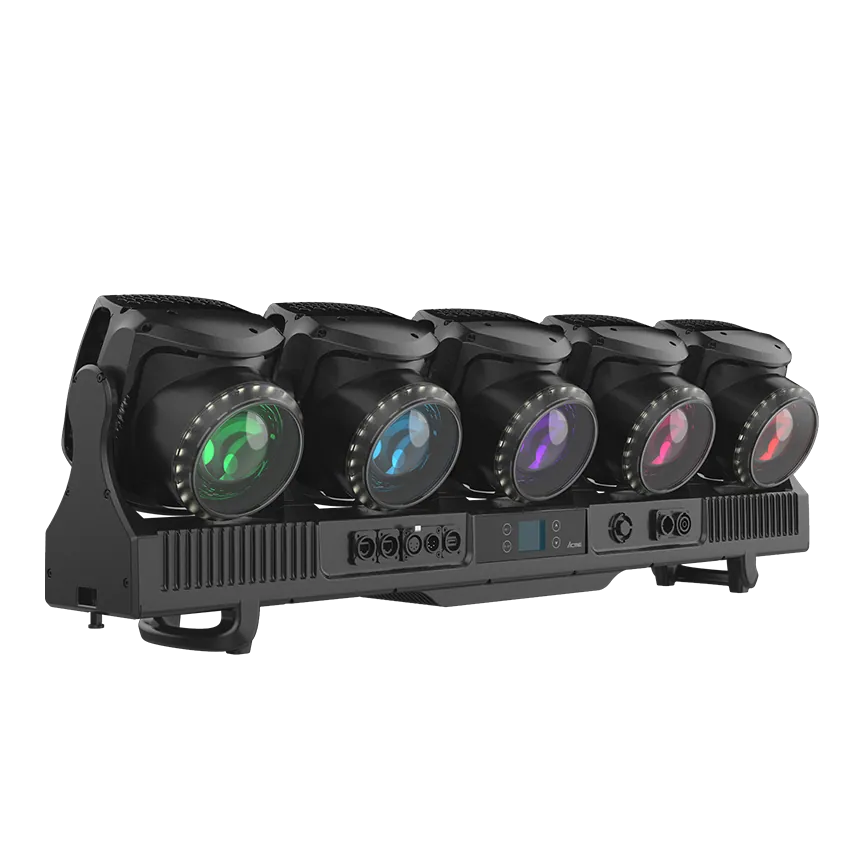

The ACME TORNADO with an innovative design and appearance designed to elevate your visual experiences to new heights. Boasting a powerful 5 x 120W RGBL LED as its main light source, complemented by a ring of 120 x 0.5W RGB LEDs encircling the fixture, it promises an unparalleled fusion of brilliance and versatility.

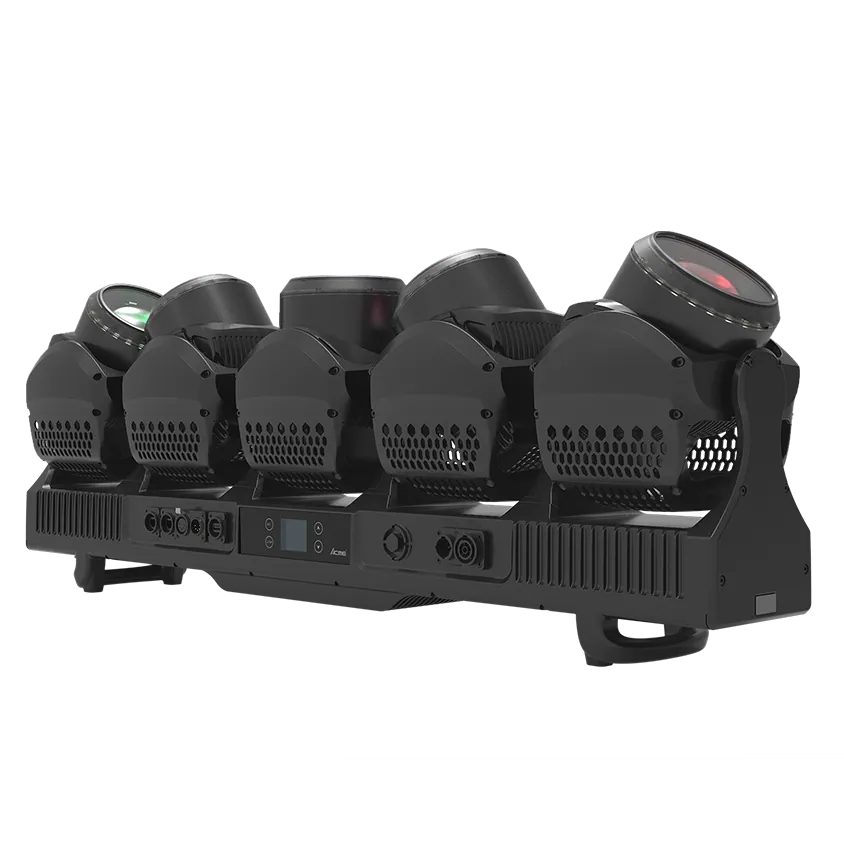

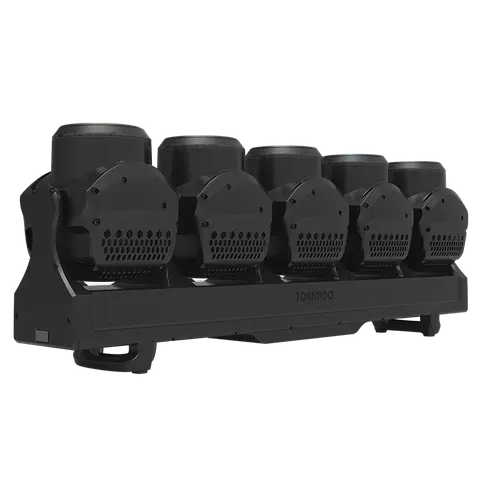

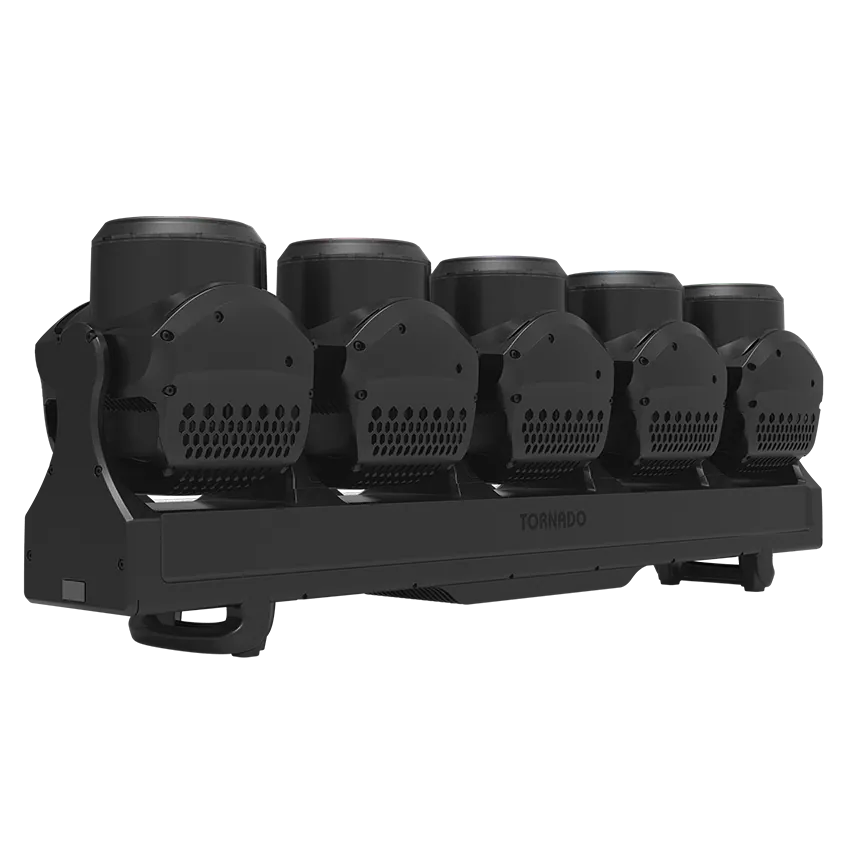

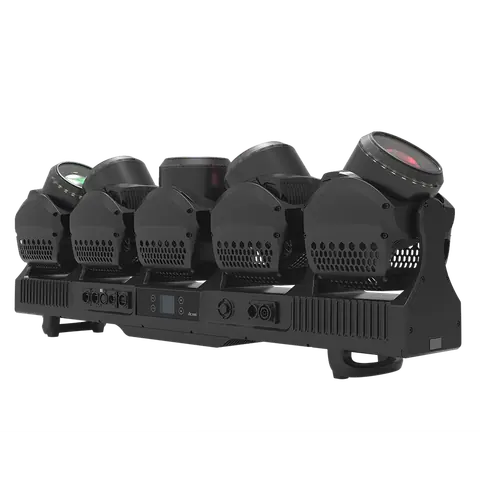

The fixture is equipped with five individual light heads featuring precise pan and tilt movements. Each head can be controlled independently, offering limitless possibilities for artistic exploration and creation.

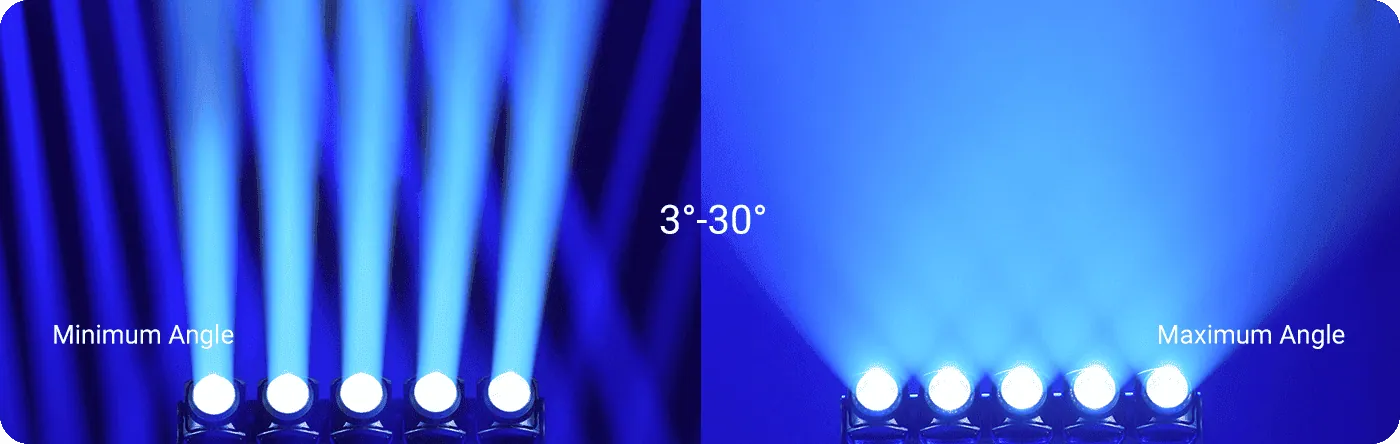

Experience the fast and smooth linear zoom from 3° to 30°, with a field angle of 4° to 35°. Witness the magic as it produces sharp, saturated beam effects, ensuring your visuals shine with unparalleled vibrancy and brightness.
With an all-weather IP66 rating, TORNADO is designed to withstand the elements, ensuring unwavering performance in any environment, whether indoors or outdoors.
04Documents13 files · 54 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
Datasheets and manuals02
