Sheet 05.958
ACME · Other fixtures

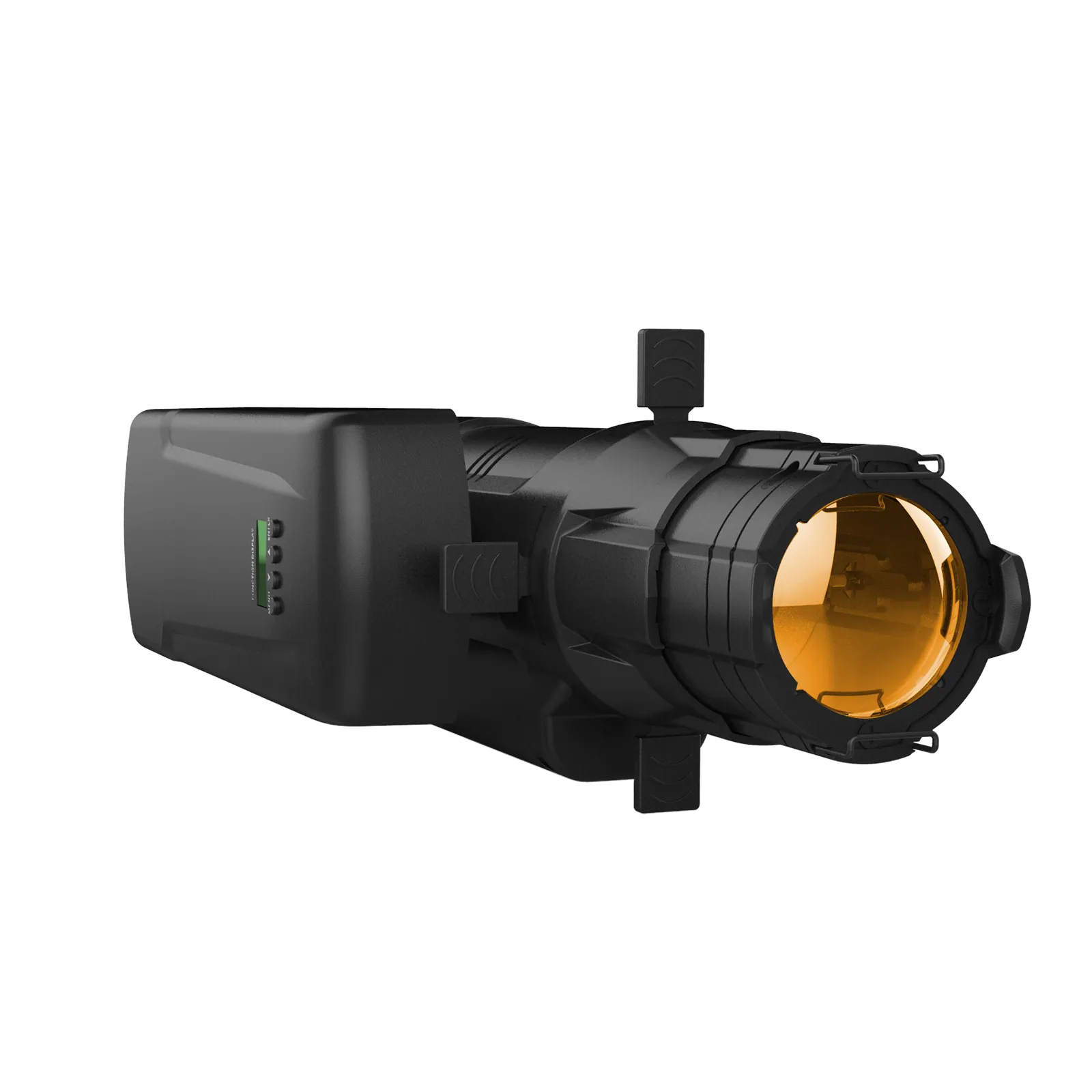

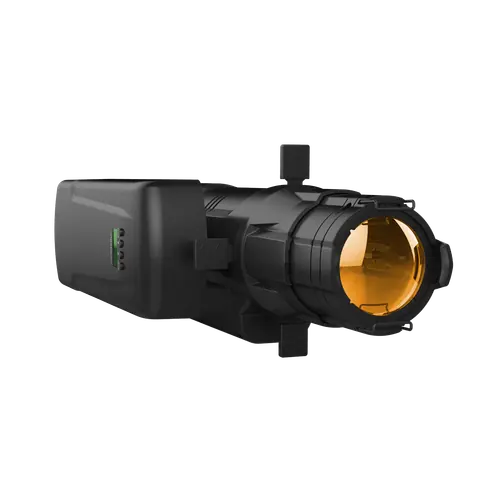

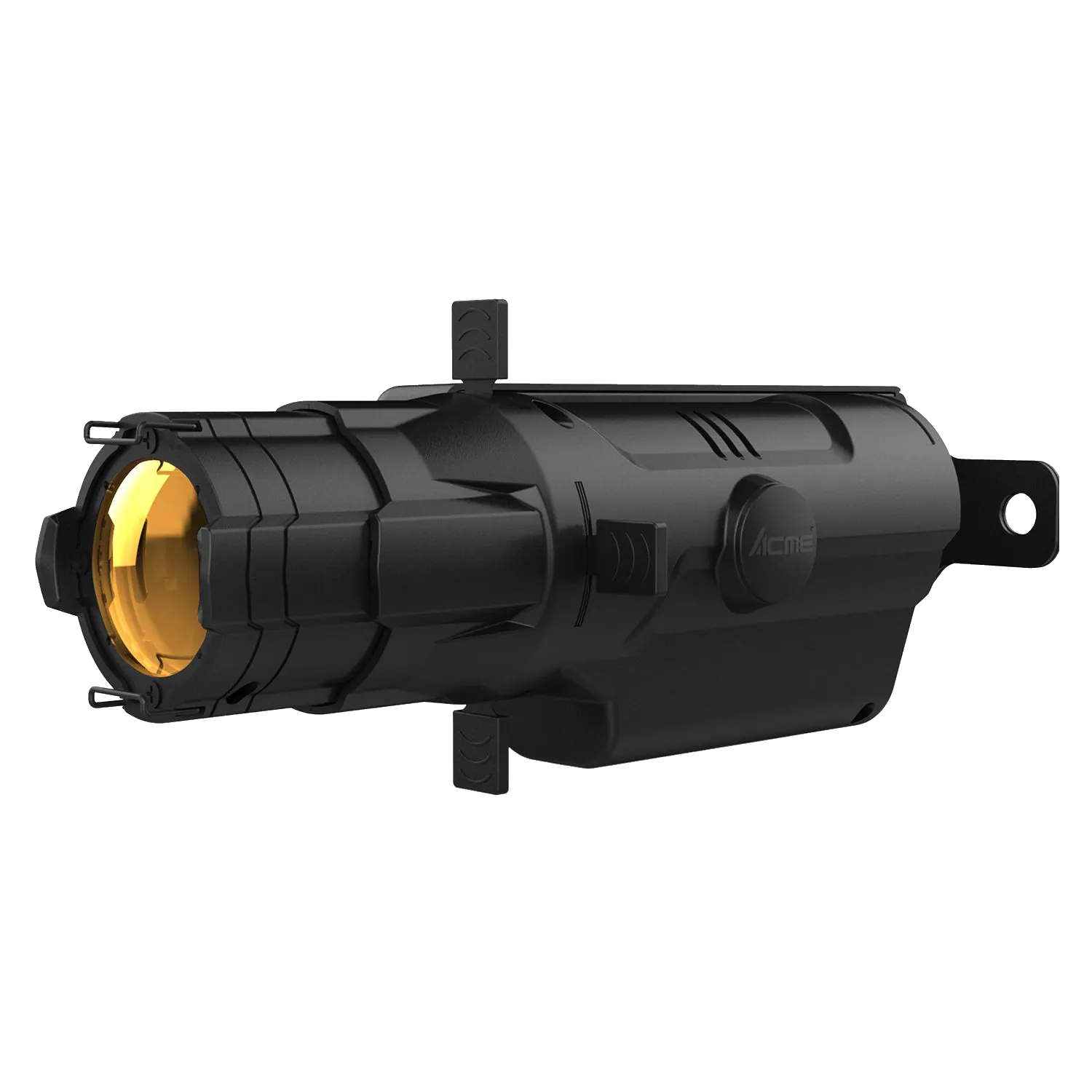

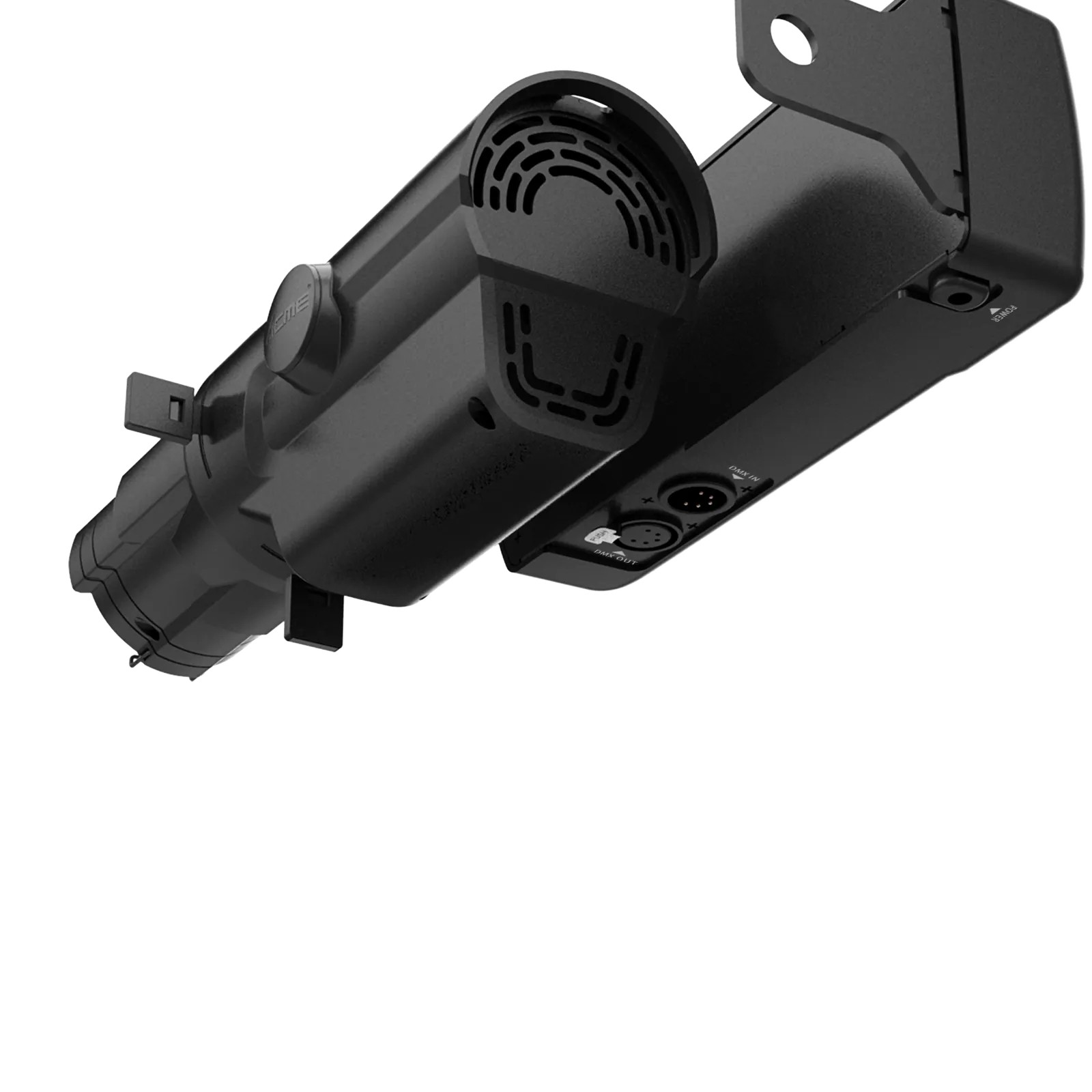

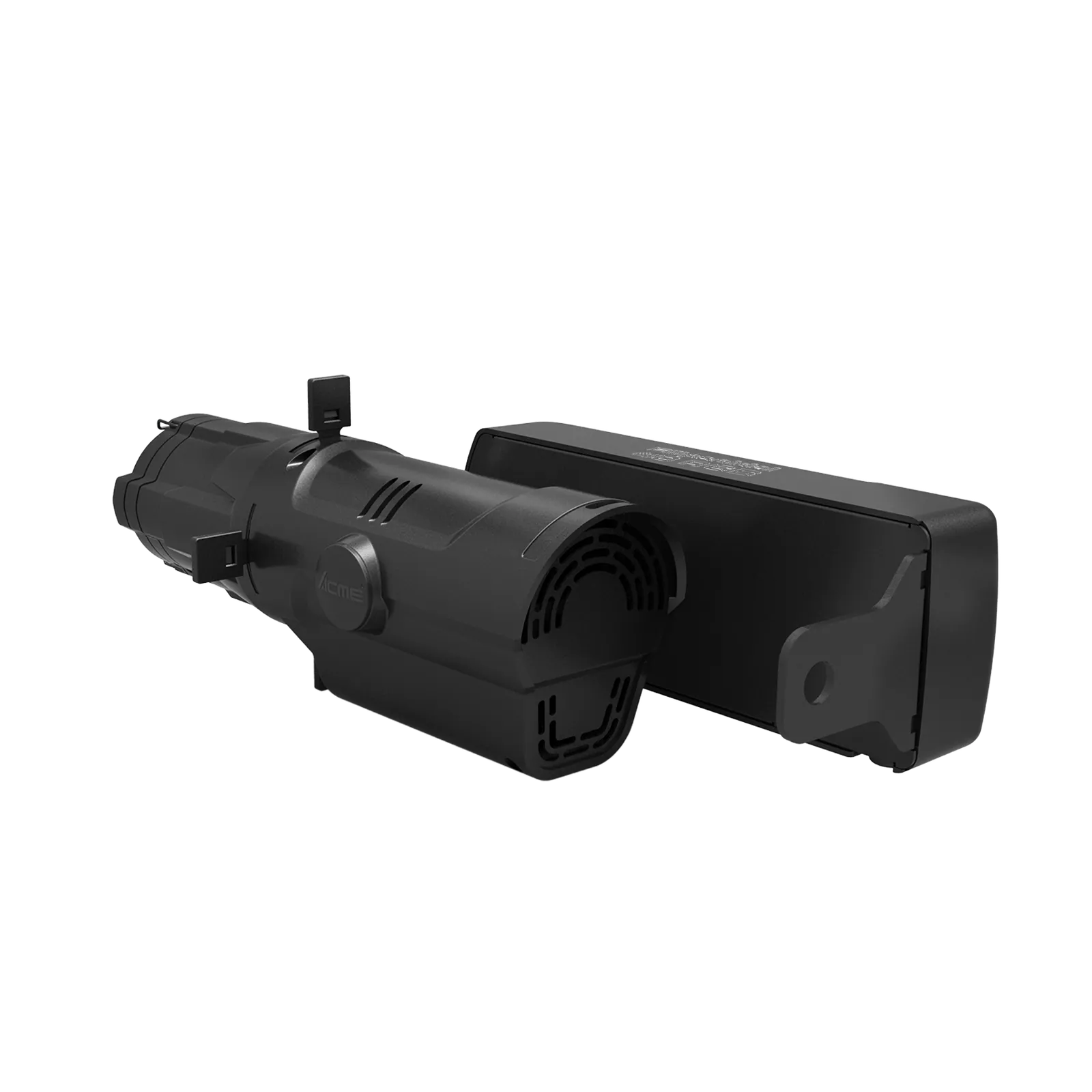

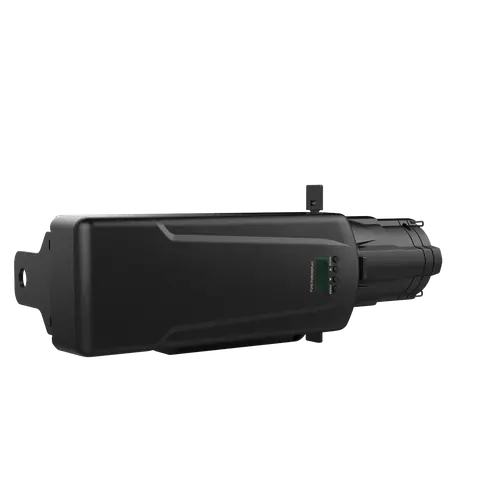

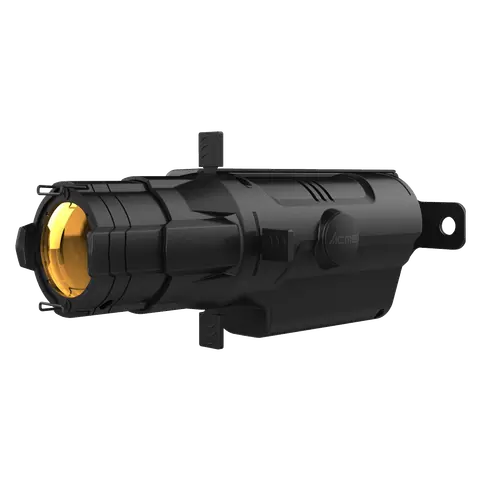

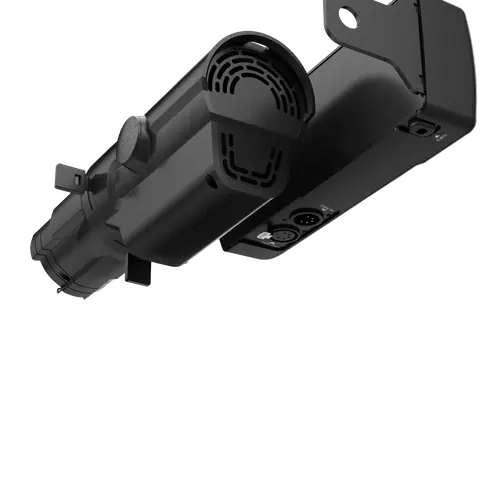

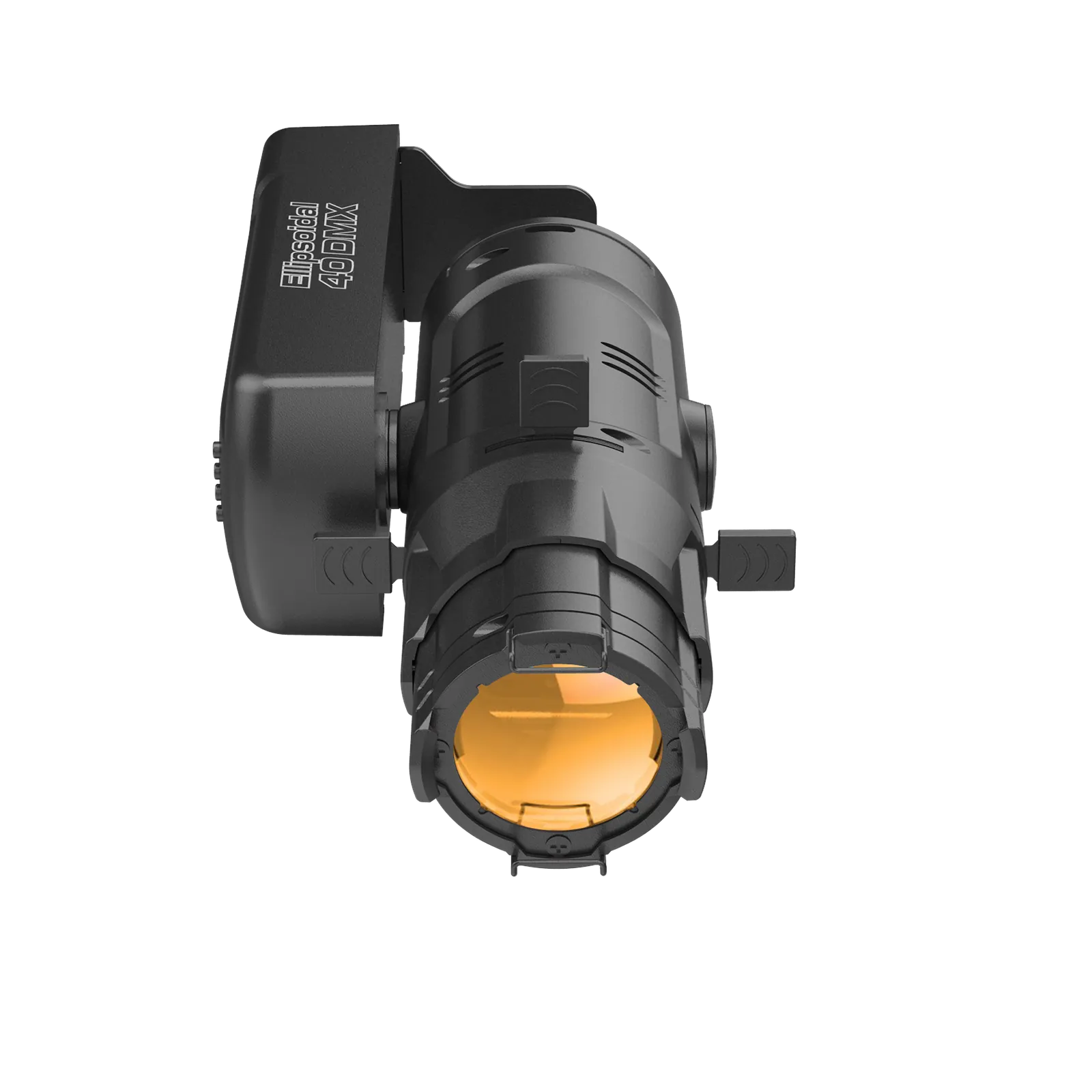

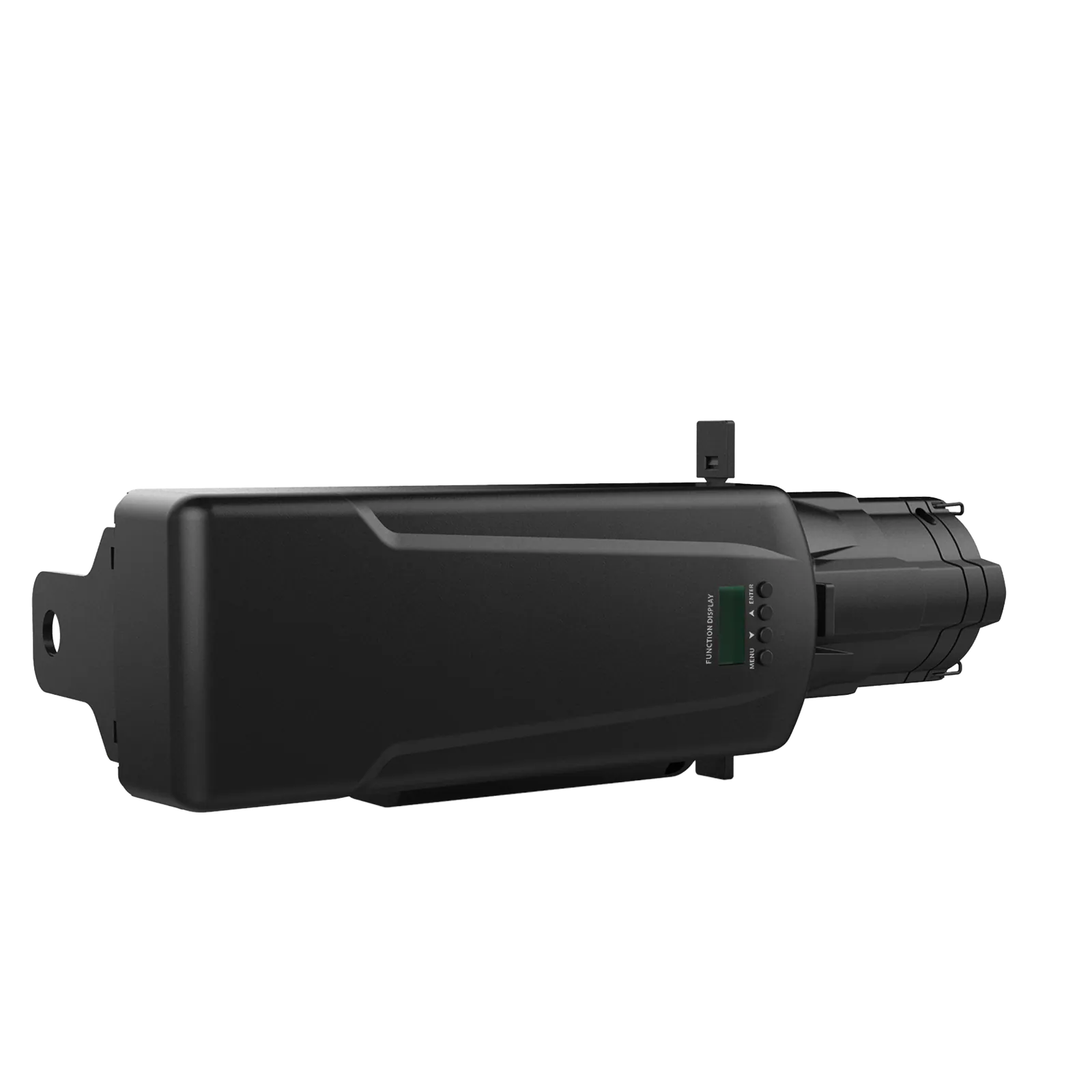

ELLIPSOIDAL 40 DMX WW
ModelE-40D WW
ELLIPSOIDAL 40 DMX series, is DMX version. Uniform light, sharp image edge, and self-locking focus lens.The product takes advantage of the heat pipe heat conduction and housing feature to dissipate heat without fan to prolong LED life.
- Light source
- 1 x 36W WW LED
- Power consumption
- 32W
- Power supply
- 100-240Vac; 50/60Hz
- Ingress protection
- IP20
- Beam angle / zoom
- 19°, 26°, 36°, 50°
- DMX channels
- 1/2
- Protocols
- DMX512,RDM
- Colour temperature
- 3,200K±150K
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
ELLIPSOIDAL 40 DMX WWPrice on requestRequest a quotation
01VideoManufacturer's video · 1:04
ACME ELLIPSOIDAL 40 DMX WW: the manufacturer's video
02SpecificationManufacturer's data · 13 groups · 40 values
What this product is, in numbers.

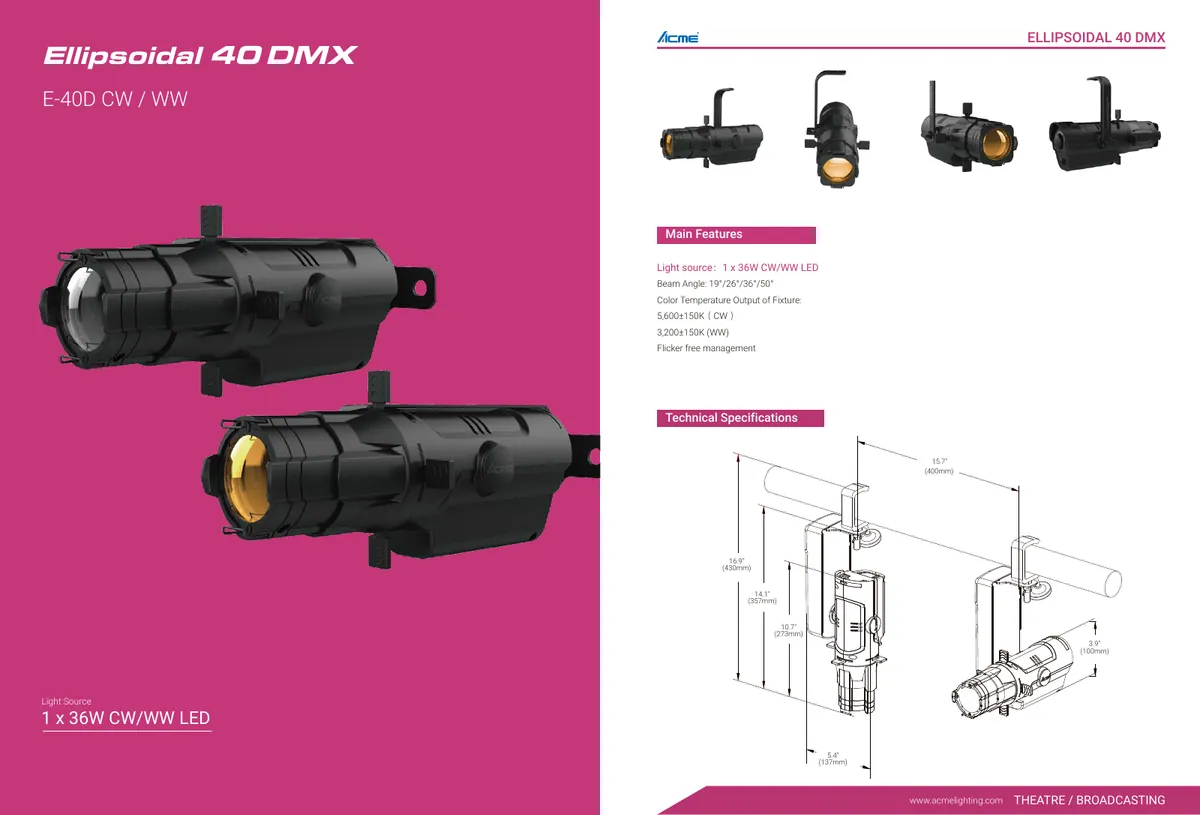

PDFDatasheetEN · 2 pages · 434 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Model2
- Model Name
- ELLIPSOIDAL 40 DMX WW
- Model Code
- E-40D WW
02Light Source4
- Light Source
- 1 x 36W WW LED
- Color Temperature Output of Fixture
- 3,200K±150K
- Light Source Rated Life
- 20,000 hours*
- *Source manufacturer specification
03Photometric Data1
- Color Rendering
- CRI≥95, CQS≥95, TLCI≥95
04Optical System1
- Beam Angle
- 19°, 26°, 36°, 50°
05Control6
- 4 touch button control panel
- Display
- LCD display
- Protocols
- DMX512,RDM
- DMX Protocol Modes
- 2
- Control Channels
- 1/2
- Firmware Upgrade
- Upgrade via DMX link
06Other Effects1
- Flicker-free management
Show the full specificationHide the rest of the specification7 more groups · 25 values
07Electrical and Connectors5
- Input Voltage Range
- 100-240Vac; 50/60Hz
- Power Consumption
- 32W
- Power In/Out
- Power wire
- Data In/Out
- 3-pin or 5-pin XLR
- Power supply with electronic auto-ranging
08Physical Information4
- Fixture Dimensions
- Width
- 158 mm (6.2")
- Depth
- 273 mm (10.7")
- Height
- 100 mm (3.9")
- Weight
- 2.0 kg (4.4 lbs)
09Work Environment4
- Maximum Ambient Temperature
- 40°C
- Minimum Operating Temperature
- 0°C
- Maximum Surface Temperature
- 65°C
- Protection Rating
- IP20
10Approvals1
- CE compliant
11Installation4
- Horizontal or vertical mounting
- Universal working position
- The feet support with 1 locking points
- Safety cable attachment point
12Included Items5
- Digital user manual
- Gel frame
- Gobo Slot
- Metal gobo
- Safety cable
13Optional Accessories (With Order Code)2
- Clamp
- C-01 (2060000300)
- Signal Cable
- 3-pin or 5-pin signal cable
