Sheet 05.609

Color Imagination · Beam

BEAM 231L

ModelSI-220L

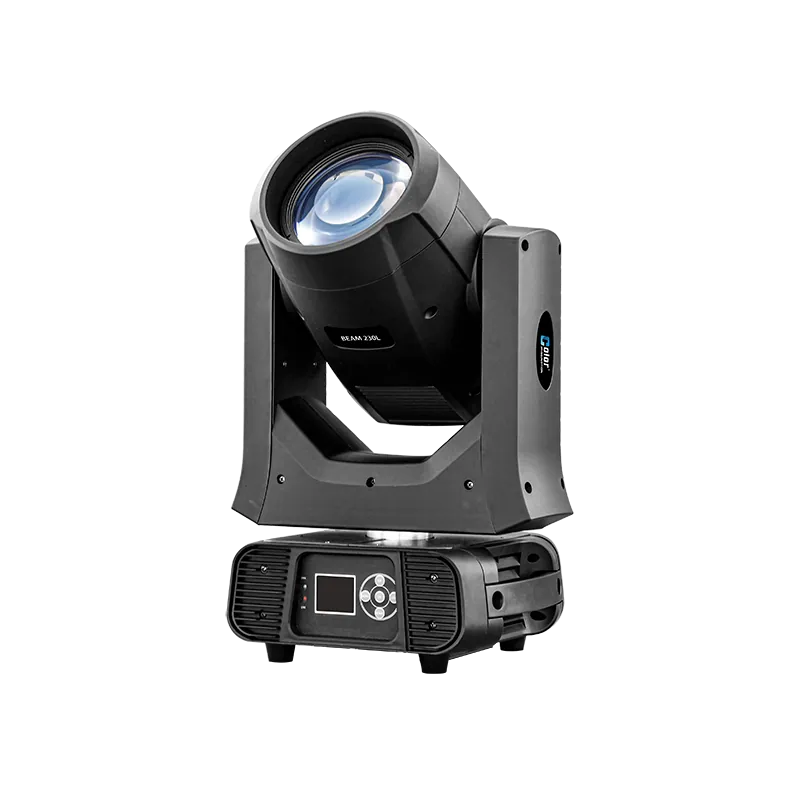

The BEAM 231L is a stylish moving head beam in a very compact and lightweight housing. It delivers high light output and even coverage field. It features an OSRAM SIRIUS HRI 231W Lamp.

Light source: OSRAM SIRIUS HRI 231W lamp
Power consumption: 430W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP20 protection rating
Net weight: 12kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video on YouTube

Color Imagination BEAM 231LOpen on YouTube

02SpecificationManufacturer's data · 21 groups · 92 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source11

Source: OSRAM SIRIUS HRI 231W lamp
Color Temperature: 7900K; 10800lm (source), 6480lm(fixture)
CRI: ≥78; Flicker free operation; for broadcast TV and FILM
Life Span: 2000H; The life span may vary depending on
several following factors but not limited to: Environmental Conditions,; Power/Voltage, Usage Patterns; (On-Off Cycling), Control, etc.

02Optics4

A set of high resolution and precise optics

Anti-reflection 116mm front lens

2.5°Beam angle

Smooth and linear electric focus

03Movement9

PAN movement: 540°(8/16 bit)
TILT movement: 270°(8/16 bit); Fast, quiet, smooth; and precise 2-Phase motors; Smooth, fast and precise resolution; for PAN/TILT movement with; low noise operation; Scan position memory, auto reposition; after unexpected movement

04Color System5

1 Color wheel with 14 dichroic colors plus

open (half-way color mode available)

Variable direction

rainbow effect with speed adjustable

Color time controllable

Show the full specificationHide the rest of the specification17 more groups · 63 values

05Gobo System3

1 Static gobo wheel with

17 gobos plus open

Gobo time controllable

06Prism System2

8+16-Facet prism

with variable speed and direction

07Strobe Effect2

0-20Hz high speed shutter/strobe effect

with variable speed

08Dimming System1

Smooth linear mechanichal dimming

09Control System9

16/20 DMX channels USITT DMX-512

DMX512, master-slave,

sound activated or auto operation

Sound sensitivity adjustable

RDM available

(Remote Device Management)

Shielded input signal protection for stable

signal without interference

3-Pin XLR connectors IN/OUT

10Wash System2

Frost filer system (Hybrid effect for wash)

Even and soft coverage

11Preset Program1

Auto programs

12Display System4

1.8" High resolution TFT LCD display

4 Control buttons

180°Reversible for LCD display

Display auto OFF

13Cooling System5

Efficient low noise self adjusting fan

cooling system

Constant temperature readout and

management function

Over temperature protection management

14Power Supply6

Electronic ballast: OSRAM PT SIRIUS 280W-Unishape; Electronic power supply; AC100-240V 50/60Hz; PowerCON connectors IN; with fuse and switch; 430W Power consumption

15Housing5

Moulded fire proof ABS PC; Skeleton made of; aluminum and steel metal plates; Two side handles on base
Exterior finish: Black

16Installation3

2*1/4 turn fastening Omega Clamps

(Adaptable vertically and horizontally)

1*Safety attachment point

17Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25?? to 45?? ambient temperature; IP20 protection rating

18Compliance7

2014/35/EU - Safety of electrical

equipment supplied at low voltage (LVD)

2014/30/EU -

Electromagnetic Compatibility (EMC)

2011/65/EU - Restriction of the use of

certain hazardous substances (RoHS)

19Weight2

N.W.: 12kg
G.W.: 14.3kg

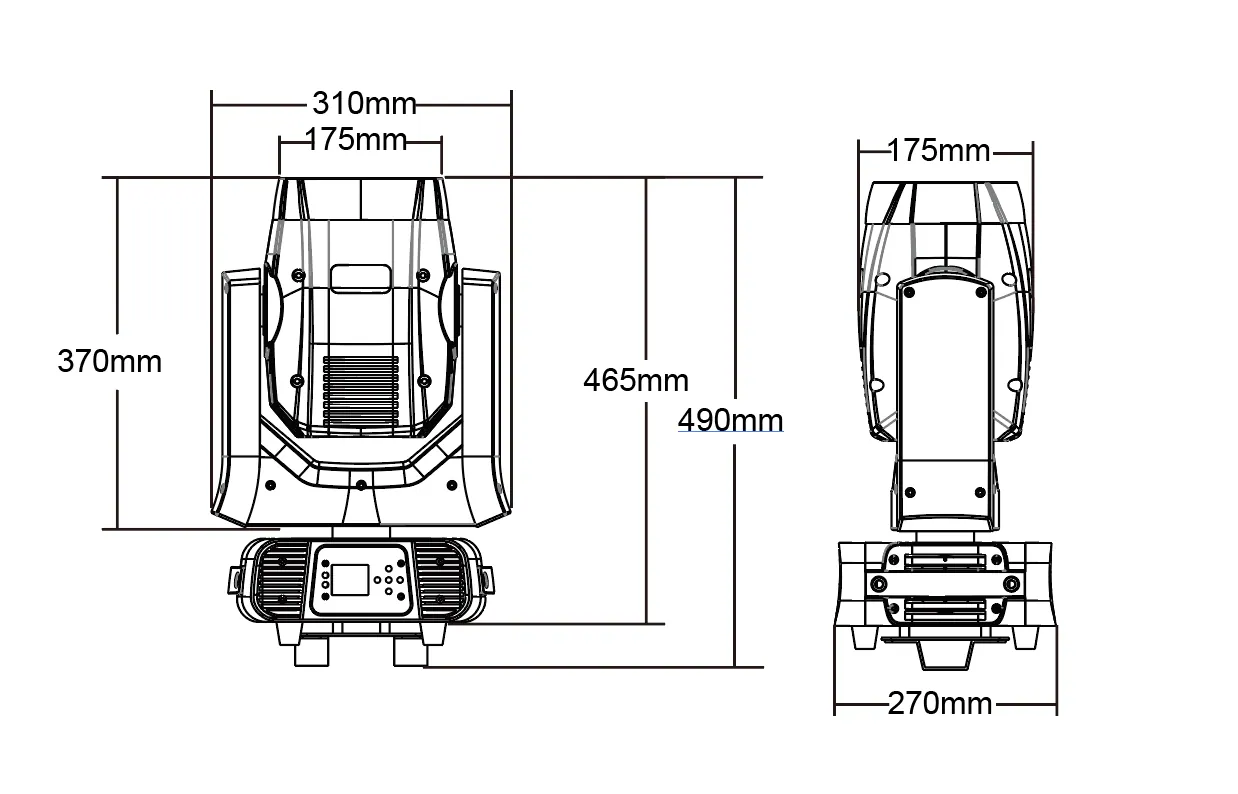

20Dimensions2

Product Dimensions: 235(D)*316.8(W)*519(H)mm
Packing Dimensions: 360(D)*365(W)*520(H)mm

21Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Omega STANDARD code: QTY: 2PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

03DescriptionManufacturer's description

What it is.

BEAM 231L

The BEAM 231L is a stylish moving head beam in a very compact and lightweight housing. It delivers high light output and even coverage field. It features an OSRAM SIRIUS HRI 231W Lamp. The lamp equips with the reflector built-in, providing perfect lamp alignment. The moving head features ultra sharp beam effect with low consumption. The fixture is integrated with a full complement of professional characteristics including a static gobo wheel, color wheel, 8+16-Facet prism, frost filter, motorized linear focus, variable speed shutter/strobe, linear dimmer, color time and gobo time controllable. The fixture supports DMX, RDM(Remote Device Management).

The fixture’s exterior housing is beautifully balanced basing on a modern design philosophy with supremely harmonious interior structure for remarkable control. The sculpted body of the BEAM 231L achieves more than just a striking look. The 2*1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy.It’s applicable for large scale live concerts, TV productions, road shows, clubs, etc.
