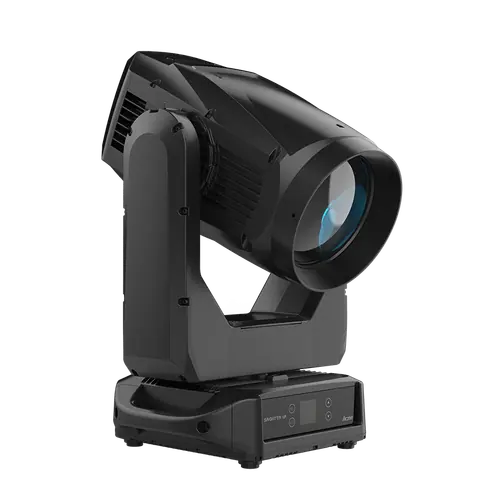

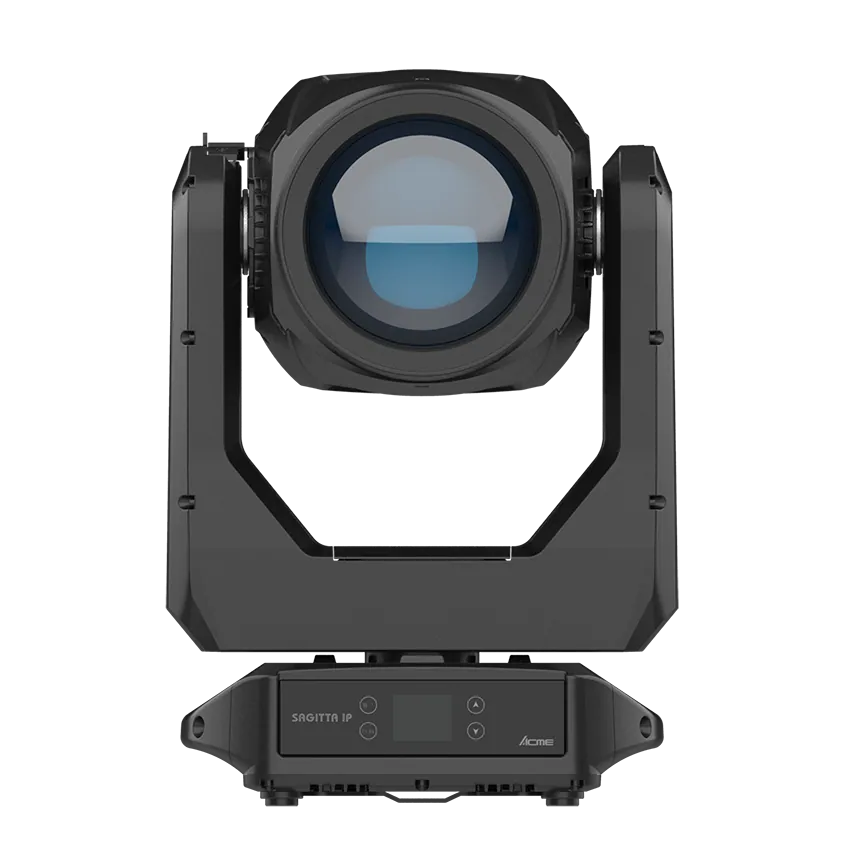

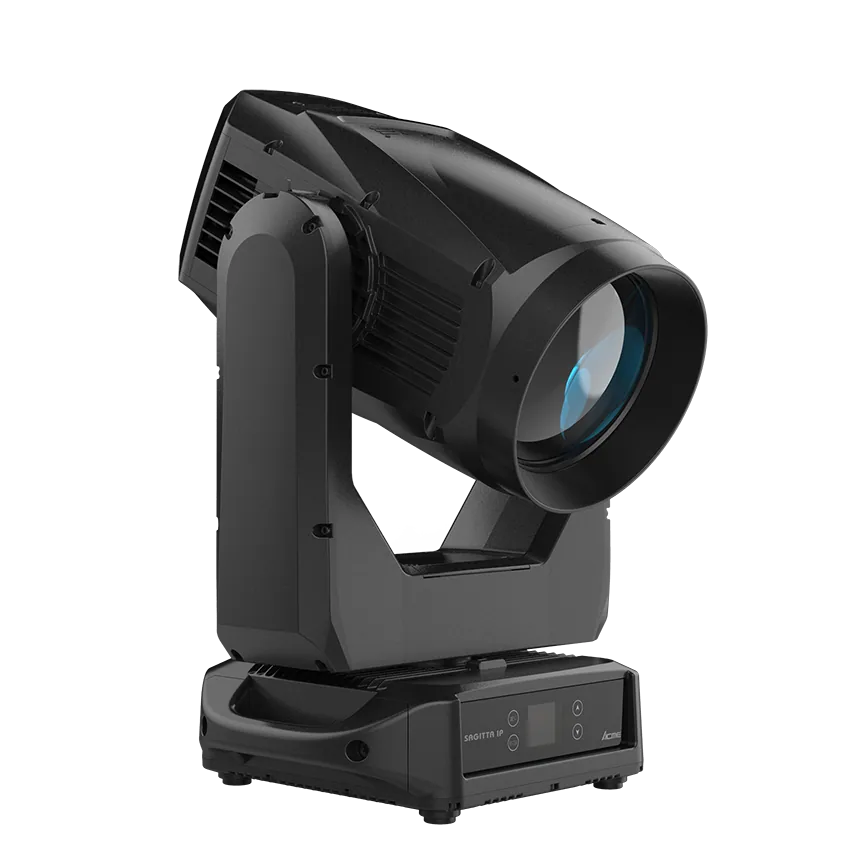

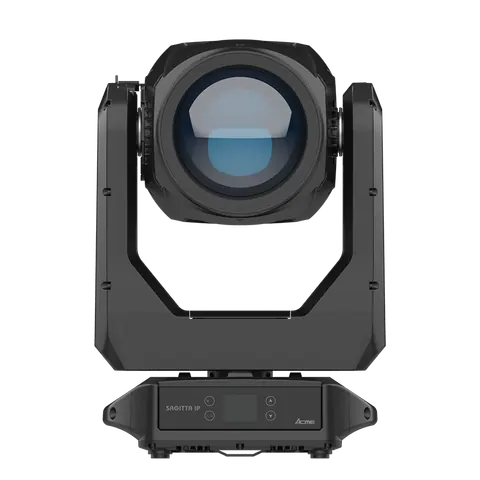

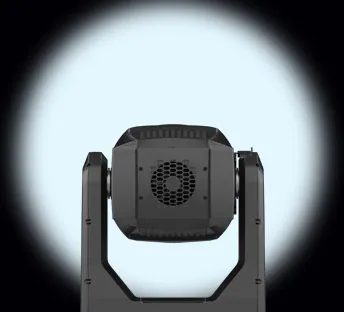

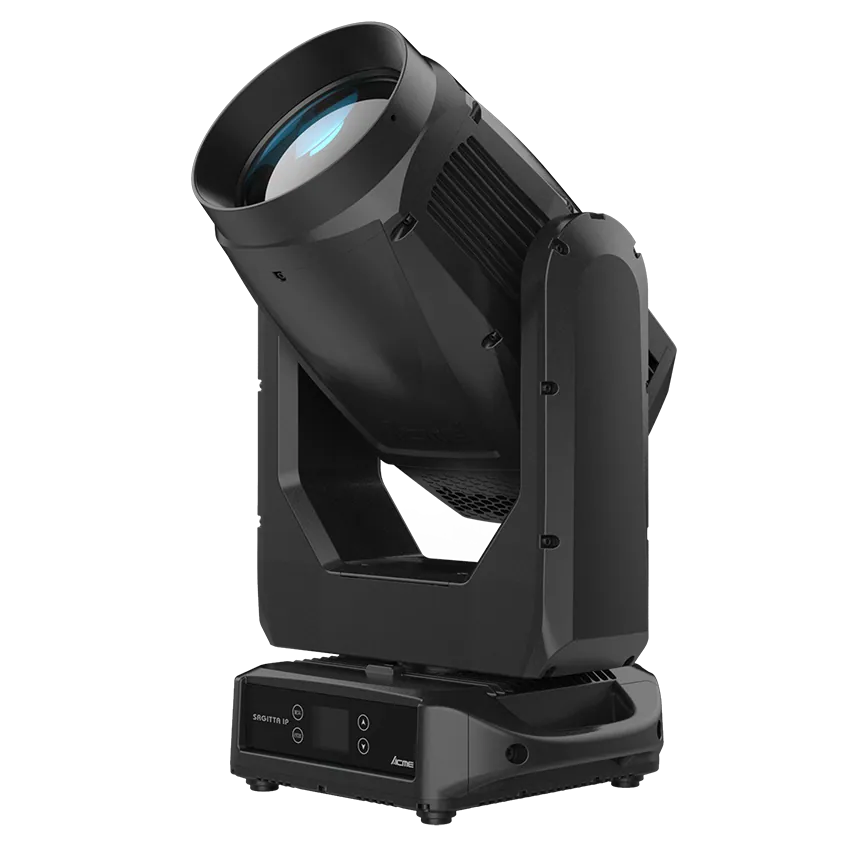

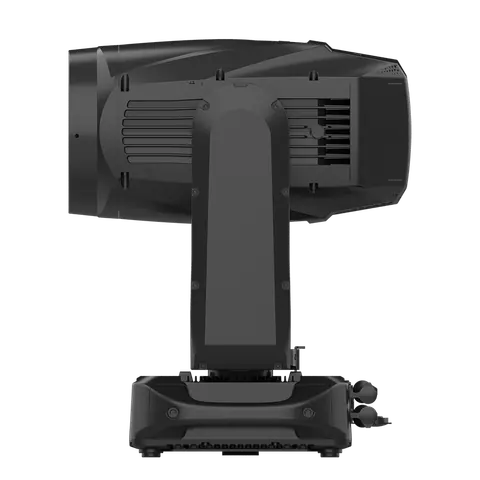

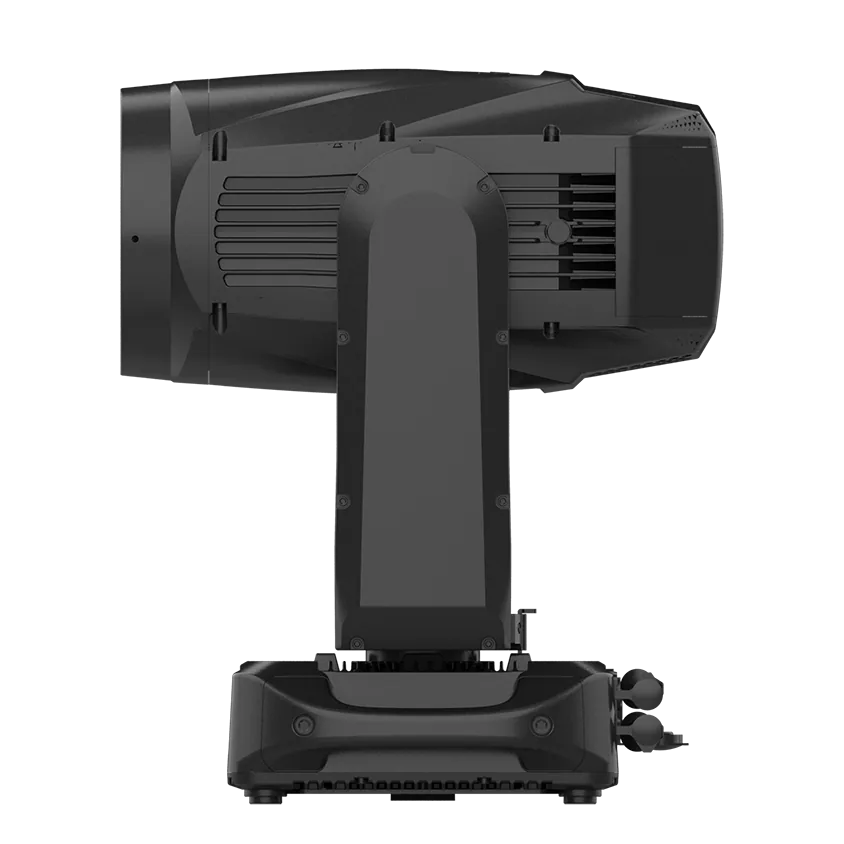

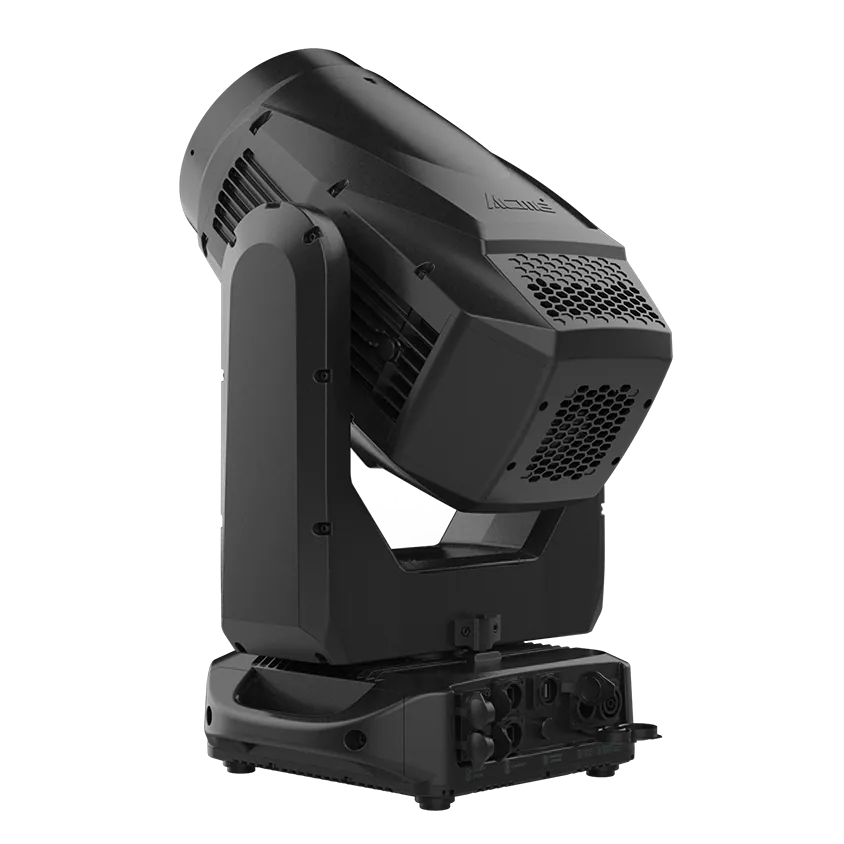

ModelXP 400 BEAM IP
The ACME SAGITTA IP utilizes a PHILIPS MSD Platinum 18R LL discharge lamp (up to 6,000-hour long life expectancy), which produces brilliant 9,900 lumens of output at a color temperature of 7,800K.
- Light source
- PHILIPS MSD Platinum 18R LL
- Power consumption
- 570W
- Power supply
- 100-240Vac; 50/60Hz
- Ingress protection
- IP66
- Beam angle / zoom
- 2°
- DMX channels
- 16/19/20
- Protocols
- DMX512,RDM,Art-Net,sACN
- Colour temperature
- 7,800K
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
SAGITTA IPPrice on requestRequest a quotation
01SpecificationManufacturer's data · 21 groups · 65 values
What this product is, in numbers.

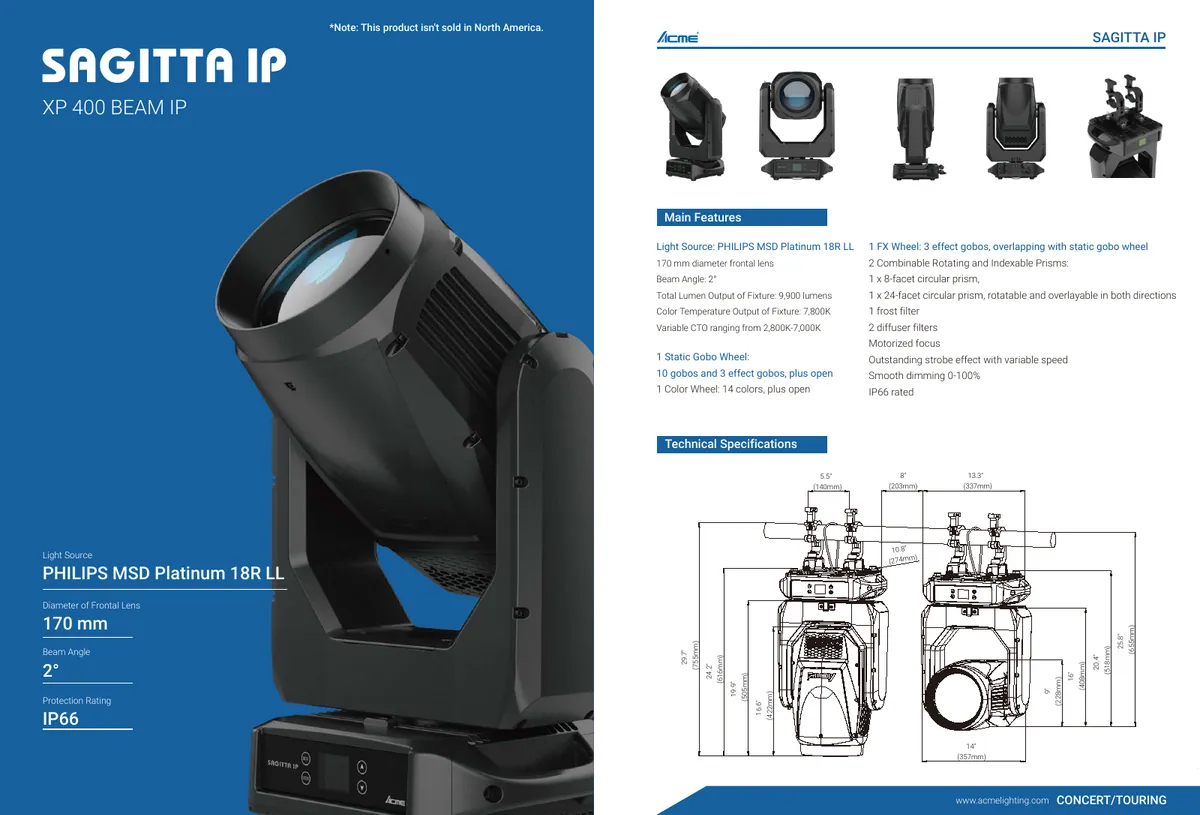

PDFDatasheetEN · 2 pages · 757 KB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Model2
- Model Name
- SAGITTA IP
- Model Code
- XP 400 BEAM IP
02Light Source4
- Light Source
- PHILIPS MSD Platinum 18R LL
- Color Temperature Output of Fixture
- 7,800K
- Light Source Rated Life
- 6,000 hours*
- *Source manufacturer specification
03Photometric Data1
- Total Lumen Output of Fixture
- 9,900 lumens
04Optical System2

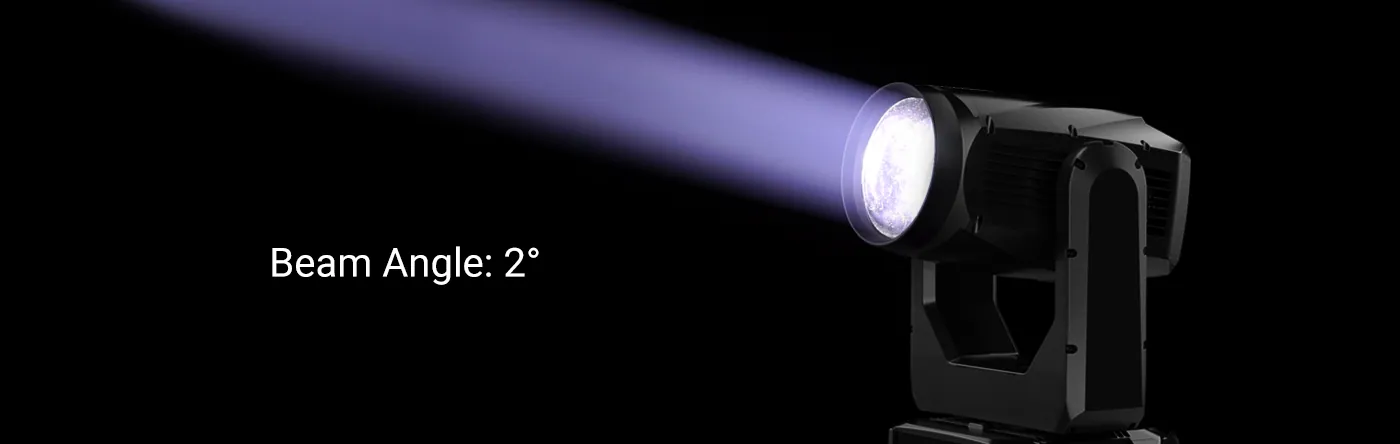

- Beam Angle
- 2°
- Diameter of Frontal Lens
- 170 mm
05Control6
- 4 touch button control panel
- Display
- LCD display
- Protocols
- DMX512,RDM,Art-Net,sACN
- DMX Protocol Modes
- 3
- Control Channels
- 16/19/20
- Firmware Upgrade
- Upgrade via DMX link or USB stick
06Pan & Tilt4
- Pan Movement
- 540°
- Tilt Movement
- 270°
- Automatic Pan/Tilt position correction
- Resolution
- 16 bit
Show the full specificationHide the rest of the specification15 more groups · 46 values
07Colors2
- Linear CTO Color Correction
- 2,800K-7,000K
- 1 Color Wheel
- 14 colors, plus open
08Static Gobos2
- 1 Static Gobo Wheel
- 10 gobos and 3 effect gobos, plus open
- Gobo
- Ø110 mm
09FX Wheel3
- 1 FX Wheel
- 3 effect gobos, plus open, overlapping with static gobo wheel
- Provide two softening effects
- Gobo
- Ø110 mm
10Prism1
- 2 Combinable Rotating and Indexable Prisms
- 1 x 8-facet circular prism, 1 x 24-facet linear prism, rotatable in both directions
11Frost Filter1
- 1 frost filter
12Diffuser Filter1
- 2 diffuser filters
13Other Effects3
- Outstanding strobe effect with variable speed
- Smooth dimming 0-100% (4 user selectable dimming curves)
- Motorized focus system
14Electrical and Connectors4
- Input Voltage Range
- 100-240Vac; 50/60Hz
- Power Consumption
- 570W
- Power In/Out

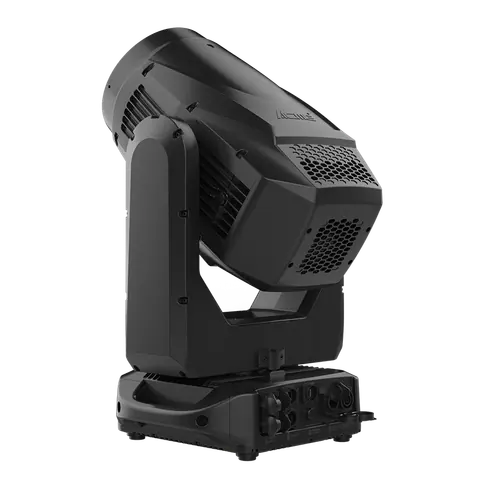

- Waterproof power connector in/out
- Data In/Out
- 3-pin or 5-pin waterproof XLR,RJ45 connector
15Physical Information4
- Fixture Dimensions
- Width
- 357 mm (14.1")
- Depth
- 274 mm (10.8")
- Height
- 616 mm (24.3")
- Weight
- 24 kg (53 lbs)
16Packing Information8
- Flight Case Dimensions
- Width
- 930 mm (36.6")
- Depth
- 580 mm (22.8")
- Height
- 875 mm (34.5")
- Weight
- Standard
- G.W.: 105 kg (231.5 lbs) (two-pack loader case)
- Carton Dimensions
- Width
- 550 mm (21.7")
- Depth
- 475 mm (18.7")
- Height
- 645 mm (25.4")
- Weight
- G.W.
- 30 kg (66.1 lbs) (one-pack loader carton)
17Work Environment4
- Maximum Ambient Temperature
- 40°C
- Minimum Operating Temperature
- -10°C
- Maximum Surface Temperature
- 85°C
- Protection Rating
- IP66
18Approvals2
- CE compliant
- UKCA compliant
19Installation4
- Horizontal or vertical mounting
- Universal working position

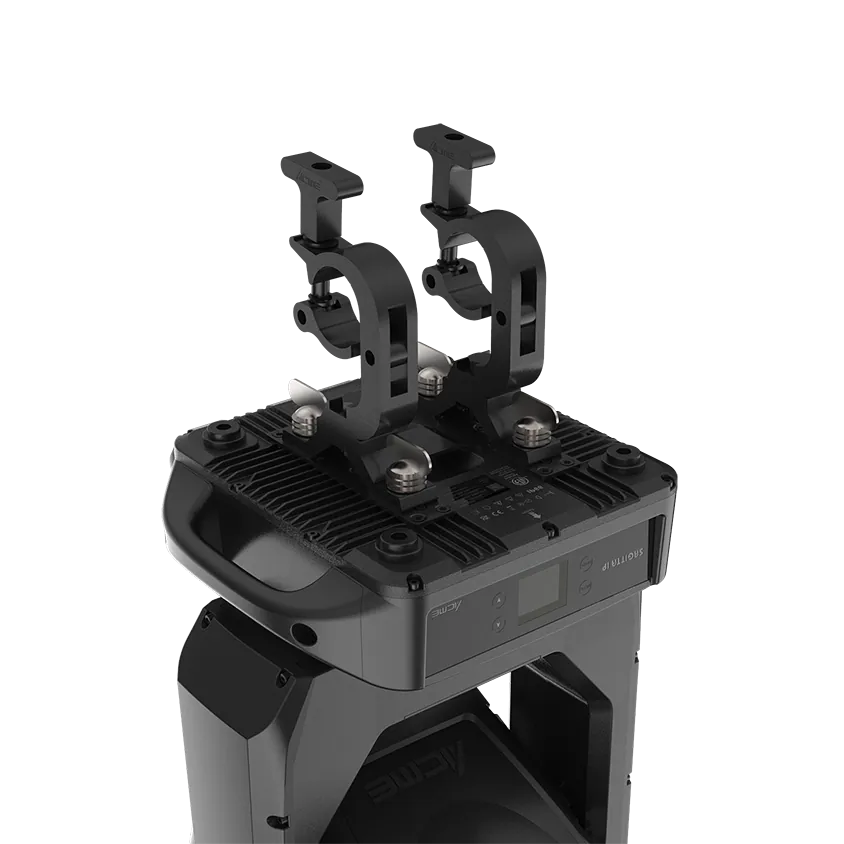

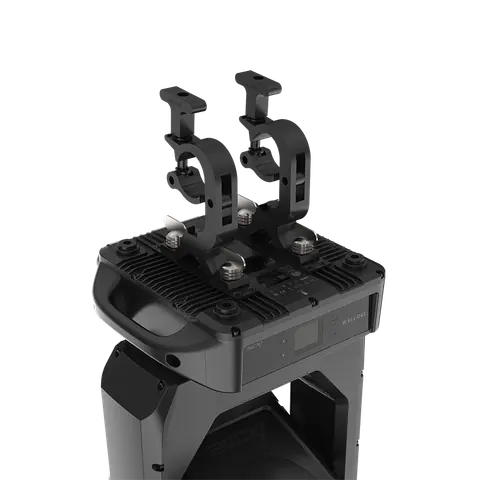

- 2 omega brackets
- Safety cable attachment point
20Included Items3
- Digital user manual
- Power cable
- 2 omega brackets (3002003003)
21Optional Accessories (With Order Code)4
- Flight Case
- Standard
- Two-pack loader case (63583707)
- Clamp
- C-250B (2060001632-B)
- Safety Cable
- SW-02 (2060000200-B)
- Signal Cable
- 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)
