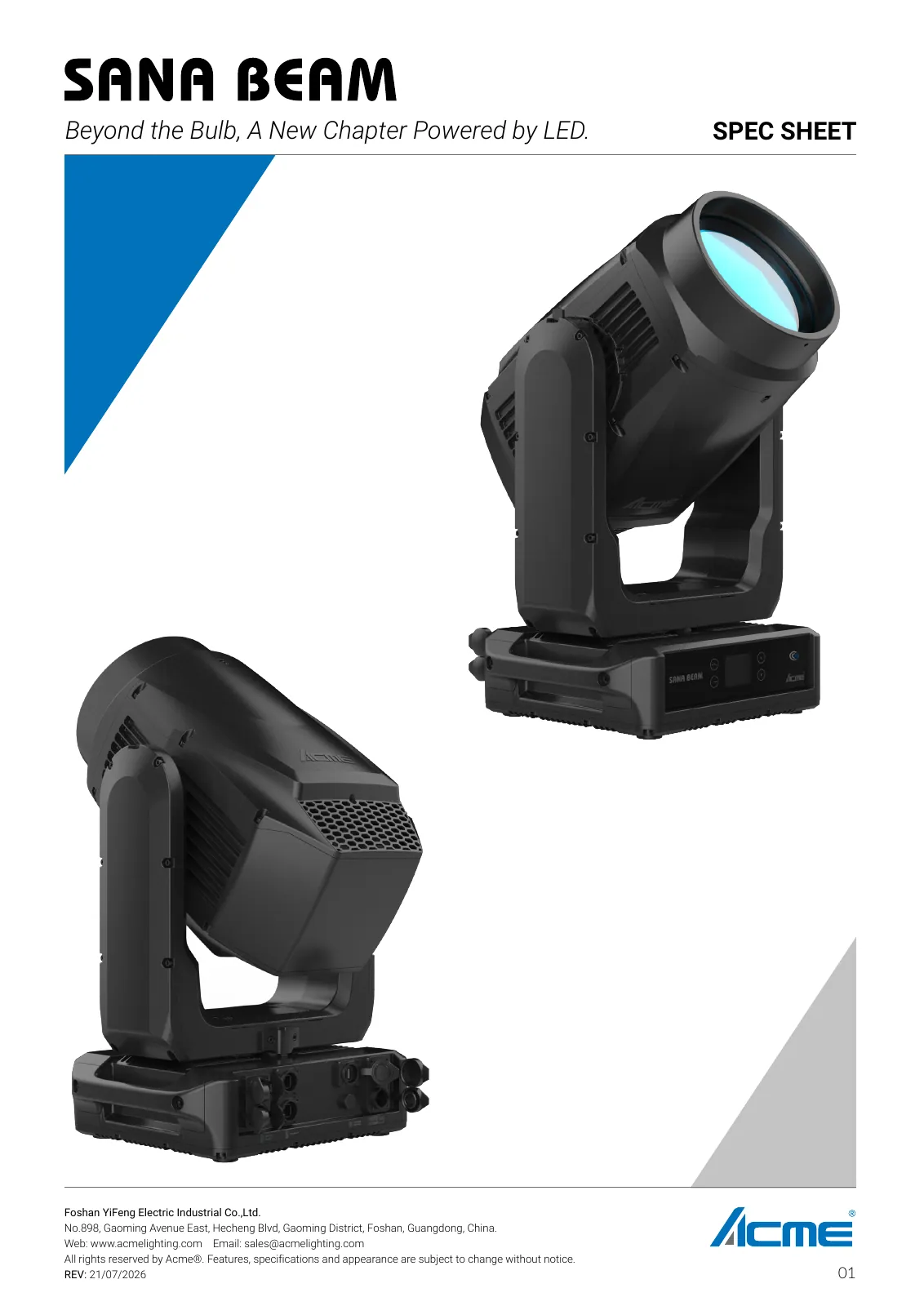

Sheet 05.608

ACME · Beam

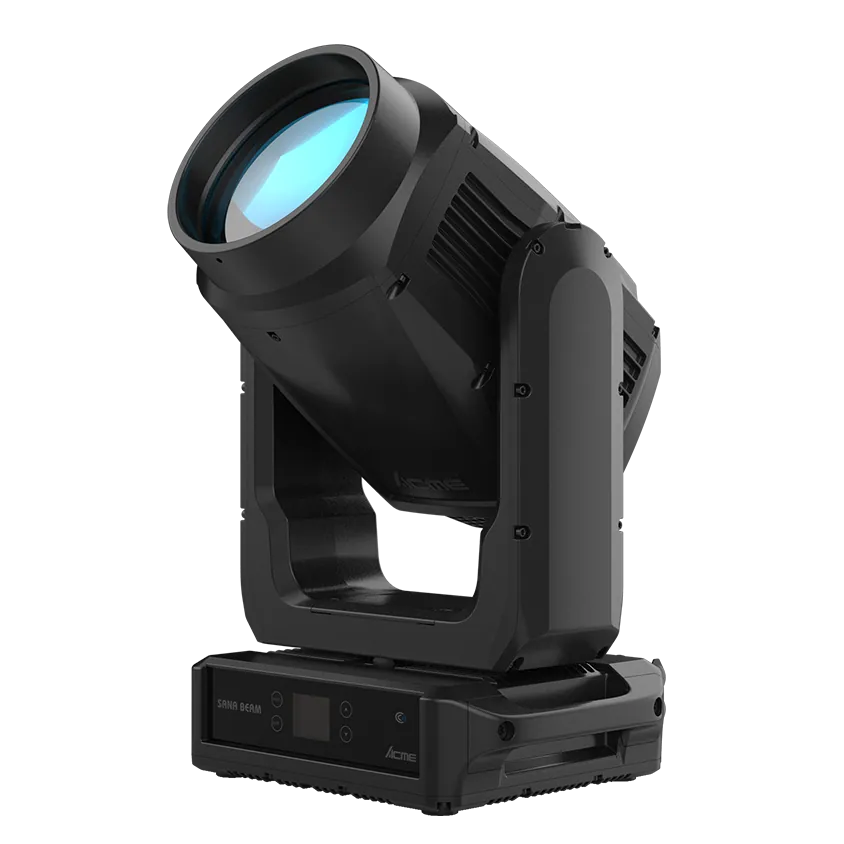

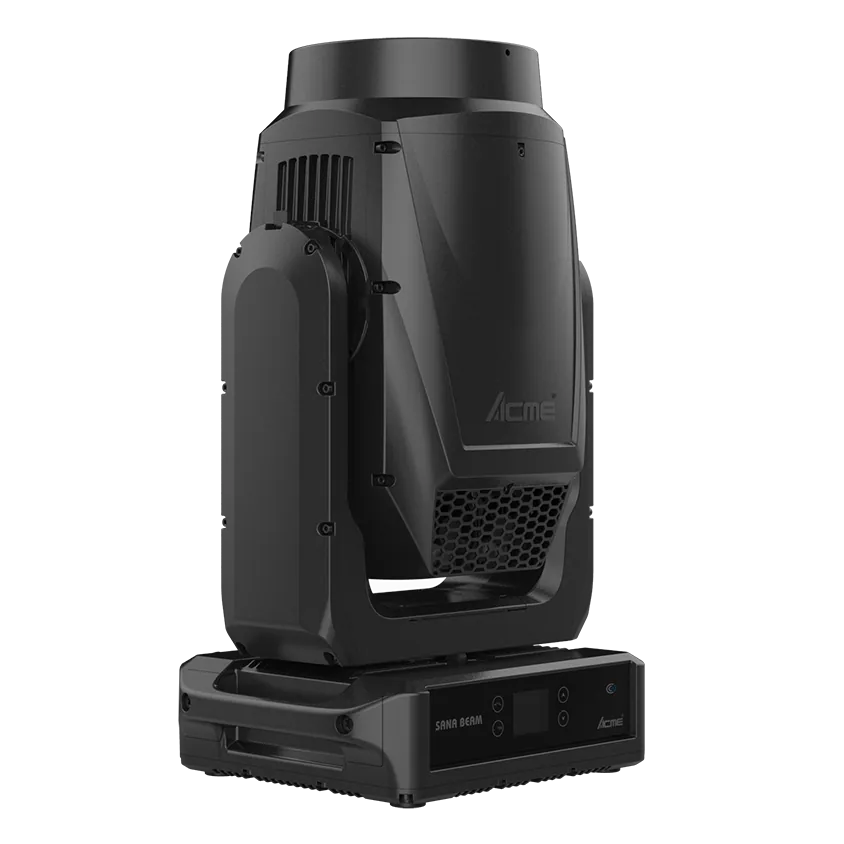

SANA BEAM

ModelXA 300 BEAM IP

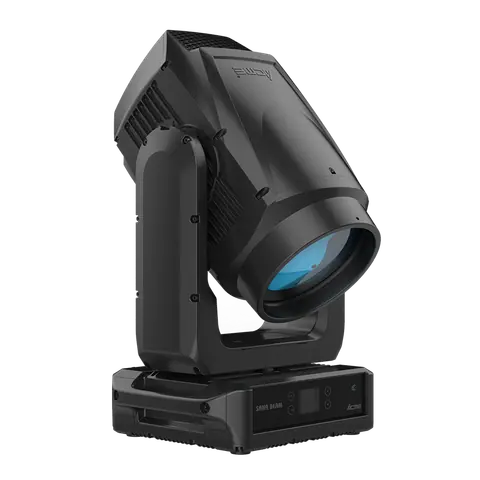

The ACME SANA BEAM marks the beginning of the SANA series and sets a new standard in IP66-rated LED beam moving heads. Lightweight yet powerful, the fixture delivers razor-sharp beams, precise control, and infinite motion in a compact design.

Light source: 330W LED engine
Power consumption: 465W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP66

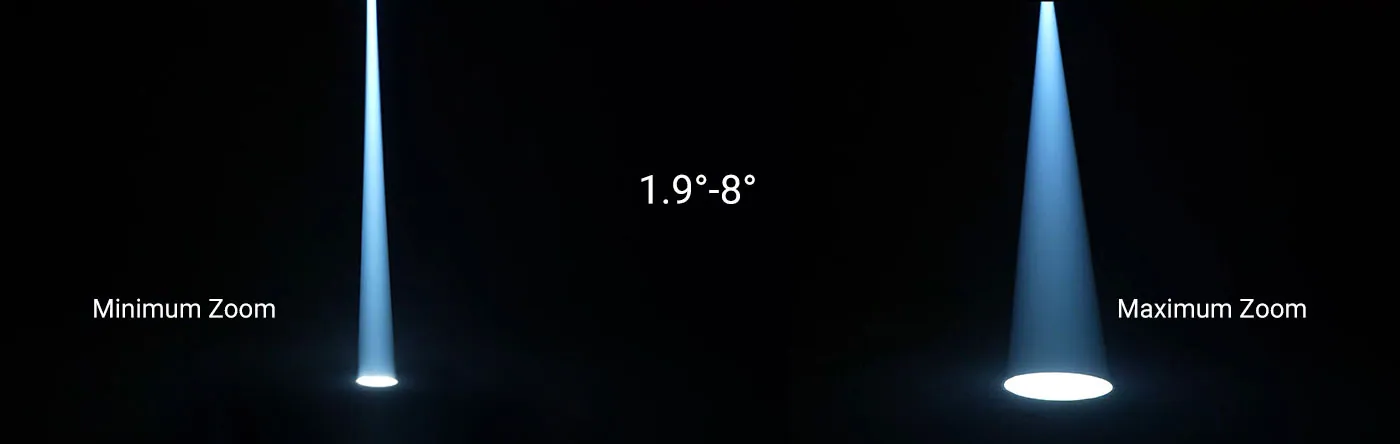

Beam angle / zoom: 1.9°-8°
DMX channels: 16/27/27/29
Protocols: DMX512,RDM,Art-Net,sACN,NFC
Net weight: 23.8 kg (52.5 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:14

ACME SANA BEAM2:14

02SpecificationManufacturer's data · 20 groups · 80 values

What this product is, in numbers.

PDFDatasheetEN · 13 pages · 3.1 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: SANA BEAM
Model Code: XA 300 BEAM IP

02Light Source3

Light Source: 330W LED engine
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Photometric Data9

Total Lumen Output of Fixture
Auto Mode: 5,500 lumens
Quiet Mode: 4,700 lumens
Super Quiet Mode: 3,900 lumens
CCT: 7,000K (+/- 200K)
Standard Mode: Ra≥66
TM-30 Rf (IES TM-30-15 Fidelity Index): 69
TM-30 Rg (IES TM-30-15 Fidelity Index): 91
TLCI: 42
Peak Luminous Intensity: 5,690,000 cd

04Optical System2

Zoom Range: 1.9°-8°

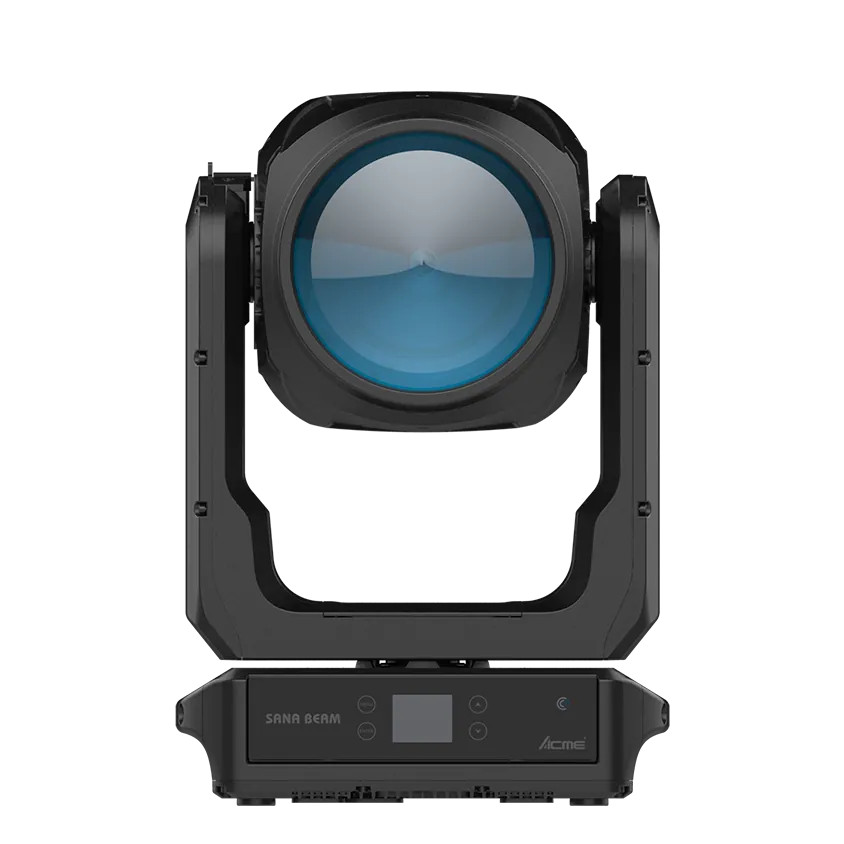

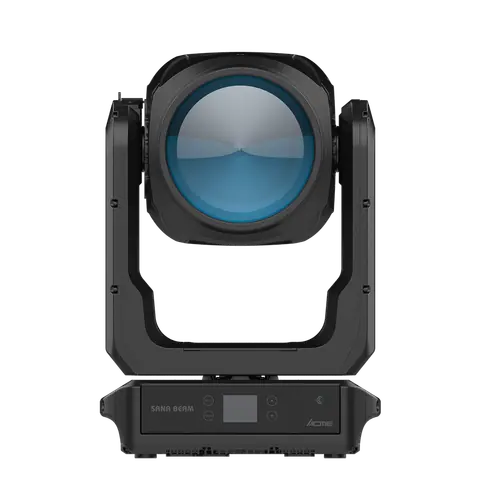

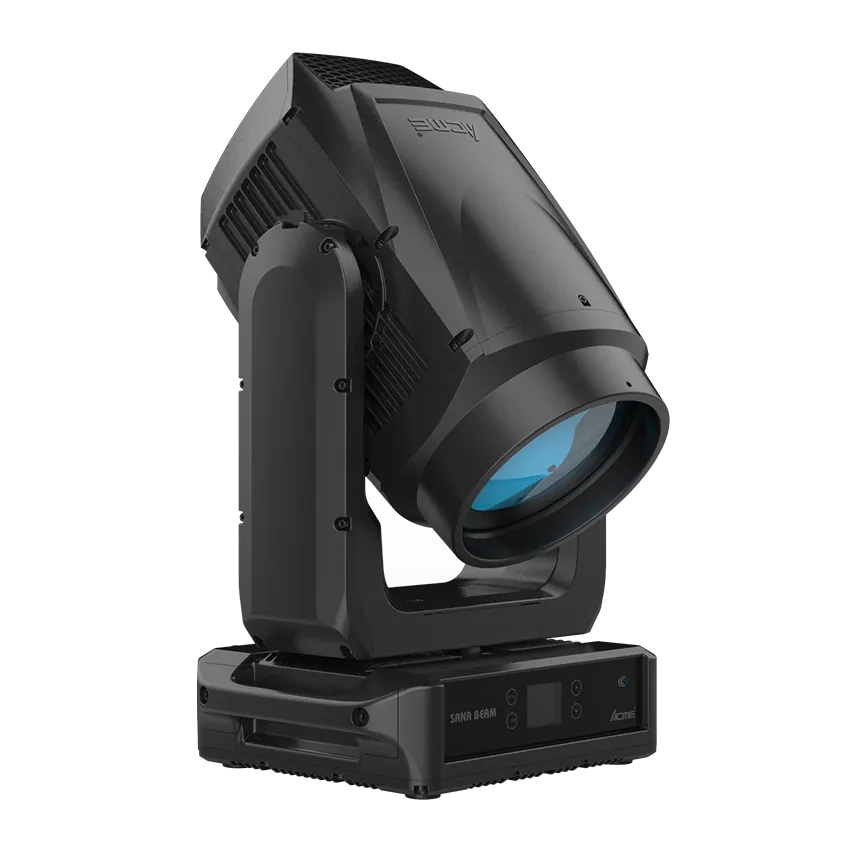

Diameter of Frontal Lens: 180 mm

05Control6

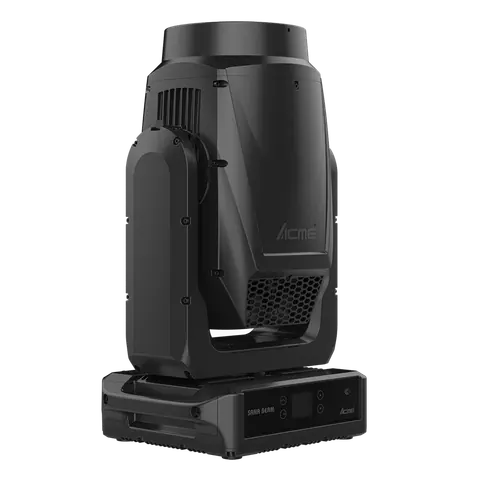

4 touch button control panel
Display: LCD display
Protocols: DMX512,RDM,Art-Net,sACN,NFC
DMX Protocol Modes: 4
Control Channels: 16/27/27/29
Firmware Upgrade: Upgrade via DMX link or USB stick

06Pan & Tilt5

Pan Movement: Infinity
Tilt Movement: Infinity; Automatic Pan/Tilt position correction
Resolution: 16 bit; Pan/Tilt lock

Show the full specificationHide the rest of the specification14 more groups · 53 values

07Colors4

Linear CMY color mixing
Linear CTO Color Correction: 2,700K-10,000K
2 Color Wheels
Color Wheel 1: 6 colors, plus open
Color Wheel 2: 6 colors, plus open

08Static Gobos2

1 Static Gobo Wheel: 17 gobos, plus open
Gobo: Ø113 mm

09Prism1

2 Combinable Rotating and Indexable Prisms: 1 x 8-facet circular prism, 1 x 6-facet linear prism, rotatable and overlayable in both directions

10Frost Filter1

1 frost filter

11Other Effects4

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Motorized focus system

Motorized zoom

12Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 465W

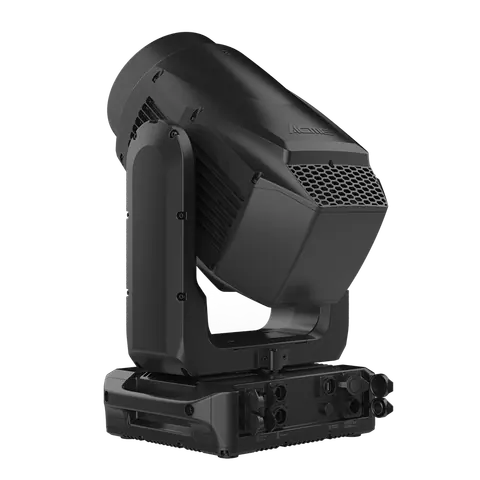

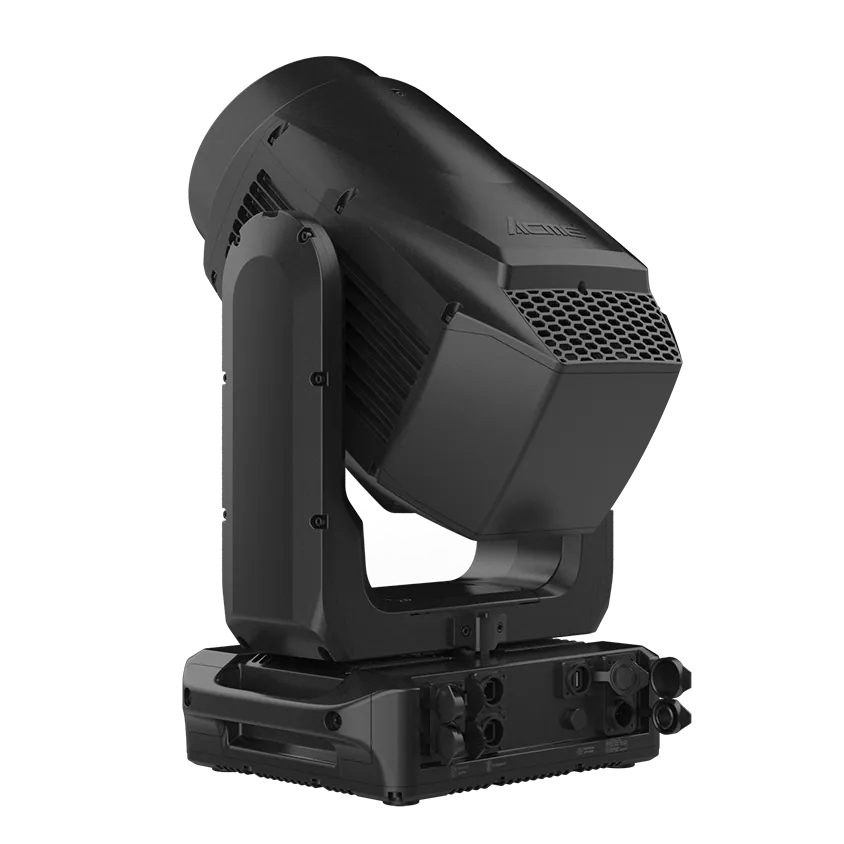

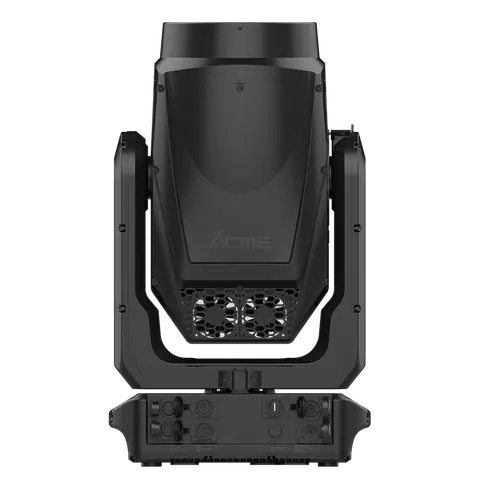

Power In/Out: Waterproof power connector in/out

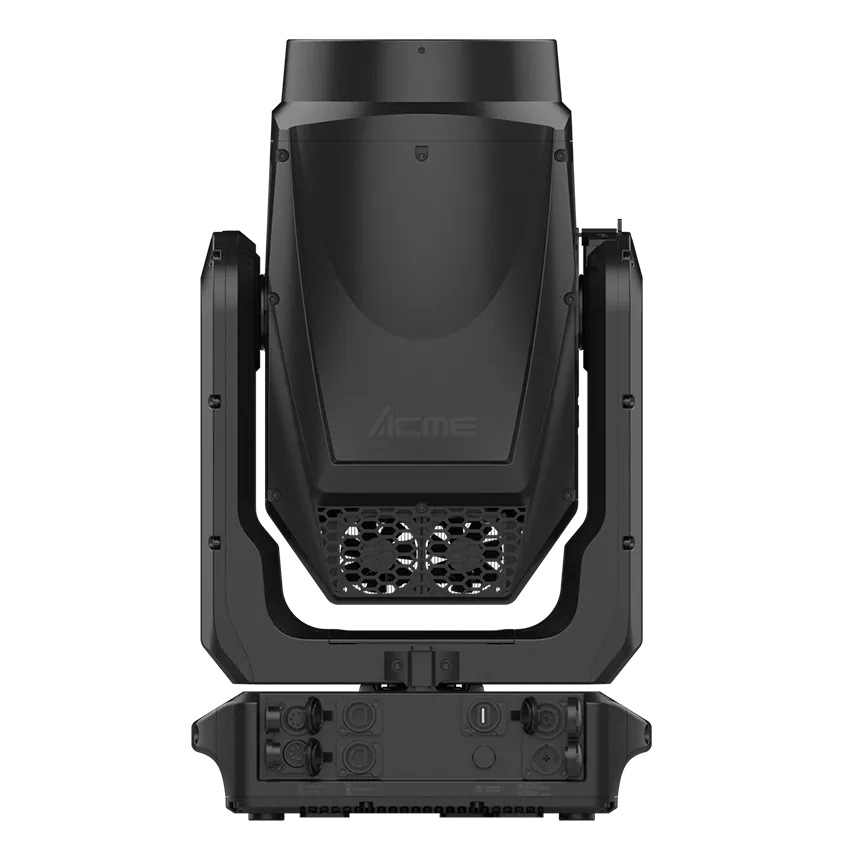

Data In/Out: 3-pin or 5-pin waterproof XLR,waterproof RJ45 connector

13Physical Information4

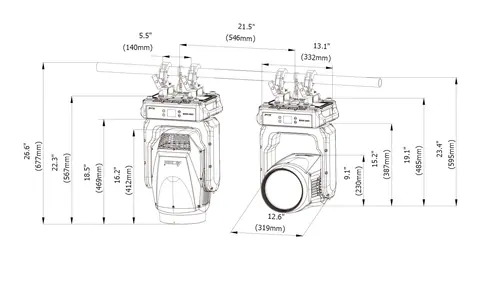

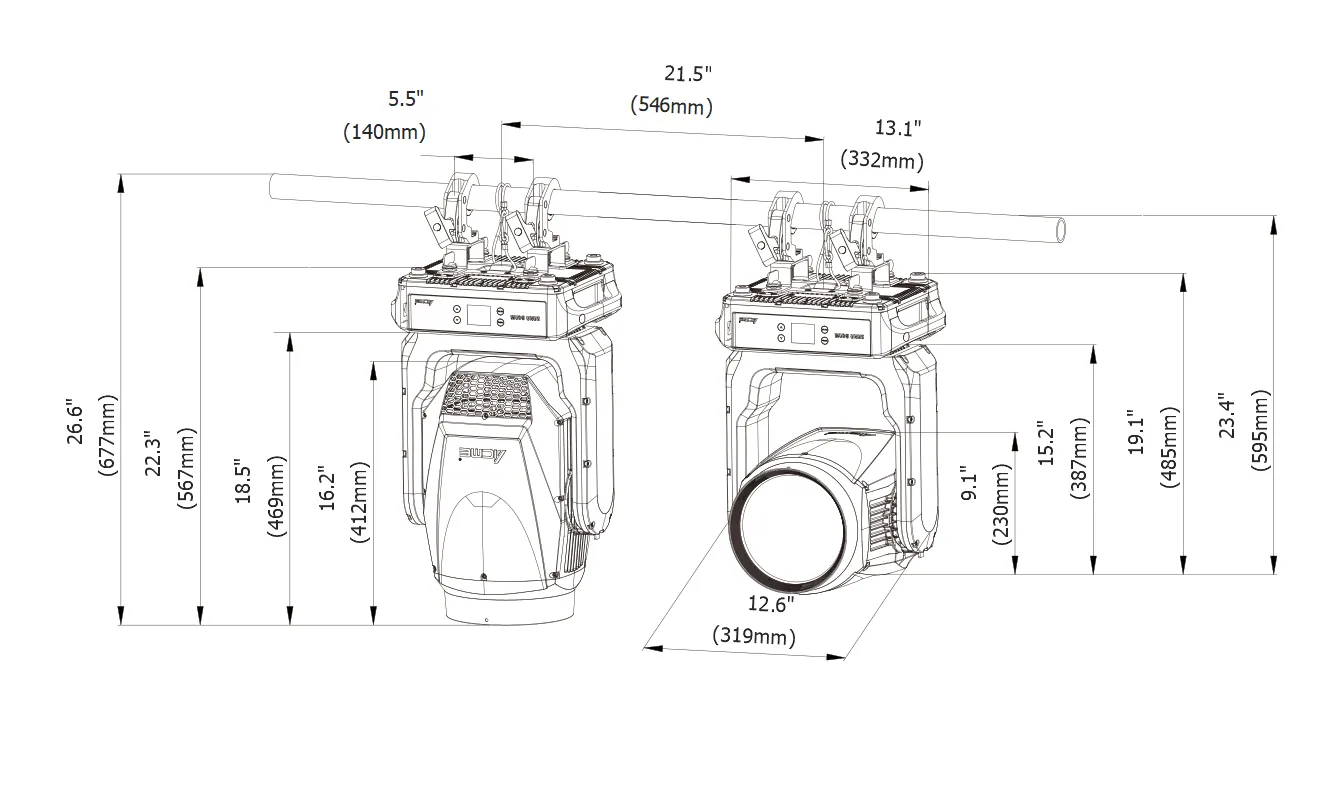

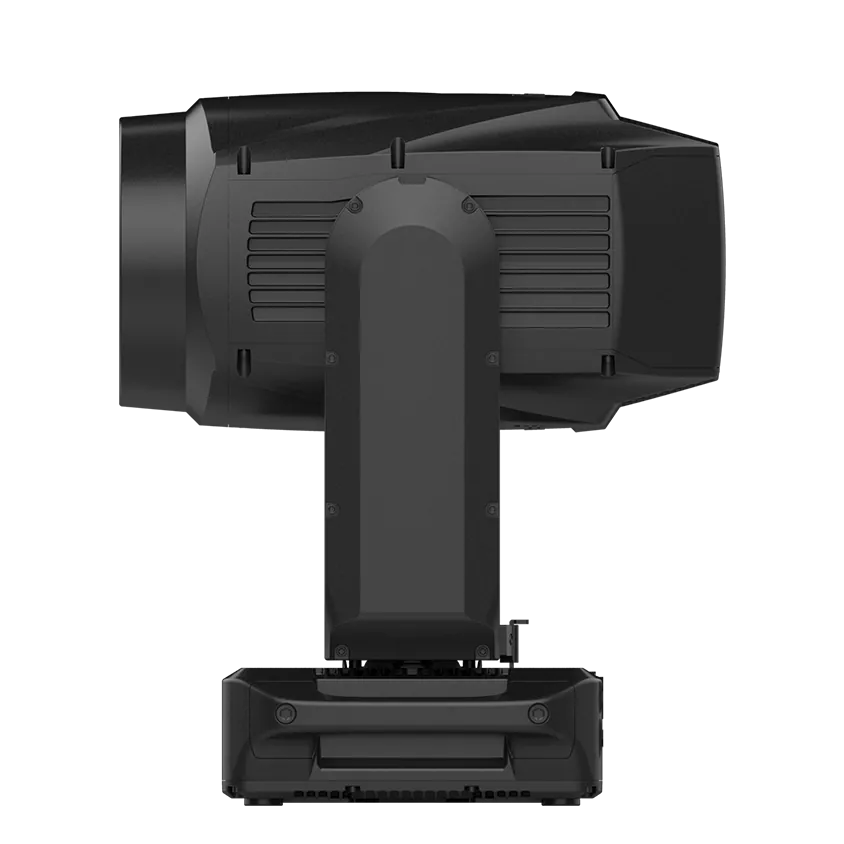

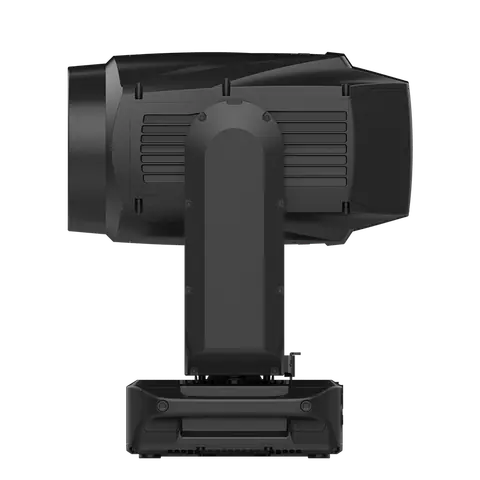

Fixture Dimensions
Width: 332 mm (13.1")
Depth: 256 mm (10.1")
Height: 567 mm (22.3")
Weight: 23.8 kg (52.5 lbs)

14Packing Information12

Flight Case Dimensions 1
Width: 820 mm (32.3")
Depth: 580 mm (22.8")
Height: 880 mm (34.7")
Weight
Standard: G.W.: 98 kg (216.1 lbs) (two-pack loader case)
Flight Case Dimensions 2
Width: 1,220 mm (48")
Depth: 610 mm (24")
Height: 840 mm (33.1")
Weight
North American Standard: G.W.: 153.6 kg (338.6 lbs) (three-pack loader case)
Carton Dimensions
Width: 550 mm (21.7")
Depth: 455 mm (17.9")
Height: 665 mm (26.2")
Weight
G.W.: 30 kg (66.1 lbs) (one-pack loader carton)

15Work Environment4

Maximum Ambient Temperature: 45°C
Minimum Operating Temperature: -20°C
Maximum Surface Temperature: 75°C
Protection Rating: IP66

16Approvals3

CE compliant

UKCA compliant

cETLus compliant

17Acoustic Data3

Noise Level
Auto Mode: 48 dB(A) @ 1 m
Quiet Mode: 43 dB(A) @ 1 m
Super Quiet Mode: 38 dB(A) @ 1 m

18Installation3

Universal working position

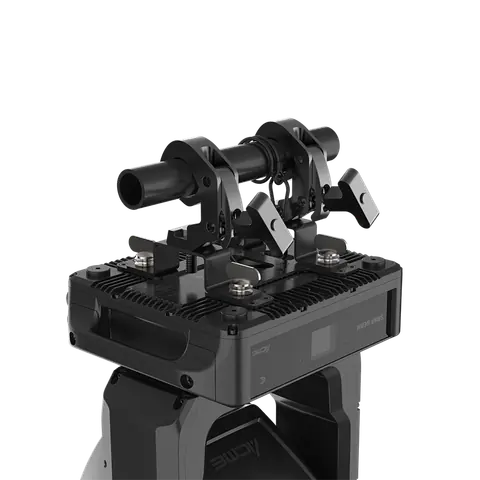

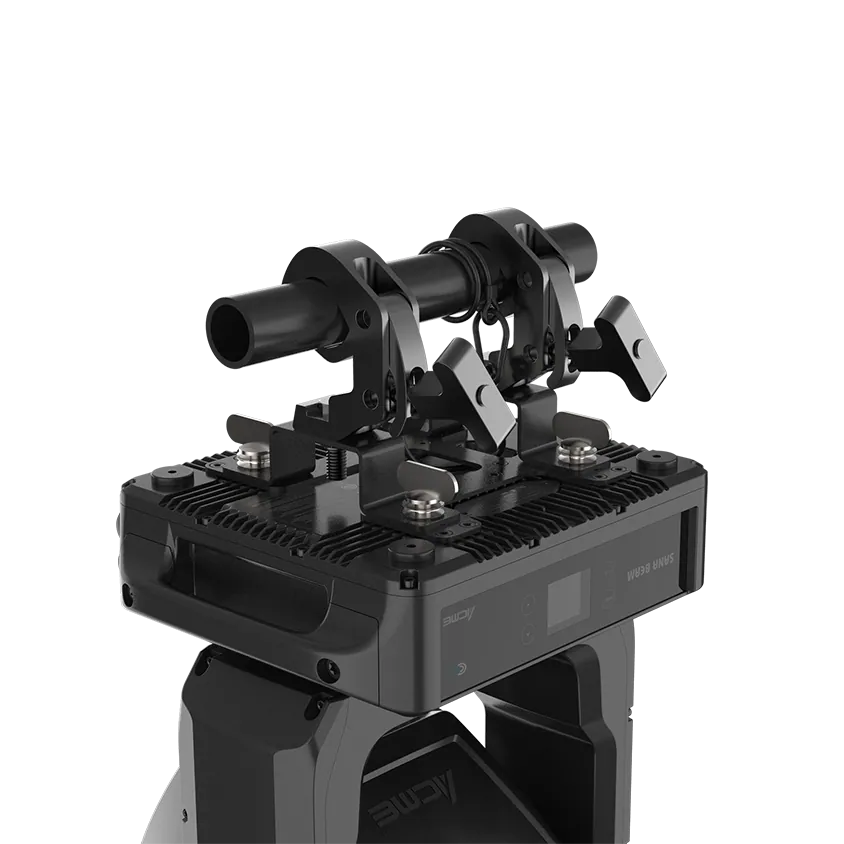

2 omega brackets

Safety cable attachment point

19Included Items3

QR code on fixture to receive digital user manual

Power cable

2 omega brackets (3002003003)

20Optional Accessories (With Order Code)5

Flight Case 1
Standard: Two-pack loader case (63584352)
Flight Case 2
North American Standard: Three-pack loader case (63584379)
Clamp: C-150B (2060001625-C)
Safety Cable: SW-05 (2060001603-E)
Signal Cable: 3-pin waterproof signal cable (3017013468) or 5-pin waterproof signal cable (3017013473)

03DescriptionManufacturer's description

What it is.

Powered by a 330W LED engine, the SANA BEAM delivers a dazzling 5,500-lumen output, projecting intense beams through a large 180 mm frontal lens for unmatched clarity and impact. With an impressive zoom range of 1.9° to 8°, it delivers razor-sharp beams that endlessly cut through the air for a dramatic visual impact.

Its infinite pan and tilt offer fluid motion for bold mid-air visuals, breaking free of conventional movement limits. The fixture features two color wheels (6 colors each), a variable CTO, and linear CMY color mixing, unlocking vivid, expressive palettes suited for any atmosphere.

Effect creativity expands further with a static gobo wheel featuring 17 gobos, and two prisms for multi-layered effects. A frost filter transforms sharp, focused beams into uniform washes, providing versatile lighting options for any environment.

Weighing just 23.8 kg (52.5 lbs), the SANA BEAM delivers uncompromising performance in a lightweight package, empowering lighting designers with the freedom to create without limits.
