Sheet 05.780

ACME · Effects and lasers

VOLTKA

ModelSTROBE 1

Light source: 1,000 x 0.3W 5,050RGB LEDs (divided into 50 controllable zones)
Power consumption: 275W
Power supply: 100-240Vac; 50/60Hz
Ingress protection: IP20
Beam angle / zoom: 116°
DMX channels: 5/12/35A/35B/150
Protocols: DMX512,RDM
Net weight: 4.0 kg (8.8 lbs)

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:17

ACME VOLTKA1:17

02SpecificationManufacturer's data · 13 groups · 43 values

What this product is, in numbers.

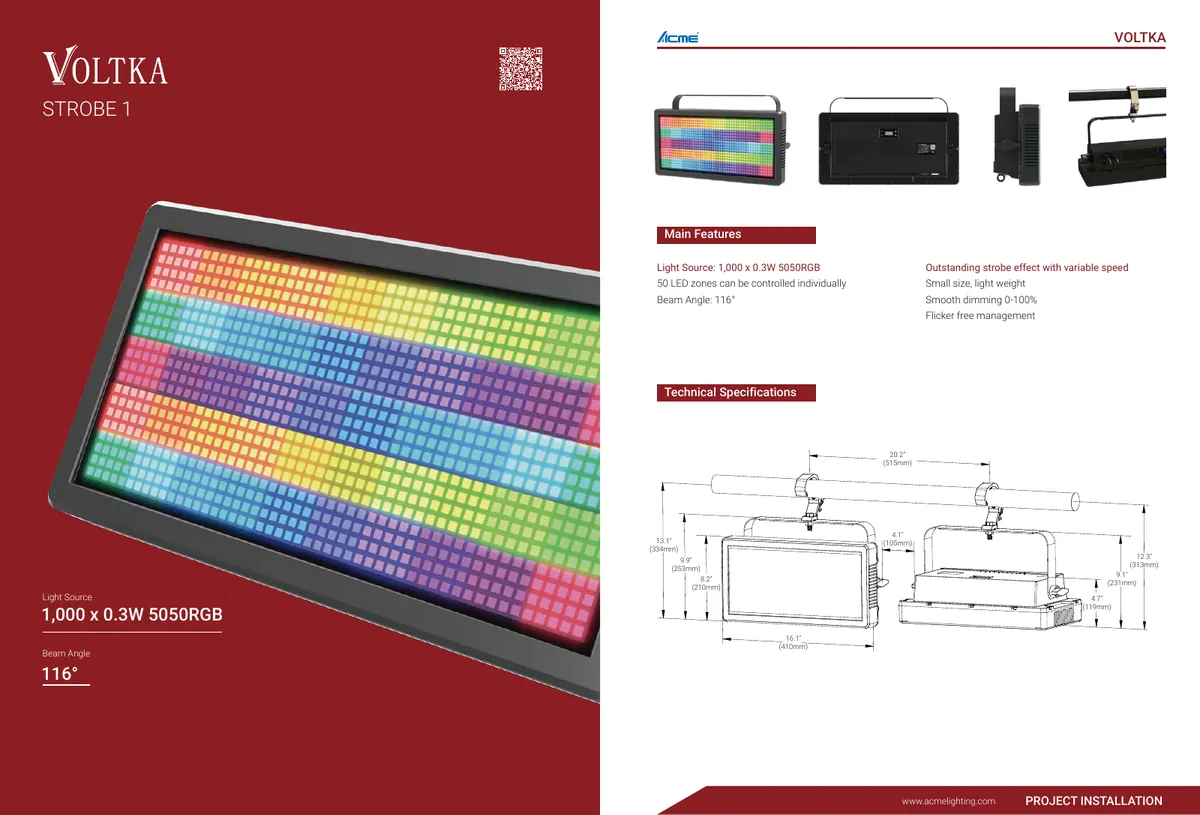

PDFDatasheetEN · 2 pages · 338 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Model2

Model Name: VOLTKA
Model Code: STROBE 1

02Light Source3

Light Source: 1,000 x 0.3W 5,050RGB LEDs (divided into 50 controllable zones)
Light Source Rated Life: 20,000 hours*; *Source manufacturer specification

03Optical System1

Beam Angle: 116°

04Control6

4 touch button control panel

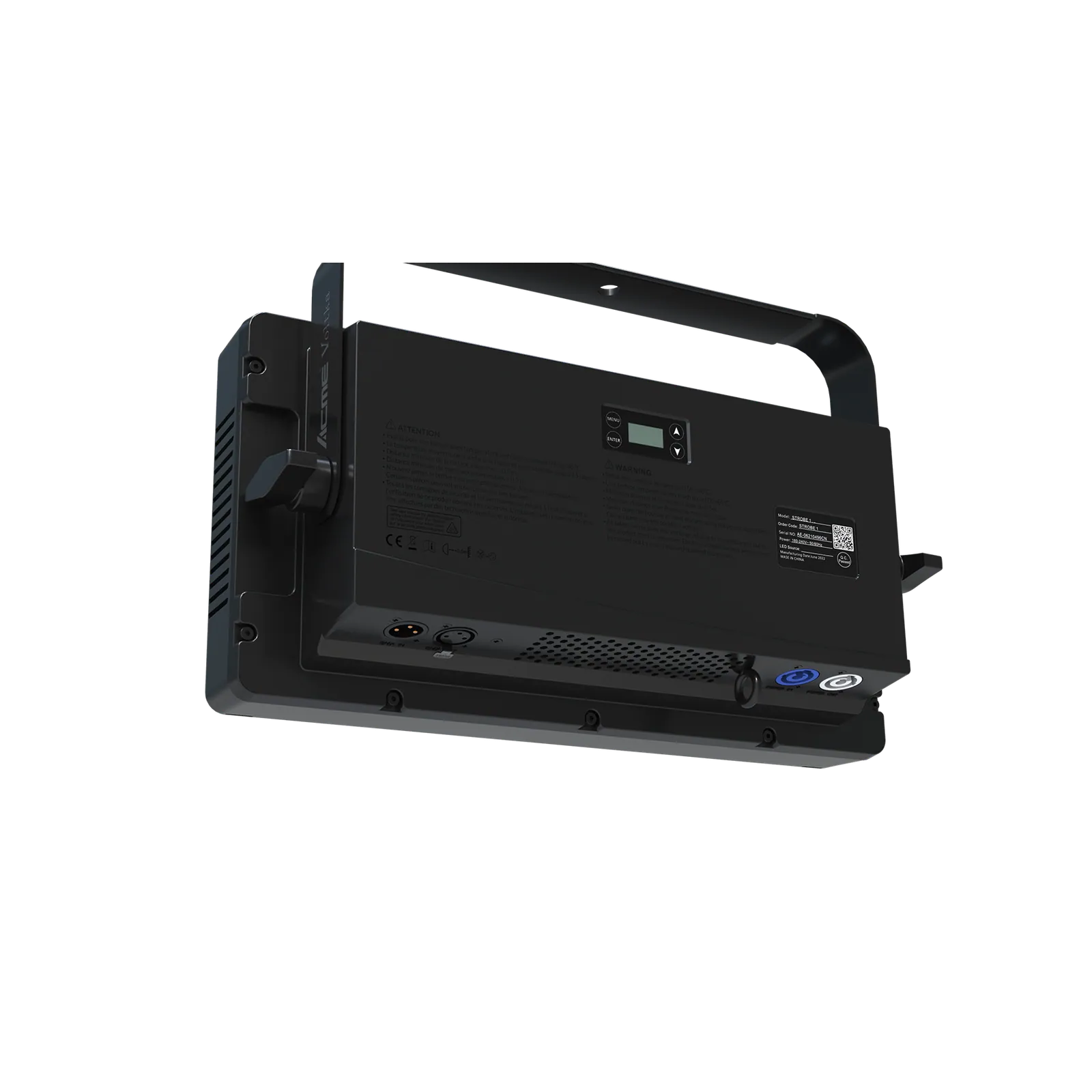

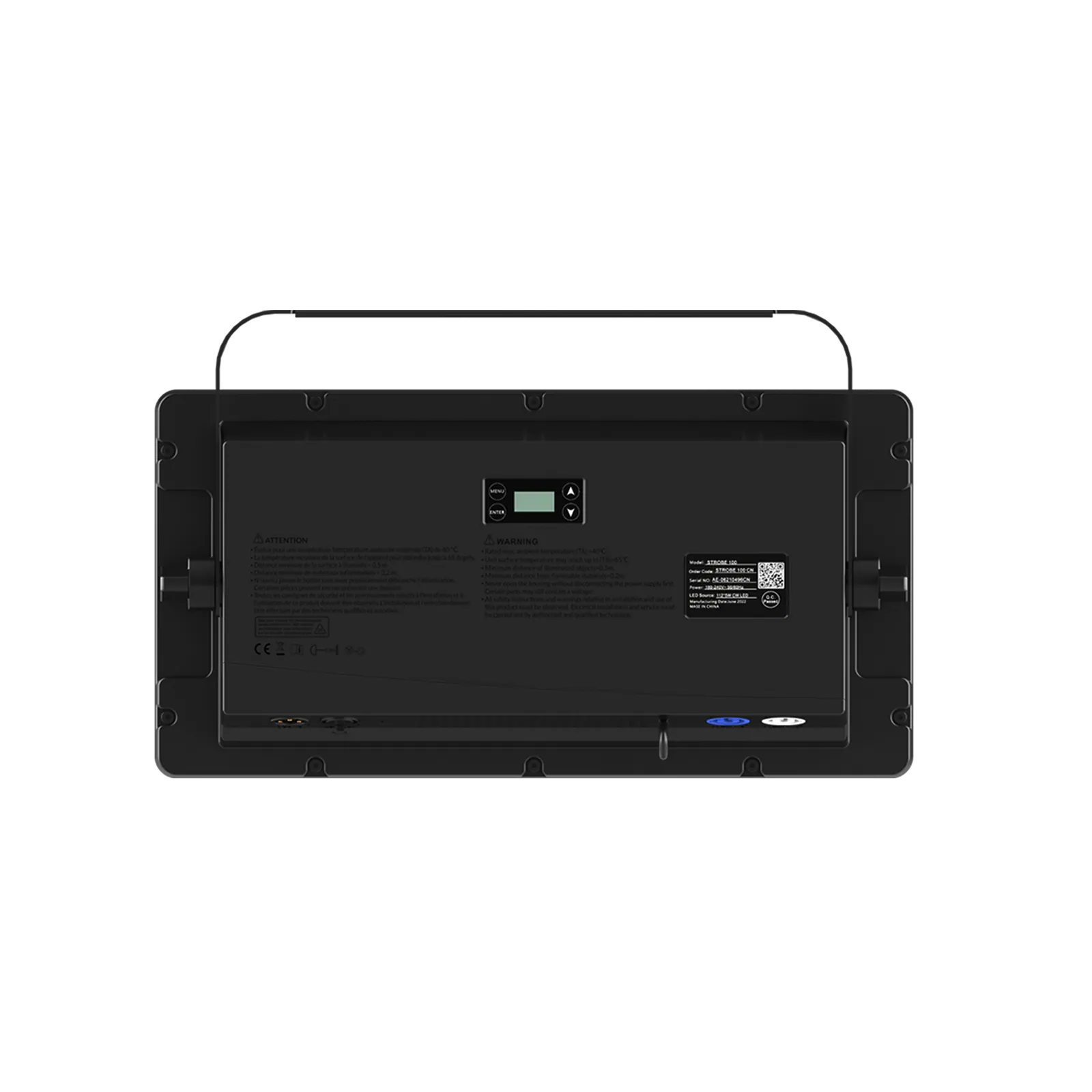

Display: OLED display
Protocols: DMX512,RDM
DMX Protocol Modes: 5
Control Channels: 5/12/35A/35B/150
Firmware Upgrade: Upgrade via DMX link

05Other Effects5

Outstanding strobe effect with variable speed

Smooth dimming 0-100% (4 user selectable dimming curves)

Outstanding RGB color mixing

Flicker-free management

High brightness, outstanding washing effect

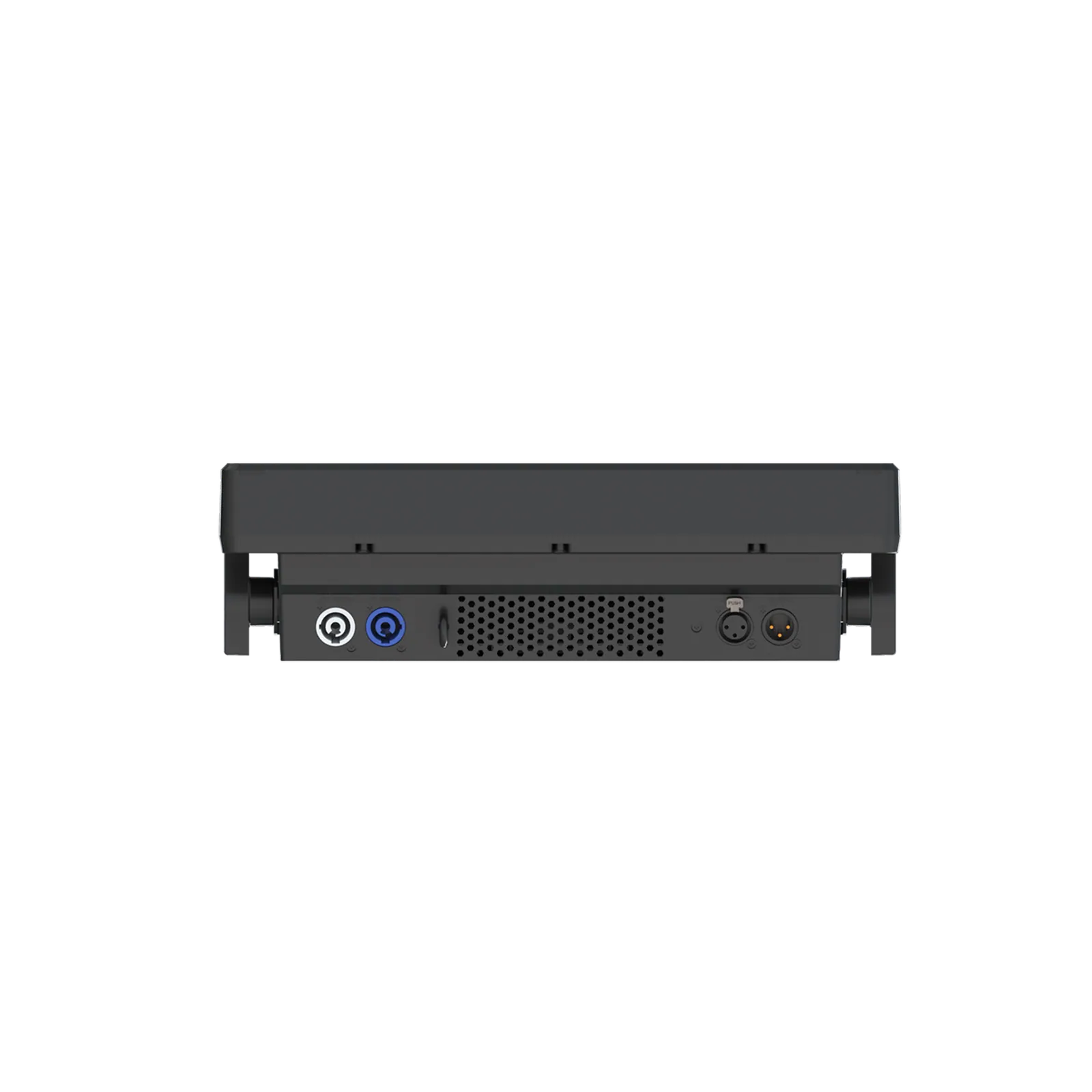

06Electrical and Connectors4

Input Voltage Range: 100-240Vac; 50/60Hz
Power Consumption: 275W

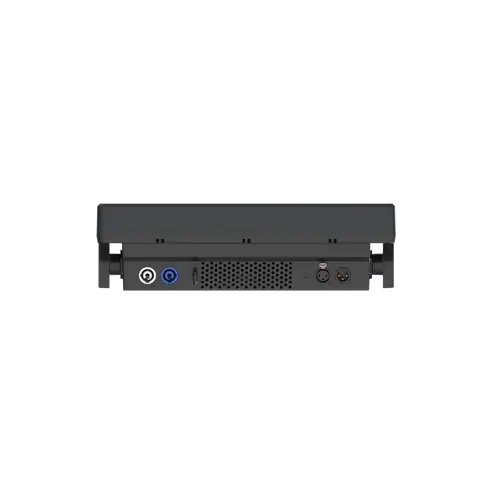

Power In/Out: Power connector in/out
Data In/Out: 3-pin or 5-pin XLR

Show the full specificationHide the rest of the specification7 more groups · 22 values

07Physical Information4

Fixture Dimensions
Width: 410 mm (16.1")
Depth: 120 mm (4.7")
Height: 253 mm (10.0")
Weight: 4.0 kg (8.8 lbs)

08Packing Information4

Carton Dimensions
Width: 505 mm (19.9")
Depth: 285 mm (11.2")
Height: 210 mm (8.3")
Weight
G.W.: 4.9 kg (10.8 lbs) (one-pack loader carton)

09Work Environment4

Maximum Ambient Temperature: 40°C
Minimum Operating Temperature: 0°C
Maximum Surface Temperature: 75°C
Protection Rating: IP20

10Approvals1

CE compliant

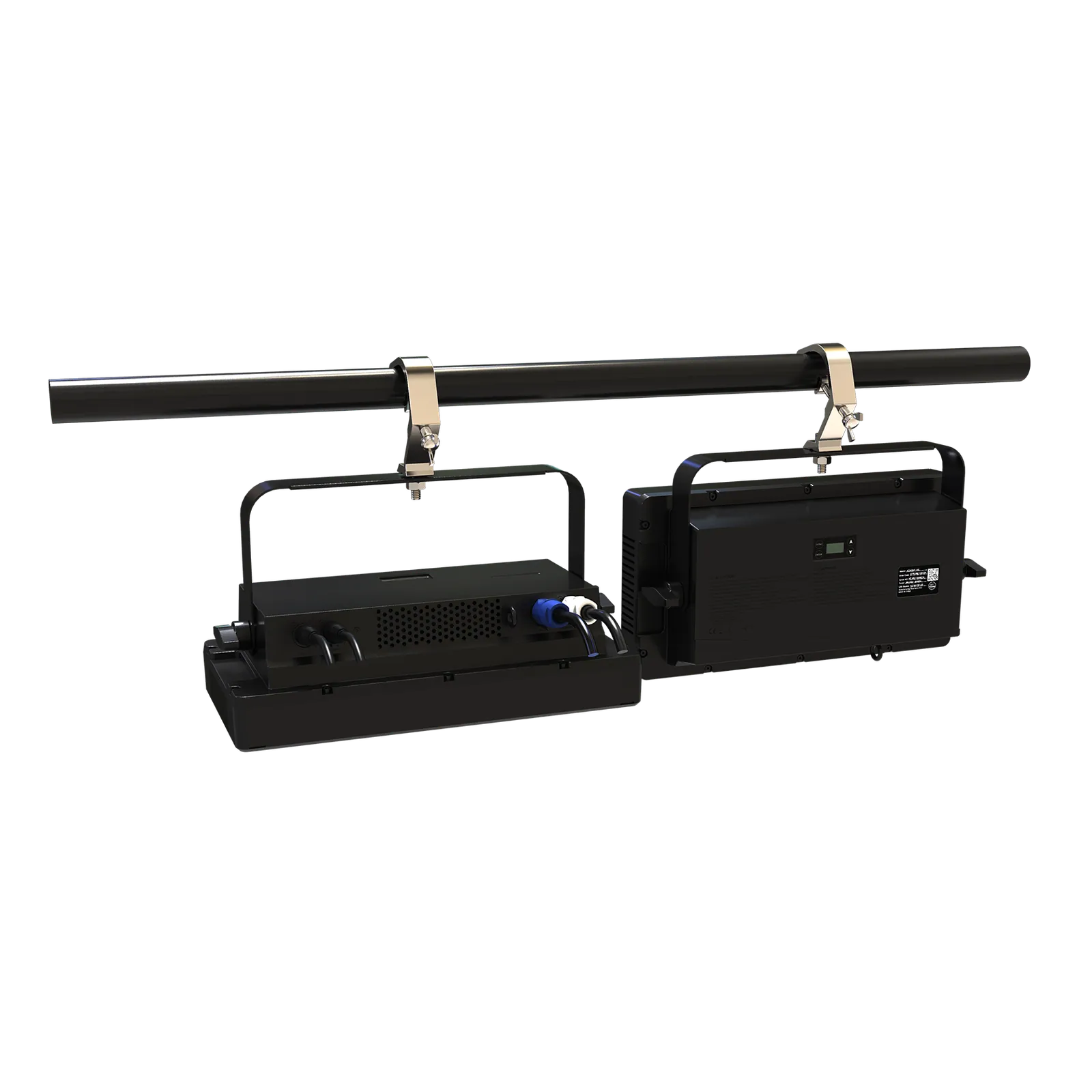

11Installation4

Horizontal or vertical mounting

Universal working position

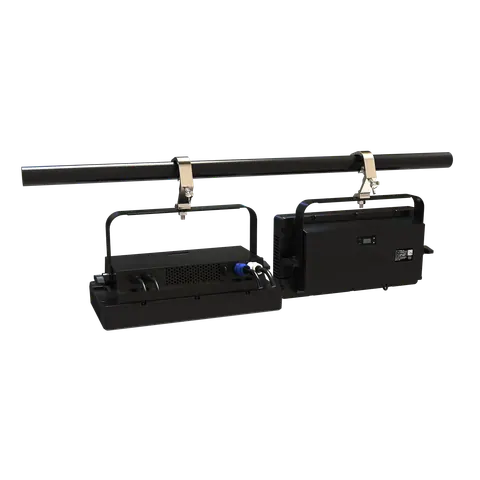

1 clamp for 50 mm truss

Safety cable attachment point

12Included Items2

Digital user manual

Power cable

13Optional Accessories (With Order Code)3

Clamp: C-100A (2060001635)
Safety Cable: SW-02 (2060000200-B)
Signal Cable: 3-pin or 5-pin signal line

03DescriptionManufacturer's description

What it is.

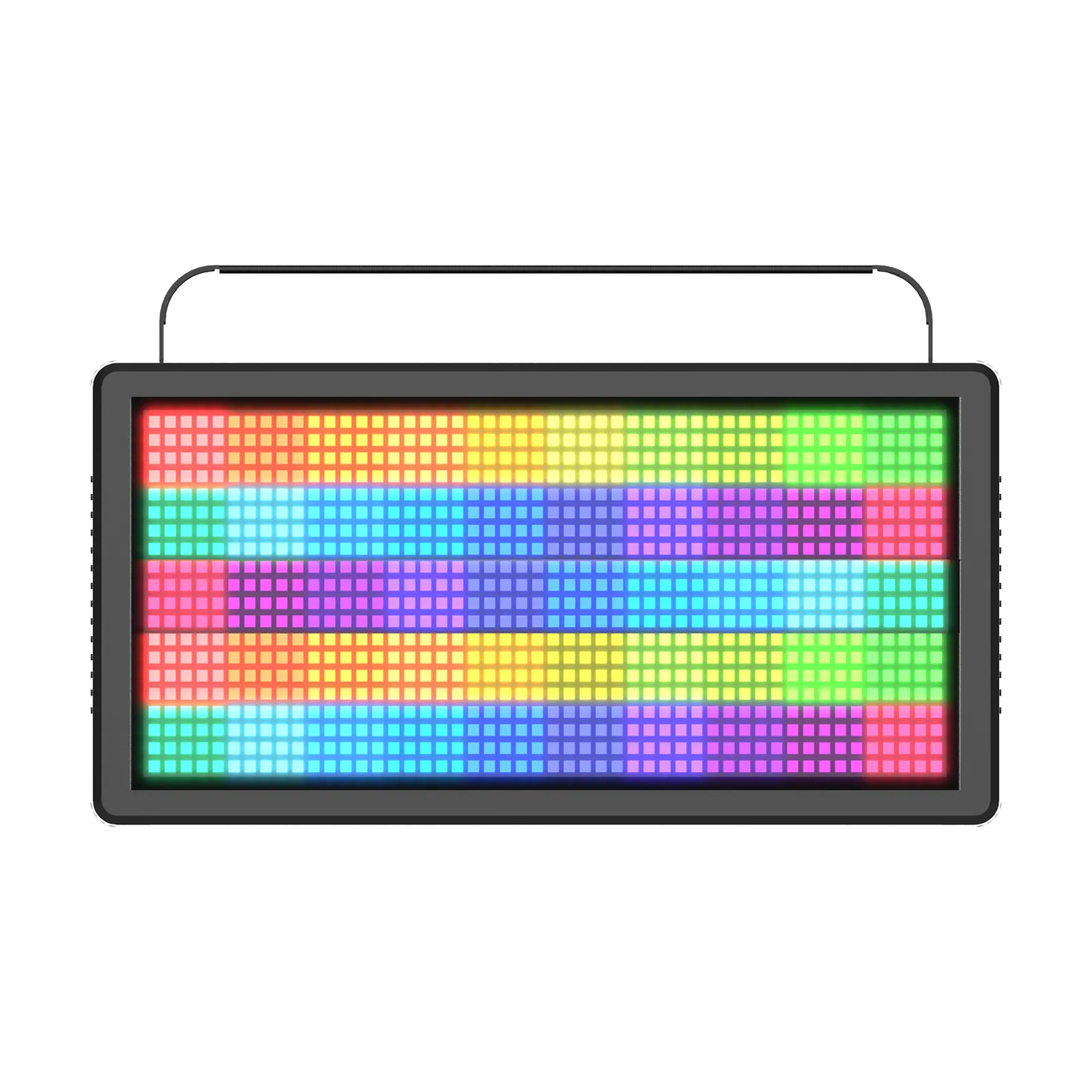

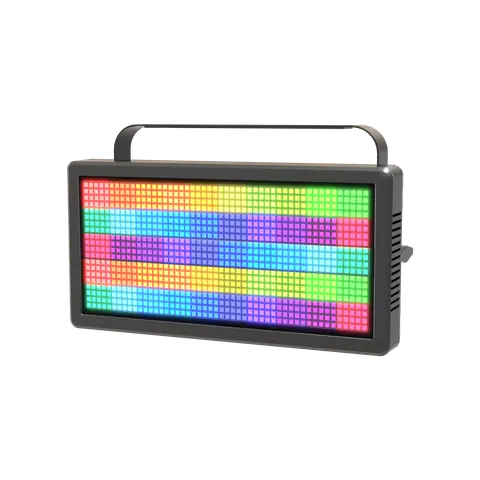

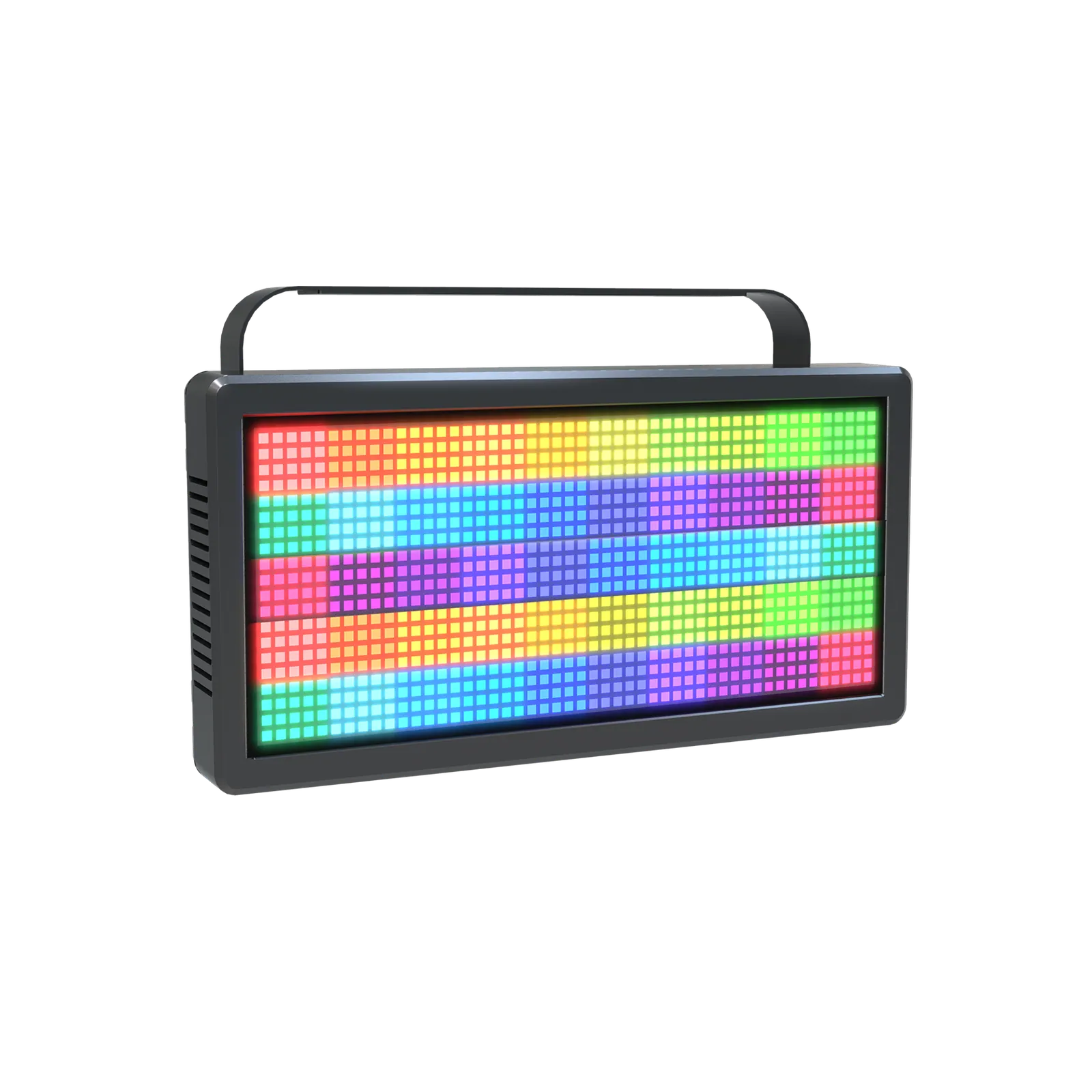

The ACME VOLTKA, with a strobe appearance, is more than just a strobe. Compared with the common 3528 SMD, Voltka choose 5050 SMD as it is bigger, more powerful, and can deliver more lumen, and provides more possibilities in color changing. The 1,000 pcs 0.3W RGB led line-up into 50 individually controllable cells, which let you add some more flexible use to the primary function.

The concise body weighs only 4kg while carrying strong power - delivering an ultra-powerful stunning strobe with variable speeds are available. The high-resolution smooth dimming, dynamic RGB color mixing, but also – thanks to the preset functions – create some lovely gradients or beautiful graphics simply. The ACME VOLTKA is another reliable partner in many entertainment applications and therefore a very cost-saving investment.
