Sheet 05.979

PR Lighting · Other fixtures

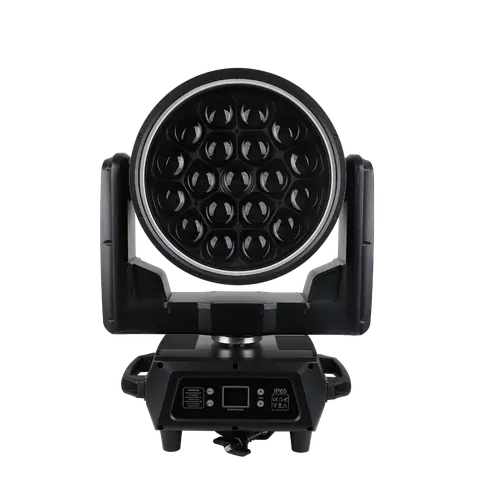

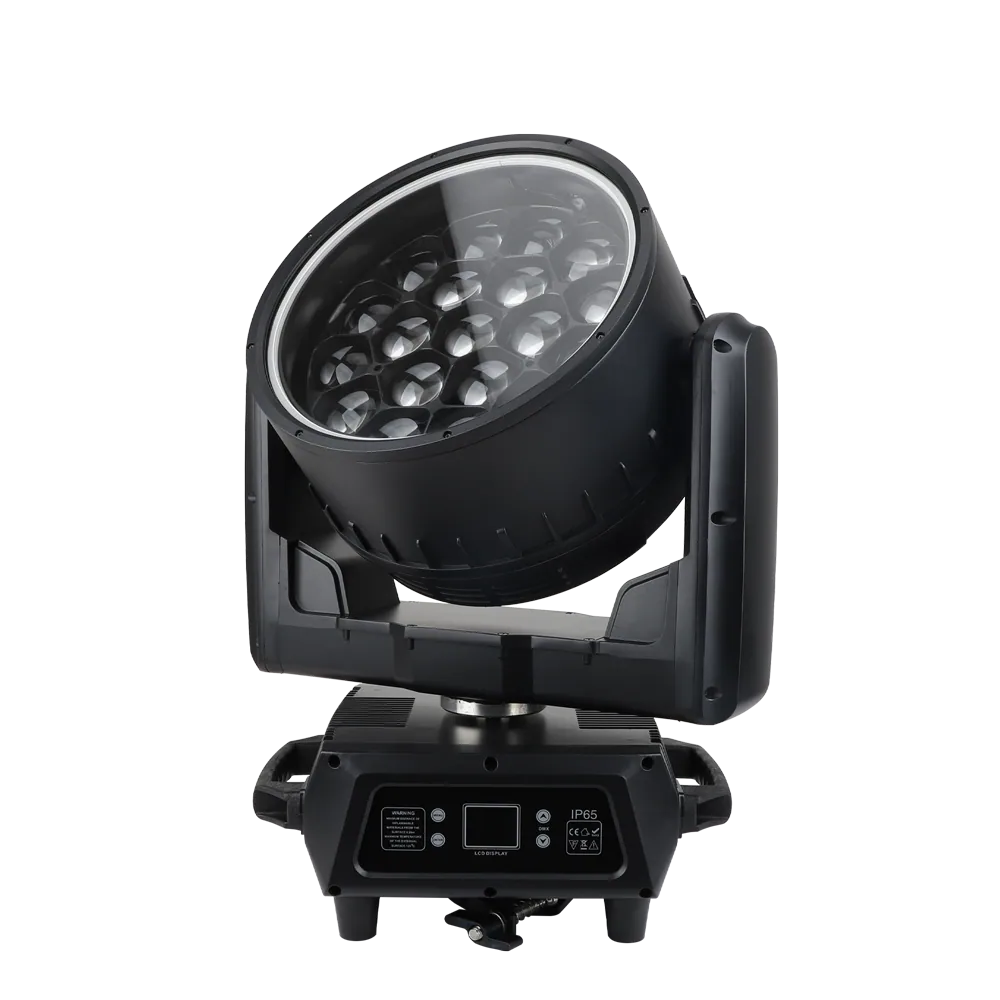

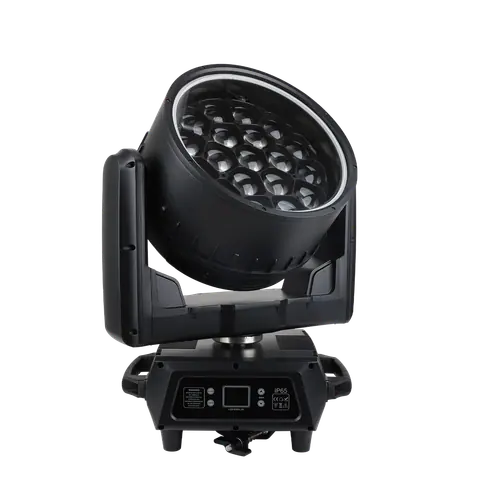

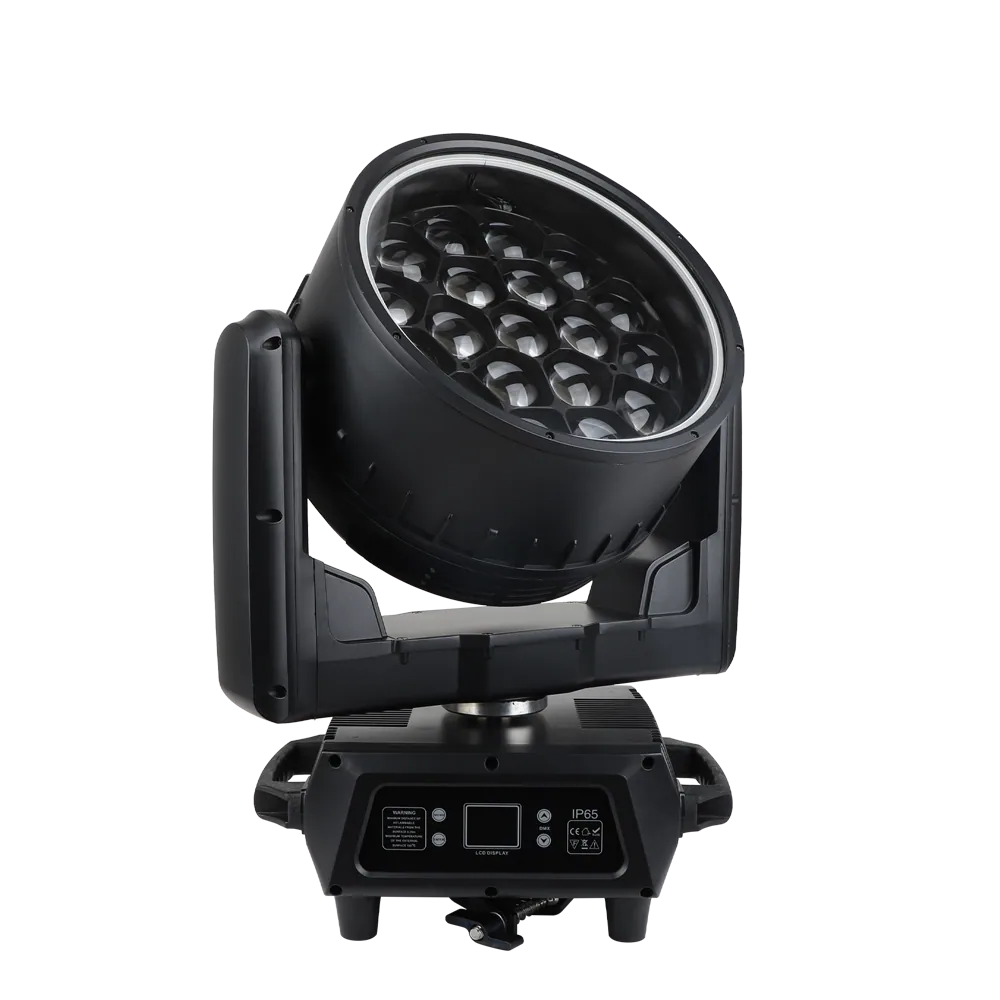

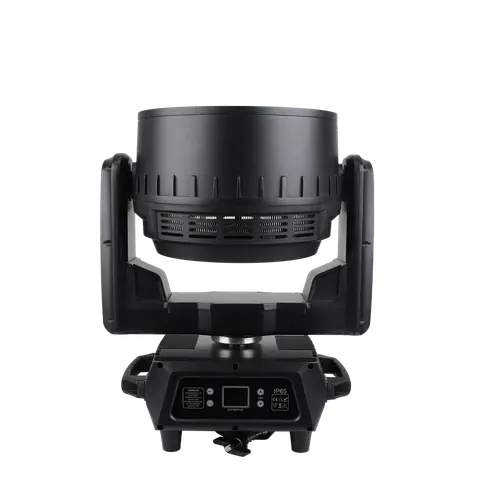

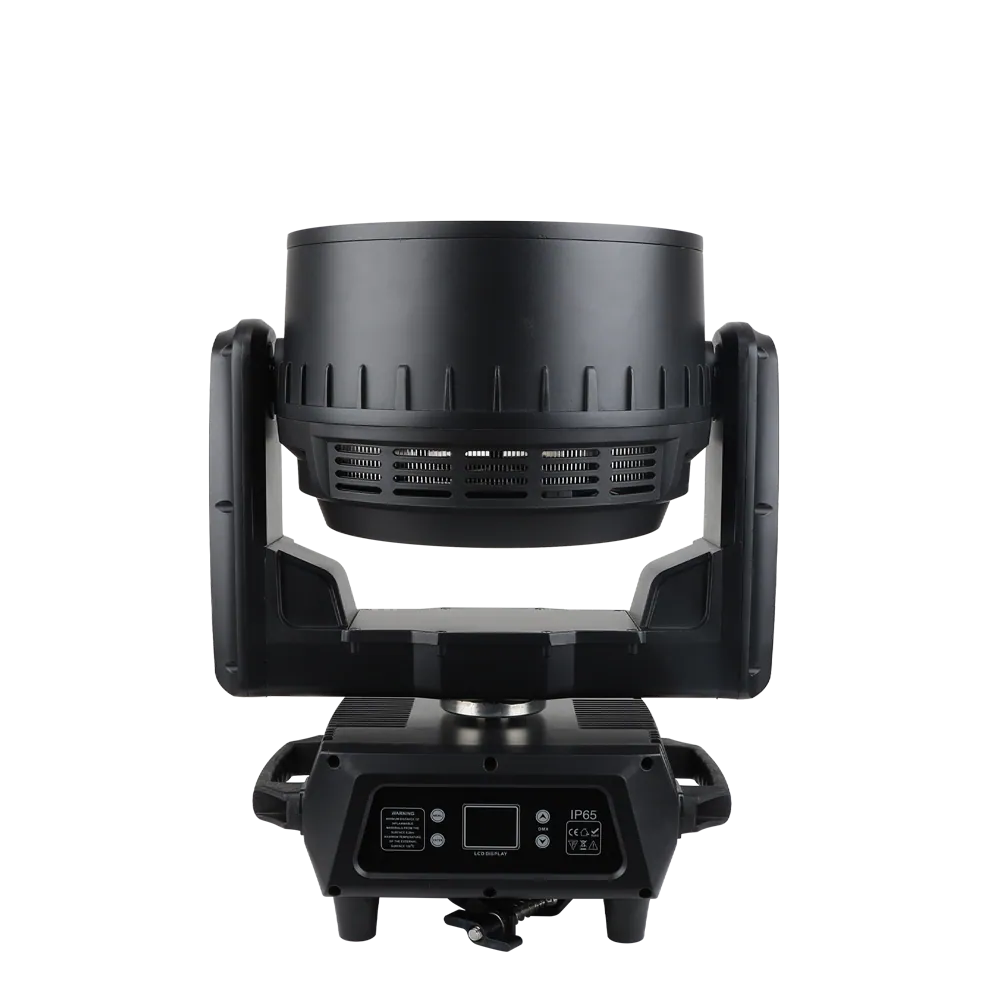

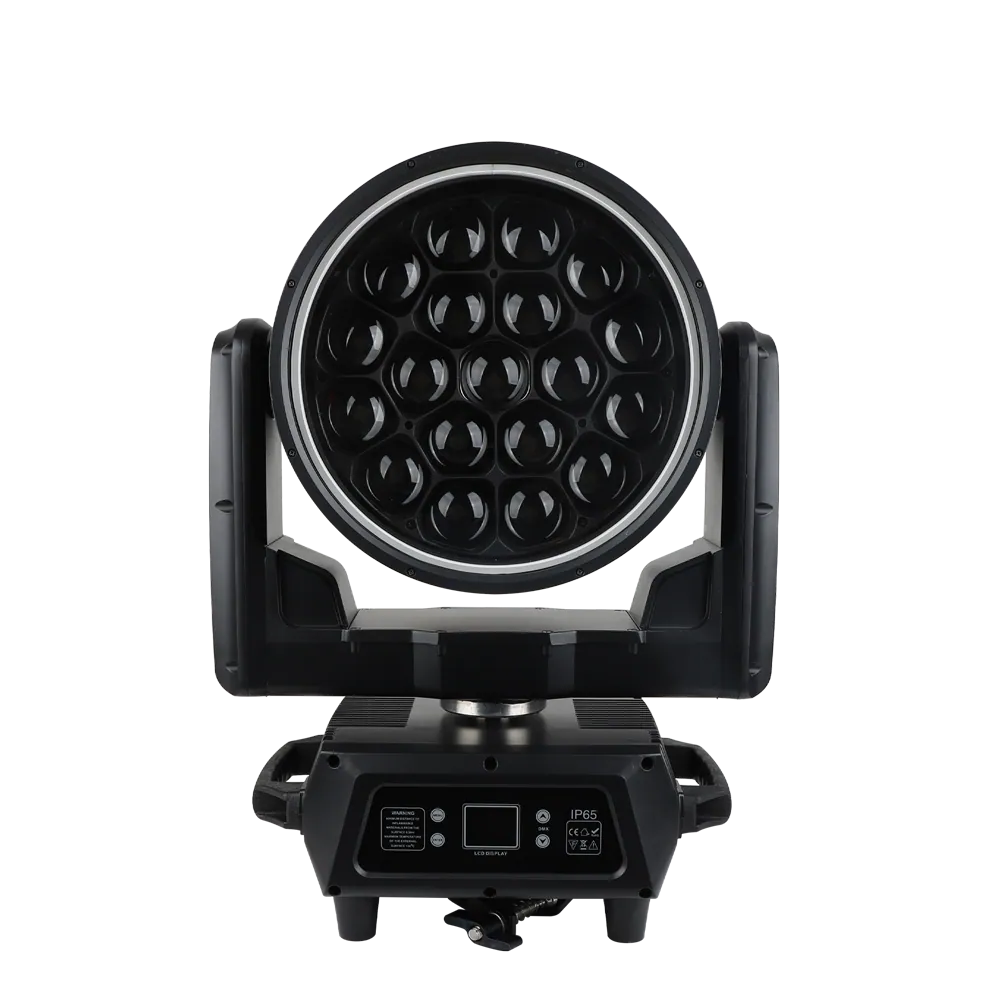

AQUA XLED 6019

ModelPR-8229

Light source: 19×60W RGBW LED high power imported LEDs
Power supply: AC100V-240V/50-60Hz
Net weight: 23.5KG

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:49

PR Lighting AQUA XLED 60191:49

02SpecificationManufacturer's data · 20 groups · 25 values

What this product is, in numbers.

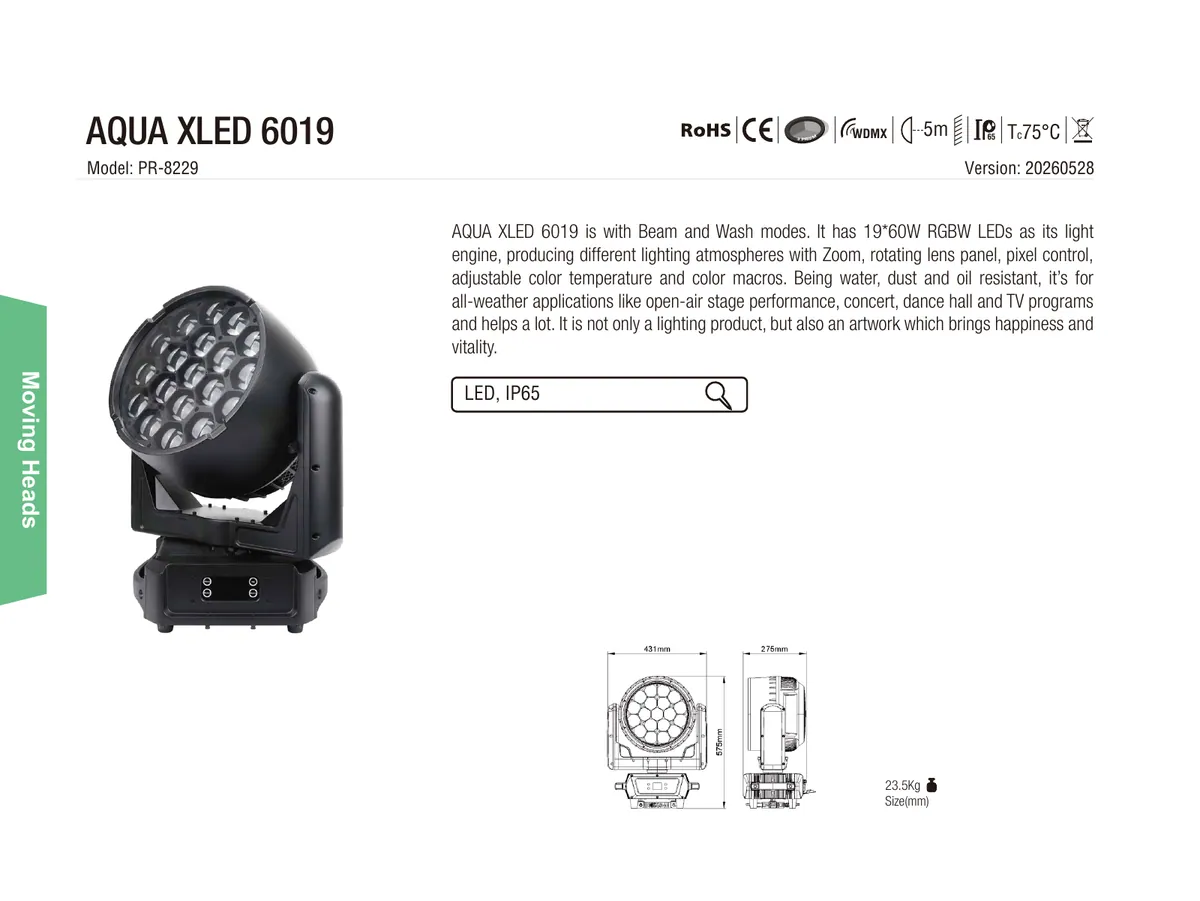

PDFDatasheetEN · 2 pages · 249 KB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Electric parameters2

Voltage: AC100V-240V/50-60Hz
Power: 1350W

02Light source2

Qty.: 19×60W RGBW LED high power imported LEDs
Rated life: 50000h

03Control1

DMX512,RDM,Master /Slave mode

04DMX channel modes1

7 DMX channel modes 21CH/26CH/35CH/43CH/78CH/92CH/97CH

05Pan and Tilt1

Pan: 540°, Tilt:216°

06Optics1

Highly precise and integrated PMMA lens and highly light transmitting quartz mixing rods

07Beam angle1

7°~45°, linear

08Beam effects1

Stunning beam effect at small beam angles

09Wash effects1

Even wash effect at medium and big beam angles

10Colors1

Even RGBW color mixing without flickering ,fast rainbow effects

11Color temperature1

2500~10000K

12Macros1

Macros for static and dynamic effects

13Strobe1

1-25Hz, electronic strobe and random strobes

14Dimmer1

Electronic dimmer,4 dimmer modes

15Zoom1

Linear motorized zoom

16Lens rotation1

Continual lens rotation with kaleidoscope and canton tower effects

17LED ring1

Pixel control,dynamic marquee effects

18Screen1

1.77 inch OLED screen with Chinese/English menus ,isolated signal system to avoid interference by external light and electronics and waterproof touch keys(password 1111 to unlock the screen)

19Smart control1

Fixture’s and light source’s hours and its temperatures can be readable via menus

20Ingress protection4
