Sheet 05.813

Color Imagination · Effects and lasers

STROBE 1176HP

ModelS1176HP

The STROBE 1176HP is an ultra high power IP66 rated strobe light basing on LED technology.

Light source: 392*2W Cool-White 6500K LEDs, 28 segments
Power consumption: 1500W Power consumption
Power supply: AC100-240V 50/60Hz
Ingress protection: IP66 protection rating
Net weight: 11.2kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 19 groups · 69 values

What this product is, in numbers.

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light Source7

Main Strobe Tube (2 Tubes); 392*2W Cool-White 6500K LEDs, 28 segments; Auxiliary Strobe Panel; 784*1.5W 3-in-1 RGB LEDs, 14 segments; 600Hz-25KHz LED frequency adjustable
Life Span: 50000H
The life span may vary depending on several following factors but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

02Optics2

High resolution and precise optic system

120°Projection angle

03Movement4

Tilt movement: Motorized 180° (8/16-bit); Fast, quiet, smooth and precise 3-phase motors; Smooth, fast and precise resolution for TILT movement with low noise operation; Scan position memory, auto reposition after unexpected movement

04Colors5

6500K cold white

Sophisticated 3 colors RGB mixed

Preset 2700K-8000K CTO

Even and soft light coverage with pure mixing

Preset background/foreground color macros with linear dimmer

05Dynamic Effect2

Preset dynamic RGB effects with variable speed and direction

Preset dynamic WHITE effects with variable speed and direction

06Dimming2

0-100% Smooth linear LED dimming

4 Dimming curves, linear/square law/Inv square law/S-curve

Show the full specificationHide the rest of the specification13 more groups · 47 values

07Strobe Effect3

0-25Hz shutter/strobe effects with variable speed

Random strobe effects with variable speed

Pulse strobe effects with variable speed

08Control System8

8/11/13/24/30/47/68/74/97 DMX channels USITT DMX-512

DMX512, master-slave, sound or auto operation

DMX recorder and edit function integrated

RDM available (Remote Device Management)

Art-NET/sACN (Optional)

Waterproof RJ45 etherCON IN/OUT (Optional with Art-Net/sACN)

Shielded input signal protection for stable signal without interference

Waterproof SEETRONIC’s 3-Pin/5-Pin XLR DMX connectors IN/OUT

09Software Update2

Software up-datable through USB or DMX connectors

Multi units up-datable in daisy chain

10Display System4

1.8″ TFT LCD display

4 Touch control buttons

180°Reversible for LCD display

Display auto OFF

11Cooling System3

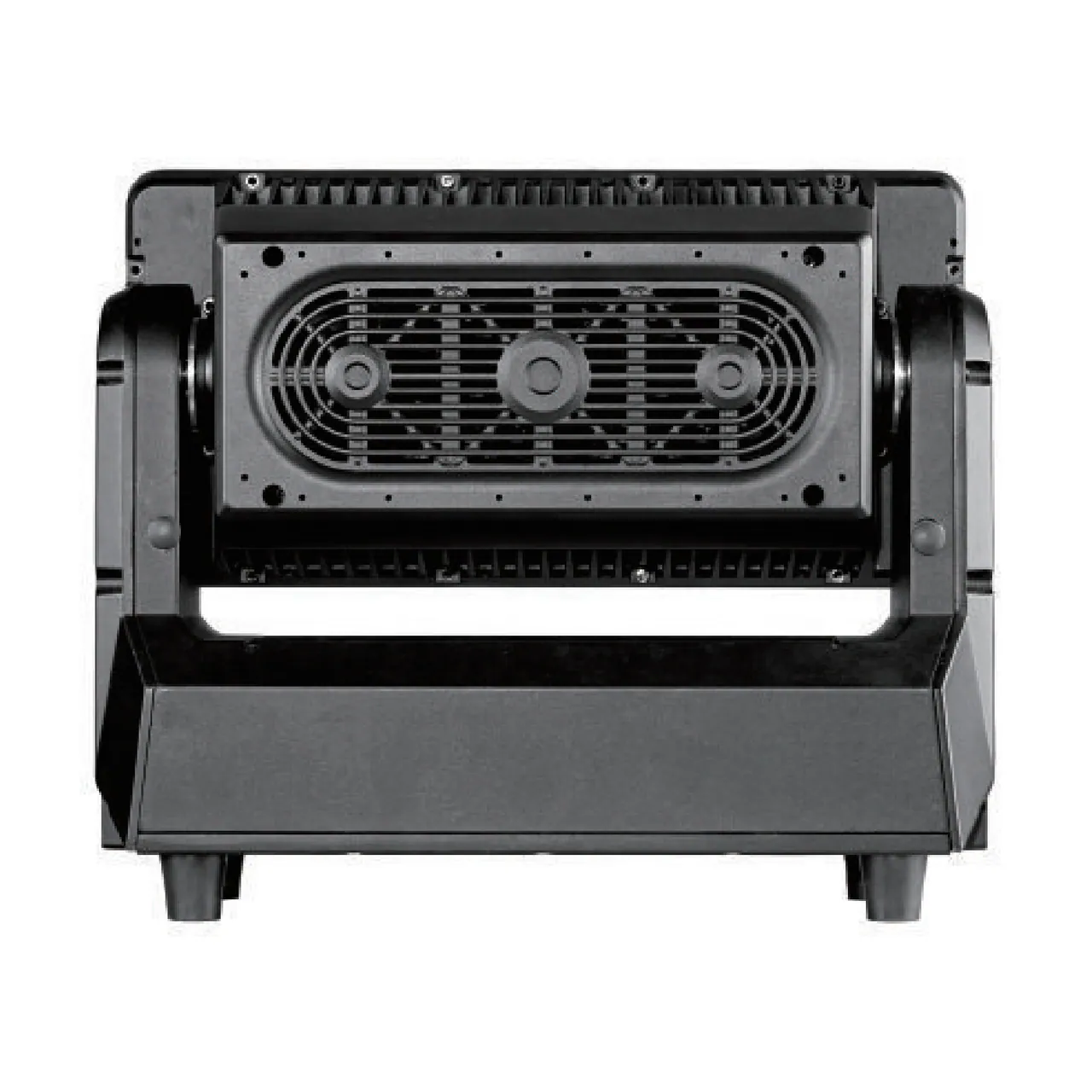

Advanced self-adjusting fan cooling system integrated aluminum

Constant temperature readout and management function

Over temperature protection management (output decreased when over heat)

12Power Supply4

Electronic power supply with PFC

AC100-240V 50/60Hz

Waterproof SEETRONIC’s TRUE-1 PowerCON IN/OUT with fuse

1500W Power consumption

13Housing2

Skeleton made of die-cast aluminum and steel metal plates
Exterior finish: Black

14Mounting Options4

Standing: Rubber feet
Hanging: Omega-Bracket; Safety wire attachment point; Specific parts for seamless combination between lights

15Operating Condition3

Operating positions: all (device on floor or fixed to a support); -25°C to 45°C ambient temperature; IP66 protection rating

16Compliance4

2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)

2014/30/EU – Electromagnetic Compatibility (EMC)

2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)

17Weight2

N.W.: 11.2kg
G.W.: 12.9kg

18Dimensions2

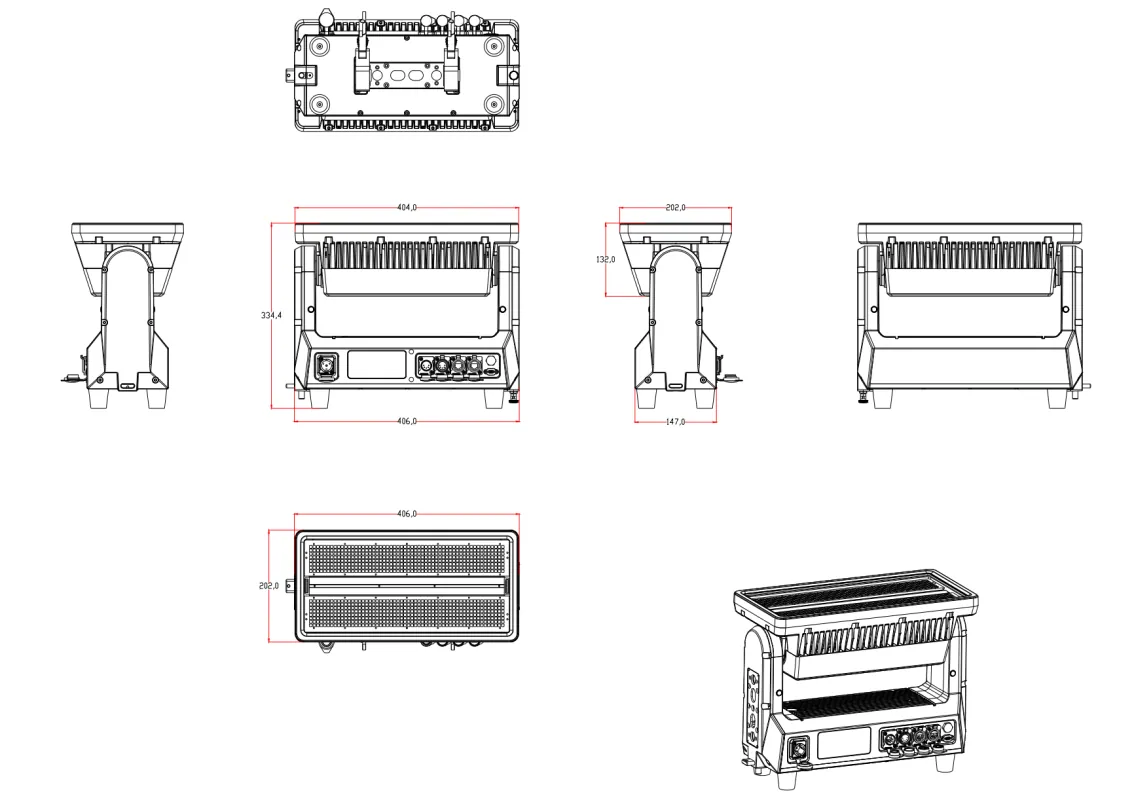

Product Dimensions: 202(D)*406(W)*334.4(H)mm
Packing Dimensions: 295(D)*530(W)*380(H)mm

19Accessories6

Power Cable STANDARD code: QTY: 1PCS

Signal Cable STANDARD code: QTY: 1PCS

Safety Cable STANDARD code: QTY: 1PCS

Road Case OPTIONAL code: Available for 2-in-1, 4-in-1, 6-in-1 versions

Clamps OPTIONAL code: QTY: 2PCS

Omega STANDARD code: QTY: 2PCS

02DescriptionManufacturer's description

What it is.

STROBE 1176HP

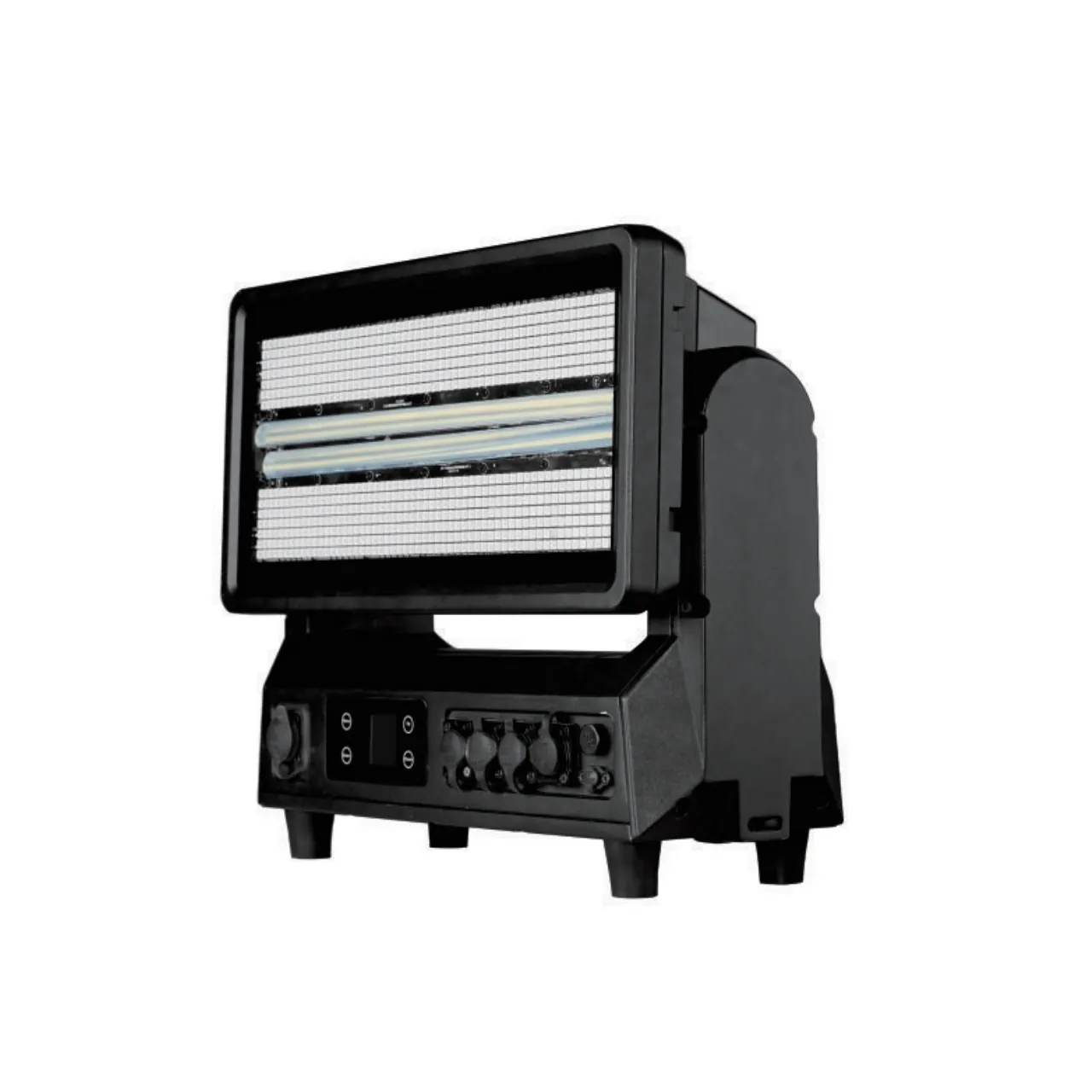

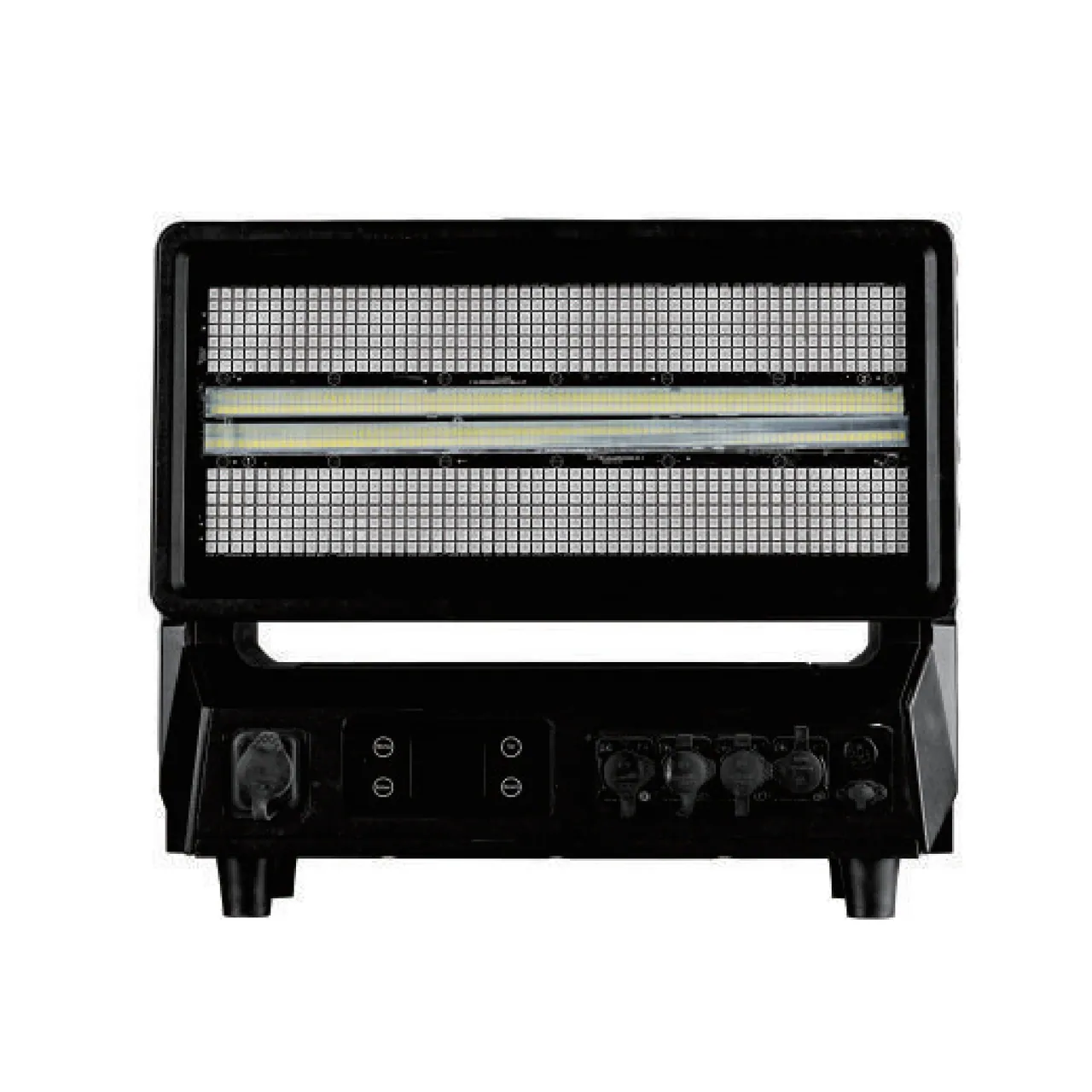

The STROBE 1176HP is an ultra high power IP66 rated strobe light basing on LED technology. It features two LED tubes in the middle (main strobe) with 392*2W Cool-White 6500K LEDs in 28 segments, plus 784*1.5W RGB 3in1 LEDs (auxiliary panel light) in 14 segments. All these segments, either the main strobe or the auxiliary panel light, can be individually controllable for various color changing effects, strobe effects, and macro effects, to meet with diversified entertainment functions.

The fixture brings high brightness, wide-angle light strobe, and perfect light distribution. Esp. with 180° tilt movement and high speed and strong shutter/strobe effects, it offers the users more dynamic effects than conventional discharge strobe systems.

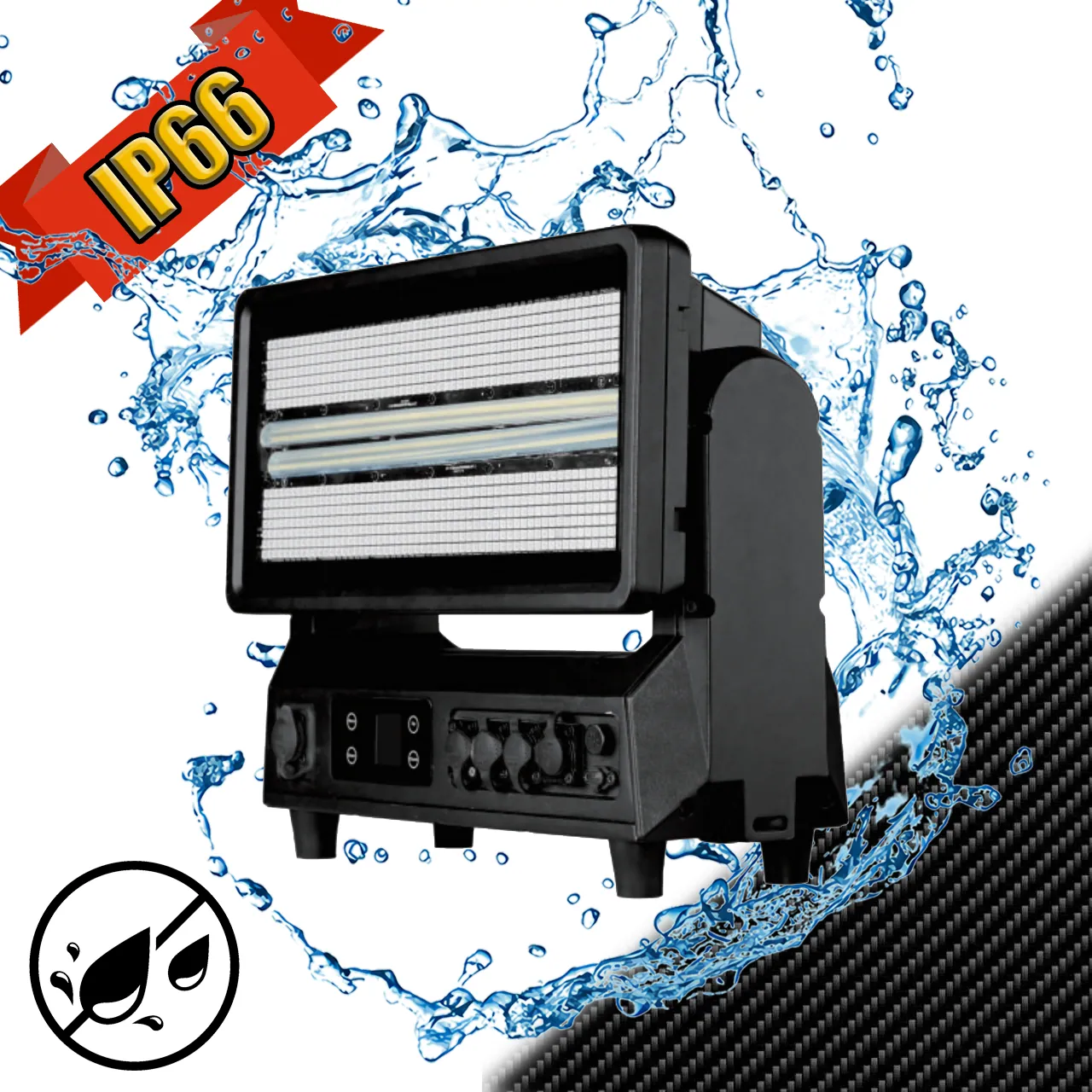

The molded housing is designed compact and stylish. Rated IP66, it’s applicable for most outdoor applications, music festivals, live concerts, road shows, etc.
