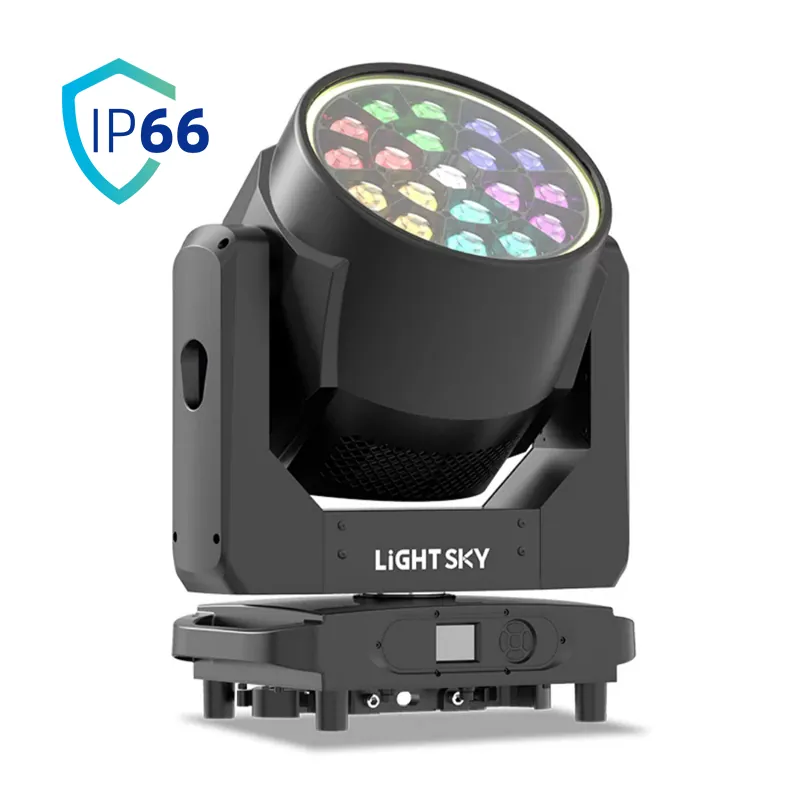

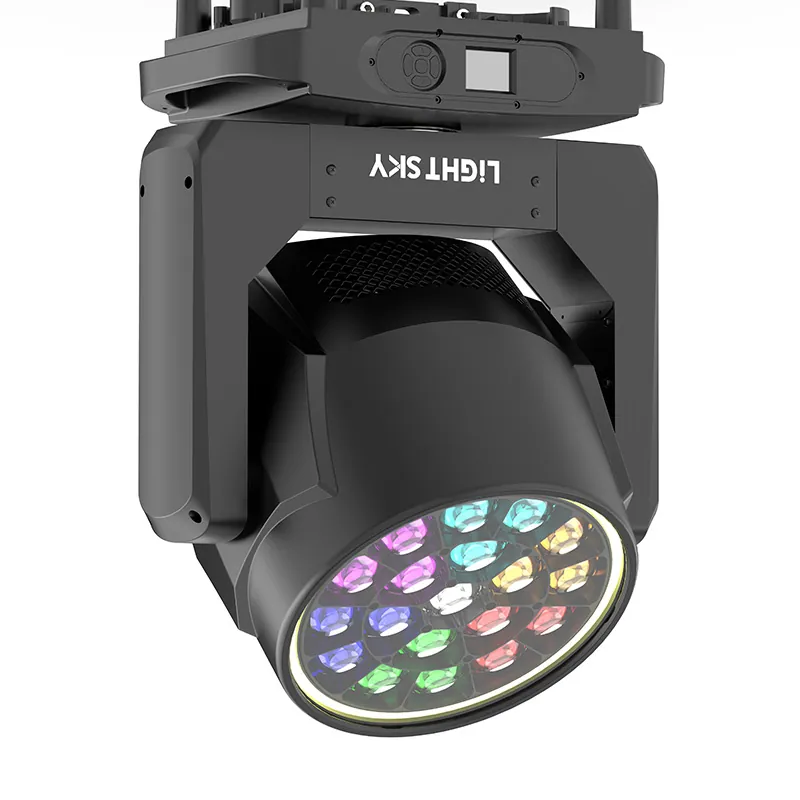

AQUAPEARL-PRO II

AQUAPEARL-PRO II is an IP66 LED wash moving head fixture that combines powerful wash output, beam effects, and rich RGBW color mixing.

Light source: 19×40W RGBW LED
Power supply: AC 100-240V 50/60Hz
Beam angle / zoom: 5° – 25°
DMX channels: 26CH, 98CH, 28CH, 100CH, 35CH (see channel chart for details)
Protocols: DMX512, RDM, Art-Net, sACN
Colour temperature: 2500K to 10000K
Net weight: 25.0 kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:59

LIGHT SKY AQUAPEARL-PRO II1:59

02SpecificationManufacturer's data · 9 groups · 42 values

What this product is, in numbers.

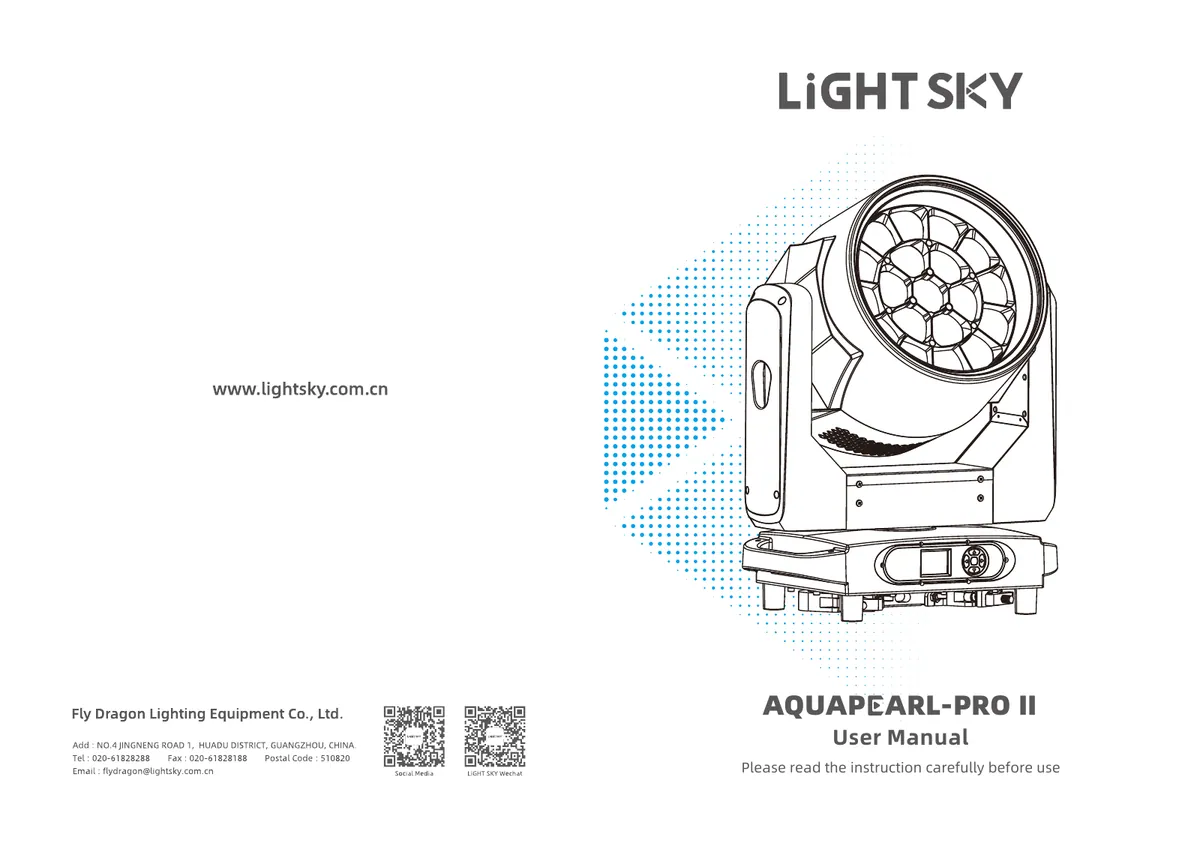

PDFUser manualEN · 34 pages · 10 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICAL7

Light Source: 19×40W RGBW LED
Beam Angle: 5° – 25°
Zoom Angle: 7° – 45°
Color Temperature: 2500K to 10000K

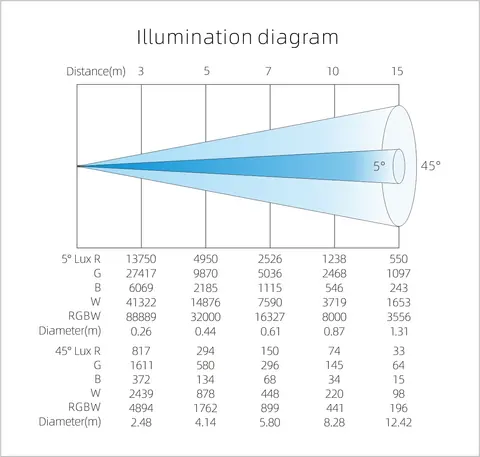

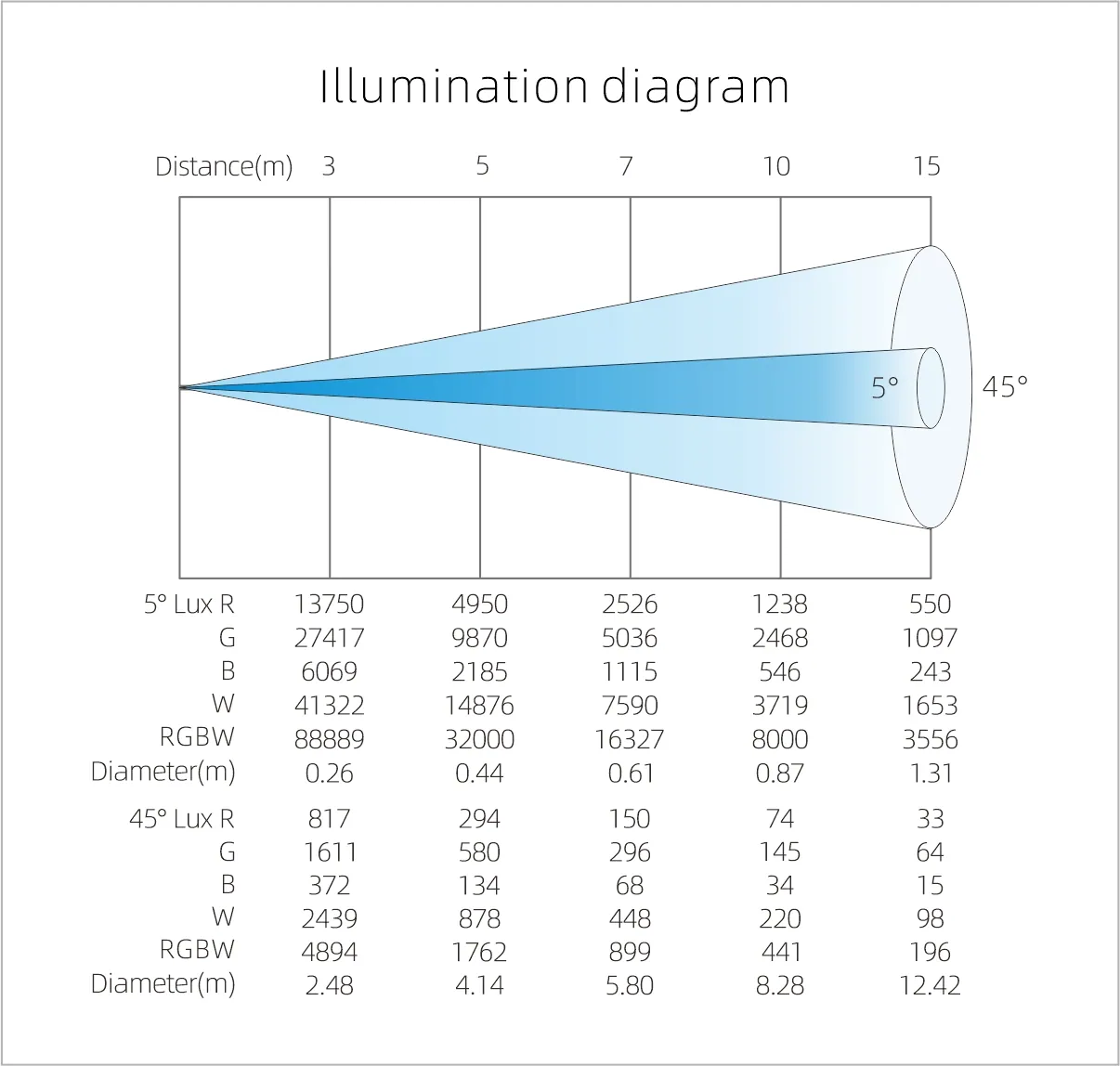

Illuminance: 32,000 lux @ 5m
Total Lumen Output: 9700 Lm
Light Source Average Life Span: 30,000 hours

02EFFECTS7

Color Mixing System: Uniform RGBW color mixing system and rainbow effect
Zoom System: Linear electronic zoom
Pixel Control: Each LED can be controlled independently for versatile color effects
Front Ring: The front luminous circle can be controlled individually to create dynamic color-changing effects
Effect Macros: Includes static and dynamic effect macro functions.
Dimming: Electronic dimming with four dimming curves, four dimming frequencies, and four dimming speeds.
Strobe: 1-25Hz electronic strobe and random strobe effects.

03CONTROL & PROGRAMMING4

Control Channels: 26CH, 98CH, 28CH, 100CH, 35CH (see channel chart for details)
Protocols: DMX512, RDM, Art-Net, sACN
DMX and RDM Connectors: 3-pin or 5-pin XLR IN/OUT, Dual RJ45
Display: LCD screen

04SOFTWARE2

Software Upgrade: DMX signal interface
Temperature Intelligent Control: Ensures LED lifespan through temperature intelligent control

05PAN/TILT MOVEMENT4

Pan Axis: 540°, 8-bit/16-bit precision scan
Tilt Axis: 218°, 8-bit/16-bit precision scan; Reset function with automatic error correction
Fixed Lock: Tilt axis lock

06POWER & ELECTRICAL4

Input Voltage: AC 100-240V 50/60Hz
Maximum Power: 730W
Power Factor: 0.977
Maximum Current of Fixture: 3.32A/220V; 7.3A/100V

Show the full specificationHide the rest of the specification3 more groups · 14 values

07SIZE & WEIGHT6

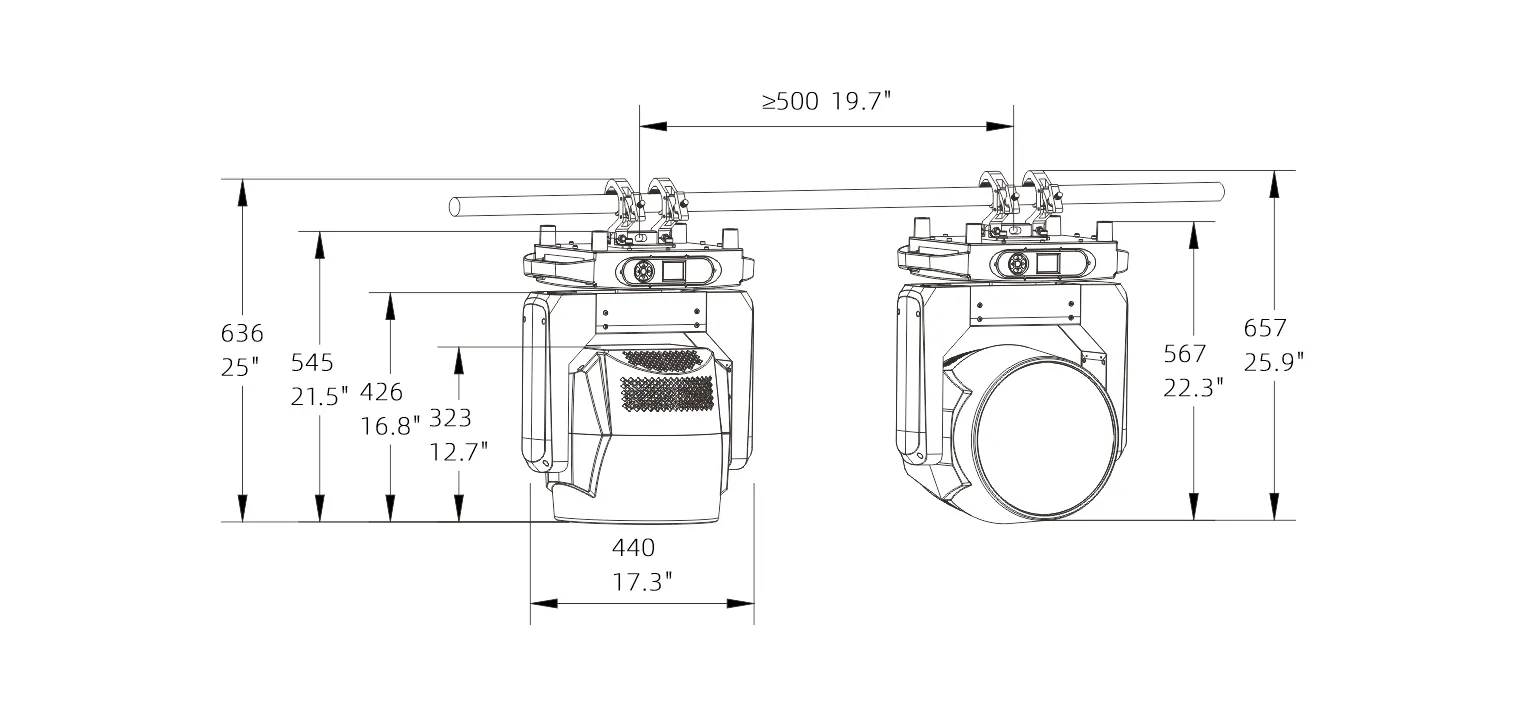

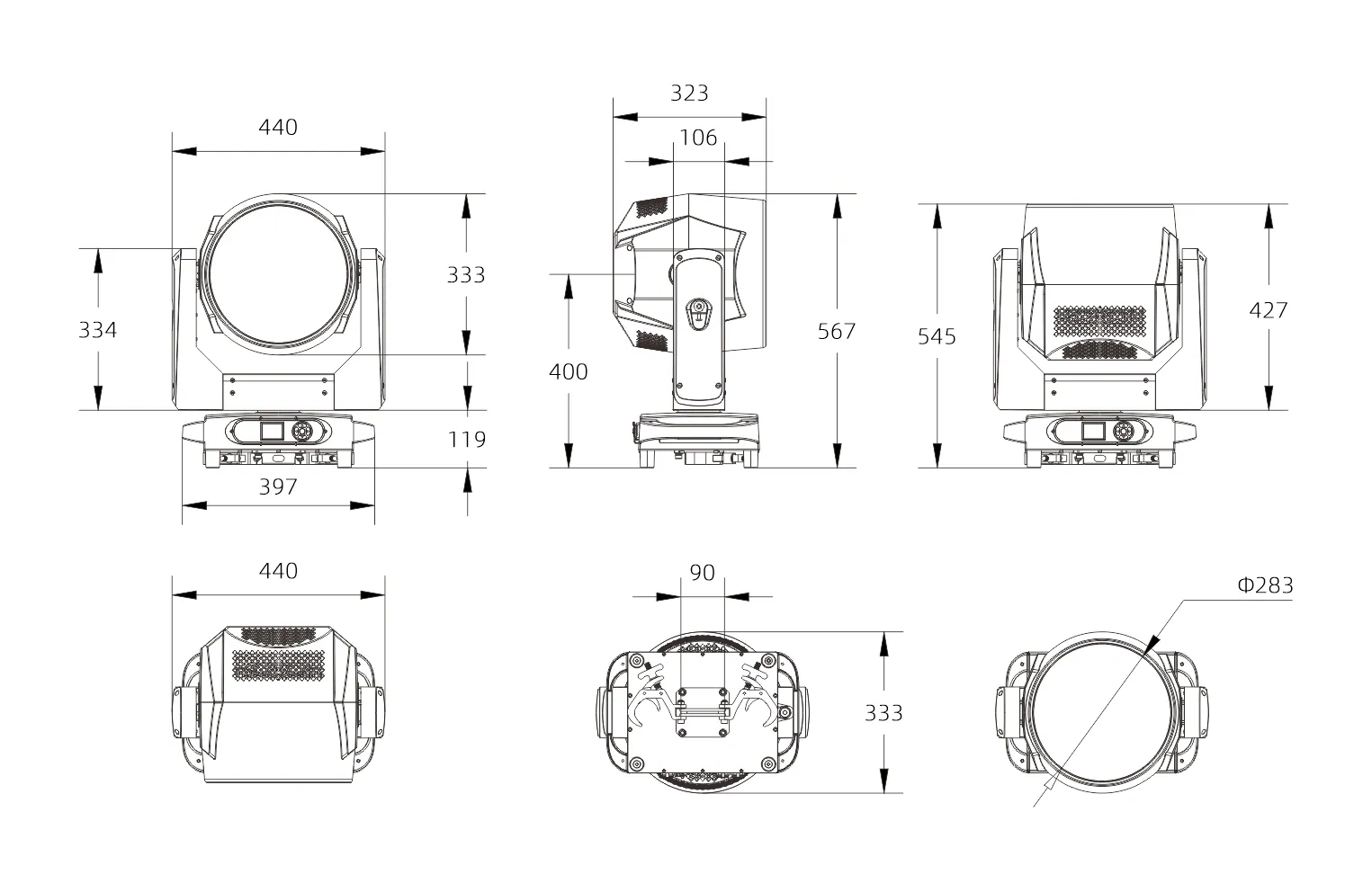

Product Dimensions: 440 × 333 × 567mm
Net Weight: 25.0 kg
Carton Packaging: 515 × 415 × 675mm
Gross Weight: 30.3 kg
OPTIONAL ACCESSORIES / PACKAGING
Fly case Packaging (2 in 1): 860×550×760mm
Gross Weight: 90.9kg

08OTHERS3

IP Rate: IP66
Operating Environment: -20°C ~ 45°C
Maximum Surface Temperature of Fixture: 65°C

09FACTORY CONFIGURATION5

Power Cable: 1 pc (Part No.: C1400050050)
Signal Cable: 1 pc (Part No.: F0200020087)
Safety Rope: 2 pcs (Part No.: F0200010010)
Clamp: 1 set (Part No.: C0499990040); LiGHT SKY as a leading professional lighting company with 30+ years of experience, delivers dependable LED stage wash lights and moving head wash light solutions for global entertainment projects. AQUAPEARL-PRO II brings powerful RGBW color, beam wash versatility, IP66 outdoor reliability, and dynamic visual effects to concerts, theatres, festivals, TV studios, and large-scale live events.

03DescriptionManufacturer's description

What it is.

AQUAPEARL-PRO II is an IP66 LED wash moving head fixture that combines powerful wash output, beam effects, and rich RGBW color mixing. Equipped with 19 × 40W RGBW LEDs, a 5°–45° optical zoom, and individually controlled LEDs, this LED beam moving head delivers vivid colors and dynamic visual effects for indoor and outdoor stage applications.

As a leading stage lighting equipment supplier, LiGHT SKY designs AQUAPEARL-PRO II as a premier moving head beam wash fixture for concerts, festivals, TV studios, theatres, and outdoor events that require strong output, flexible color control, and reliable all-weather performance.

FEATURES

19 × 40W RGBW LEDs: Deliver bright output, stable performance, and rich color mixing.
Beam Wash Function: Combines LED wash and beam effects for flexible stage lighting design.
Individual LED Control: Supports pixel-style color effects and dynamic visuals
Rotating Front Lens: Creates vortex and kaleidoscopic effects in the air.
Front Halo Control: Individually controlled halo LEDs create dynamic color-changing effects.
5°–45° Optical Zoom: Supports narrow beam looks and wide wash coverage.

IP66 Protection: Against water, dust, and oil exposure, built for reliable indoor and outdoor use in demanding stage environments.
