AQUAPEARL-PRO

Light source: OSRAM 19X40W RGBW LED
Power supply: AC 100-240V 50/60Hz
Beam angle / zoom: 5 °~25 °
DMX channels: standard 26CH, 45CH, 98CH, 79CH, 22CH, 16CH, 39CH, 35CH, see channel table for details.
Colour temperature: 2500K-10000K
Net weight: 29.0 kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:42

LIGHT SKY AQUAPEARL-PRO1:42

02SpecificationManufacturer's data · 9 groups · 41 values

What this product is, in numbers.

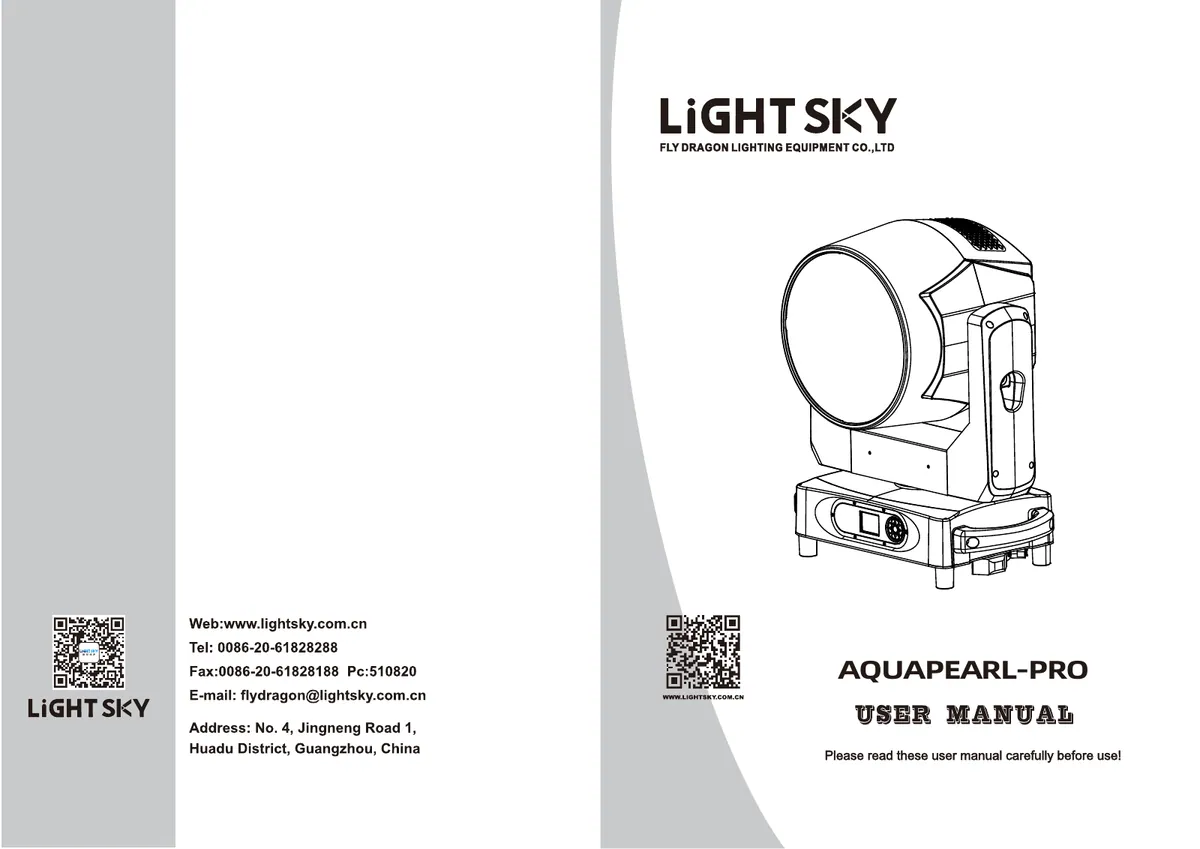

PDFUser manualEN · 32 pages · 4.2 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICS7

Light source: OSRAM 19X40W RGBW LED
Beam angle: 5 °~25 °
Spot angle: 7 °~45 °
Color temperature: 2500K-10000K

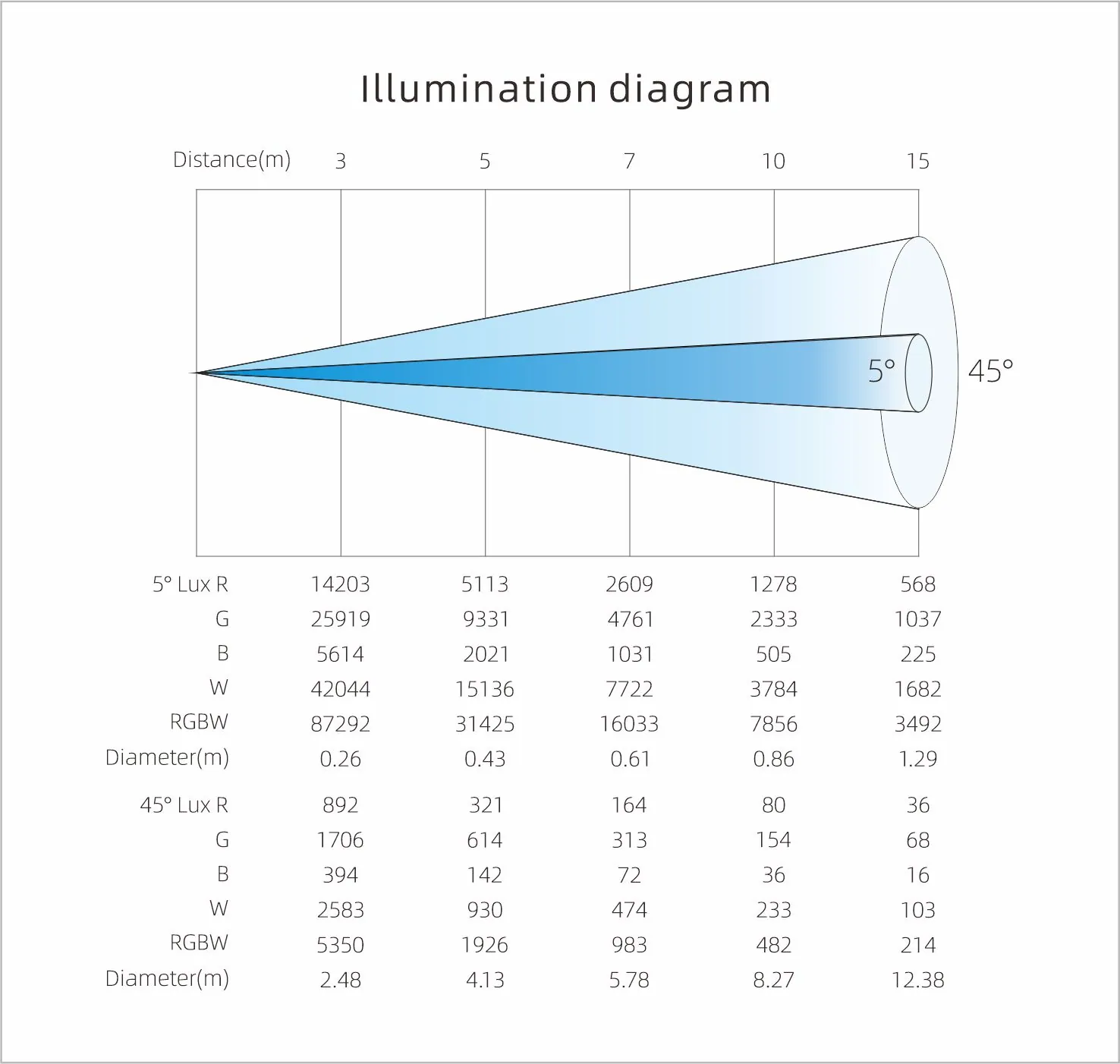

Illuminance: 31425 lux @ 5 meters
Luminous flux: 9653 Lm
Average lifespan of light source: 30000H

02EFFECT7

Color Mixing System: Uniform RGBW Color Mixing System and Rainbow Effect.
Zoom system: linear electric zoom
Single point control: The light source supports independent control of a single element,with outstanding transformation effects.
Front aperture: The front aperture can be controlled at a single point, allowing for free pursuit of flowing color changing effects.
Effect macros: static effect macros and dynamic effect macros functions.
Dimming: Electronic dimming, providing four dimming curves+four dimming frequencies+four dimming speeds.
Strobe: 1-30Hz electronic strobe and random strobe.

03CONTROL AND PROGRAMMING4

Control channels: standard 26CH, 45CH, 98CH, 79CH, 22CH, 16CH, 39CH, 35CH, see channel table for details.
Control protocols: Standard DMX512 protocol, RDM protocol, Art Net protocol.
Data connection: Three core or five core signal input/output
Display: LCD screen

04SOFTWARE3

Upgrade software through DMX signal interface

Upgrade software via USB interface (optional)

Intelligent temperature control ensures LED lifespan

05X/Y AXIS MOTION ANGLE4

X-axis: 540 ° (8-bit/16bit precision scanning)
Y-axis: 218 ° (8-bit/16bit precision scanning); Reset function with automatic error correction
Fixed lock: Y-axis lock

06POWER4

Input voltage: AC 100-240V 50/60Hz
Maximum power: 800W
Power factor: 0.985
Maximum current of the lamp: 3.64A/220V, 7.3A/110V

Show the full specificationHide the rest of the specification3 more groups · 12 values

07DIMENSION6

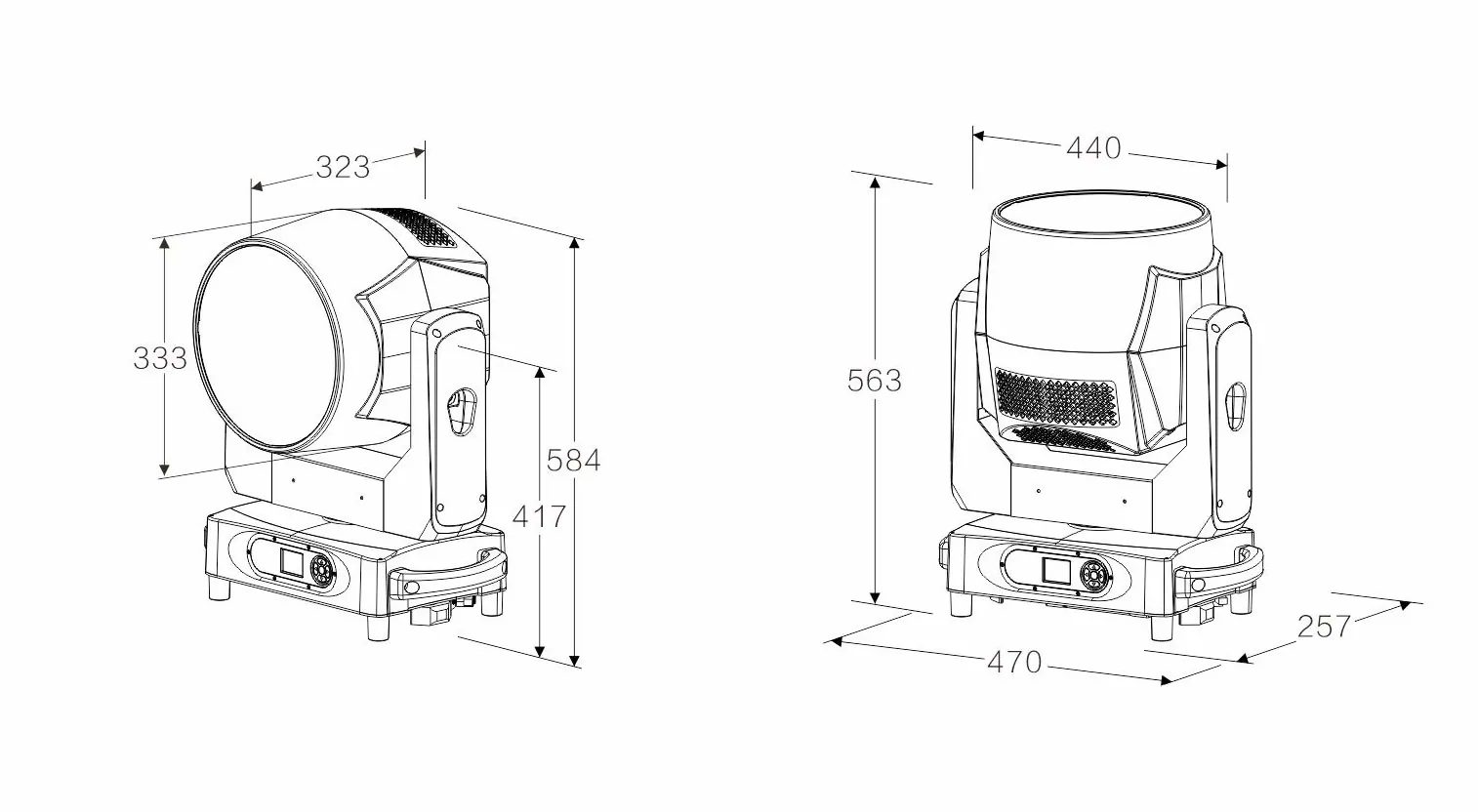

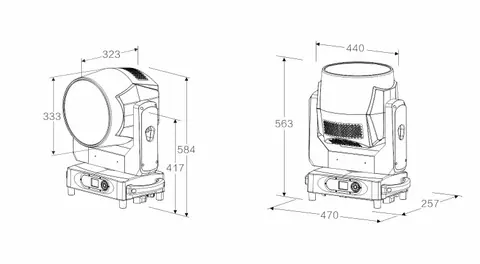

Product size: 470 × 333 × 563mm
N.W.: 29.0 kg
Carton packaging (default): 540 × 410 × 645mm
G.W.: 33.8 kg

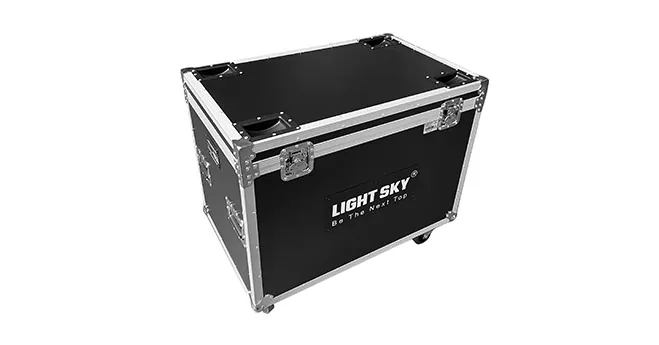

Flycase Size(2 sets): 925×580×785mm
G.W.: 101.8 kg

08OTHER3

Protection level: IP66
Working environment: -20 °C~40 °C
Maximum surface temperature of lamp body: 55 °C

09APPROVALS3

The product implementation standard: GB/T7000.1-2023、GB/T 7000.217-2023
Approved certifications: CE、RoHs
The product complies with the following EU directives: Low Voltage Directive 2014/35/EU.EMC Directive 2014/30/EU

03DescriptionManufacturer's description

What it is.

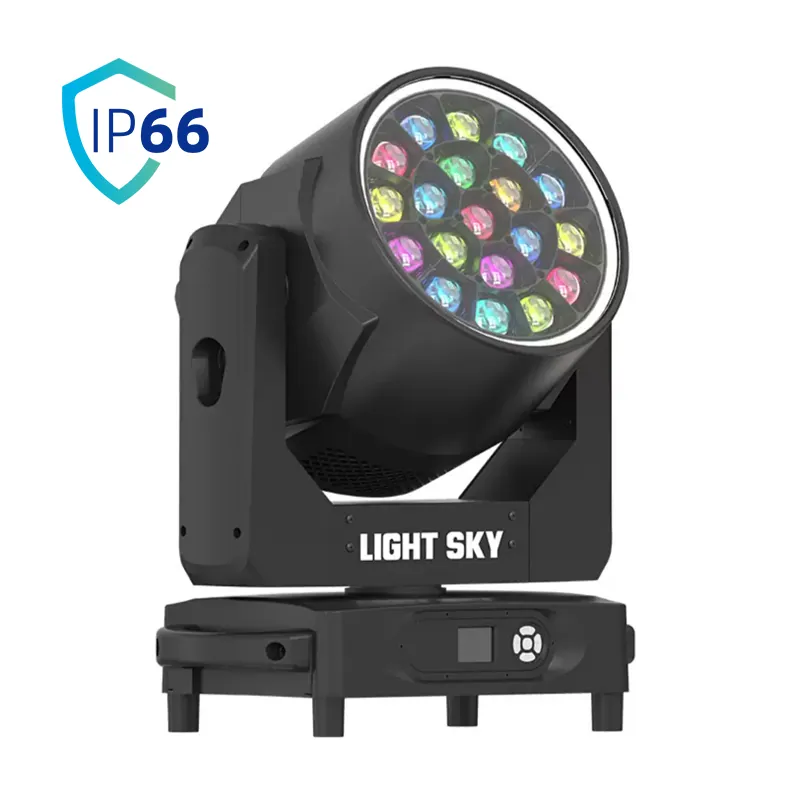

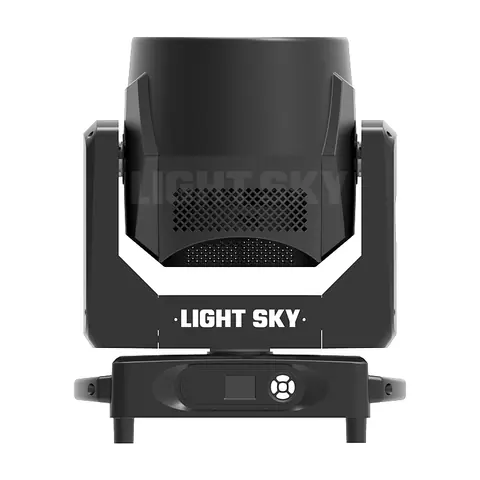

The LiGHT SKY AQUAPEARL-PRO is a long-life, high-performance outdoor moving head light. The LED moving head wash light has excellent light quality, a wide selection of colors, and a high protection level for permanent outdoor use. If you are interested in the LED Sharp Light? Please get in touch with us, and our team of experts will get back to you as soon as possible.

FEATURES

LED Chip:19pcs×40W RGBW 4 in 1LED, Stable performance, and long life span

Multifunction:LED Beam and Wash in one, high brightness, long distance, and Wide range of applications.

IP Rate:IP66, Waterproof, dustproof, and oilproof design, suitable for outdoor use permanently;Individual LED control varied in color and effect.

Rotating front lens for countless vortex effects, “kaleidoscopic” effect
LED front ring individual LED control
Built-in color calibration system, ensure consistent color mixing of each fixture
5-45° wide zoom angel
