Sheet 05.707

LIGHT SKY · Wash

AQUAPEARL-SMART

LiGHT SKY has an advanced stage light factory to produce types of waterproof moving head lights. This LED wash light moving head features an individually controllable LED front ring for stunning marquee effects.

Light source: 12pcs * 40W RGBW 4 in 1 LED
Power supply: AC 100-240V 50/60Hz
Beam angle / zoom: 3.6°to 40°
Protocols: DMX512、RDM、ARTNET、sACN
Net weight: 21.1 kg/pcs

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:30

LIGHT SKY AQUAPEARL-SMART2:30

02SpecificationManufacturer's data · 10 groups · 38 values

What this product is, in numbers.

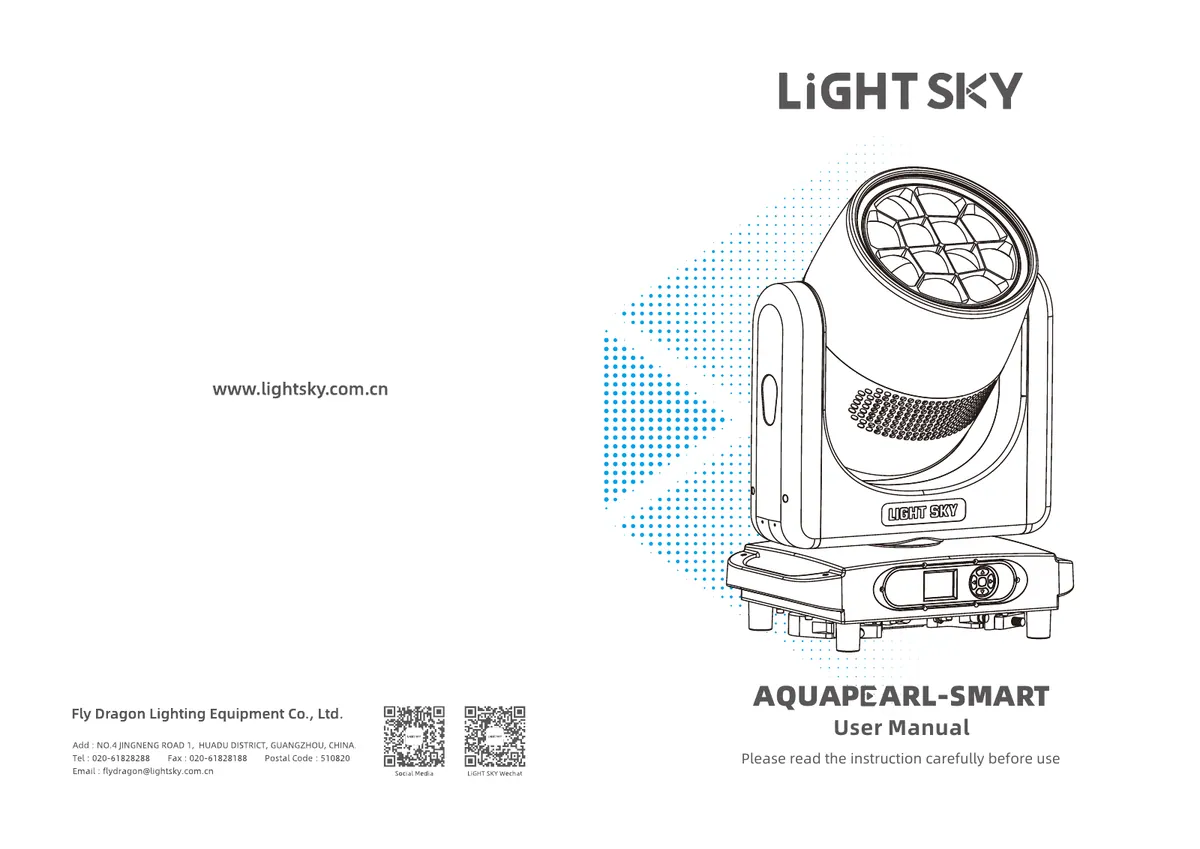

PDFUser manualEN · 25 pages · 5.1 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICAL7

Light source: 12pcs * 40W RGBW 4 in 1 LED
Beam angle: 3.6°to 40°
Zoom angle: 5°to 50°
Light color temperature range: 2500K to 10000K

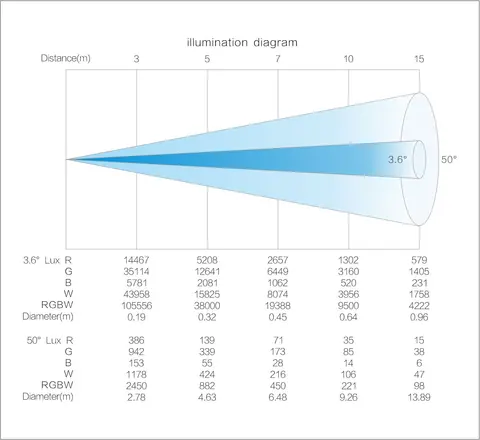

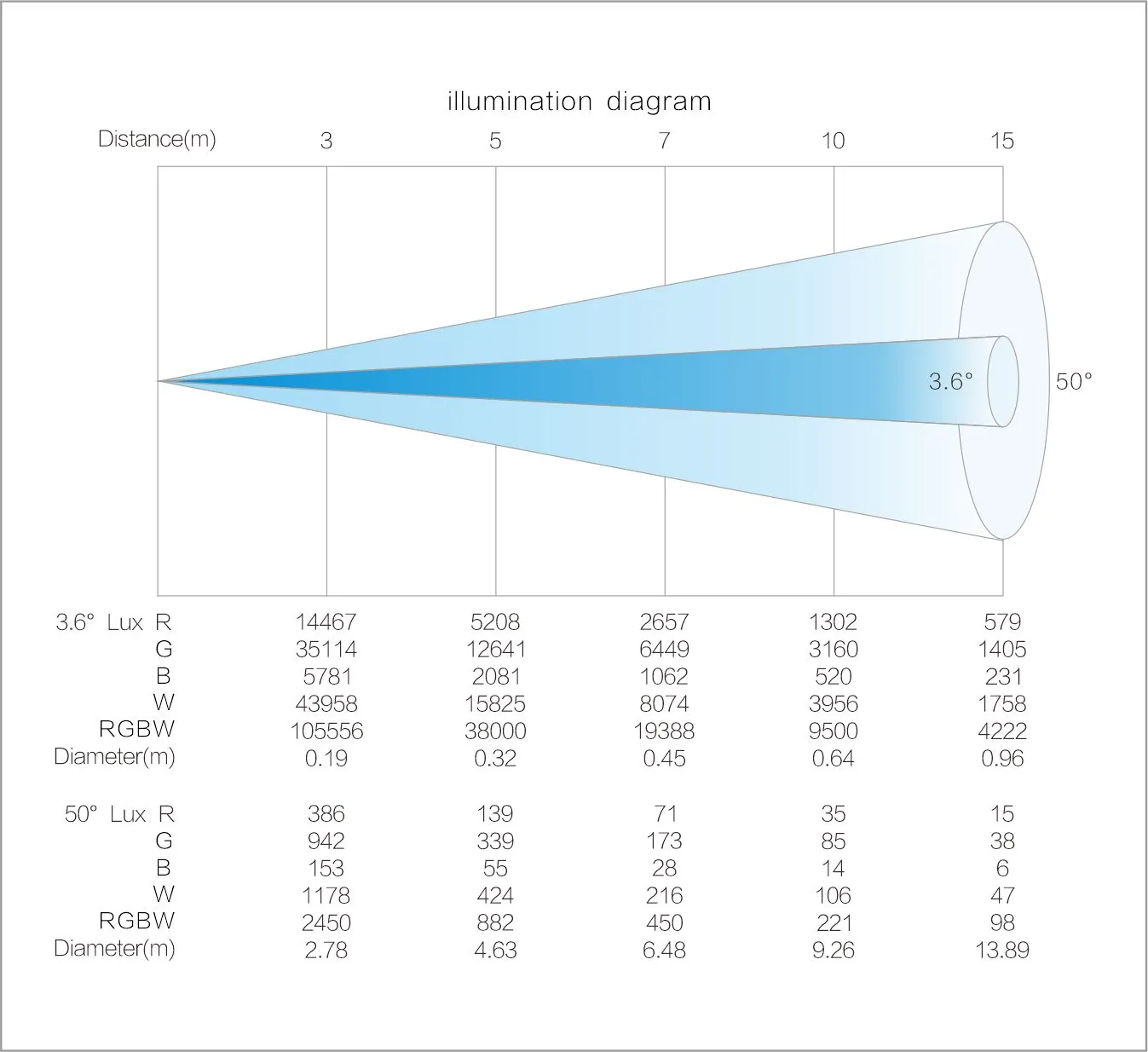

Illuminance: 38000lux@ 5m
Total lumen output: 7100LM
Light source average life span: 30000H

02COLOR1

Color mixing: RGBW color mixing system, can make rainbow effect

03EFFECTS6

Zoom system: Linear electric zoom
Individual LED control: Individual LED control, outstanding effect
Front ring AURA: The front ring AURA’s LED chip can be controlled individually, can make flow color effect
Effect macro: Static effect macro function and dynamic effect macro function
Dimmer: Electronic dimmer, provides four dimming options
Strobe: 1-25Hz electronic strobe and random strobe

04CONTROL4

Channel mode: 28CH,40CH,72CH,35CH
Control protocol: DMX512、RDM、ARTNET、sACN
DMX and RDM connectors: Locking 3 pin or 5 pin XLR IN/OUT
Display: LCD display screen. With Chinese and English two version language.

05SOFTWARE2

Software upgrade: Upgrade via DMX connector or USB
Temperature control: Intelligent temperature control to ensure LED life

06X/Y ANGLE OF MOTION3

Pan/Tilt: 540°/270° 8bit/16bit; Reset function with automatic error correction
Fixed lock: Tilt axis lock

Show the full specificationHide the rest of the specification4 more groups · 15 values

07POWER3

Voltage: AC 100-240V 50/60Hz
Power: 560W PF 0.996
Maximum current: 2.43A/220V; 5.0A/110V

08SIZE & WEIGHT6

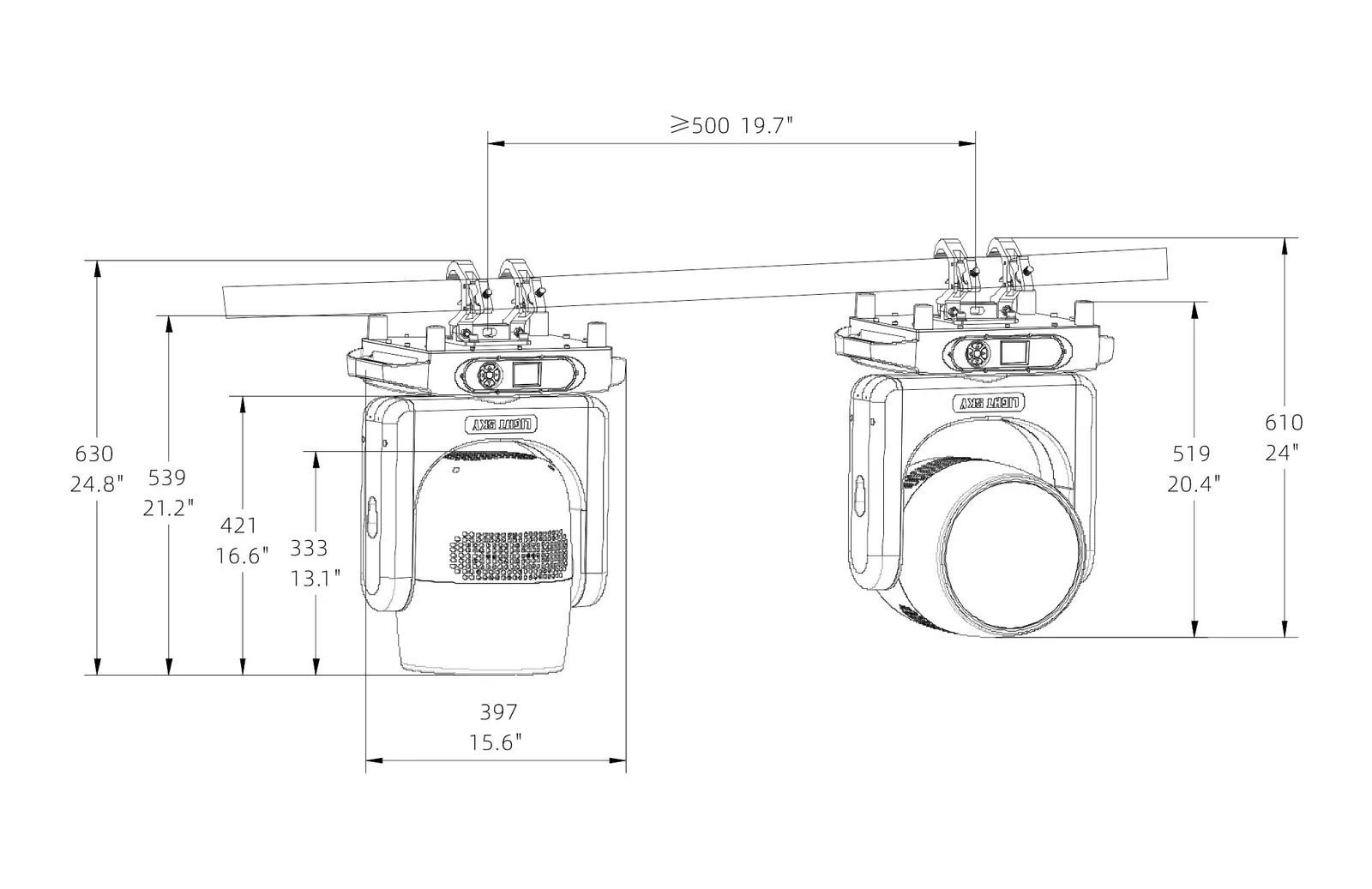

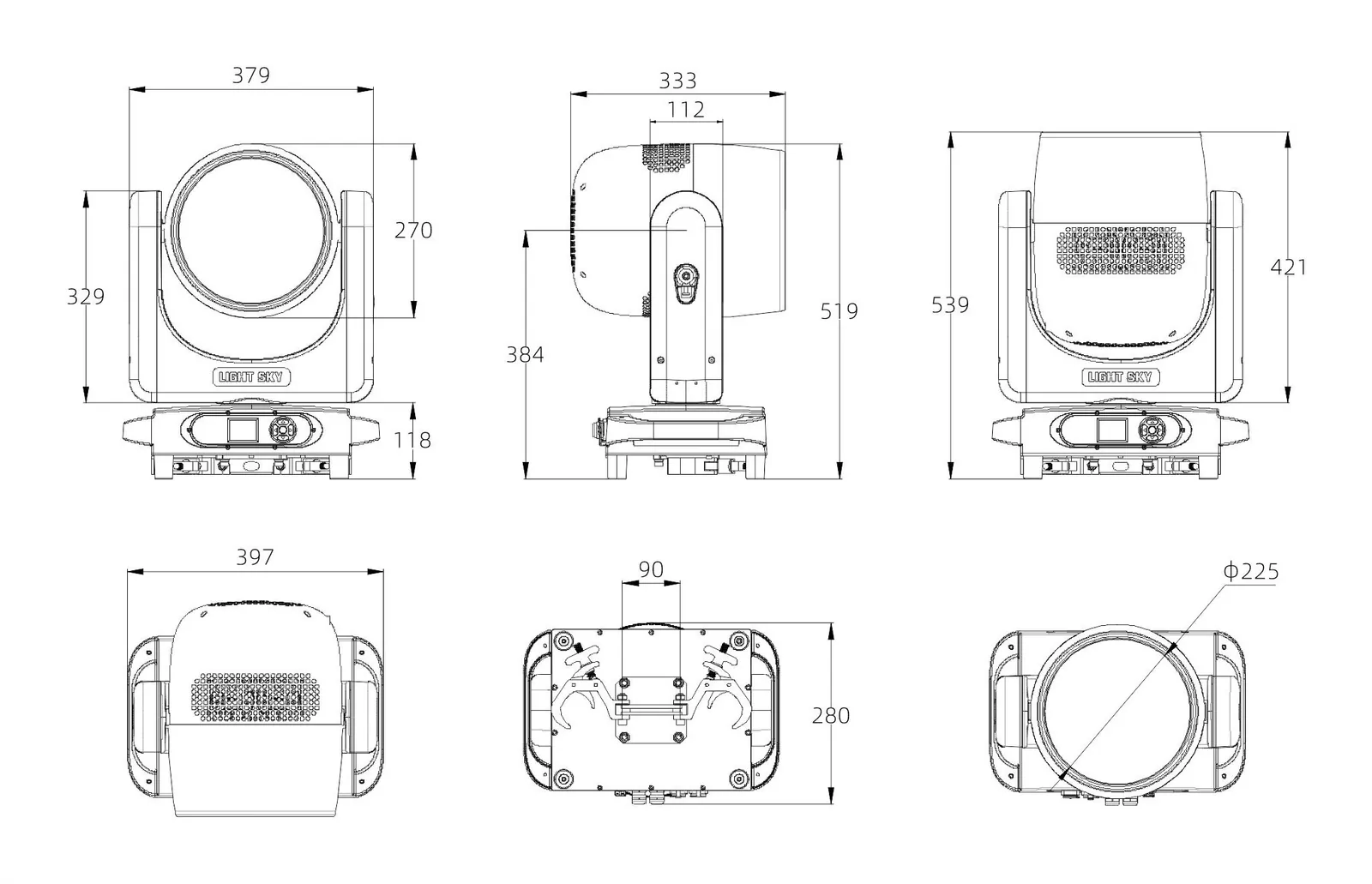

Light dimension: 397×280×539(mm)
N.W: 21.1 kg/pcs
Carton dimension: 470×350×670(mm)
G.W: 25.3kg/pcs
Flycase dimension: 720×520×745mm
G.W with fly case: 81.0kg (2 in 1)

09OTHERS3

IP rate: IP66
Working environment: -20°C to 45°C
Maximum temperature of light body surface: 55°C

10APPROVALS3

The product implementation standard: GB 7000.1-2015 GB7000. 217-2008
Approved certifications: CE、RoHS
The product complies with the following EU directives: Low Voltage Directive 2014/35/EU . EMC Directive 2014/30/EU

03DescriptionManufacturer's description

What it is.

With a suite of dynamic color and effect macros for endless creative possibilities, our LED moving head light is your perfect choice.

FEATURES

LED Chip: 12 pieces of 40W RGBW 4-in-1 LEDs to guarantee our LED wash light moving head has reliable performance and a long lifespan.

Functionality: Multifunctional LED moving outdoor sky beam light with a simple appearance and compact size.

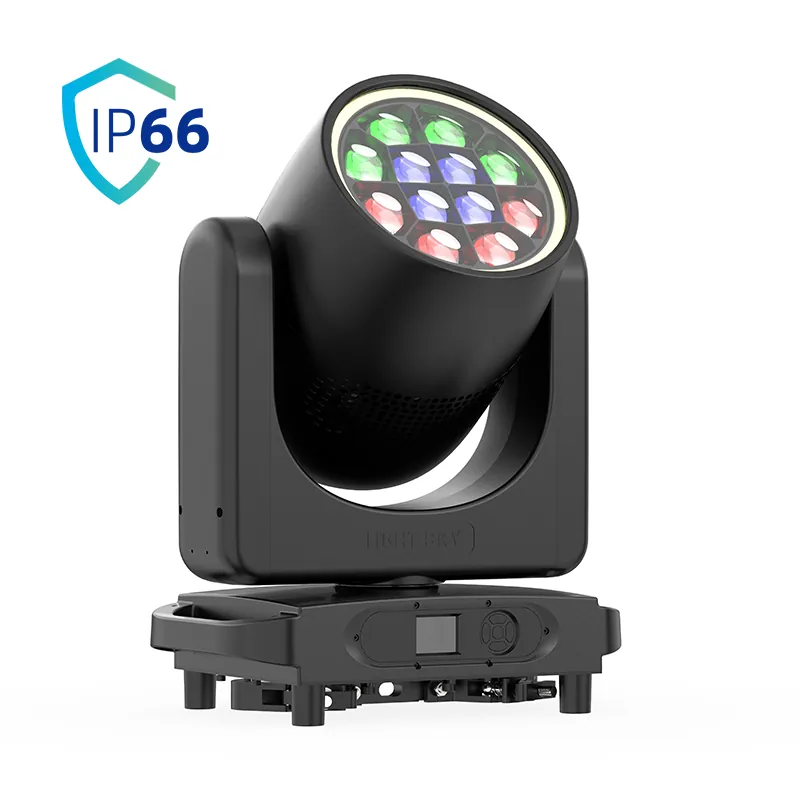

Waterproof Rating: IP66 waterproof, our LED moving head professional show lighting is suitable for both indoor and outdoor use, like various program shows and important occasions.

Rotating Lens: The 360° infinitely rotating front lens allows for the creation of endless vortex and mesmerizing “kaleidoscopic” effects.

LED Control: Individual LED control, allowing for varied colors and effects. Our LED moving headlight will surprise you.
