PIKE

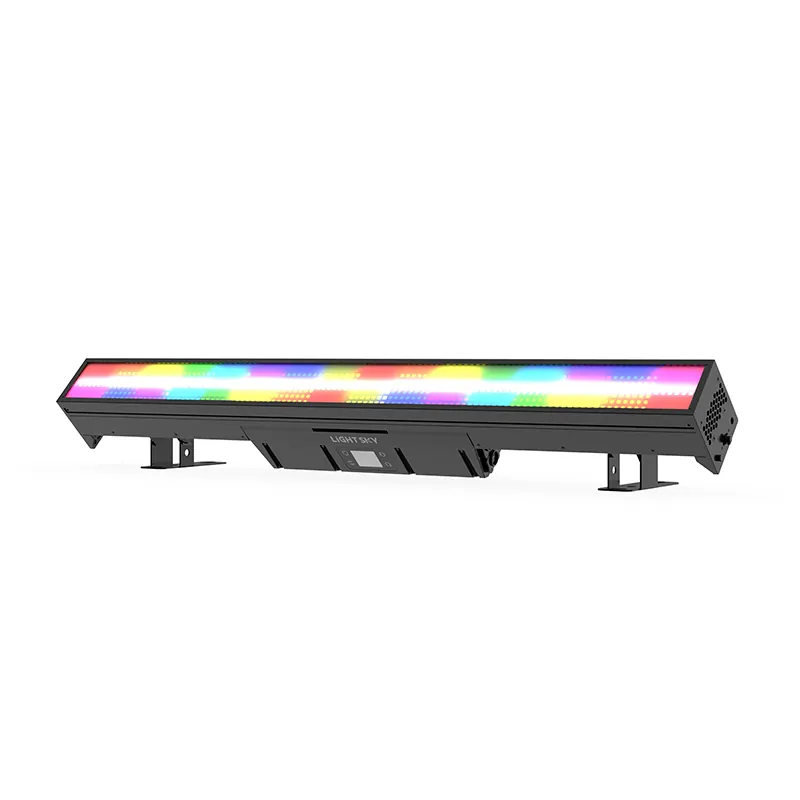

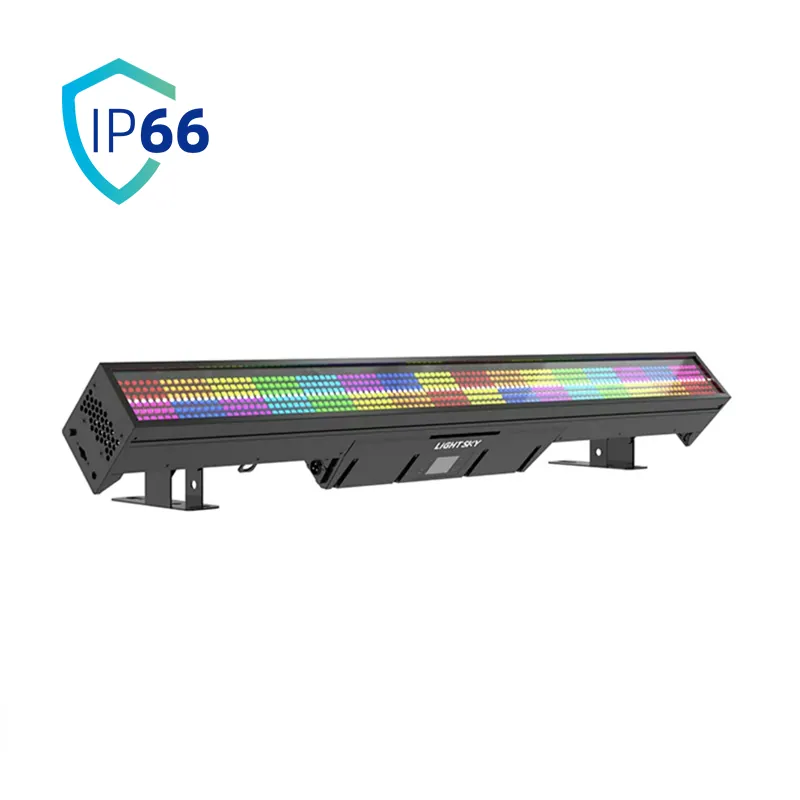

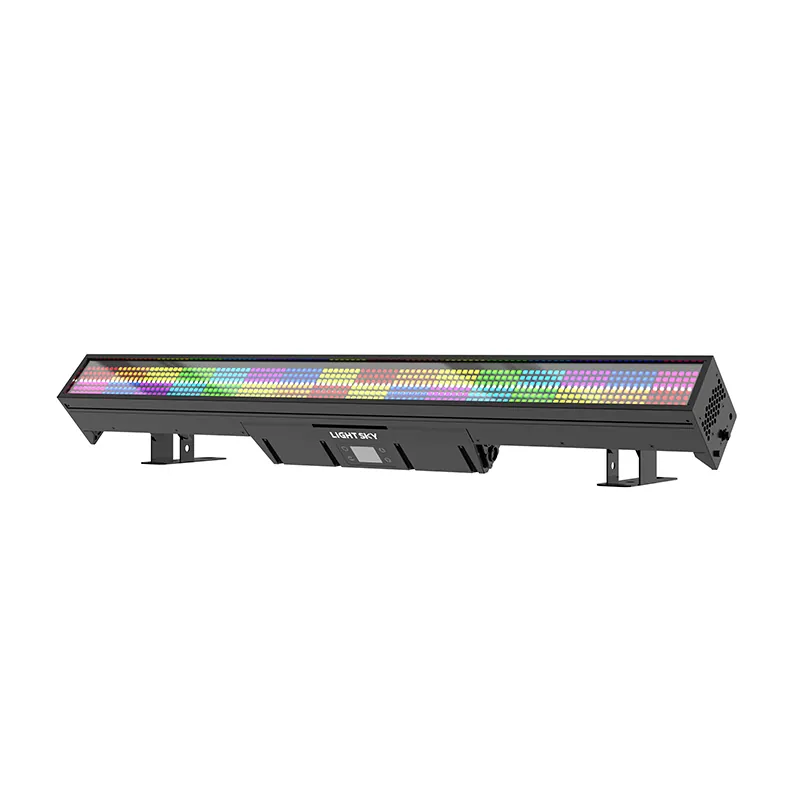

PIKE LED Light Bar with Strobe Function – an IP66-rated waterproof LED light bar with 672 RGB LEDs and 112 high-power cold white LEDs. This outdoor LED bar delivers vibrant color effects, smooth dimming, dynamic strobe, and a unique electronic frost effect.

Light source: 672pcs x 0.5W RGB LED and 112 x 3W Cold White LED
Beam angle / zoom: 71.5°
Net weight: 8.8kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 10 groups · 37 values

What this product is, in numbers.

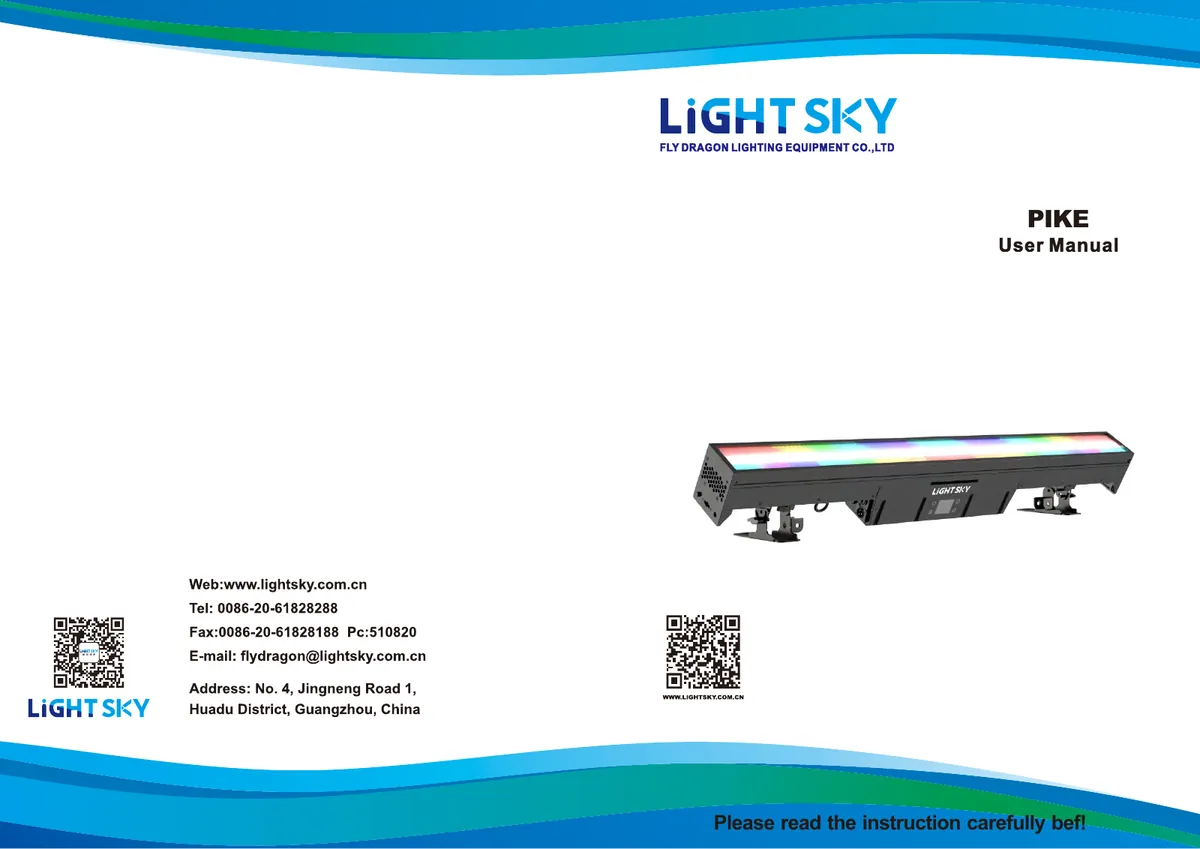

PDFUser manualEN · 33 pages · 1.3 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01LIGHT SOURCE AND OPTICS5

Light source: 672pcs x 0.5W RGB LED and 112 x 3W Cold White LED

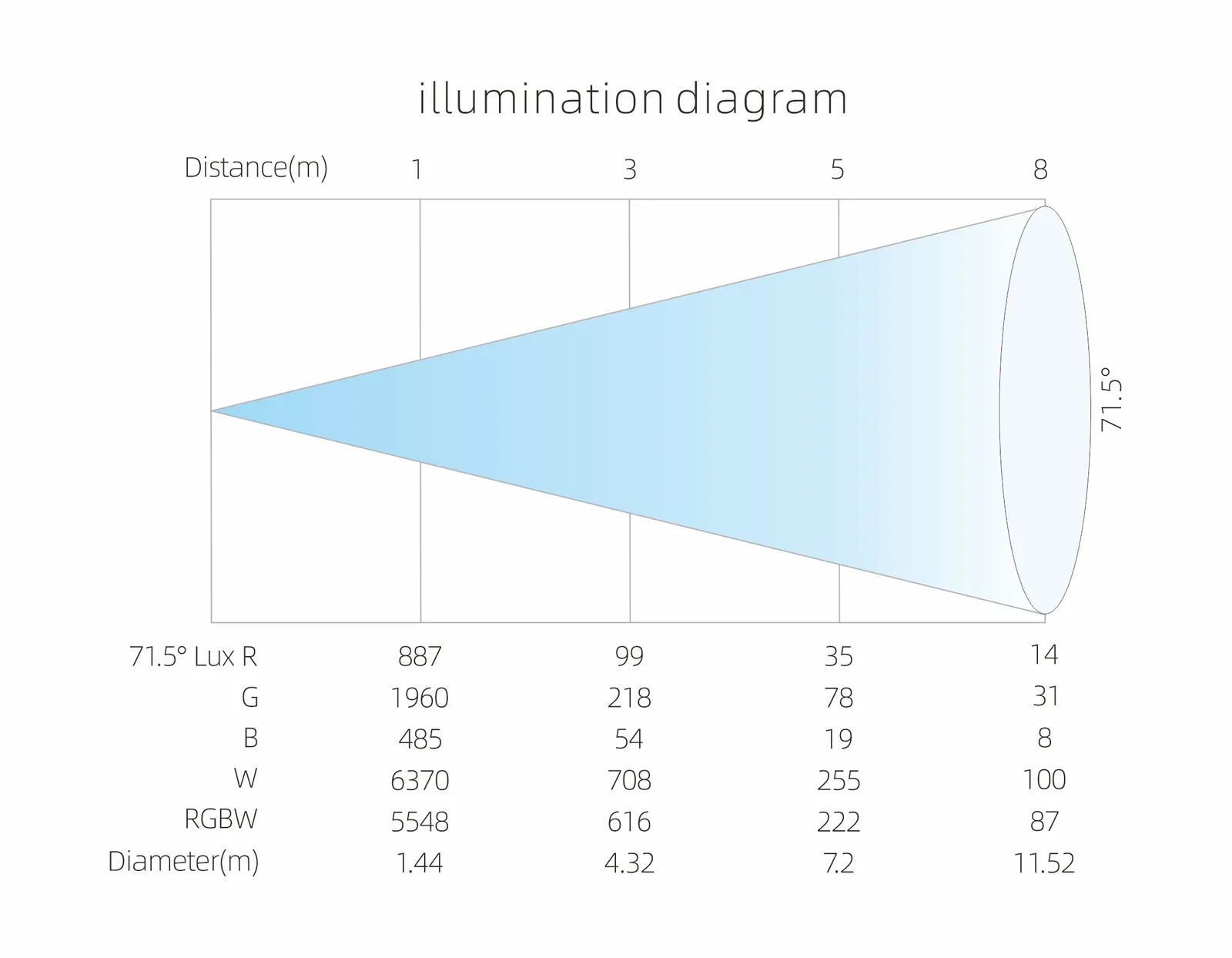

Beam angle: 71.5°
Spot angle: 114°
CRI: RA≥80
LED source average lifespan: 20,000 hours

02EFFECTS5

Color mixing system: Uniform RGB color mixing system and rainbow effect
LED Control: RGB LED zone and white LED zone can be controlled individually, create outstanding transformation effect
Effect macros: Static effect macros and dynamic effect macros
Dimming: Electronic dimming with four dimming curves
Strobe: 1-30Hz electronic strobe and random strobe

03CONTROL AND PROGRAMMING4

Control channel: 15CH (standard), 07CH, 70CH, 117CH, 68CH, 65CH, 33CH, 17CH, 112CH, 39CH, 21CH (see channel chart for details)
Protocol: DMX512 protocol, RDM protocol, Art Net
Data connection: 3pin or 5 pin(optional) , RJ45 network input/output
Display: LCD screen

04SOFTWARE2

Software upgrade: DMX interface
Temperature control: Intelligent system for LED lifespan

05POWER AND ELECTRICAL4

Rated voltage: AC 100-240V 50/60Hz
Maximum power: 450W
Power factor: > 0.96
Maximum current: 2.1A/220V; 4.5A/100V

06SIZE & WEIGHT4

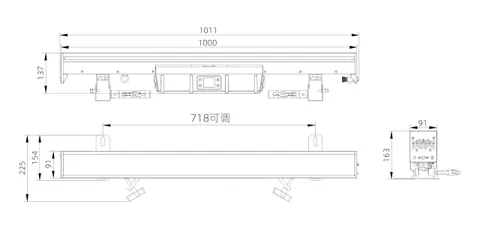

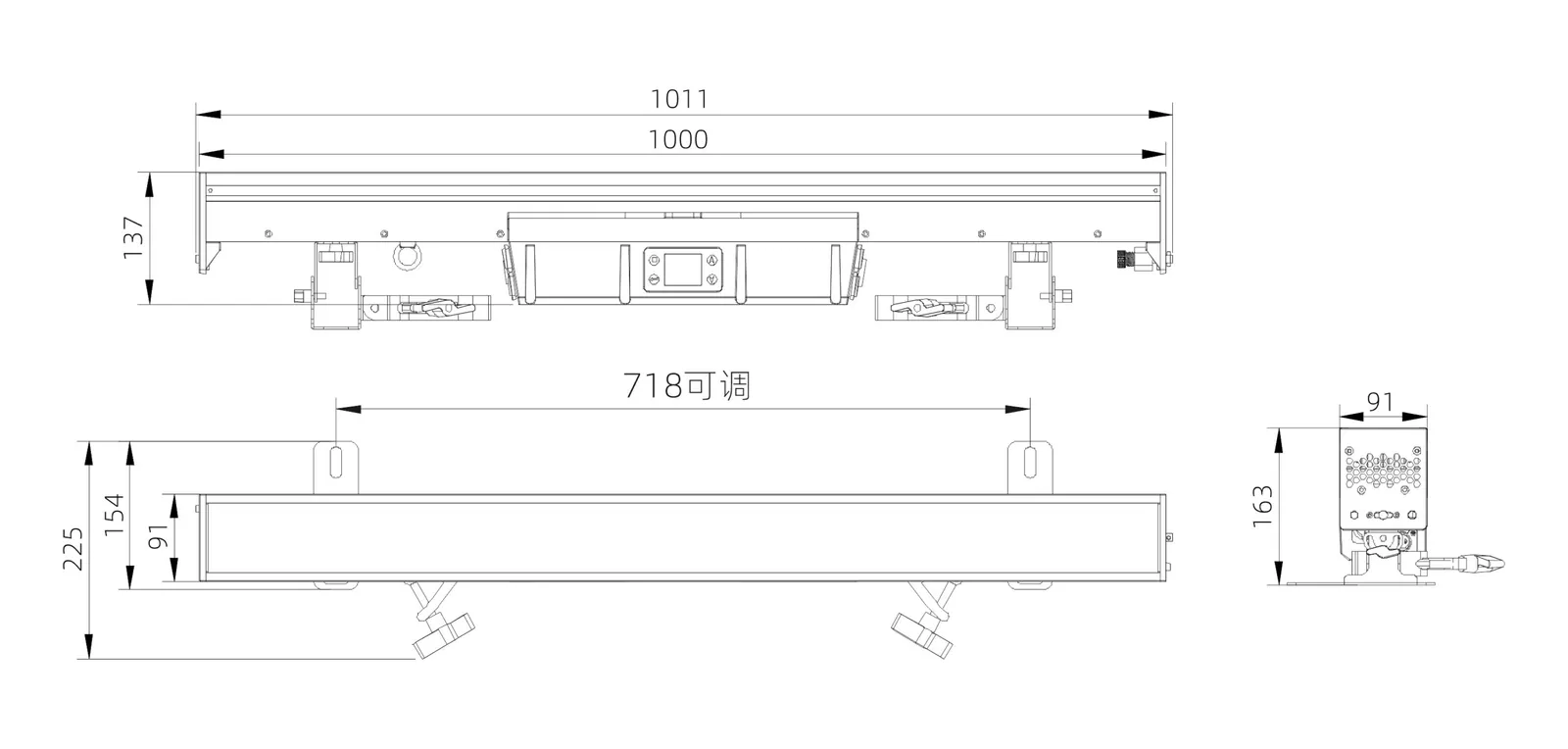

Product size: 1000×93×225mm
N.W.: 8.8kg
Carton packaging size(default): 1095×310×170mm
G.W.: 11.9kg

Show the full specificationHide the rest of the specification4 more groups · 13 values

07OTHER4

IP rate: IP66
Operating environment: -20 °C ~ 45 °C
Maximum Surface Temperature of Fixture: 65 °C
Connection System: Built-in splicing pins for quick connection between fixtures

08STANDARD PACKING ACCESSORIES(CARTON)7

Power Cable: 1 pcs
Signal Cable: 1 pcs (3 core (default)/5 core (optional)
Safety Rope: 2 pcs
Clamps system: 2 pcs (folding lamp hook)
OPTIONAL PACKAGING: FLY CASE
Packaging(Fly case): 1060 x 700 x 670 mm (Part No.: B0101180001)
G.W.: 141.9kg (10 in 1)

09About LiGHT SKY & PIKE Waterproof LED Light Bar1

LiGHT SKY is one of the top LED light bar manufacturers that has 30+ years of experience. We specialise in professional LED strobe light bar solutions, combining innovation with reliability. The PIKE outdoor LED bar exemplifies our commitment to performance—engineered for vibrant colour effects, rugged IP66 durability, and seamless connectivity.

10We’re here to help1

. Reach out to the best LED bar supplier’s experts anytime — we’re ready to support your next great production.

02DescriptionManufacturer's description

What it is.

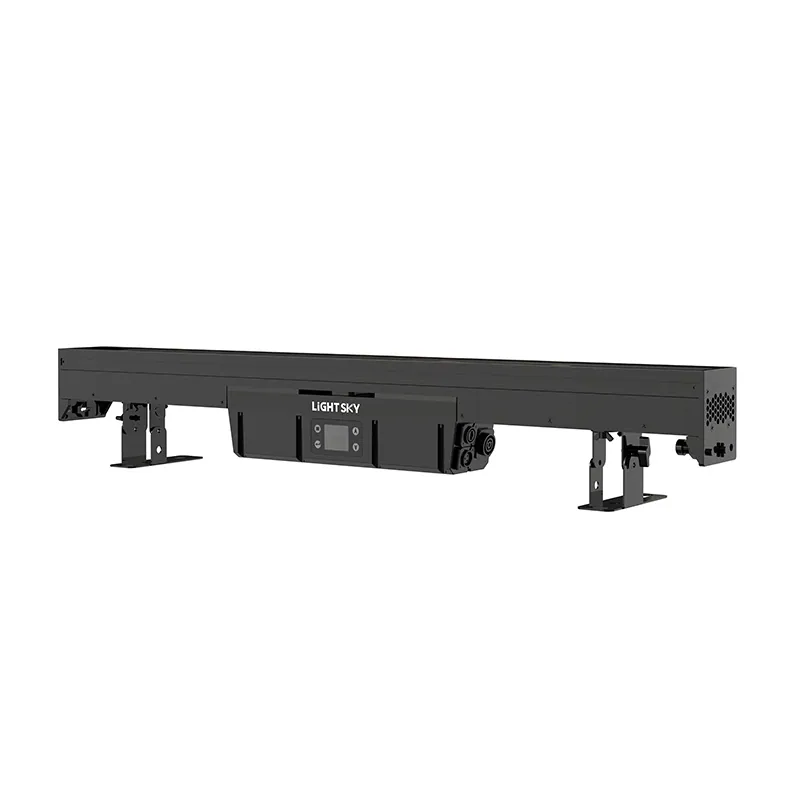

Featuring a compact and lightweight aluminum body, this outdoor LED light bar is ideal for outdoor events, concerts, festivals, bars, and nightclubs.

FEATURES

PIKE is an IP66 waterproof strobe bar light.

It adopts 672pcs 0.5W RGB LED and 112pcs 3W Cold White LED.

This light not only features classic strobe function and smooth, uniform dimming but also boasts a unique electronic frost effect, which can create colorful strobe rendering effects and many color-changing chase effects.

It has a smart and compact appearance. The housing is made of aluminum alloy, small in size and light in weight, and equipped with built-in splicing pins for quick connection.

It is highly suitable for entertainment venues such as outdoor variety shows, music festivals, concerts, bars, and nightclubs.
