MINI LASER AQUA

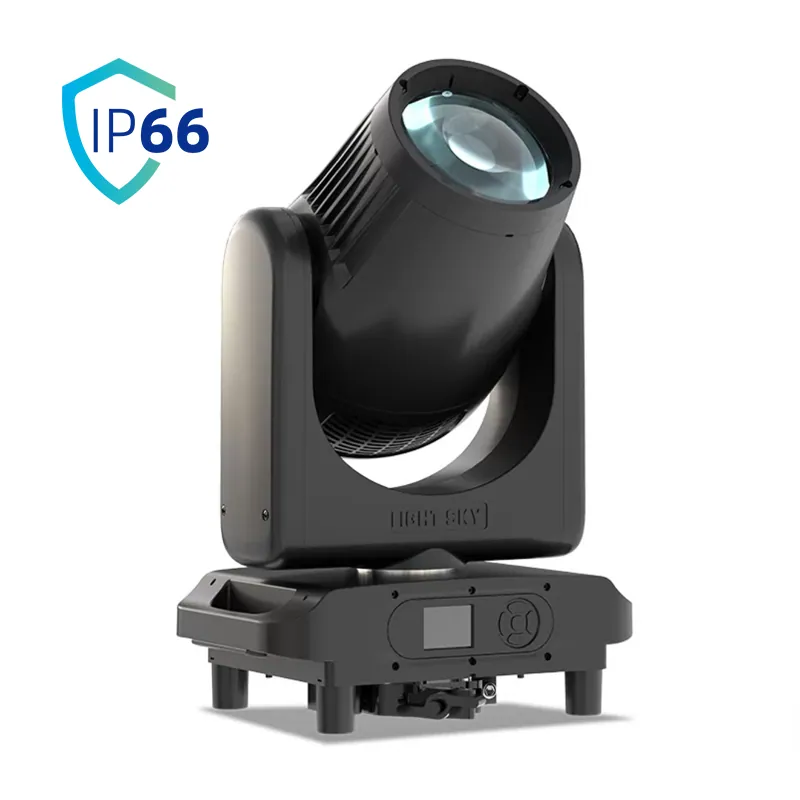

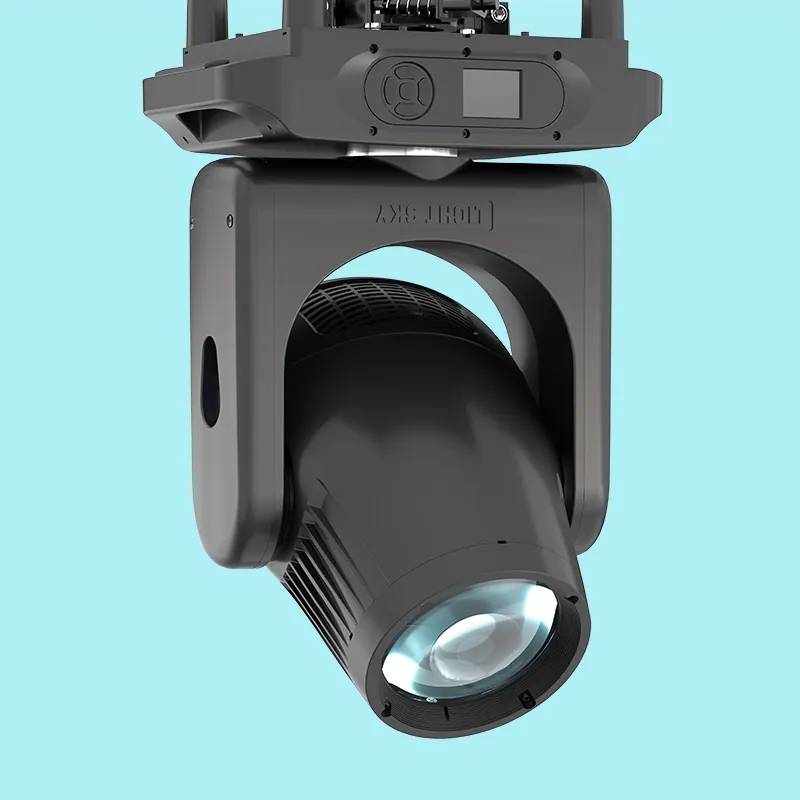

MINI LASER AQUA is a compact laser moving light designed for outdoor stage and entertainment applications. As a professional stage light supplier, LiGHT SKY offers this mini laser moving head for high-impact beam effects in demanding stage environments.

Light source: 100W white laser
Power supply: AC 100-240V 50/60Hz
Beam angle / zoom: 1.1°
DMX channels: 17CH, 19CH (see channel chart for details)
Protocols: DMX512, RDM, ARTNET
Colour temperature: 7800K
Net weight: 13.7 kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 2:31

LIGHT SKY MINI LASER AQUA2:31

02SpecificationManufacturer's data · 11 groups · 44 values

What this product is, in numbers.

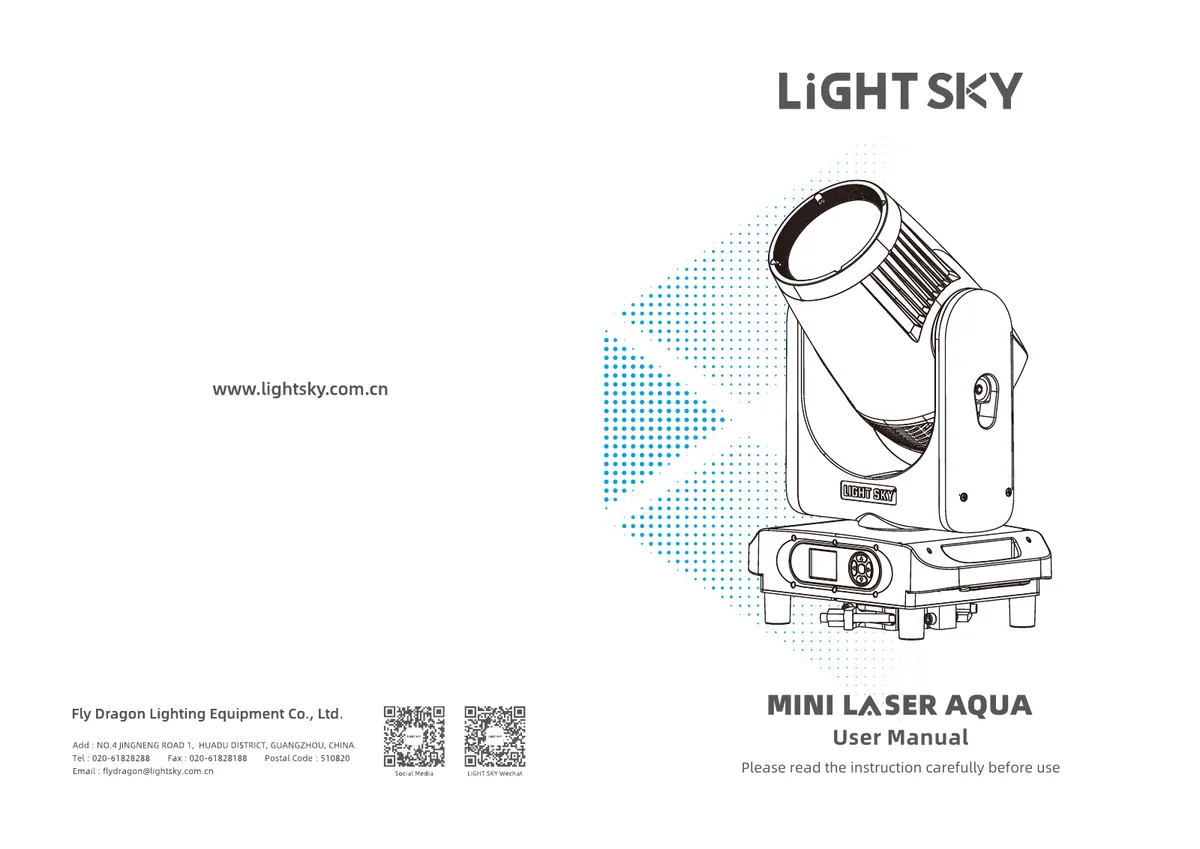

PDFUser manualEN · 22 pages · 5.6 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01OPTICAL7

Light Source: 100W white laser
Beam Angle: 1.1°
Optical Lens: 128mm HD lens
Color Temperature: 7800K
Color Rendering Index (CRI): Ra≥70

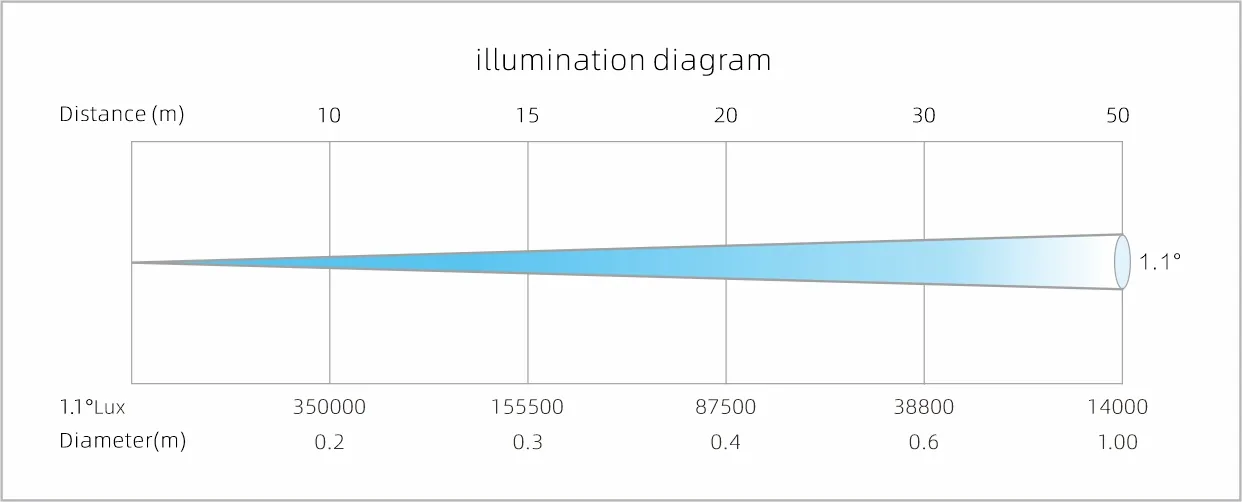

Illuminance: 350000lux@10m
Laser Source Life Expectancy: 12000 hours

02COLOR2

Color Wheel: 12 Colors + White Light, Bi-directional Rainbow Effect
CMY: Linear CMY Subtractive Mixing System

03EFFECTS5

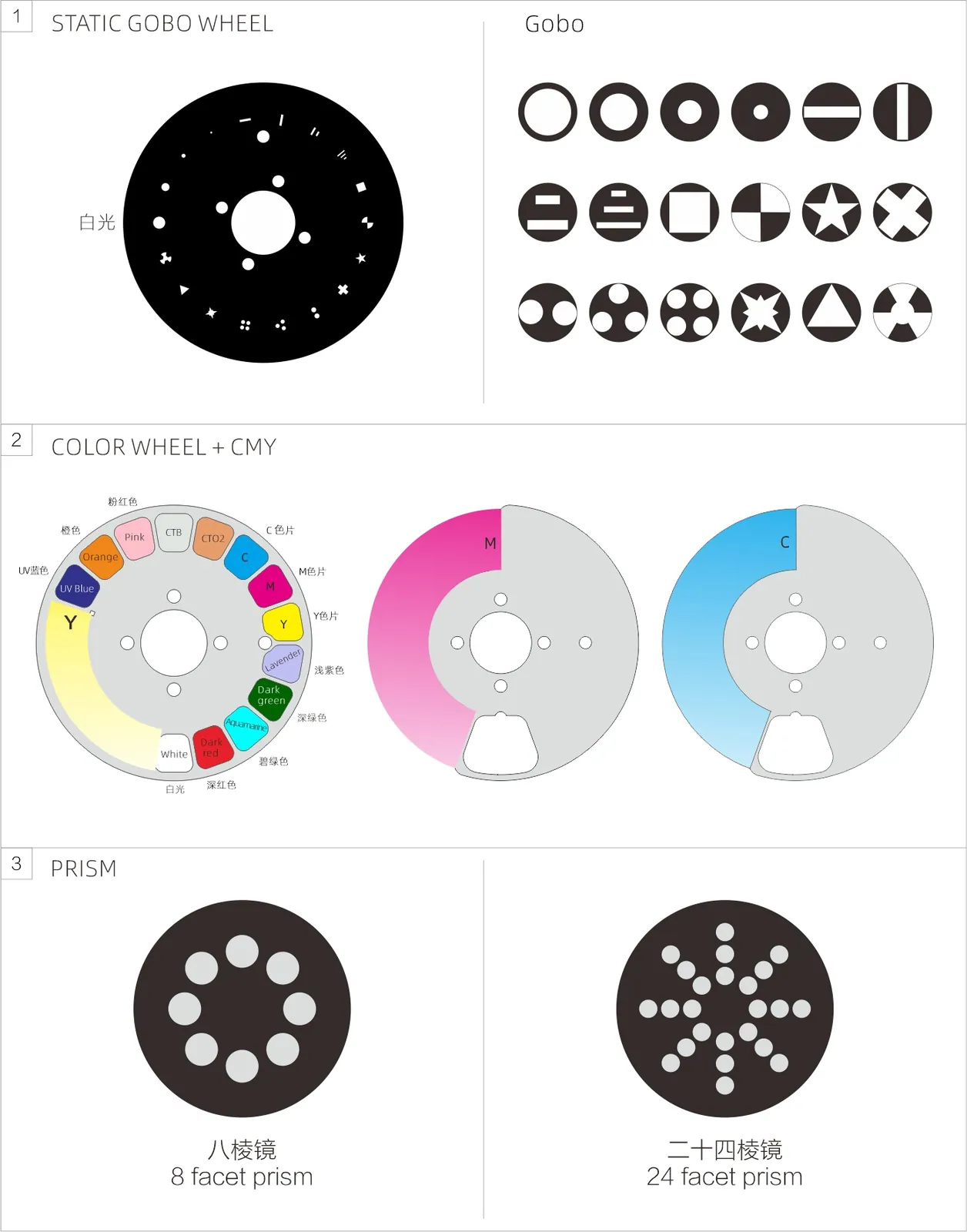

Static Gobo Wheel: 17 fixed gobo +1 White
Frost: Independent Frost Effect
Prism: 8 facet prism+24 facet prism, Multiple prism combination
Dimmer: 0 to 100% linear dimmer
Focus: Motorized focus

04CONTROL4

Control Channels: 17CH, 19CH (see channel chart for details)
Protocols: DMX512, RDM, ARTNET
DMX and RDM Connectors: Locking 3-pin or 5-pin XLR IN/OUT
Display: LCD screen

05SOFTWARE3

Software upgrade via DMX signal.; Intelligent temperature control to ensure the lifespan of the laser light source.
Noise level control: High brightness mode, Standard mode, Silent mode

06PAN/TILT MOVEMENT4

Pan Axis: 540°, 8-bit/16-bit precision scan
Tilt Axis: 270°, 8-bit/16-bit precision scan; Reset Function with Automatic Error Correction
Fixed Lock: Tilt axis lock

Show the full specificationHide the rest of the specification5 more groups · 19 values

07POWER AND ELECTRICAL4

Input Voltage: AC 100-240V 50/60Hz
Maximum Power: 212W
Power Factor: 0.94
Maximum Current of the Fixture: 2.12A/100V; 0.94A/220V

08SIZE & WEIGHT4

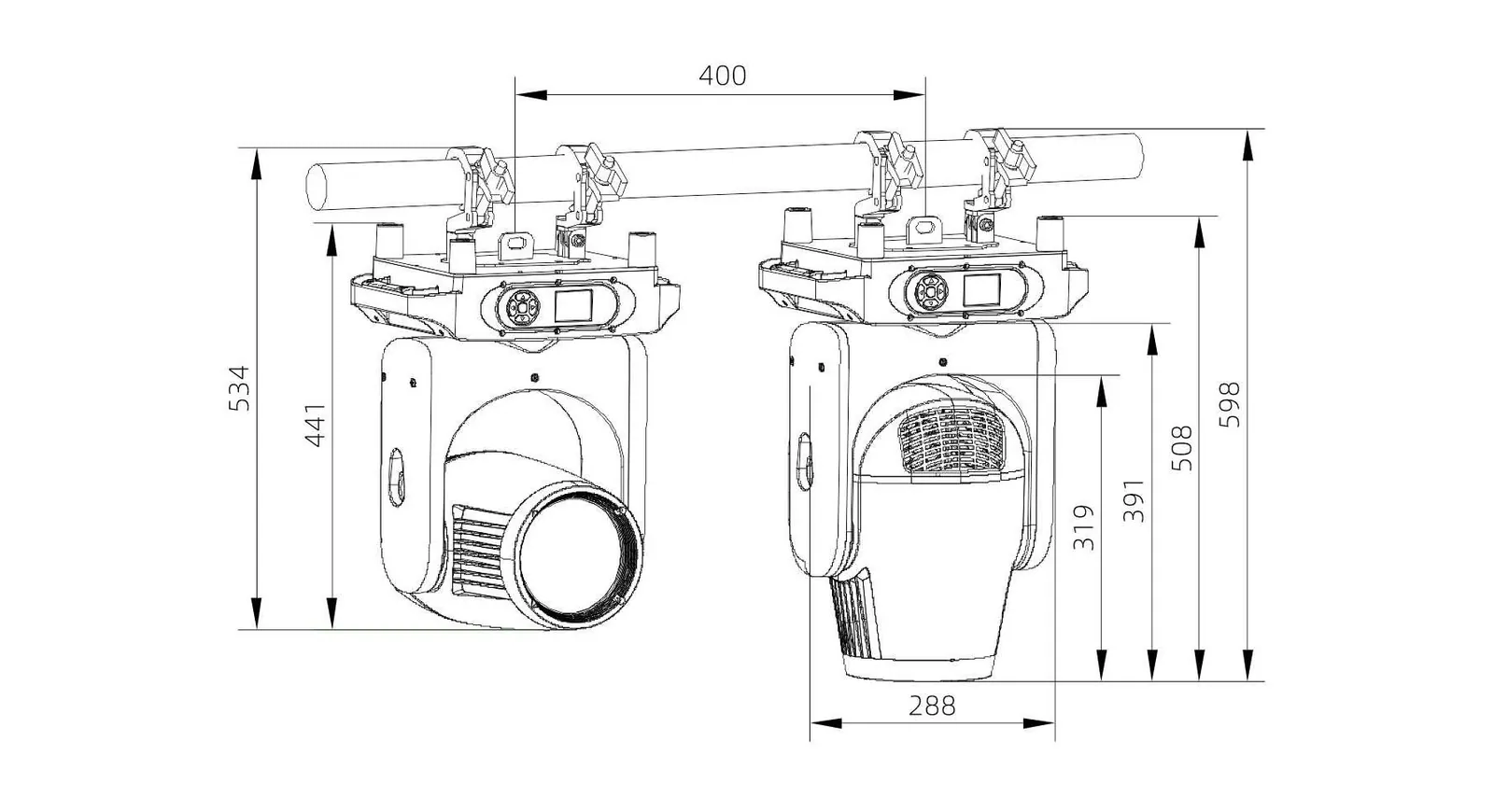

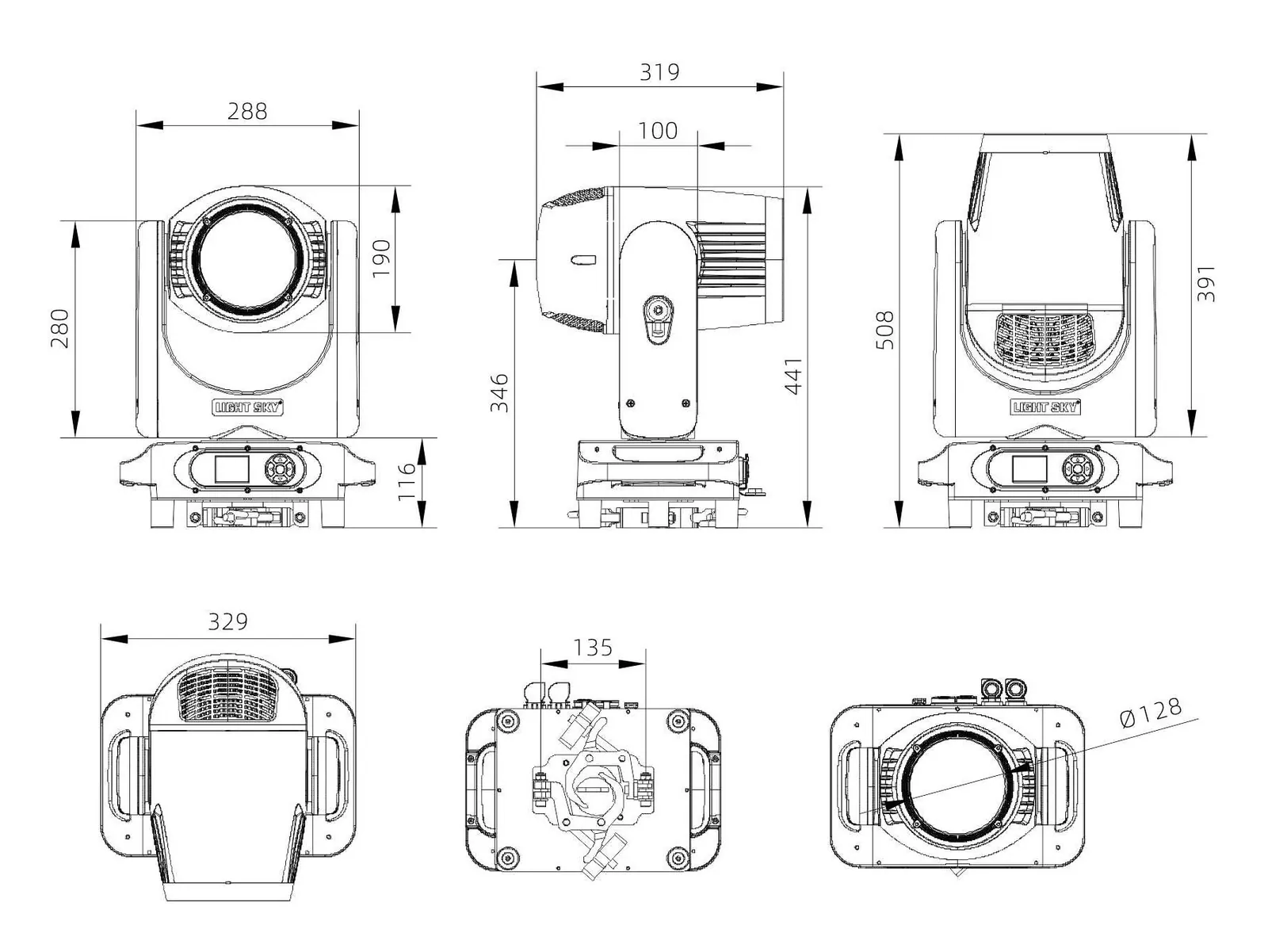

Product Dimensions: 329×222×508mm
Net Weight: 13.7 kg
Carton Packaging: 410×290×625mm
Gross Weight: 17.3 kg

09OTHERS4

IP Rate: IP66
Operating Environment: -20°C ~ 45°C
Maximum Surface Temperature of Lamp Body: 80°C
Maximum Number of Units Online: 4 units/110V; 8 units/220V

10FACTORY CONFIGURATION4

Power Cable: 1 pc (Part No.: F0200030016)
Signal Cable: 1 pc (Part No.: C1400060031)
Safety Rope: 2 pcs (Part No.: F0200010002)

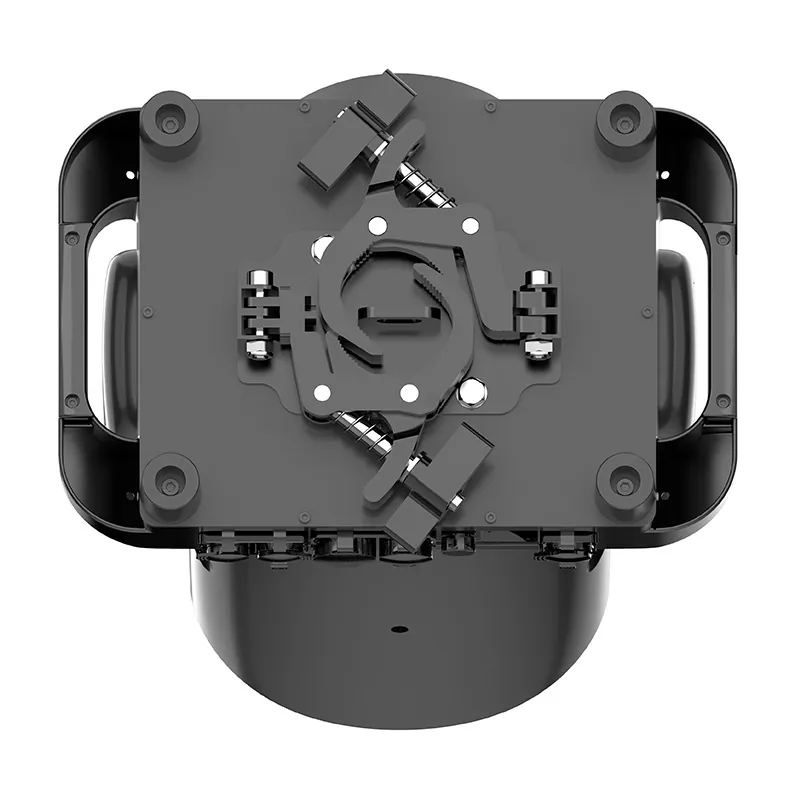

Lamp Hook: 1 set (Part No.: C0499990051)

11OPTIONAL ACCESSORIES/PACKAGING3

Packaging(Fly case): 850x660x725mm
Gross Weight: 100.4kg(4 in 1); LiGHT SKY as a leading stage light supplier with 30+ years of experience, offers high-performance laser moving head light solutions for global entertainment projects. MINI LASER AQUA brings the power of a white laser light into a compact small laser light design, helping lighting designers create sharp beams, outdoor sky laser effects, and immersive visuals for concerts, theatres, festivals, clubs, and touring shows.

03DescriptionManufacturer's description

What it is.

Powered by a 100W white laser light source, MINI LASER AQUA combines ultra-narrow beam optics, dynamic colors, gobo effects, dual prisms, and IP66 protection, making it a reliable outdoor sky laser light for more applications.

FEATURES

100WWhite Laser Light Source: Delivers intense, coherent output for sharp, high-impact laser visuals.
Ultra-Narrow Beam Optics: 1.1° beam angle and 128mm front lens create crisp long-throw projection.
High Brightness: Produces up to 350,000 lux at 10 meters for strong visibility in large venues.
IP66 Waterproof Design: Built for reliable outdoor use in demanding weather conditions.
Dynamic Color System: 12-color wheel with bi-directional rainbow effects for smooth color transitions.
Versatile Gobo Options: Static gobo wheel with 17 patterns plus blank for flexible projection effects.
Dual Prism Effects: 8-facet and 24-facet prisms create layered, dimensional beam effects.
