SEA LION

Multifunctional waterproof effect lighting integrating beam and wash effects in a single unit. Delivers rich and dynamic effects with seamless switching between beam and wash modes, offering strong stage performance.

Light source: 2 x 120W RGBW LED + 216 x 0.3W RGB LED
Power supply: AC 100-240V 50/60Hz
Beam angle / zoom: 3.2°-29.1°
DMX channels: 26CH,48CH(see channel chart for details)
Net weight: 13.8 kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01VideoManufacturer's video · 1:55

LIGHT SKY SEA LION1:55

02SpecificationManufacturer's data · 9 groups · 42 values

What this product is, in numbers.

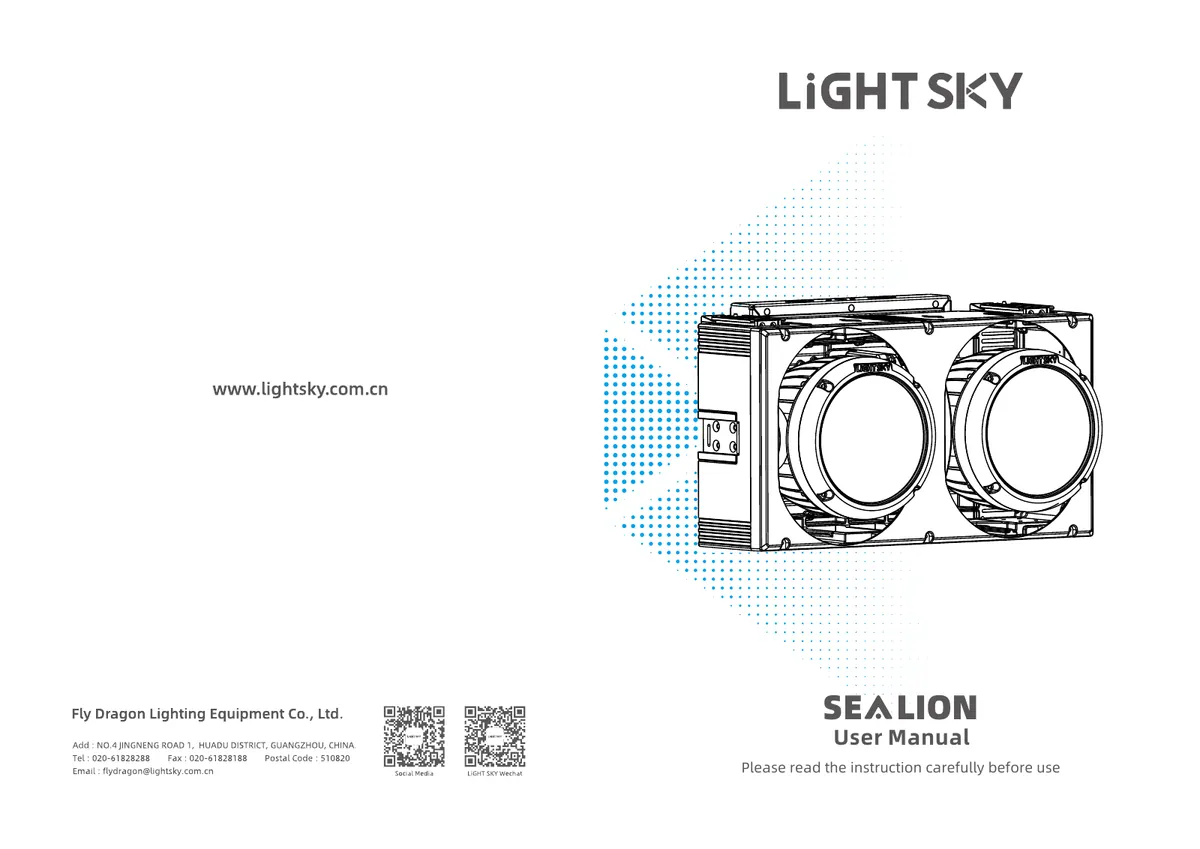

PDFUser manualEN · 28 pages · 6.9 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light source & Optics8

Light source: 2 x 120W RGBW LED + 216 x 0.3W RGB LED

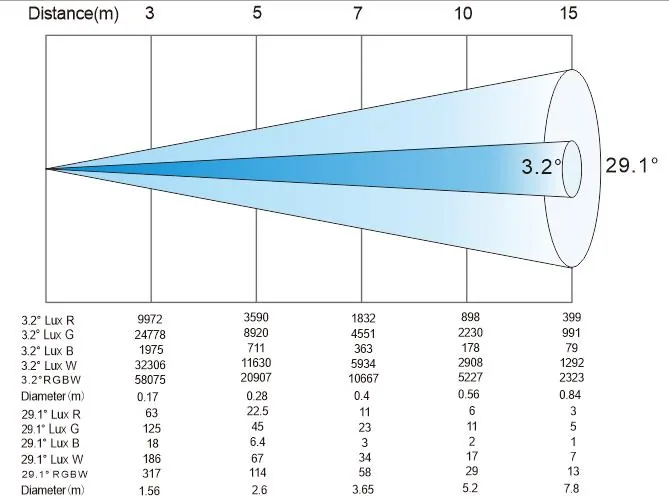

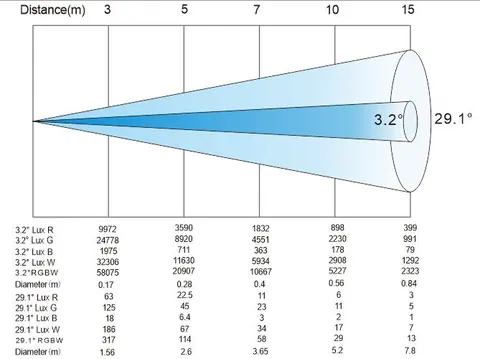

Beam Angle: 3.2°-29.1°
Field Angle: 4.01°-74.83°
Color Rendering Index: Ra≥79.6
Colour Temperature Output: 2500K-10000K
Lumem Output: 1946 lm
Illuminance: 20, 907 lx @ 5m
Light Source Theory Life Span: 30,000 h

02EFFECTS9

Color Mixing System: Uniform RGBW color mixing system with independent control of; each color, enabling a wide variety of visual effects.
Intelligent Frost: Linearly adjustable frost function to enhance color mixing effects.
Front Aura: Individually controllable front aura, supporting free-flowing chase and; color-changing effects.
Tilt-axis: Motorised tilt ±25°
Effect Macros: Static effect macros and dynamic effect macros functions
Dimming: Electronic dimming with four dimming curves
Strobe: 1-30Hz electronic strobe and random strobe

03CONTROL AND PROGRAMMING4

Control Channels: 26CH,48CH(see channel chart for details)
Control Protocols: DMX512, RDM, Art-Net, sACN

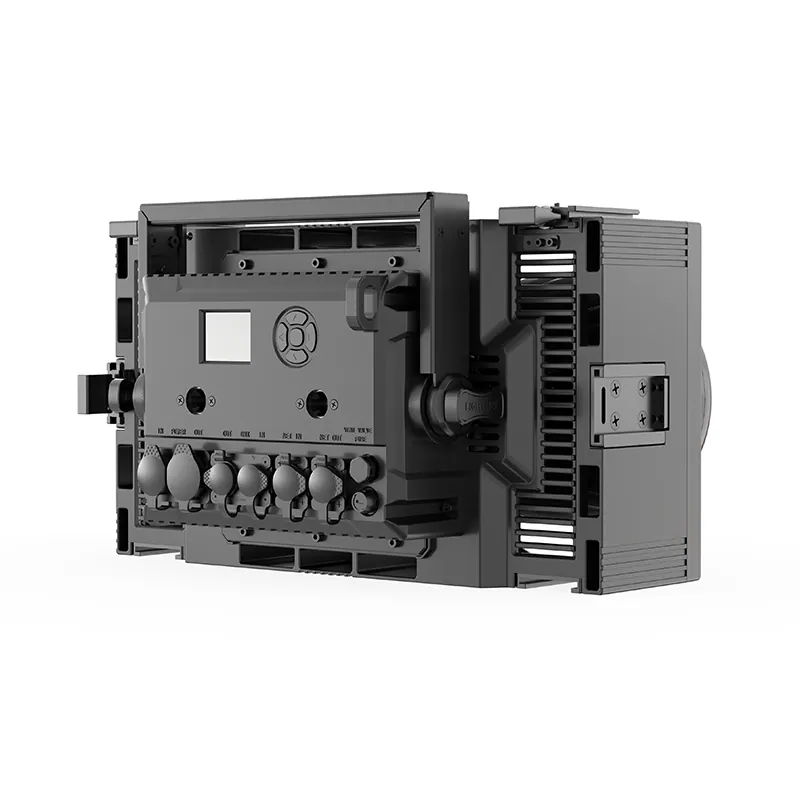

Data Connection: RJ45(Art-Net) In/Out,3 pin or 5 pin XLR In/Out

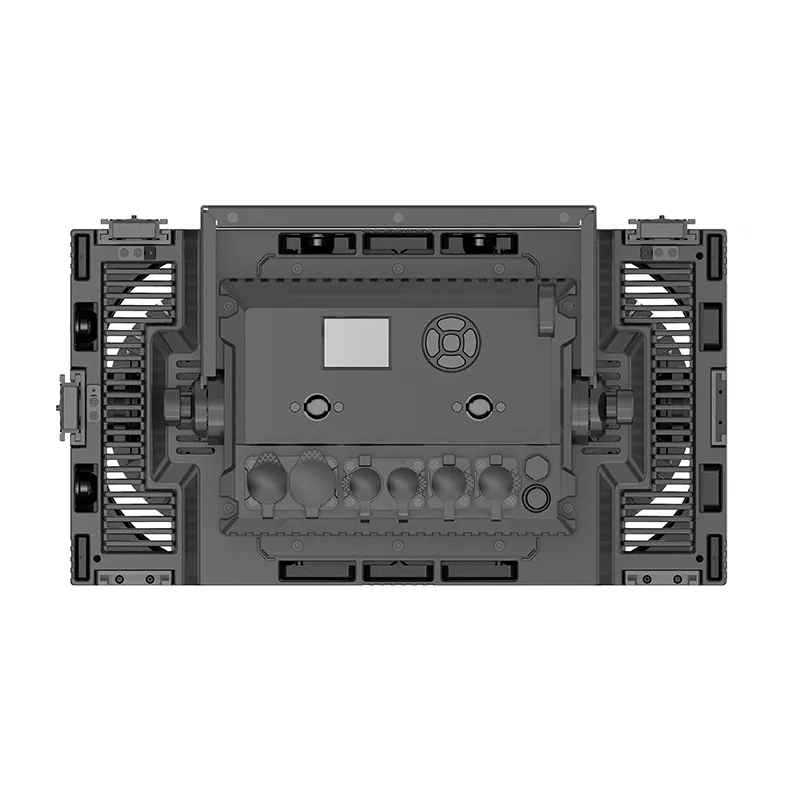

Display: LCD screen

04SOFTWARE2

Software upgrade: via DMX interface
Temperature control: Intelligent system for LED lifespan

05POWER AND ELECTRICAL4

Input Voltage Range: AC 100-240V 50/60Hz
Max Power Consumption: 320W
Power Factor: 0.98
Maximum Current: 1.45A/220V ; 3.2A/100V

06SIZE & WEIGHT4

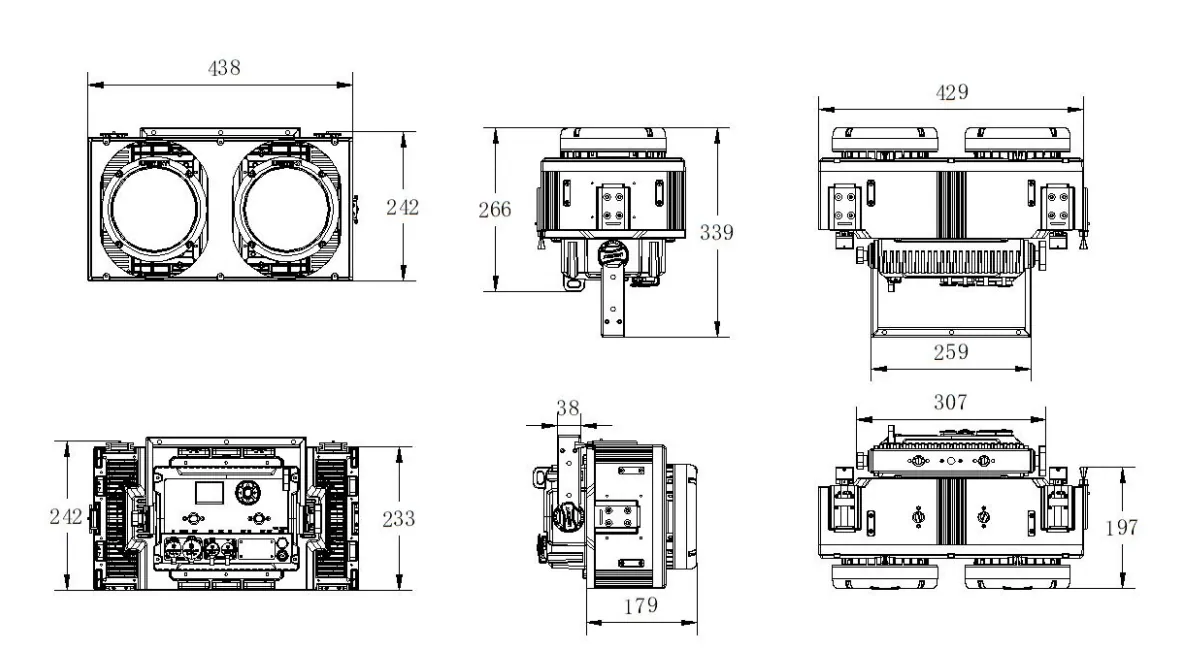

Net Dimensions: 438mm x 265mm x 242mm
Net Weight: 13.8 kg
Carton packaging: 510mm × 320mm × 380mm
Gross weight: 16.5 kg

Show the full specificationHide the rest of the specification3 more groups · 11 values

07OTHERS4

Protection Level: IP66
Operating Environment: -20°C~45°C
Maximum Surface Temperature: 65°C
Locking System: LiGHT SKY Mortise Locking System

08FACTORY CONFIGURATION3

Power Cable: 1 pc (Part No.: F0200030016)
Signal Cable: 1 pc (Part No.: F0200020008)
Safety Rope: 1 pc (Part No.: F0200010002)

09Optional accessories/packaging4

Clamp(LiGHT SKY): Part No.: C0499990075 (Compatible with tubes of Ø40–60 mm)
Clamp(Neutral): Part No.: C0499990021 (Compatible with tubes of Ø40–60 mm)
Packaging(Fly case): 960mm x 700mm x 465mm
Gross Weight: 89.0kg(4 in 1)

03DescriptionManufacturer's description

What it is.

FEATURES

Outdoor Beam Wash BLINDER

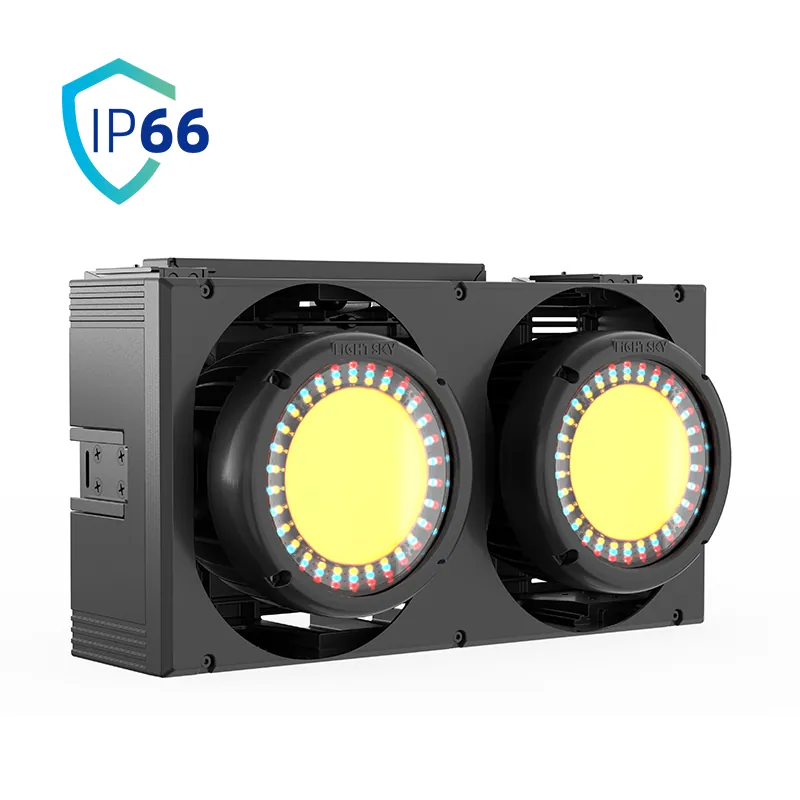

SEA LION is a multifunctional waterproof effect lighting integrating beam and wash effects in a single unit.

It delivers rich and dynamic effects with seamless switching between beam and wash modes, offering strong stage performance.

Equipped with two 120W RGBW main LEDs for powerful output, combined with 216 auxiliary 0.3W RGB LEDs that create flowing and chasing strip effects.

A patented iM-Lock™ (LiGHT SKY Mortise Locking System)enables fast and flexible up, down, left, and right fixture linking with an innovative and efficient structure.

An intelligent frost system with linear adjustment is included, while each head features motorized tilt control to generate striking visual effects in combination with beam and wash functions.

With its compact design, the fixture is ideal for medium to large outdoor performances, concerts, and similar professional event applications.

04Documents3 files · 6.9 MB
