Sheet 05.744
LIGHT SKY · Hybrid fixtures

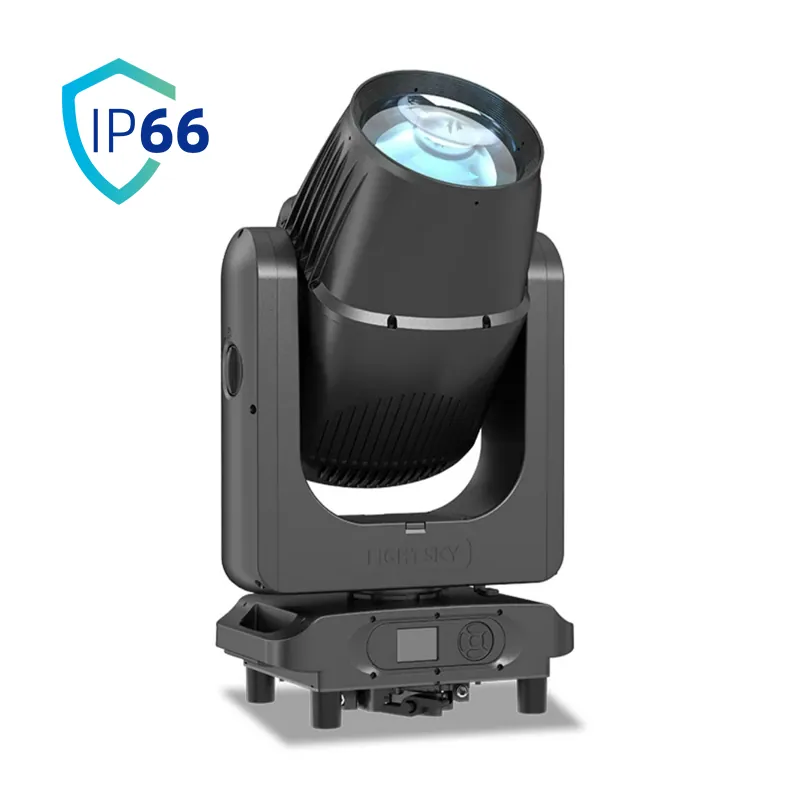

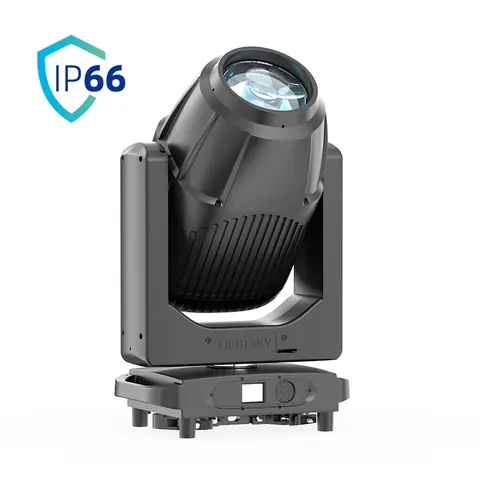

DOLPHIN SMART
Dolphin Smart is a LED moving head beam light. Equipped with 14 color filters plus white light;Infinite CMY color mixing,Uniform color mixing;Luminance: 60000Lux@10m. Compact size, light weight,with high precision in Pan and Tilt scanning.
- Light source
- 300W white LED module
- Power supply
- AC 100-240V 50/60Hz
- Beam angle / zoom
- 1.77° (φ6.5mm Beam reducer) / 1.3° (φ5mm Beam reducer)/ 0.8° (φ3mm Beam reducer)/ 0.5° (φ1.5mm Beam reducer), switchable
- DMX channels
- 23CH (see channel chart for details)
- Protocols
- DMX512, RDM, ArtNet, sACN
- Colour temperature
- 7400K ±250K
- Net weight
- 22.0KG
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
DOLPHIN SMARTPrice on requestRequest a quotation
01SpecificationManufacturer's data · 12 groups · 43 values
What this product is, in numbers.

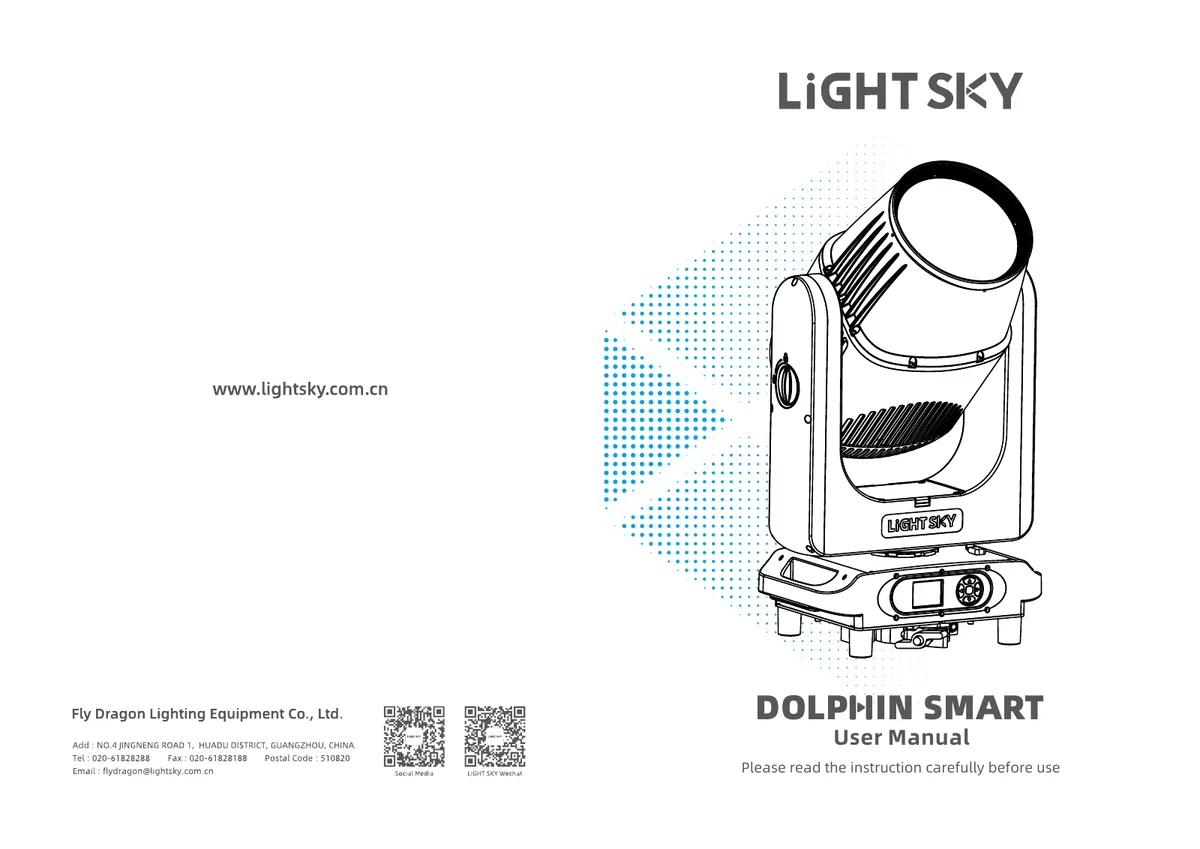

PDFUser manualEN · 26 pages · 8.5 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01LIGHT SOURCE & OPTICAL7
- Light source
- 300W white LED module
- Beam angle
- 1.77° (φ6.5mm Beam reducer) / 1.3° (φ5mm Beam reducer)/ 0.8° (φ3mm Beam reducer)/ 0.5° (φ1.5mm Beam reducer), switchable
- Optical lens
- High-transmittance coating, φ174mm
- Color temperature
- 7400K ±250K
- Color Rendering Index
- RA≥70

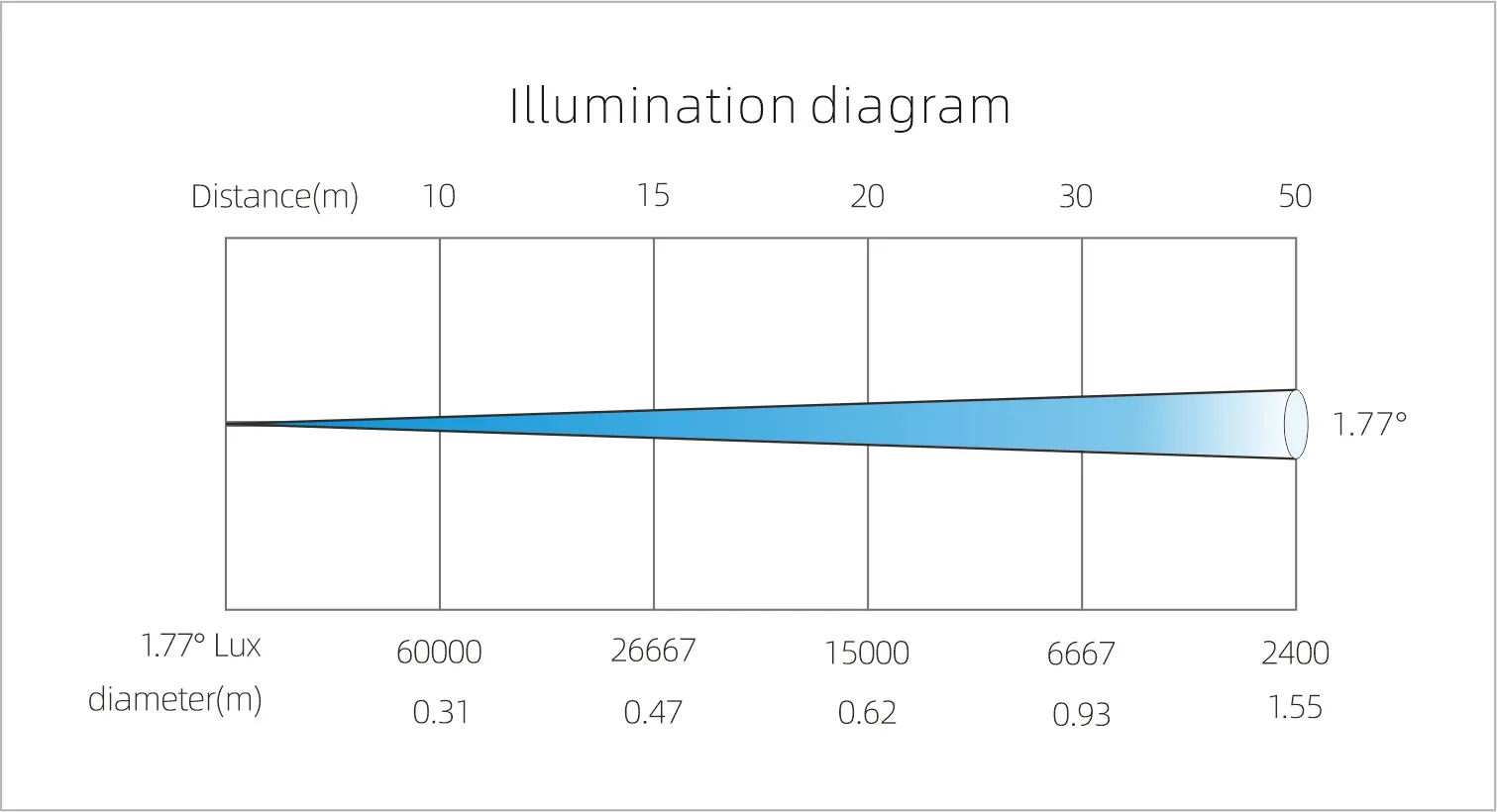

- Illuminance
- 60,000 Lux@10m
- LED source life expectancy
- 50,000 hours*

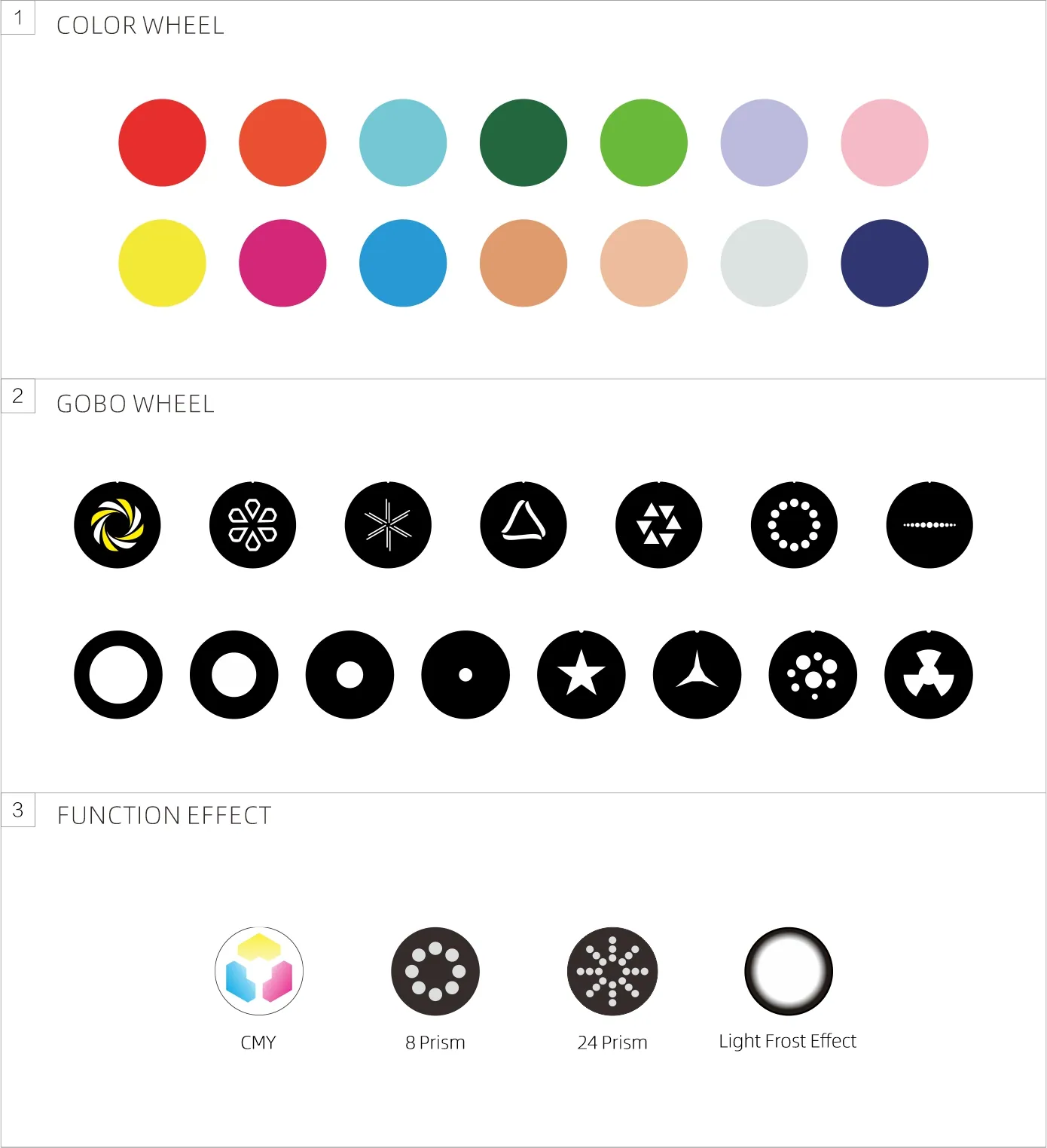

02COLOR2

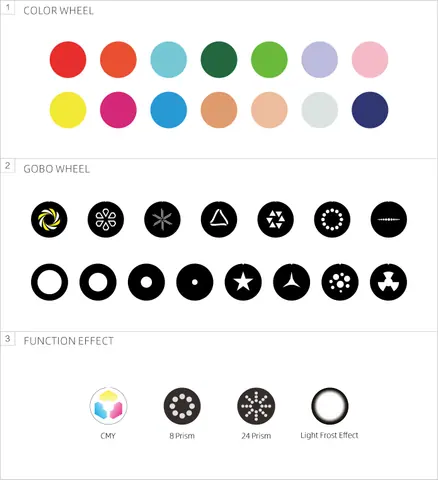

- CMY infinite color mixing
- 14 color filters + blank
- Bidirectional color rainbow, dual-color gradient, color wheel rotation, random modes
03GOBO1
- 7 fixed gobos + blank + 7 removable glass gobos (self-rotation/flow/jitter effects)
04EFFECTS5
- Prism
- 24-facet prism + 8-facet prism, bidirectional rotation
- Frost effect
- Light Frost
- Dimming
- 0-100% linear dimming with uniform spot
- Strobe speed
- 0.5-25 times/sec
- LED refresh rate
- 1000Hz~25KHz
05CONTROL AND PROGRAMMING4
- Control channels
- 23CH (see channel chart for details)
- Protocols
- DMX512, RDM, ArtNet, sACN
- Data connection
- 3-pin or 5-pin XLR In/Out, RJ45
- Display
- LCD screen
06SOFTWARE3
- Software upgrade via DMX signal
- Intelligent temperature control for LED lifespan
- Silent fan with three modes
- High-brightness/Standard/Silent
Show the full specificationHide the rest of the specification6 more groups · 21 values
07PAN/TILT MOVEMENT4
- Pan axis
- 540° (8bit/16bit precision)
- Tilt axis
- Infinite rotation
- Auto-correction reset function
- Fixed Lock
- Tilt lock
08POWER AND ELECTRICAL4
- Input voltage
- AC 100-240V 50/60Hz
- Max power
- 562W
- Power factor
- 0.99
- Max current
- 2.55A/220V, 5.62A/100V

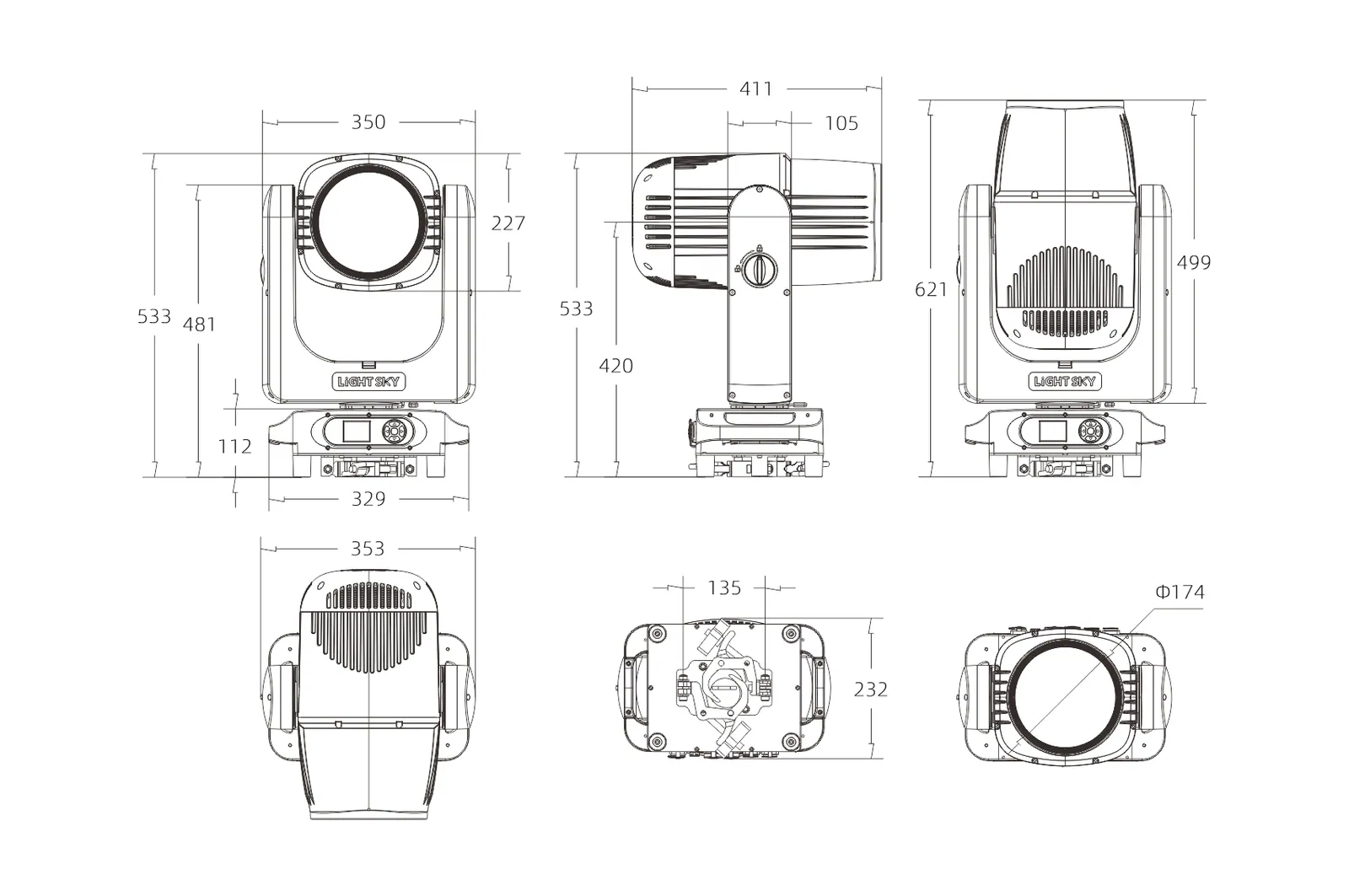

09SIZE & WEIGHT4

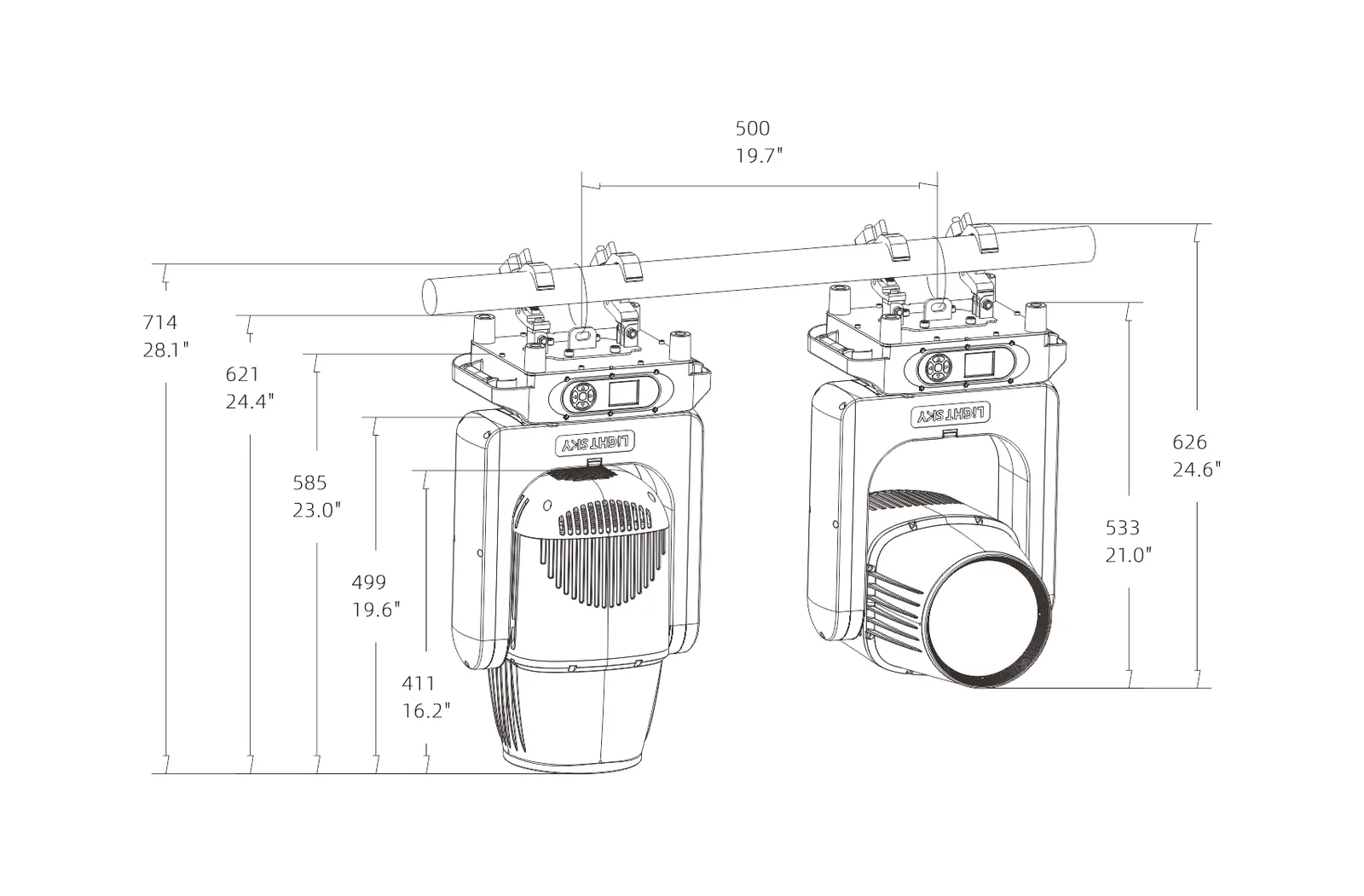

- Product size
- 353X232X621mm
- Net weight
- 22.0KG
- Carton packaging (default)
- 425X305X750mm
- Gross weight
- 26.1KG
10THERS3

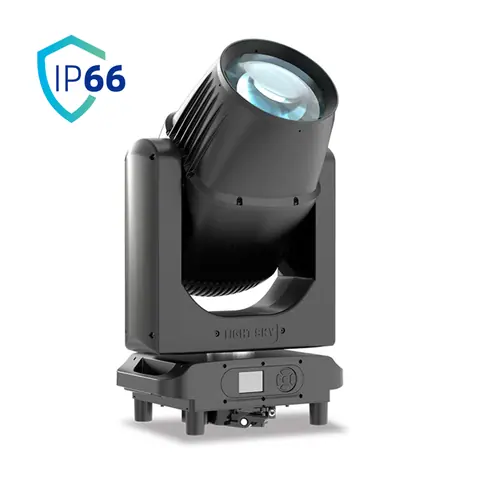

- Protection level
- IP66
- Operating environment
- -20°C~45°C
- Max surface temperature
- ≤60°C
11FACTORY CONFIGURATION4
- Power Cable
- 1 pc (Part No.: F0200030016)
- Signal Cable
- 1 pc (Part No.: F0200020008)
- Safety Rope
- 1 pc (Part No.: F0200010002)

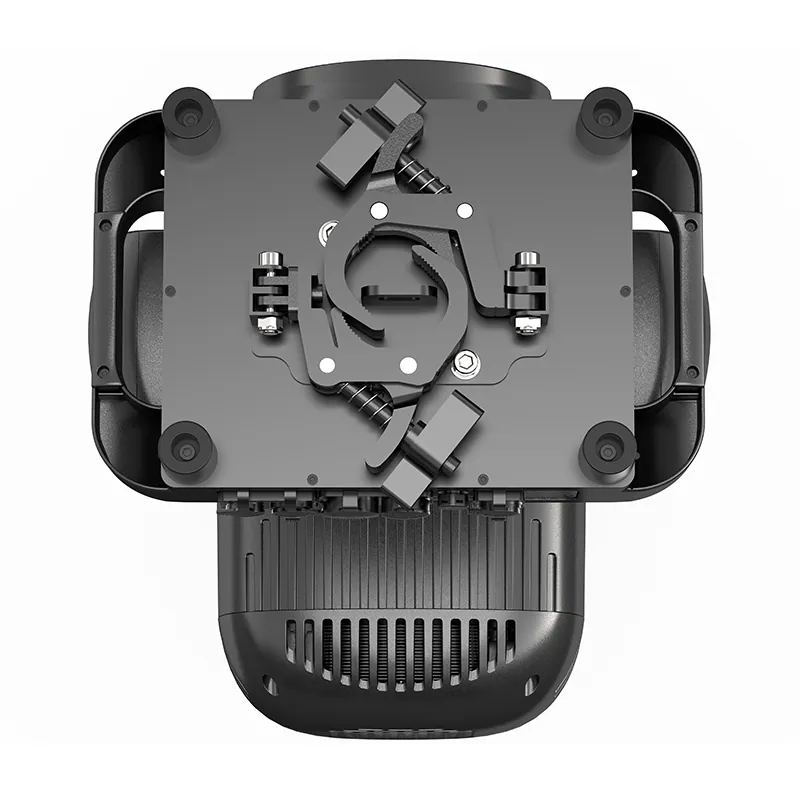

- Clamps
- 1 set of foldable clamps included (Part No.: C0499990051)
12Optional Accessories/Packaging2
- Packaging(Fly case)
- 650×440×830 mm ( Fly case No.: B0101250001)
- Gross Weight
- 77.4kg(2 in 1)
02DescriptionManufacturer's description
What it is.
Dolphin Smart is a LED moving head beam light. Equipped with 14 color filters plus white light;Infinite CMY color mixing,Uniform color mixing;Luminance: 60000Lux@10m. Compact size, light weight,with high precision in Pan and Tilt scanning. Infinite Tilt rotation, fast response. Suitable for theater, TV station, large-scale concerts, gymnasiums and other high-end performance sites.
FEATURES
- DOLPHIN SMART is an LED moving head light that combines a pure beam with a gobo effect
- High-precision optical lenses with oil-mist prevention design
- 174mm output lens diameter for stable and high-efficiency illumination
- 360° infinite Tilt axis rotation for flexible positioning
- CMY color mixing system + 14-slot color wheel for rich chromatic options
- 2 rotating/fixed gobo wheels (7 rotating + 7 static gobo slices)
- Overlapping 8-facet/24-facet prisms with frost and dynamic layering effects
- Rapid effect switching for immersive visual spectacles
- IP66-rated housing for outdoor concerts, rental events, and theme park shows
- Tool-free quick installation and DMX512, RDM control compatibility
