Sheet 05.872
LIGHT SKY · PAR and static light

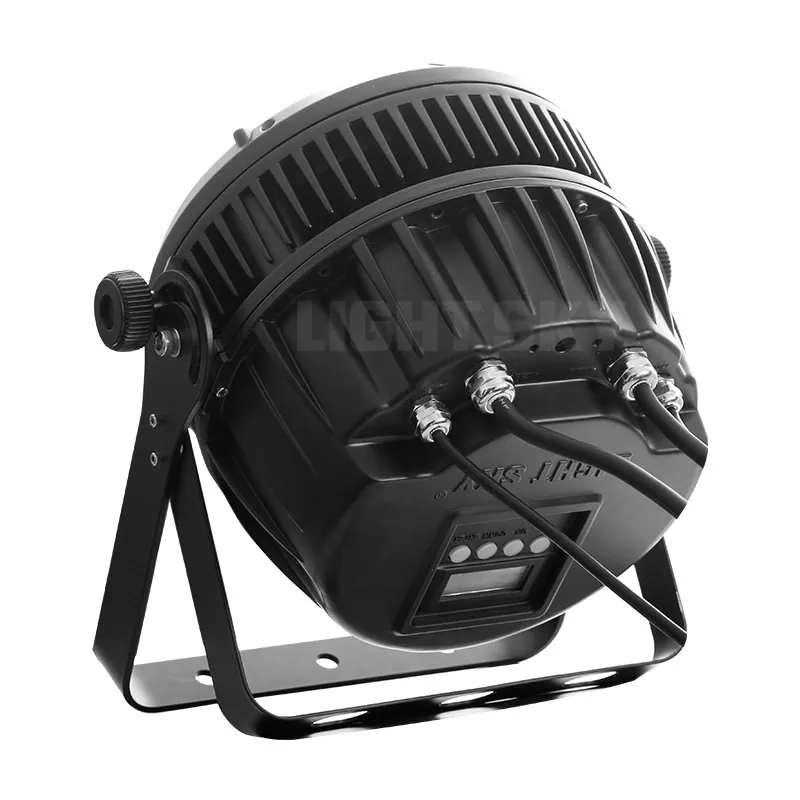

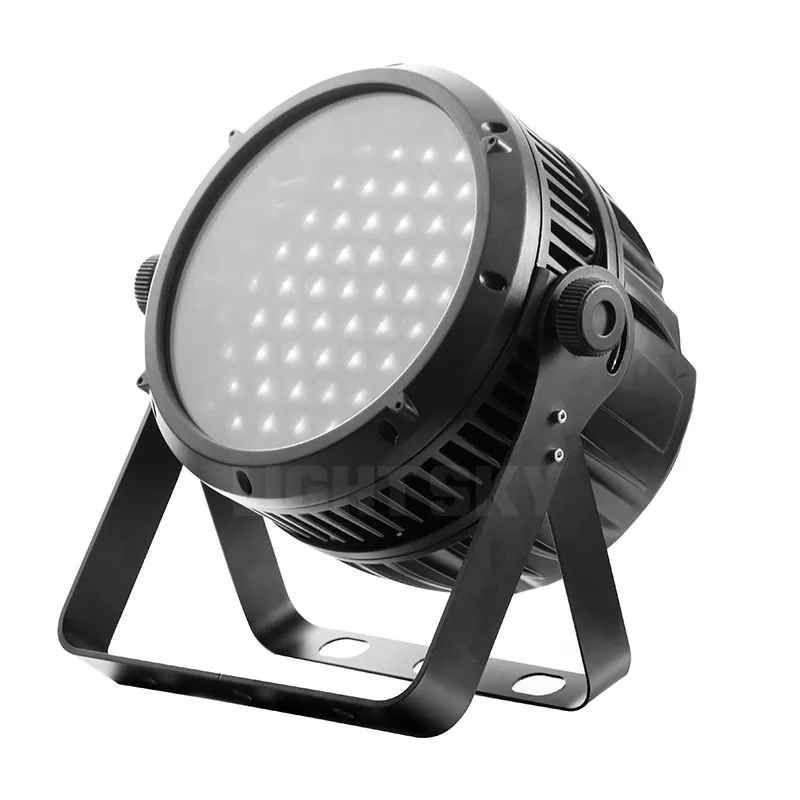

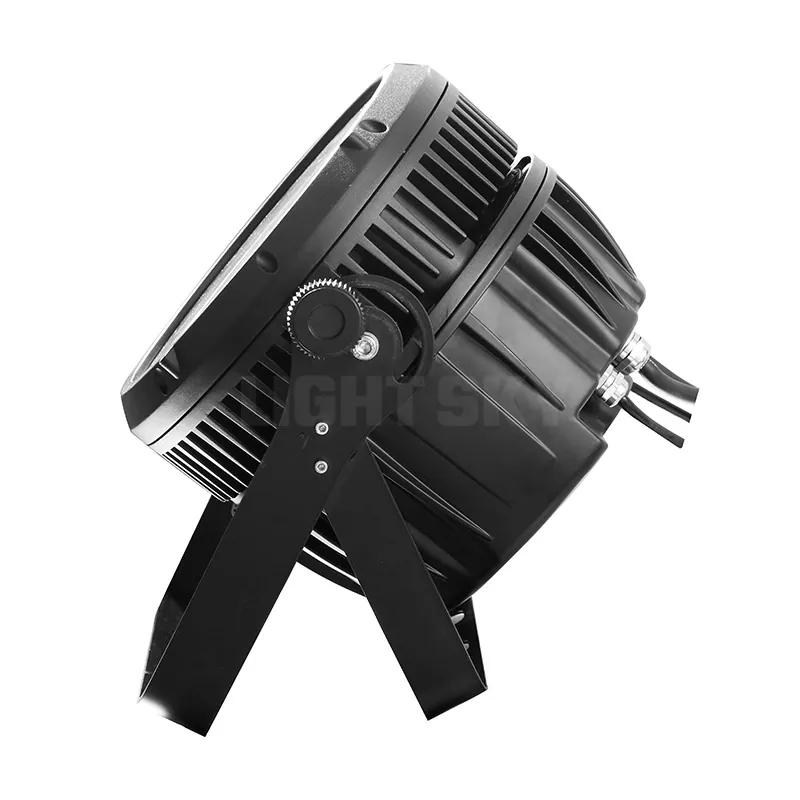

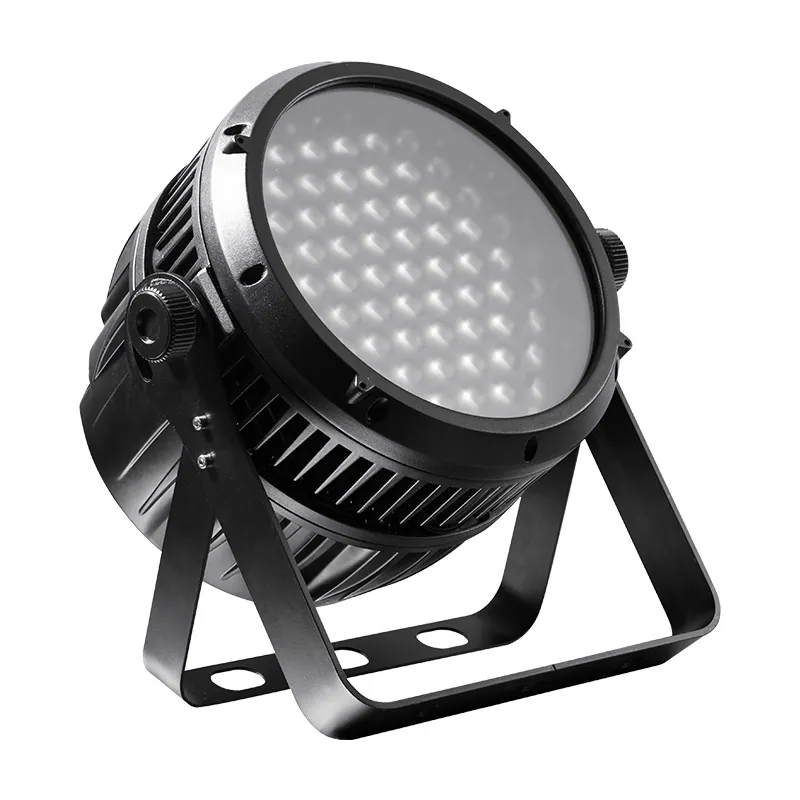

PL6103
High brightness, versatility, wide range of applications;
- Light source
- 3W RGBW LED chip
- Power consumption
- 190W
- Power supply
- AC100 ~ 240V 50 / 60Hz
- Net weight
- 8.7Kg
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
PL6103Price on requestRequest a quotation
01VideoManufacturer's video · 0:58
LIGHT SKY PL6103: the manufacturer's video
02SpecificationManufacturer's data · 4 groups · 24 values
What this product is, in numbers.
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Light Source / Power System11
- Input Voltage
- AC100 ~ 240V 50 / 60Hz
- Power Consumption
- 190W
- LED chip
- 3W RGBW LED chip
- LED Quantity
- 61pcs; (R, G, B 17pcs each, W 10pcs)
- Lumen Output
- 5362 lm
- Chip Driving Current
- 950mA
- LED chip Lifespan
- 50000h.
- Strobe
- 1-30 times/sec Electronic strobe and random strobe
- Dimming
- 65536-level flicker-free electronic dimming

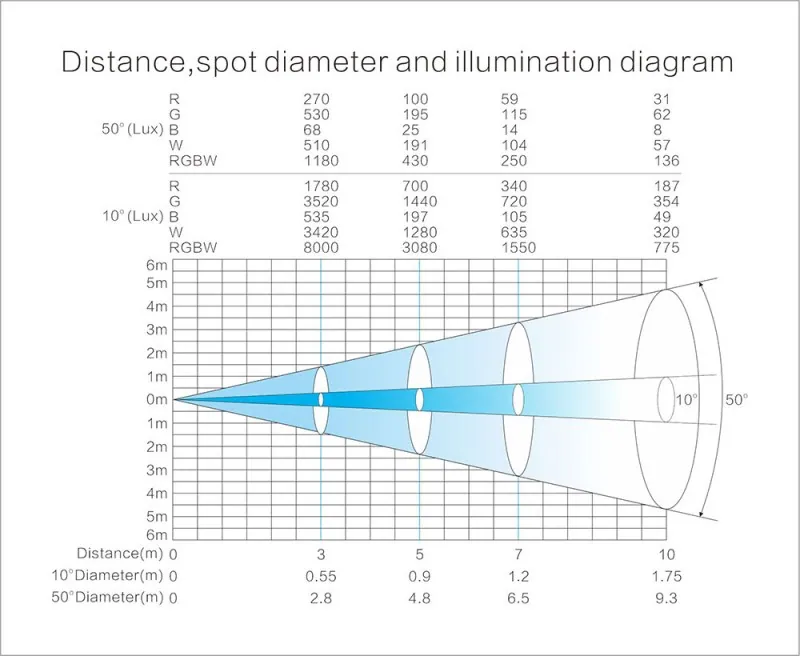

- Field Angle
- with ZOOM function, 10-50 ° electronic zoom
- Color mixing system
- RGB color mixing system, flicker-free and rainbow effect
02Control System3
- Control mode
- DMX512, stand-alone mode, master/slave mode
- Channel mode
- Standard 12CHS, 16Bit 12 CHS, RGB 5 CHS, HSI 5 CHS
- Control panel
- LED screen, button control
03Other functions1
- Working environment
- Temperature -10-40 °C; Humidity 5% -95%
04Appearance Parameters9
- Structural design
- die-cast aluminum alloy split thermal structure design, with good thermal performance
- IP Rate
- IP65
- CE
- Conforms to EU Low Voltage Directive 2014/35 / EU and Electromagnetic Compatibility Directive 2014/30 / EU.

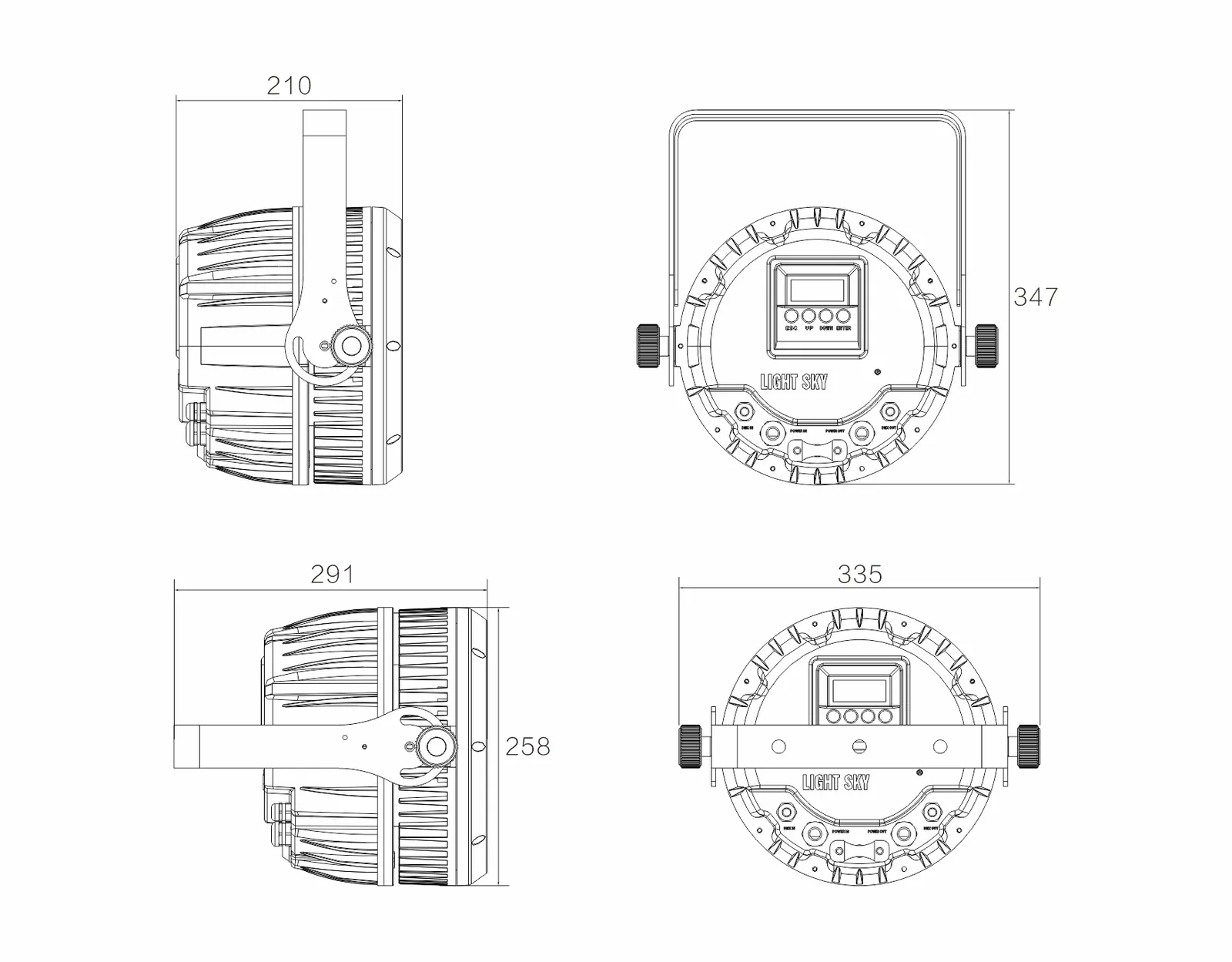

- Light size
- 258 × 335 × 291mm
- N.W
- 8.7Kg
- Carton Package
- 340 × 340 × 356mm (Single pcs )
- N.W
- 8.7Kg G.W : 10Kg
- Flight Case
- 910 × 790 × 500mm (6pcs in 1)
- N.W
- 53Kg G.W : 86Kg
Show the full specificationHide the rest of the specification0 more groups · 0 values
03DescriptionManufacturer's description
What it is.
FEATURES
- Using the most advanced LED technology and 10-50 ° fast zoom system;
- Ultra-quiet split design, die-cast aluminum body, low weight only 8.7KG;
- Easy to transport and use, IP65.
04Documents6 files · 1.4 MB
Documents and files.
Datasheets, manuals, drawings and certificates as the manufacturer publishes them.
