Sheet 05.871
LIGHT SKY · PAR and static light
PL1215II
Built with a color calibration system, which can ensure the color mixing consistency
- Light source
- 12×15W RGBW LED
- Power supply
- AC 100-240V 50/60Hz
- Beam angle / zoom
- 7°- 55°
- DMX channels
- Standard 10CH / 5CH (see channel table for details)
- Colour temperature
- 2500K-10000K
- Net weight
- 7.2KG
PriceOn request
Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.
PL1215IIPrice on requestRequest a quotation
01VideoManufacturer's video · 2:22
LIGHT SKY PL1215II: the manufacturer's video
02SpecificationManufacturer's data · 4 groups · 37 values
What this product is, in numbers.

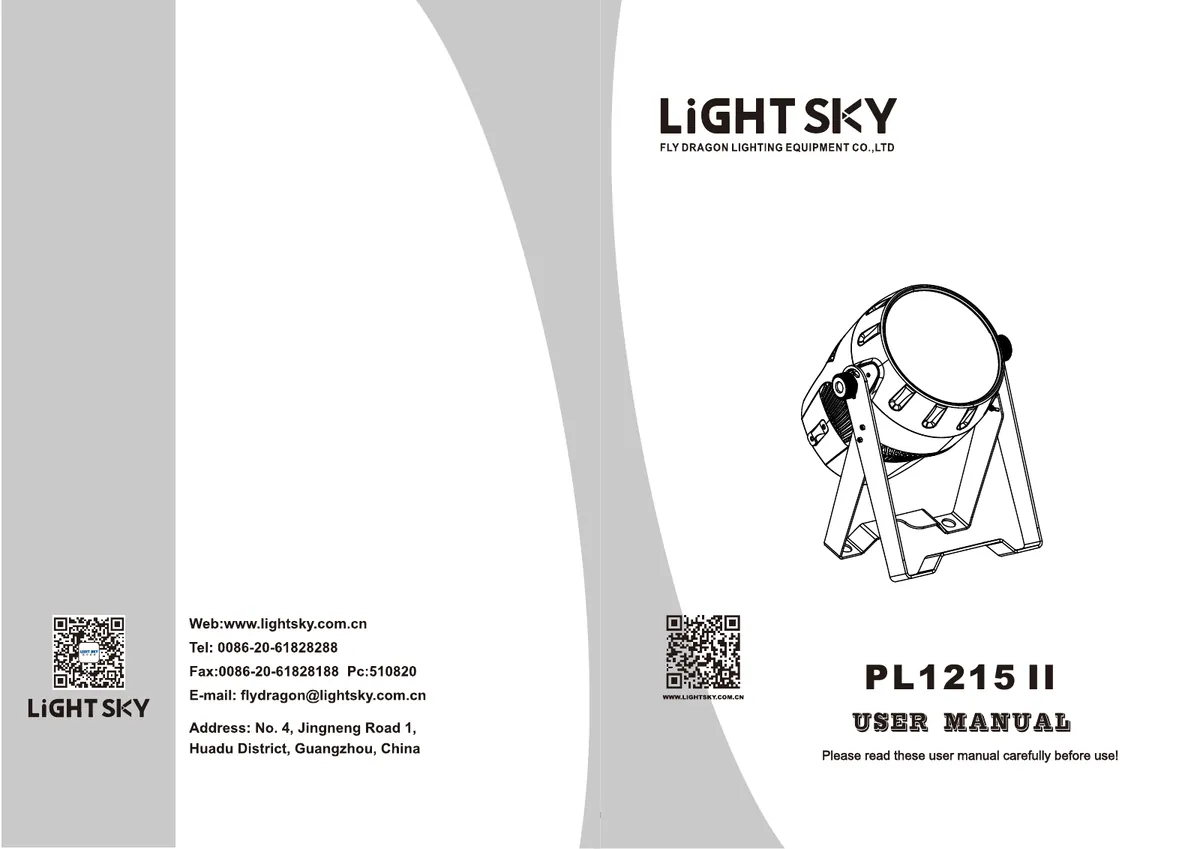

PDFUser manualEN · 18 pages · 4.9 MB
The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.
01Optics6
- Light Source
- 12×15W RGBW LED
- Zoom Range
- 7°- 55°
- Color Temperature
- 2500K-10000K
- Color Rendering Index (CRI)
- RA≥75

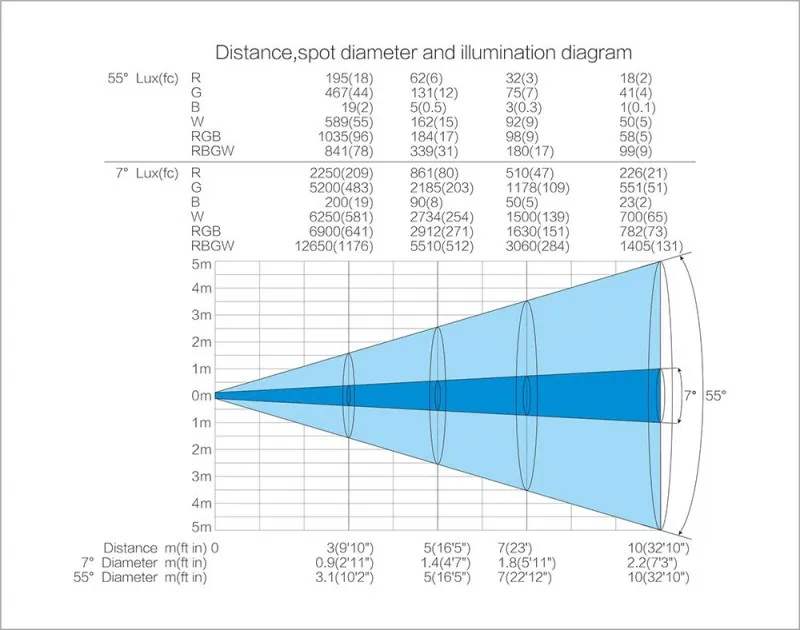

- Illuminance
- 5,510 lx @ 5 m
- Light source average life span
- 30,000 hours
02Effects4
- Color Mixing System
- Uniform RGBW color mixing system with rainbow effect
- Zoom System
- Linear motorized zoom
- Dimming
- Electronic dimming with 4 dimming curves, 4 dimming frequencies, and 4 dimming speeds
- Strobe
- 1–30 Hz electronic strobe and random strobe
03Control System4
- Control Channels
- Standard 10CH / 5CH (see channel table for details)
- Protocol
- DMX512, RDM
- Data Connection
- 3-pin or 5-pin signal input/output
- Display
- 0.9-inch LCD screen
04Software Software upgrade via DMX interface Intelligent temperature control for LED lifespan23
- Power and Electrical
- Input Voltage
- AC 100-240V 50/60Hz
- Maximum Power
- 157W
- Power Factor
- 0.96
- Maximum Current of Fixture
- 0.72A/220V; 1.6A/110V
- Size and Weight

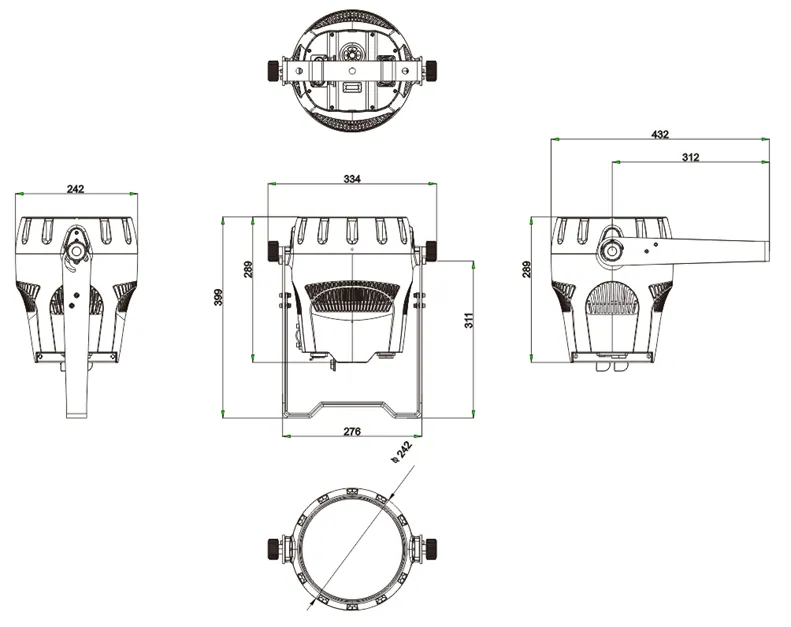

- Product size
- 334X242X432mm
- Net weight
- 7.2KG
- Carton packaging (1 in 1, default)
- 330X330X475mm
- Gross weight
- 9.2KG
- Carton packaging (4 in 1)
- 685X685X500mm
- Gross weight
- 37.2KG
- Other
- Protection level
- IP66
- Operating environment
- -10°C~40°C
- Max surface temperature
- 80°C
- Factory Configuration
- Power Cable
- 1 pc (Part No.: F0200030016)
- Signal Cable
- 1 pc (Part No.: F0200020008)
- Safety Rope
- 1 pc (Part No.: F0200010002)
- Optional Accessories/Packaging
- Fly case Packaging(Optional, 6 in 1)
- 915x795x630mm
- Gross Weight
- 82.5kg(6 in 1)
Show the full specificationHide the rest of the specification0 more groups · 0 values
03DescriptionManufacturer's description
What it is.
FEATURES
Light Source: 12×15W RGBW LED
Zoom Range: 7°- 55°
IP rate: IP66
Compact, convenient for installation and delivery
Housing with high-pressure engineering plastic, anti-UV, anti-high temperature, and anti-aging.
