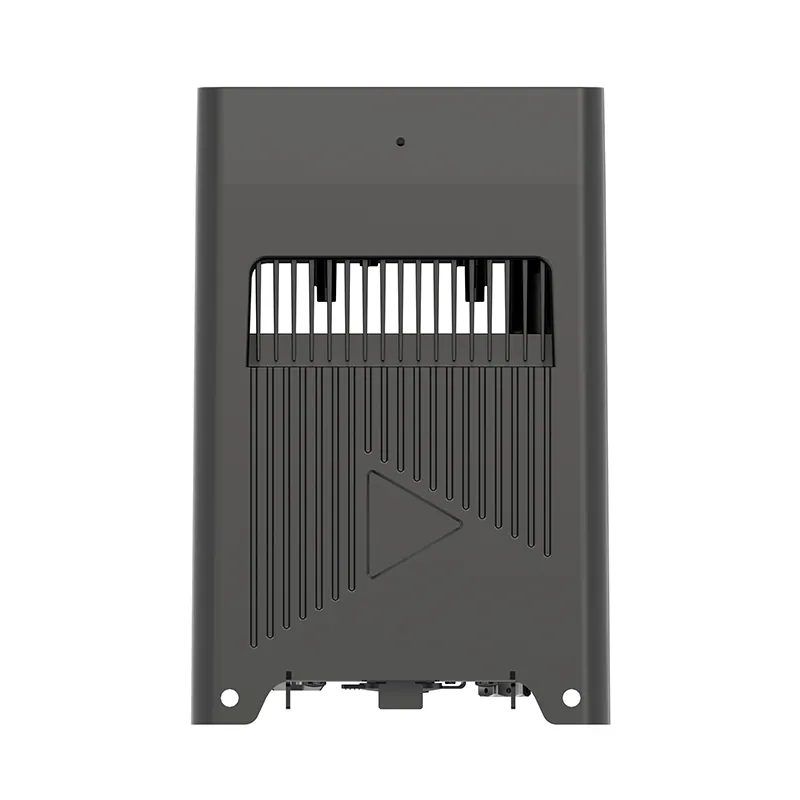

SEA ANGEL-BATT

▪ SEA ANGEL is a portable lithium-battery LED PAR light featuring high-quality RGBALC six-color LED sources, delivering low power consumption, high luminous efficiency, stable performance, and long lifespan.

Light source: 7×18W RGBALC LED
DMX channels: 13CH,5CH, see channel chart for details
Net weight: 4.3kg

PriceOn request

Prices on request. We confirm the configuration, availability and lead time for each project; quotations exclude installation, programming, freight and VAT unless agreed otherwise.

01SpecificationManufacturer's data · 10 groups · 67 values

What this product is, in numbers.

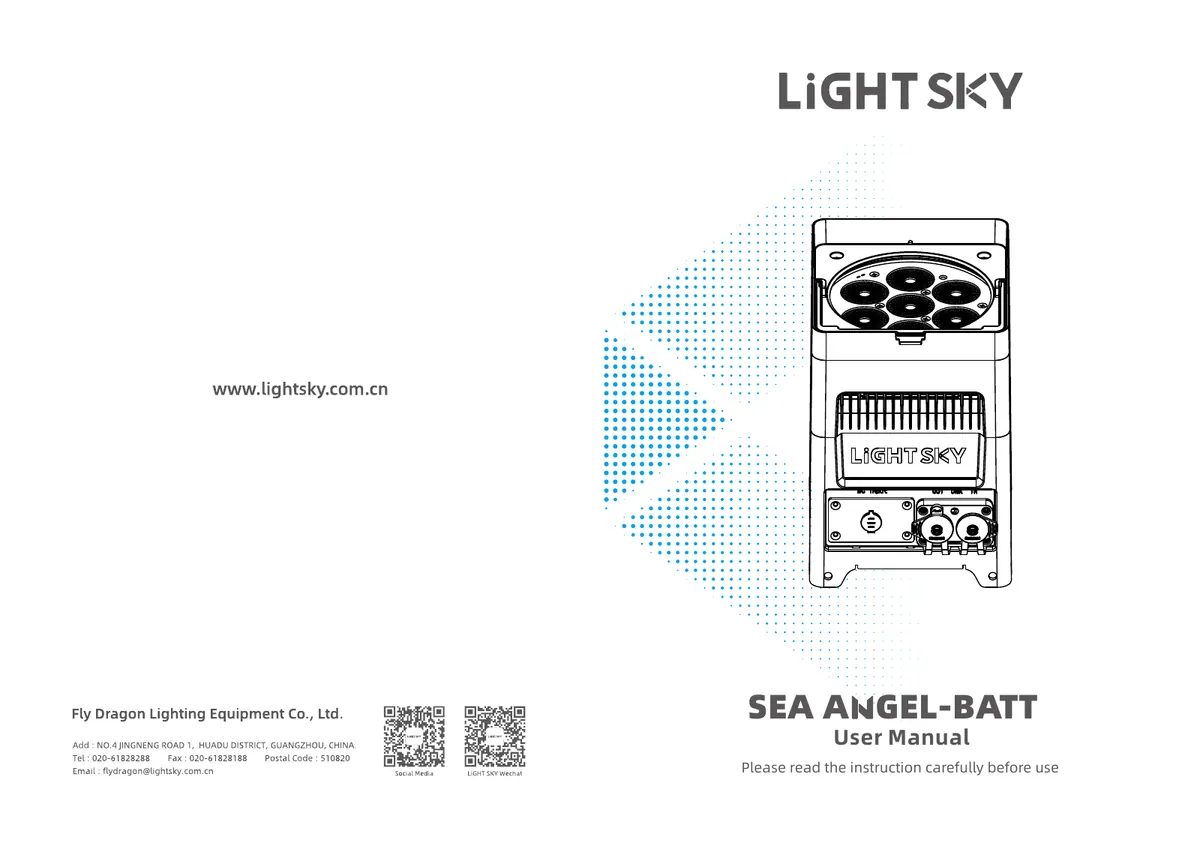

PDFUser manualEN · 23 pages · 4.0 MB

The manufacturer's published values. We confirm the configuration and the values that matter for your project before an order.

01Light source and Optics11

Light source: 7×18W RGBALC LED
10°Lens: Beam Angle:14°, Field Angle:23°
Illuminance: 1,023 lx@ 5m, Lumem Output:1, 962 lm
25°Lens: Beam Angle:22°, Field Angle:41°
Illuminance: 384 lx@ 5m, Lumem Output:1, 905 lm
Lens Angle: 10°、(optional: 25°, 40° )
Diffuser: LSD20/LSD30/LSD40/LSD601
Colour Temperature Output: 1800K – 10000K
CRI (Ra): Ra up to 95
Light Source Theory Life Span: 30,000 h; LiGHTSKY Colorfy Calibration

02Effects10

Color Mixing System: RGBALC color mixing system with uniform output and; flicker-free performance
Dimming: 16-bit, 0–100% linear dimming with four selectable dimming curves;
LED refresh rate: 1800 Hz – 25 kHz.
Multiple preset color temperature effects for direct use in various applications: 1800K–10000K linear CCT adjustment, channel control enables saturation adjustment; of the selected color temperature.
HSI Control: Preset HSI function for faster and more accurate linear hue transitions,; with linear saturation adjustment
Color Presets: 46 international color presets, 16 local color presets
Strobe: 1-25 times per second

03Control and Programming5

Control Channels: 13CH,5CH, see channel chart for details
Control Protocols: DMX512, RDM, Wireless control, remote controller
Wireless DMX: Supports CRMX Classic, CRMX2, W-DMX G3, G4, G4S and G5 protocols
Data Connection: 3-pin or 5-pin XLR In/Out
Display: OLED display

04Software2

Software upgrade: via DMX interface
Temperature control: Intelligent system for LED lifespan

Show the full specificationHide the rest of the specification6 more groups · 39 values

05Power and Electrical8

Charger Input Voltage Range: AC 100-240V 50/60Hz
Charger Output Voltage: DC 33.6V
Max Power Consumption: 70W
Note: ① Actual LED power consumption: 60W
②Maximum fixture power consumption: 70W; (when charging only or when operating while charging)
Power Factor: 0.97
Maximum Current: 0.32A/220V;0.7A/100V

06Battery10

Battery Capacity: 28.8 V, 5000 mAh
Maximum Runtime (Full Output): Up to 4 hours
Maximum Runtime (Single Color): Up to 12 hours
Charging Temperature: 5°C -35°C
Charging Time: 2.5 hours
Battery Lifetime: 80% capacity remaining after 300 charge/discharge cycles
Note: ① Below 5°C, battery protection disables charging; operation only; ② The fixture must be powered off to fully charge the battery; charging during operation may prevent the battery from reaching full capacity
Important Information: ① Store the fixture in a cool, dry place at 0°C–30°C. For long-term storage, recharge and discharge the battery every 3–6 months and maintain a charge level of 60%–80%.; ② Recharge the battery promptly after use and always use the dedicated charger.

07Size and Weight6

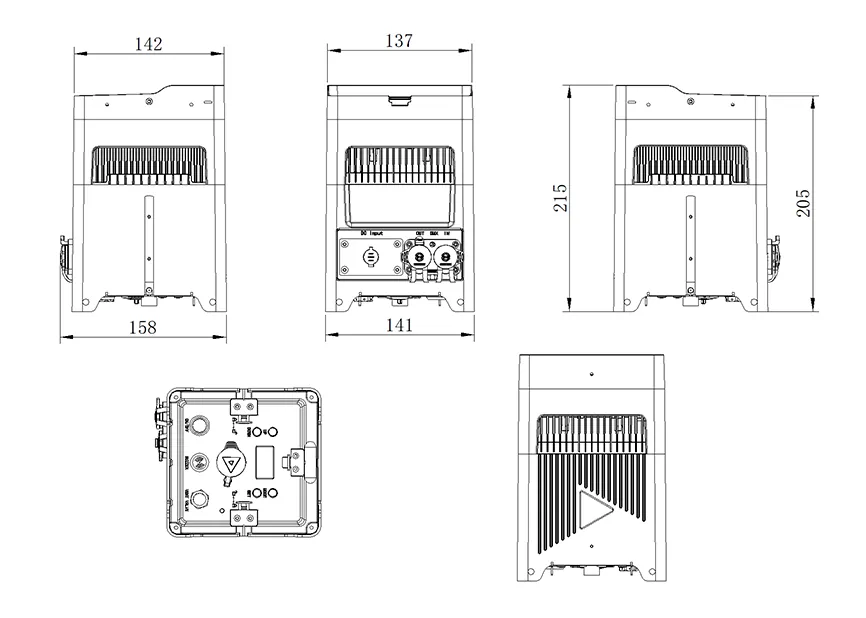

Product dimensions: 158mm × 141mm × 215mm
Net weight: 4.3kg
Carton packaging (1 in 1): 340mm × 230mm × 345mm
Gross weight: 5.6kg
Carton packaging (6 in 1): 720mm × 720mm × 370mm
Gross weight(6 in 1): 36.8kg

08Other3

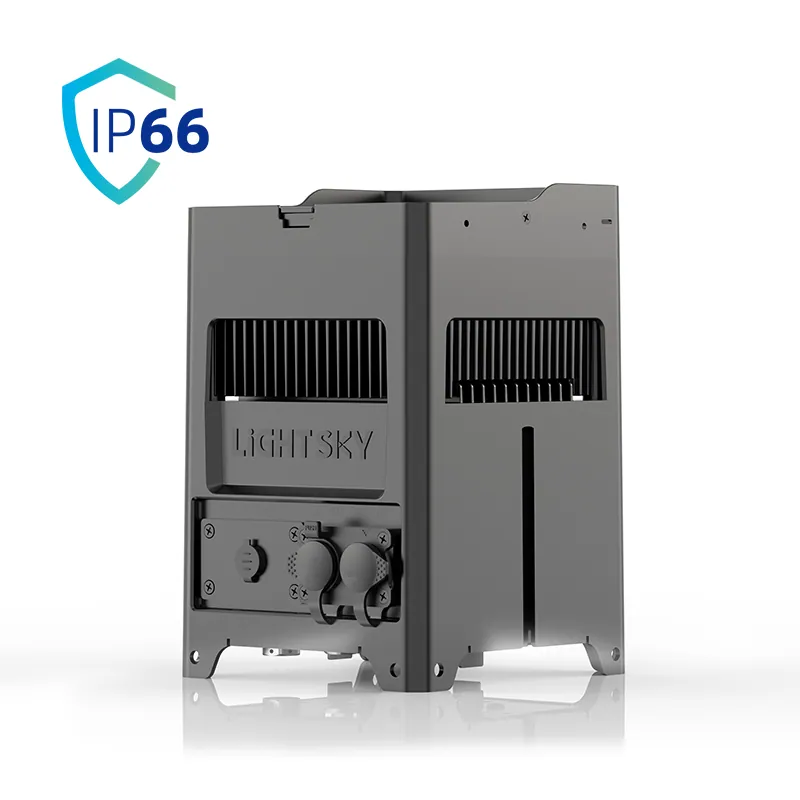

Protection Level: IP66
Operating Environment: -10°C – 40°C
Maximum Surface Temperature: 70°C

09Factory Configuration3

Waterproof power cable: 1 pc
Waterproof signal cable: 1 pc
Remote controller: 1 pc

10Optional Accessories/Packaging9

Barn door: 1 option
Diffuser filters: 3 options (require diffuser holder)

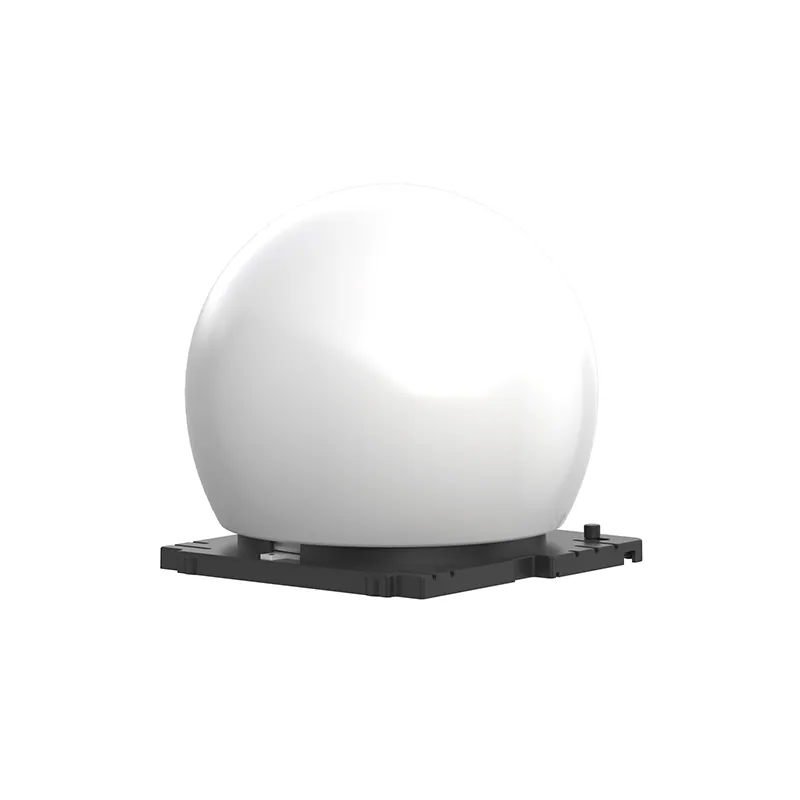

Dome diffuser: 1 set (requires diffuser holder)
(Note: The Barndoor, Frost Filter, and Dome Diffuser are for upright installation only. Do not use these accessories when the fixture is suspended, side-mounted, or angled.)
Mounting: Clamp 1pc (Compatible with tubes of Ø38–52 mm), folding bracket 1 set, and safety cable 1 pc
Housing: 3 colors options
Flight Case (with charging function): B0101560001
Packaging(Fly case): 700mm × 550mm × 465mm
Gross weight(6 in 1): 58.4kg

02DescriptionManufacturer's description

What it is.

OUTDOOR LED PAR LIGHT

FEATURES

▪ It is equipped with a built-in lithium battery, providing up to 4 hours of runtime in default mode, and supports Socket + Battery Version and Battery Version.

▪ With 122 preset color filters, a CRI of Ra ≥95, and rich, pure color output, it also adopts the self-developed iCC™ LiGHTSKY Colorfy Calibration.

▪ Rated IP66, SEA ANGEL is suitable for camping, gatherings, and other outdoor applications.
